Identify the repeating figures and a transformation in the tessellation.

A repeated combination of an octagon and one adjoining square will completely cover the plane without gaps or overlap. . The arrow shows a translation. Tessellations. LESSON 9-7. Additional Examples. Identify the repeating figures and a transformation in the tessellation. Quick Check.

janina
Télécharger la présentation

Identify the repeating figures and a transformation in the tessellation.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

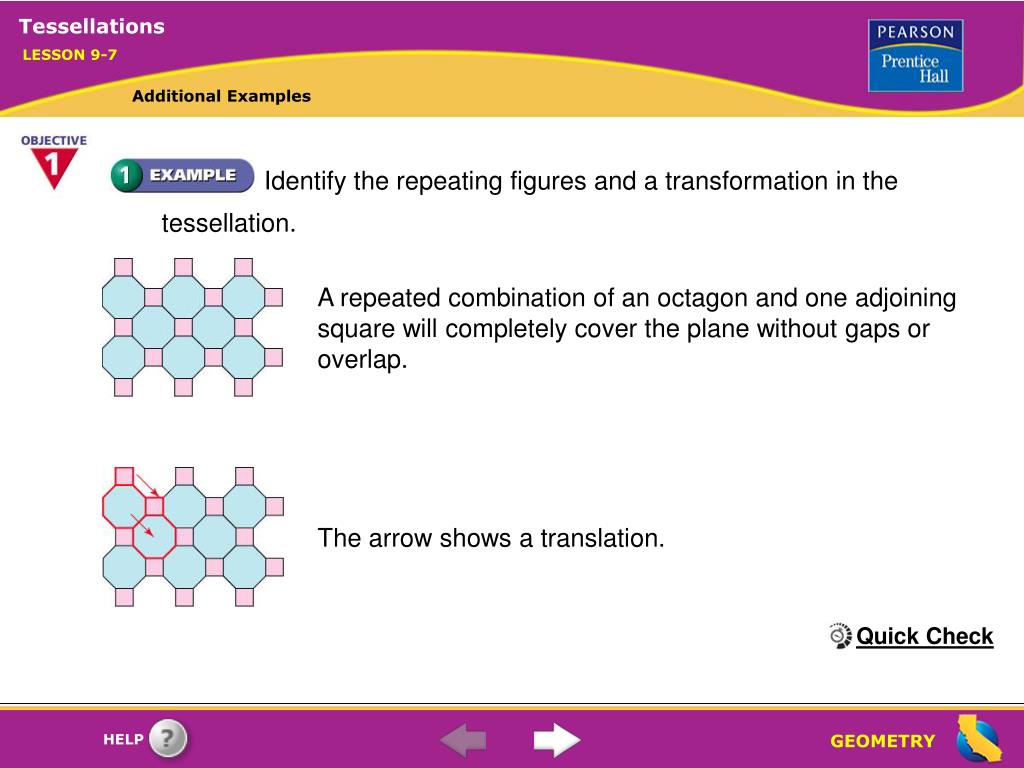

  1. A repeated combination of an octagon and one adjoining square will completely cover the plane without gaps or overlap. The arrow shows a translation. Tessellations LESSON 9-7 Additional Examples Identify the repeating figures and a transformation in the tessellation. Quick Check

  2. Use the formula for the measure of an angle of a regular polygon. 180 (15 – 2) 15 180 (n – 2) n a = a = Substitute 15 for n. a = 156 Simplify. Tessellations LESSON 9-7 Additional Examples Quick Check Determine whether a regular 15-gon tessellates a plane. Explain. Because the figures in a tessellation do not overlap or leave gaps, the sum of the measures of the angles around any vertex must be 360°. Check to see whether the measure of an angle of a regular 15-gon is a factor of 360. Because 156 is not a factor of 360, a regular 15-gon will not tessellate a plane.

  3. Starting at any vertex, the tessellation can be mapped onto itself using a 180° rotation, so the tessellation has point symmetry centered at any vertex. The tessellation also has translational symmetry, as can be seen by sliding any triangle onto a copy of itself along any of the lines. Tessellations LESSON 9-7 Additional Examples List the symmetries in the tessellation. Quick Check
