  1. Demand ResponseStatus Report Calvin Opheim October 9, 2007

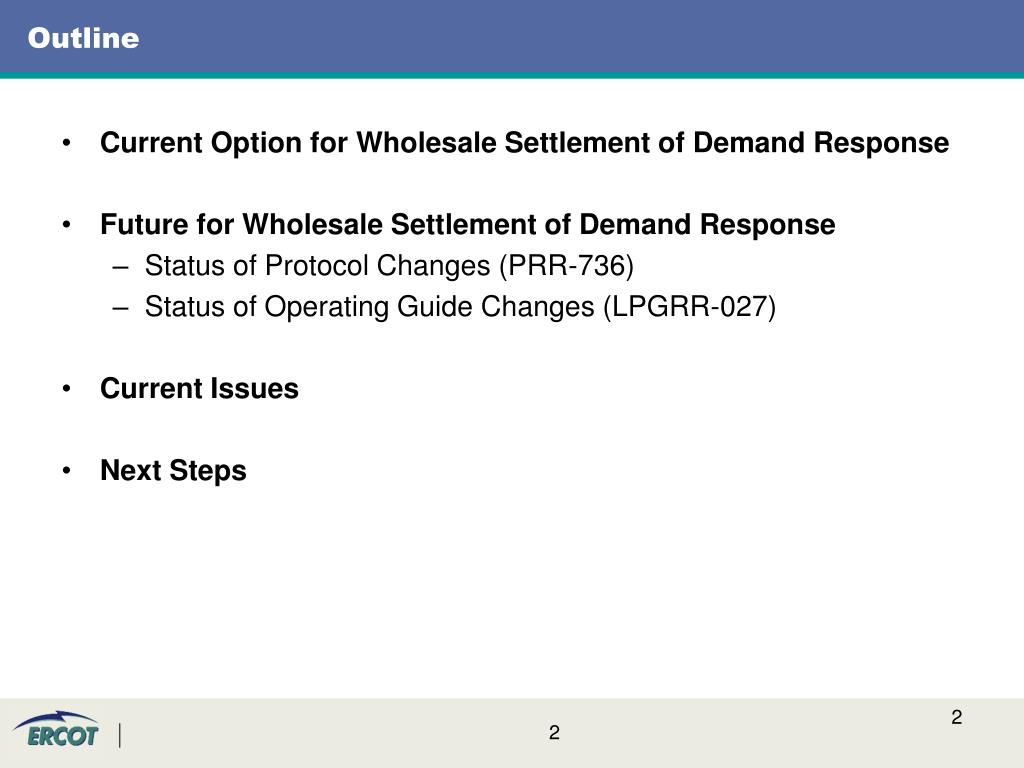

  2. Outline • Current Option for Wholesale Settlement of Demand Response • Future for Wholesale Settlement of Demand Response • Status of Protocol Changes (PRR-736) • Status of Operating Guide Changes (LPGRR-027) • Current Issues • Next Steps

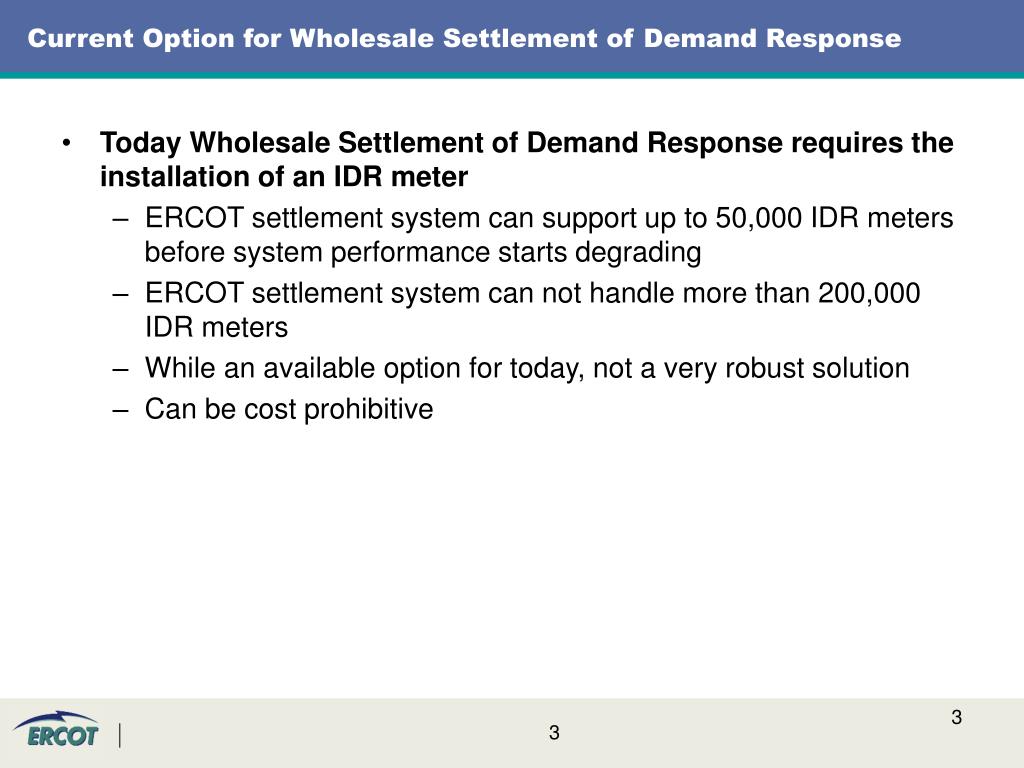

  3. Current Option for Wholesale Settlement of Demand Response • Today Wholesale Settlement of Demand Response requires the installation of an IDR meter • ERCOT settlement system can support up to 50,000 IDR meters before system performance starts degrading • ERCOT settlement system can not handle more than 200,000 IDR meters • While an available option for today, not a very robust solution • Can be cost prohibitive

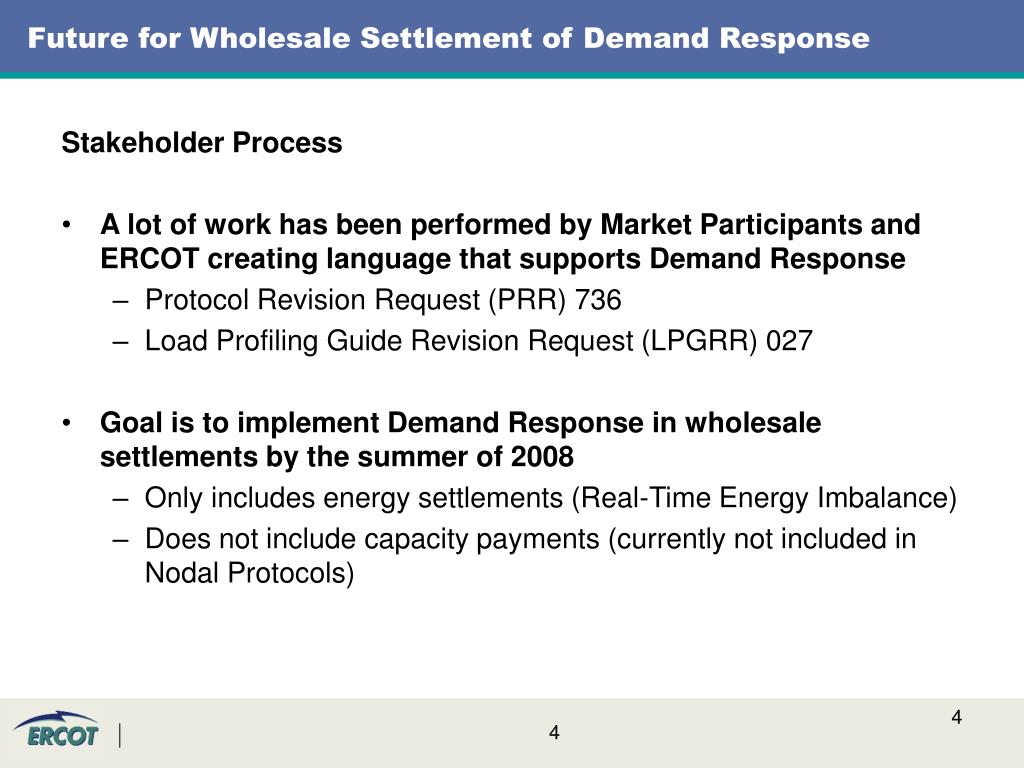

  4. Future for Wholesale Settlement of Demand Response Stakeholder Process • A lot of work has been performed by Market Participants and ERCOT creating language that supports Demand Response • Protocol Revision Request (PRR) 736 • Load Profiling Guide Revision Request (LPGRR) 027 • Goal is to implement Demand Response in wholesale settlements by the summer of 2008 • Only includes energy settlements (Real-Time Energy Imbalance) • Does not include capacity payments (currently not included in Nodal Protocols)

  5. PRR-736 and LPGRR-027 Key Points • Need a more timely approach for creating Demand Response load profiles than using load profile models • Currently all load profiles are based on models • Need to determine sample • Requires approximately 2+ years worth of data to calibrate model • Can take years before the model is ready to use in Wholesale settlements

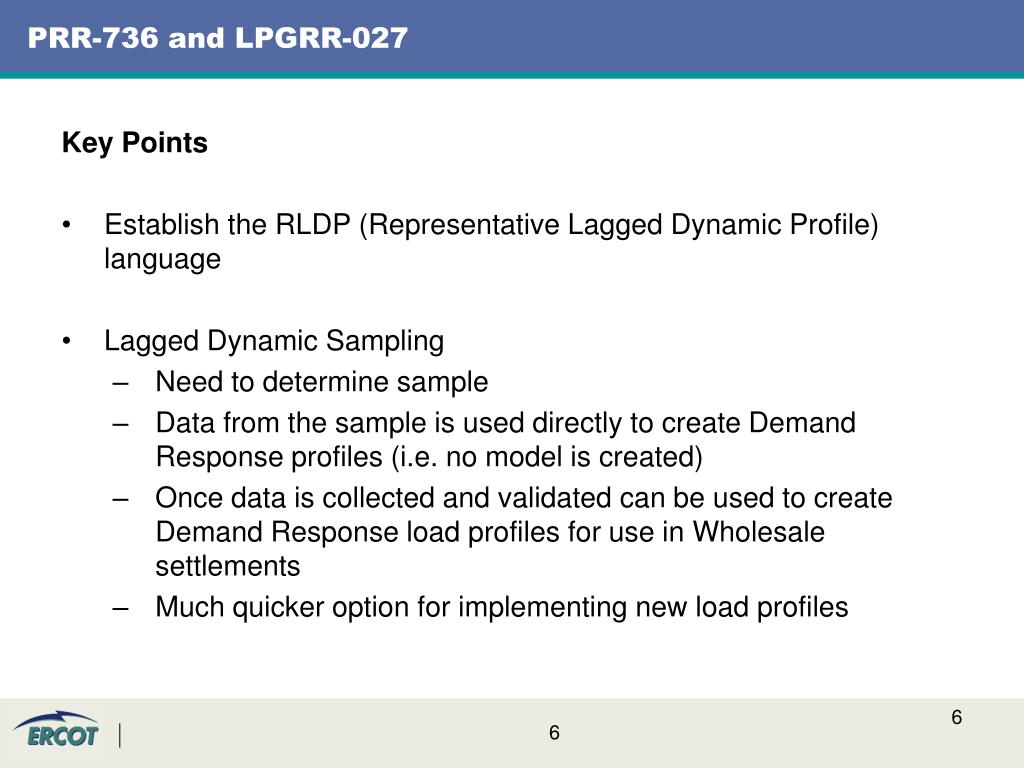

  6. PRR-736 and LPGRR-027 Key Points • Establish the RLDP (Representative Lagged Dynamic Profile) language • Lagged Dynamic Sampling • Need to determine sample • Data from the sample is used directly to create Demand Response profiles (i.e. no model is created) • Once data is collected and validated can be used to create Demand Response load profiles for use in Wholesale settlements • Much quicker option for implementing new load profiles

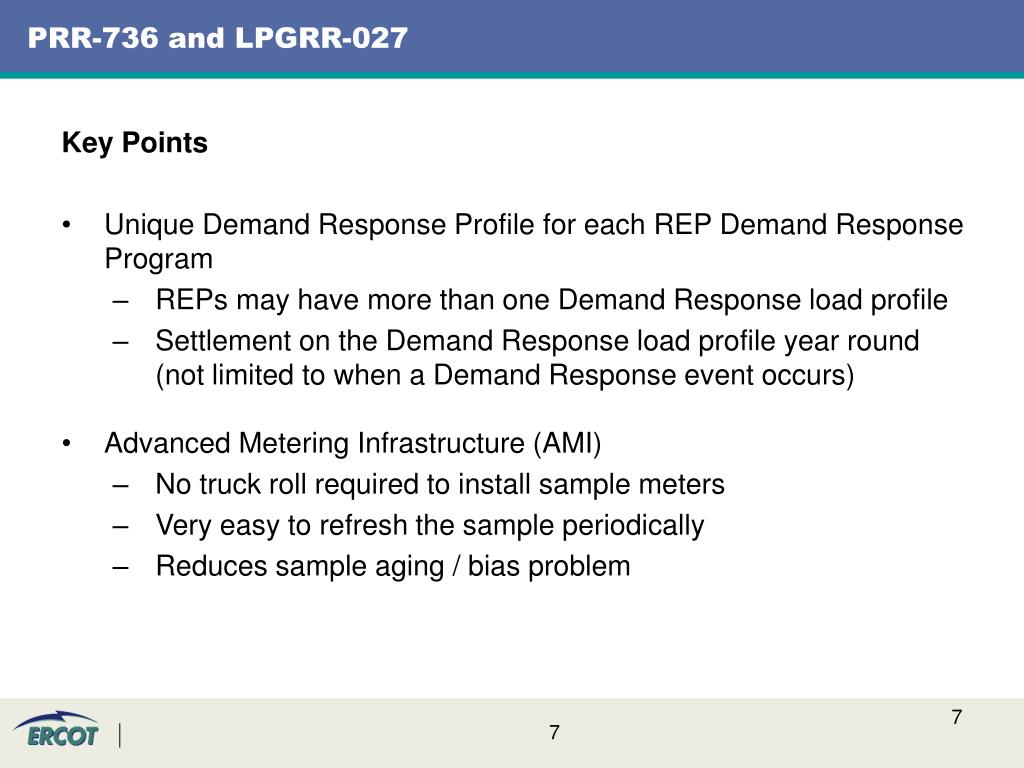

  7. PRR-736 and LPGRR-027 Key Points • Unique Demand Response Profile for each REP Demand Response Program • REPs may have more than one Demand Response load profile • Settlement on the Demand Response load profile year round (not limited to when a Demand Response event occurs) • Advanced Metering Infrastructure (AMI) • No truck roll required to install sample meters • Very easy to refresh the sample periodically • Reduces sample aging / bias problem

  8. Protocol Revision Request (PRR) 736 • Revised Protocol language has been developed through the market stakeholder process • PRR was drafted by the Profile Working Group (PWG) • PRR was endorsed by Commercial Operations Subcommittee (COPS) in August • Will be reviewed by Protocol Revision Subcommittee (PRS) in October • If approved by PRS the next steps are determining the Cost Benefit Analysis (CBA) and the Impact Analysis (IA)

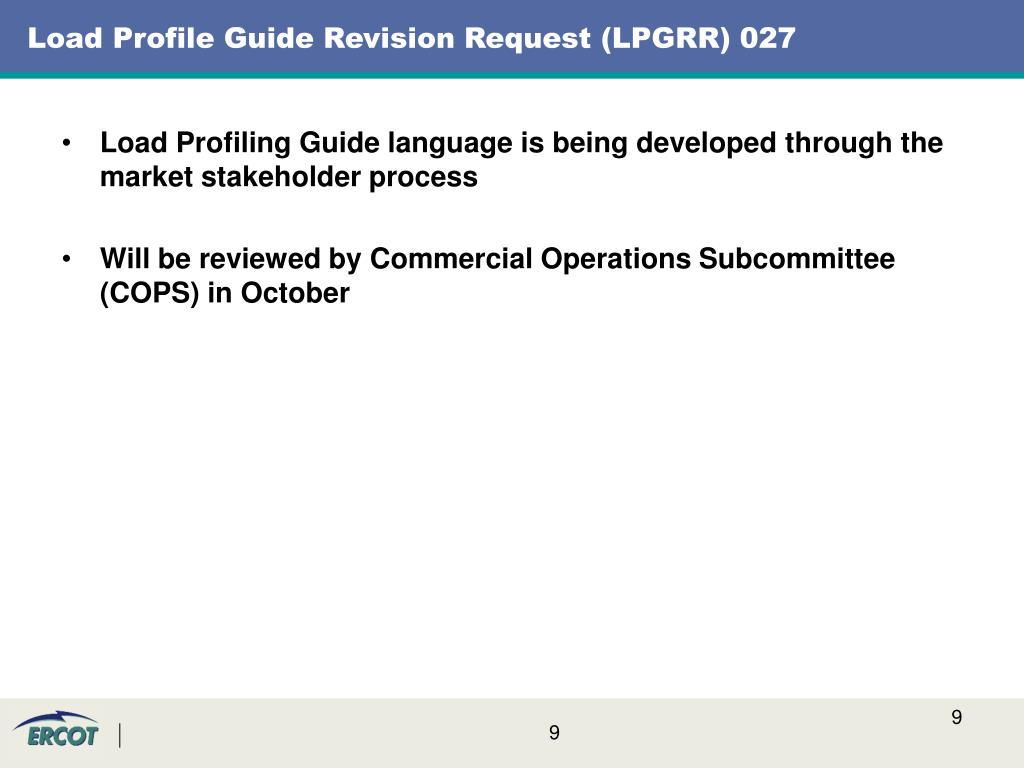

  9. Load Profile Guide Revision Request (LPGRR) 027 • Load Profiling Guide language is being developed through the market stakeholder process • Will be reviewed by Commercial Operations Subcommittee (COPS) in October

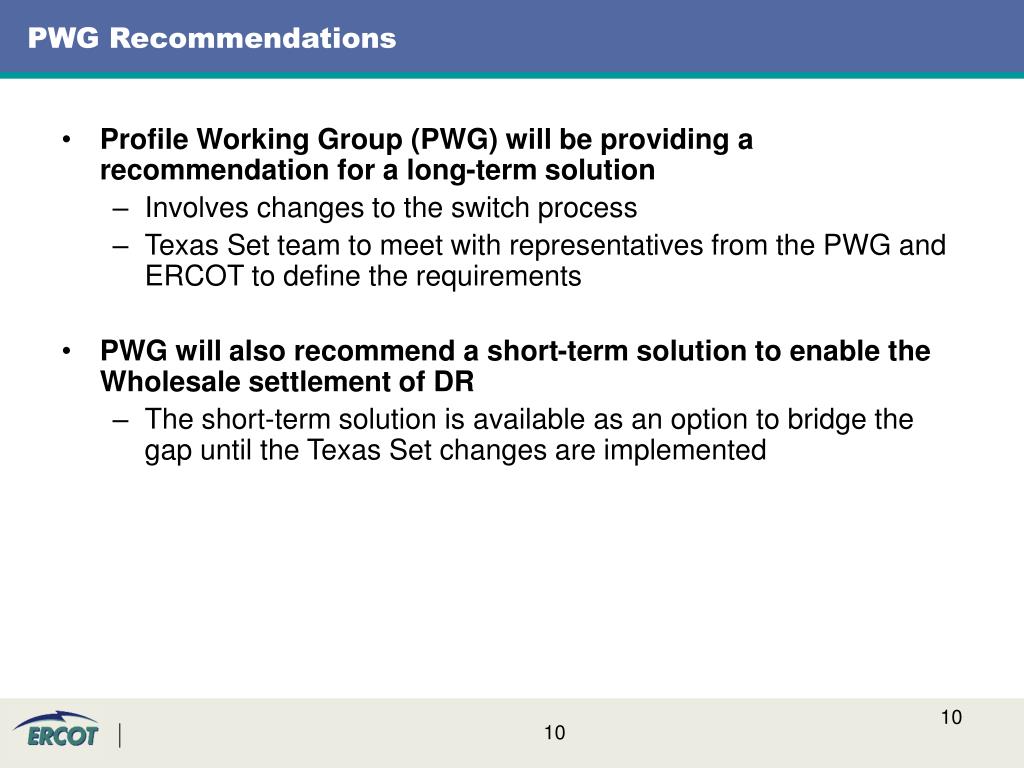

  10. PWG Recommendations • Profile Working Group (PWG) will be providing a recommendation for a long-term solution • Involves changes to the switch process • Texas Set team to meet with representatives from the PWG and ERCOT to define the requirements • PWG will also recommend a short-term solution to enable the Wholesale settlement of DR • The short-term solution is available as an option to bridge the gap until the Texas Set changes are implemented

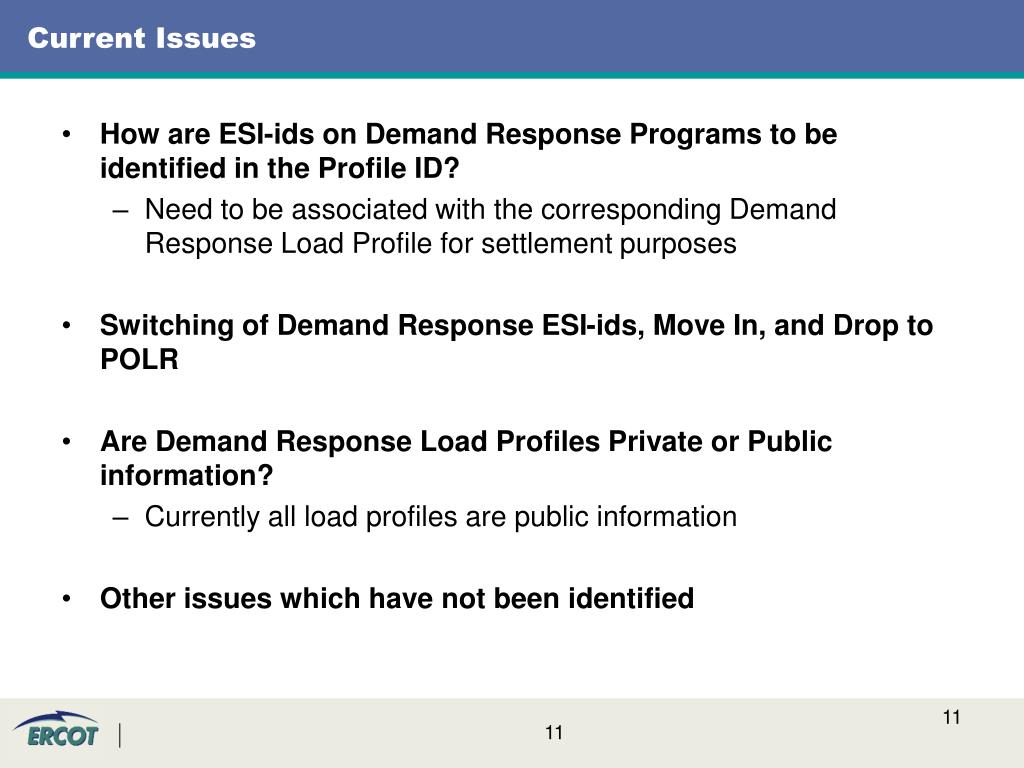

  11. Current Issues • How are ESI-ids on Demand Response Programs to be identified in the Profile ID? • Need to be associated with the corresponding Demand Response Load Profile for settlement purposes • Switching of Demand Response ESI-ids, Move In, and Drop to POLR • Are Demand Response Load Profiles Private or Public information? • Currently all load profiles are public information • Other issues which have not been identified

  12. Profile ID Review

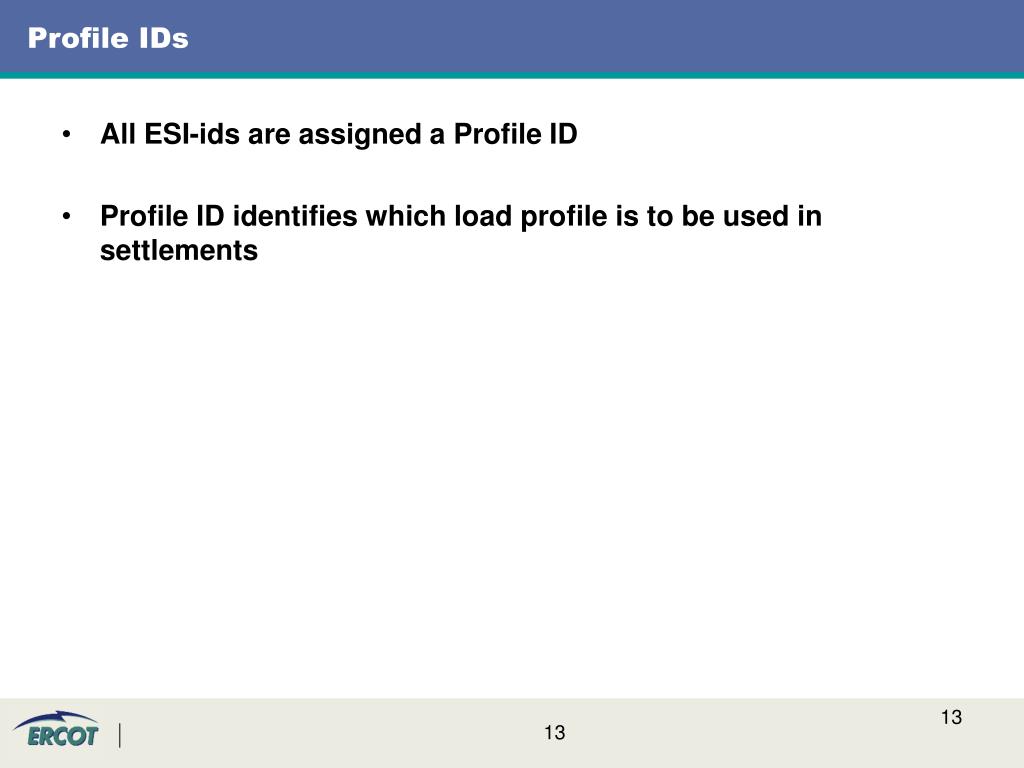

  13. Profile IDs • All ESI-ids are assigned a Profile ID • Profile ID identifies which load profile is to be used in settlements

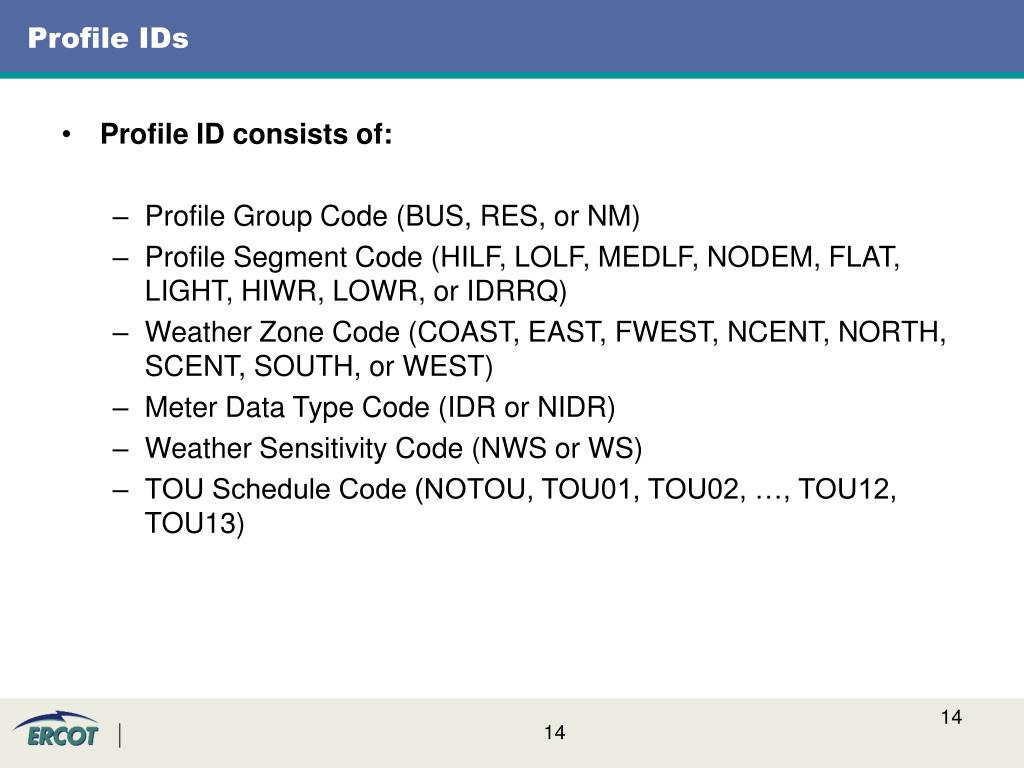

  14. Profile IDs • Profile ID consists of: • Profile Group Code (BUS, RES, or NM) • Profile Segment Code (HILF, LOLF, MEDLF, NODEM, FLAT, LIGHT, HIWR, LOWR, or IDRRQ) • Weather Zone Code (COAST, EAST, FWEST, NCENT, NORTH, SCENT, SOUTH, or WEST) • Meter Data Type Code (IDR or NIDR) • Weather Sensitivity Code (NWS or WS) • TOU Schedule Code (NOTOU, TOU01, TOU02, …, TOU12, TOU13)

  15. Profile Ids - Examples • Examples of valid Profile Ids: RESHIWR_COAST_NIDR_NWS_NOTOU RESLOWR_SCENT_NIDR_NWS_NOTOU

  16. Profile IDs • Examples of valid Profile Ids: RESHIWR_COAST_NIDR_NWS_NOTOU RESLOWR_SCENT_NIDR_NWS_NOTOU Profile Group Code

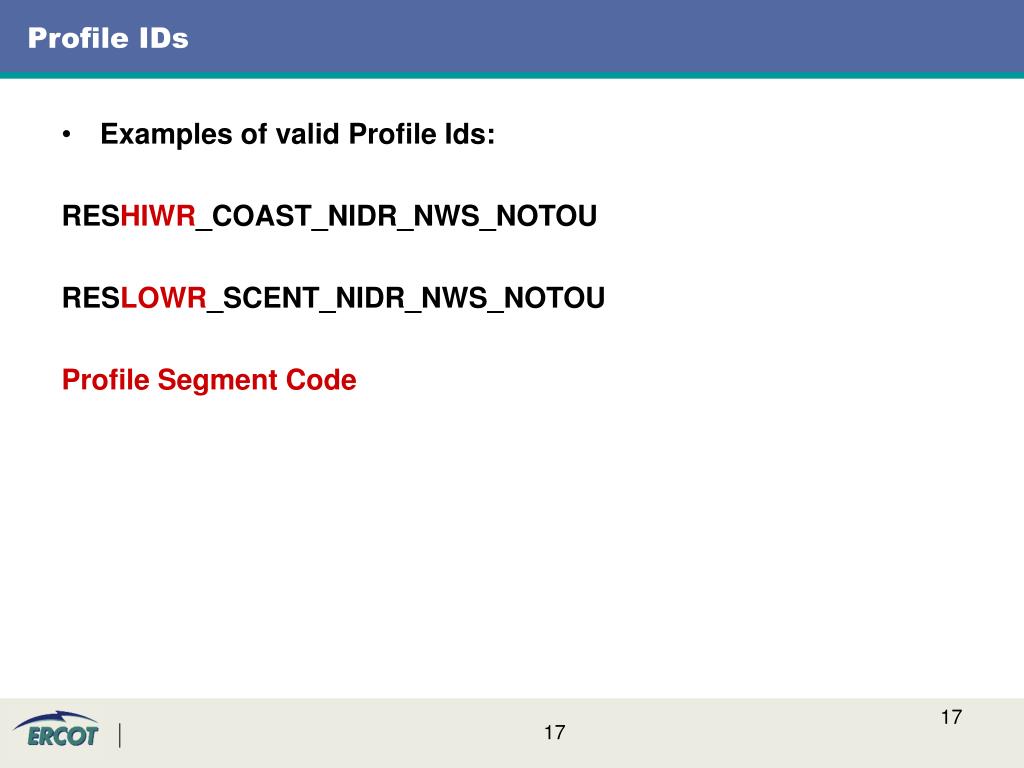

  17. Profile IDs • Examples of valid Profile Ids: RESHIWR_COAST_NIDR_NWS_NOTOU RESLOWR_SCENT_NIDR_NWS_NOTOU Profile Segment Code

  18. Profile IDs • Examples of valid Profile Ids: RESHIWR_COAST_NIDR_NWS_NOTOU RESLOWR_SCENT_NIDR_NWS_NOTOU Weather Zone Code

  19. Profile IDs • Examples of valid Profile Ids: RESHIWR_COAST_NIDR_NWS_NOTOU RESLOWR_SCENT_NIDR_NWS_NOTOU Meter Data Type Code

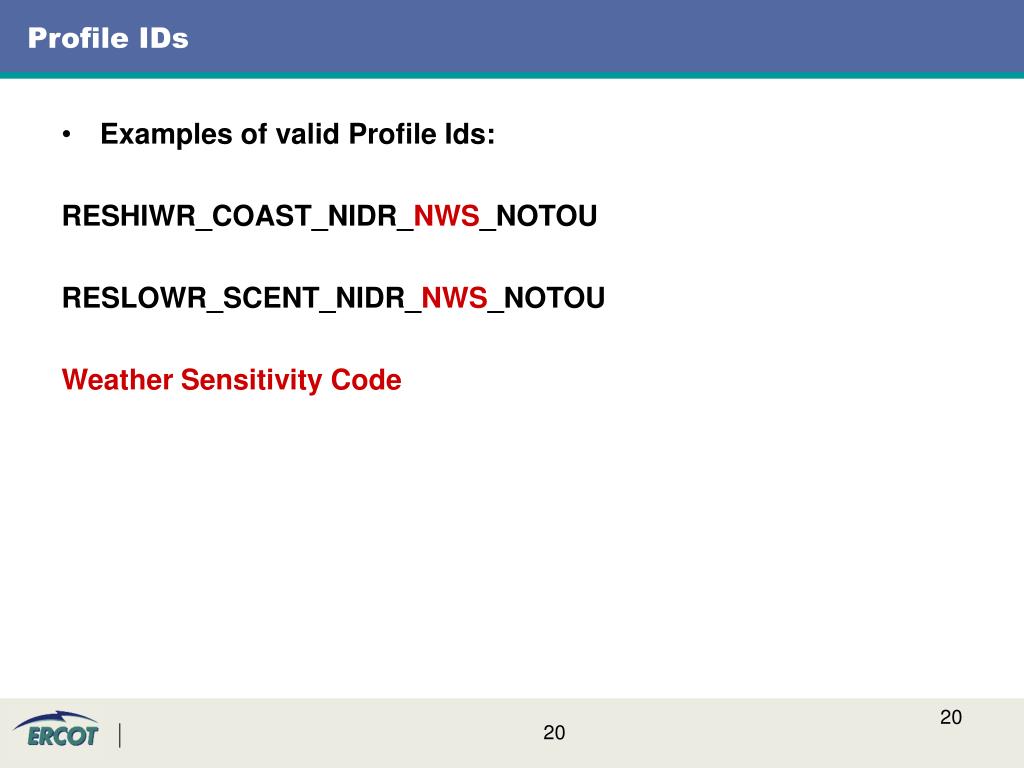

  20. Profile IDs • Examples of valid Profile Ids: RESHIWR_COAST_NIDR_NWS_NOTOU RESLOWR_SCENT_NIDR_NWS_NOTOU Weather Sensitivity Code

  21. Profile IDs • Examples of valid Profile Ids: RESHIWR_COAST_NIDR_NWS_NOTOU RESLOWR_SCENT_NIDR_NWS_NOTOU TOU Schedule Code

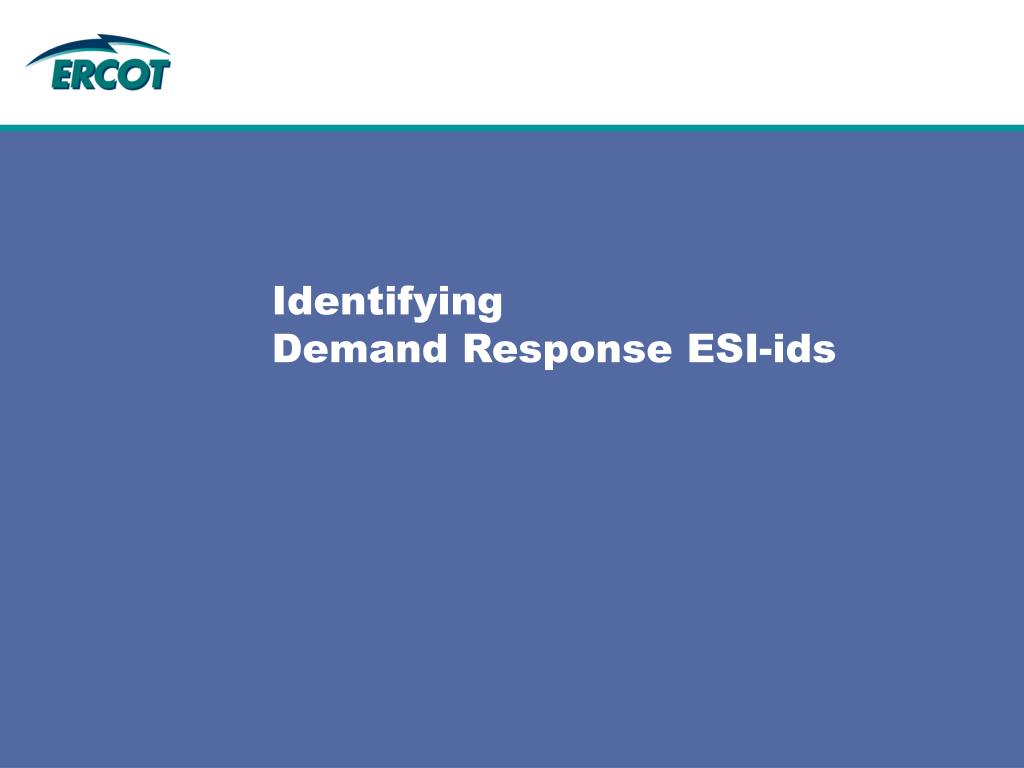

  22. Identifying Demand Response ESI-ids

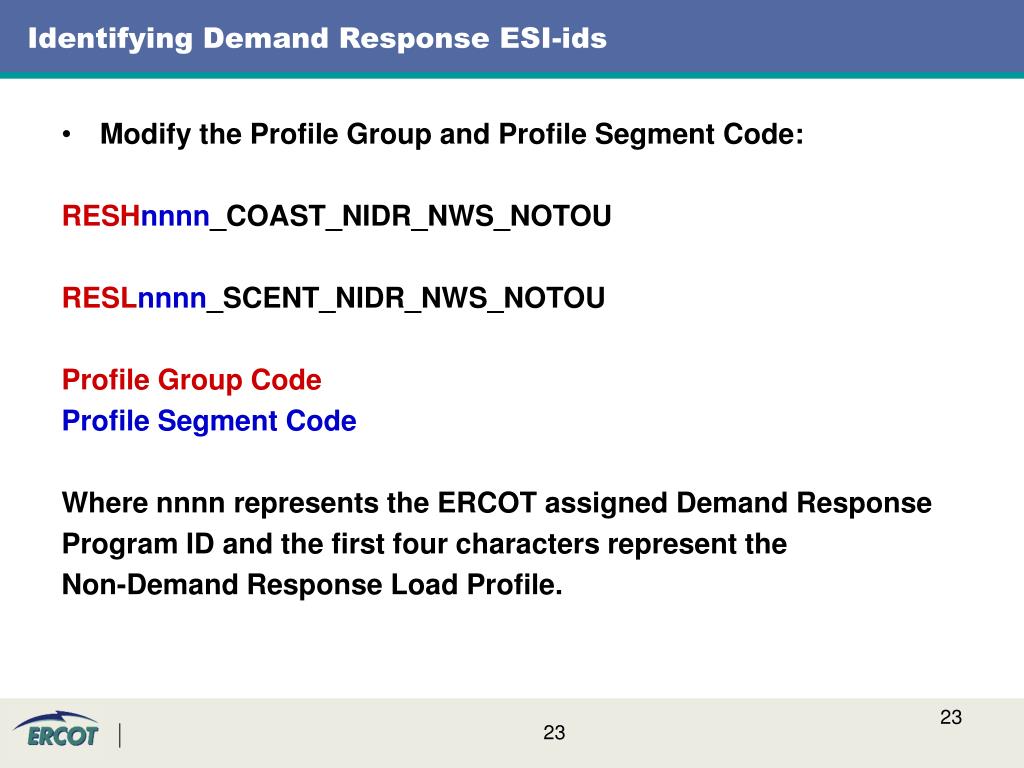

  23. Identifying Demand Response ESI-ids • Modify the Profile Group and Profile Segment Code: RESHnnnn_COAST_NIDR_NWS_NOTOU RESLnnnn_SCENT_NIDR_NWS_NOTOU Profile Group Code Profile Segment Code Where nnnn represents the ERCOT assigned Demand Response Program ID and the first four characters represent the Non-Demand Response Load Profile.

  24. Texas Set Transaction Considerations

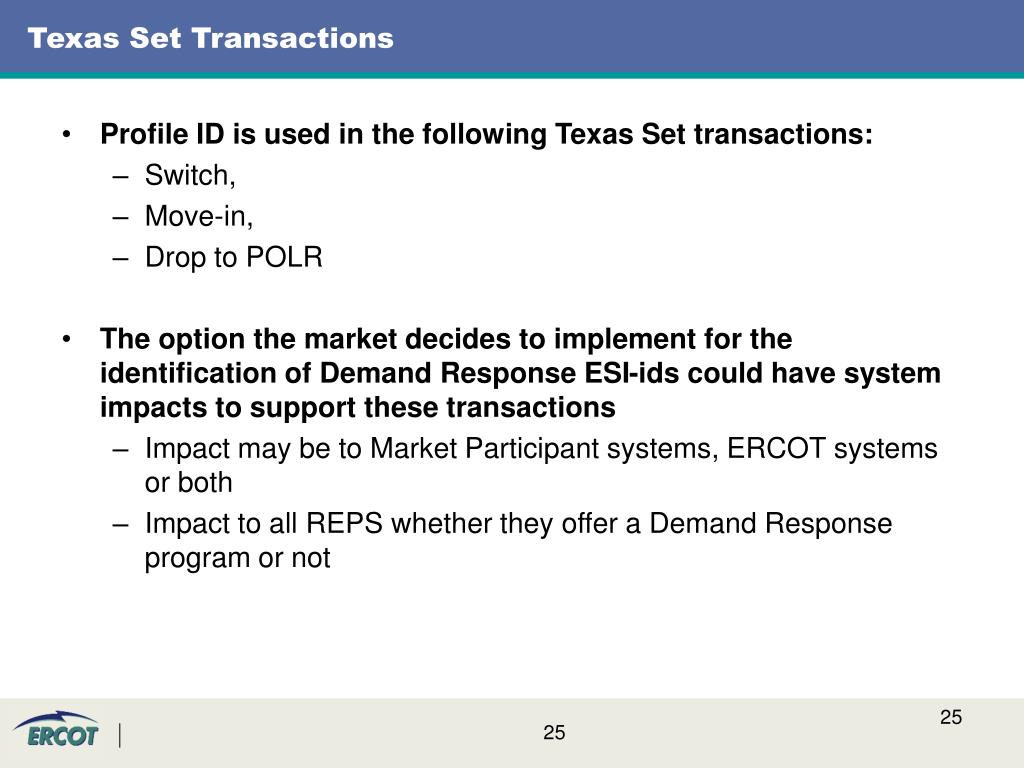

  25. Texas Set Transactions • Profile ID is used in the following Texas Set transactions: • Switch, • Move-in, • Drop to POLR • The option the market decides to implement for the identification of Demand Response ESI-ids could have system impacts to support these transactions • Impact may be to Market Participant systems, ERCOT systems or both • Impact to all REPS whether they offer a Demand Response program or not

  26. Texas Set Transactions • Proposed Long-Term Solution: Modify the business logic in the 814_04 (Premise Information) so that: • All ESI-ids that are on a Demand Response program that switch have their profile ID that is passed to the gaining CR changed to a non-demand response load profile • This should minimize any required system changes to CRs who don’t offer Demand Response programs

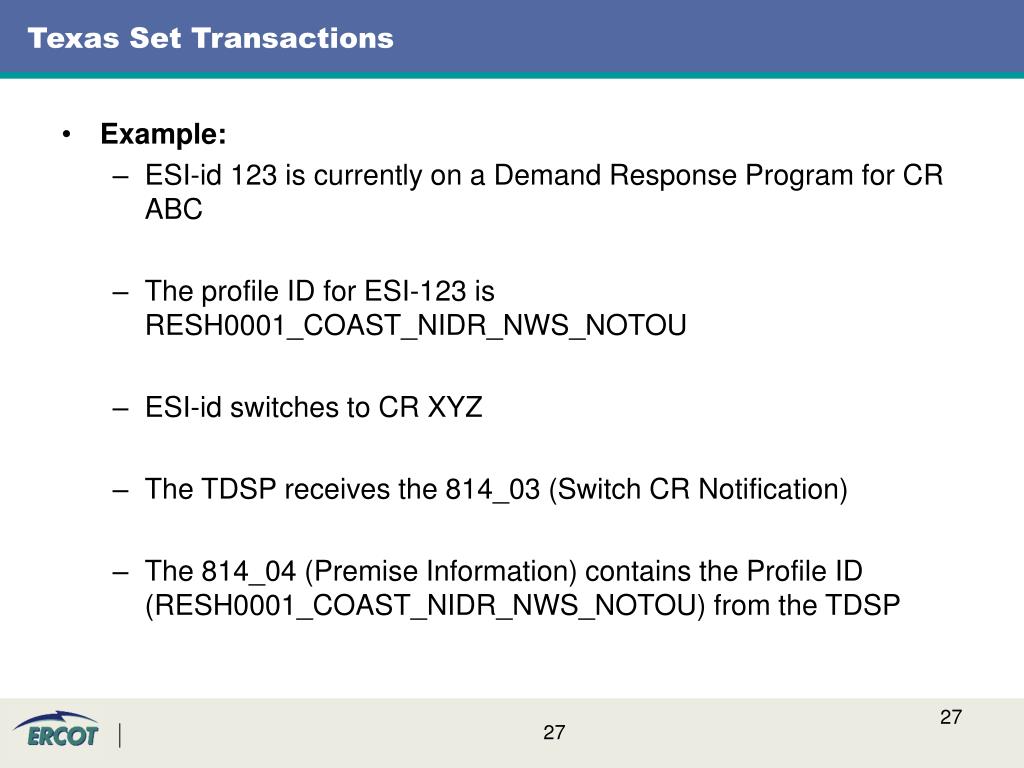

  27. Texas Set Transactions • Example: • ESI-id 123 is currently on a Demand Response Program for CR ABC • The profile ID for ESI-123 is RESH0001_COAST_NIDR_NWS_NOTOU • ESI-id switches to CR XYZ • The TDSP receives the 814_03 (Switch CR Notification) • The 814_04 (Premise Information) contains the Profile ID (RESH0001_COAST_NIDR_NWS_NOTOU) from the TDSP

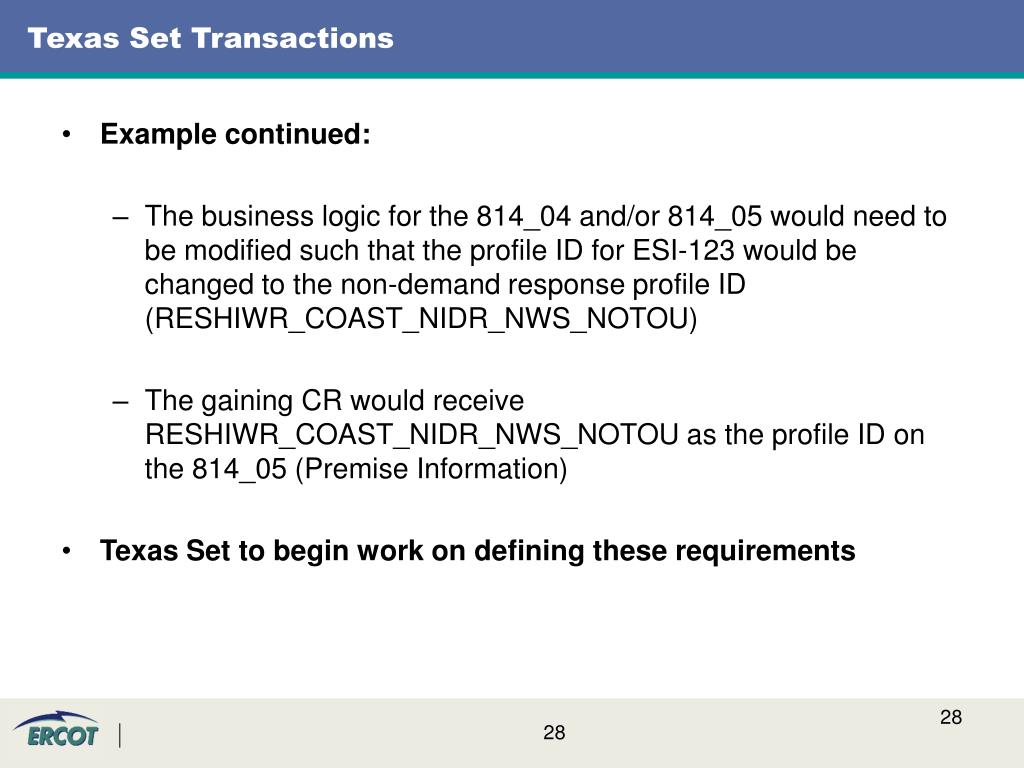

  28. Texas Set Transactions • Example continued: • The business logic for the 814_04 and/or 814_05 would need to be modified such that the profile ID for ESI-123 would be changed to the non-demand response profile ID (RESHIWR_COAST_NIDR_NWS_NOTOU) • The gaining CR would receive RESHIWR_COAST_NIDR_NWS_NOTOU as the profile ID on the 814_05 (Premise Information) • Texas Set to begin work on defining these requirements

  29. Are Demand Response Load Profiles Public or Private Information?

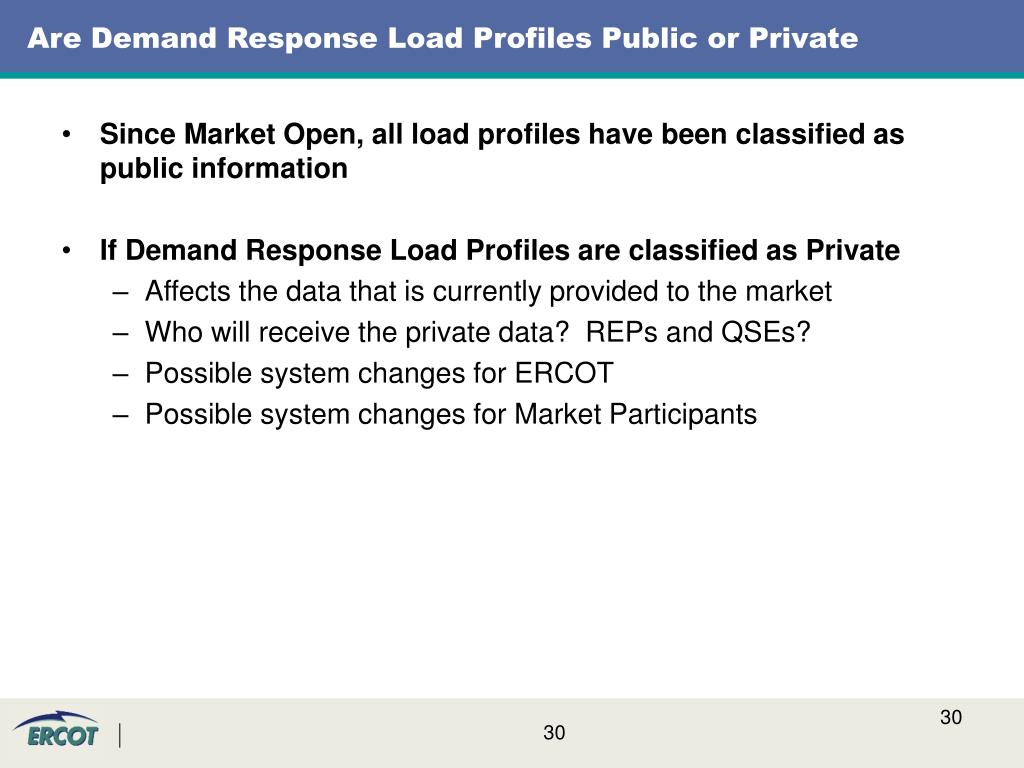

  30. Are Demand Response Load Profiles Public or Private • Since Market Open, all load profiles have been classified as public information • If Demand Response Load Profiles are classified as Private • Affects the data that is currently provided to the market • Who will receive the private data? REPs and QSEs? • Possible system changes for ERCOT • Possible system changes for Market Participants

  31. CCET Pilot

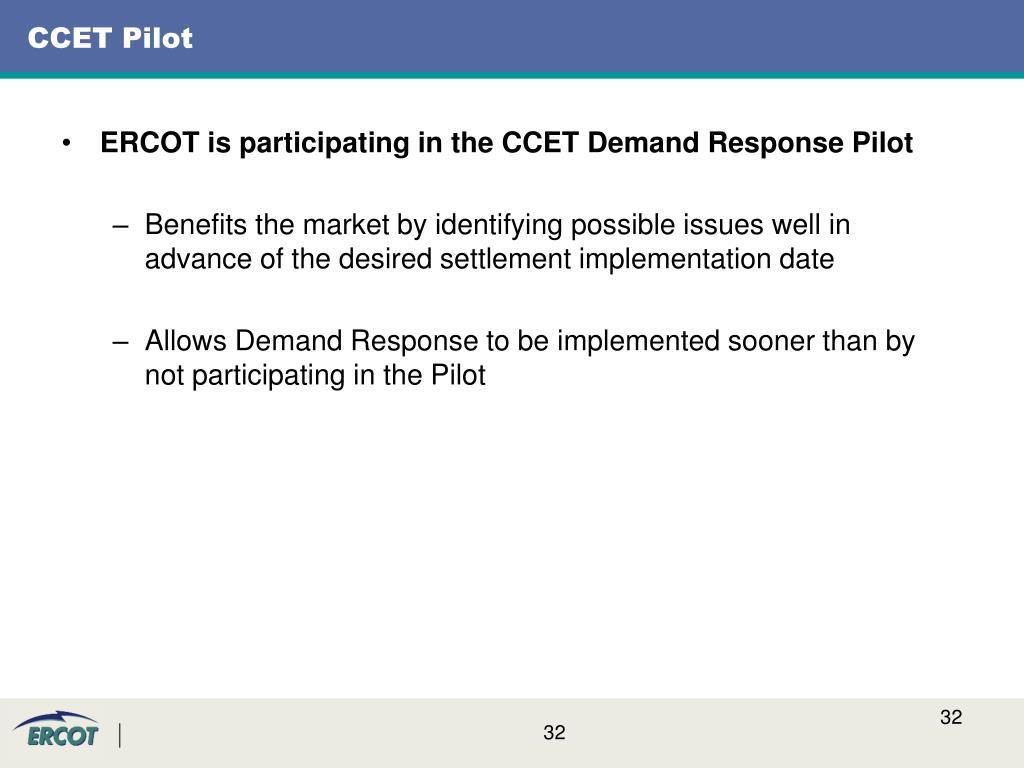

  32. CCET Pilot • ERCOT is participating in the CCET Demand Response Pilot • Benefits the market by identifying possible issues well in advance of the desired settlement implementation date • Allows Demand Response to be implemented sooner than by not participating in the Pilot

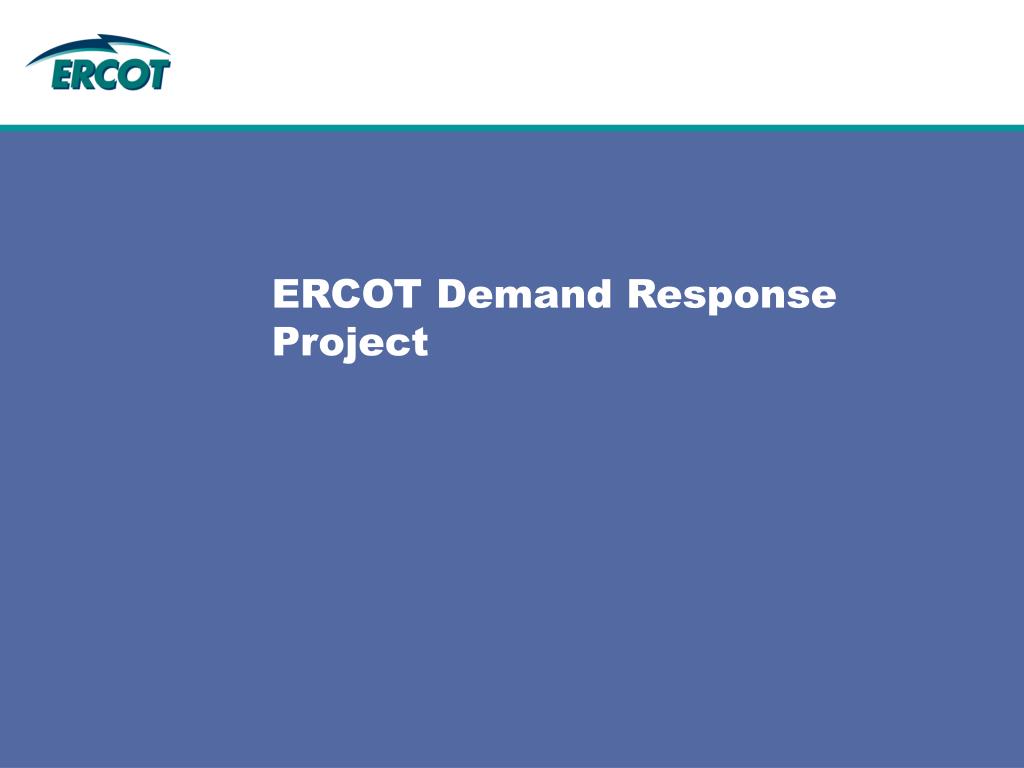

  33. ERCOT Demand Response Project

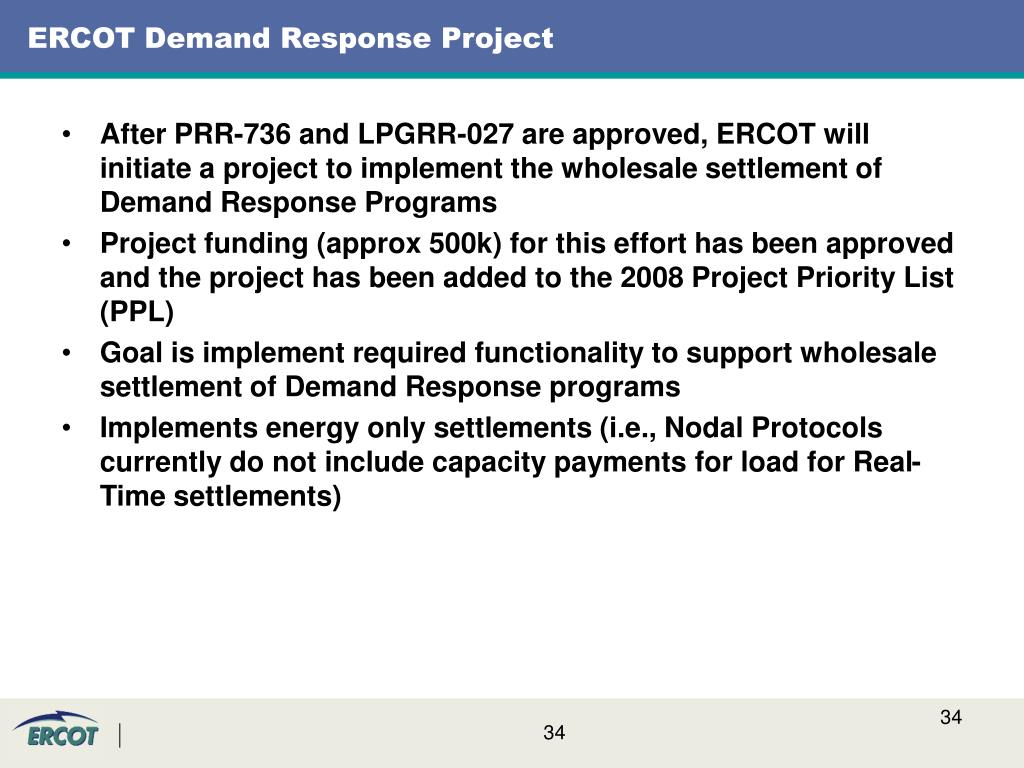

  34. ERCOT Demand Response Project • After PRR-736 and LPGRR-027 are approved, ERCOT will initiate a project to implement the wholesale settlement of Demand Response Programs • Project funding (approx 500k) for this effort has been approved and the project has been added to the 2008 Project Priority List (PPL) • Goal is implement required functionality to support wholesale settlement of Demand Response programs • Implements energy only settlements (i.e., Nodal Protocols currently do not include capacity payments for load for Real-Time settlements)

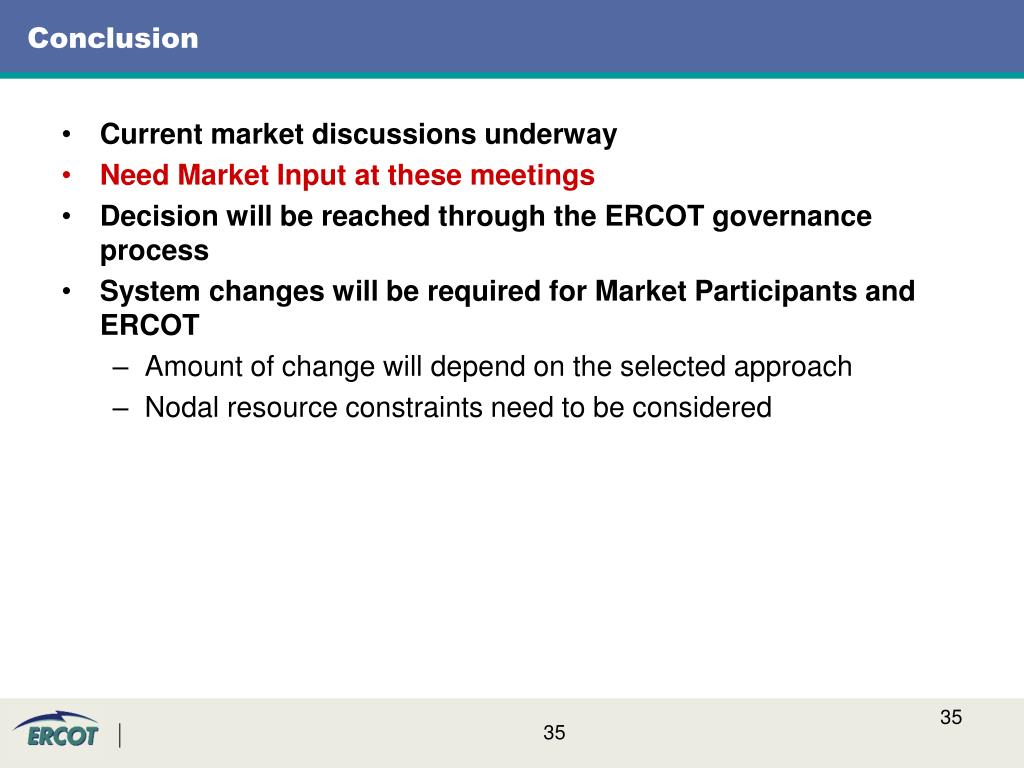

  35. Conclusion • Current market discussions underway • Need Market Input at these meetings • Decision will be reached through the ERCOT governance process • System changes will be required for Market Participants and ERCOT • Amount of change will depend on the selected approach • Nodal resource constraints need to be considered

  36. Questions? ON OFF
