  1. PPL Lecture 3 Slides by YaronGonen, based on slides by Daniel Deutch and lecture notes by Prof. Mira Balaban

  2. Warm-up Is this recursive or iterative? (define sum (lambda (n) (if (= n 0) 0 (+ (/ 1 (pow 2 n)) (sum (- n 1))))))

  3. The Iterative Version (define sum-iter (lambda (n prod) (if (= n 0) prod (sum-iter (- n 1) (+ prod (/ 1 (pow 2 n)))))))

  4. Today: High-Order Procedures In functional programming (hence, in Scheme) procedures have a first class status: • Pass procedures as arguments • Create them at runtime • Help in creating local-variables

  5. Motivation Example: sum-integers ;Signature: sum-integers(a,b) ;Purpose: to compute the sum of integers in the interval [a,b]. ;Type: [Number*Number -> Number] ;Post-conditions: result = a + (a+1) + ... + b. ;Example: (sum-integers 1 5) should produce 15 (define sum-integers (lambda (a b) (if (> a b) 0 (+ a (sum-integers (+ a 1) b)))))

  6. Motivation Example: sum-cubes ;Signature: sum-cubes(a,b) ;Purpose: to compute the sum of cubic powers of ;integers in the interval [a,b]. ;Type: [Number*Number -> Number] ;Post-conditions: result = a^3 + (a+1)^3 + ... + b^3. ;Example: (sum-cubes 1 3) should produce 36 (define sum-cubes (lambda (a b) (if (> a b) 0 (+ (cube a) (sum-cubes (+ a 1) b)))))

  7. Motivation Example: pi-sum (define pi-sum (lambda (a b) (if (> a b) 0 (+ (/ 1 (* a (+ a 2))) (pi-sum (+ a 4) b)))))

  8. Same Pattern (define <name> (lambda (a b) (if (> a b) 0 (+ (<term> a) (<name> (<next> a) b)))))

  9. Abstraction ;Signature: sum(term,a,next,b) ;Purpose: to compute the sum of terms, defined by <term> ;in predefined gaps, defined by <next>, in the interval [a,b]. ;Type: [[Num -> Num] * Num * [Num -> Num] * Num -> Num] ;Post-conditions: result = (term a) + (term (next a)) + ... (term n), ;where n = (next (next ...(next a))) =< b, ;(next n) > b. ;Example: (sum identity 1 add1 3) should produce 6, ;where ’identity’ is (lambda (x) x) (define sum (lambda (term a next b) (if (> a b) 0 (+ (term a) (sum term (next a) next b)))))

  10. Using the abstracted form (define id (lambda(x) x)) (define add1 (lambda (x) (+ x 1))) (define pi-term (lambda (x) (/ 1 (* x (+ x 2))))) (define pi-next (lambda (x) (+ x 4))) (define sum-integers (lambda (a b) (sum id a add1 b))) (define pi-sum (lambda (a b) (sum pi-term a pi-next b)))

  11. Advantages • Code reuse • Easier maintenance, understanding, debugging… • General interface • Expresses a well-defined concept • Allows for further abstraction (next slide)

  12. Sequence Operations ;Signature: … ;Type: [[Number*Number -> Number]*Number*Number*Number -> Number] ;… ;Example: (sequence-operation * 1 3 5) is 60 ;Tests: (sequence-operation + 0 2 2) ==> 2 (define sequence-operation (lambda (operation start a b) (if (> a b) start (operation a (sequence-operation operation start (+ a 1) b)))))

  13. Anonymous Procedures • λ forms evaluated during computation (no define) • Useful in many cases. (define pi-sum (lambda (a b) (sum (lambda (x) (/ 1 (* x (+ x 2)))) a (lambda (x) (+ x 4)) b)))

  14. Anonymous Procedures • Disadvantage: careless use may cause the same λ to reevaluate: (define sum-squares-iter (lambda (n sum) (if (= n 0) sum (sum-squares-iter (- n 1) (+ sum ((lambda (x) (* x x)) n))))))

  15. Scope and Binding • In a λ form every parameter has • Binding (declaration) • Occurrence • Scope: lexical scoping • In nested λ, things are a little tricky. • An occurrence without binding is called free • define is also declaration. Its scope is universal.

  16. Scope and Binding (lambda (f a b dx) (* (sum f (+ a (/ dx 2.0)) (lambda (x) (+ x dx)) b) dx))

  17. Local Variables • Essential programming technique: mostly used for saving repeated computation. • Can we use scoping to define local variables? Yes we can!

  18. Local Variables Consider the function: It is useful to define 2 local variables: a = 1+xy b = 1-y

  19. Local Variables

  20. Local Variables (define f (lambda (x y) ((lambda (a b) (+ (* x (square a)) (* y b) (* a b))) (+ 1 (* x y)) (- 1 y)) ))

  21. Let (define f (lambda ( x y) (let ((a (+ 1 (* x y))) (b (- 1 y))) (+ (* x (square a)) (* y b) (* a b)))))

  22. Let (let ( (<var1> <exp1>) (<var2> <exp2>) ... (<varn> <expn>) ) <body> )

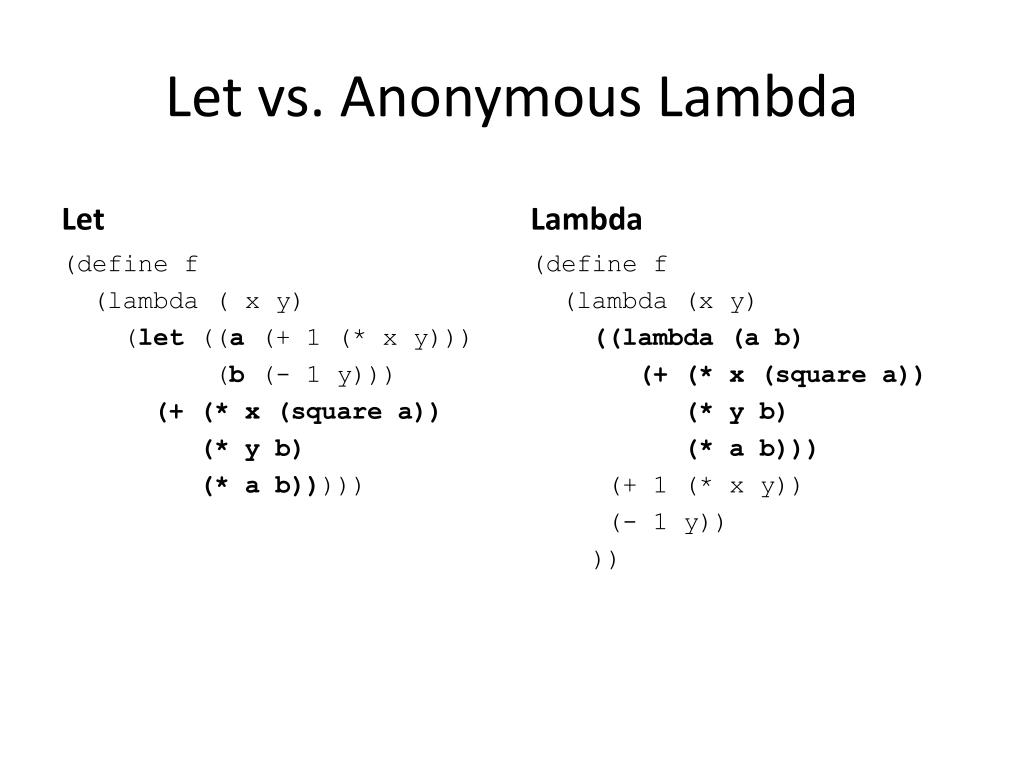

  23. Let vs. Anonymous Lambda Let Lambda (define f (lambda (x y) ((lambda (a b) (+ (* x (square a)) (* y b) (* a b))) (+ 1 (* x y)) (- 1 y)) )) (define f (lambda ( x y) (let ((a (+ 1 (* x y))) (b (- 1 y))) (+ (* x (square a)) (* y b) (* a b)))))

  24. Notes about Let • let provides variables (declaration and scope) • <expi> are in outer scope. • <body> is the scope. • Let variables are the binind.

  25. From Midterm 2008 • סמן את כל הבלוקים הלקסיקליים (scopes) בקטע הבא. • מהו הערך המוחזר? (let ((x 2)) (let ( (x 3) (y x) ) ((lambda (x y +) (+ x y)) (- x y) x *)))
