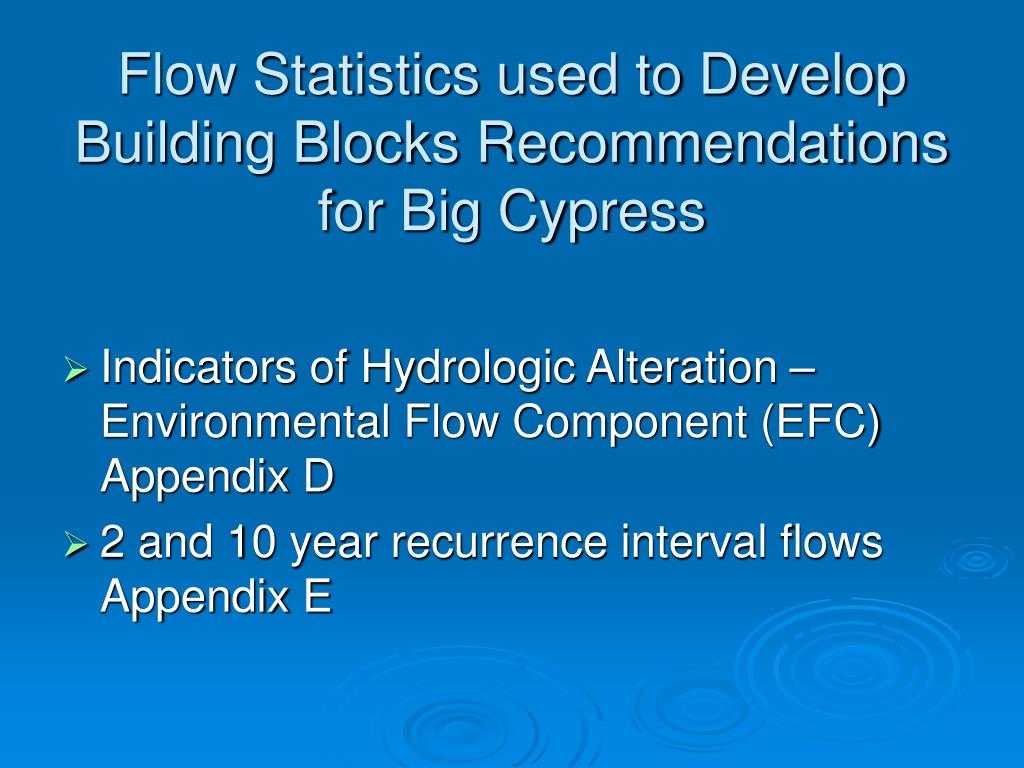

  1. Flow Statistics used to Develop Building Blocks Recommendations for Big Cypress • Indicators of Hydrologic Alteration – Environmental Flow Component (EFC) Appendix D • 2 and 10 year recurrence interval flows Appendix E

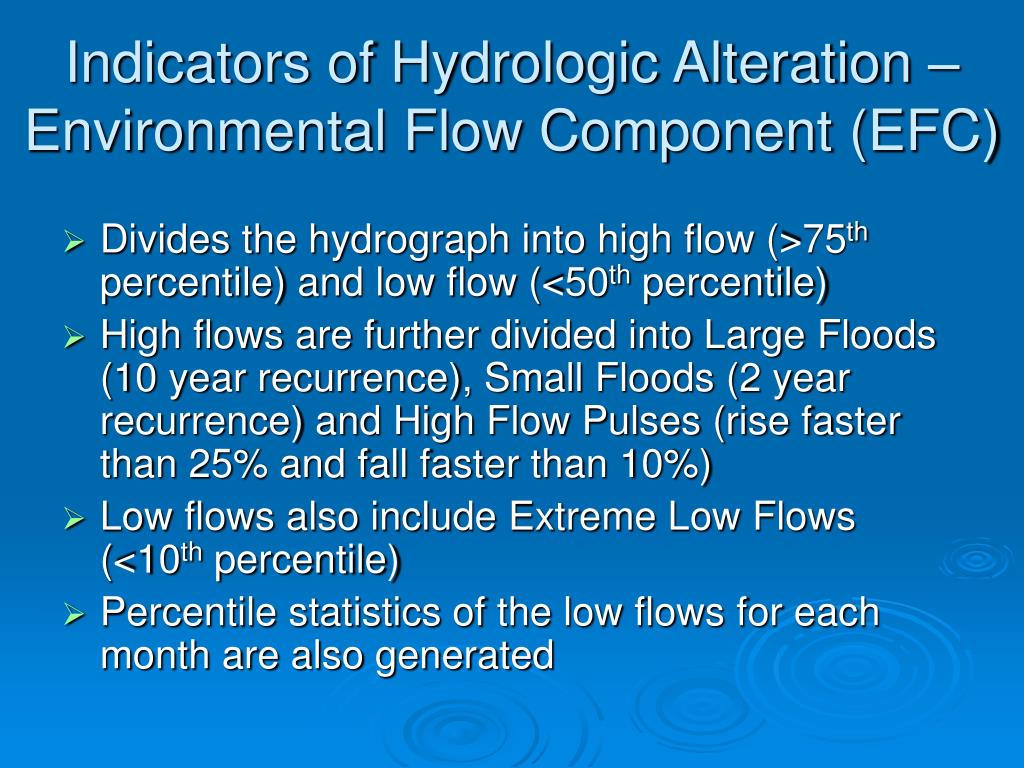

  2. Indicators of Hydrologic Alteration – Environmental Flow Component (EFC) • Divides the hydrograph into high flow (>75th percentile) and low flow (<50th percentile) • High flows are further divided into Large Floods (10 year recurrence), Small Floods (2 year recurrence) and High Flow Pulses (rise faster than 25% and fall faster than 10%) • Low flows also include Extreme Low Flows (<10th percentile) • Percentile statistics of the low flows for each month are also generated

  3. ECF Defaults

  4. IHA-EFC Statistics for Big Cypress 1924-1956 (33 years)

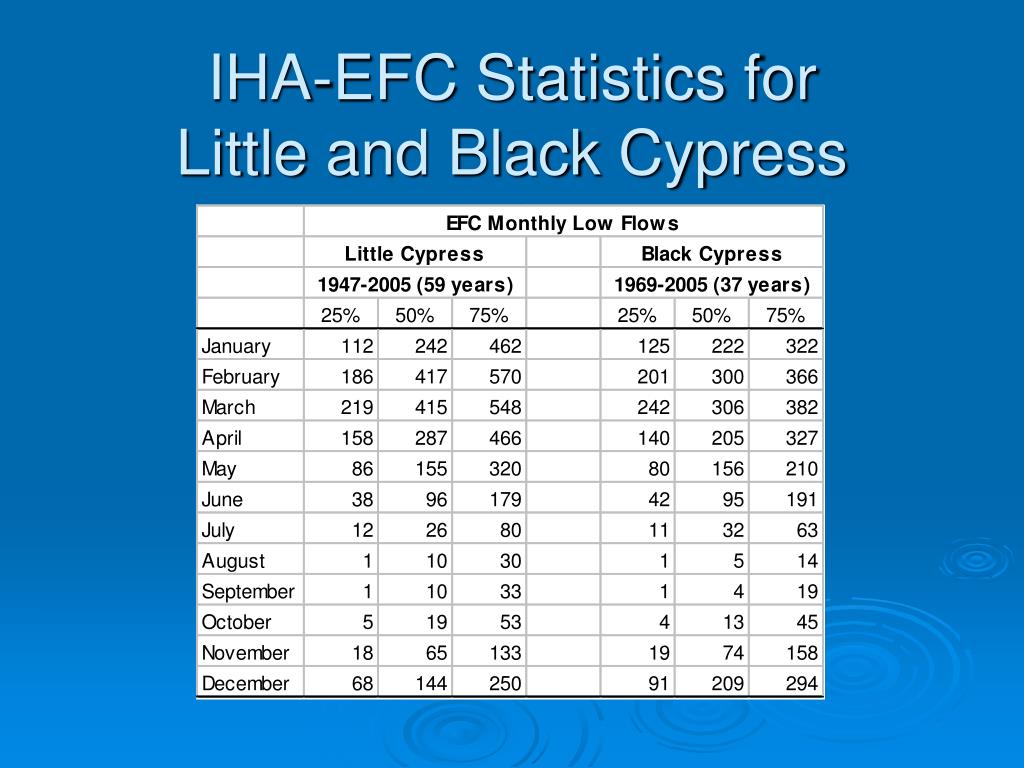

  5. IHA-EFC Statistics for Little and Black Cypress

  6. 2 – year recurrence interval (1.5 - 4 year) • Bank Full Flow – Flushing accumulated fine sediments from gravel, scouring pools, building riffles, removing vegetation from active channel inundating bars and maintaining channel capacity. • Effective Discharge – Flow that transports the largest amount of sediment when averaged over time.

  7. High Flow Calculations • IHA calculates high flow stats based on daily average flows, by default the 2 year and 10 year recurrence intervals. • PeakFQ – USGS program to Flood Frequency using log-pearson Type III regression based on instantaneous annual peaks

  8. Big Cypress High Flow Recurrence

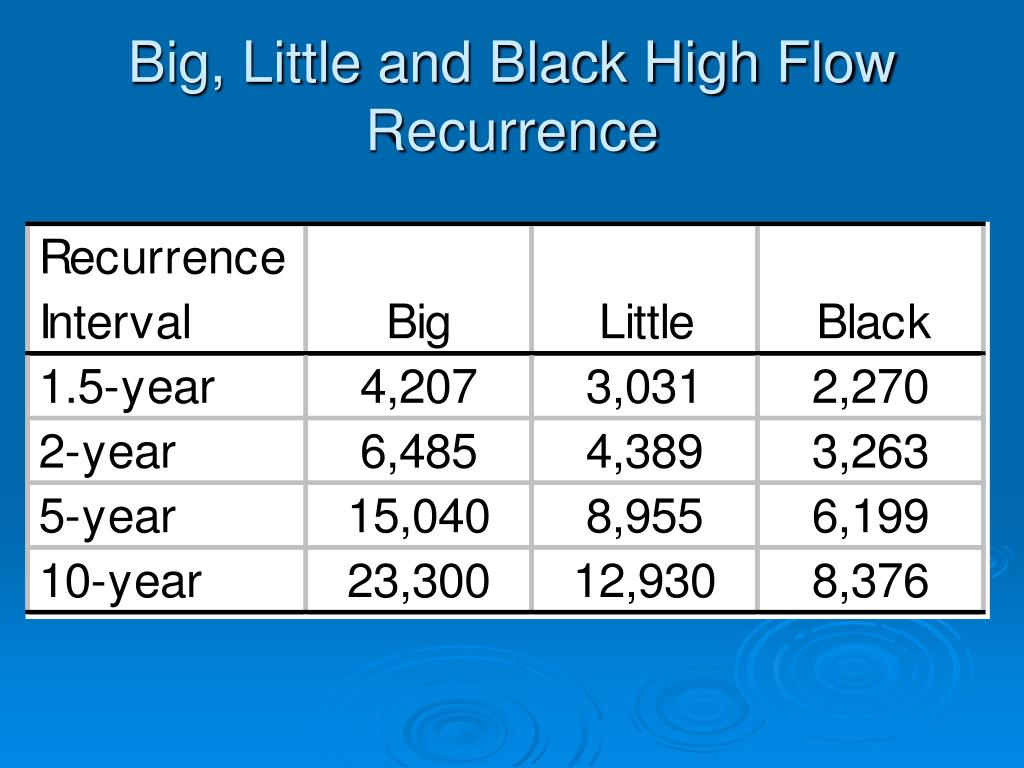

  9. Big, Little and Black High Flow Recurrence
