Cost Model and Estimating Result Sizes

1. Cost Modeland Estimating Result Sizes

2. מודל המחירCost Model • בהרצאה הראנו איך לחשב את המחיר של כל שיטה(join) • כדי לעשות זאת צריך לדעת את גודל היחסים, שחלקם מתקבלים כתוצאות ביניים • לפיכך, יש צורך לחשב את הגודל של תוצאות ביניים • עכשיו נסביר איך מעריכים את גודל התוצאה

3. בחירת תוכנית לחישוב צירוף של שלושה יחסים • רוצים לחשב צירוף של שלושת היחסים: Reserves , Sailors ו- Boats • שתי האפשרויות (תוך התעלמות מסדר היחסים בפעולת הצירוף הראשונה) הנן: (Sailors  Reserves)  Boats Sailors  (Reserves  Boats) • ההחלטה מהי התוכנית הזולה יותר תלויה בין היתר בשאלה איזה תוצאת ביניים הנה קטנה יותר

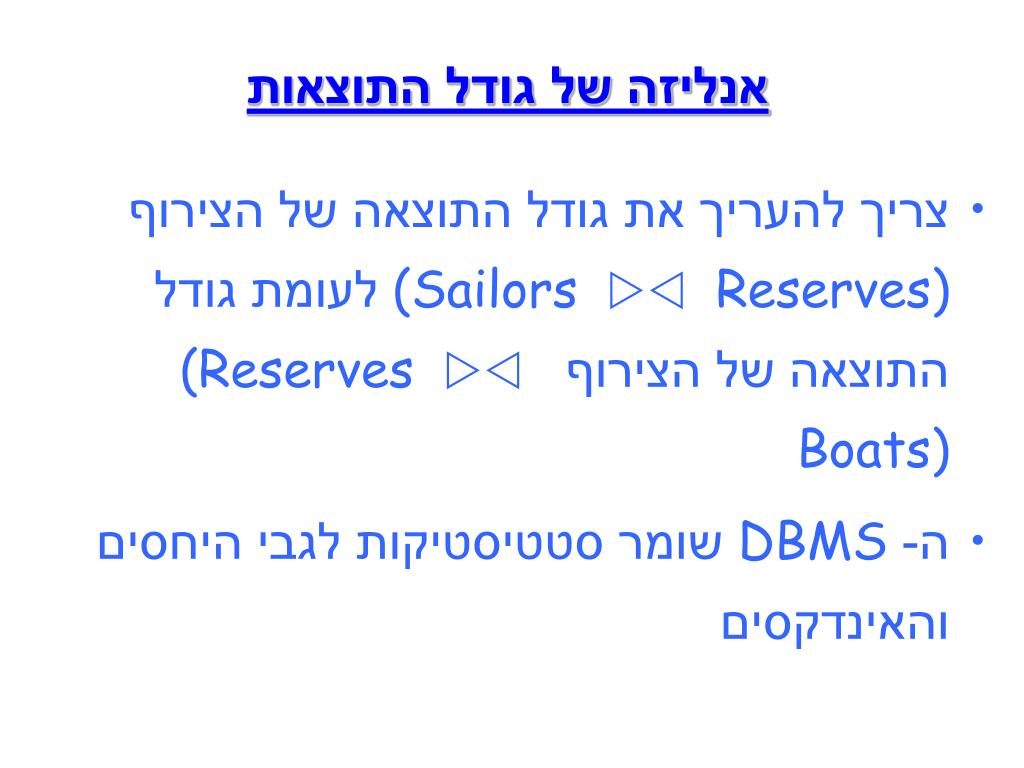

4. אנליזה של גודל התוצאות • צריך להעריך את גודל התוצאה של הצירוף (Sailors  Reserves) לעומת גודל התוצאה של הצירוף (Reserves  Boats) • ה- DBMS שומר סטטיסטיקות לגבי היחסים והאינדקסים

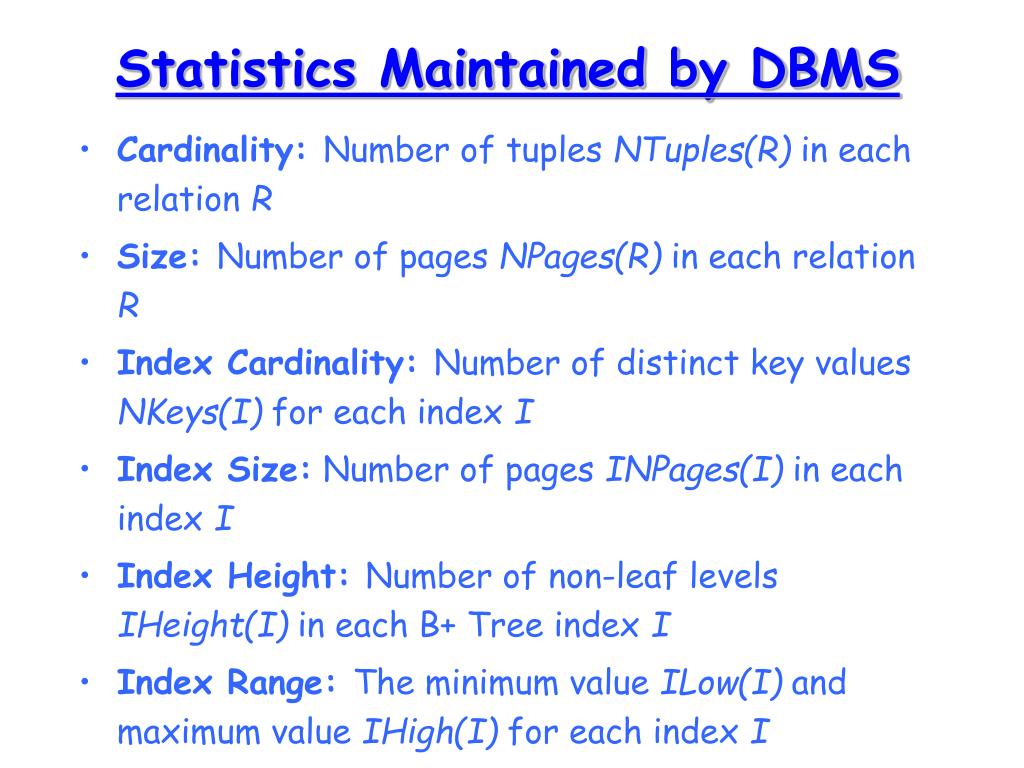

5. Statistics Maintained by DBMS • Cardinality: Number of tuples NTuples(R) in each relation R • Size: Number of pages NPages(R) in each relation R • Index Cardinality: Number of distinct key values NKeys(I) for each index I • Index Size: Number of pages INPages(I) in each index I • Index Height: Number of non-leaf levels IHeight(I) in each B+ Tree index I • Index Range: The minimum value ILow(I) and maximum value IHigh(I) for each index I

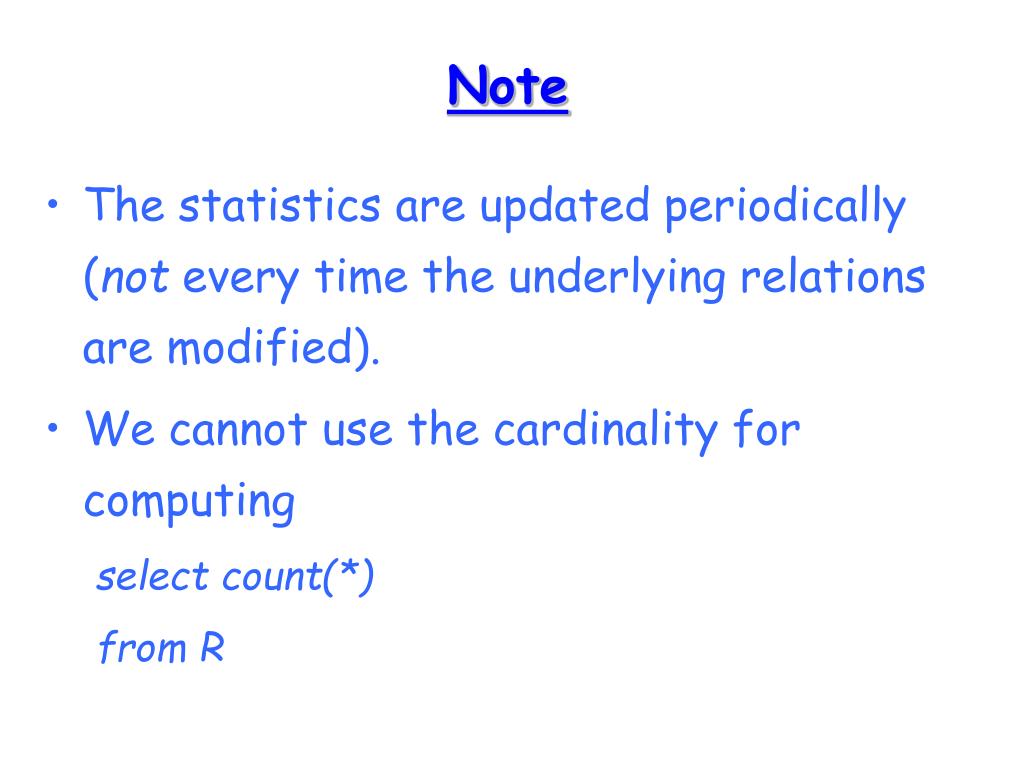

6. Note • The statistics are updated periodically (not every time the underlying relations are modified). • We cannot use the cardinality for computing select count(*) from R

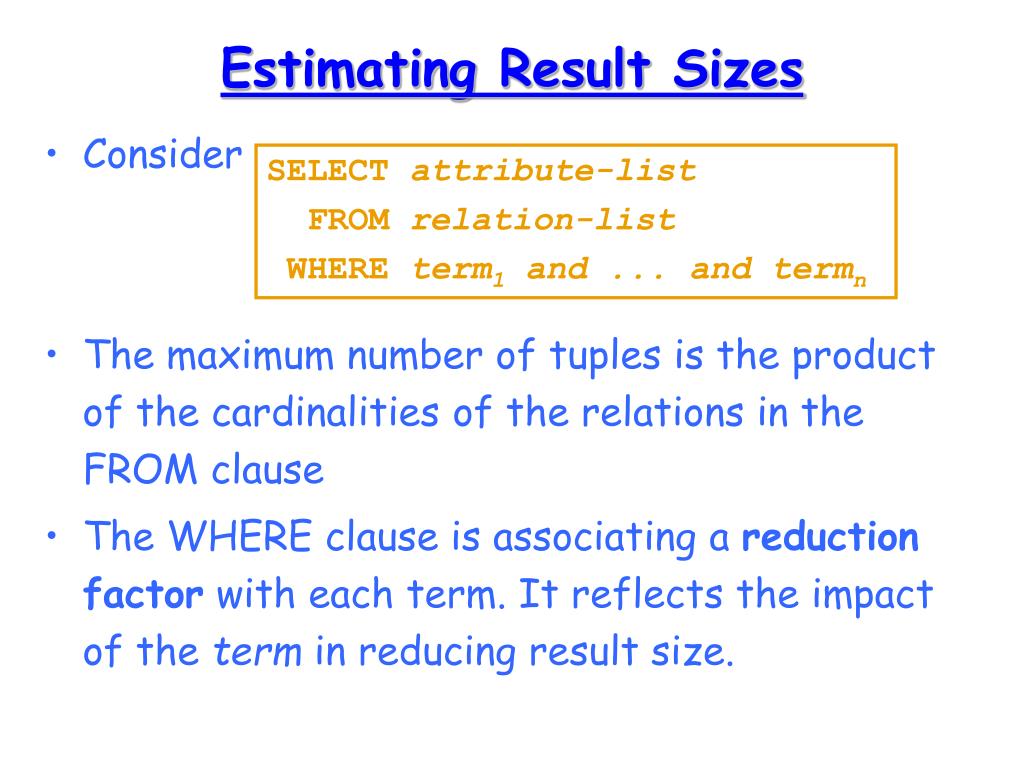

7. Estimating Result Sizes SELECT attribute-list FROM relation-list WHERE term1 and ... and termn • Consider • The maximum number of tuples is the product of the cardinalities of the relations in the FROM clause • The WHERE clause is associating a reduction factor with each term. It reflects the impact of the term in reducing result size.

8. Result Size • Estimated result size: maximum size X the product of the reduction factors

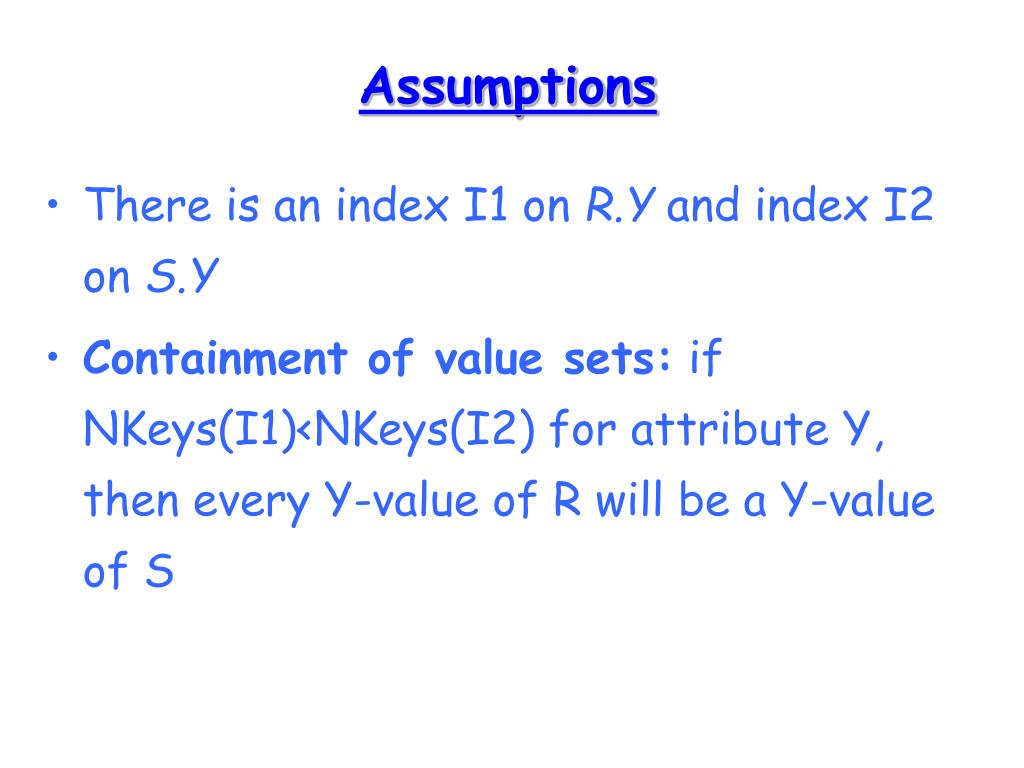

9. Assumptions • There is an index I1 on R.Y and index I2 on S.Y • Containment of value sets: if NKeys(I1)<NKeys(I2) for attribute Y, then every Y-value of R will be a Y-value of S

10. Estimating Reduction Factors • column = value: 1/NKeys(I) • There is an index I on column. • This assumes a uniform distribution. • Otherwise, use 1/10. • column1 = column2: 1/Max(NKeys(I1),NKeys(I2)) • There is an index I1 on column1and an index I2 on column2. • Containment of value sets assumption • If only one column has an index, we use it to estimate the value. • Otherwise, use 1/10.

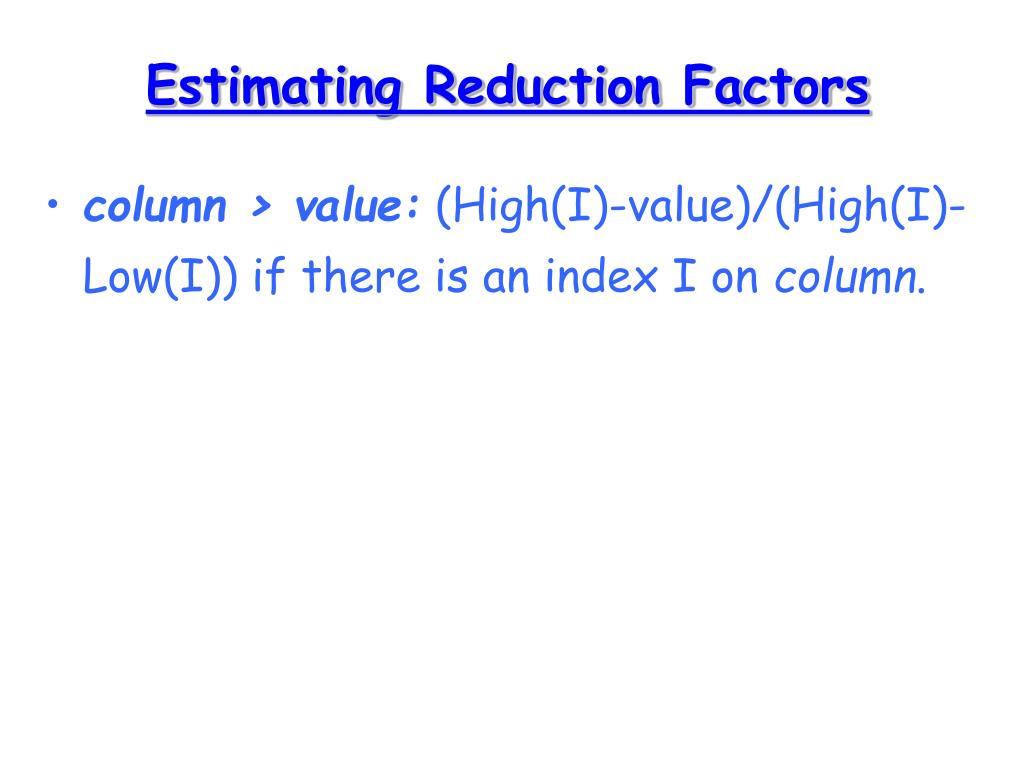

11. Estimating Reduction Factors • column > value: (High(I)-value)/(High(I)-Low(I)) if there is an index I on column.

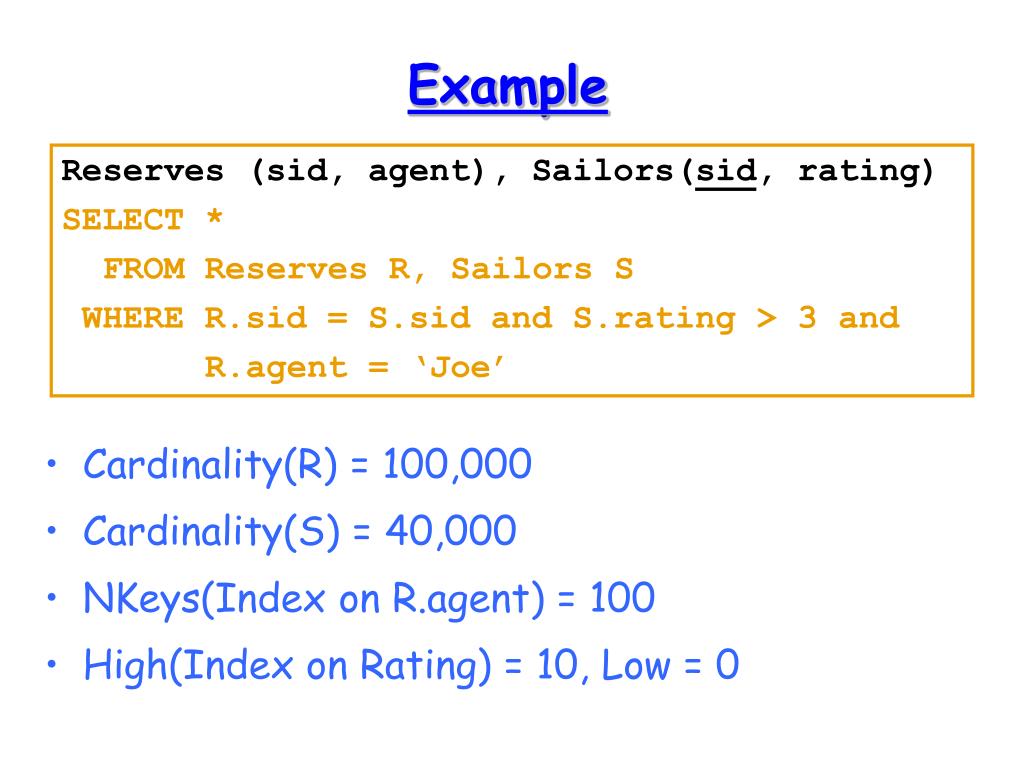

12. Example Reserves (sid, agent), Sailors(sid, rating) SELECT * FROM Reserves R, Sailors S WHERE R.sid = S.sid and S.rating > 3 and R.agent = ‘Joe’ • Cardinality(R) = 100,000 • Cardinality(S) = 40,000 • NKeys(Index on R.agent) = 100 • High(Index on Rating) = 10, Low = 0

13. Example (cont.) • Maximum cardinality: 100,000 * 40,000 • Reduction factor of R.sid = S.sid: 1/40,000 • sid is a primary key of S • Reduction factor of S.rating > 3: (10–3)/(10-0) = 7/10 • Reduction factor of R.agent = ‘Joe’: 1/100 • Total Estimated size: 700

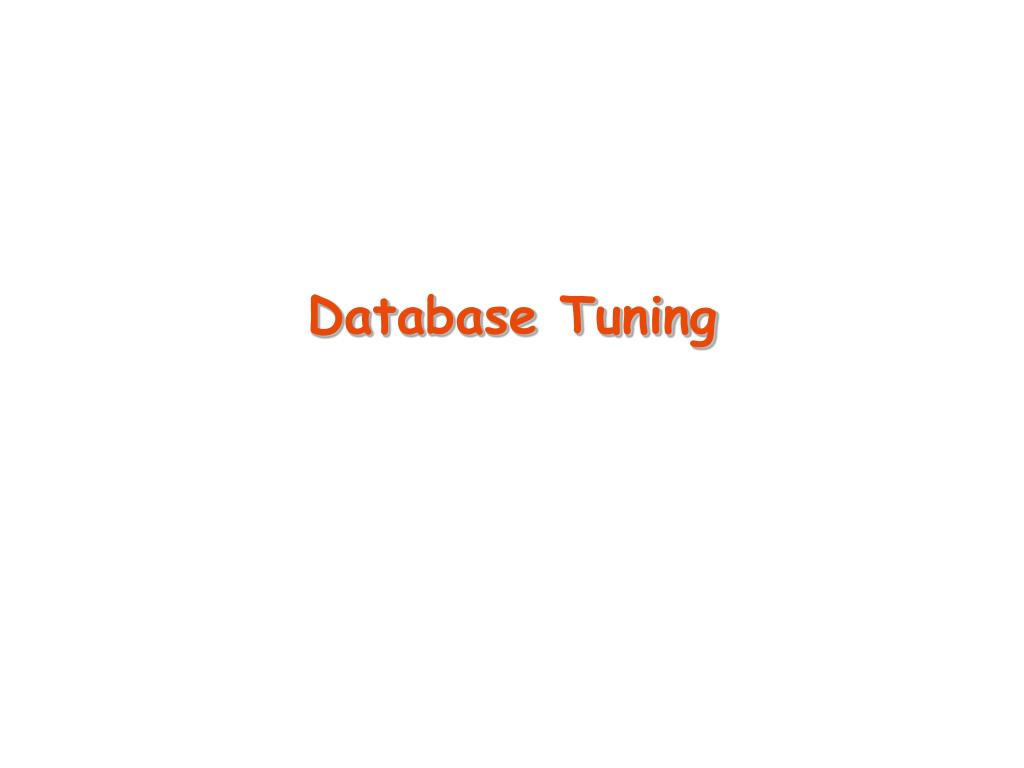

14. Database Tuning

15. Database Tuning • Problem: Make database run efficiently • 80/20 Rule: 80% of the time, the database is running 20% of the queries • find what is taking all the time, and tune these queries

16. Solutions • Indexing • this can sometimes degrade performance. why? • Tuning queries • Reorganization of tables; perhaps "denormalization" • Changes in physical data storage

17. Denormalization • Suppose you have tables: • emp(eid, ename, salary, did) • dept(did, budget, address, manager) • Suppose you often ask queries which require finding the manager of an employee. You might consider changing the tables to: • emp(eid, ename, salary, did, manager) • dept(did, budget, address, manager) - in emp, there is an fd did -> manager. It is not 3NF!

18. Denormalization (cont’d) • How will you ensure that the redundancy does not introduce errors into the database?

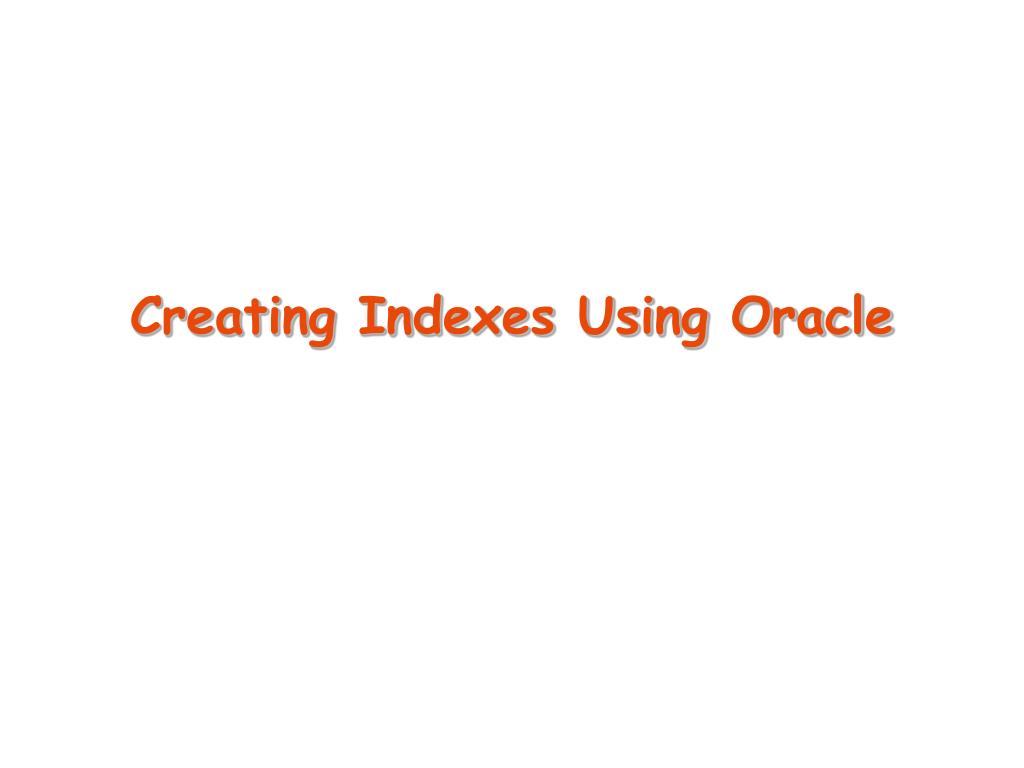

19. Creating Indexes Using Oracle

20. Index • Map between • a key of a row • the location of the data on the row • Oracle has two kinds of indexes • B+ tree • Bitmap • Sorted

21. Root 30 13 17 24 39* 3* 5* 19* 20* 22* 24* 27* 38* 2* 7* 14* 16* 29* 33* 34* B+ tree

22. Creating an Index • Syntax: create [bitmap] [unique] index index on table(column [,column] . . .)

23. Unique Indexes create unique index rating_bit on Sailors(rating); • Create an index that will guarantee the uniqueness of the key. Fail if any duplicate already exists. • When you create a table with a • primary key constraint or • unique constraint a "unique" index is created automatically

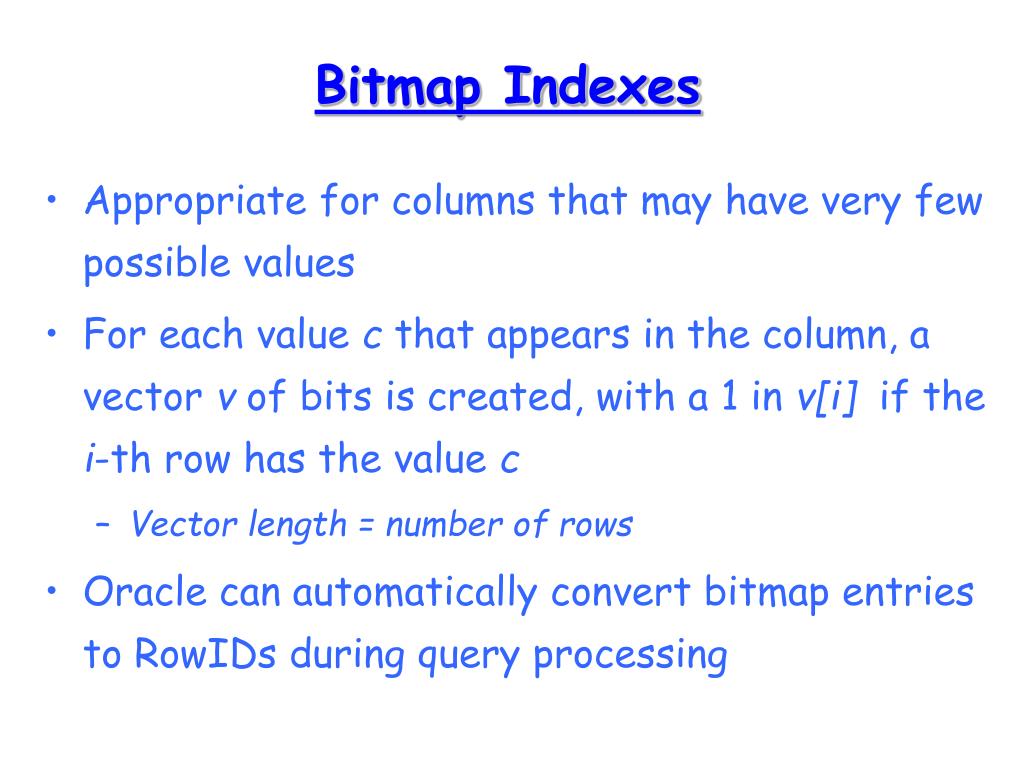

24. Bitmap Indexes • Appropriate for columns that may have very few possible values • For each value c that appears in the column, a vector v of bits is created, with a 1 in v[i] if the i-th row has the value c • Vector length = number of rows • Oracle can automatically convert bitmap entries to RowIDs during query processing

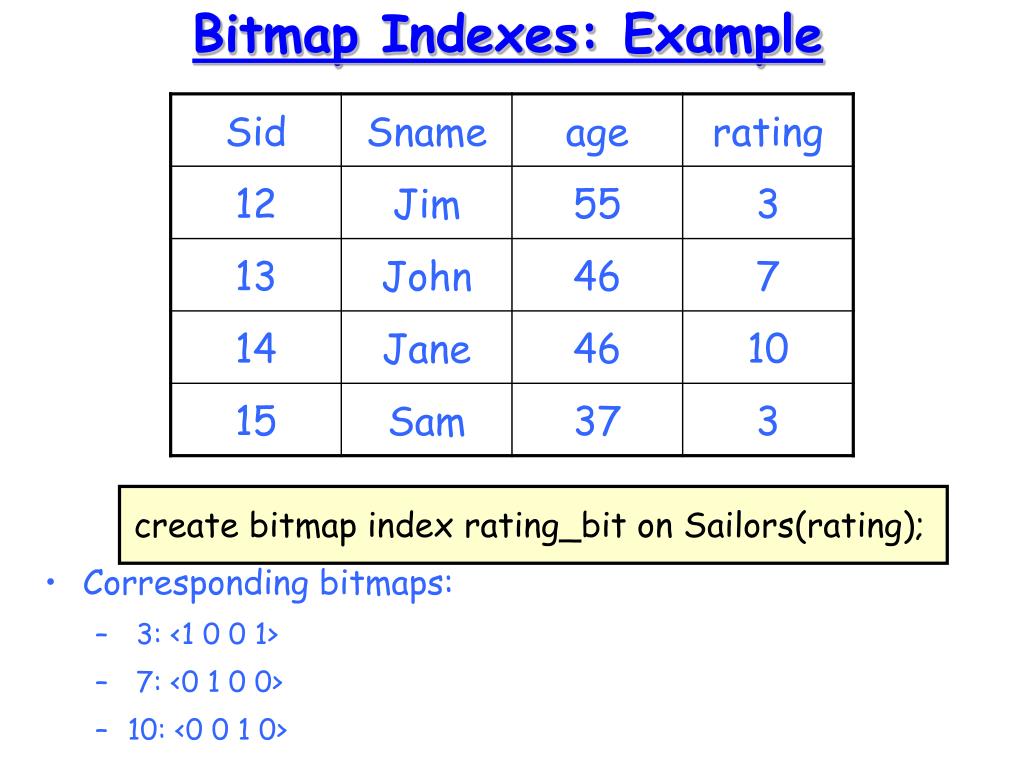

25. Bitmap Indexes: Example create bitmap index rating_bit on Sailors(rating); • Corresponding bitmaps: • 3: <1 0 0 1> • 7: <0 1 0 0> • 10: <0 0 1 0>

26. When to Create an Index • Large tables, on columns that are likely to appear in where clauses as a simple equality • where s.sname = ‘John’ and s.age = 50 • where s.age = r.age

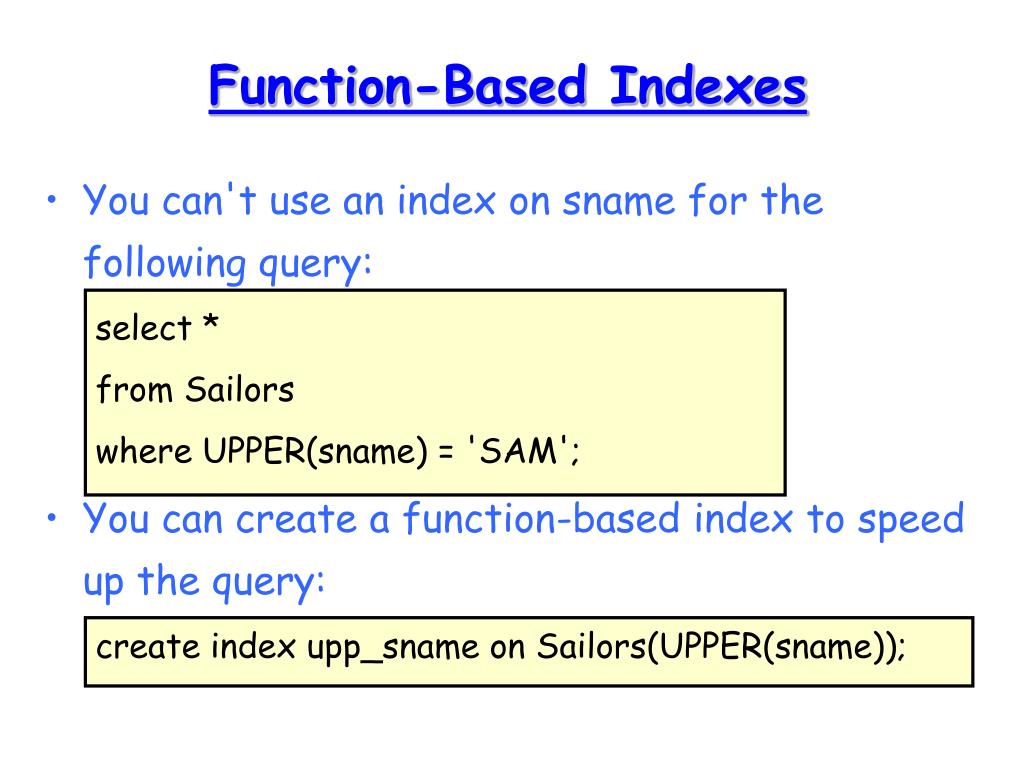

27. Function-Based Indexes • You can't use an index on sname for the following query: select * from Sailors where UPPER(sname) = 'SAM'; • You can create a function-based index to speed up the query: create index upp_sname on Sailors(UPPER(sname));

28. Index-Organized Tables • An index organized table keeps its data sorted by the primary key • Rows do not have RowIDs • They store their data as if they were an index create table Sailors( sid number primary key, sname varchar2(30), age number, rating number) organization index;

29. Index-Organized Tables (2) • What advantages does this have? • Enforce uniqueness: primary key • Improve performance • What disadvantages? • expensive to add column, dynamic data • When to use? • where clause on the primary key • static data

30. Clustering Tables Together • You can ask Oracle to store several tables close together on the disk • This is useful if you usually join these tables together • Cluster: area in the disk where the rows of the tables are stored • Cluster key: the columns by which the tables are usually joined in a query

31. Clustering Tables Together: Syntax • create cluster sailor_reserves (X number); • Create a cluster with nothing in it • create table Sailors( sid number primary key, sname varchar2(30), age number, rating number) cluster sailor_reserves(sid); • create the table in the cluster

32. Clustering Tables Together: Syntax (cont.) • create index sailor_reserves_index on cluster sailor_reserves • Create an index on the cluster • create table Reserves( sid number, bid number, day date, primary key(sid, bid, day) ) cluster sailor_reserves(sid); • A second table is added to the cluster

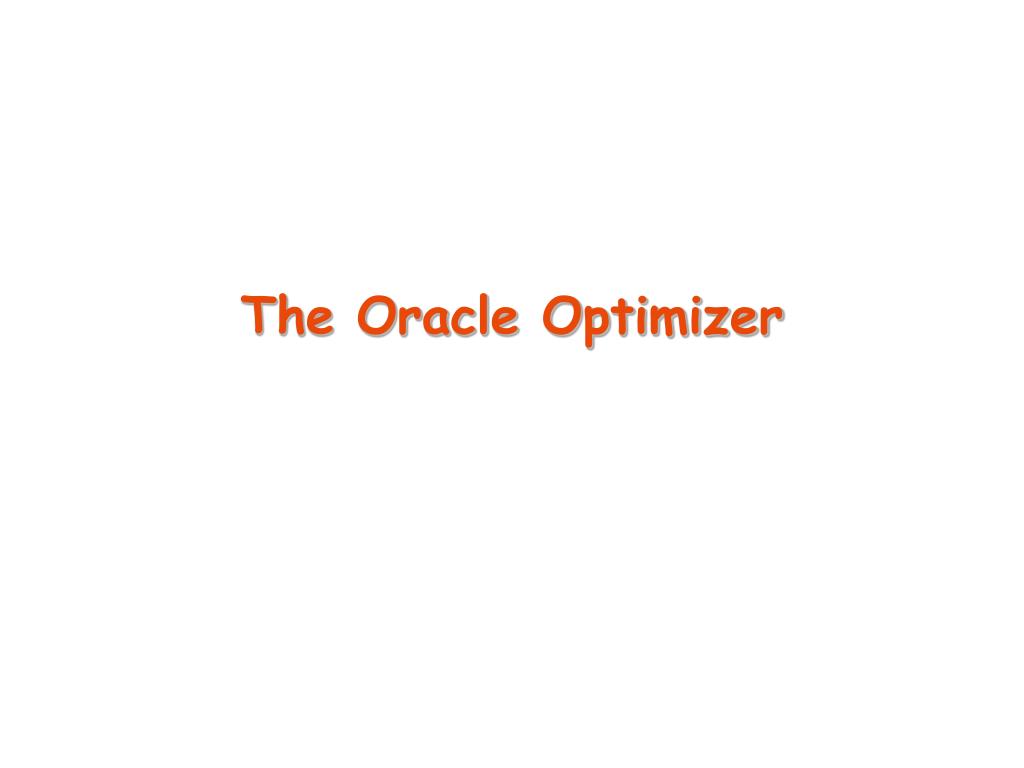

34. The Oracle Optimizer

35. Types of Optimizers • There are different modes for the optimizer • RULE: Rule-based optimizer (RBO) • deprecated • CHOOSE: Cost-based optimizer (CBO); picks a plan based on statistics (e.g. number of rows in a table, number of distinct keys in an index) • Need to analyze the data in the database using analyze command ALTER SESSION SET optimizer_mode = {choose|rule|first_rows(_n)|all_rows}

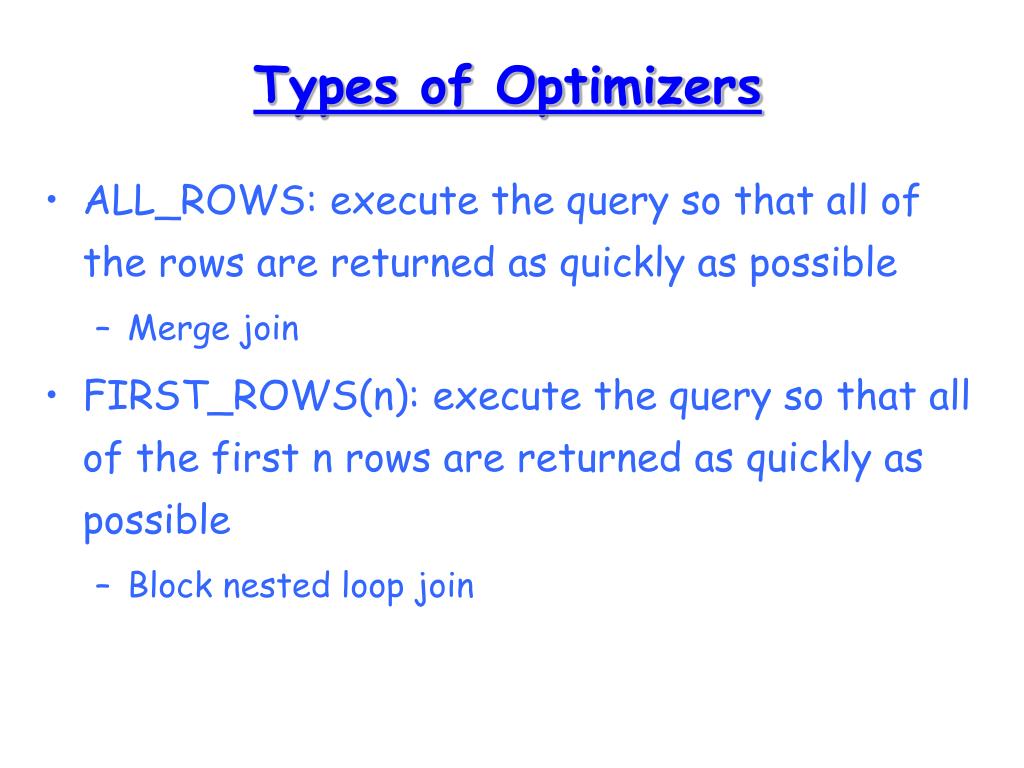

36. Types of Optimizers • ALL_ROWS: execute the query so that all of the rows are returned as quickly as possible • Merge join • FIRST_ROWS(n): execute the query so that all of the first n rows are returned as quickly as possible • Block nested loop join

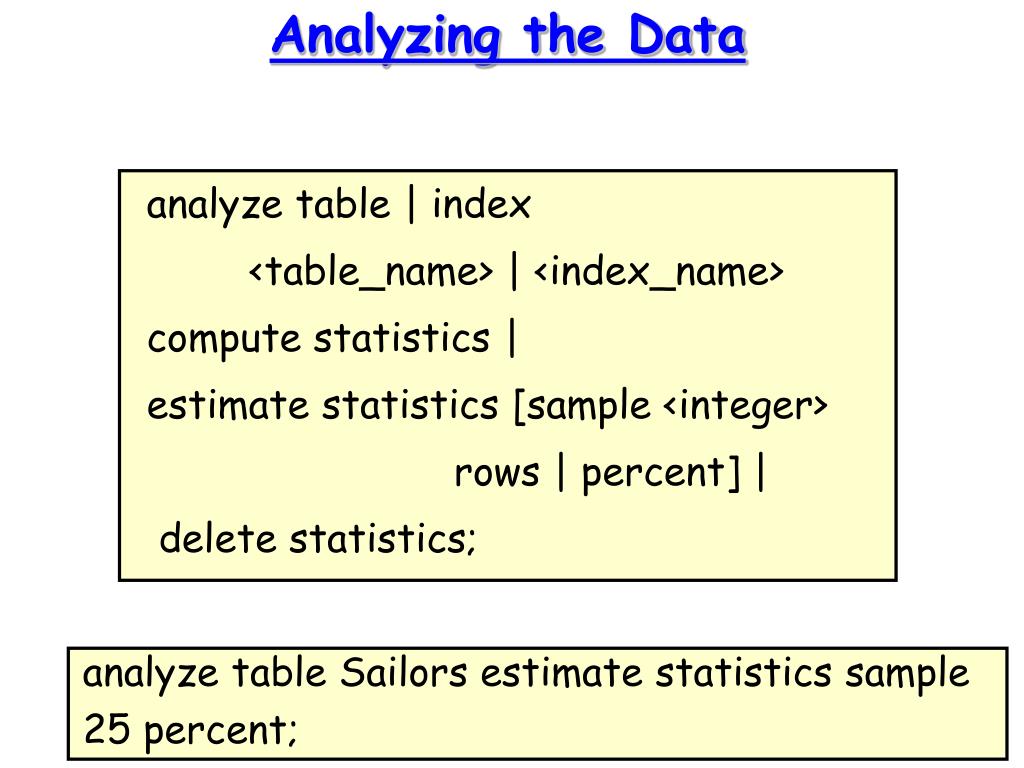

37. Analyzing the Data analyze table | index <table_name> | <index_name> compute statistics | estimate statistics [sample <integer> rows | percent] | delete statistics; analyze table Sailors estimate statistics sample 25 percent;

38. Viewing the Execution Plan(Option 1) • You need a PLAN_TABLE table. So, the first time that you want to see execution plans, run the command: • Set autotrace on to see all plans • Display the execution path for each query, after being executed @$ORACLE_HOME/rdbms/admin/utlxplan.sql

39. Viewing the Execution Plan (Option 2) explain plan set statement_id=‘<name>’ for <statement> • Another option: explain plan set statement_id='test' for SELECT * FROM Sailors S WHERE sname='Joe'; Select Plan_Table

40. Operations that Access Tables • TABLE ACCESS FULL: sequential table scan • Oracle optimizes by reading multiple blocks • Used whenever there is no where clause on a query select * from Sailors • TABLE ACCESS BY ROWID: access rows by their RowID values. • How do you get the rowid? From an index! select * from Sailors where sid > 10

41. Types of Indexes • Unique: each row of the indexed table contains a unique value for the indexed column • Nonunique: the row’s indexed values can repeat

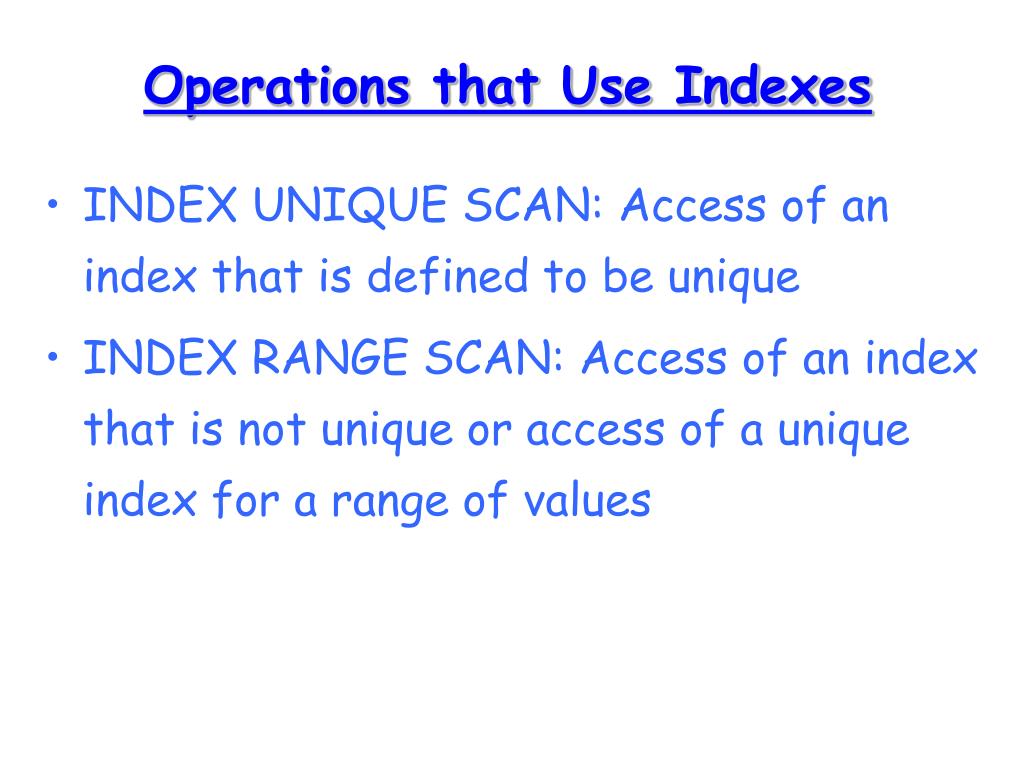

42. Operations that Use Indexes • INDEX UNIQUE SCAN: Access of an index that is defined to be unique • INDEX RANGE SCAN: Access of an index that is not unique or access of a unique index for a range of values

46. When are Indexes Used/Not Used? • If you set an indexed column equal to a value, e.g., sname = 'Jim' • If you specify a range of values for an indexed column, e.g., sname like 'J%' • sname like '%m': will not use an index • UPPER(sname) like 'J%' : will not use an index • sname is null: will not use an index, since null values are not stored in the index • sname is not null: will not use an index, since every value in the index would have to be accessed

47. When are Indexes Used? (cont) • 2*age = 20: Index on age will not be used. Index on 2*age will be used. • sname != 'Jim': Index will not be used. • MIN and MAX functions: Index will be used • Equality of a column in a leading column of a multicolumn index. For example, suppose we have a multicolumn index on (sid, bid, day) • sid = 12: Can use the index • bid = 101: Cannot use the index

48. When are Indexes Used? (cont) • If the index is selective • A small number of records are associated with each distinct column value

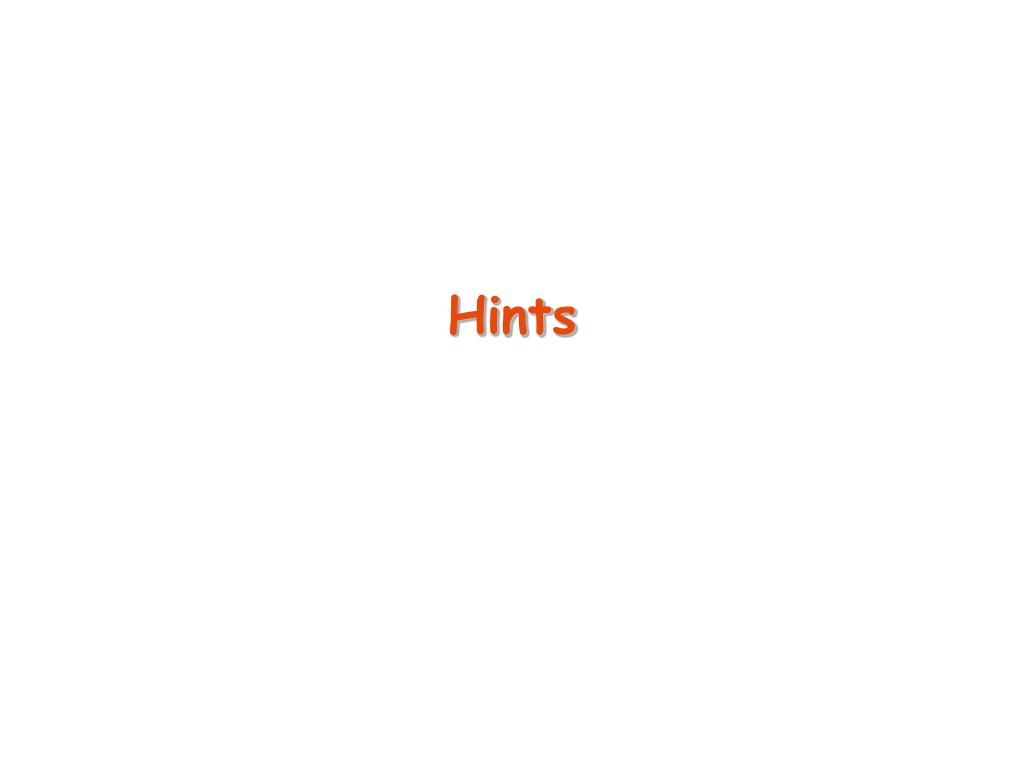

49. Hints

50. Hints • You can give the optimizer hints about how to perform query evaluation • Hints are written in /*+ */ right after the select • Note: These are only hints. The oracle optimizer can choose to ignore your hints
