  1. Simplifying and Isolating Failure-Inducing Input Andreas Zeller and Ralf Hildebrandt IEEE Transactions on Software Engineering (TSE) 2002

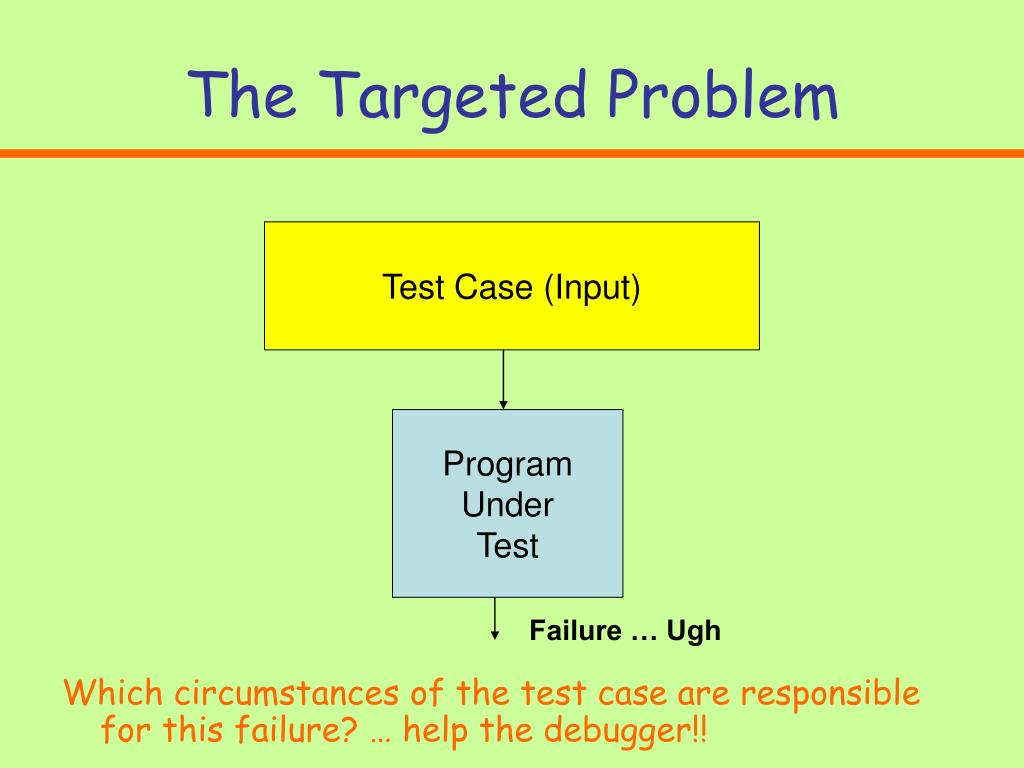

  2. The Targeted Problem Which circumstances of the test case are responsible for this failure? … help the debugger!! Test Case (Input) Program Under Test Failure … Ugh

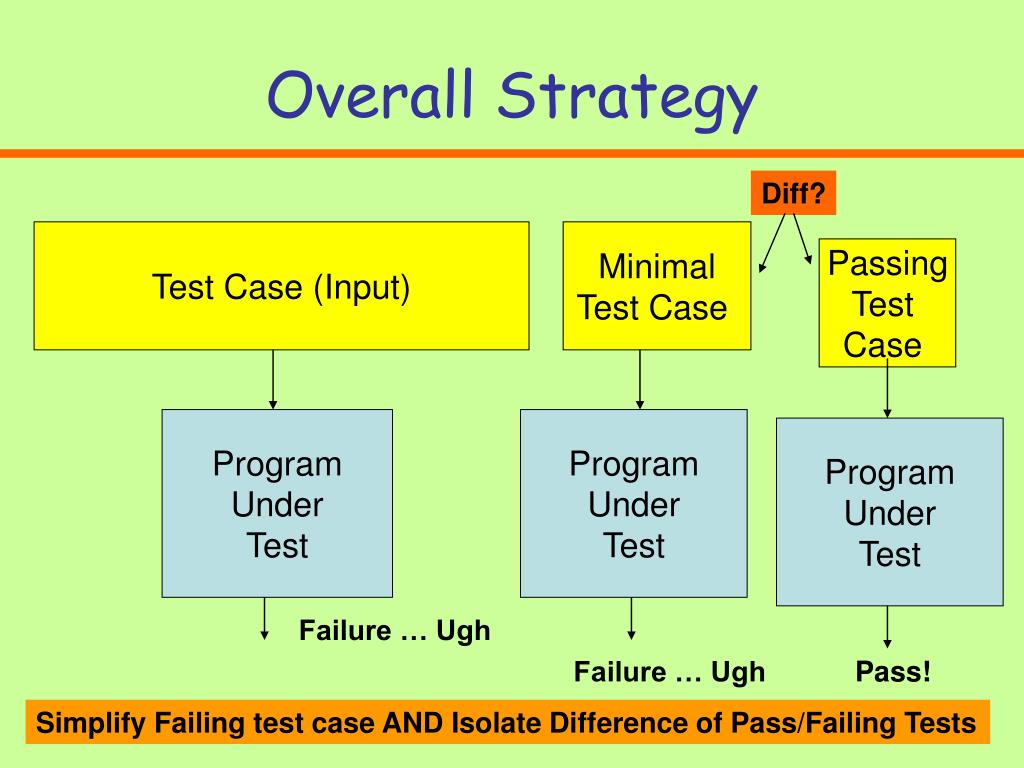

  3. Overall Strategy Diff? Test Case (Input) Minimal Test Case Passing Test Case Program Under Test Program Under Test Program Under Test Failure … Ugh Failure … Ugh Pass! Simplify Failing test case AND Isolate Difference of Pass/Failing Tests

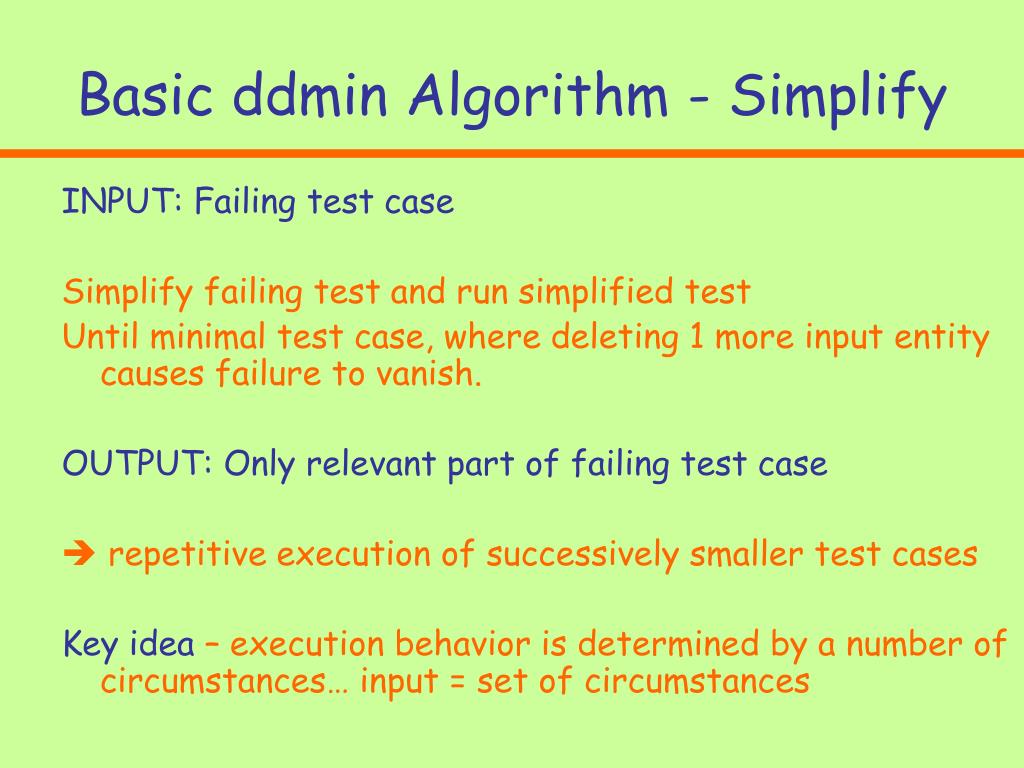

  4. Basic ddmin Algorithm - Simplify INPUT: Failing test case Simplify failing test and run simplified test Until minimal test case, where deleting 1 more input entity causes failure to vanish. OUTPUT: Only relevant part of failing test case  repetitive execution of successively smaller test cases Key idea – execution behavior is determined by a number of circumstances… input = set of circumstances

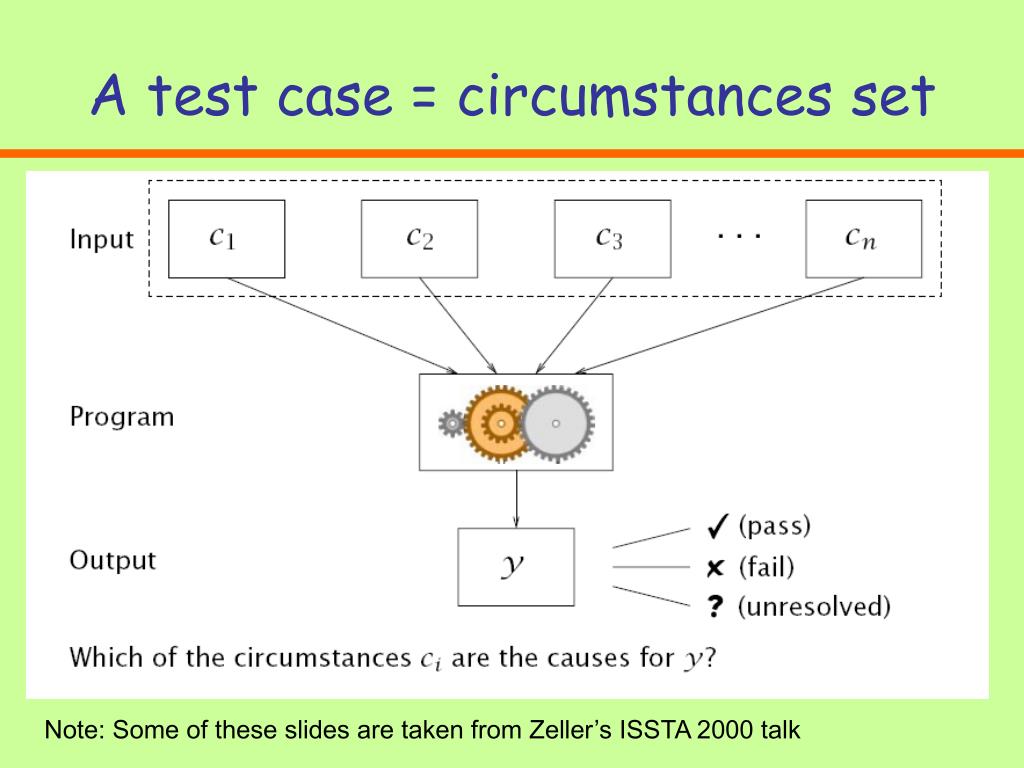

  5. A test case = circumstances set Note: Some of these slides are taken from Zeller’s ISSTA 2000 talk

  6. Input differences = set of changes

  7. Representing Test and Outcomes

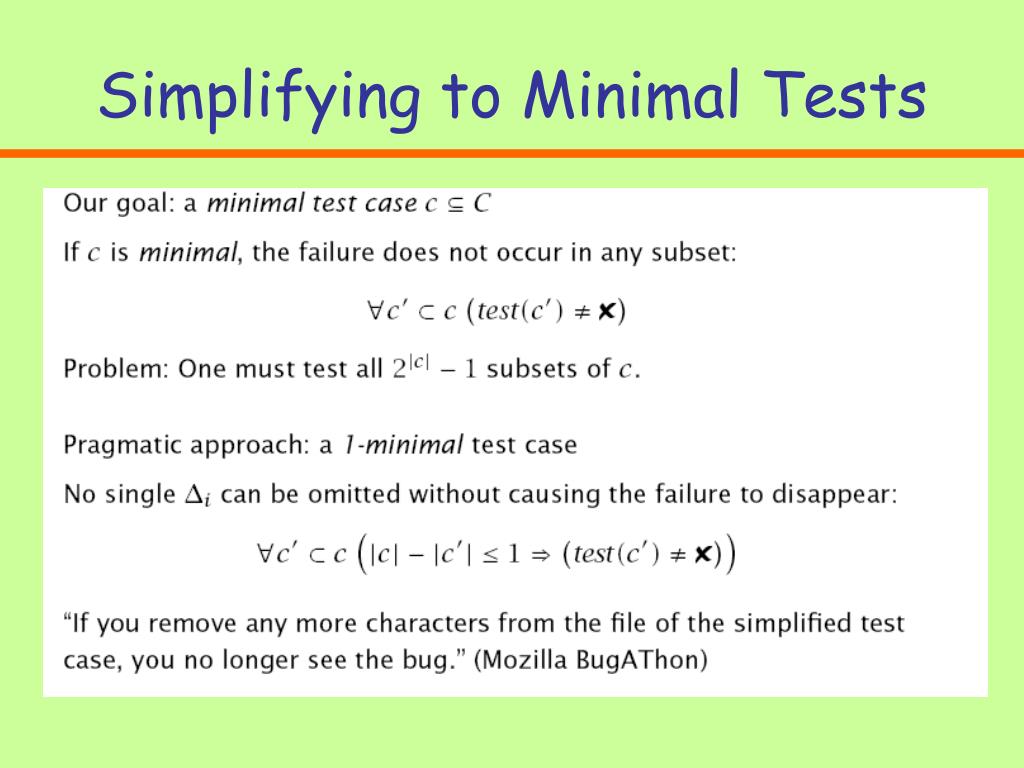

  8. Simplifying to Minimal Tests

  9. Example of Minimizing Process Partition into delta 1 and delta 2. If delta 1 fails, delta 1 is a smaller test case. Done If delta 1 does not fail, delta 2 fails, delta 2 is smaller test case. Done. Both tests pass or unresolved. Need to test larger subset of original.

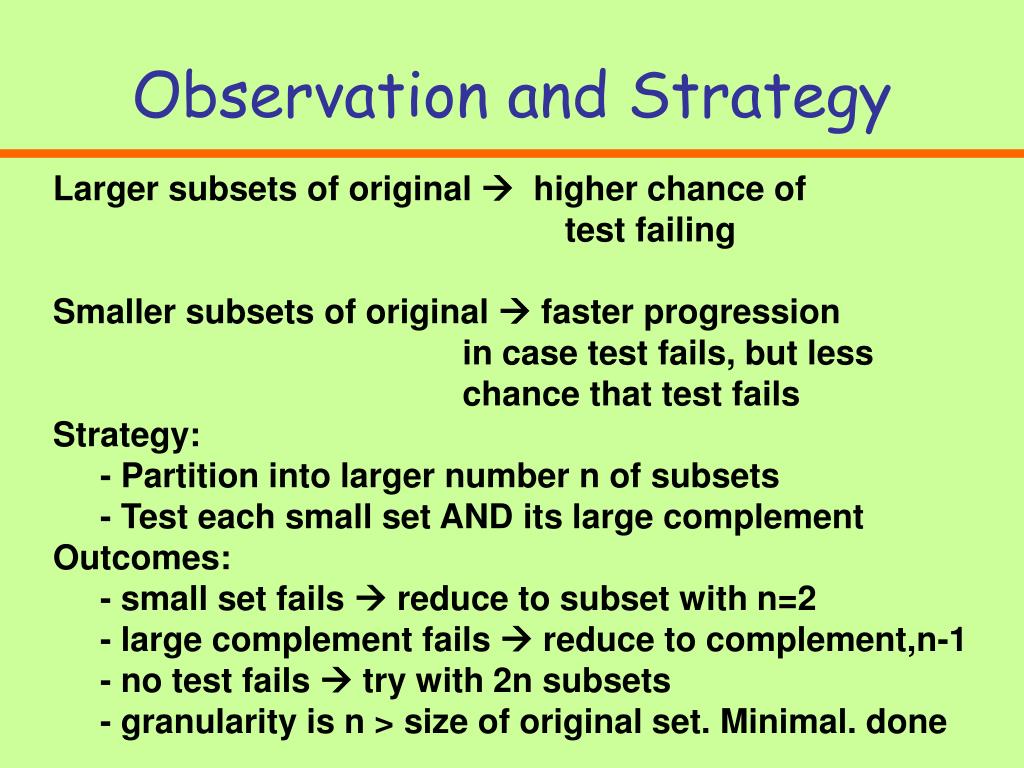

  10. Observation and Strategy Larger subsets of original  higher chance of test failing Smaller subsets of original  faster progression in case test fails, but less chance that test fails Strategy: - Partition into larger number n of subsets - Test each small set AND its large complement Outcomes: - small set fails  reduce to subset with n=2 - large complement fails  reduce to complement,n-1 - no test fails  try with 2n subsets - granularity is n > size of original set. Minimal. done

  11. Summary of 2nd minimizing Process

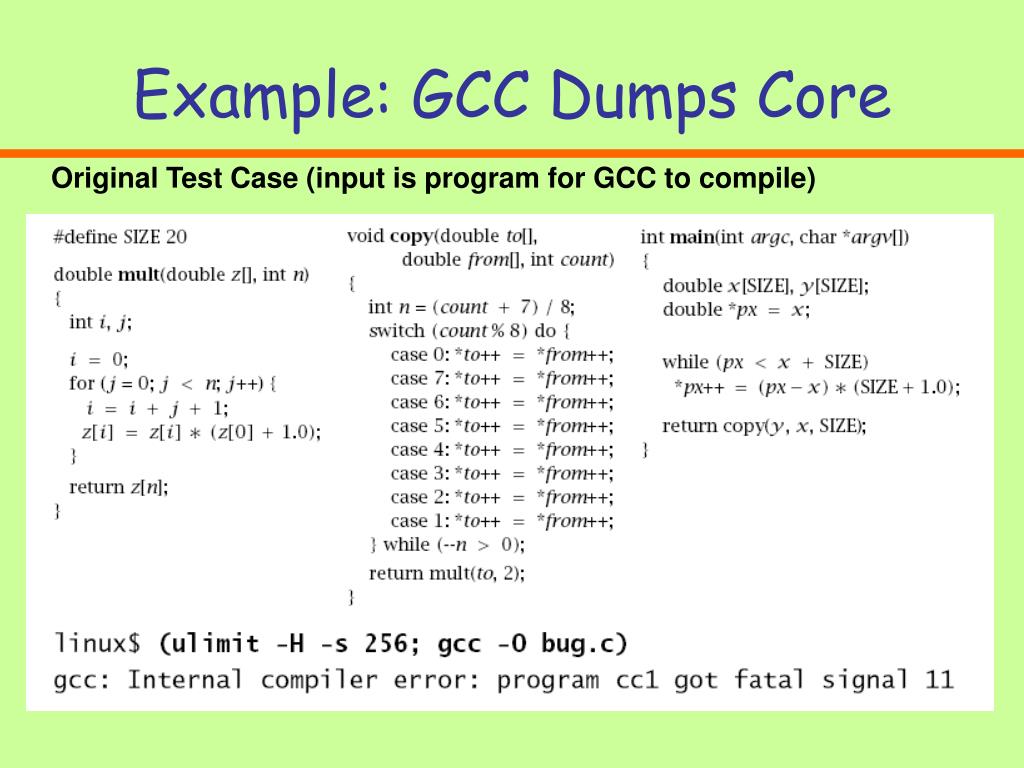

  12. Example: GCC Dumps Core Original Test Case (input is program for GCC to compile)

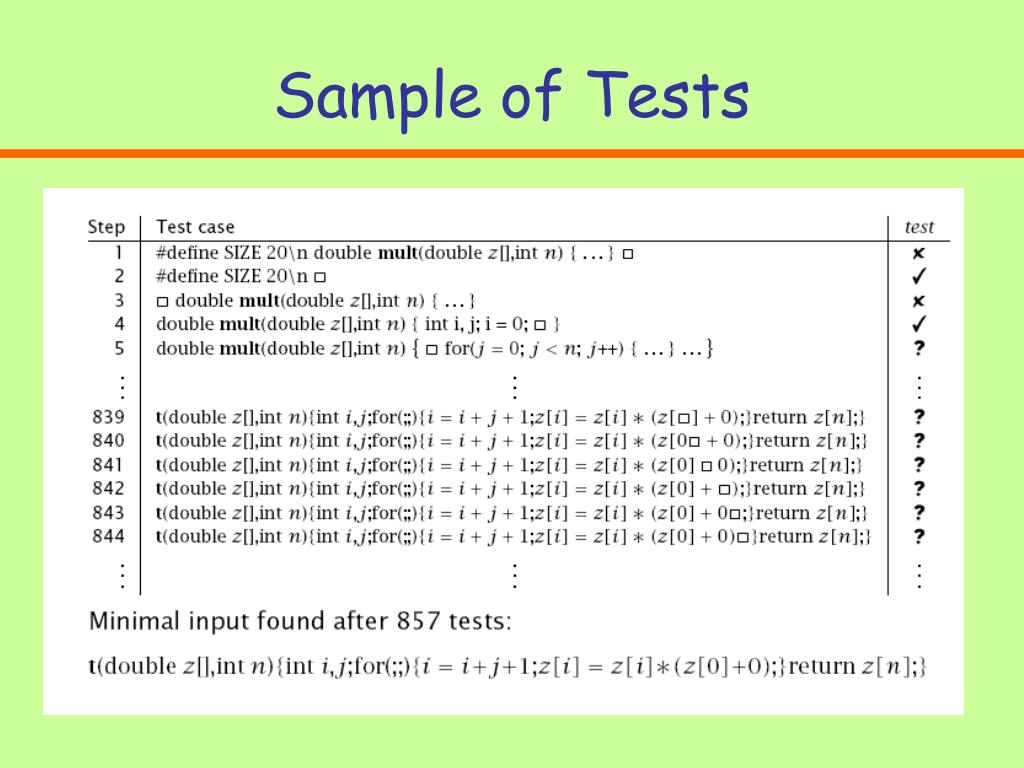

  13. Sample of Tests

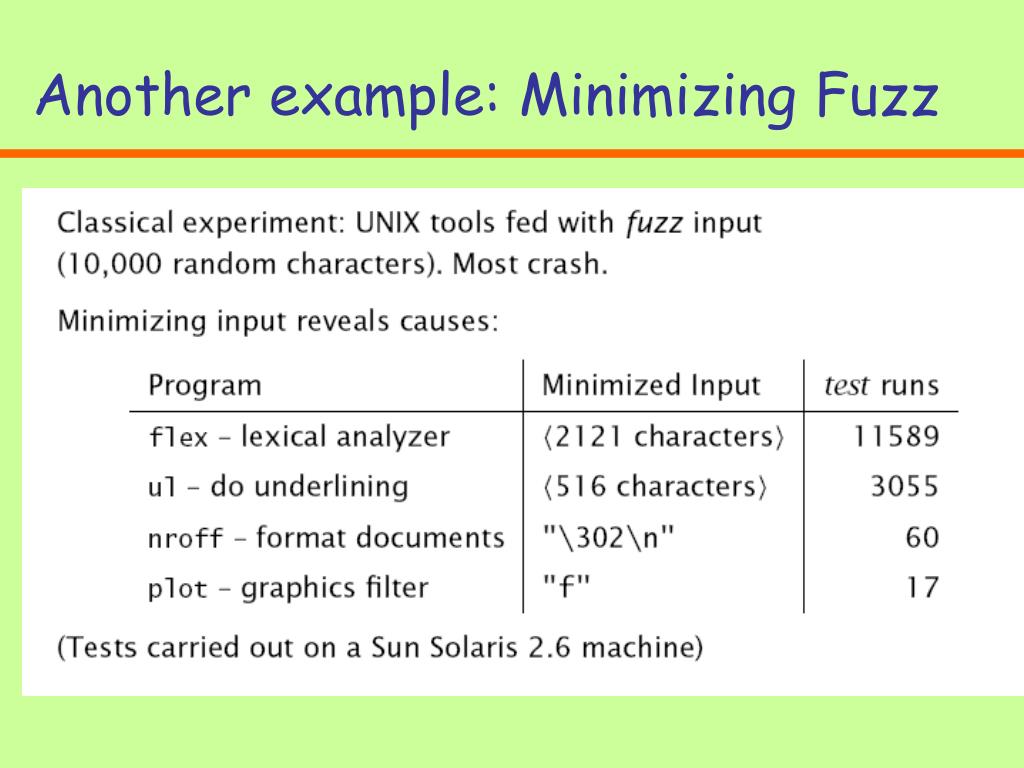

  14. Another example: Minimizing Fuzz

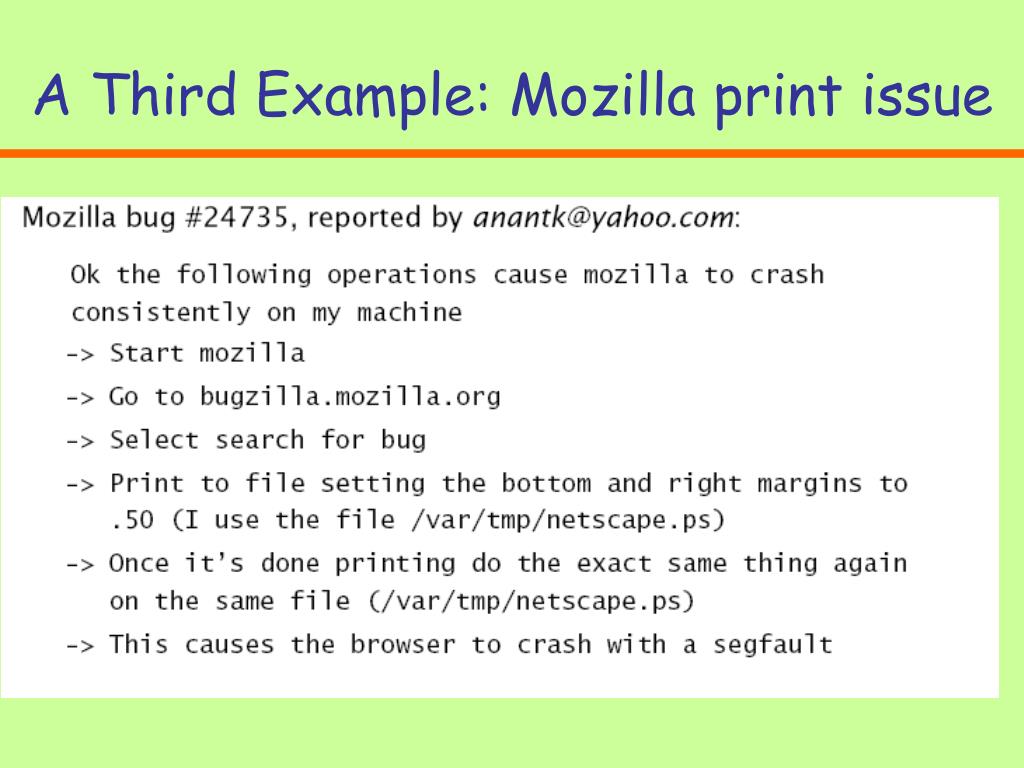

  15. A Third Example: Mozilla print issue

  16. Simplify = minimize user actions

  17. Simplify = minimize HTML

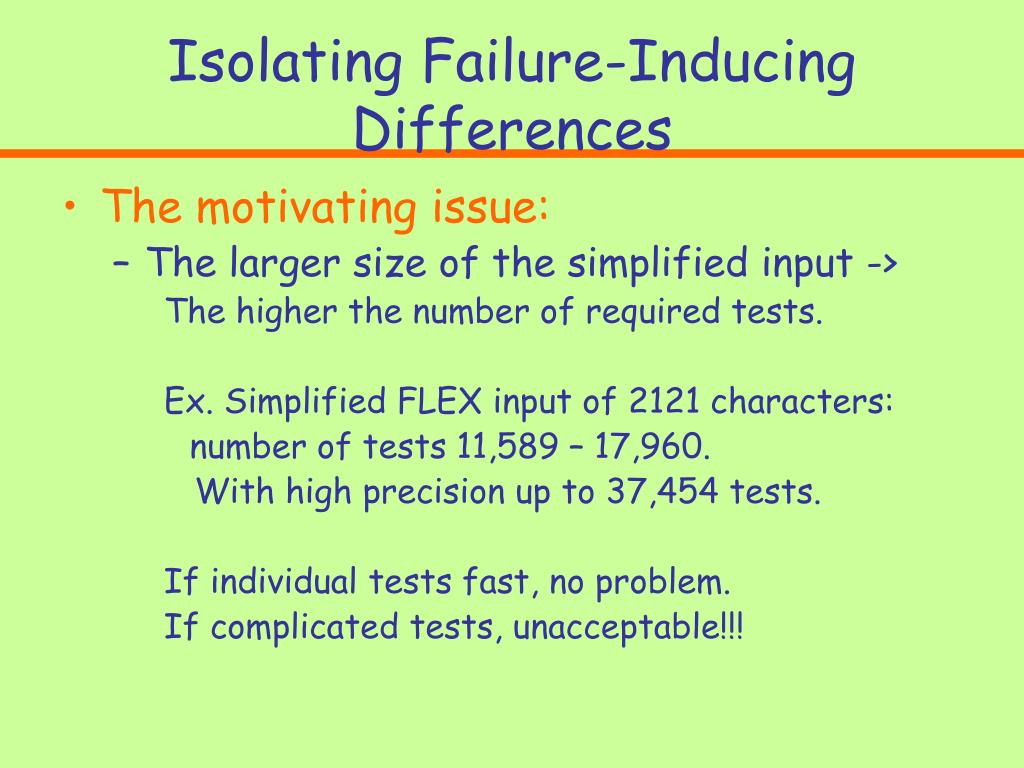

  18. Isolating Failure-Inducing Differences • The motivating issue: • The larger size of the simplified input -> The higher the number of required tests. Ex. Simplified FLEX input of 2121 characters: number of tests 11,589 – 17,960. With high precision up to 37,454 tests. If individual tests fast, no problem. If complicated tests, unacceptable!!!

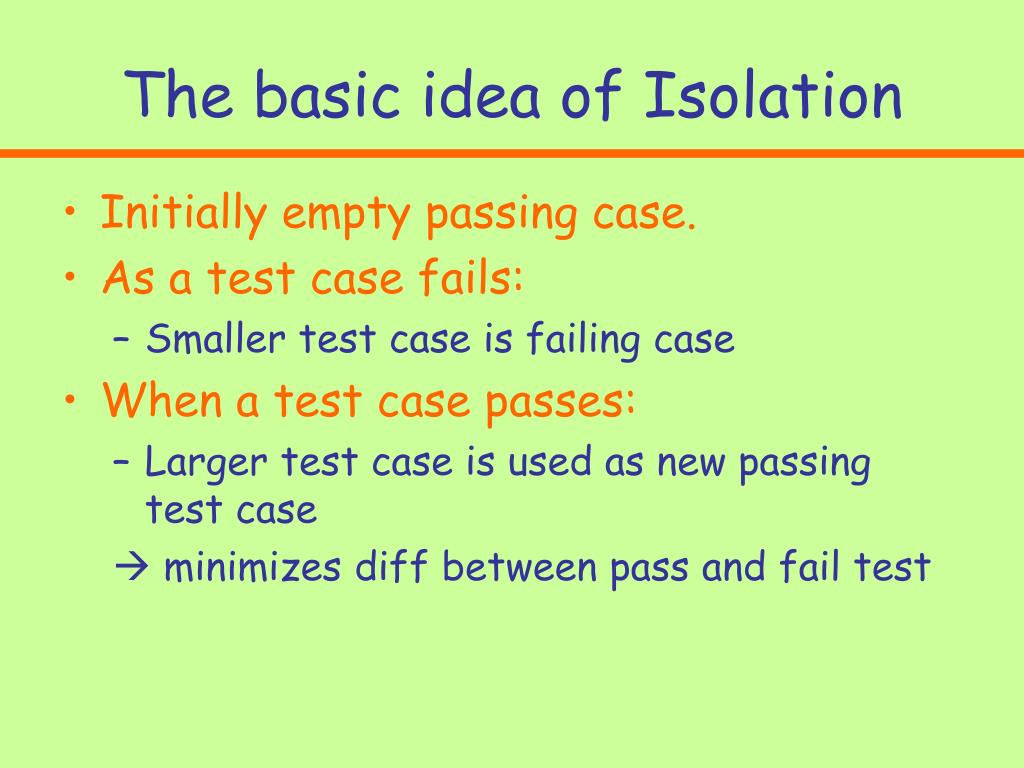

  19. The basic idea of Isolation • Initially empty passing case. • As a test case fails: • Smaller test case is failing case • When a test case passes: • Larger test case is used as new passing test case  minimizes diff between pass and fail test

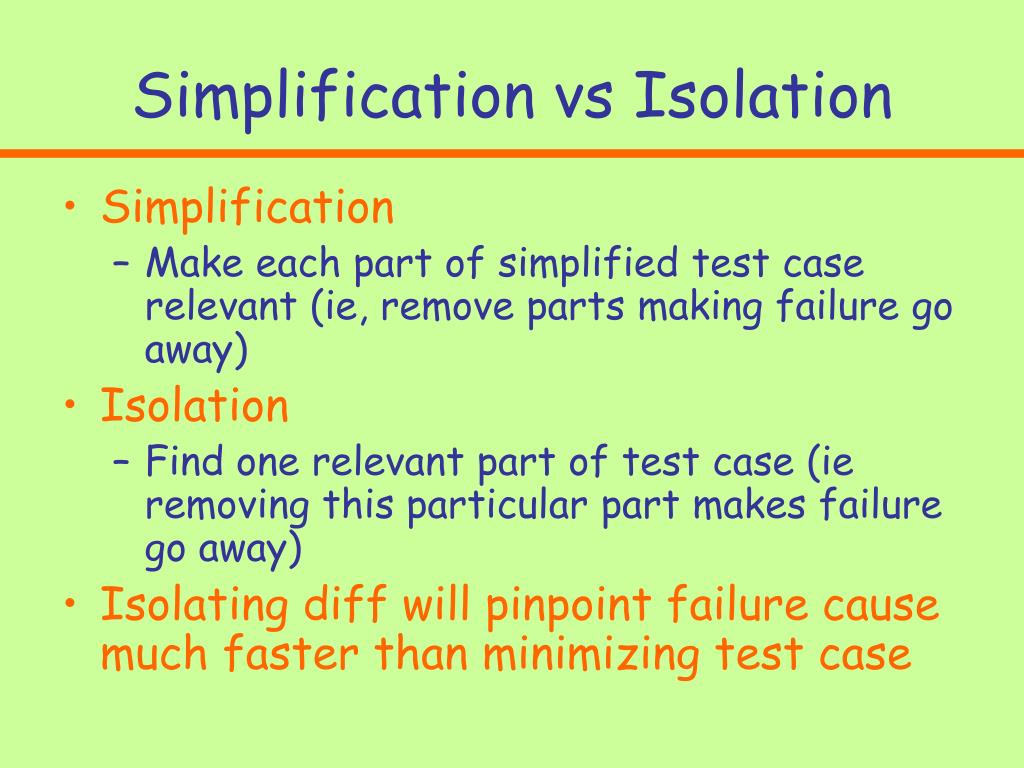

  20. Simplification vs Isolation • Simplification • Make each part of simplified test case relevant (ie, remove parts making failure go away) • Isolation • Find one relevant part of test case (ie removing this particular part makes failure go away) • Isolating diff will pinpoint failure cause much faster than minimizing test case

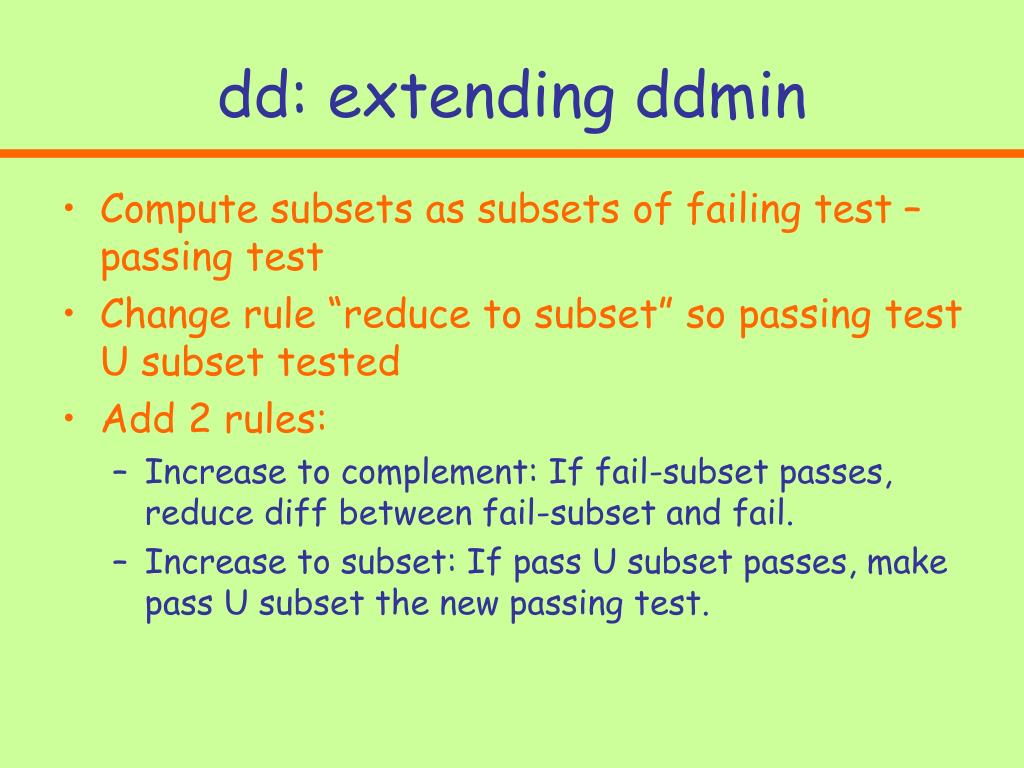

  21. dd: extending ddmin • Compute subsets as subsets of failing test – passing test • Change rule “reduce to subset” so passing test U subset tested • Add 2 rules: • Increase to complement: If fail-subset passes, reduce diff between fail-subset and fail. • Increase to subset: If pass U subset passes, make pass U subset the new passing test.

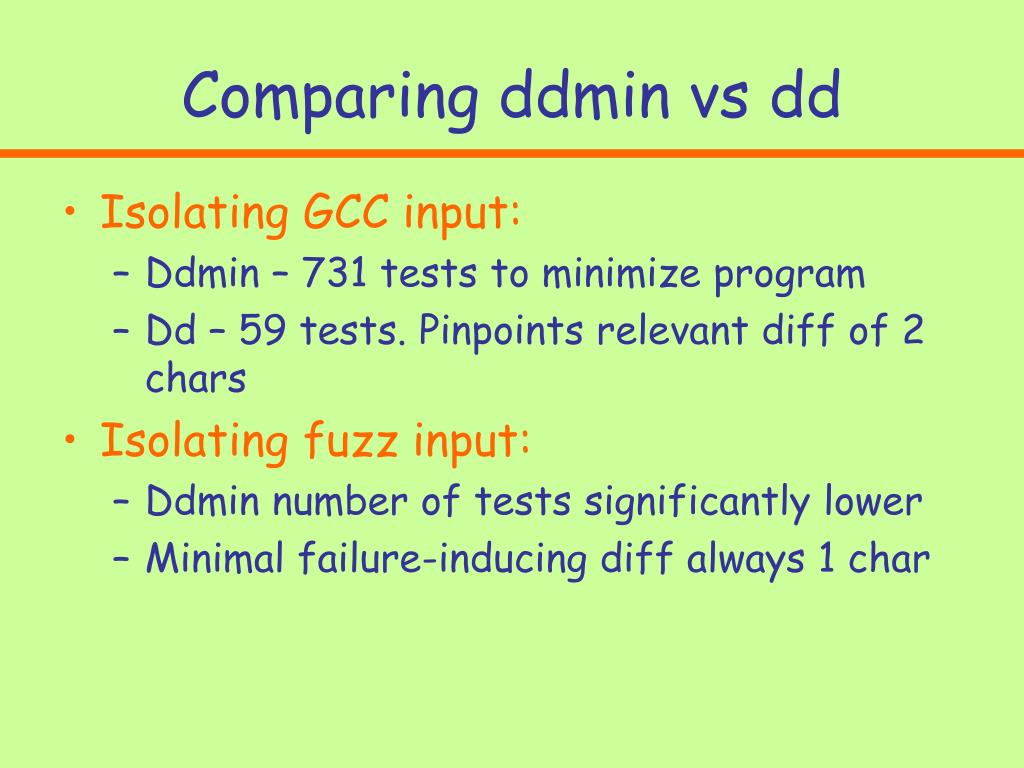

  22. Comparing ddmin vs dd • Isolating GCC input: • Ddmin – 731 tests to minimize program • Dd – 59 tests. Pinpoints relevant diff of 2 chars • Isolating fuzz input: • Ddmin number of tests significantly lower • Minimal failure-inducing diff always 1 char

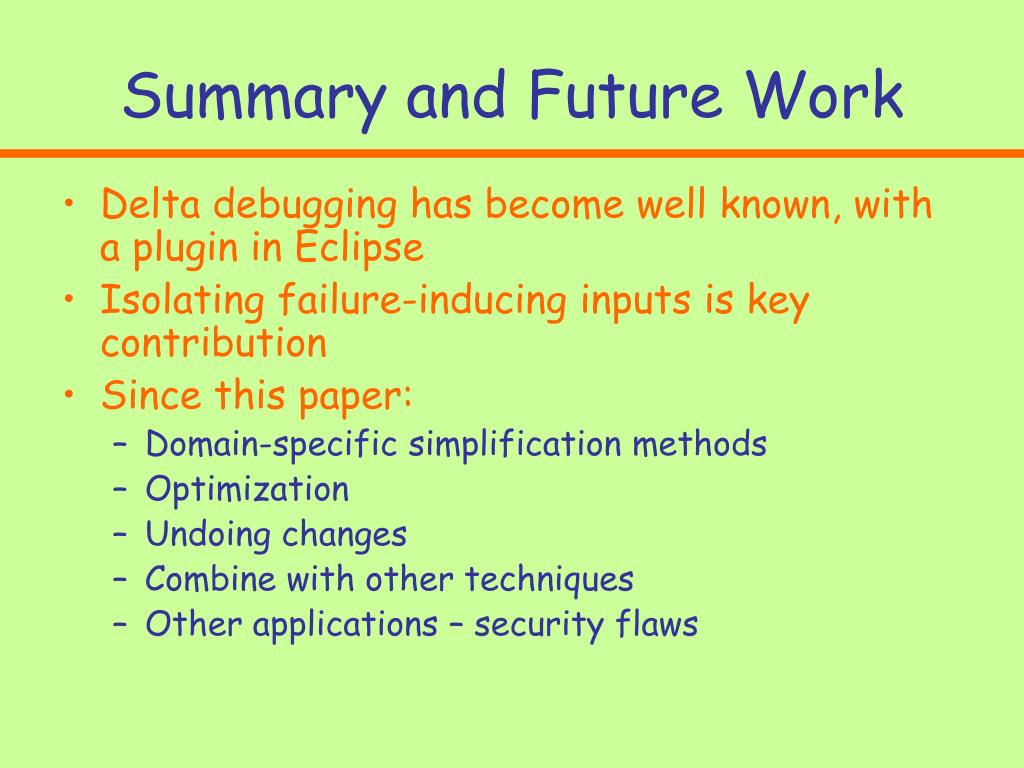

  23. Summary and Future Work • Delta debugging has become well known, with a plugin in Eclipse • Isolating failure-inducing inputs is key contribution • Since this paper: • Domain-specific simplification methods • Optimization • Undoing changes • Combine with other techniques • Other applications – security flaws
