  1. Dynamic Source Routing in ad hoc wireless networks Alexander Stojanovic IST Lisabon 1

  2. Outline • Introduction • Assumptions • Basic Operation • Route Discovery • Route Maintenance • Optimizations • Performance Evaluation • Conclusion 2

  3. Introduction (1/3) Ad hoc network n • A collection of mobile hosts with wireless network interfaces may form a temporary network • Without the aid of any established infrastructure or centralized administration 3

  4. Introduction (2/2) Dynamic Source Routing n • The sender of a packet determines the complete sequence of nodes through which to forward the packet • The sender explicitly lists this route in the packet’s header DSR offers a number of advantages n • Uses no periodic routing advertisement messages Network bandwidth overhead n Battery power n 4

  5. Assumptions Each host should be willing to forward packets for other hosts n The diameter of the ad hoc network may be greater than one n Hosts move at any time without notice, but the speed with n which hosts move is moderate Hosts can enable a promiscuous receive mode on their n wireless network interface hardware 5

  6. Basic Operation The sender constructs a source route in the packet’s header n Each host in the ad hoc network maintains a route cache n When a host sends a packet to another host n • A route is found Use this route to transmit the packet n • No route is found Use the route discovery n The route should fail n • The correct operation of a route in use we call route maintenance 6

  7. Basic Operation – Route Discovery (1/3) A host initiating a route discovery n • Broadcasts a route request packet Each route request packet contains n • Route record • Initiator address • Request id If the route discovery is successful n • The Initiating host receives a route reply packet 7

  8. Basic Operation – Route Discovery (2/3) When any host receives a route request packet, it processes n the request according to the following steps: • If <initiator address, request id> is found in this host Discard the route request packet n • If this host’s address is already listed in the route record Discard the route request packet n • If the target of the request matches this host’s address Return a copy of this route in a route reply packet to the initiator n • Otherwise, append this host’s address to the route record, and re-broadcast the request 8

  9. Basic Operation – Route Discovery (3/3) 9

  10. Basic Operation – Route Maintenance (1/2) Conventional routing protocols integrate route discovery with n route maintenance by continuously sending periodic routing updates There are no periodic message of any kind from any of the n mobile hosts It monitors the operation of the route and inform the sender of n any routing errors • The host sends a route error packet to the original sender 10

  11. Basic Operation – Route Maintenance (2/2) 11

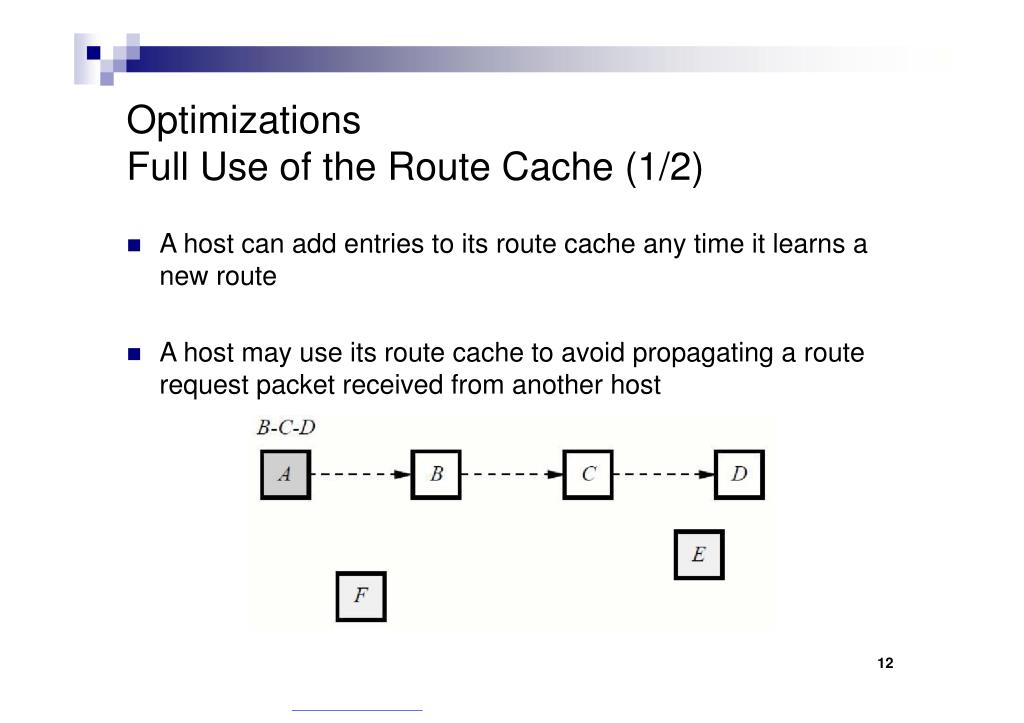

  12. Optimizations Full Use of the Route Cache (1/2) A host can add entries to its route cache any time it learns a n new route A host may use its route cache to avoid propagating a route n request packet received from another host 12

  13. Optimizations Full Use of the Route Cache (2/2) There are two problems can occur n Collision n • Delay for a period of d d=Hx(h – 1+r) n h : the length of network hops for the route to be returned n r : a random number between 0 and 1 n H : a small constant delay to be introduced per hop (4 msec) n Loop n • The host instead discards the request if the route in its reply would contain a loop 13

  14. Optimizations Reflecting Shorter Routes While two hosts are communicating with each other using n cached routes • it is desirable for the hosts to begin using shorter routes if the hosts move sufficiently closer together Network interfaces operate in promiscuous receive mode n Use an unsolicited route reply packet n It has not yet added this method to simulator n 14

  15. Optimizations Improved Handling of Errors Use promiscuous receive mode 15

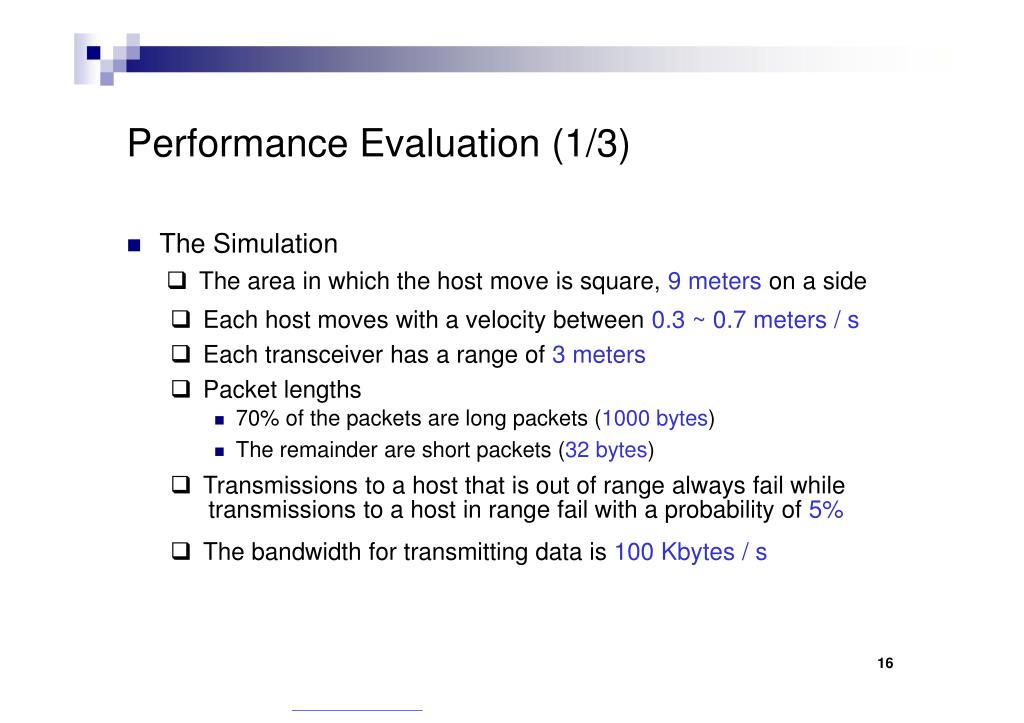

  16. Performance Evaluation (1/3) The Simulation n • The area in which the host move is square, 9 meters on a side • Each host moves with a velocity between 0.3 ~ 0.7 meters / s • Each transceiver has a range of 3 meters • Packet lengths 70% of the packets are long packets (1000 bytes) n The remainder are short packets (32 bytes) n • Transmissions to a host that is out of range always fail while transmissions to a host in range fail with a probability of 5% • The bandwidth for transmitting data is 100 Kbytes / s 16

  17. Performance Evaluation (2/3) 17

  18. Performance Evaluation (3/3) 18

  19. Conclusion This presentationhas presented a protocol for routing packets between wireless mobile hosts in an ad hoc network. Future work n • Security 19
