Mitosis

Mitosis. Mitosis is the process by which new cells are generated. Mitosis produces 2 genetically identical daughter cells. Overview of Mitosis:. Parent cell. Replicated chromosomes condense at the start of mitosis. Mitosis. Sister chromatids separate and two daughter cells are formed.

jean
Télécharger la présentation

Mitosis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

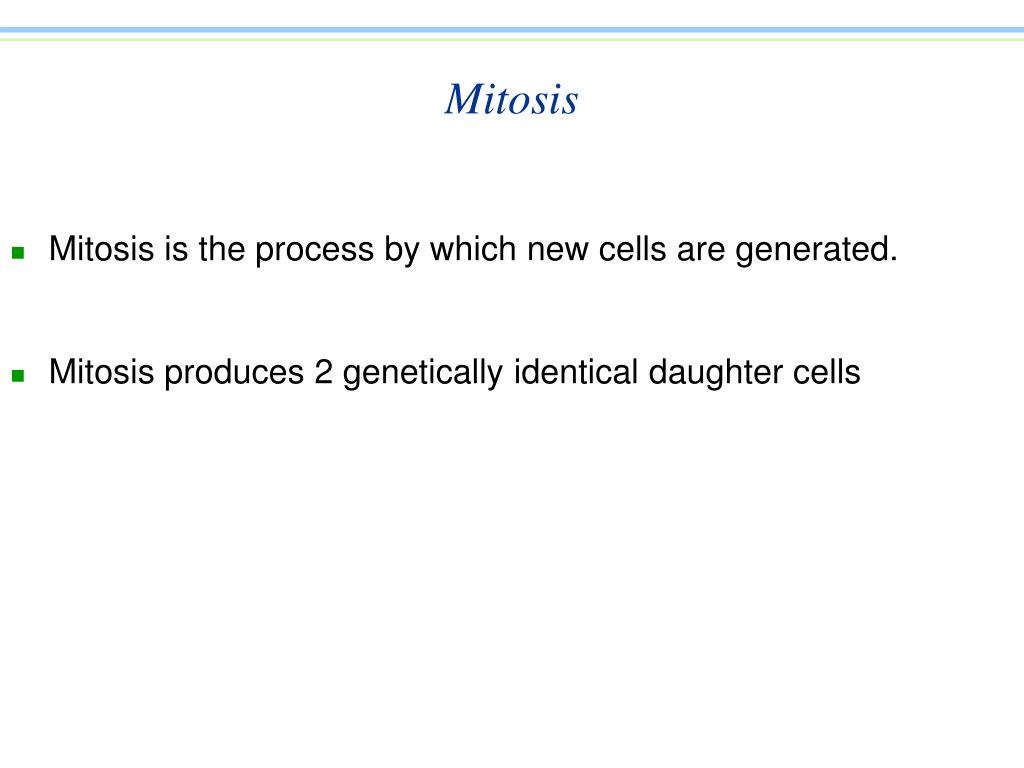

  1. Mitosis • Mitosis is the process by which new cells are generated. • Mitosis produces 2 genetically identical daughter cells

  2. Overview of Mitosis: Parent cell Replicated chromosomescondense at the start of mitosis Mitosis Sister chromatids separate and two daughter cells are formed. Parent cell and daughter cell contain thesame complement of chromosomes.

  3. The cell cycle:

  4. Figure 12.5 The stages of mitotic cell division in an animal cell: G2 phase; prophase; prometaphase

  5. Figure 12.5 The stages of mitotic cell division in an animal cell: metaphase; anaphase; telophase and cytokinesis.

  6. Figure 12.5x Mitosis

  7. How do spindle fibers move the chromosomes?

  8. The kinetochore is a specialized region on the centromere where spindle fibers attach

  9. Motor molecules of the kintochore walk along the microtubule, taking the chromosome with it As the chromosomes move toward the poles, the microtubules are broken down at the kinetochore end

  10. ATP ADP+Pi Motor molecules "walk" along a microtubule track Transport vesicle ATP ADP+Pi Kinesin Microtubule

  11. After the nucleus divides, cytokinesis divides the cytoplasm, forming two separate cells

  12. Figure 8.9a Cytokinesis in animals Cleavage furrow

  13. Mitosis in a plant cell

  14. Bacteria divide by binary fission

  15. Bacteria divide by binary fission

  16. Bacteria divide by binary fission

  17. Unregulated cell division can lead to cancer • Many factors interact with each other to determine whether a cell will undergo mitosis • Cell cycle checkpoints normally insure that DNA replication and mitosis occur only when conditions are favorable and the process is working correctly.

  18. Cell-Cycle Checkpoints G2 checkpoint Pass this checkpoint if:• cell size is adequate• chromosome replication is successfully completed M Mitosis G2 Second gap Metaphase checkpoint Pass this checkpoint if:• all chromosomes are attached to mitotic spindle G1 First gap G1 checkpoint DNA synthesis Pass this checkpoint if:• cell size is adequate• nutrient availability is sufficient• growth factors (signals from other cells) are present S

  19. Cell cycle proteins regulate whether a cell will proceed past a particular cell cycle checkpoint • cyclin-  a protein whose amount varies cyclically • cdk- another cell division control protein - a cyclin dependent kinase; active only when bound to cyclin • MPF- mitotic promoting factor...   • MPF is a kinaseenzyme, ones that switches on/off target proteins by phosphorylating them.....  • [cyclin + cdk = MPF]...    favors Mitosis • leads to destruction of cyclin itself

  20. MPF levels rise, causing the cell to pass through the G2 checkpoint

  21. Growth factor proteins are signal molecules that trigger a signal-transduction pathway leading to cell division Platelet-derived growth factor

  22. Cell division is also dependent on environmental factors

  23. Unregulated cell division can lead to cancer • Mutations in genes that encode cell cycle proteins can lead to unregulated growth, resulting in tumor formation and ultimately invasion of cancerous cells to other organs.

  24. Cancer cells have escaped cell cycle controls and divide excessively

  25. Figure 12-17x1 Breast cancer cell

  26. Figure 12-17x2 Mammogram: normal (left) and cancerous (right)

  27. CANCER SPREADS
