  1. TheSolar System A journey through our neighboring planets

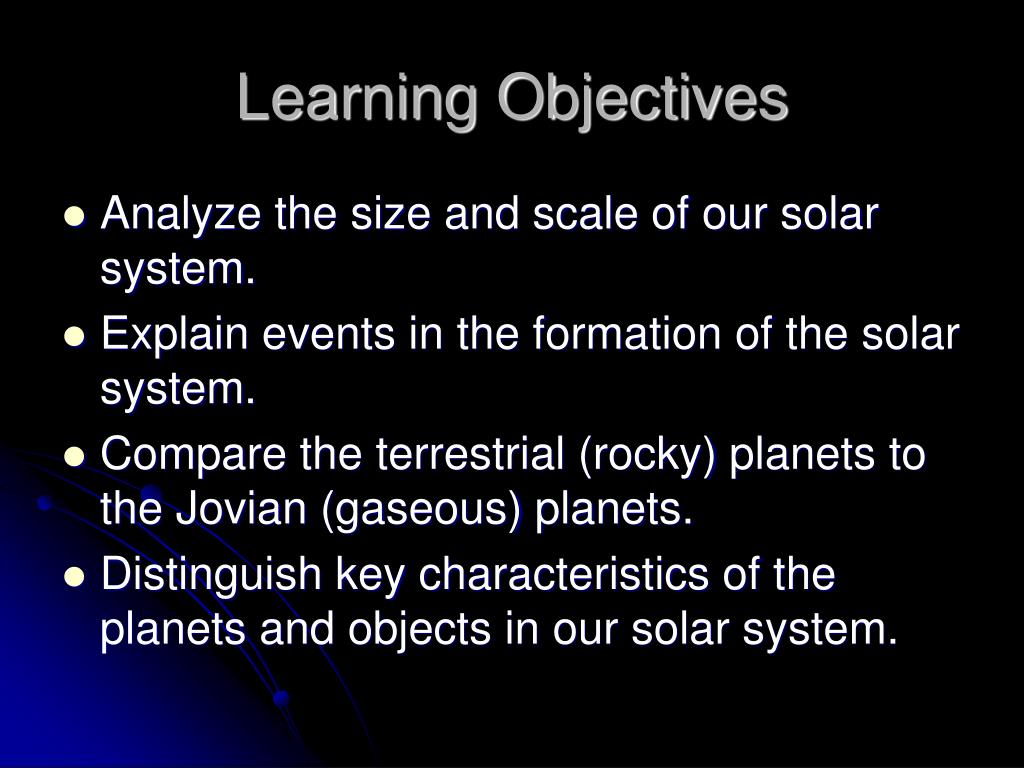

  2. Learning Objectives • Analyze the size and scale of our solar system. • Explain events in the formation of the solar system. • Compare the terrestrial (rocky) planets to the Jovian (gaseous) planets. • Distinguish key characteristics of the planets and objects in our solar system.

  3. Scale of the Solar System • The size of the solar system is HUMONGOUS! • Yet our solar system is a tiny speck when compared to stars in our galaxy, which is only one of billions.

  4. Scale of the Planets • The Sun makes up 99.86% of the entire mass of the entire solar system. • Figure 2 from page 646 shows the scale size of the planets. Look at how tiny our planet is compared to the gas giants and especially the sun!

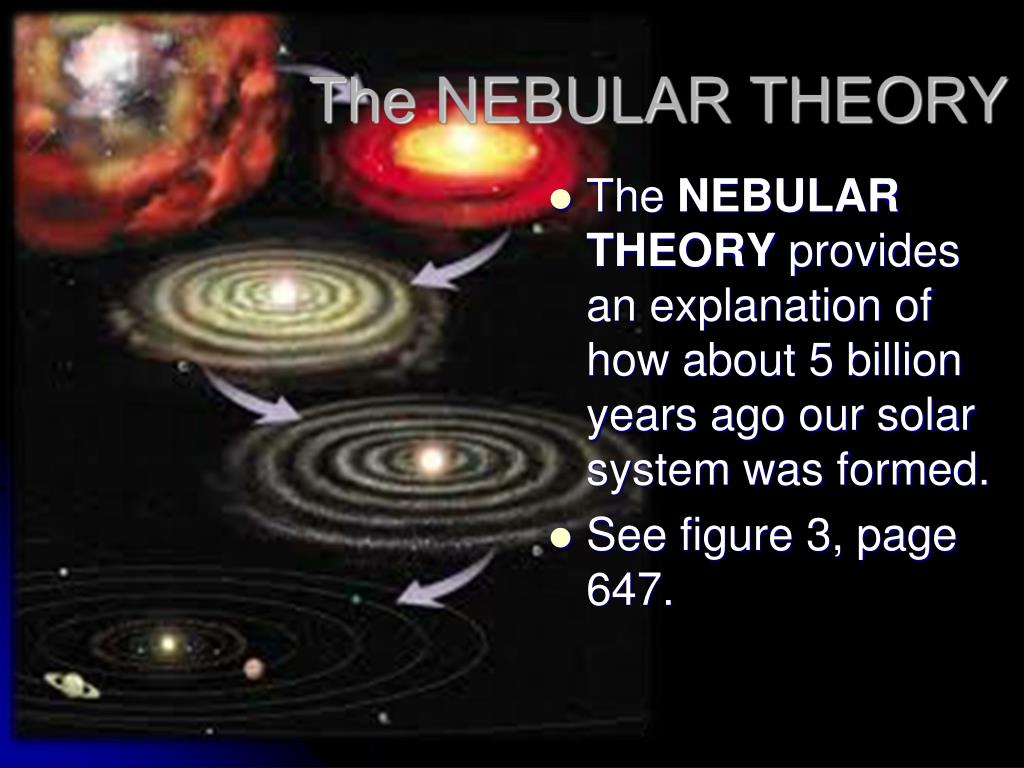

  5. The NEBULAR THEORY • The NEBULAR THEORY provides an explanation of how about 5 billion years ago our solar system was formed. • See figure 3, page 647.

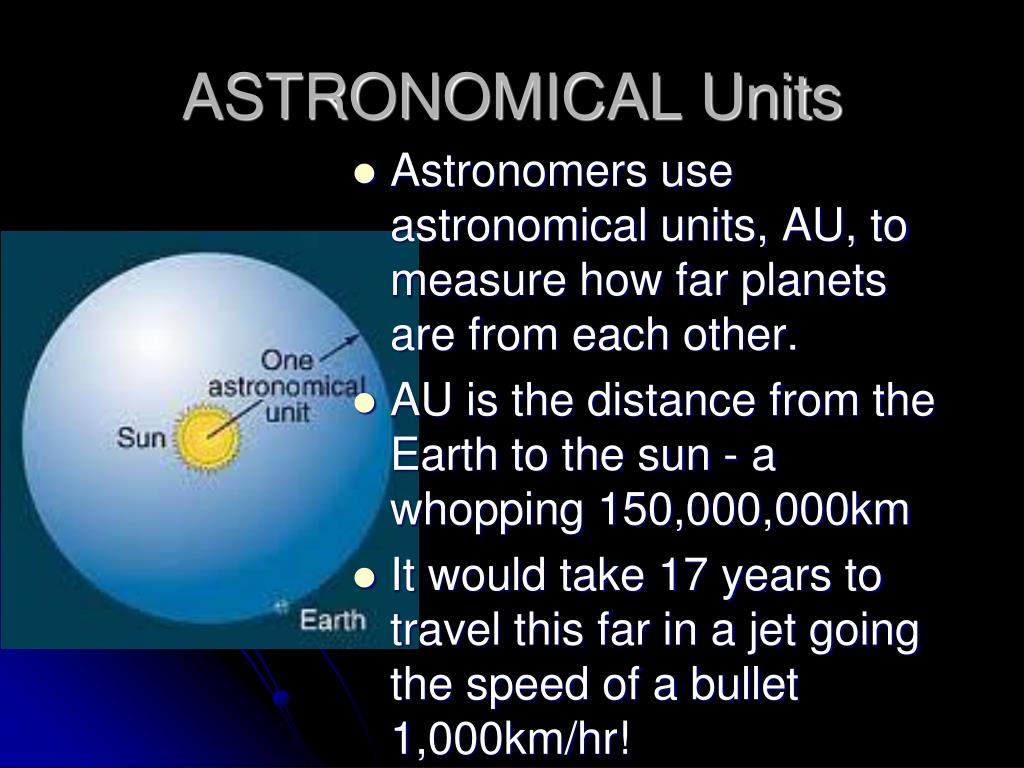

  6. ASTRONOMICAL Units • Astronomers use astronomical units, AU, to measure how far planets are from each other. • AU is the distance from the Earth to the sun - a whopping 150,000,000km • It would take 17 years to travel this far in a jet going the speed of a bullet 1,000km/hr!

  7. The Sun: OUR STAR • The sun is the biggest, brightest, and hottest object in the solar system. • Diameter= 1.4 million km • Made of about 70% hydrogen and 28% helium. • Could hold a million Earth’s inside.

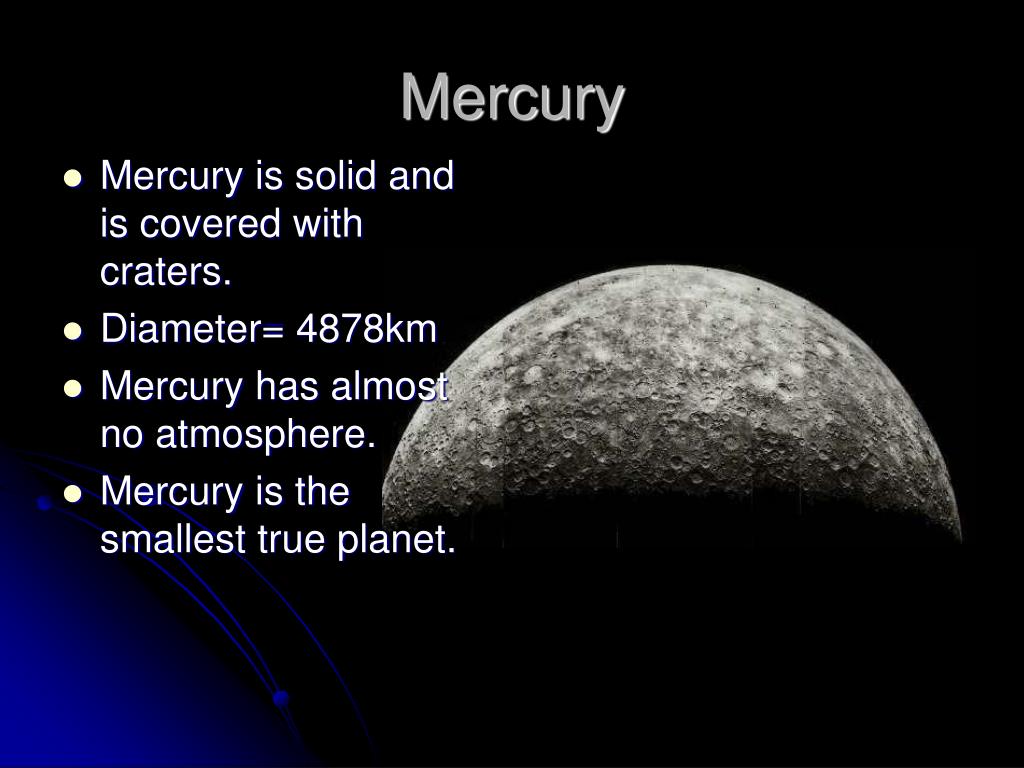

  8. Mercury • Mercury is solid and is covered with craters. • Diameter= 4878km • Mercury has almost no atmosphere. • Mercury is the smallest true planet.

  9. Venus • Venus is the sixth largest planet. It’s about three-fourths the size of earth. • Diameter= 12,104km • The surface is rocky and very hot. The 97% CO2atmosphere completely hides the surface and traps the heat.

  10. Earth • Earth is the fifth largest planet and the third from the sun. • A terrestrial planet with an atmosphere made of 71% Nitrogen and 28% Oxygen • Diameter= 12,756km • Liquid covers 71 percent of the Earth’s surface. • The Earth has one moon.

  11. Moon: Luna

  12. Mars • Mars is the fourth rocky planet from the sun. • Diameter= 6,794km • Mars has a thin atmosphere that contains mostly carbon dioxide. • Mars has two small moons.

  13. Moons of Mars Phobos Deimos

  14. Let’s Review • How was the solar system formed? • What is an astronomical unit and why is it used? • What are the name of the terrestrial planets? • Which planets have no moons?

  15. Jupiter: The Giant Planet • The largest of the planets. Can hold 1,300 and the rest of the planets. • Diameter= 143,884km • Has hydrogen-helium atmosphere

  16. Jupiter’s Red Spot • The Great Red Spot, a huge storm of swirling gas that has lasted for hundreds of years and is the size of 3 Earths. • Jupiter does not have a solid surface. The planet is a ball of liquid surrounded by gas.

  17. Moons of Jupiter • Jupiter has four large Galilean moons, twelve smaller named moons and over 40 irregular satellites for a total of 63 moons • We’ll take a look at the four large Galilean moons which were first observed by Galileo Galilei in 1610.

  18. Io • Io is the fifth moon of Jupiter. It’s the third largest of Jupiter’s moons. • Io has hundreds of volcanic calderas. Some of the volcanoes are active.

  19. Europa • Europa is the sixth of Jupiter’s moons and is the fourth largest. • It is slightly smaller than the Earth’s moon. • The surface strongly resembles images of sea ice on Earth. There may be a liquid water sea under the crust. • Europa is one of the five known moons in the solar system to have an atmosphere.

  20. Ganymede • Ganymede is the seventh and largest of Jupiter’s known satellites. • Ganymede has extensive cratering and an icy crust.

  21. Callisto • Callisto is the eighth of Jupiter’s known satellites and the second largest. • Callisto has the oldest, most cratered surface of any body yet observed in the solar system.

  22. Saturn • Saturn is the second largest planet and the sixth from the sun. • Diameter= 120,536km • Saturn is made of materials that are lighter than water. If you could fit Saturn in a lake, it would float! • Has 56 Moons

  23. Rings of Saturn • Saturn’s rings are not solid; they are composed of small countless particles. • The rings are very thin. Though they’re 250,000km or more in diameter, they’re less than one kilometer thick.

  24. Uranus • Uranus is the third largest planet and the seventh from the sun. • Diameter= 51,118km • Uranus is blue-green because of the methane in its atmosphere. • Has 27 moons

  25. Neptune • Neptune is the fourth largest planet and the eight from the sun. • Diameter= 50,530 • Like Uranus, the methane atmosphere gives Neptune its color. • Has 13 moons.

  26. Pluto • Pluto is a dwarf planet and usually the farthest from the sun. • Pluto is the only “planet” that has not been visited by a spacecraft. • Diameter= 2,300km

  27. Planet Movements • Move in an elliptical orbit • influenced by the sun’ gravity

  28. Period of Revolution • the time it takes to go once around the sun • one year on Earth (365.25 days) • Mercury 88 days, Pluto 248 years • Why is the revolution period longer for farther planets?

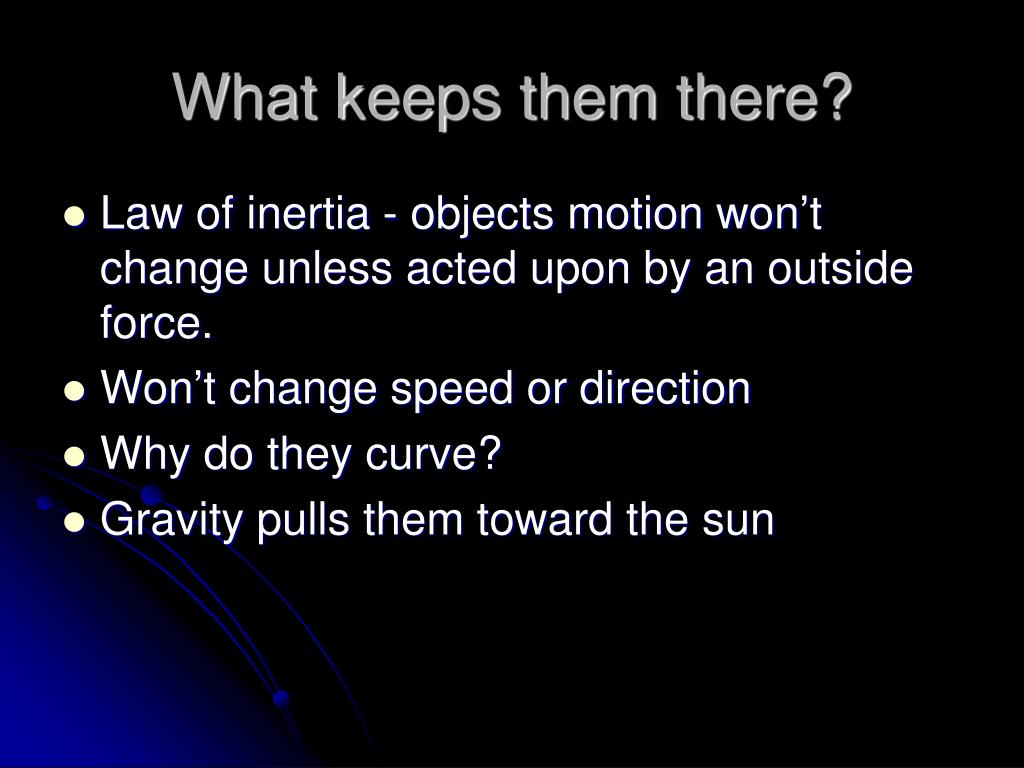

  29. What keeps them there? • Law of inertia - objects motion won’t change unless acted upon by an outside force. • Won’t change speed or direction • Why do they curve? • Gravity pulls them toward the sun

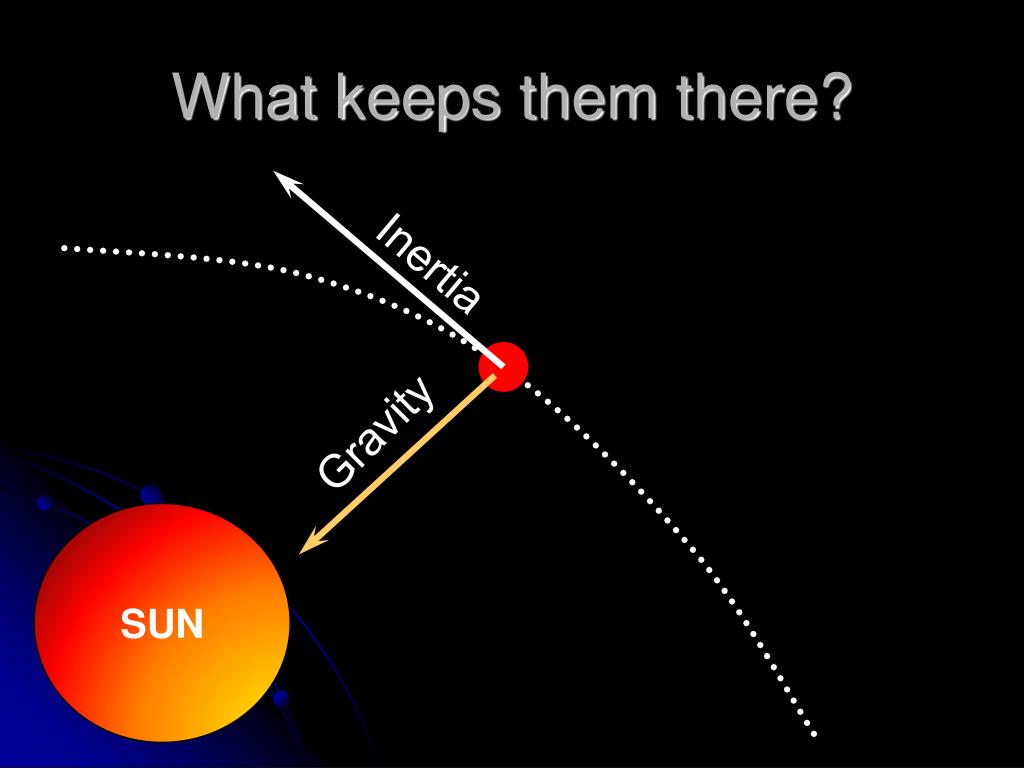

  30. Inertia Gravity What keeps them there? SUN

  31. Rotation • Planets spin on their axes • One rotation is a day • Mercury 58 days, Jupiter 10 hours • Why do you think rotation is faster for larger planets?

  32. Analyze This • What trend do you notice within this graph?

  33. Analyze This • Notice the materials which make the planets. Which planets are more dense? • Read page 648 to learn how gravity also influenced the structure and size of the planets.

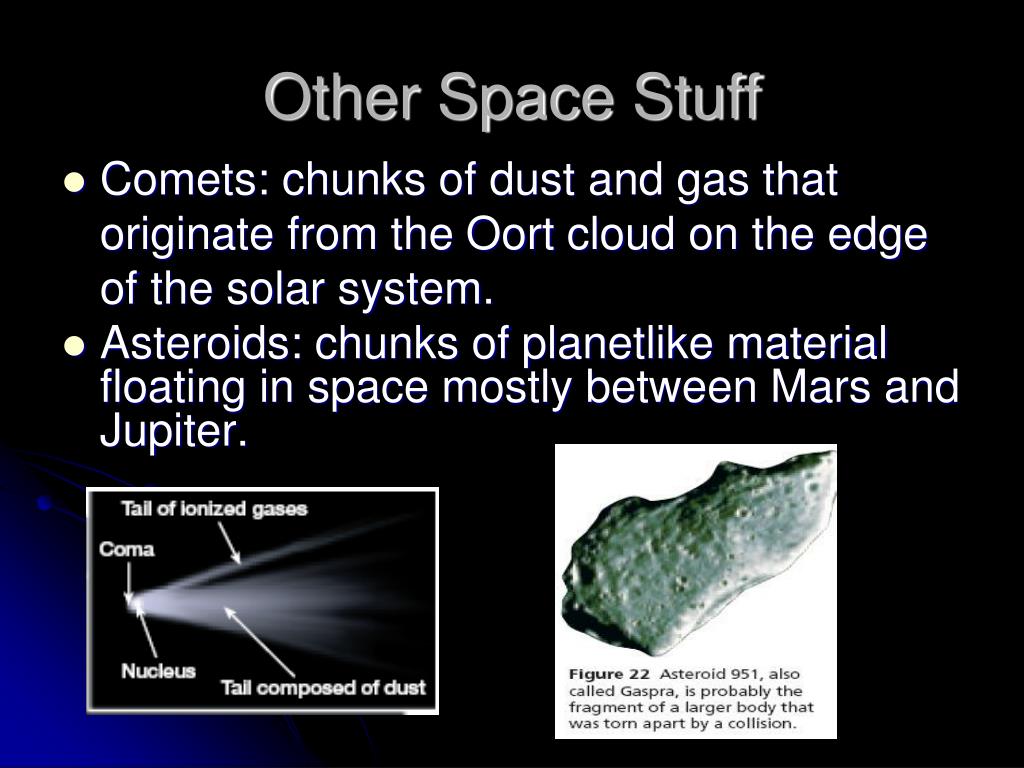

  34. Other Space Stuff • Comets: chunks of dust and gas that originate from the Oort cloud on the edge of the solar system. • Asteroids: chunks of planetlike material floating in space mostly between Mars and Jupiter.

  35. Other Space Stuff • Meteor: the shooting star -the light you see the sky • Meteoroid: solid rocky objects circling the sun • Meteorite: When a meteor hits the ground • Most don’t reach the ground because they burn up in the atmosphere
