Unsupervised Feature Selection for Multi-Cluster Data Deng Cai et al, KDD 2010

1. Unsupervised Feature Selection for Multi-Cluster DataDeng Cai et al, KDD 2010 Presenter: Yunchao Gong Dept. Computer Science, UNC Chapel Hill

2. Introduction

3. The problem • Feature selection for high dimensional data • Assume high dimensional n*d data matrix X • When d is too high (d > 10000) , it causes problems • Storing the data is expensive • Computational challenges

4. A solution to this problem • Select the most informative features • Assume high dimensional n*d data matrix X d n

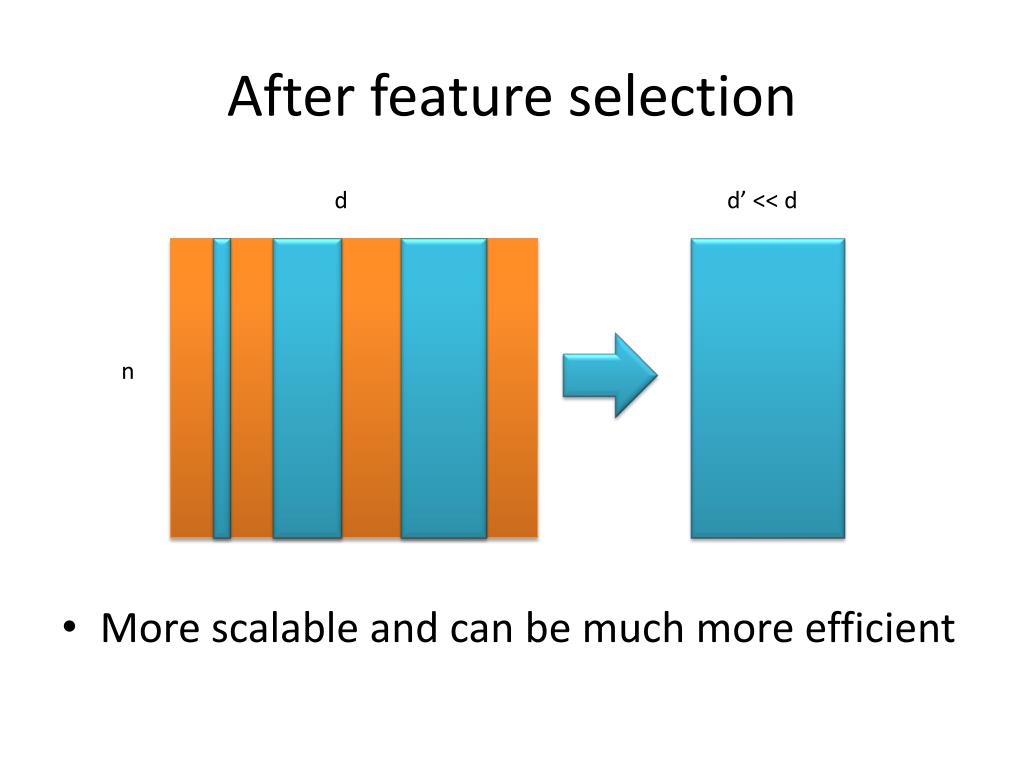

5. After feature selection • More scalable and can be much more efficient d d’ << d n

6. Previous approaches • Supervised feature selection • Fisher score • Information theoretical feature selection • Unsupervised feature selection • LaplacianScore • MaxVariance • Random selection

7. Motivation of the paper • Improving clustering (unsupervised) using feature selection • Automatically select the most useful feature by discovering the manifold structure of data

8. Motivation and Novelty • Previous approaches • Greedy selection • Selects each feature independently • This approach • Considers all features together

9. A toy example

10. Some background—manifold learning • Tries to discover manifold structure from data

11. manifolds in vision appearance variation

12. Some background—manifold learning • Discovers smooth manifold structure • Map different manifold (classes) as far as possible

13. The proposed method

14. Outline of the approach • 1. manifold learning for cluster analysis • 2. sparse coefficient regression • 3. sparse feature selection

15. Outline of the approach Generate response Y

16. 1. Manifold learning for clustering • Manifold learning to find clusters of data 2 1 3 4

17. 1. Manifold learning for clustering • Observations • Points in the same class are clustered together

18. 1. Manifold learning for clustering • Ideas? • How to discover the manifold structure?

19. 1. Manifold learning for clustering • Map similar points closer • Map dissimilar points faraway min similarity Data points

20. 1. Manifold learning for clustering • Map similar points closer • Map dissimilar points faraway min = , D = diag(sum(K))

21. 1. Manifold learning for clustering • Constraining f to be orthogonal (f^TDf=I) to eliminate free scaling • So we have the following minimization problem

22. Summary of manifold discovery • Construct graph K • Choose a weighting scheme for K ( ) • Perform • Use f as the response vectors Y

23. Response vector Y • Y reveals the manifold structure! 4 2 Response Y = 1 3

24. 2. Sparse coefficient regression • When we have obtained Y, how to use Y to perform feature selection? • Y reveals the cluster structure, use Y as response to perform sparse regression

25. Sparse regression • The ``Lasso’’ sparsely

26. Steps to perform sparse regression • Generate Y from step 1 • Data matrix input X • For each column of Y, we denote it as Y_k • Perform the following step to estimate

27. illustration nonzero X a Y_k =

28. 3. Sparse feature selection • But for Y, we will have c different Y_k • How to finally combine them? • A simple heuristic approach

29. illustration a a a a

30. The final algorithm • 1. manifold learning to obtain Y • 2. sparse regression to select features • 3. final combination , Y = f

31. Step 1 4 2 Response Y = 1 3

32. Step 2 4 nonzero X a 2 regression 1 3

33. Step 3 a a a a

34. Discussion

35. Novelty of this approach • Considers all features • Uses sparse regression ``lasso’’ to perform feature selection • Combines manifold learning with feature selection

36. Results

37. Face image clustering

38. Digit recognition

39. Summary • The method is technically new and interesting • But not ground breaking

40. Summary • Test on more challenging vision datasets • Caltech • Imagenet
