  1. PASTING MACHINE A Presentation By Ramesh Natarajan

  2. PASTING MACHINE • Optimum Speed Pasting Machine • Suitable For Small & Medium Size Industries • Excellent Quality Plate Finish • Removes Dependence On Skilled Operators

  3. PASTING MACHINE • A View Of The Machine With Motorized Feeding Hopper And Plate Surface Finish Rollers Clearly Visible • Sludge & Paste Recovery System Also Seen

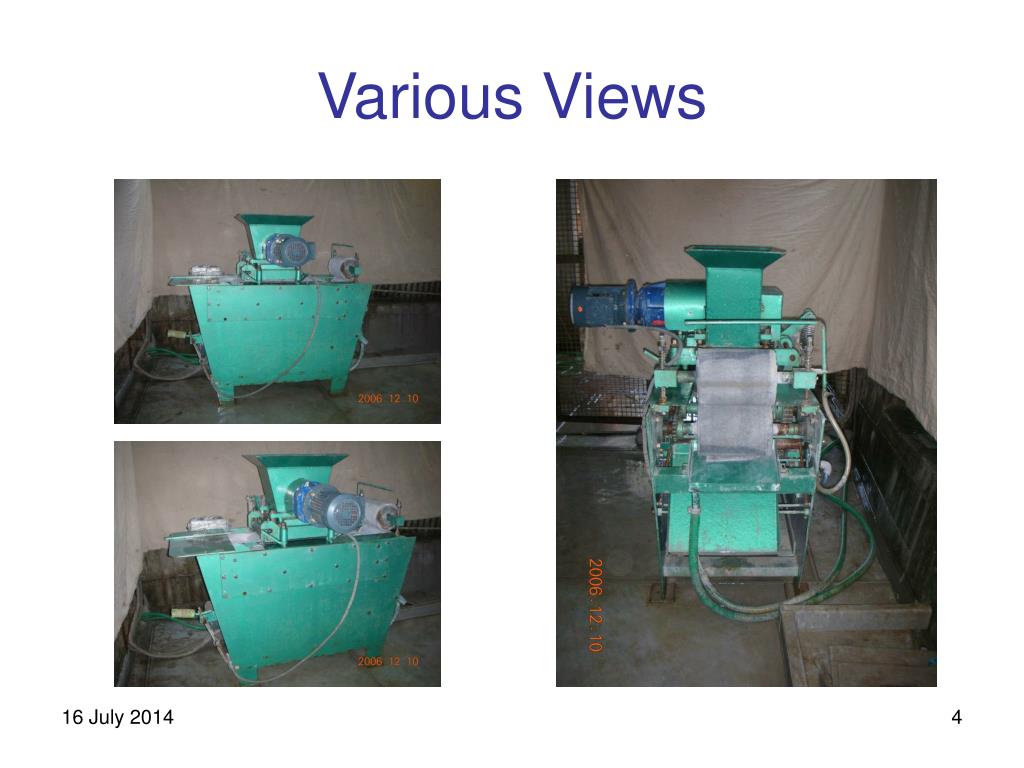

  4. Various Views

  5. Dimensional Details • Machine Size 1500 mm L 1100 mm W 1300 mm H • Control Panel Size 200 mm L 300 mm W 400 mm H

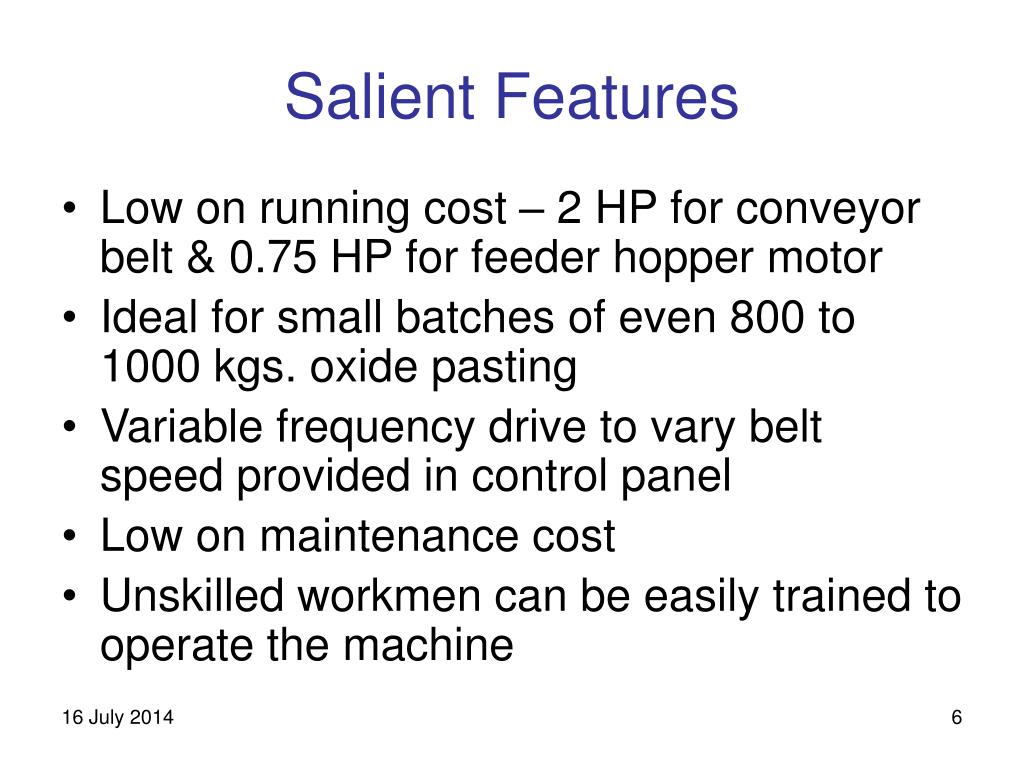

  6. Salient Features • Low on running cost – 2 HP for conveyor belt & 0.75 HP for feeder hopper motor • Ideal for small batches of even 800 to 1000 kgs. oxide pasting • Variable frequency drive to vary belt speed provided in control panel • Low on maintenance cost • Unskilled workmen can be easily trained to operate the machine

  7. Technical Support • Trial run can be done by pasting your grids at our works prior to dispatch of the machine • Necessary guidance on aspects of machine installation shall be imparted and demonstrated at our works free of cost • Detailed manual shall be sent along with the machine at the time of supply

  8. MANUFACTURED BY UNIK TECHNO SYSTEMS PVT. LTD. W 251, MIDC,Bhosari, Pune 411 026 India Tel. Nos. --- 0091-20-27110868/64102383 Fax No. --- 0091-20-27111798 E mail – unik251@vsnl.net Websites – www.unikbatteries.com & www.batterymachinery.com
