  1. Chapter 21 Machine Vision

  2. Chapter 21 Contents (1) • Human Vision • Image Processing • Edge Detection • Convolution and the Canny Edge Detector • Segmentation • Classifying Edges

  3. Chapter 21 Contents (2) • Using Texture • Structural Texture Analysis • Determining Shape and Orientation from Texture • Interpreting Motion • Making Use of Vision • Face Recognition

  4. Human Vision

  5. Image Processing • Image Processing consists of the following components: • Image capture • Edge detection • Segmentation • Three dimensional segmentation • Recognition and analysis • Image capture is the process of converting a visual scene into data that can be processed.

  6. Edge Detection (1) • Edge detection is the first phase in processing image data. • The following images show a photograph of a hand and the edges detected in this image.

  7. Edge Detection (2) • Every edge represents some kind of discontinuity in the image. • Most edges are depth discontinuities. • Other discontinuities are: • Surface orientation discontinuities • Surface reflectance discontinuities • Illumination discontinuities (shadows)

  8. Convolution and the Canny Edge Detector (1) • One method of edge detection is to differentiate the image: • Discontinuities will have the highest differentials. • This does not work well with noisy images • Convolution is better for such images.

  9. Convolution and the Canny Edge Detector (2) • The convolution of two discrete functions f(a, b) and g(a, b) is defined as follows: • The convolution of continuous functions f(a,b) and g(a,b) is defined as follows: • An image can be smoothed, to eliminate noise, by convolving it with the Gaussian function:

  10. Convolution and the Canny Edge Detector (3) • The image, after smoothing, can be differentiated to detect the edges. • The peaks in the differential correspond to the edges in the original image. • In fact, the same result can be obtained by convolving the image with the differential of G:

  11. Convolution and the Canny Edge Detector (4) • This method only works with one-dimensional edges. To detect two dimensional egdes we convolve with two filters, and square and add the results: • where I(x, y) is the value of the pixel at location (x, y) in the image. Filter 1 is G’σ(x) Gσ(y) Filter 2 is G’σ(y) Gσ(x) • This is the Canny edge detector.

  12. Segmentation • Once the edges have been detected, this can be used to segment the image. • Segmentation involves dividing the image into areas which do not contain edges. • These areas will not have sharp changes in colour or shading. • In fact, edge detection will not always entirely segment an image. • Another method is thresholding. • Thresholding involves joining pixels together that have similar colors.

  13. Classifying Edges (1) • After extracting edges, it is useful to classify the edges. • A convex edge is an edge between two faces that are at an angle of more than 180° from each other. • A concave edge is an edge between two faces that are at an angle of less than 180° from each other. • An occluding edge is a depth discontinuity.

  14. Classifying Edges (2) • The following diagram shows a line drawing that has had all its edges classified as convex (+), concave (-) or occluding (arrow):

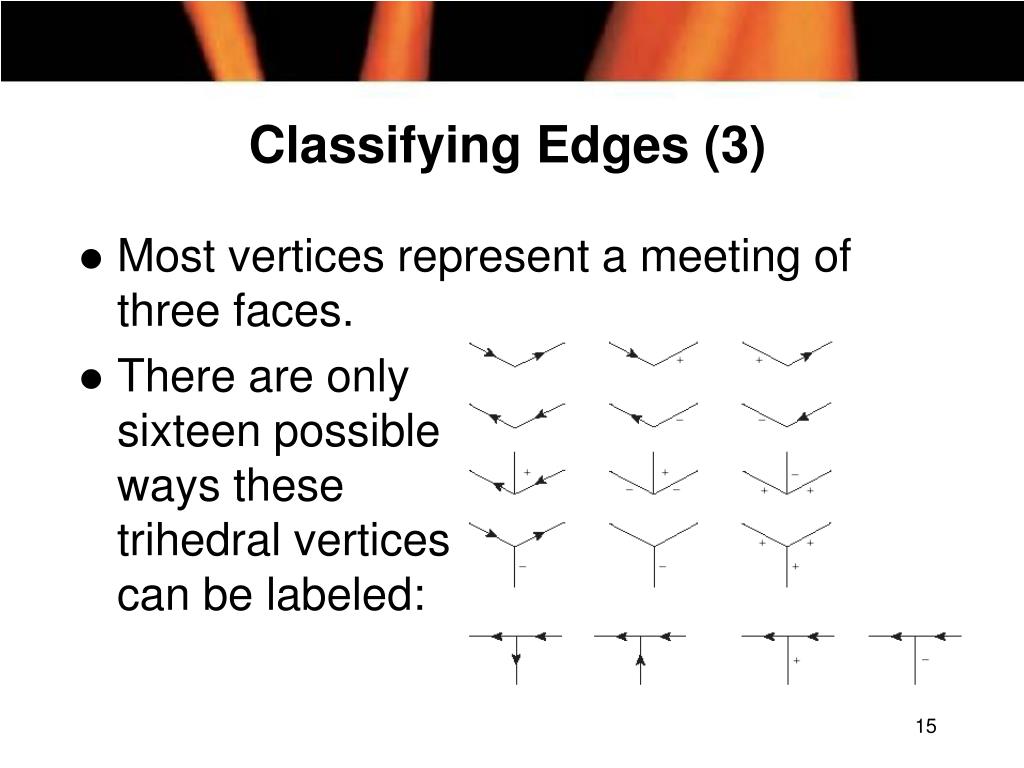

  15. Classifying Edges (3) • Most vertices represent a meeting of three faces. • There are onlysixteen possible ways these trihedral vertices can be labeled:

  16. Classifying Edges (4) • The Waltz algorithm uses this constraint. • This works as follows: • The first edge that is visited is marked with all possible labels. • Then the algorithm moves onto an adjacent edge, and attempts to label it. • If an edge cannot be labeled, the algorithm backtracks. • Thus, depth-first search is applied to attempt to find a consistent labeling for the whole image.

  17. Using Texture (1) • Textures, such as these, tell us a great deal about images, including: • Orientation • Shape • We can also determine what the pictures on the right are showing, simply by their textures.

  18. Using Texture (2) • A statistical method of determining texture is to use co-occurrence matrices. • D(m, n) is the number of pairs of pixels in our picture, P, for which: P(i, j) = m P(i + δi, j + δj) = n i and j are pixels in P, and δi and δj are small increments. • D defines how likely it is that any two pixels a particular distance apart (δi and δj) will have a particular pair of values. • The co-occurrence matrix is defined as: C = D + DT where DT is the transposition of D.

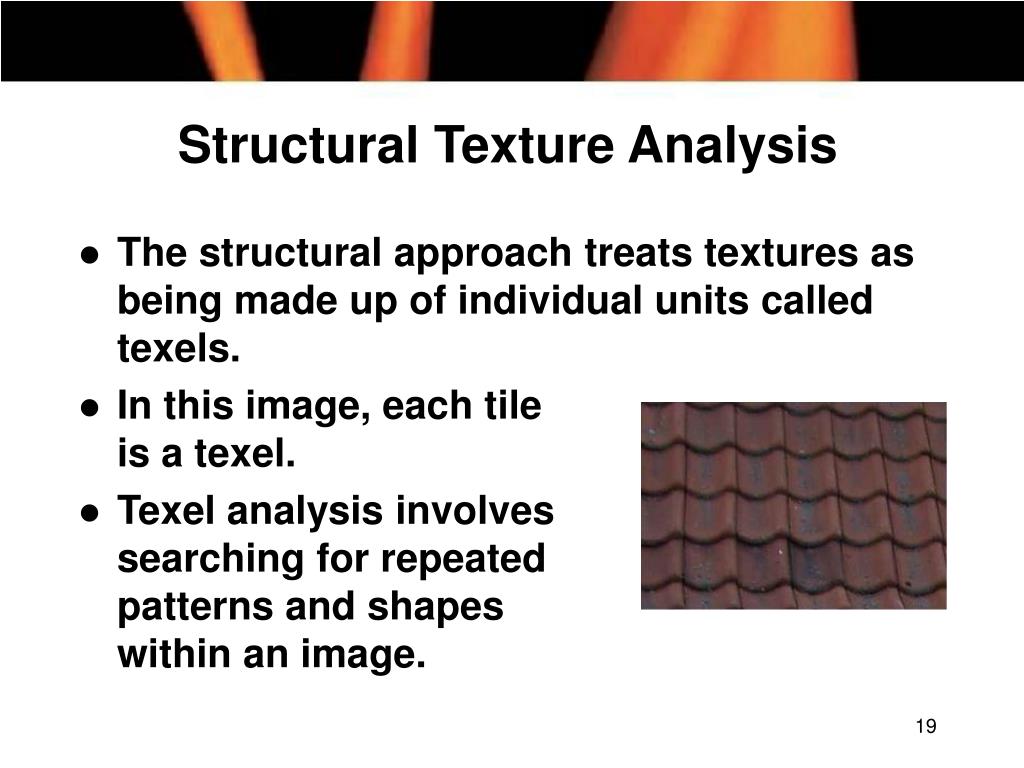

  19. Structural Texture Analysis • The structural approach treats textures as being made up of individual units called texels. • In this image, each tileis a texel. • Texel analysis involvessearching for repeatedpatterns and shapeswithin an image.

  20. Determining Shape and Orientation from Texture (1) • These are good examples of pictures where texture helps to determine the shape and orientation. • Note that the second image, although it is a flat, two dimensional shape, looks like a sphere. • This is because this is the only sensible way for our brains to explain the texture.

  21. Determining Shape andOrientation from Texture (2) • One way to determine orientation is to assume that each texel is flat. • Thus the extent of distortion of the shape of the texel will tell us what angle it is being viewed at. • Orientation involves determining slant (σ) and tilt (τ) , as shown here:

  22. Interpreting Motion • Detecting motion is vital in mammalian vision. • Similarly, agents that interact with the real world need to be able to interpret motion. • We are interested in two types of motion: • Actual motion of other objects • Apparent motion caused by the motion of the agent.

  23. Interpreting Motion (1) • Detecting motion is vital in mammalian vision. • Similarly, agents that interact with the real world need to be able to interpret motion. • We are interested in two types of motion: • Actual motion of other objects • Apparent motion caused by the motion of the agent. • This apparent motion is known as optical flow, and the vectors that define the apparent motion are the motion field.

  24. Interpreting Motion (2) • The arrows on this photo show the motion field.

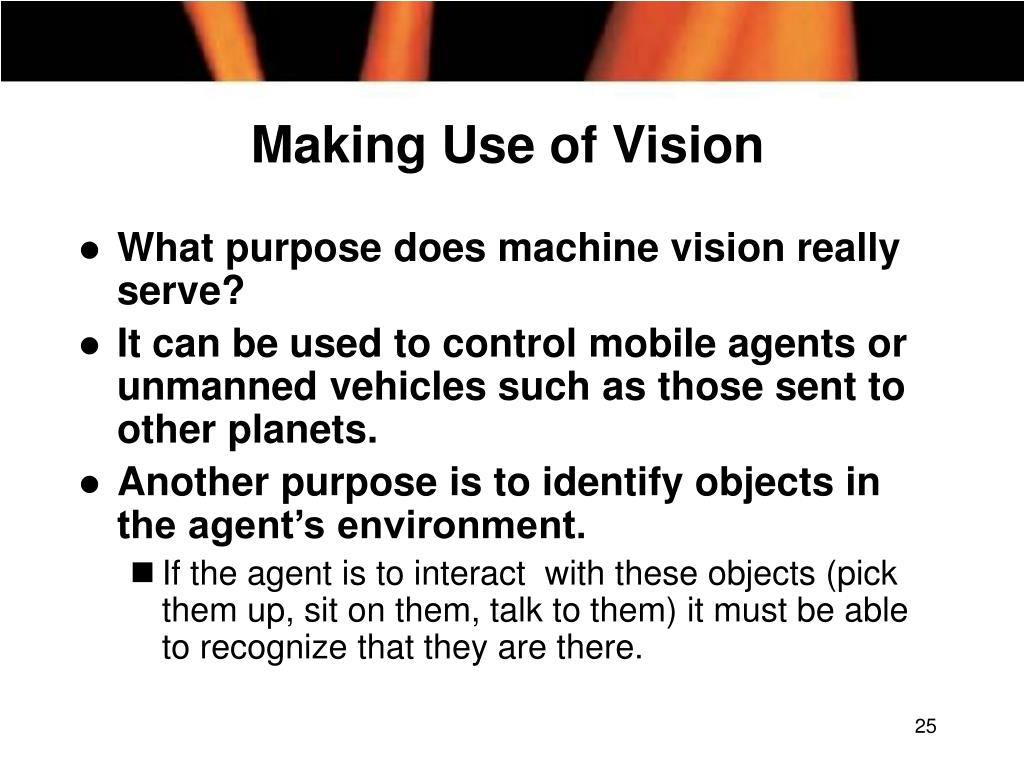

  25. Making Use of Vision • What purpose does machine vision really serve? • It can be used to control mobile agents or unmanned vehicles such as those sent to other planets. • Another purpose is to identify objects in the agent’s environment. • If the agent is to interact with these objects (pick them up, sit on them, talk to them) it must be able to recognize that they are there.

  26. Face Recognition • An example of a problem that humans are extremely good at solving, but computers are very bad at. • Faces must be recognized in varying lighting conditions, from different angles and distances, and with other variable elements such as facial hair, glasses, hats and natural aging. • Methods used in face recognition vary, but many involve principle component analysis: • Identifying those features that most differentiate one face from another, and treating those as a vector which is to be compared.
