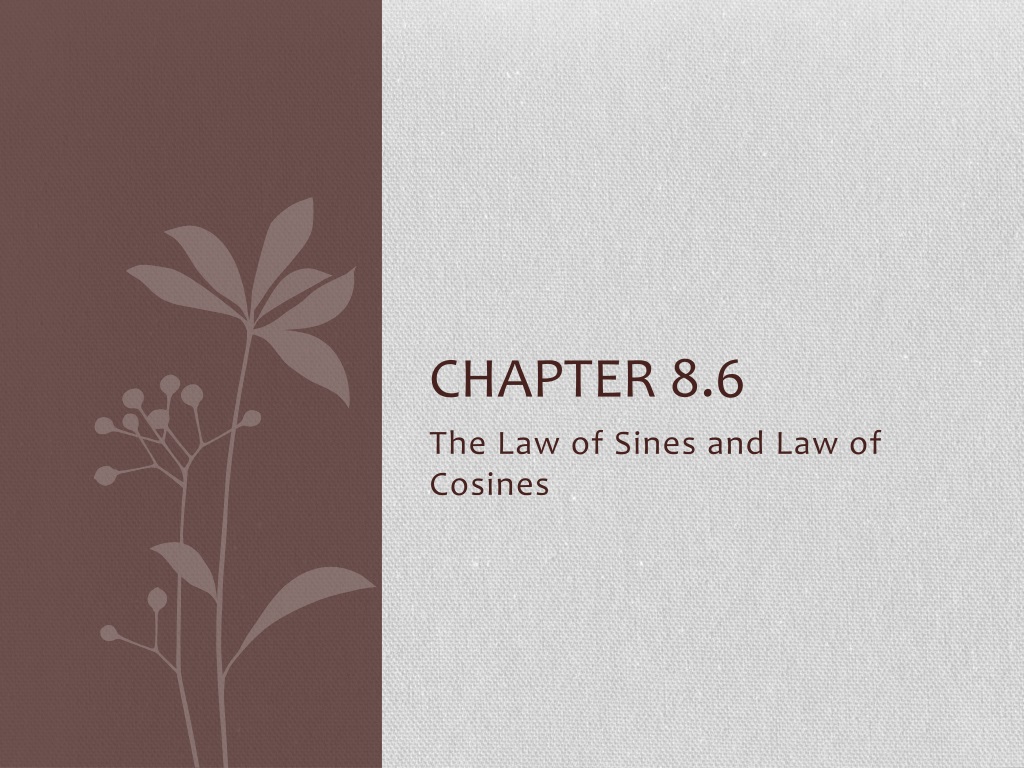

  1. Chapter 8.6 The Law of Sines and Law of Cosines

  2. Concept

  3. Example 1 Law of Sines (AAS or ASA) Find p. Round to the nearest tenth. We are given measures of two angles and a nonincluded side, so use the Law of Sines to write a proportion.

  4. Example 1 Find c to the nearest tenth. A. 4.6 B. 29.9 C. 7.8 D. 8.5

  5. 6 57° x Example 2 Law of Sines (ASA) Find x. Round to the nearest tenth.

  6. x 43° Example 2 Find x. Round to the nearest degree. A. 8 B. 10 C. 12 D. 14

  7. Concept

  8. Example 3 Law of Cosines (SAS) Find x. Round to the nearest tenth. Use the Law of Cosines since the measures of two sides and the included angle are known.

  9. Example 3 Find r if s = 15, t = 32, and mR = 40. Round to the nearest tenth. A. 25.1 B. 44.5 C. 22.7 D. 21.1

  10. Example 4 Law of Cosines (SSS) Find mL. Round to the nearest degree. Law of Cosines Simplify.

  11. Example 4 Find mP. Round to the nearest degree. A. 44° B. 51° C. 56° D. 69°

  12. Example 5 Indirect Measurement AIRCRAFT From the diagram of the plane shown, determine the approximate width of each wing. Round to the nearest tenth meter.

  13. The rear side window of a station wagon has the shape shown in the figure. Find the perimeter of the window if the length of DB is 31 inches. Round to the nearest tenth. Example 5 A. 93.5 in. B. 103.5 in. C. 96.7 in. D. 88.8 in.

  14. Example 6 Solve a Triangle Solve triangle PQR. Round to the nearest degree. Since the measures of three sides are given (SSS), use the Law of Cosines to find mP. p2 = r2 + q2 – 2pq cos P Law of Cosines 82 = 92 + 72 – 2(9)(7) cos P p = 8, r = 9, and q = 7

  15. Example 6 Solve ΔRST. Round to the nearest degree. A.mR = 82, mS = 58, mT = 40 B.mR = 58, mS = 82, mT = 40 C.mR = 82, mS = 40, mT = 58 D.mR = 40, mS = 58, mT = 82

  16. Concept
