  1. Projected State Machine Coverage Galit Friedman, Alan Hartman, Kenneth Nagin, Tomer Shiran IBM Haifa Research Laboratory hartman@il.ibm.com ISSTA 2002

  2. Outline • Specification-based testing • EFSM models and test generation • Projected State Machine • Coverage Criteria • Test Generation Algorithms • Experimental & Industrial Experience

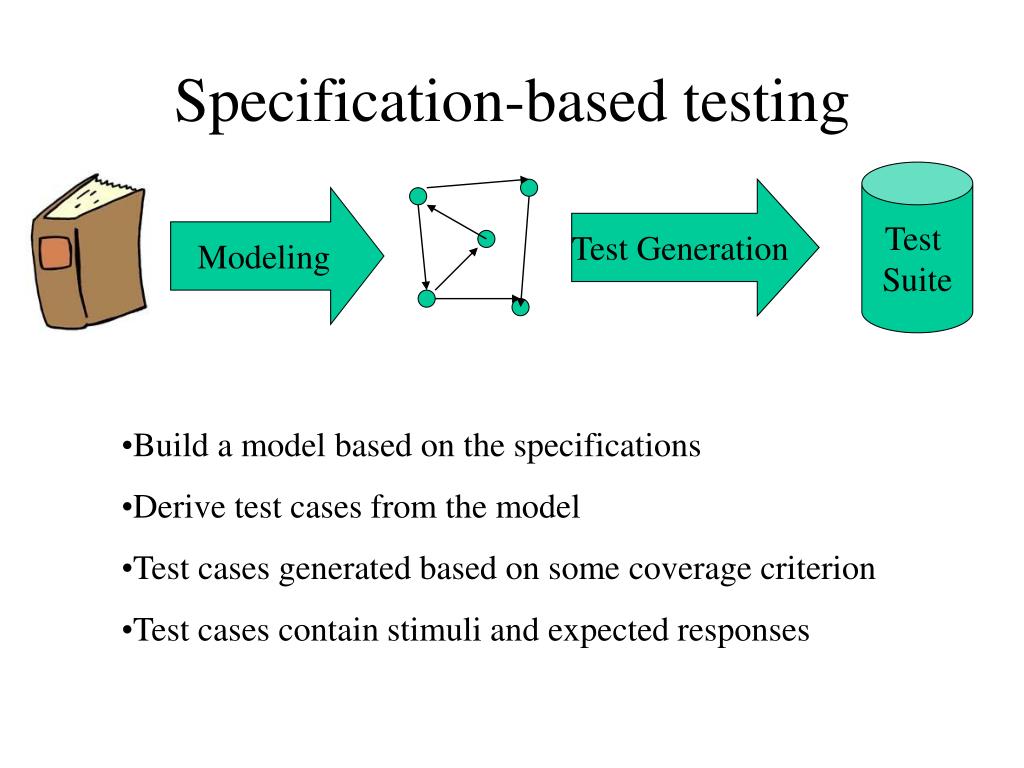

  3. Specification-based testing Test Suite Test Generation Modeling • Build a model based on the specifications • Derive test cases from the model • Test cases generated based on some coverage criterion • Test cases contain stimuli and expected responses

  4. deposit 1 OK deposit 2 OK deposit 2 fail Start 0 - withdraw 0 fail withdraw 0 OK withdraw 1 OK EFSM Models • Labeled directed graph • Nodes (states) labeled with both control and data • Arcs (transitions) labeled by stimuli to application • Includes expected responses to stimuli deposit withdraw

  5. Problems with EFSM • State space explosion • Test case explosion

  6. deposit 1 OK deposit 2 OK deposit 2 fail Start 0 - withdraw 0 fail withdraw 0 OK withdraw 1 OK Test Generation • Extracting a set of paths from the EFSM • How do you choose which paths? • Coverage criteria!

  7. deposit fail deposit 1 OK deposit OK deposit 2 OK deposit 2 fail Start 0 - Start - withdraw 0 fail withdraw 0 OK withdraw fail withdraw OK withdraw 1 OK Projected State Machine

  8. deposit fail deposit OK Start - withdraw fail withdraw OK Coverage Criteria I • CC_State_Projection on <exprlist> • Generate a set of test cases – one through each equivalence class of states in the projected state machine • E.g. CC_State_Projection onaction; result;

  9. Coverage Criteria II • CC_Transition_Projection from <exprlist> to <exprlist> • E.g. CC_Transition_Projection fromaction; toaction; result; • Equivalent to Carver and Tai’s CSPE-1 coverage criterion (Constraints on Succeeding and Preceeding Events) IEEE TSE 1998 • Controllable stimuli: Start, Deposit, Withdraw • Observable results: Fail, OK

  10. Other coverage criteria for TG • Hartmann et al. ISSTA 2000 – transition coverage of data partitions • Offut & Abdurazik UML 1999 – explicit test purposes, transition coverage, predicate coverage of transitions • Jeron & Morel CAV 1999 – test purposes • Amman et al. FME 1998 – mutation coverage • Henniger & Ural SDL 2000 – define-use coverage on message flow graph

  11. Test Constraints • Forbidden classes of states • Forbidden classes of paths • E. g. TC_Forbidden_Statebuffer=2; deposit 1 OK Forbidden Start 0 - withdraw 0 fail withdraw 0 OK withdraw 1 OK

  12. Test Generation Algorithm • Traverse the whole EFSM reachable state space • Use BFS, DFS, or CFS • Record data on reachable coverage tasks – including random representative selection • Eliminate forbidden configurations • Extract a path to each selected task representatives • When state space too large – generate on-the-fly

  13. Experiments • Buffer, Readers and Writers, Gas Station, Sliding Window Protocol, Elevator Control. • Use different projections to obtain a hierarchy of test suites of varying strength. • More projection variables created larger test suites with increased power of defect detection • Use test constraints to partition the state space, enabling measurable coverage of well-defined subsets of behavior

  14. Distributed File System • Statistics: • FSM 370000 states, 290 test cases, 729 coverage tasks • Original Test: 12 PM, 18 defects (10 severity 2) • Our test: 10 PM, 15 old defects (10 severity 2) 2 new defects • Bottom Line – We made a convert

  15. Call Center • Two FSM models • 37 defects • Responsiveness to changes in spec. • Reuse of function test for system test

  16. Conclusions • Flexible coverage criteria for a hierarchy of test suites • FSM constraints help with state explosion • Systematic and automated methodology • Eases reuse and maintenance of test suites • Successful in detecting faults and communicating error scenarios
