  1. PENGKABELANUTP & RJ_45 By Kustanto Email: kus_sinus@yahoo.co.id Website: kus2008.wordpress.com Materi 4 Pelatihan Jaringan Komputer By Kustanto

  2. Macam Sambungan Straigh Crossover Materi 4 Pelatihan Jaringan Komputer By Kustanto

  3. Sambungan Straigh Jika hendak menghubungkan : Komputer to Hub (Concentrator). Switch to Server Switch to Router Materi 4 Pelatihan Jaringan Komputer By Kustanto

  4. Pemasangan Konektor • Untuk kabel straight through Materi 4 Pelatihan Jaringan Komputer By Kustanto

  5. Tabel : Hubungan Kabel Straight Hubungan Straight adalah Pc – Hub, Pc – Switch, Switch – Router, Pc – Access Materi 4 Pelatihan Jaringan Komputer By Kustanto

  6. Sambungan Crossover Hubungan Crossover adalah hubungan Pc – Pc, Hub – Hub, Switch – Switch, Router – Router. Materi 4 Pelatihan Jaringan Komputer By Kustanto

  7. Pemasangan Konektor • Untuk kabel cross Materi 4 Pelatihan Jaringan Komputer By Kustanto

  8. Kabel Jaringan LAN Tabel : Hubungan Kabel Crossover. Hubungan Crossover adalah hubungan Pc – Pc, Hub – Hub, Switch – Switch, Router – Router. Materi Penerapan Ipteks By Kustanto, Fitri, Yustina

  9. Fungsi Pin dalam Network Interface Card Keterangan : Tx = Transmitter Rx = Receiver NC = No Connection Materi 4 Pelatihan Jaringan Komputer By Kustanto

  10. Langkah-langkah instalasi adalah sebagai berikut: Pengurutan kabel Memasukkan kabel ke konektor RJ 45 Mengkuatkan (cripping) agar kabel tidak lepas dari konektor Melakukan test dengan alat tester RJ 45 Materi 4 Pelatihan Jaringan Komputer By Kustanto

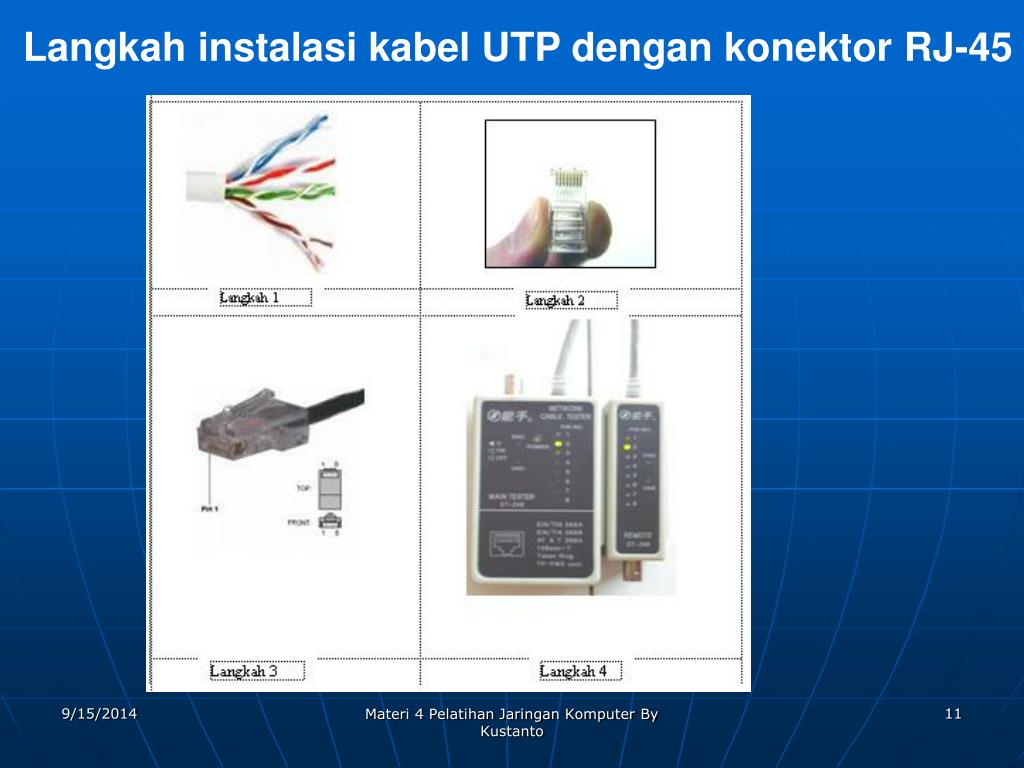

  11. Langkah instalasi kabel UTP dengan konektor RJ-45 Materi 4 Pelatihan Jaringan Komputer By Kustanto
