  1. Compressive Signal Processing Richard Baraniuk Rice University dsp.rice.edu/cs

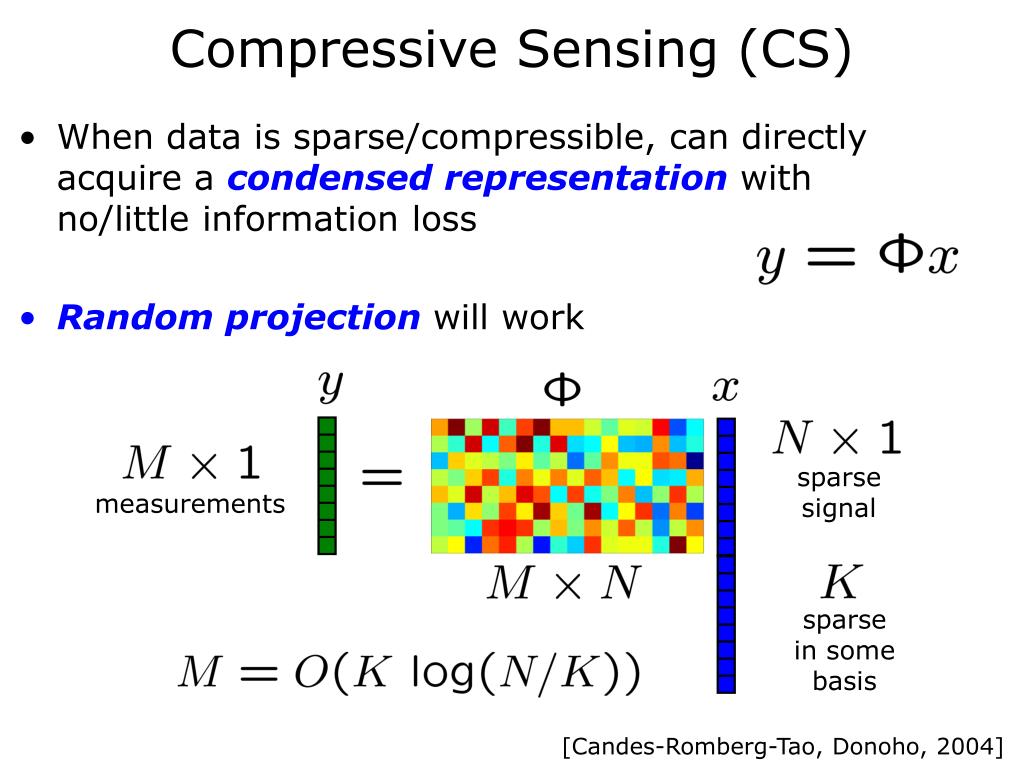

  2. Compressive Sensing (CS) • When data is sparse/compressible, can directly acquire a condensed representation with no/little information loss • Random projection will work sparsesignal measurements sparsein somebasis [Candes-Romberg-Tao, Donoho, 2004]

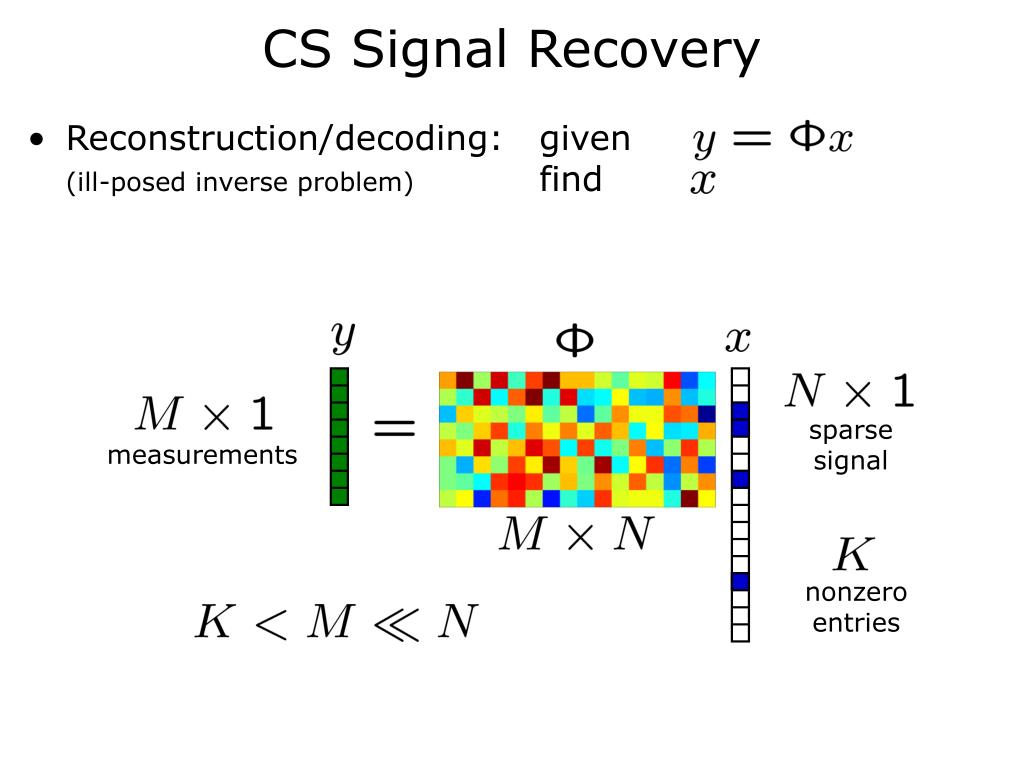

  3. CS Signal Recovery • Reconstruction/decoding: given(ill-posed inverse problem) find sparsesignal measurements nonzeroentries

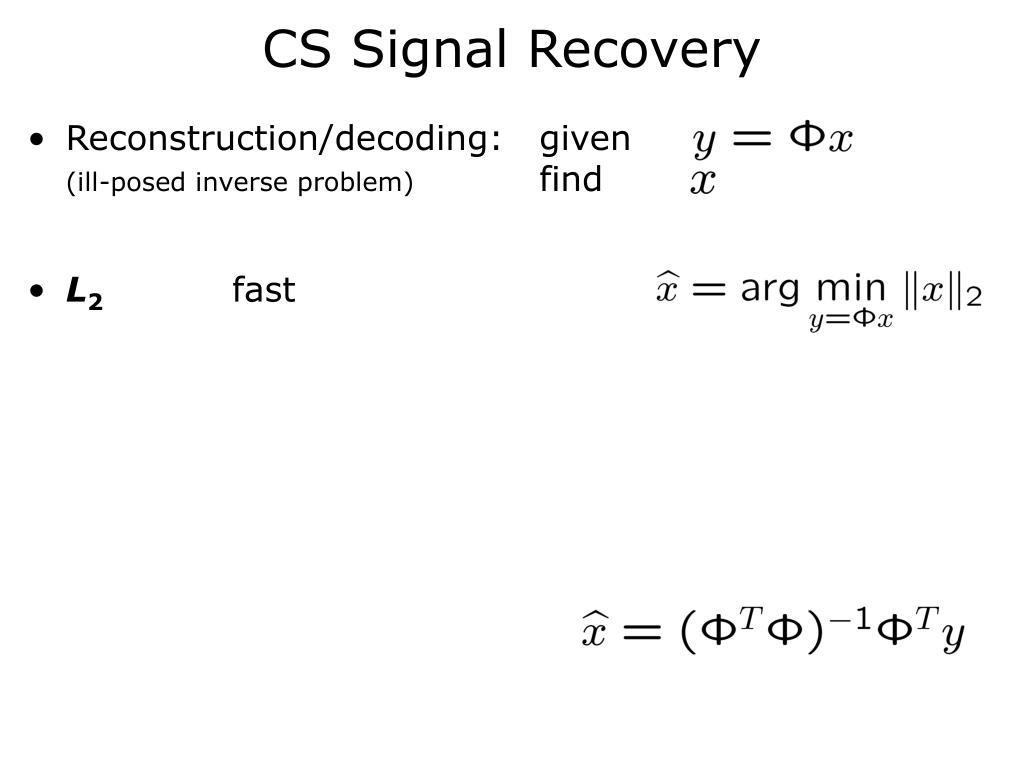

  4. CS Signal Recovery • Reconstruction/decoding: given(ill-posed inverse problem) find • L2 fast

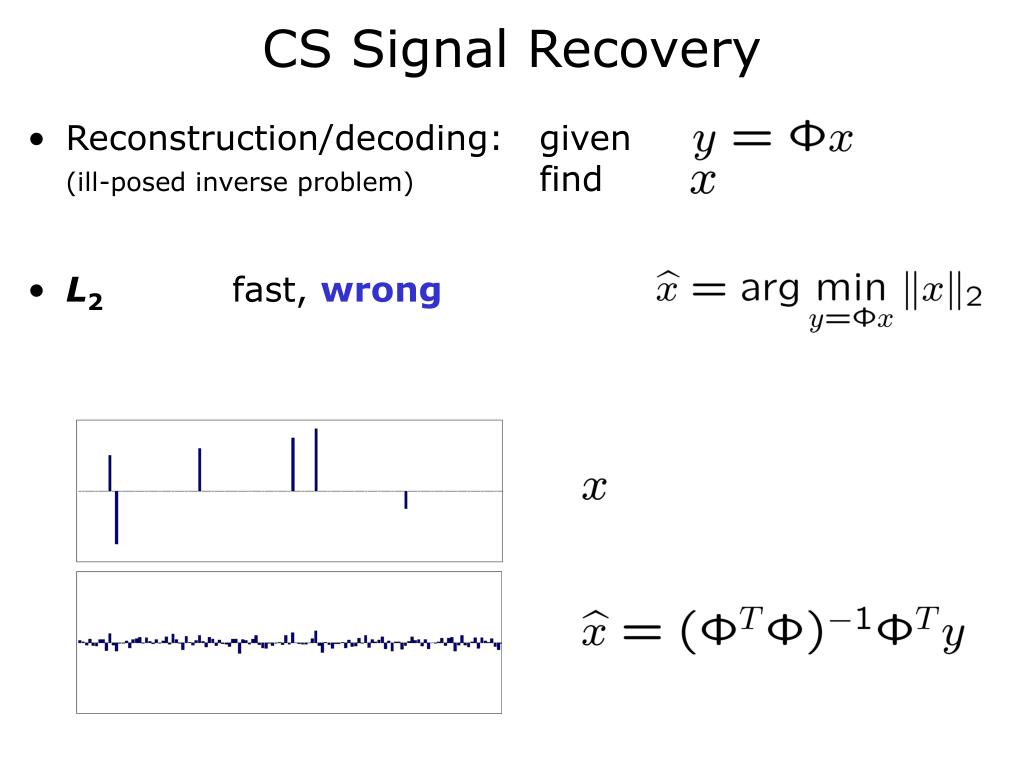

  5. CS Signal Recovery • Reconstruction/decoding: given(ill-posed inverse problem) find • L2 fast, wrong

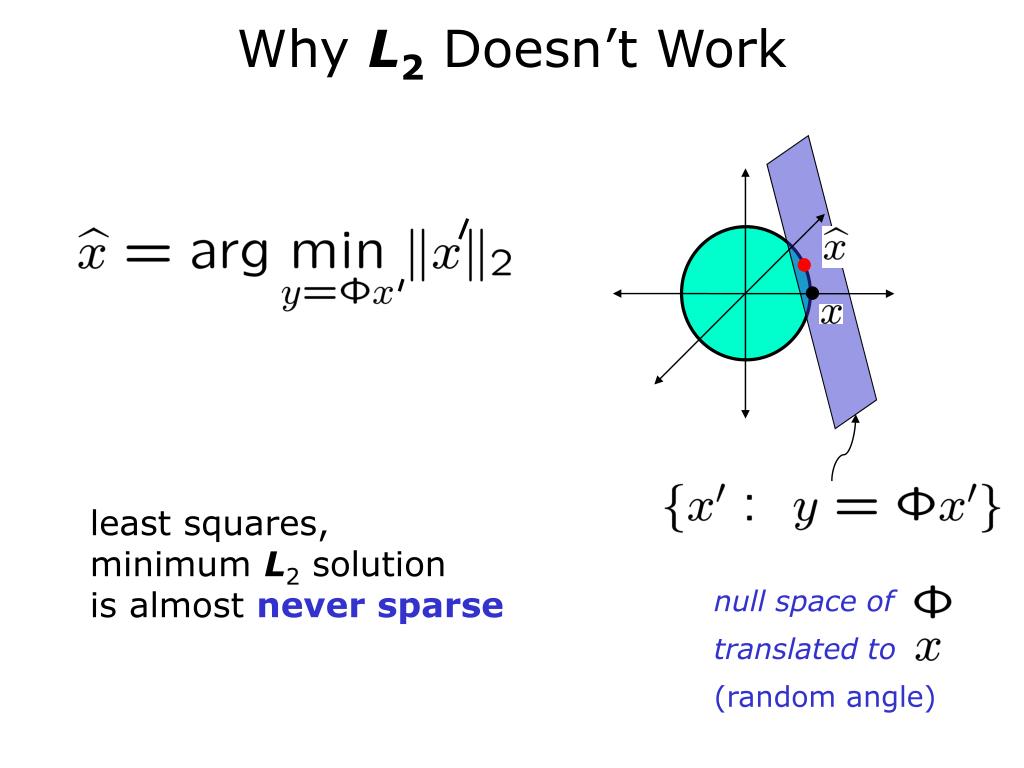

  6. Why L2 Doesn’t Work least squares,minimum L2 solutionis almost never sparse null space of translated to(random angle)

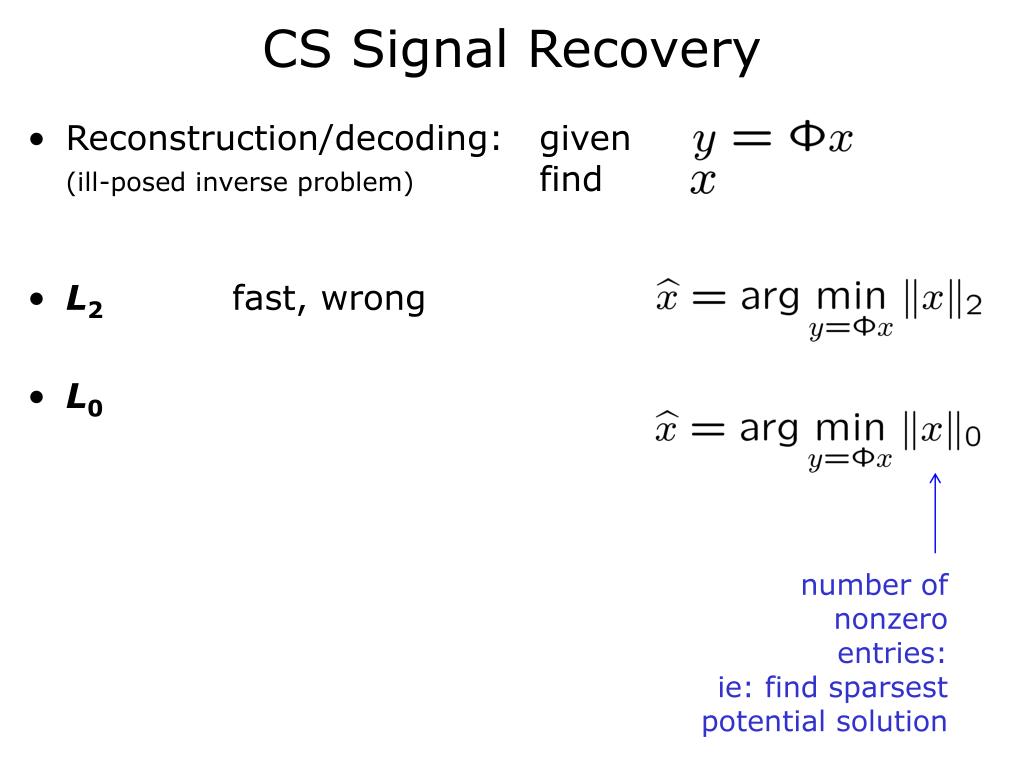

  7. CS Signal Recovery • Reconstruction/decoding: given(ill-posed inverse problem) find • L2 fast, wrong • L0 number ofnonzeroentries: ie: find sparsest potential solution

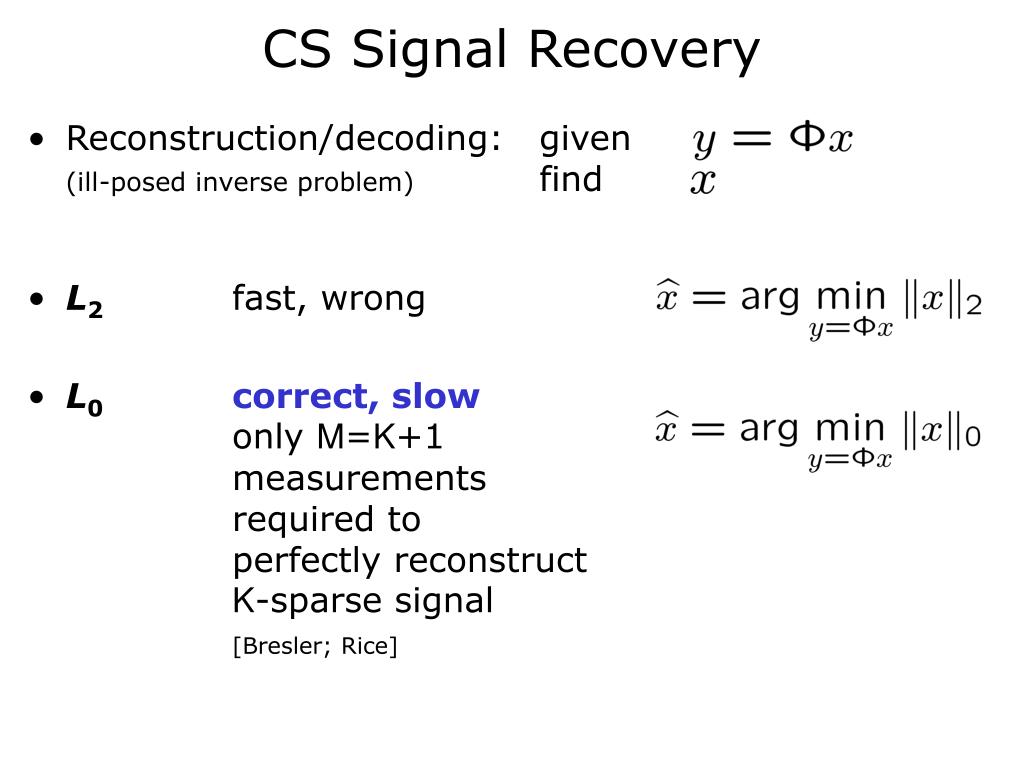

  8. CS Signal Recovery • Reconstruction/decoding: given(ill-posed inverse problem) find • L2 fast, wrong • L0correct, slowonly M=K+1 measurements required to perfectly reconstruct K-sparse signal[Bresler; Rice]

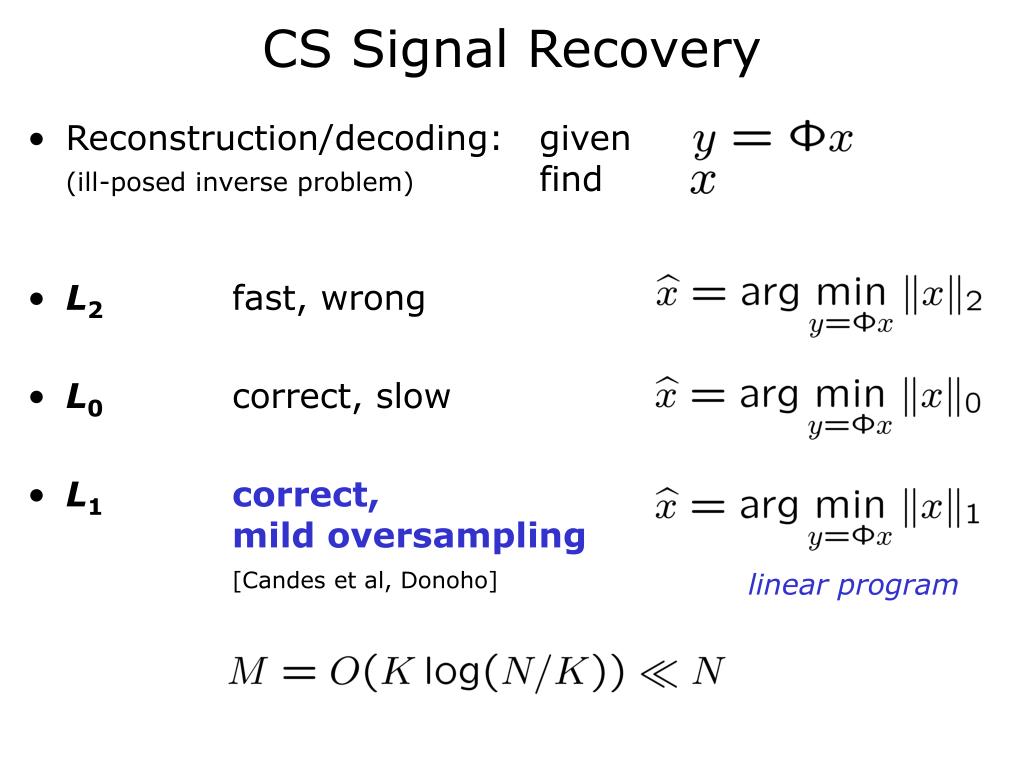

  9. CS Signal Recovery • Reconstruction/decoding: given(ill-posed inverse problem) find • L2 fast, wrong • L0 correct, slow • L1correct, mild oversampling[Candes et al, Donoho] linear program

  10. Why L1 Works minimum L1solution= sparsest solution (with high probability) if

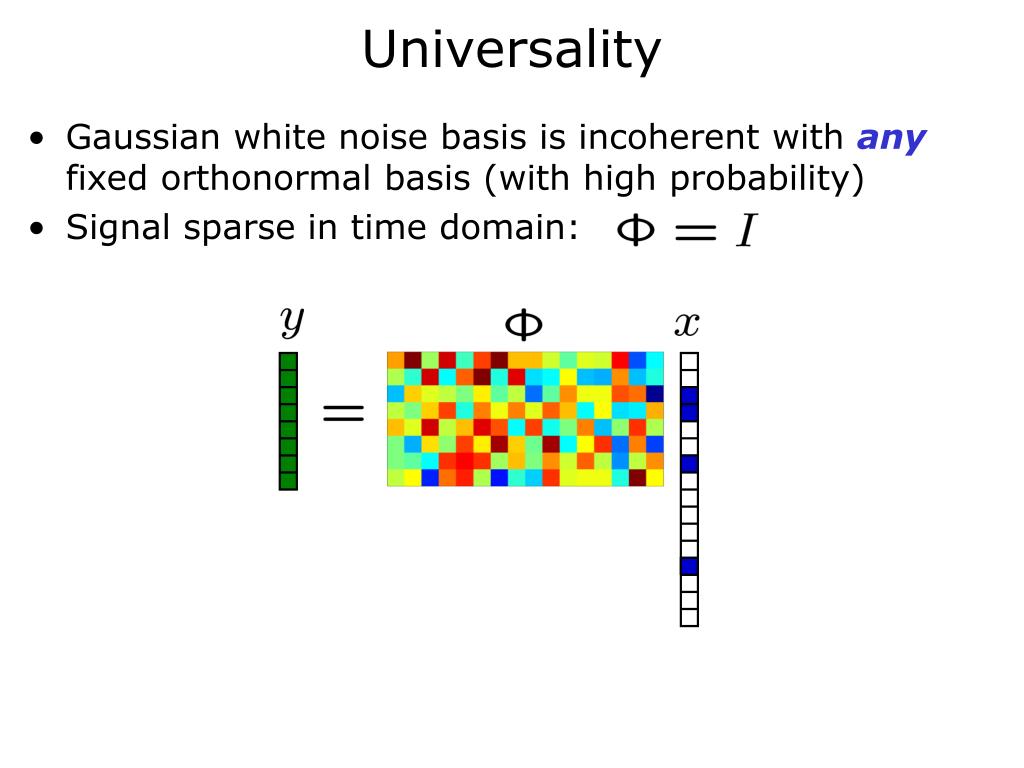

  11. Universality • Gaussian white noise basis is incoherent with any fixed orthonormal basis (with high probability) • Signal sparse in time domain:

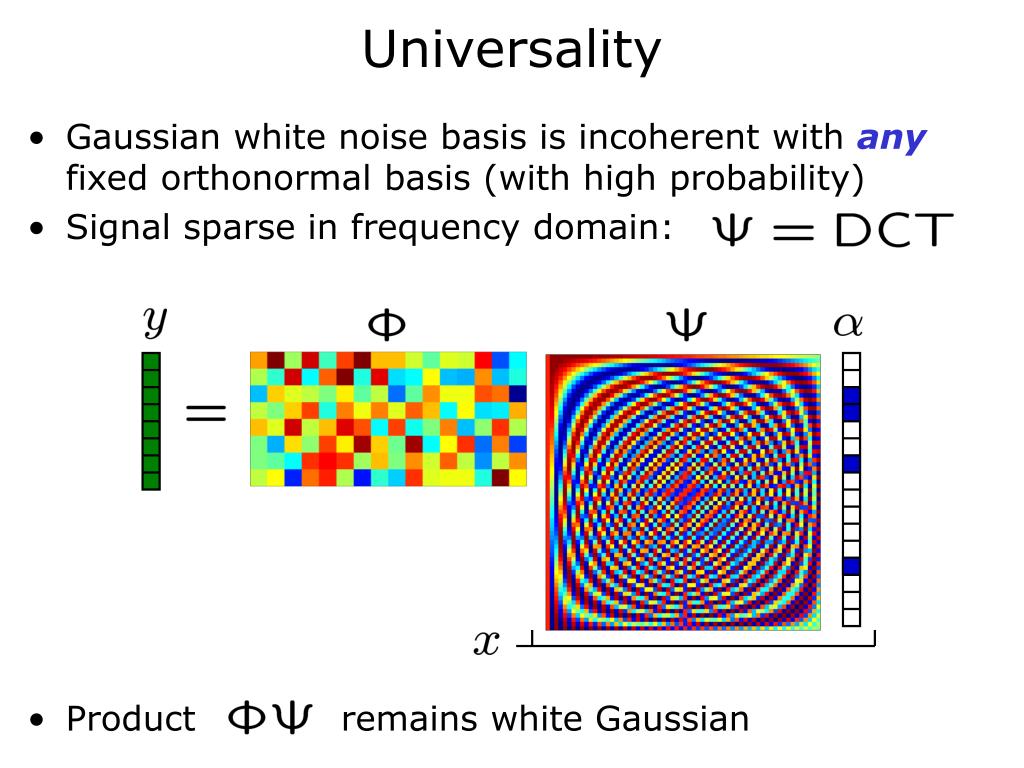

  12. Universality • Gaussian white noise basis is incoherent with any fixed orthonormal basis (with high probability) • Signal sparse in frequency domain: • Product remains white Gaussian
