  1. CS430 Computer Graphics Lighting and Shading Part II Chi-Cheng Lin, Winona State University

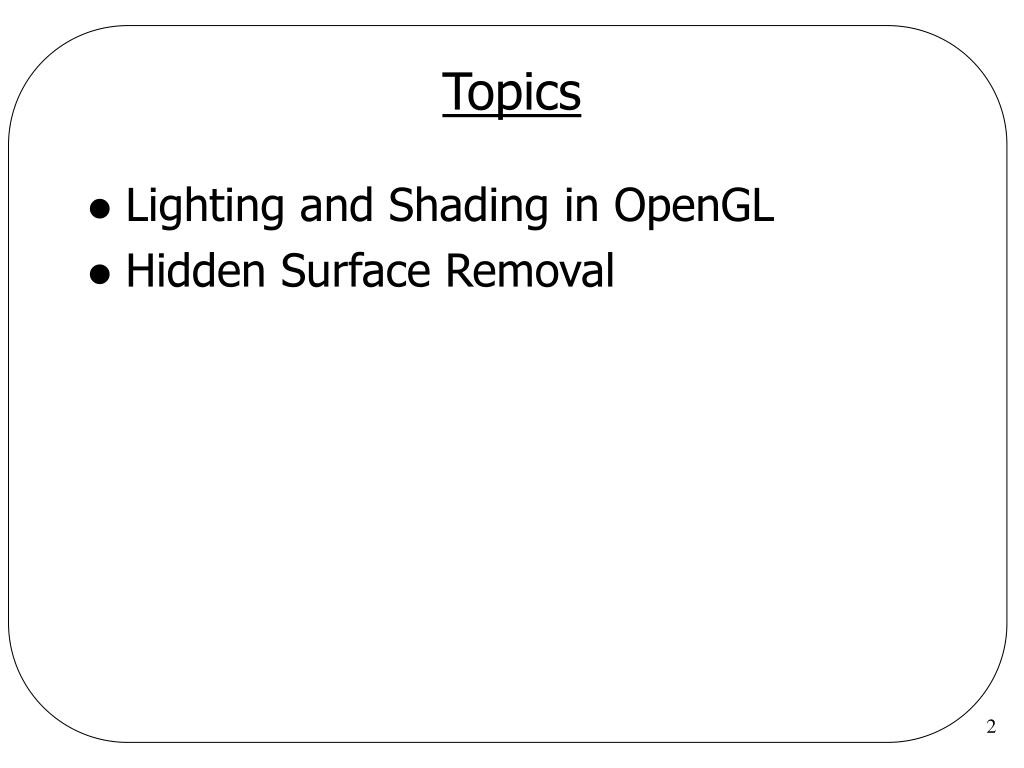

  2. Topics • Lighting and Shading in OpenGL • Hidden Surface Removal

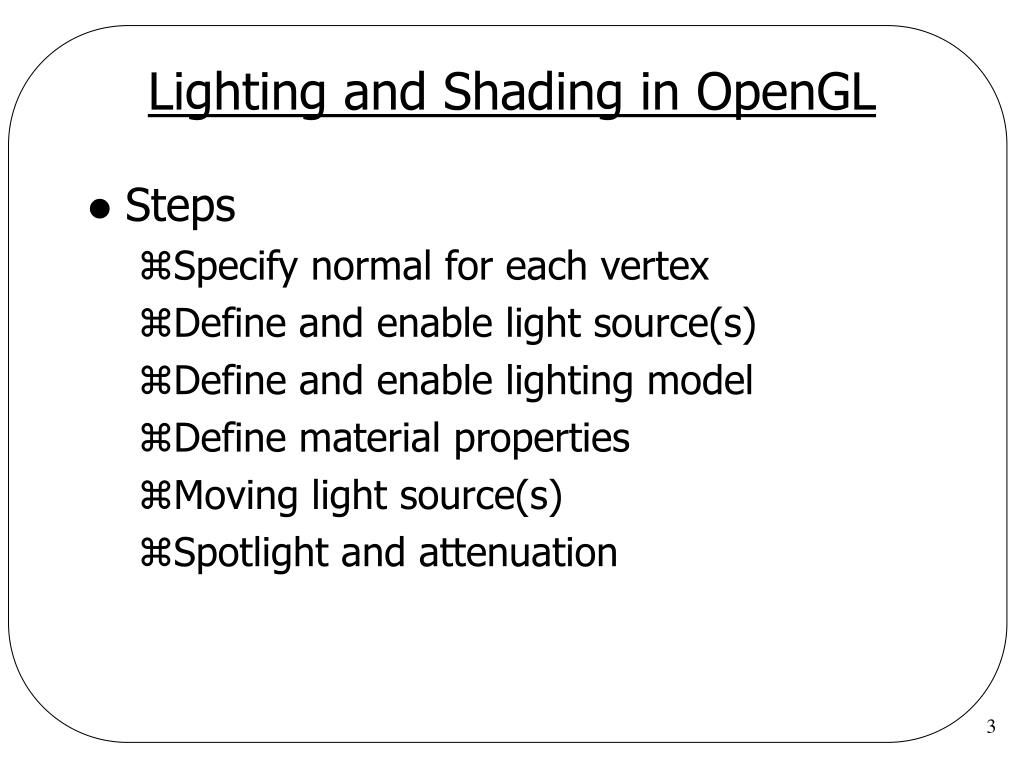

  3. Lighting and Shading in OpenGL • Steps • Specify normal for each vertex • Define and enable light source(s) • Define and enable lighting model • Define material properties • Moving light source(s) • Spotlight and attenuation

  4. Specify Normal for Vertex • Each vertex of a mesh is sent down the graphics pipeline along with its normal • OpenGL • glNormal3f(nx, ny, nz); glVertex3f(x, y, z); • The last glNormal() called determines the state used for subsequent vertices

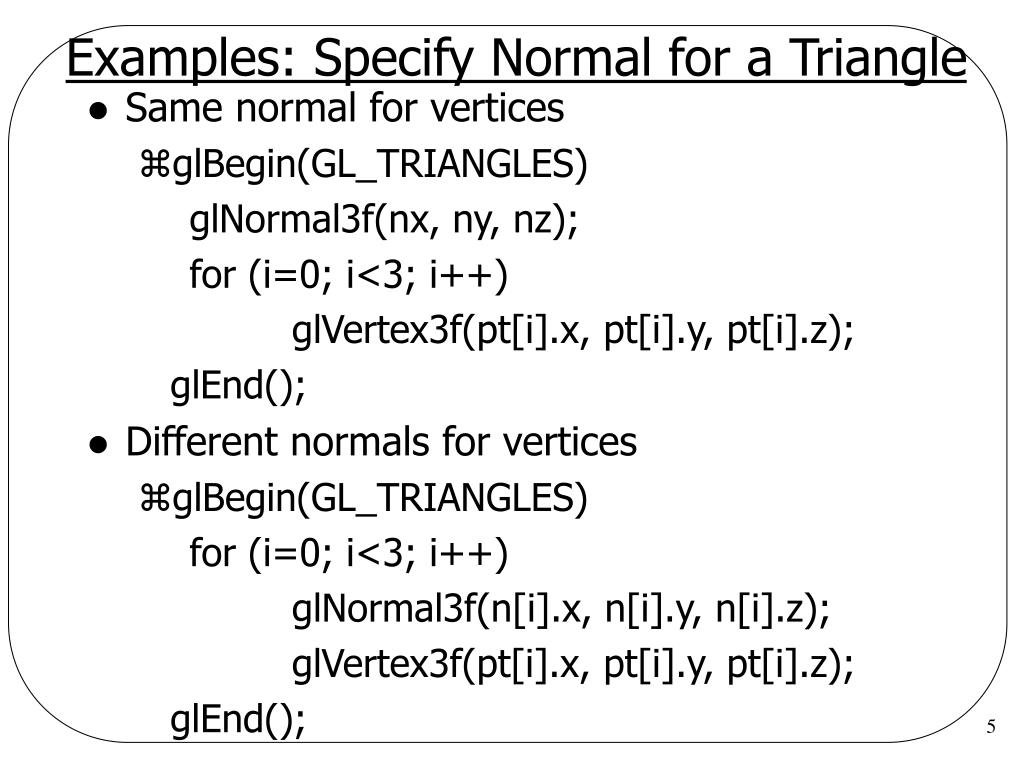

  5. Examples: Specify Normal for a Triangle • Same normal for vertices • glBegin(GL_TRIANGLES) glNormal3f(nx, ny, nz); for (i=0; i<3; i++) glVertex3f(pt[i].x, pt[i].y, pt[i].z); glEnd(); • Different normals for vertices • glBegin(GL_TRIANGLES) for (i=0; i<3; i++) glNormal3f(n[i].x, n[i].y, n[i].z); glVertex3f(pt[i].x, pt[i].y, pt[i].z); glEnd();

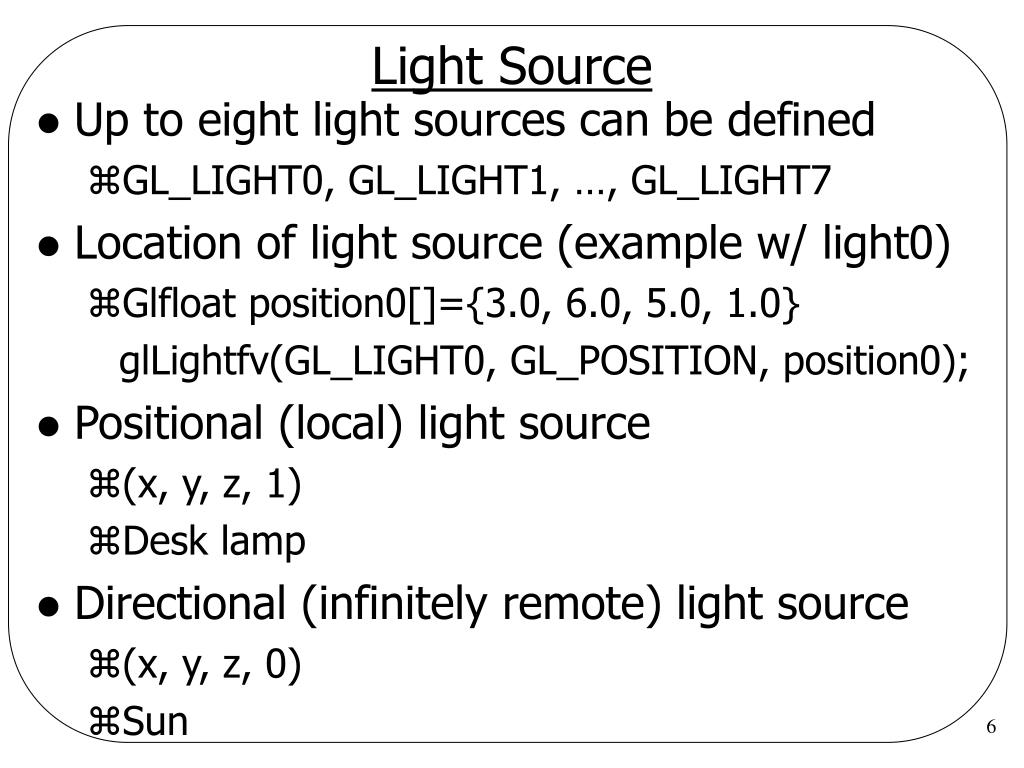

  6. Light Source • Up to eight light sources can be defined • GL_LIGHT0, GL_LIGHT1, …, GL_LIGHT7 • Location of light source (example w/ light0) • Glfloat position0[]={3.0, 6.0, 5.0, 1.0} glLightfv(GL_LIGHT0, GL_POSITION, position0); • Positional (local) light source • (x, y, z, 1) • Desk lamp • Directional (infinitely remote) light source • (x, y, z, 0) • Sun

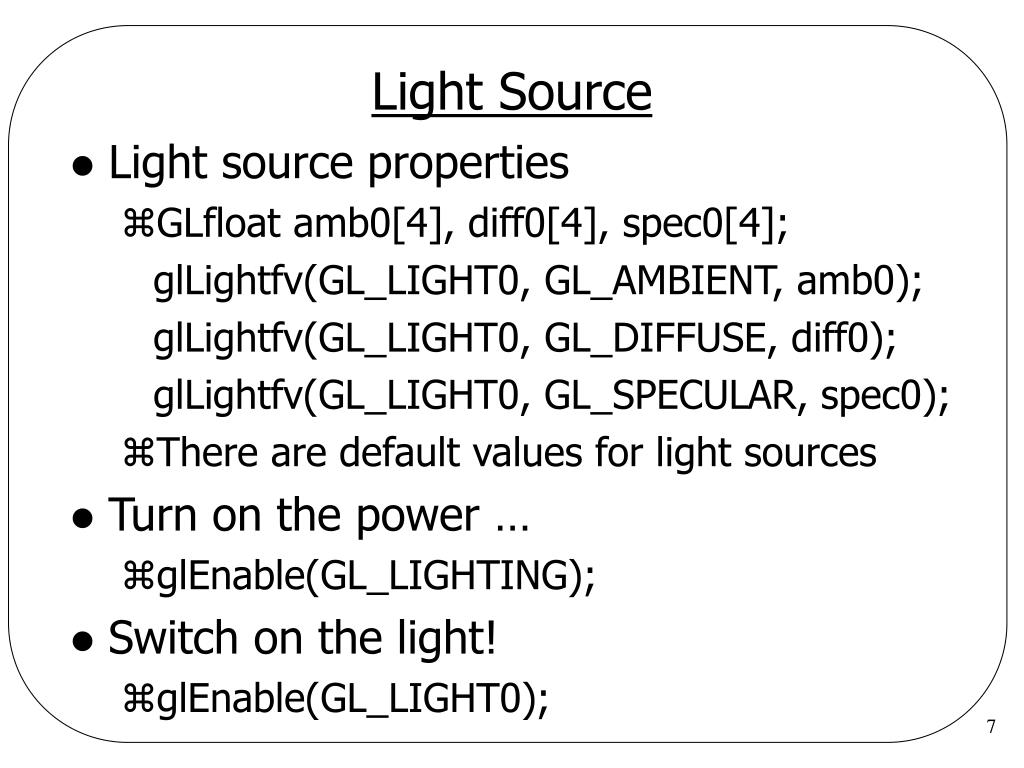

  7. Light Source • Light source properties • GLfloat amb0[4], diff0[4], spec0[4]; glLightfv(GL_LIGHT0, GL_AMBIENT, amb0); glLightfv(GL_LIGHT0, GL_DIFFUSE, diff0); glLightfv(GL_LIGHT0, GL_SPECULAR, spec0); • There are default values for light sources • Turn on the power … • glEnable(GL_LIGHTING); • Switch on the light! • glEnable(GL_LIGHT0);

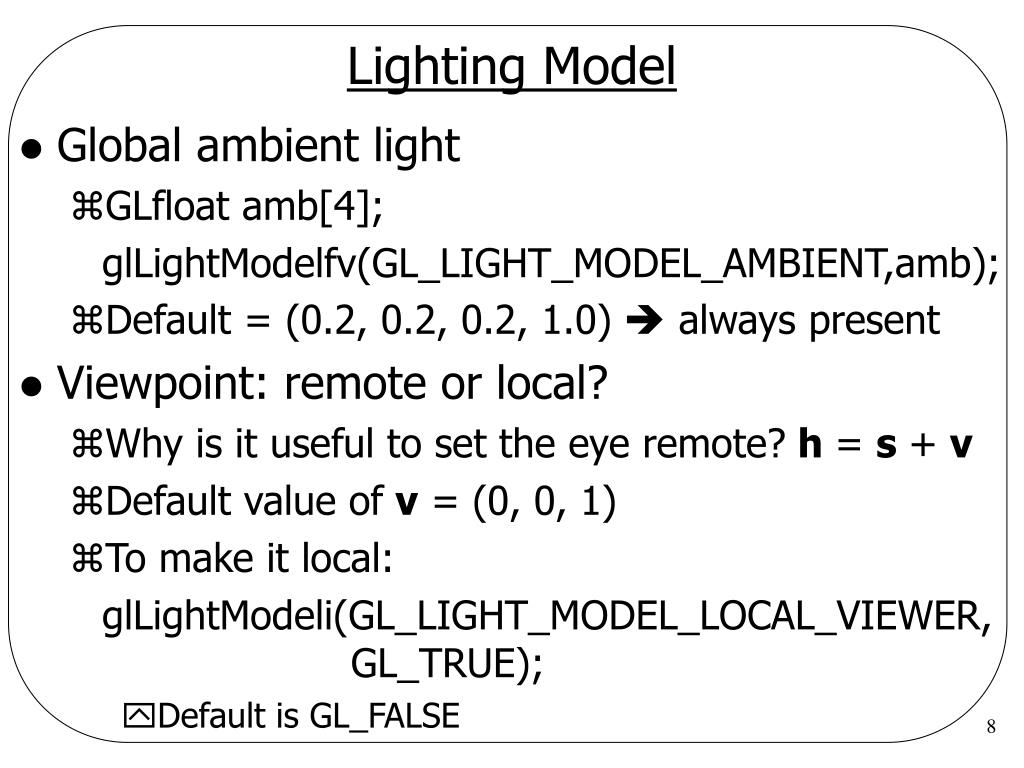

  8. Lighting Model • Global ambient light • GLfloat amb[4]; glLightModelfv(GL_LIGHT_MODEL_AMBIENT,amb); • Default = (0.2, 0.2, 0.2, 1.0)  always present • Viewpoint: remote or local? • Why is it useful to set the eye remote? h = s + v • Default value of v = (0, 0, 1) • To make it local: glLightModeli(GL_LIGHT_MODEL_LOCAL_VIEWER, GL_TRUE); • Default is GL_FALSE

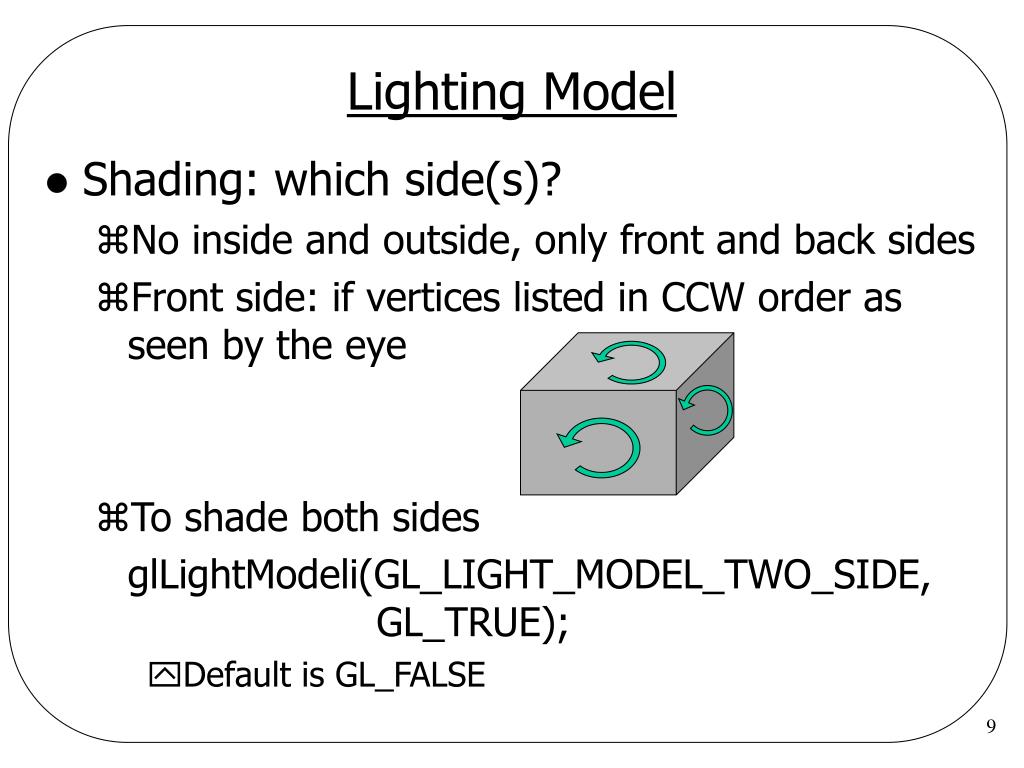

  9. Lighting Model • Shading: which side(s)? • No inside and outside, only front and back sides • Front side: if vertices listed in CCW order as seen by the eye • To shade both sides glLightModeli(GL_LIGHT_MODEL_TWO_SIDE, GL_TRUE); • Default is GL_FALSE

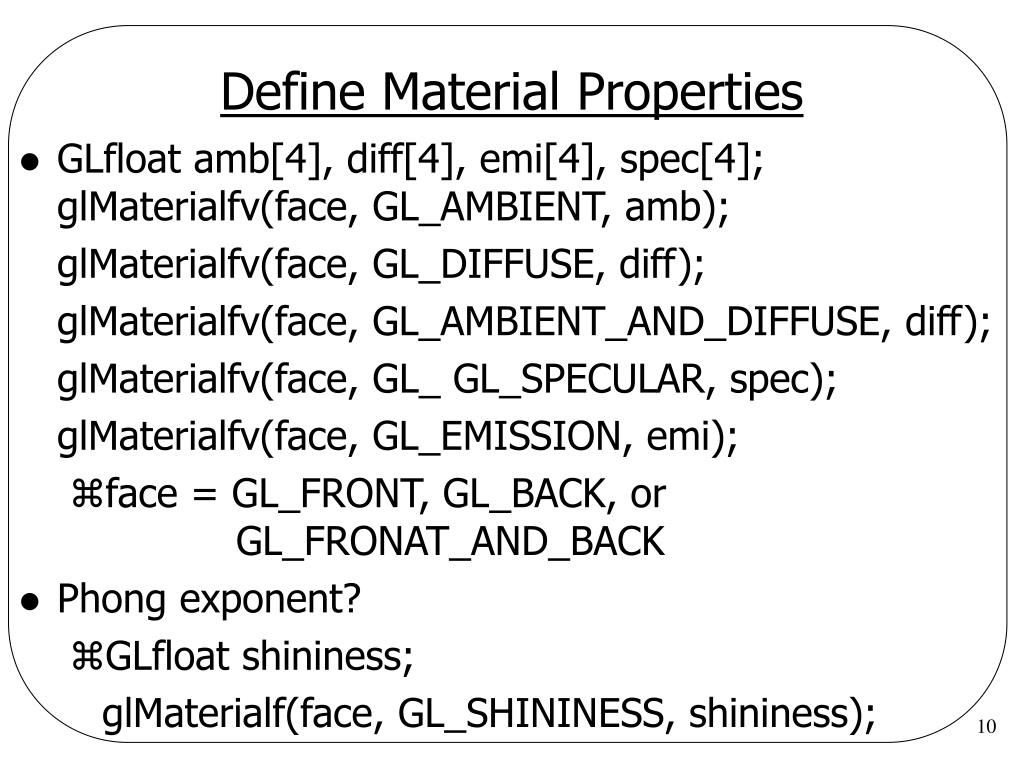

  10. Define Material Properties • GLfloat amb[4], diff[4], emi[4], spec[4]; glMaterialfv(face, GL_AMBIENT, amb); glMaterialfv(face, GL_DIFFUSE, diff); glMaterialfv(face, GL_AMBIENT_AND_DIFFUSE, diff); glMaterialfv(face, GL_ GL_SPECULAR, spec); glMaterialfv(face, GL_EMISSION, emi); • face = GL_FRONT, GL_BACK, or GL_FRONAT_AND_BACK • Phong exponent? • GLfloat shininess; glMaterialf(face, GL_SHININESS, shininess);

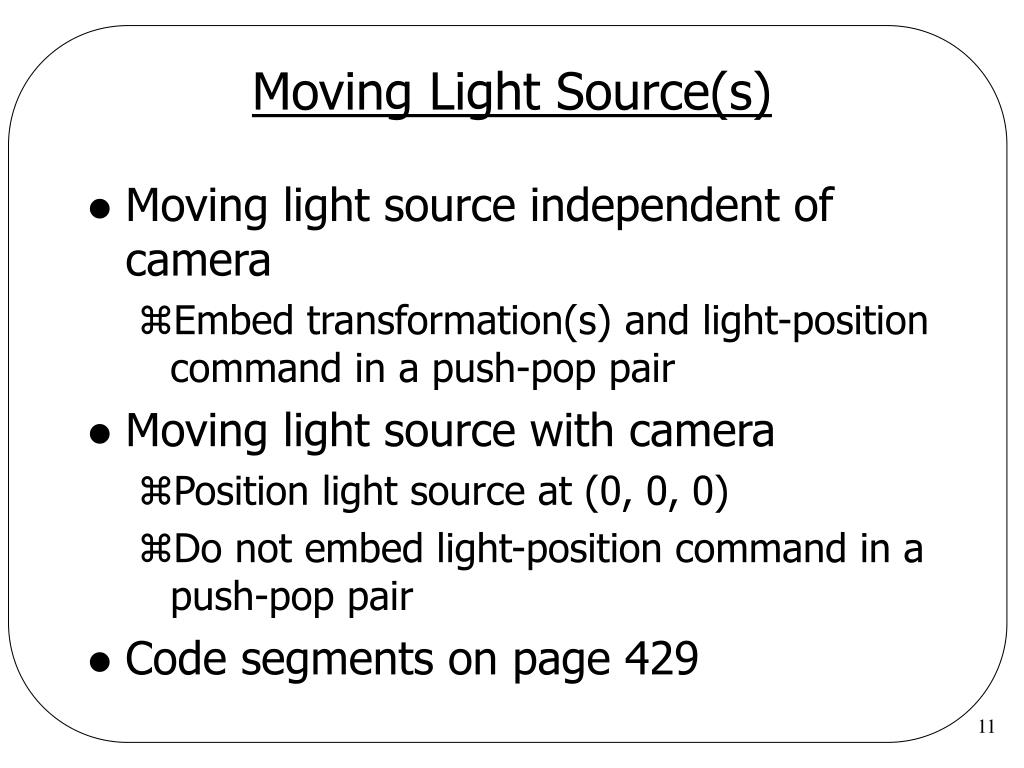

  11. Moving Light Source(s) • Moving light source independent of camera • Embed transformation(s) and light-position command in a push-pop pair • Moving light source with camera • Position light source at (0, 0, 0) • Do not embed light-position command in a push-pop pair • Code segments on page 429

  12. Spotlight  d  • Spotlight • Direction: d • Cutoff angle:  • spot = Iscos()  spot = Is max( , 0) • Example • GLfloat dir[]= {2.0, 1.0, -4.0}; glLightf(GL_LIGHT0, GL_SPOT_CUTOFF, 45.0); glLightf(GL_LIGHT0, GL_SPOT_EXPONENT, 4.0); glLightfv(GL_LIGHT0, GL_SPOT_DIRECTION, dir); • Default: d = (0, 0, -1), =180, =0  spot = 1 (omnidirectional point source) p

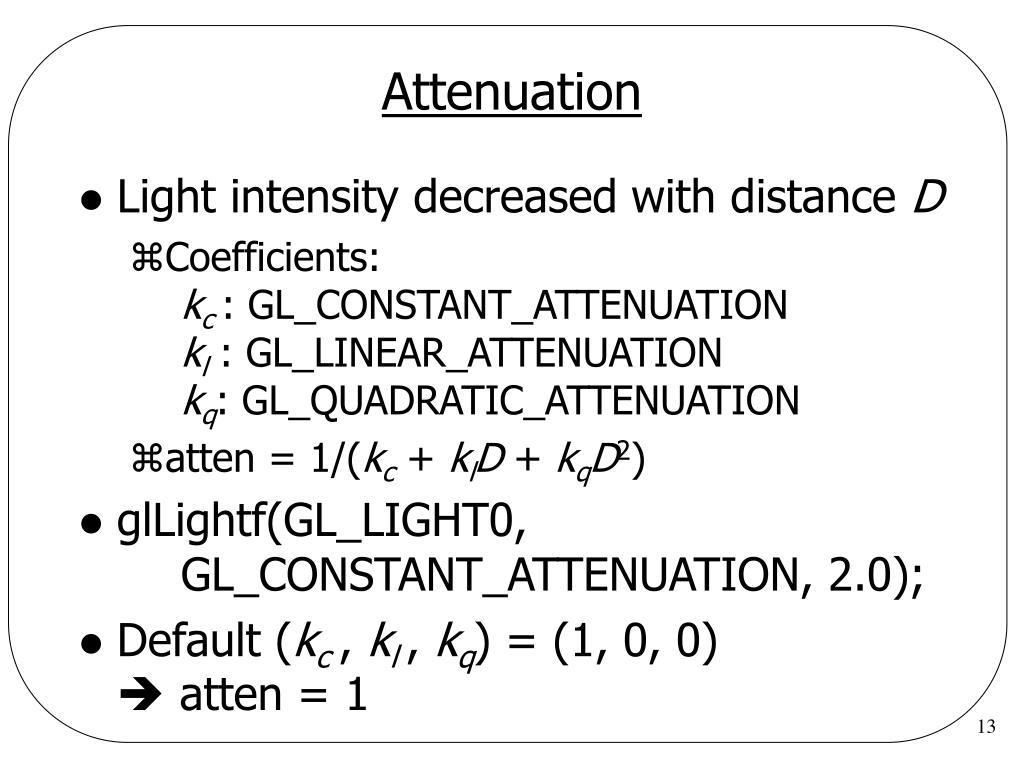

  13. Attenuation • Light intensity decreased with distance D • Coefficients: kc : GL_CONSTANT_ATTENUATION kl : GL_LINEAR_ATTENUATION kq: GL_QUADRATIC_ATTENUATION • atten = 1/(kc + klD + kqD2) • glLightf(GL_LIGHT0, GL_CONSTANT_ATTENUATION, 2.0); • Default (kc , kl , kq) = (1, 0, 0)  atten = 1

  14. Putting Everything Together • The total red component Ir = er + Imr ar + attenk  spotk(Ikar ar + Ikdr dr  lambertk+ Ikspr sr  phongkf ) where er is the red component of emissive light Imr is the red component of global ambient light • Green and blue components can be calculated similarly • If Ir > 1.0, OpenGL sets it to 1.0. • Flat shading: glShadeModel(GL_FLAT); • Smooth shading: glShadeModel(GL_SMOOTH); k

  15. Hidden Surface Removal • z-buffer (depth buffer) algorithm is the dominant algorithm in 3D graphics • Store current depth of each pixel in a buffer • Pseudo-depth computed after perspective projection is linearly interpolated across polygon faces • z-buffer test is then performed at each pixel • Usually special z-buffer hardware is used

  16. Hidden Surface Removal • Algorithm to draw an object • Initialize zbuf[i, j] = infinity for all i, j • for y = ymin to ymax for x = xminy to xmaxy if z[x, y] < zbuf[x, y] zbuf[x, y] = z(x, y) pixel[x, y] = shade(x, y) ymax scanliney xminy xmaxy ymin

  17. Hidden Surface Removal • Drawbacks • Large amount of memory required • Some computations are wasted • Simple • Fast • Good performance in general

  18. Hidden Surface Removal in OpenGL • Use z-buffer • Create depth buffer • glutInitDisplayMode(GLUT_DEPTH | GLUT_RGB); • Enable depth testing • glutEnable(GL_DEPTH_TEST); • When a new picture is created • glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
