  1. Online Application Upgrade Using Edition-Based Redefinition Alan Choi PL/SQL, Database Sever Technology http://www.oracle.com/technology/products/database/index.html

  2. The following is intended to outline our general product direction. It is intended for information purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions.The development, release, and timing of any features or functionality described for Oracle’s products remain at the sole discretion of Oracle.

  3. <Insert Picture Here> Tudor Dumitras “…for the past 30 years, online upgrades have been a solution in search of a problem...”

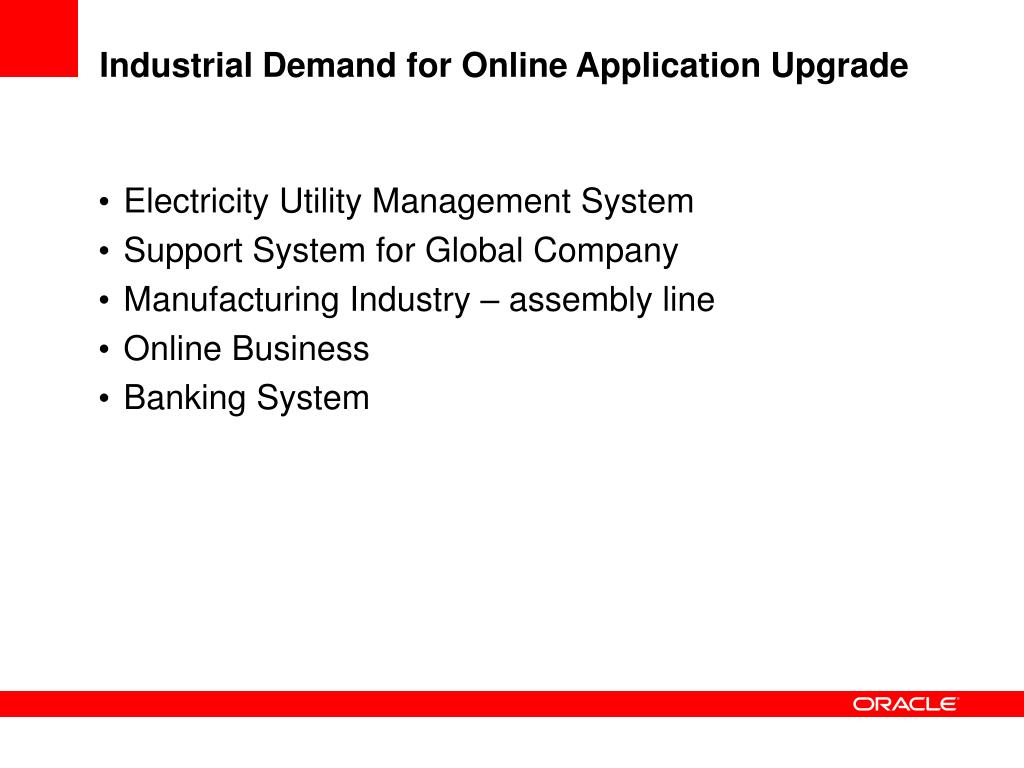

  4. Industrial Demand for Online Application Upgrade • Electricity Utility Management System • Support System for Global Company • Manufacturing Industry – assembly line • Online Business • Banking System

  5. High Availability Make planned changes to software Change application’s database objects Change objects’ meaning:patching and upgrading Online Application Upgrade– the final piece of the High Availability jigsaw puzzle Survivehardware failure Change infrastructure:Operating systemOracle Database Change objects’ physical characteristics

  6. Online Application Upgrade • Oracle Database 11g Release 2 introduces revolutionary new capabilities that allow online application upgrade with uninterrupted availability of the application • The pre-upgrade application and the post-upgrade application can be used at the same time • End-user sessions therefore enjoy hot rollover

  7. The Challenge • Essence of data must be consistent between pre-upgrade and post-upgrade applications • Existing data must be visible to both applications • Transactions done by the users of the pre-upgrade application must by reflected in the post-upgrade application • For hot rollover, transactions done by the users of the post-upgrade application must by reflected in the pre-upgrade application • The installation of the upgrade into the production database must not perturb live users of thepre-upgrade application • Many objects must be changed in concert. The changes must be made in privacy

  8. The solution: edition-based redefinition • 11.2 brings these revolutionary new features: the edition, the editioning view, and the crossedition trigger • Changes in stored procedures and views are installed in the privacy of a new edition • Data changes are made safely by writing only to new columns or new tables not seen by the old edition • An editioning view exposes a different projection of a table into each edition to allow each to see just its own columns • A crossedition trigger propagates data changes made by the old edition into the new edition’s columns, or (in hot-rollover) vice-versa

  9. <Insert Picture Here> Case study

  10. Case study • The HR sample schema, as shipped by Oracle Corp, still thinks that the USA is the only countryin the world • Diana Lorentz 590.423.5567 • John Russell 011.44.1344.429268

  11. Case study

  12. <Insert Picture Here> Case study –The edition-based redefinition exercise proper

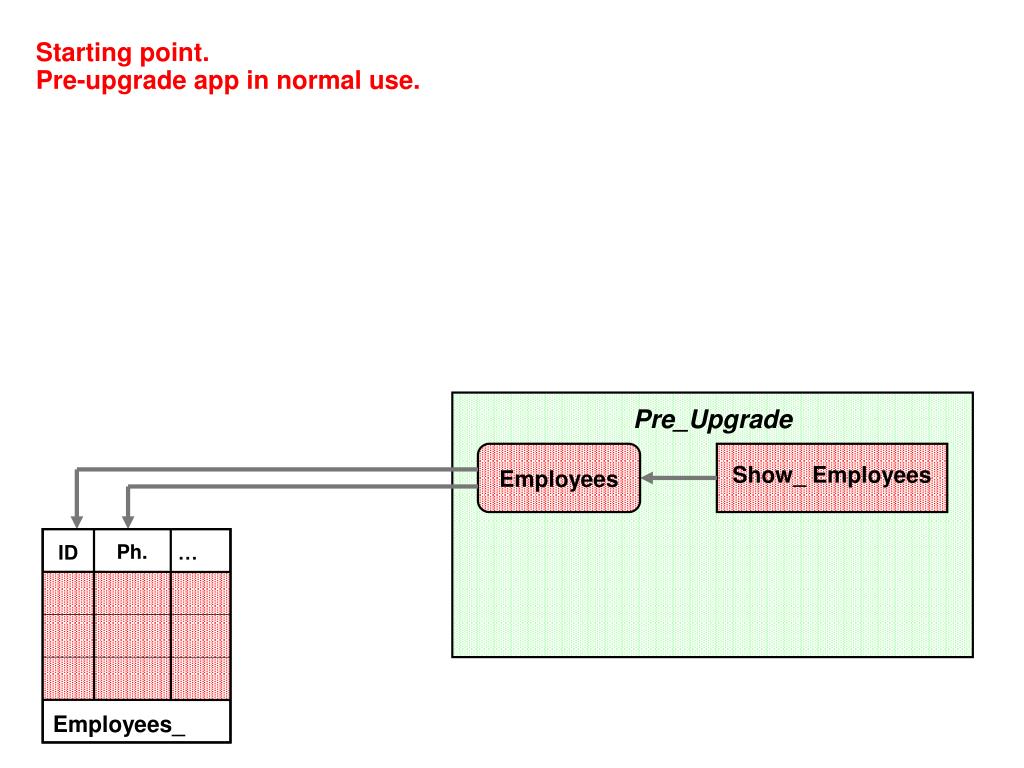

  13. Employees Show_ Employees Ph. ID … Employees_ Starting point.Pre-upgrade app in normal use. Pre_Upgrade

  14. Show_ Employees Employees Employees Show_ Employees Ph. ID … Employees_ Start the edition-based redefinition exercise.Create the new edition as the child of the existing one. Post_Upgrade Pre_Upgrade

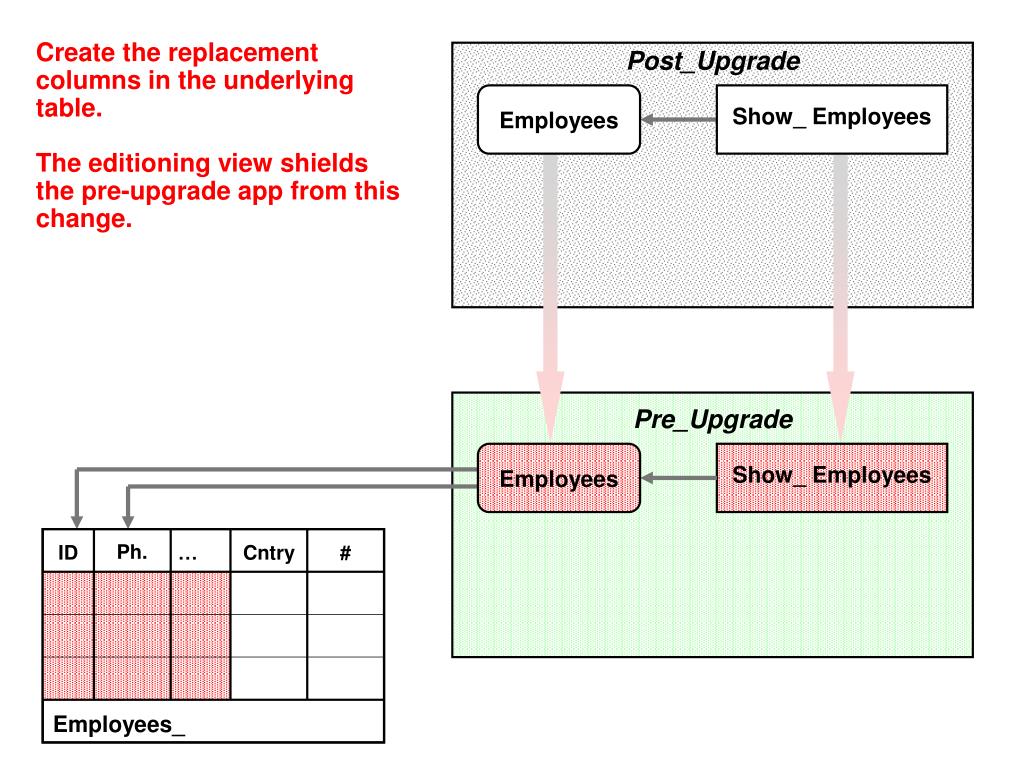

  15. Show_ Employees Employees Employees Show_ Employees Ph. ID … Cntry # Employees_ Create the replacement columns in the underlying table.The editioning view shieldsthe pre-upgrade app from this change. Post_Upgrade Pre_Upgrade

  16. Employees Employees Show_ Employees Show_ Employees Ph. ID … Cntry # Employees_ Change Employees to selectthe new columns.Change Show_Employeess to implement the new behavior. Post_Upgrade Pre_Upgrade

  17. Employees Employees Fwd Xed Show_ Employees Show_ Employees Ph. ID … Cntry # Employees_ Create the forward crossedition trigger. Post_Upgrade Pre_Upgrade

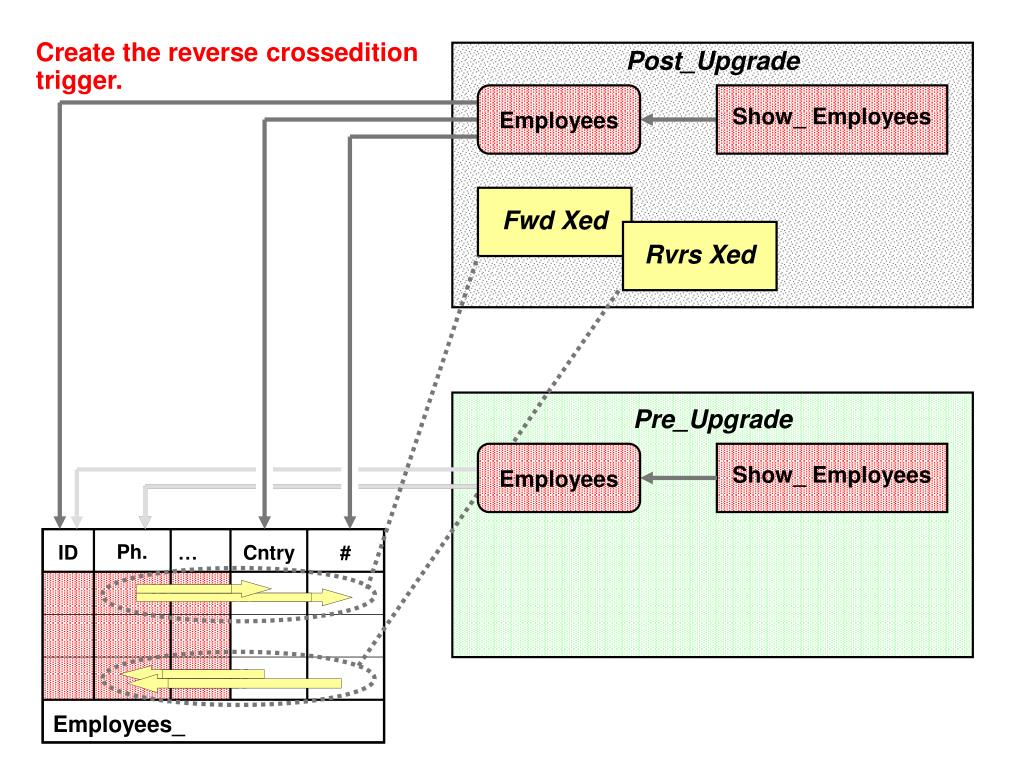

  18. Employees Employees Fwd Xed Rvrs Xed Show_ Employees Show_ Employees Ph. ID … Cntry # Employees_ Create the reverse crossedition trigger. Post_Upgrade Pre_Upgrade

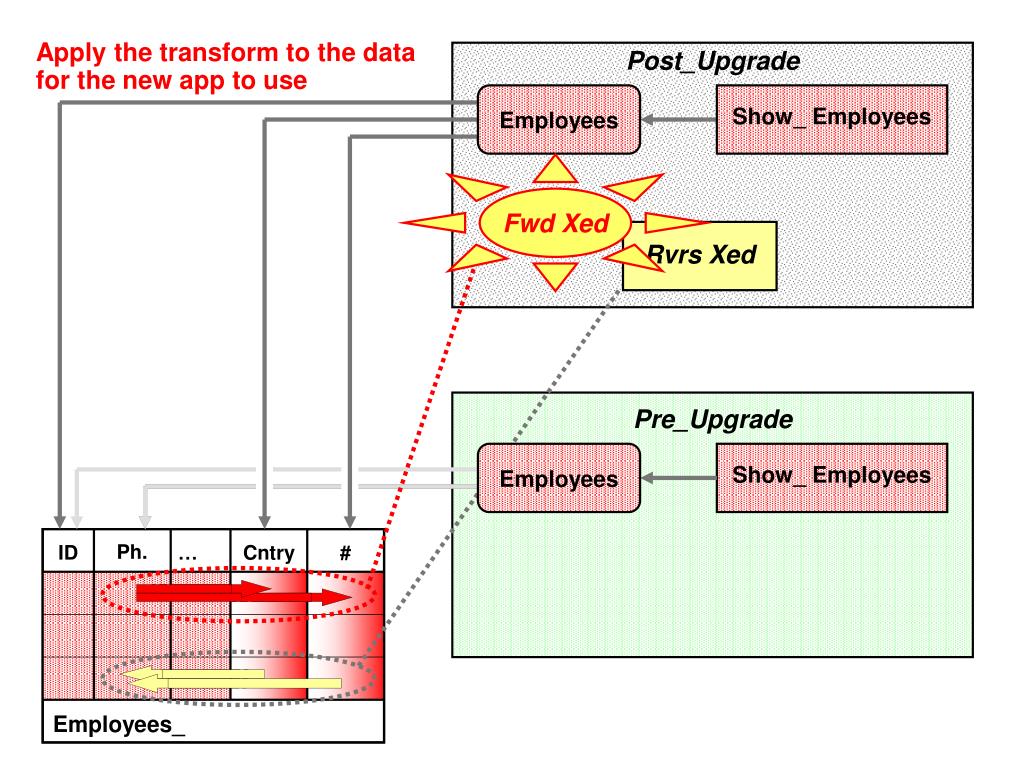

  19. Fwd Xed Employees Employees Rvrs Xed Show_ Employees Show_ Employees Apply the transform to the data for the new app to use Post_Upgrade Pre_Upgrade Ph. ID … Cntry # Employees_

  20. Employees Employees Fwd Xed Rvrs Xed Show_ Employees Show_ Employees Ph. ID … Cntry # Employees_ Hot rollover period. Post_Upgrade Pre_Upgrade

  21. Employees Show_ Employees The Pre_Upgrade editionis retired.The edition-based redefinition exercise is complete. Post_Upgrade Pre_Upgrade Show_Employees Employees Ph. ID … Cntry # Employees_

  22. Conclusion • Large, mission critical applications can now be continuously available while a patch or an upgrade is installed • The pre-upgrade application and the post-upgrade application can be used at the same time • Beta customers tested it, declare it fit for their purpose, and hope to enable online application upgrade through EBR • White paper available at http://www.oracle.com/technology/deploy/availability/pdf/edition_based_redefinition.pdf

  23. Q A & <Insert Picture Here>
