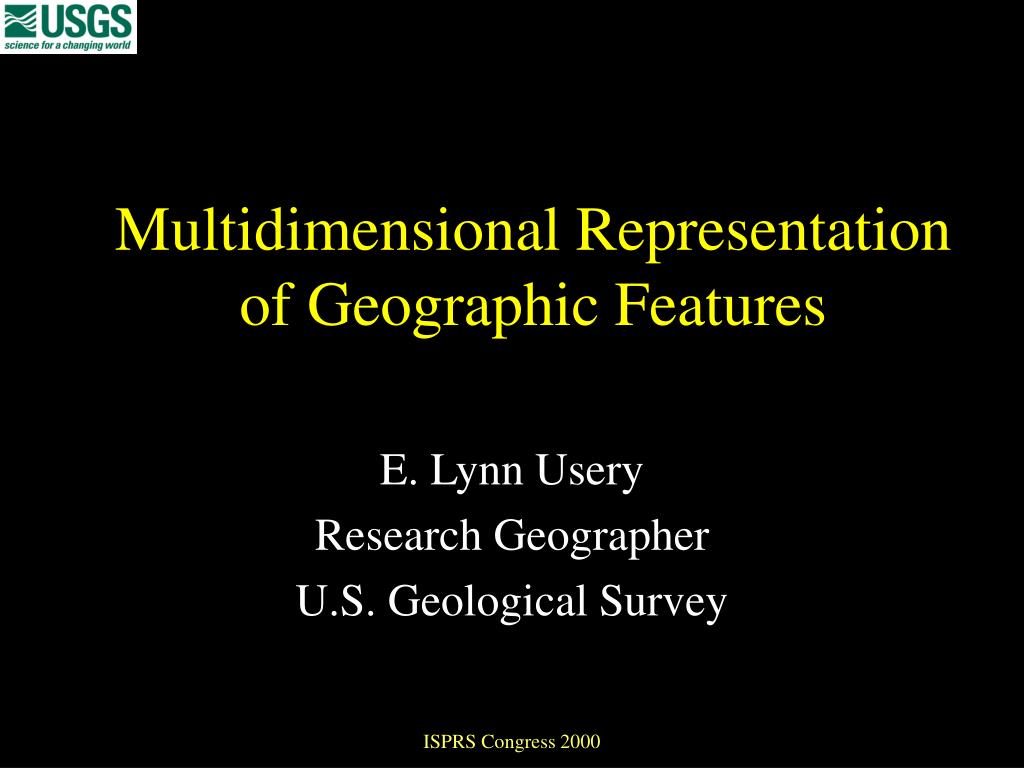

Multidimensional Representation of Geographic Features. E. Lynn Usery Research Geographer U.S. Geological Survey. Outline. Introduction Objectives Background Approach Theoretical Basis Implementation Strategy Application – DLG-F usage Conclusions. Introduction.

jeslyn
Télécharger la présentation

Multidimensional Representation of Geographic Features

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Multidimensional Representation of Geographic Features E. Lynn Usery Research Geographer U.S. Geological Survey ISPRS Congress 2000

  2. Outline • Introduction • Objectives • Background • Approach • Theoretical Basis • Implementation Strategy • Application – DLG-F usage • Conclusions ISPRS Congress 2000

  3. Introduction • Need for geoinformation theory • UCGIS Research Priority on “Geographic Representation”; proposed theme on ontology. • Need to handle 3 dimensions and time • Need to interface to geographic process models • Climate models • Growth models • Biologic models • Watershed/water quality models ISPRS Congress 2000

  4. Introduction • Geographic reality consists of entities and processes • We represent entities as objects and processes as models • Mathematical (process) • Data driven (map, spatial, or GIS) • Combinations ISPRS Congress 2000

  5. Objectives • Advance development of theory of geographic information supporting multiple representations. • Validate theory in multiple applications. • Develop implementation around specific application for feasibility testing. • Use current GIScience knowledge as base from which to extend representation ideas. ISPRS Congress 2000

  6. Background • Significant work toward a theory • Peuquet, 1988; Molenaar, 1991; Mark, 1993; Usery, 1996; Frank, 1998. • Geography • Place, attribute, time as fundamental basis for spatial analysis from Berry (1964), basis of current GIS • Region theory • Cartography • Abstraction and generalization concepts ISPRS Congress 2000

  7. Background • Cognitive psychology • Basic level of categorization exists • For geography, that level is geographic entities or features • Roads • Streams • Buildings • Watersheds • … ISPRS Congress 2000

  8. Problems • How to advance theory of geoinformation? • Limits of commercial GIS software systems • Map model of reality • Geometry (raster or vector) based objects with attached attributes • Needs to advance • ,,Z,t or X,Y,Z,t coordinates for entities • Motion and process ISPRS Congress 2000

  9. Feature Approach • Feature is geographic entity and object representation • One feature, many objects • Multiple resolutions • Multiple geometries • Access from single identity ISPRS Congress 2000

  10. Definitions ISPRS Congress 2000

  11. ISPRS Congress 2000

  12. Requirements to Move from Theoretical Concepts to Implementation • Theory of sufficient completeness to support application needs • Transition framework from theoretical concepts to a data model • Implementation methodology from the data model ISPRS Congress 2000

  13. Theoretical Completeness • Components of theory available • Feature concepts • Human understanding • Category theory • Metaphor • Algebraic formalisms • Missing links • Feature to feature relations • Some work on topological relations • Thematic, temporal relations ISPRS Congress 2000

  14. Transition Framework • Dimensions • Concepts • Data Models • Data Structures ISPRS Congress 2000

  15. ISPRS Congress 2000

  16. Implementation Methodology • Feature processing system • Create, select, manipulate, analyze features • Use existing databases • Spatial, thematic, temporal attributes and relationships • Vector geometry (,,Z,t lists) • Raster geometry (pixel matrices) • Heuristics, procedures, models ISPRS Congress 2000

  17. ISPRS Congress 2000

  18. Application of the Framework • Watershed/water quality modeling application • Test site in Little River, Georgia, USA • 340 sq. km. • Traditional data layers • Soils, land cover, elevation, precipitation • Derived information • Slope, aspect, flow directions, flow paths, flow planes • Multiple geometries and resolutions • Vector • Raster at 3, 30, 60, 120, 210, 240, 480, 960, 1920 m cells ISPRS Congress 2000

  19. ISPRS Congress 2000

  20. ISPRS Congress 2000

  21. ISPRS Congress 2000

  22. ISPRS Congress 2000

  23. ISPRS Congress 2000

  24. ISPRS Congress 2000

  25. Implementation of Watershed Features • Use USGS DLG-F structures • Apply to raster geometry • Build attributes and relations specific to defined features • Develop parameters for water models ISPRS Congress 2000

  26. ISPRS Congress 2000

  27. ISPRS Congress 2000

  28. ISPRS Congress 2000

  29. ISPRS Congress 2000

  30. ISPRS Congress 2000

  31. ISPRS Congress 2000

  32. ISPRS Congress 2000

  33. ISPRS Congress 2000

  34. ISPRS Congress 2000

  35. Conclusions • Conceptual framework (addition to theory) supporting multiple geometries and multidimensional representation developed. • Geographic feature is unique entity;basis of theory • Feature has multiple object representations • Transition framework from concepts to data model developed • Data model to data structure transition developed ISPRS Congress 2000

  36. Conclusions • Framework being implemented for watershed/water quality modeling • Features developed • Data structures for features developed from USGS DLG-F and are being implemented against raster geometry. ISPRS Congress 2000
