  1. Imperial College Site Report HEP Sysman meeting 28 April 2003 Imperial College

  2. Outline • Equipment • what we have • Software • what we use • Activities • what we do • Problems • all of the above Imperial College

  3. Equipment • Unix Servers & Desktops • 2 x (Sun E450 servers, solaris 8, ~ 1Tbyte) • one JREI funded BaBar resource, one general • looking old and expensive now compared to… • Linux PC based servers and desktops • 2 PC based raid servers, ~ 1 Tbyte each • 4 dual processor, 2GHz, rack mounted, RH 7.3 for general interactive/batch use. • Various individual Linux desktops (some Grid). Imperial College

  4. Equipment • Linux PC farms • BaBar Linux PC farm, from JREI. • Main analysis facility for IC BaBar group. 2 dual CPU masters, 40 dual CPU workers. PBS batch system, ~300 Gbytes per master. • CMS/Grid PC farm • 5 master nodes, 440 Gbytes disk each. 40 worker nodes. All are 1GHz dual PIII with 1GB of RAM per CPU. • LeSC grid resources Imperial College

  5. Equipment • Windows Servers and Desktops • Windows 2000 server & backup server • group W2K domain accounts • profiles, home directories, experiment areas • domain printer queues • W2K and XP desktop PCs (~ 70 machines) • current default desktop environment • MS Office, windows ssh, Exceed, … • some PCs with specialist software, e.g. CAD. Imperial College

  6. Solaris Group Server • Sun Enterprise E450 running Solaris 2.8 • Three 400MHz processors • Two network interfaces • 100 Mbit/s to original subnet • 1 Gbit/s to farm subnet • ~ 1Tbyte disk, of which 800Mbytes Raid • Web, email, user accounts,... Imperial College

  7. Software • Unix: Solaris 2.8, Redhat Linux 7.3 • no user software supported on Solaris. • the usual Linux s/w + whatever experiment specific software we need. • Linux version is tied to experiments. • Windows server and desktops • College deal provides standard MS Office products for licensed windows PCs. Imperial College

  8. Activities • HEP programme • BaBar, CMS, DØ, LHCb, Zeus, dark matter, neutrino factory, detector development • Considerable MC production for the experimental programmes • Grid developments • see separate slides… • Desktop Office applications Imperial College

  9. LHCb MC production Imperial College

  10. DØ MC production Imperial College

  11. Grid Developments • We are a testbed node • with CE, 8 WN (dual 1GHz PIII ) and 1 SE with ~440GB • We run a resource broker (RB) • used as one of the 4 production RBs (others at CERN, Lyon, CNAF). • It is also the GridPP and BaBar RB Imperial College

  12. Grid Developments • We took part in the CMS Grid Stress test before Christmas. • We run a production quality (?) SAM station which automatically delivers the data required by our DØ members. • Have gridified (part) of the BaBar Farm (80 800 MHz PIII). Imperial College

  13. e-Science (not Grid) • We are now making heavy use of Viking at LeSC • (132 Dual 2GHz Xeon nodes currently... new procurement currently underway and another in ~6 months). We also use the HSM hosted by Saturn (24 processor E6800...6TB of Disk 24TB tape space). • Have found issues with time outs as data transferred from tape. Imperial College

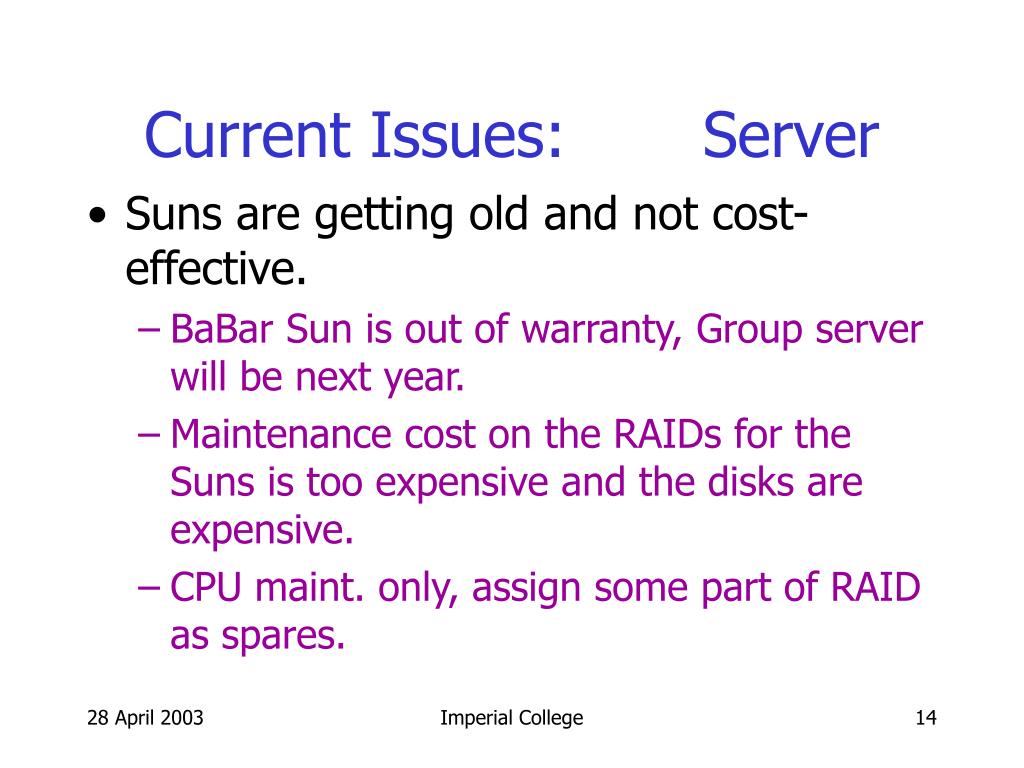

  14. Current Issues: Server • Suns are getting old and not cost-effective. • BaBar Sun is out of warranty, Group server will be next year. • Maintenance cost on the RAIDs for the Suns is too expensive and the disks are expensive. • CPU maint. only, assign some part of RAID as spares. Imperial College

  15. Current Issues: Desktops • Do we stick with Windows for the standard desktop ? • College policy is for Windows Desktop • they also want complete control over all aspects of S/W installed, PC purchase, networking, “standardised desktop”. • Increasingly users want Linux desktop • especially Grid developers • many have only infrequent need for Windows. Imperial College

  16. Current Issues: Desktops • Dual booting is unattractive • experimenting with Terminal Server software for “occasional” Windows users. • Seems to work well, but need to clarify licensing situation. Probably OK for us. • Have considered providing laptops • many people are using laptops already as their default desktop machine, advantages when travelling, e.g. on LTA. Imperial College

  17. Current Issues: Security • College firewall • moving to default “deny all” policy this year. • maybe even ssh blocked unless registered. • Already causing some problems with recent blocks on all ports > 1026 • ftp call backs etc. a problem for Kerberised ftp to FNAL; needs PASV mode. Tough for emacs. • Some problems for grid apps. Imperial College

  18. Current Issues: Security • Some Grid developments are clashing with needs for secure systems. • edg software still needs obsolete RH 6.2 • Most of our Grid developers are really ex-HEP RAs, not SW professionals. • We need to make sure they are not cutting corners on security and compromising the rest of our systems for expediency. • Of course they all want root access. Imperial College

  19. Imperial College
