Rotational Inertia & Angular Momentum

Rotational Inertia & Angular Momentum. Inertia (linear quantity). Symbol Definition Limitations Depends on. m (mass) An object at rest tends to stay at rest and an object in motion tends to stay in motion unless… Acted upon by an outside force Mass ( more mass = more inertia ).

jewell
Télécharger la présentation

Rotational Inertia & Angular Momentum

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Rotational Inertia & Angular Momentum

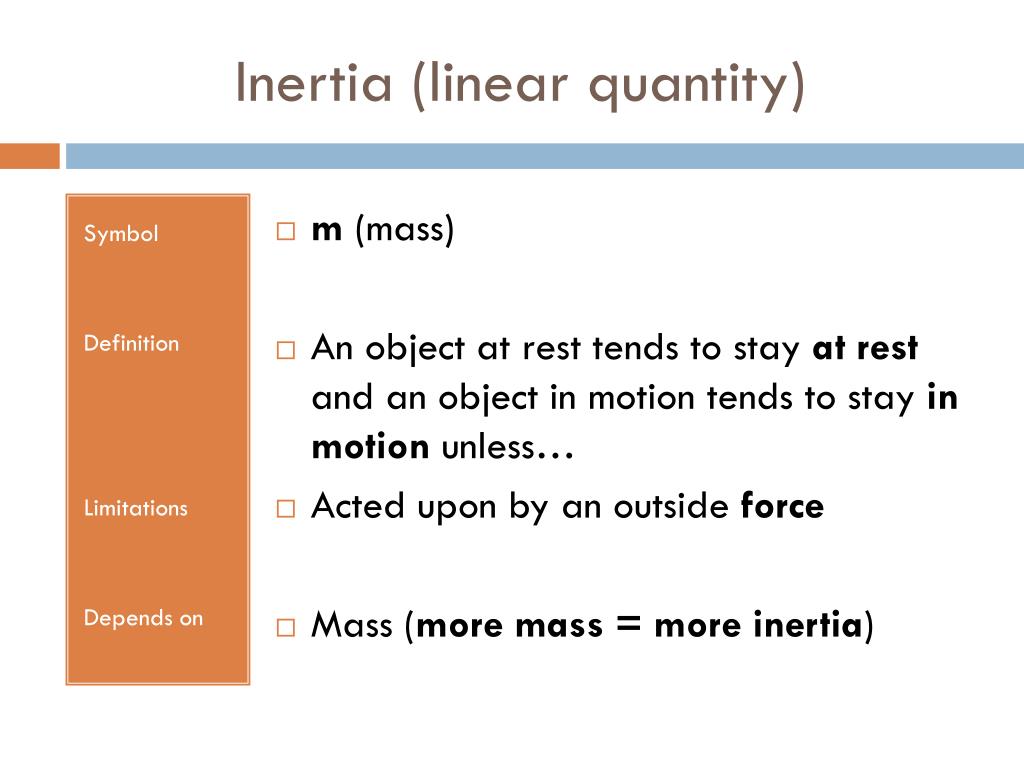

  2. Inertia (linear quantity) Symbol Definition Limitations Depends on • m (mass) • An object at rest tends to stay at rest and an object in motion tends to stay in motion unless… • Acted upon by an outside force • Mass (more mass = more inertia)

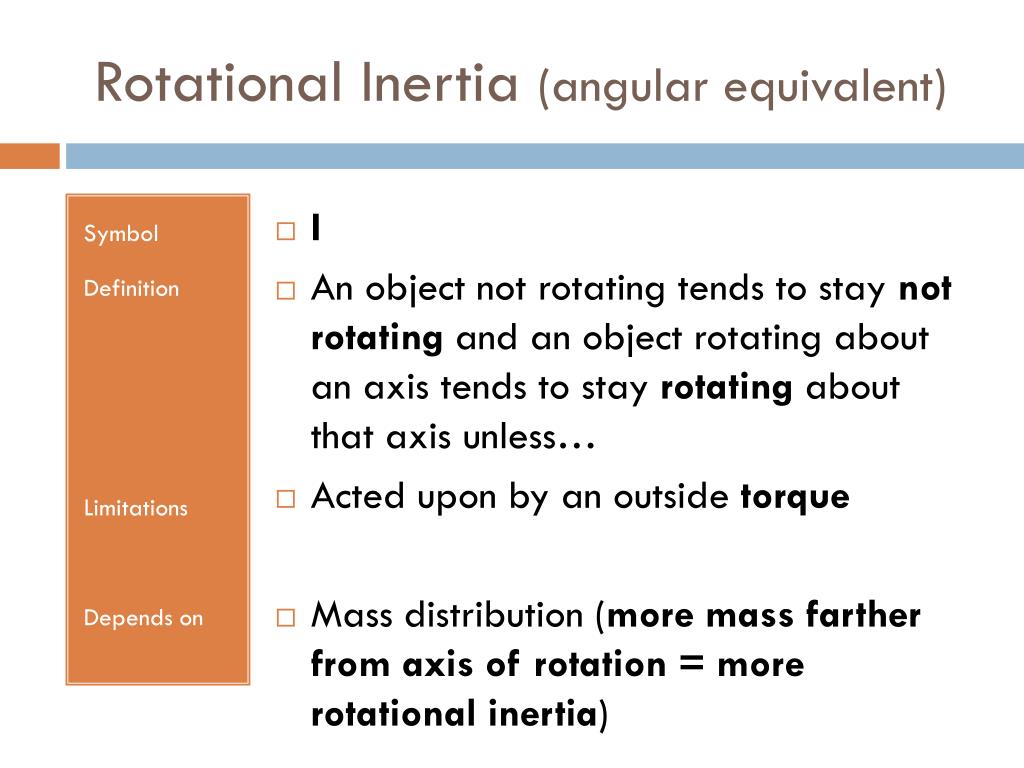

  3. Rotational Inertia (angular equivalent) Symbol Definition Limitations Depends on • I • An object not rotating tends to stay not rotating and an object rotating about an axis tends to stay rotating about that axis unless… • Acted upon by an outside torque • Mass distribution (more mass farther from axis of rotation = more rotational inertia)

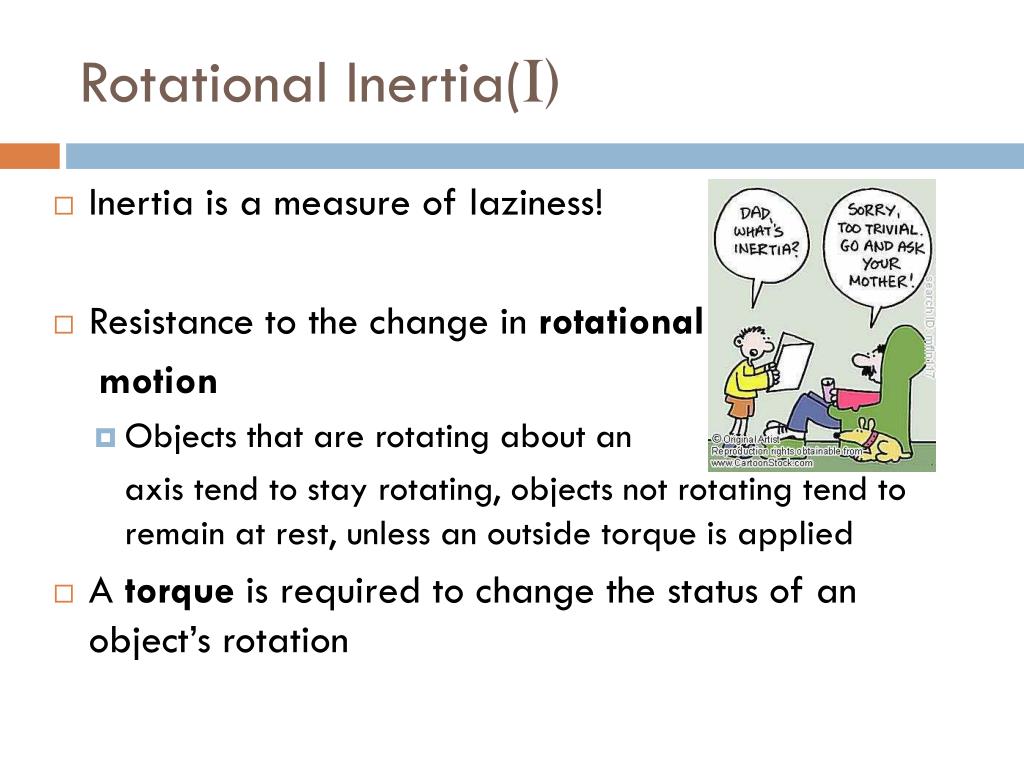

  4. Rotational Inertia(I) • Inertia is a measure of laziness! • Resistance to the change in rotational motion • Objects that are rotating about an axis tend to stay rotating, objects not rotating tend to remain at rest, unless an outside torque is applied • A torque is required to change the status of an object’s rotation

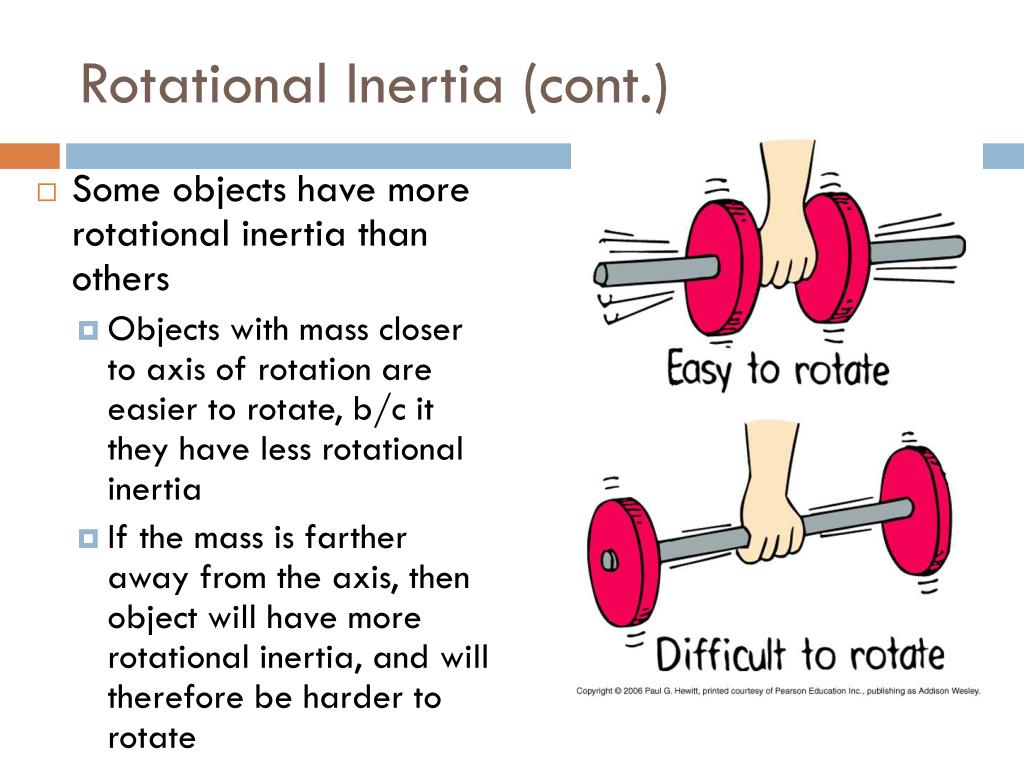

  5. Rotational Inertia (cont.) • Some objects have more rotational inertia than others • Objects with mass closer to axis of rotation are easier to rotate, b/c it they have less rotational inertia • If the mass is farther away from the axis, then object will have more rotational inertia, and will therefore be harder to rotate

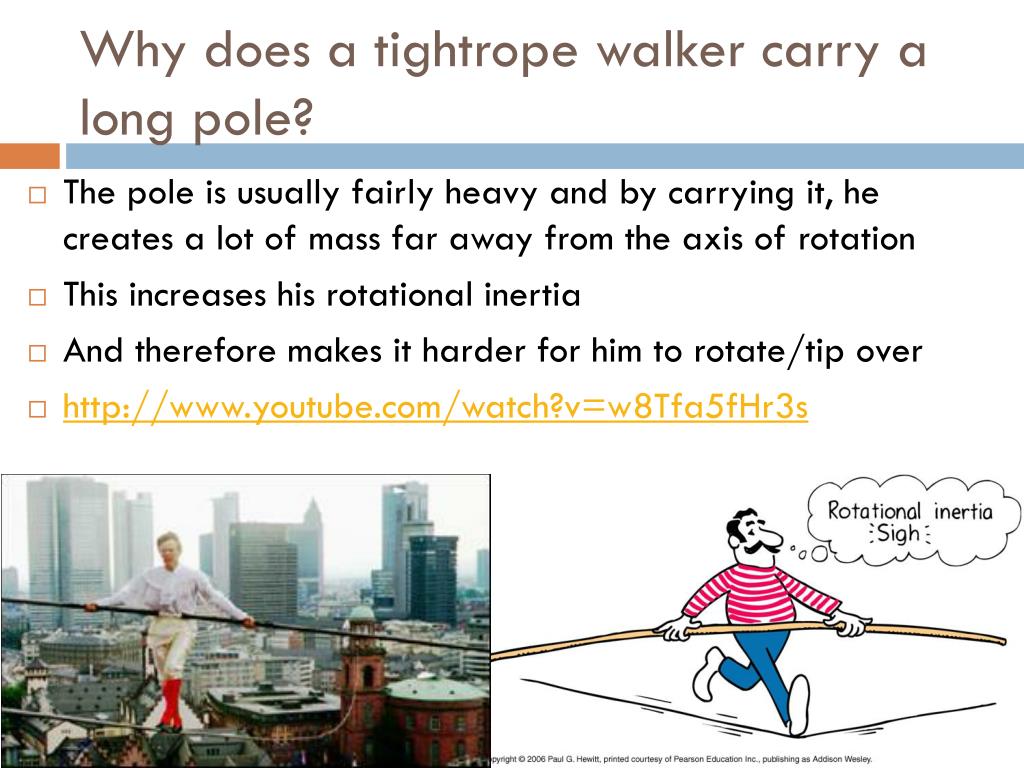

  6. Why does a tightrope walker carry a long pole? • The pole is usually fairly heavy and by carrying it, he creates a lot of mass far away from the axis of rotation • This increases his rotational inertia • And therefore makes it harder for him to rotate/tip over • http://www.youtube.com/watch?v=w8Tfa5fHr3s

  7. Sports Connection • Running • When you run you bend your legs to reduce your rotational inertia • Gymnastics/Diving • Pull body into tight ball to achieve fast rotation

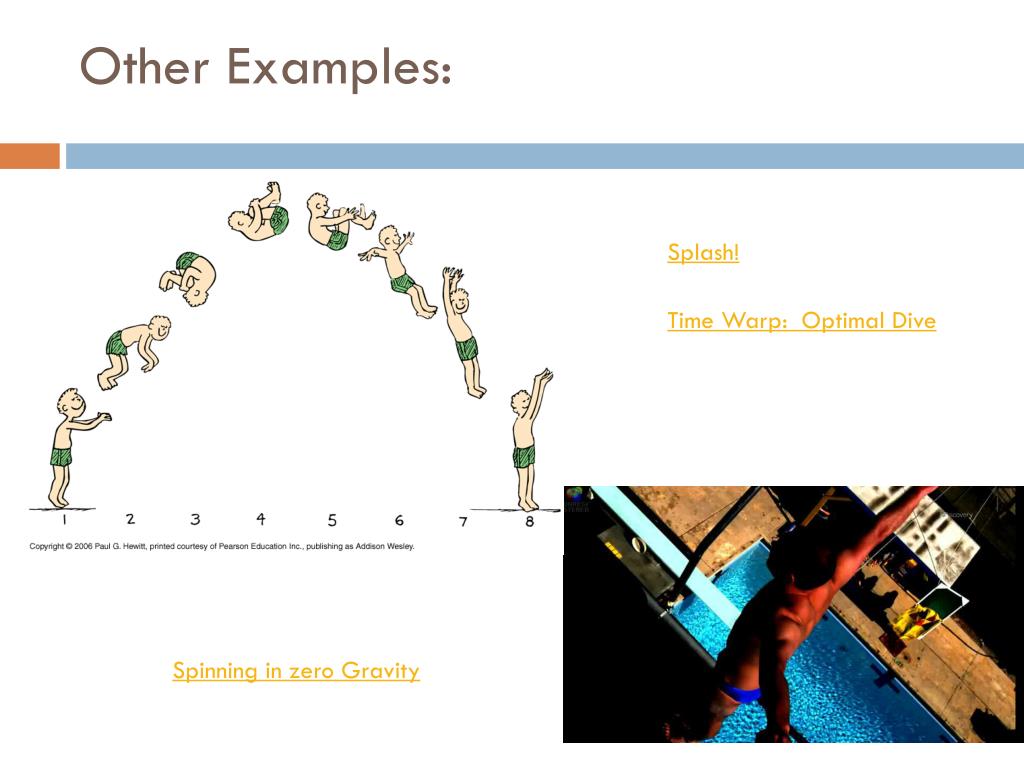

  8. Other Examples: Splash! Time Warp: Optimal Dive Spinning in zero Gravity

  9. The big idea • Rotational Inertia depends on mass and radius • If either one of these is large, then rotational inertia is large, and object will be harder to rotate • Different types of objects have different equations for rotational inertia • But all equations have m and r2 in them.

  10. Momentum Symbol Definition Equation Conservation • p • Inertia in motion • Momentum = mass x velocity (p=mv) • If no unbalanced external force acts on an object, the momentum of that object is conserved

  11. Angular Momentum Symbol Definition Equation Conservation • L • Inertia of rotation • Angular momentum = rotational inertia x rotational velocity (L = I ) • If no unbalanced external torque acts on a rotating system, the angularmomentum of that system is conserved

  12. Conservation of Angular Momentum • If no outside torque is being applied, then total angular momentum in a system must stay the same • This means, if you decrease radius, you increase rotational speed • Increase radius, then rotational speed decreases I – represents rotational inertia ω -represents angular speed

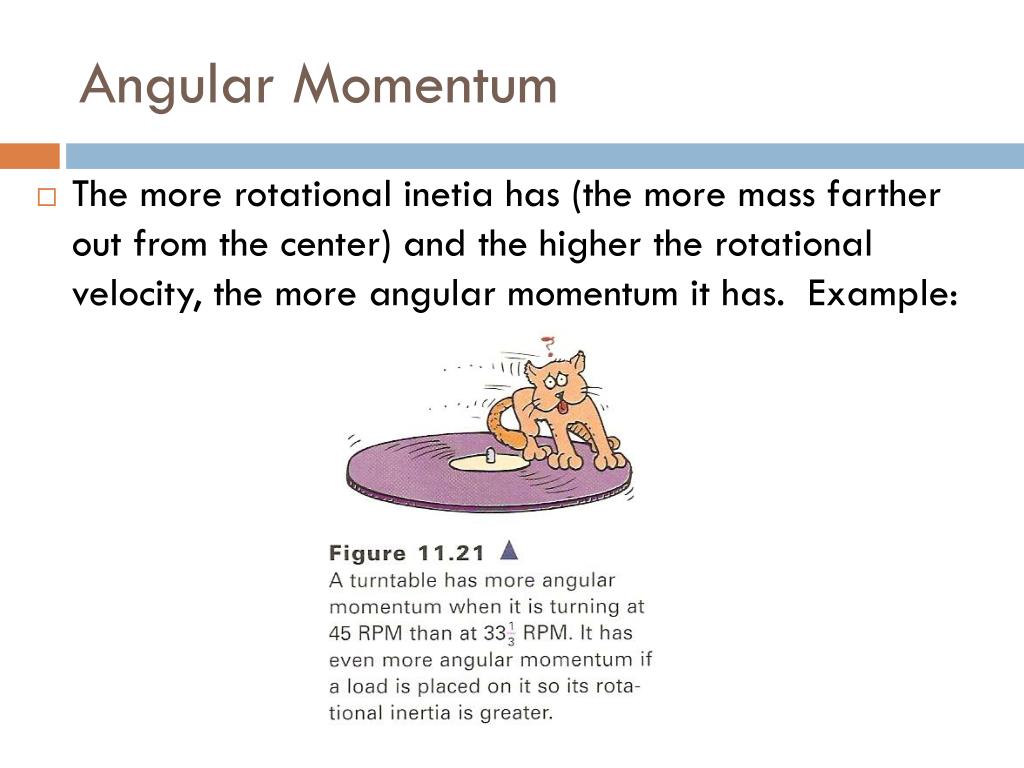

  13. Angular Momentum • The more rotational inetia has (the more mass farther out from the center) and the higher the rotational velocity, the more angular momentum it has. Example:

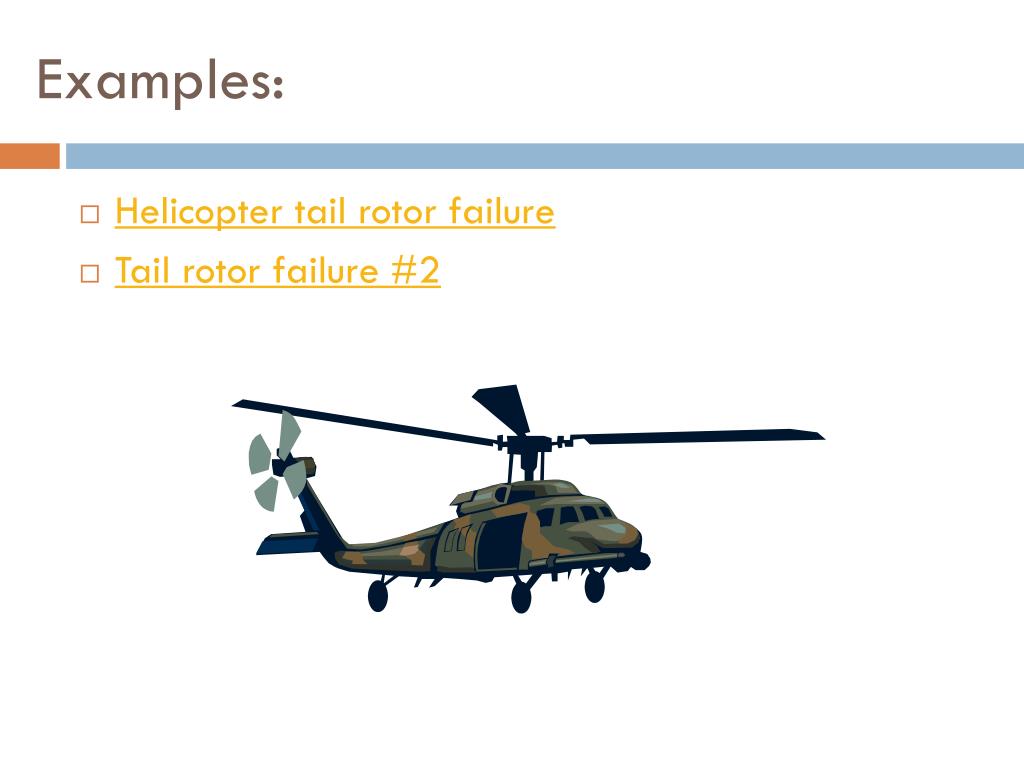

  14. Examples: • Helicopter tail rotor failure • Tail rotor failure #2

  15. Sports Connection… • Ice skating • Skater starts out in slow spin with arms and legs out • http://www.youtube.com/watch?v=AQLtcEAG9v0 • http://www.youtube.com/watch?v=NtEnEeEyw_s • Skater pulls arms and legs in tight to body • Skater is then spinning much faster (higher rotational speed) • Gymnastics (pummel horse or floor routine) • Small radius to achieve fast rotational speed during moves, increase radius when low rotational speed is desired (during landing)

  16. Do cats violate physical law? • Video • They rotate their tail one way, so that their body rotates the other so that their feet are facing the ground and they land on their feet. • This combined with their flexibility allow them to almost always land on their feet

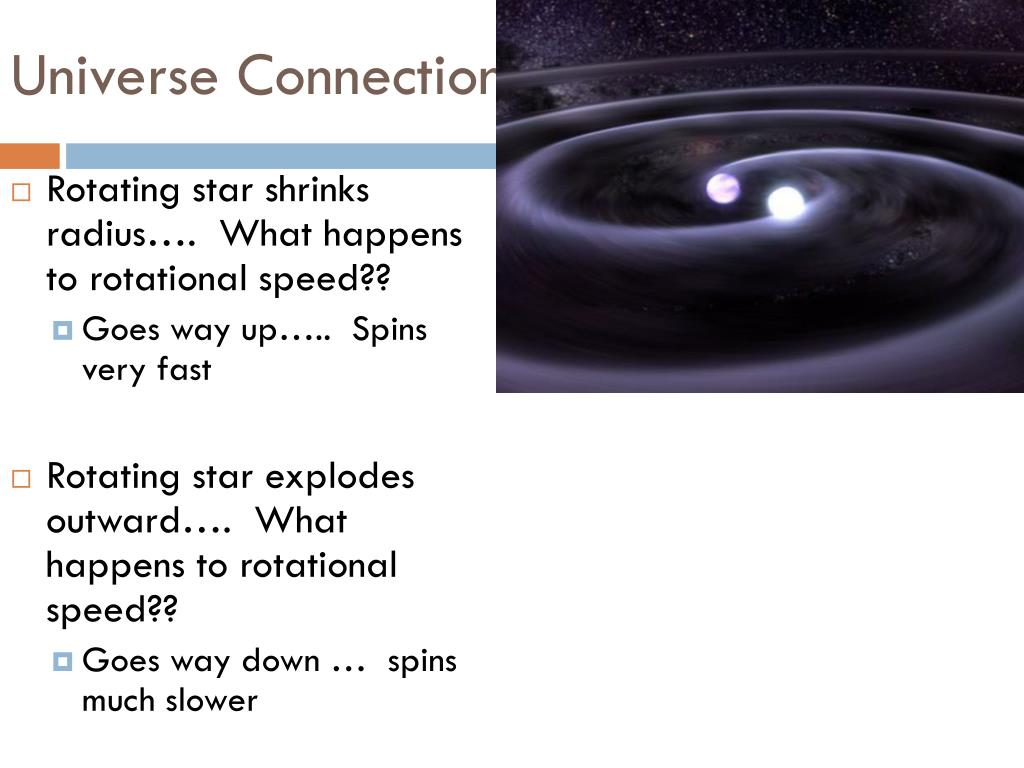

  17. Universe Connection • Rotating star shrinks radius…. What happens to rotational speed?? • Goes way up….. Spins very fast • Rotating star explodes outward…. What happens to rotational speed?? • Goes way down … spins much slower

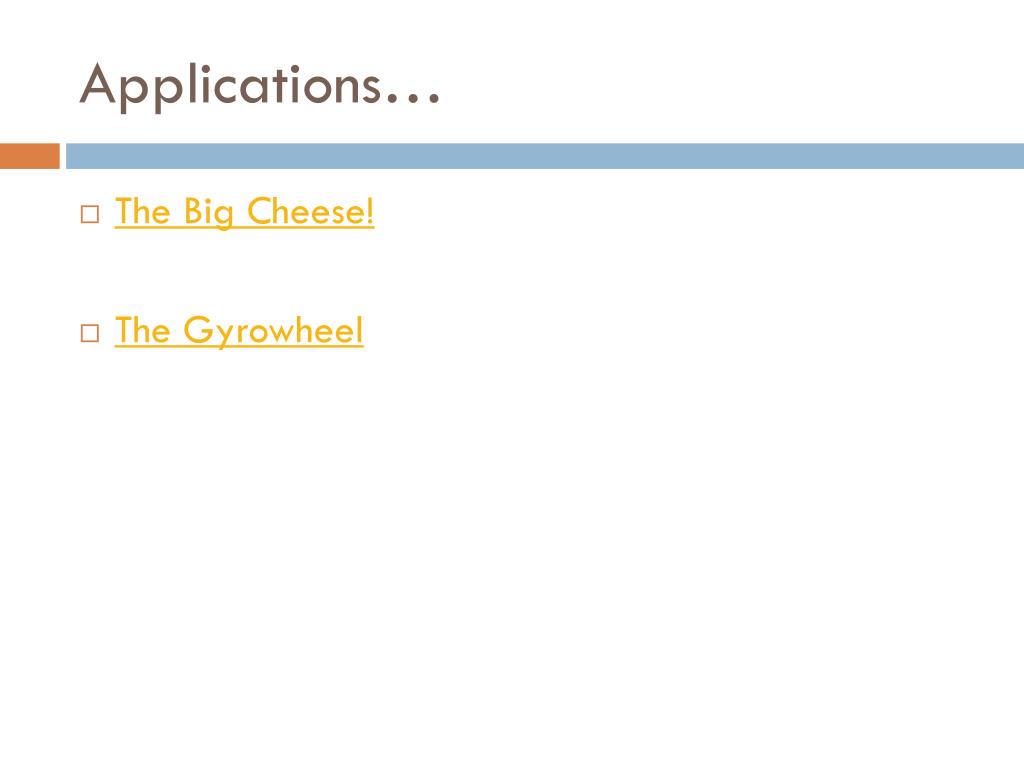

  18. Applications… • The Big Cheese! • The Gyrowheel
