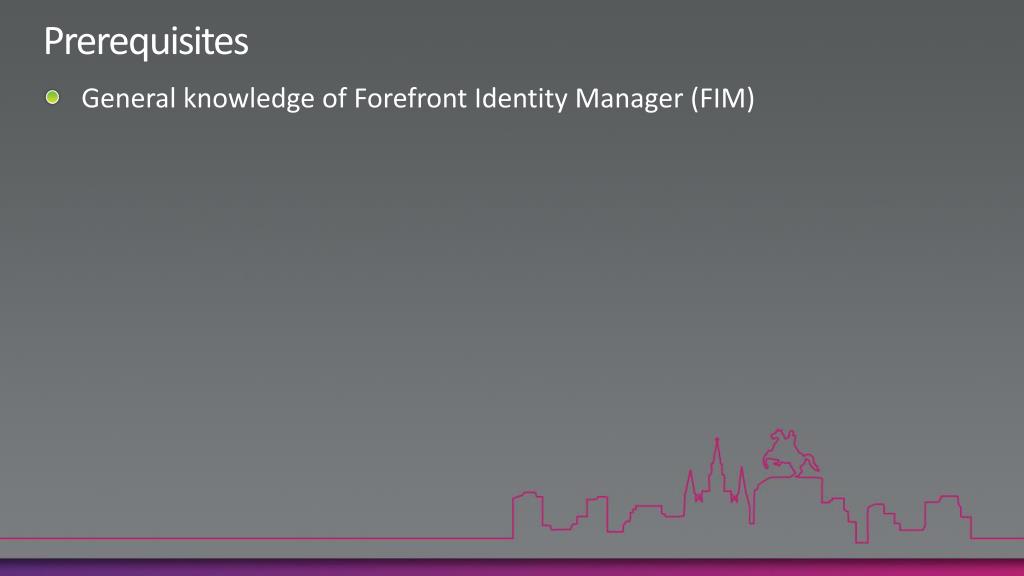

2. Prerequisites • General knowledge of Forefront Identity Manager (FIM)

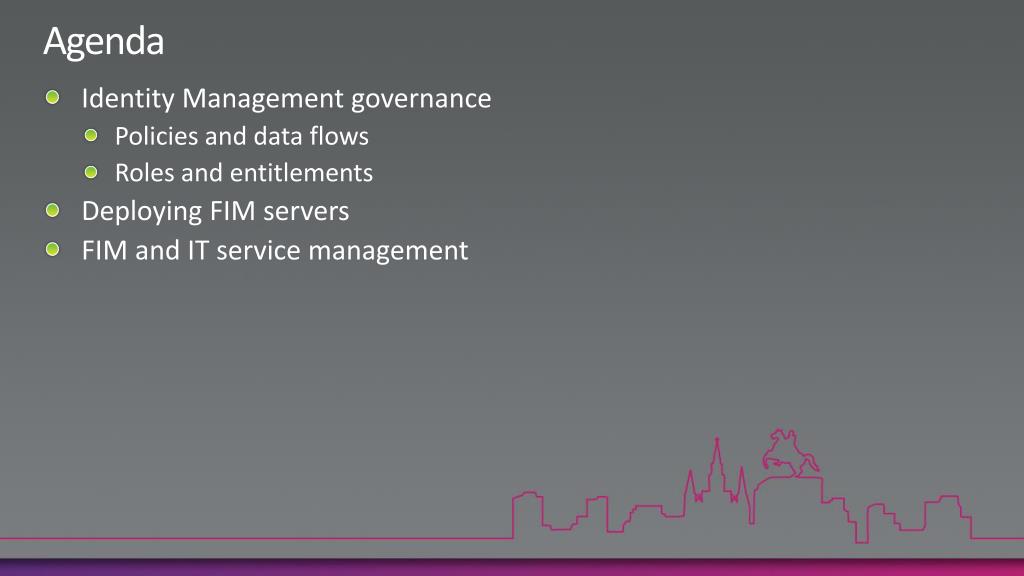

3. Agenda • Identity Management governance • Policies and data flows • Roles and entitlements • Deploying FIM servers • FIM and IT service management

4. Identity Management and Governance Policies and Data Flows

5. Business Ready SecurityHelp securely enable business by managing risk and empowering people Across on-premises & cloud Access Protection Identity Protect everywhere, access anywhere Integrate and extend security across the enterprise Management Highly Secure & Interoperable Platform Simplify the security experience, manage compliance from: to: Block Enable Cost Value Siloed Seamless

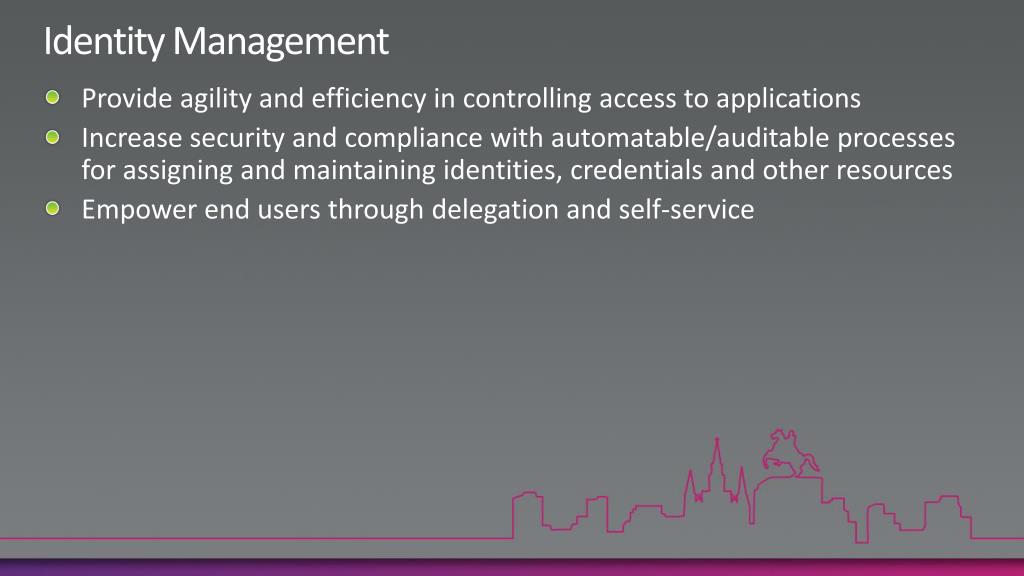

6. Identity Management • Provide agility and efficiency in controlling access to applications • Increase security and compliance with automatable/auditable processes for assigning and maintaining identities, credentials and other resources • Empower end users through delegation and self-service

7. Identity Management and Governance • Governance controls can maintain the quality of identity data • What is the business value of identity data? • Who is the owner of each element of the data? Who is the custodian? • What processes ensure the data has appropriate quality to support applications relying upon it?

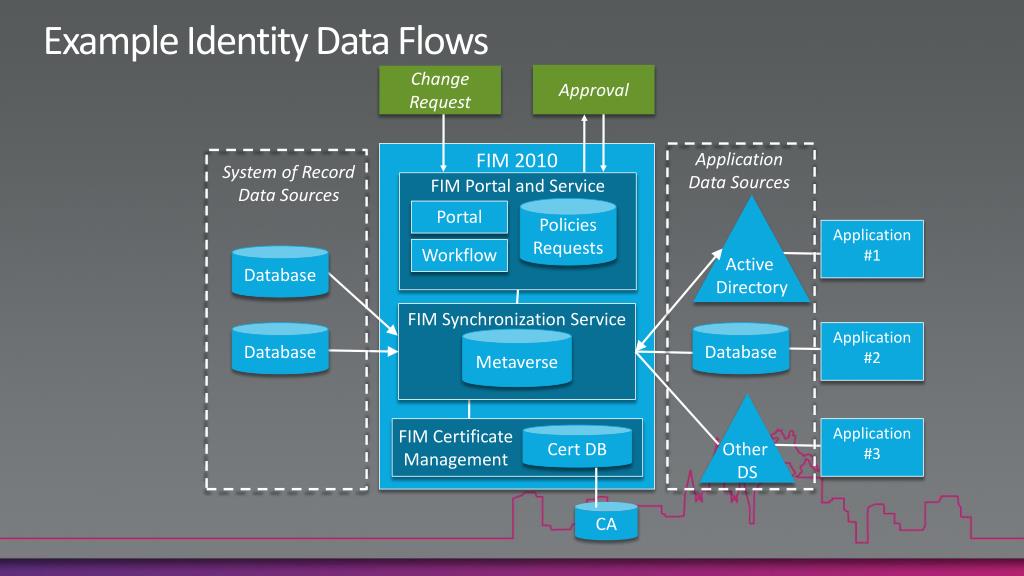

8. Example Identity Data Flows Approval ChangeRequest FIM 2010 ApplicationData Sources System of RecordData Sources FIM Portal and Service Active Directory Policies Requests Portal Application#1 Workflow Database FIM Synchronization Service Database Database Application#2 Metaverse Other DS Application#3 FIM Certificate Management Cert DB CA

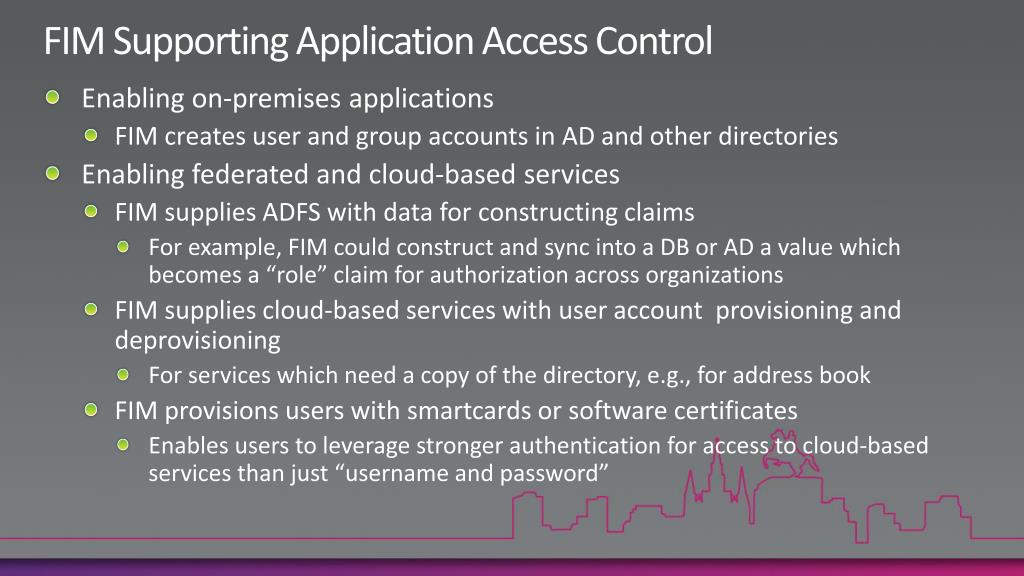

9. FIM Supporting Application Access Control • Enabling on-premises applications • FIM creates user and group accounts in AD and other directories • Enabling federated and cloud-based services • FIM supplies ADFS with data for constructing claims • For example, FIM could construct and sync into a DB or AD a value which becomes a “role” claim for authorization across organizations • FIM supplies cloud-based services with user account provisioning and deprovisioning • For services which need a copy of the directory, e.g., for address book • FIM provisions users with smartcards or software certificates • Enables users to leverage stronger authentication for access to cloud-based services than just “username and password”

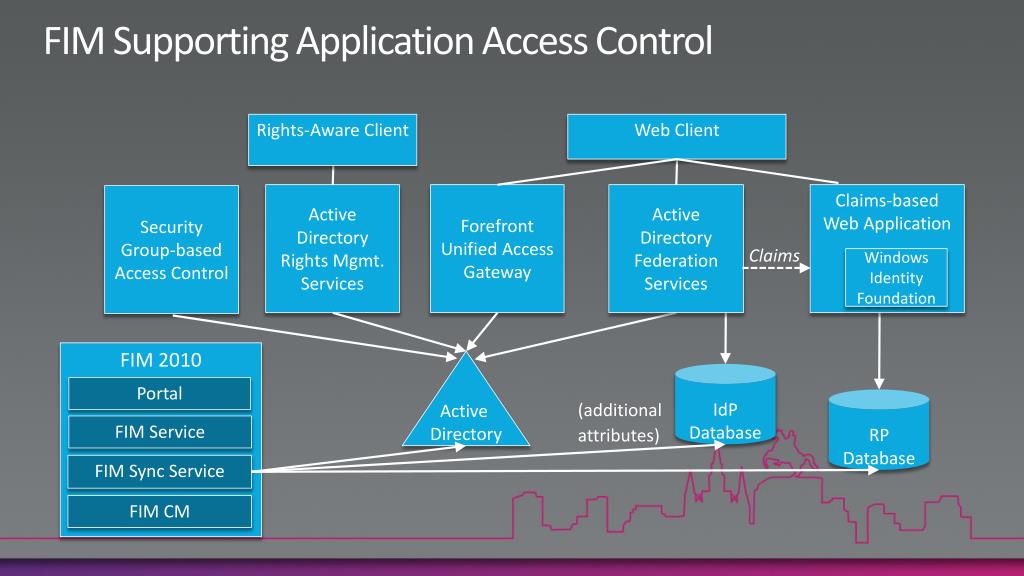

10. FIM Supporting Application Access Control Rights-Aware Client Web Client Active Directory Rights Mgmt. Services Forefront Unified AccessGateway Active Directory Federation Services Claims-based Web Application Security Group-based Access Control Claims Windows Identity Foundation FIM 2010 Active Directory IdPDatabase Portal RPDatabase (additional attributes) FIM Service FIM Sync Service FIM CM

11. Controlling Data Flows with FIM • Sets • A collection of resources matching a filter (XPath expression) • Define sets related to each other for partitioning the data flows • By ownership or system of record source • By controller or maintenance lifecycle • By requirements for visibility or constraints for privacy/data protection • By approach for delegation • Groups controlling access to LBI data or discussion: open, anyone can join • Controlling access to MBI: owner approval • Controlling access to HBI: Administrator-maintained (existing procedures) • By roles and by entitlements

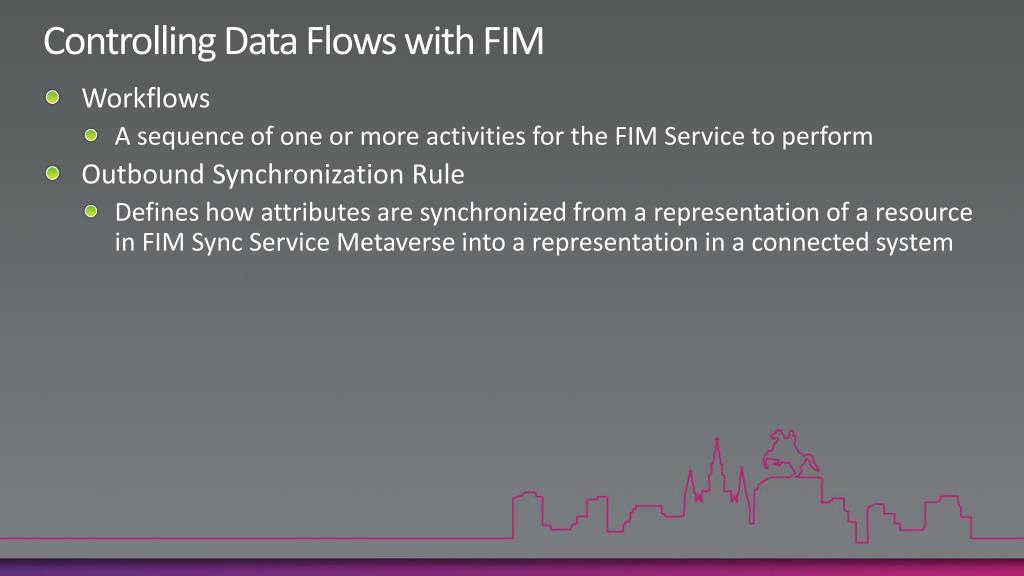

12. Controlling Data Flows with FIM • Workflows • A sequence of one or more activities for the FIM Service to perform • Outbound Synchronization Rule • Defines how attributes are synchronized from a representation of a resource in FIM Sync Service Metaverse into a representation in a connected system

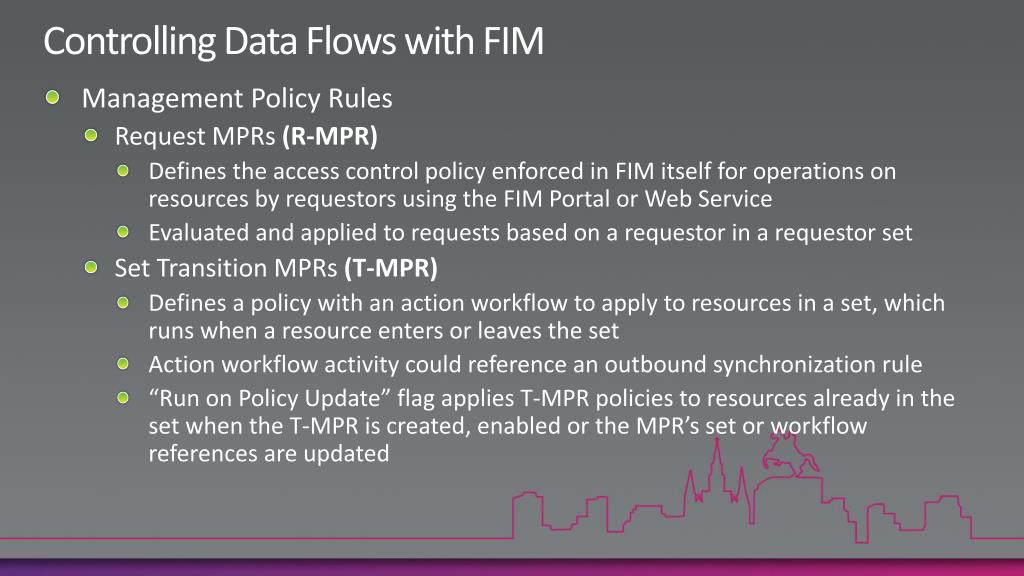

13. Controlling Data Flows with FIM • Management Policy Rules • Request MPRs (R-MPR) • Defines the access control policy enforced in FIM itself for operations on resources by requestors using the FIM Portal or Web Service • Evaluated and applied to requests based on a requestor in a requestor set • Set Transition MPRs (T-MPR) • Defines a policy with an action workflow to apply to resources in a set, which runs when a resource enters or leaves the set • Action workflow activity could reference an outbound synchronization rule • “Run on Policy Update” flag applies T-MPR policies to resources already in the set when the T-MPR is created, enabled or the MPR’s set or workflow references are updated

14. Identity Management and Governance Roles and Entitlements

15. Modeling Roles In FIM • A role abstraction captures the entitlements independent of specific users • Assigning a user to a role grants them all the entitlements defined for the role • FIM Sets and MPRs can be used to model the policies for roles, by • Defining who is in a role via Set membership (e.g., FIM Administrators) • The set represents the role; Members are in the role. • Expressed in R-MPR as Requestors • Defining roles by values in resource attributes (e.g., owner of groups) • Works well for near-universal or very common role relationships • Roles mapped to connected systems by group membership • The group represents the role and the target system is configured to grant access to the group

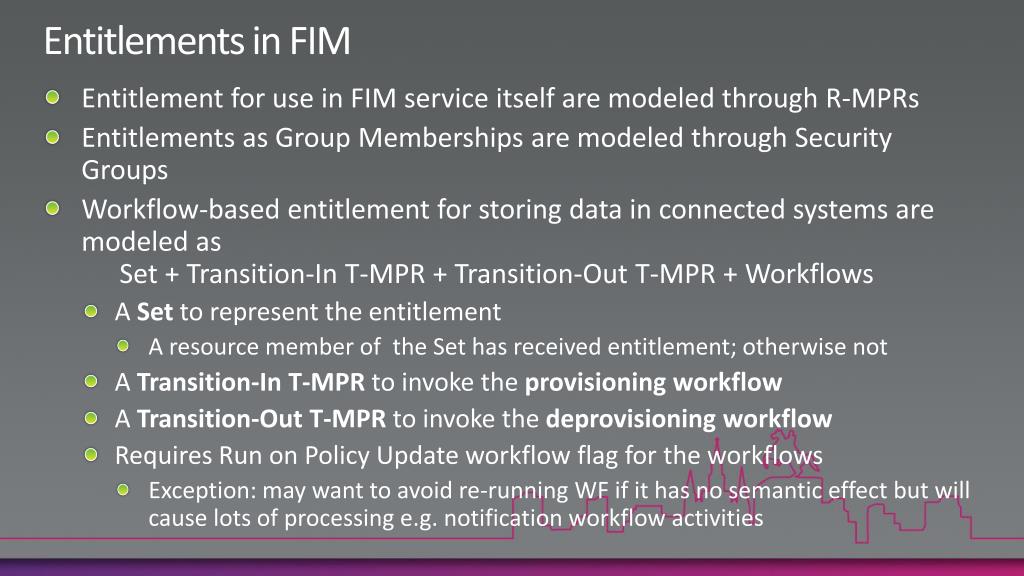

16. Entitlements in FIM • Entitlement for use in FIM service itself are modeled through R-MPRs • Entitlements as Group Memberships are modeled through Security Groups • Workflow-based entitlement for storing data in connected systems are modeled as Set + Transition-In T-MPR + Transition-Out T-MPR + Workflows • A Set to represent the entitlement • A resource member of the Set has received entitlement; otherwise not • A Transition-In T-MPR to invoke the provisioningworkflow • A Transition-Out T-MPR to invoke the deprovisioningworkflow • Requires Run on Policy Update workflow flag for the workflows • Exception: may want to avoid re-running WF if it has no semantic effect but will cause lots of processing e.g. notification workflow activities

17. Roles and Entitlements Design Planning • Design for Business Process Roles: • Define the roles for the business processes • Define the entitlements • For each role, determine the entitlements required for them

18. Avoiding unintended side effects Entitlement “Full time employee has AD account” Set “Full time employees” Set: “Full time employees” Transition-In T-MPR Action Workflow: AD Provision Transition-Out T-MPR Action Workflow: AD Deprovision Filter: “/Person[ETYPE=‘FTE’]” Person “Alice” ETYPE: “FTE”

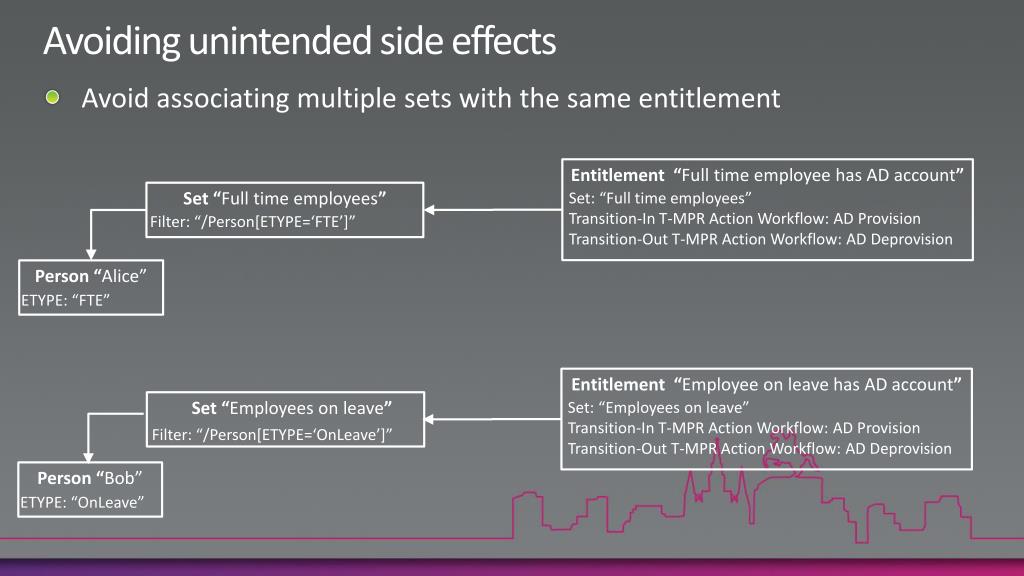

19. Avoiding unintended side effects • Avoid associating multiple sets with the same entitlement Entitlement “Full time employee has AD account” Set “Full time employees” Set: “Full time employees” Transition-In T-MPR Action Workflow: AD Provision Transition-Out T-MPR Action Workflow: AD Deprovision Filter: “/Person[ETYPE=‘FTE’]” Person “Alice” ETYPE: “FTE” Entitlement “Employee on leave has AD account” Set “Employees on leave” Set: “Employees on leave” Transition-In T-MPR Action Workflow: AD Provision Transition-Out T-MPR Action Workflow: AD Deprovision Filter: “/Person[ETYPE=‘OnLeave’]” Person “Bob” ETYPE: “OnLeave”

20. Avoiding unintended side effects • Redefine the set to include all roles sharing this entitlement • Define sets in terms of other sets when it makes semantic sense Set “Full time employees” Filter: “/Person[ETYPE=‘FTE’]” Person “Alice” Entitlement “Employees have AD account” Set “Employees needing AD accounts” ETYPE: “FTE” Set: “Employees needing AD accounts” Transition-In T-MPR Action Workflow: AD Provision Transition-Out T-MPR Action Workflow: AD Deprovision Filter: “/Person[/ObjectID=… ]” Set “Employees on leave” Filter: “/Person[ETYPE=‘OnLeave’]” Person “Bob” ETYPE: “OnLeave”

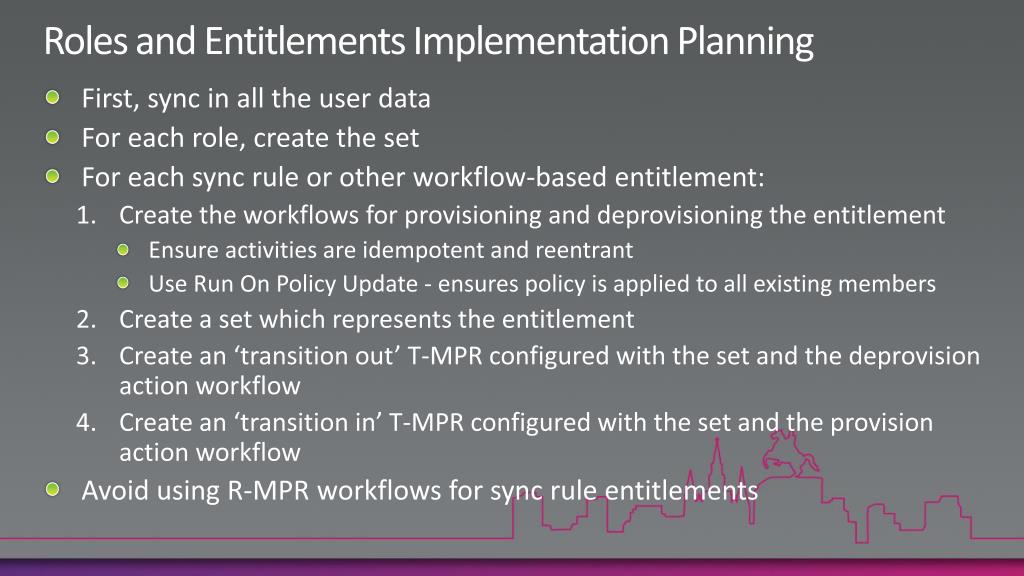

21. Roles and Entitlements Implementation Planning • First, sync in all the user data • For each role, create the set • For each sync rule or other workflow-based entitlement: • Create the workflows for provisioning and deprovisioning the entitlement • Ensure activities are idempotent and reentrant • Use Run On Policy Update - ensures policy is applied to all existing members • Create a set which represents the entitlement • Create an ‘transition out’ T-MPR configured with the set and the deprovision action workflow • Create an ‘transition in’ T-MPR configured with the set and the provision action workflow • Avoid using R-MPR workflows for sync rule entitlements

22. Deploying FIM Servers

23. Deploying the FIM Servers • Topological considerations • Organizational requirements • Data partitioning • Disaster recovery/business continuity • Availability management • Performance, scalability, responsiveness • See more details in the capacity planning guide at http://technet.microsoft.com/en-us/library/ff400273(WS.10).aspx

24. Typical Topology • FIM Portal and FIM Service are paired • Separated from FIM Service Database and FIM Sync Service • Load balancer for web requests

25. Complex Topology

26. FIM Portal Deployment • Recommend using NLB with session pinning backed by a WSS 3.0 server farm • Provide a single alias (CNAME) for end users • WSS in a server farm will need a SQL Server database as well • Consider having a dedicated Portal install as well for use by administrators

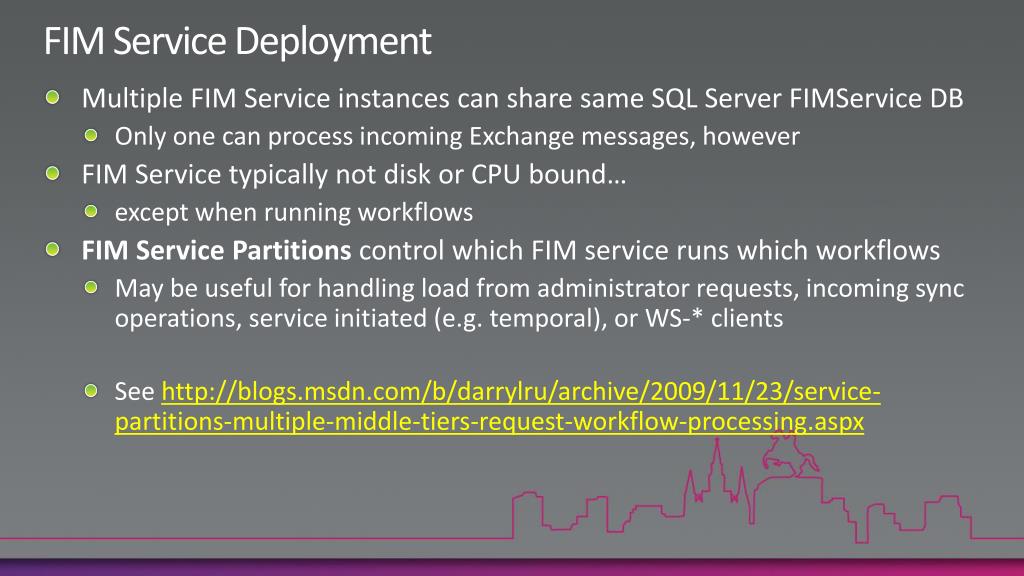

27. FIM Service Deployment • Multiple FIM Service instances can share same SQL Server FIMService DB • Only one can process incoming Exchange messages, however • FIM Service typically not disk or CPU bound… • except when running workflows • FIM Service Partitions control which FIM service runs which workflows • May be useful for handling load from administrator requests, incoming sync operations, service initiated (e.g. temporal), or WS-* clients • See http://blogs.msdn.com/b/darrylru/archive/2009/11/23/service-partitions-multiple-middle-tiers-request-workflow-processing.aspx

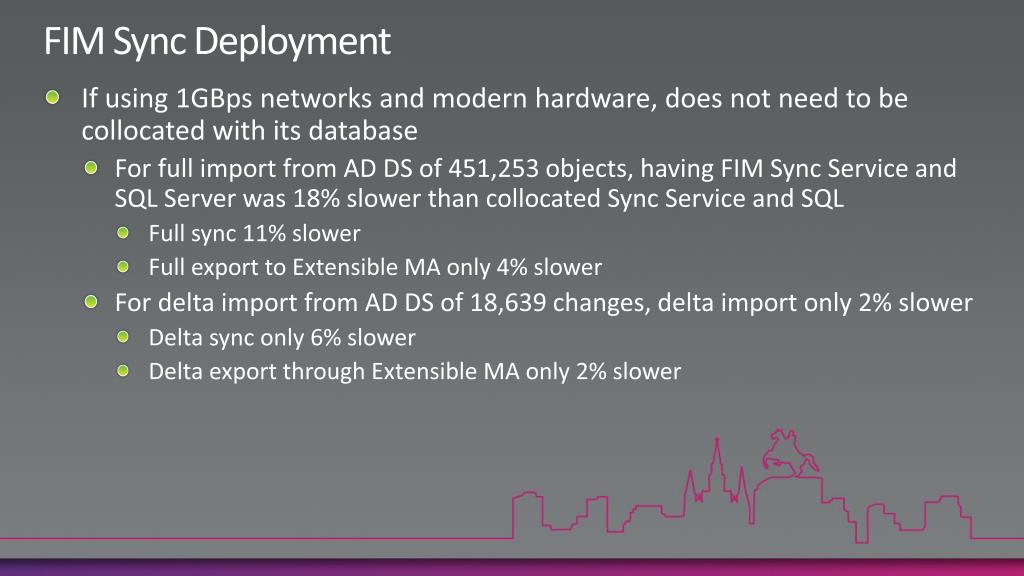

28. FIM Sync Deployment • If using 1GBps networks and modern hardware, does not need to be collocated with its database • For full import from AD DS of 451,253 objects, having FIM Sync Service and SQL Server was 18% slower than collocated Sync Service and SQL • Full sync 11% slower • Full export to Extensible MA only 4% slower • For delta import from AD DS of 18,639 changes, delta import only 2% slower • Delta sync only 6% slower • Delta export through Extensible MA only 2% slower

29. SQL Performance Considerations • FIM performance dependent on well-performing SQL Server • RAM and more cores help as FIM Service uses sprocs extensively • Storage capability is measured in GB and IOPS • Understand the I/O capacity of storage layer – what are the IOPS SLAs? • Example disks: • volume for OS (single spindle); volume for log (single spindle) • volume for data (5 spindles) • Configuration considerations • Pre-Size your data and log volumes - AUTOGROW ON is only a safety valve • Create additional tempdb files • Set the database recovery model; If appropriate, schedule your log backups • See 200,000 user performance test results at http://technet.microsoft.com/en-us/library/ff400287(WS.10).aspx

30. FIM and IT Service Management

31. Identity Management and Service Management • FIM and System Center Service Manager (SCSM) are complementary • SCSM is where IT generates requests, orchestrates work between people/processes/systems, and tracks history for compliance/auditing • Both enable different aspects of end-user self-service, which together dramatically reduces the cost of supporting users FIM 2010 System Center Service Manager Portal End User Portal and Ops Console FIM Service ITIL/MOF Automation Systems Mgmt. Identity and Access Mgmt. FIM Sync Service Common Tech. Infrastructure FIM CM

32. Additional Resources • SIA 319 • www.microsoft.com/fim • TechNet Forum • http://social.technet.microsoft.com/Forums/en-US/ilm2/threads • FIM discussion group, FIM Scriptbox, Greatest Hits Articles • TechNet and MSDN content • http://technet.microsoft.com/en-us/library/ee621258(WS.10).aspx • Topology Planning guide, Capacity Planning guide, Best Practices • SQL Resources • Storage Top 10 Best Practices • Optimizing tempdb Performance • SQL Server Best Practices (SQLIO)
