  1. Piloting Session Five Santa Barbara Sail and Power Squadron Fall 2006

  2. Outline • Homework SG Ch. 4 pp. 3 - 6 • GPS pp 7- 43

  3. Homework Ch. 4

  4. 1950 0150 W 0300 0340 2120 1090

  5. 2150 0740 3540 0560 3300 80 W 30 W 050 W 50 E 0100 3180 2280 0890 0200 0090 1340 20 E 10 W 10 W 10 W 20 W 00 10 W 10 E 20 E 20 W 10 W 0210 0460 2230 1800 1390 0110

  6. GPS • Buttons • Screens • Operations

  7. Outline SG Ch. 5 • Objectives • Using GPS As a Navigation Tool • What GPS Can Do • GPS Receiver Keyboard Functions • Typical GPS Screens • Entering Waypoints Into the GPS • What the GPS Does When You Select a Waypoint • Navigating Using GPS and Waypoints

  8. Objectives • Using GPS As a Navigation Tool • GPS Keyboard Functions • Typical GPS Screens • Constructing Routes • Checking Waypoints and Routes Stored in GPS • Activating Waypoints For Navigation • What the GPS Does when a Waypoint Is Activated • The Process of Navigating With GPS • Plotting Your GPS Position On a Chart

  9. Using GPS As a Navigation Tool • GPS Without Charting Software • Like Using Loran: It will give you position on the water: then need to plot on a paper chart • Like Loran, could store waypoints on GPS for use while on the water • GPS With Charting Software • Like a Chart-plotter • Can Pre-Plan • Can punch in waypoints while on the water and GPS will show track. Can build routes

  10. What GPS Can Do • Provides position: L and Lo • Can calculate a course to steer between waypoints • It can calculate estimated arrival time, ETA

  11. What GPS Cannot Do • Warn of hazards (USPS) • Translation from USPS: You have to look on a chart to see if the course is safe • Actually it has a proximity warning function • Determine water depth

  12. GPS Keyboard Functions • Power Button: On/off • Cursor Key: rocker switch • Enter Button/ Mark: Yes; enters current waymark (on the water) • Menu Button • Quit Button: like an escape key or back button • Go To Button • Page Button • MOB Button: Man Overboard • Zoom Buttons

  13. WN p. 70

  14. Garmin GPSMAP 76 Manual

  15. Typical GPS Screens • Satellite Screen • Position Screen • Map Screen • Highway Screen • Compass Screen • Menu Screen

  16. Meet Your GPS, WN P. 49 Satellite/Position Screen Map Screen Highway Screen

  17. Garmin GPSMAP 76 Manual5 Main Pages

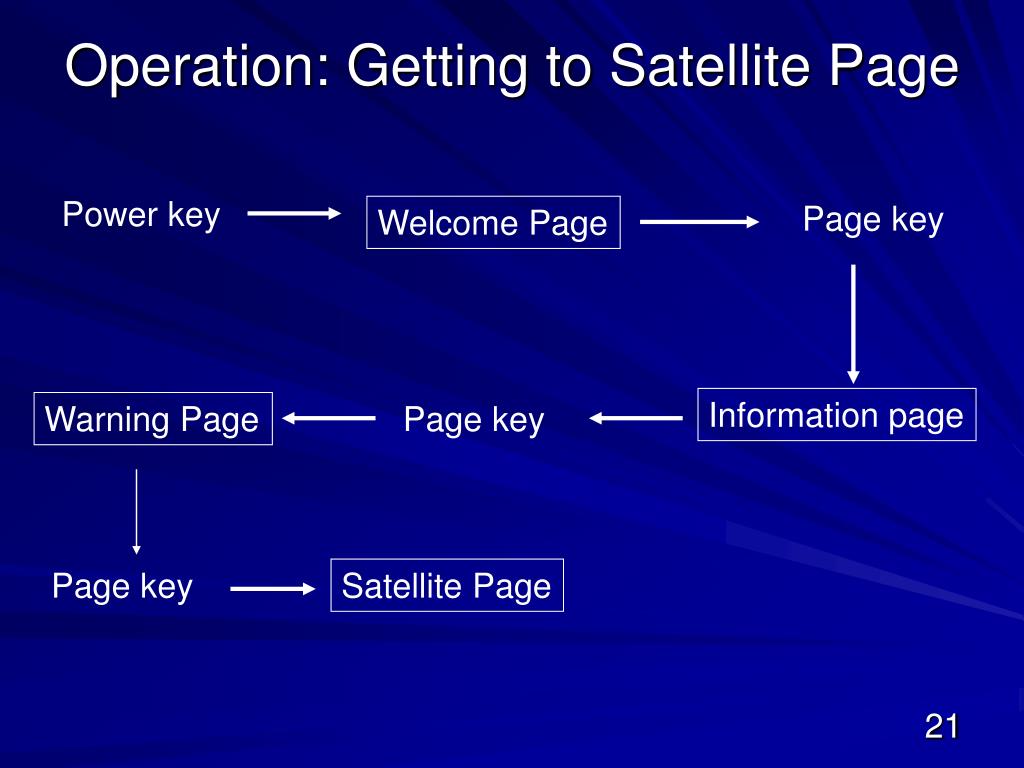

  18. Operation: Getting to Satellite Page Power key Page key Welcome Page Information page Warning Page Page key Page key Satellite Page

  19. Page On

  20. Entering Waypoints Into the GPS • On the Water: hit the Mark key to enter the current location as a waymark • Use digital charts and pre-planning to determine location of waypoints and then enter L and Lo into GPS • Choose waypoints on a paper chart and use dividers to measure L and Lo for entry into GPS

  21. Page On Mark “ On the Water entry”

  22. MapSource Software: “Computer Pre-planning Entry” Waypoint tool L & Lo Select Buoy

  23. Entering Waypoints Loran C Plot On a Paper Chart L & Lo GPS w/o Chart Plots Waypoints On the GPS For You GPS with Chart Software (handheld Chart-Plotter)

  24. Operation: Simulation Mode Satellite Page (off the water) Menu key Select Start Simulator Map Page Page key Enter key Select map position using cursor (white arrow) with rocker

  25. L & Lo “SB” Bell Move white cursor over the object and Press enter to get buoy page

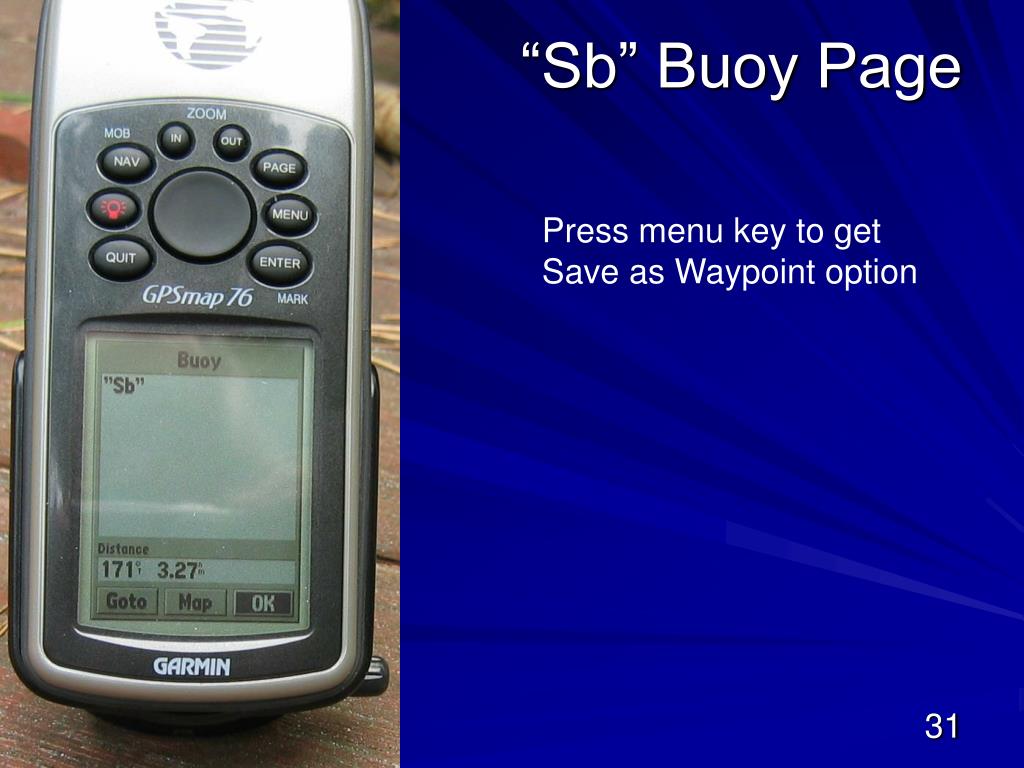

  26. “Sb” Buoy Page Press menu key to get Save as Waypoint option

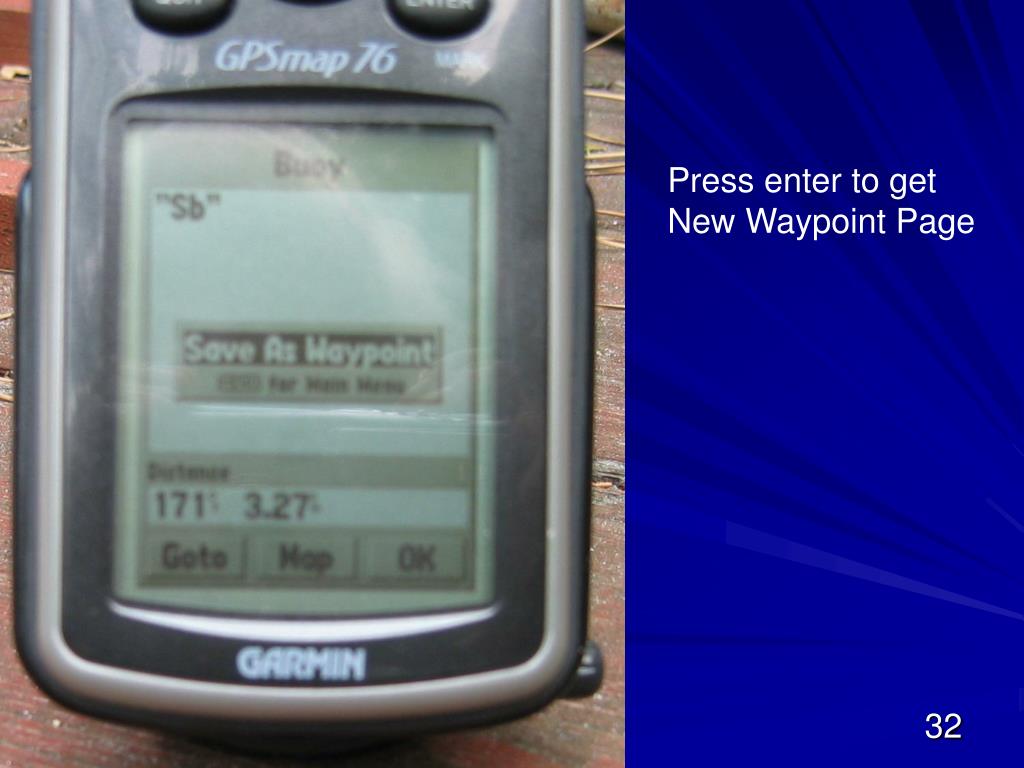

  27. Press enter to get New Waypoint Page

  28. Press enter key returns you to buoy page; then press page key to go to map page. Note Waypoint is denoted “SB” while the buoy is “Sb”

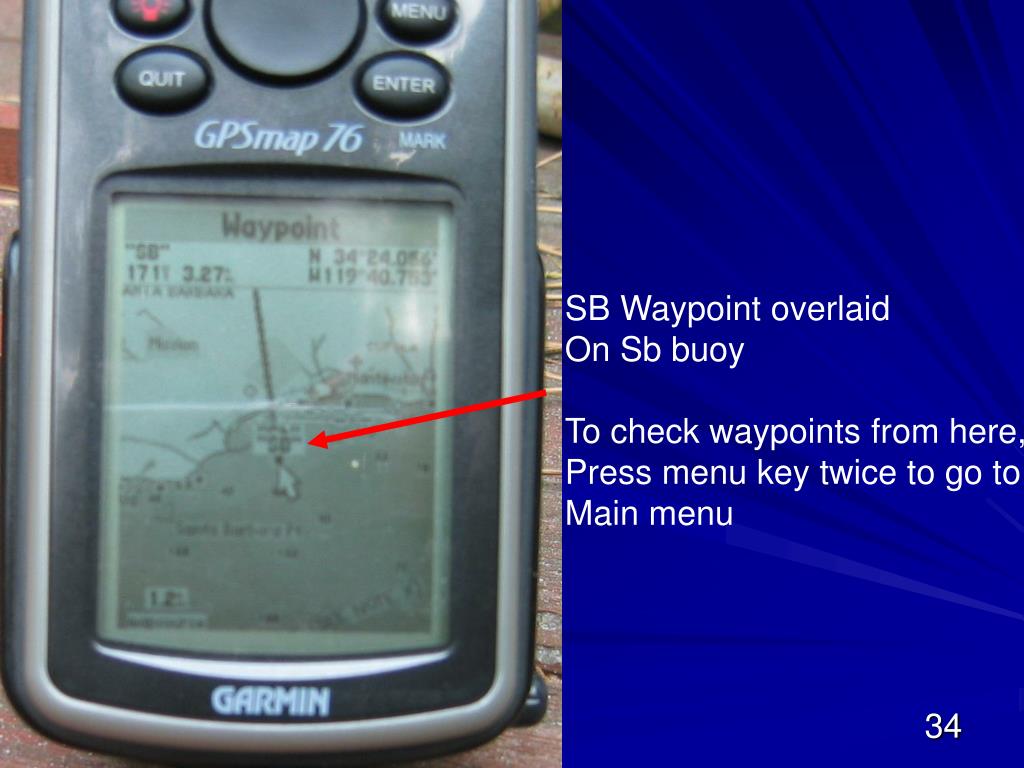

  29. SB Waypoint overlaid On Sb buoy To check waypoints from here, Press menu key twice to go to Main menu

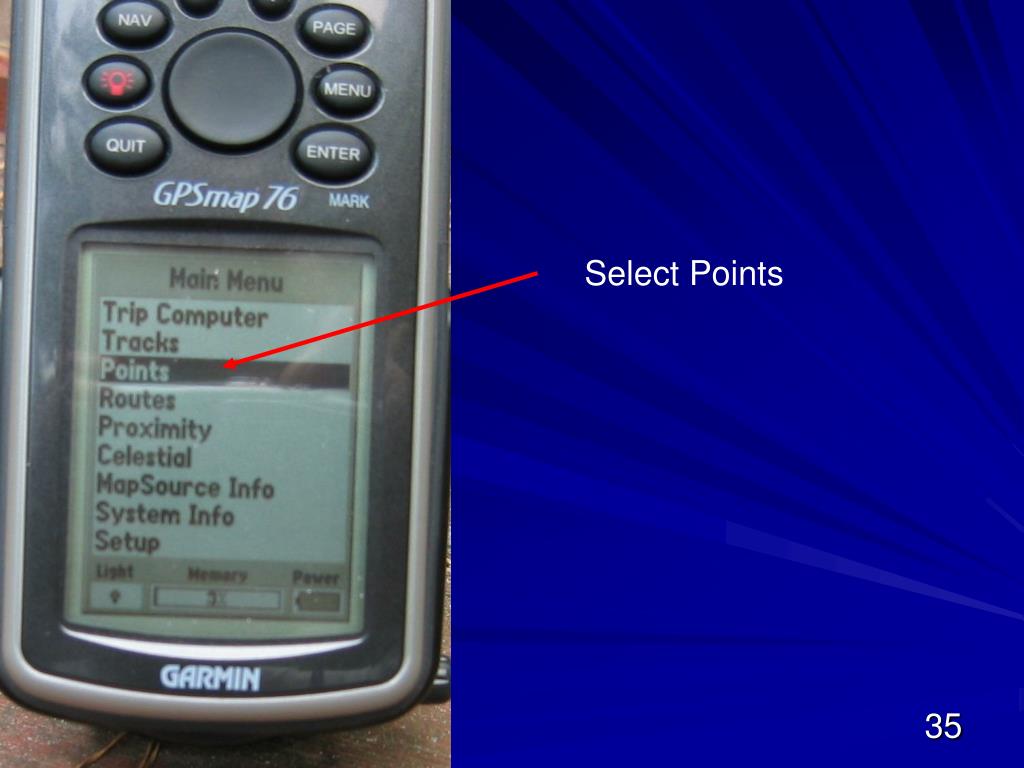

  30. Select Points

  31. Select Waypoints to see list of waypoints

  32. Press enter key to select “SB” waypoint

  33. Then press enter key To go to “SB” Waypoint Page

  34. Options: • With rocker arm you can • View on map page • 2. delete

  35. What the GPS Does When You Select a Waypoint • GPS compute course to new waypoint, including bearing and distance from current location • Plots a line of the activated course on the Map Screen • Creates a highway on the Highway Screen

  36. Exercise 5-1

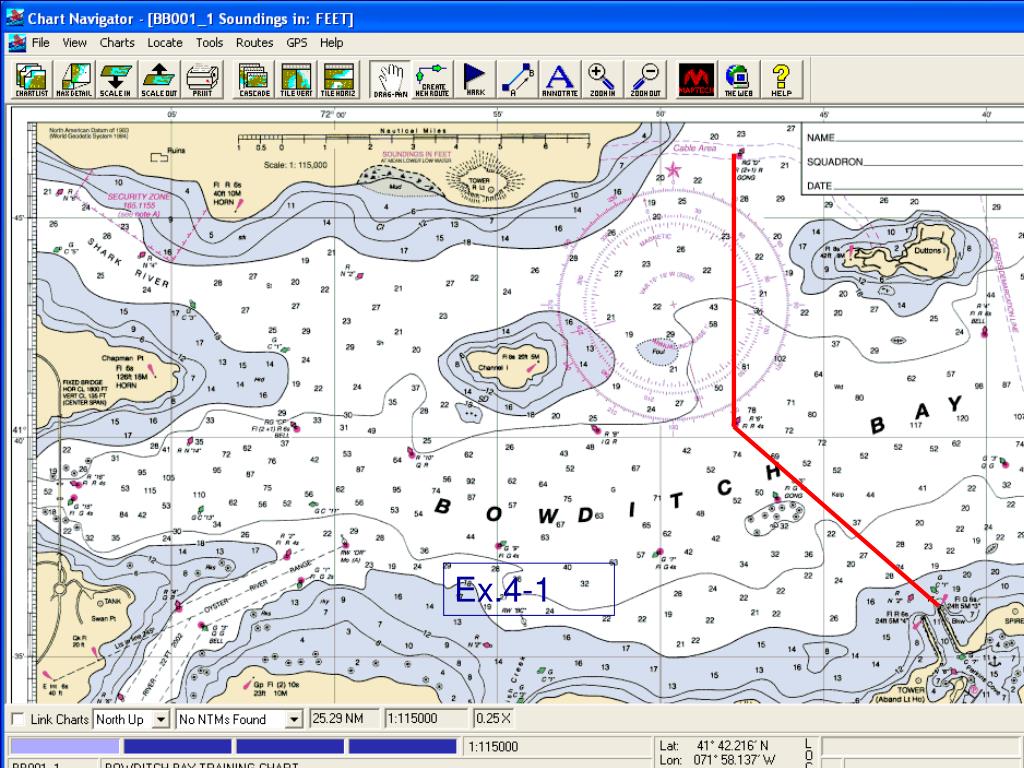

  37. Exercise 2-2: Bowditch Bay Ex.4-1
