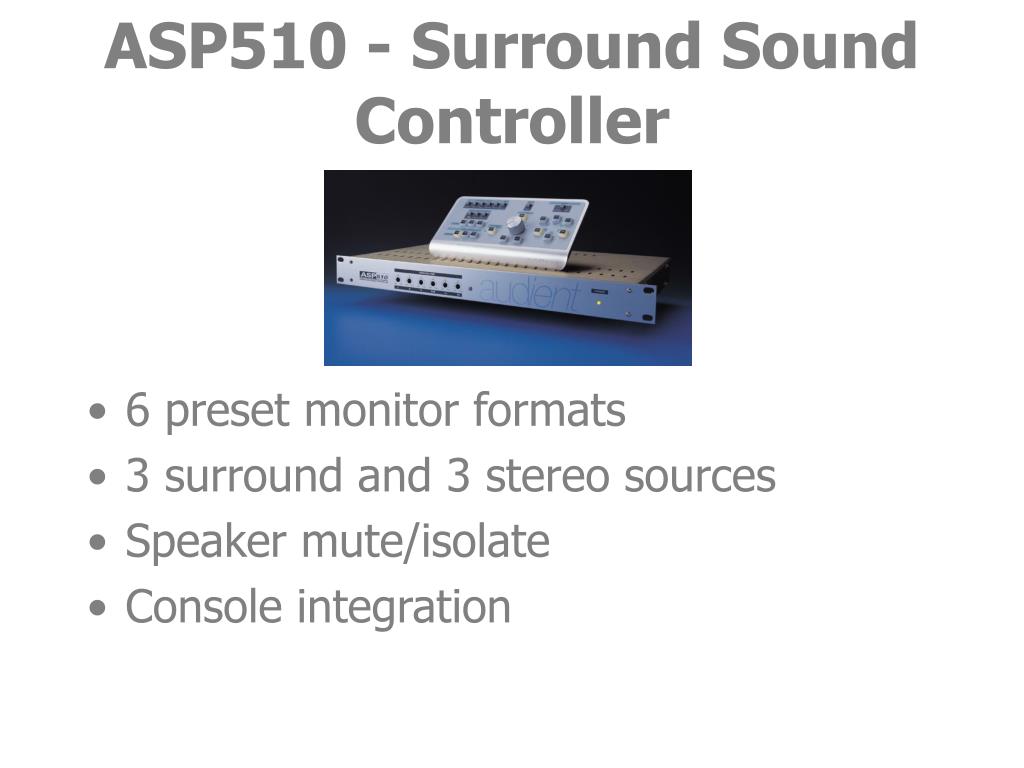

  1. ASP510 - Surround Sound Controller • 6 preset monitor formats • 3 surround and 3 stereo sources • Speaker mute/isolate • Console integration

  2. ASP510 - Surround Sound Controller • Connects to • console bus outputs • DACs from DAW • Multi-channel player

  3. Centro - Key Features • 6 digital and 6 analogue sources • 3 Monitor volume controls • 2 Cue feeds for headphone monitor mixes • Individual sockets for connection • One cable to connect remote to I/O rack

  4. . . . Centro - Source Select 6 Analogue inputs 6 Digital inputs Mono on Cue inputs Digital out select

  5. . Centro - Cue Cue Send levels Cue 1 to Cue 2 . .

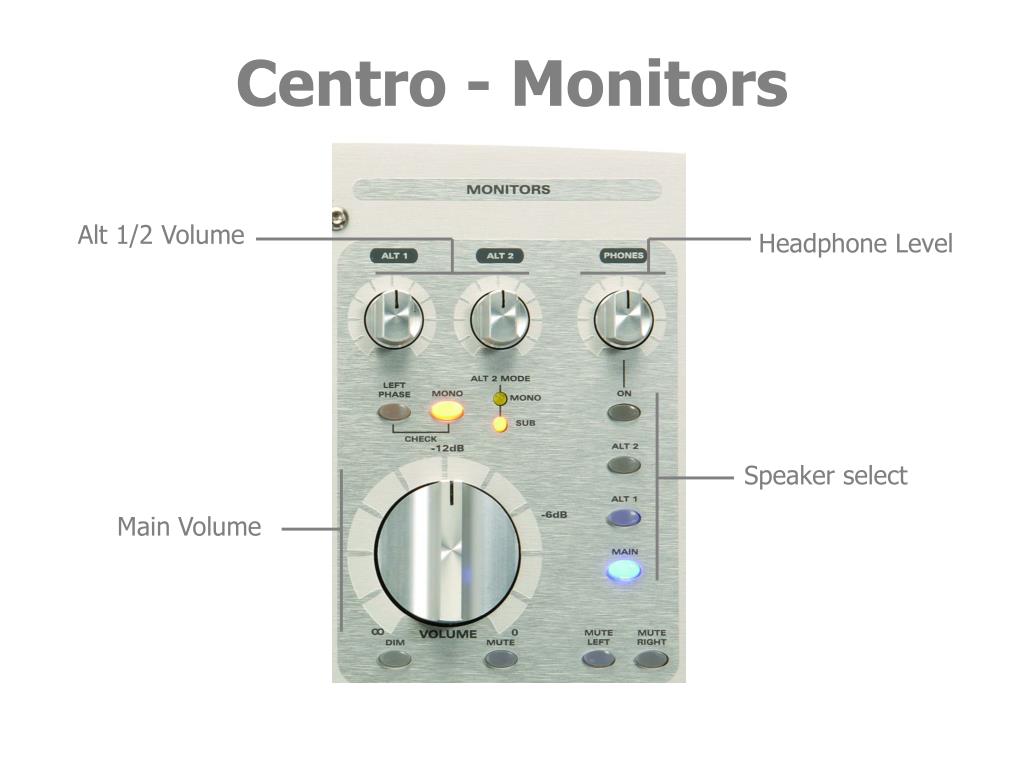

  6. . . . Centro - Monitors Alt 1/2 Volume Headphone Level Speaker select Main Volume

  7. . . . Centro - Other Controls Input level calibration Mono mode Talkback trim Record out mode

  8. Centro - Connections Digital output-AES Digital Inputs Analogue Inputs Remote talkback switch input Remote microphone input Analogue Outputs
