  1. Discussion: Lewis Structures and VSEPR Theory OBJECTIVE: Students Will Understand Why Elements Form Bonds With Other Elements

  2. What are valence electrons? • Electrons in the highest energy level • Elements in the same group on the periodic table have the same number • A valence of 8 electrons is called a octet • Atoms try to get a valence of 8 electrons

  3. Not all elements try to get a valence of eight electrons • Hydrogen needs only two. • Beryllium needs on four • Boron needs only six. • However, most elements like to have eight electrons in their valence shell.

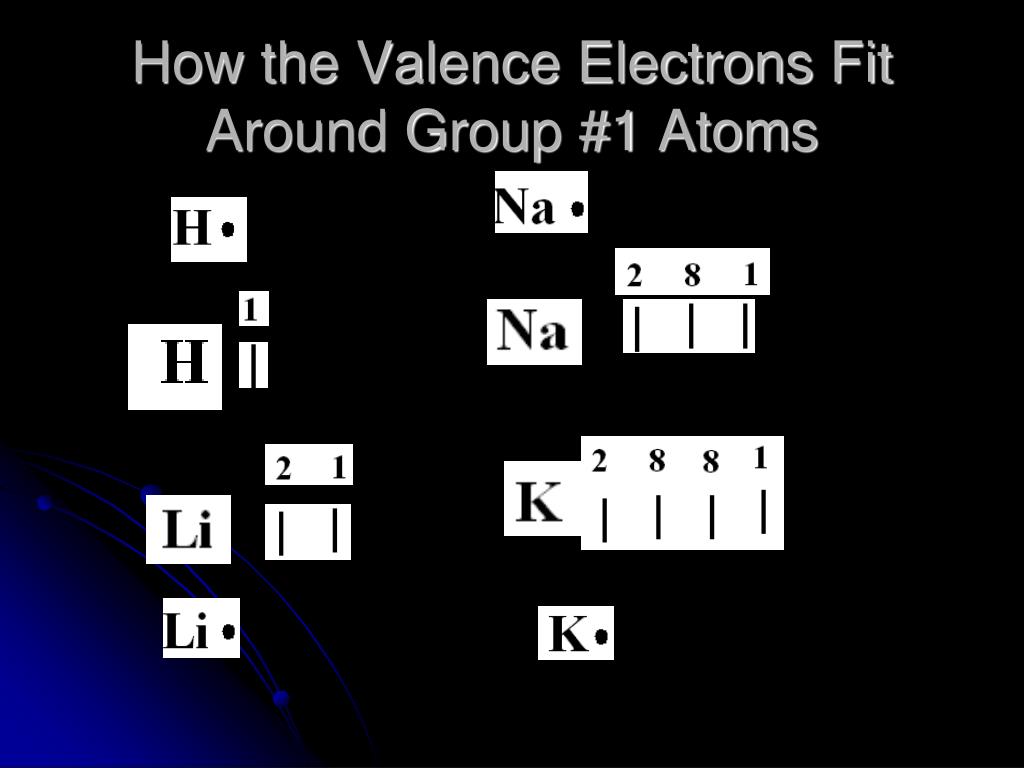

  4. How the Valence Electrons Fit Around Group #1 Atoms

  5. Valence Electrons for Group #2

  6. Valence for the rest

  7. How Atoms Gain an Octet by Losing Electrons • Calcium atom loses two electrons to achieve an octet

  8. How Atoms Gain an Octet by Gaining Electrons • Chlorine has seven electrons. It gains one electron to make eight. The addition of an electron make the ion negative.

  9. Nobel Elements already have an octet. • Neon for example has 10 electrons • Notice it already has an octet. That is why it doesn't react with other elements

  10. Ions almost always have an octet • Na+ ion for example, has 10 electrons just like Neon • 2 8Na+ | | lost 1 • 2 8 • O2- | | gained 2 • 2 8 • Ne | | Atoms try to get this electron configuration

  11. AlCl3 • Draw on board

  12. PCl3 • Count all the valance electrons • Determine the central atom. • Connect the ligands to the central atom.

  13. VSEPR Theory • Valence • Shell • Electron • Pair • Repulsion

  14. The VSEPR Theory • Explains the geometric shape of a molecule based solely on the repulsion of electron pairs around the central atom.

  15. Geometric Shapes • Linear • Planer Triangular • Tetrahedral

  16. Polar molecules • Molecules that are unbalanced are polar.

  17. Planer Triangular • Draw SO2 • Total Electrons = 18 • Central Atom = S • Connect the two oxygen atoms to the central atom. Subtract 2 for each bond. • Put six around the O. Put the extra around the central atom. • Make the legends double share until all have octets.

  18. The Shape of SO2 • Notice there are 3 pairs of electrons around the central atom.

  19. The Shape of H2O • Draw the Lewis structure for Water

  20. NH3 • Draw the Lewis structure for ammonia

  21. CH4 • Draw the Lewis structure for methane
