  1. Coda System Administration Part 1

  2. Aims • Overview of Coda subsystems • Subsystems use of configuration data • Sharing of configuration data by subsystems • Distribution of configuration data to servers • Scripts manipulating configuration data

  3. Client KERNEL vutil codacon tcp signals /dev/cfs0 DeviceIoControl tcp 1423 coda_console srv rpc2 rpc2 advice_srv Venus udp ??? udp 1355 coda_opcons udp 1363 coda_venus udp 1361 coda_filesrv pioctl rpc2 udp cmon • cfs, repair, hoard • clog • au auth2 rpc2 udp udp 1357 coda_auth

  4. Client Configuration • Depends on: • dirs /usr/coda/{etc,spool,venus.cache} • device /dev/cfs0 • file /usr/coda/etc/vstab with a few auth2/srv servers in it (for auth2 & rootvol) • entries in /etc/services • venus-setup sets these up halfway decently

  5. Config related work for clients • Weed out hard-wired paths and host names • Choose UDP ports (10?? range is too low) • Register a device number for BSD /dev/cfs • Getrootvol and clog/au have problems with vstab.

  6. Server subsystems volutil udp volutil.tk udp udp 1361 udp 1361 udp srv updateclnt backup volutil.tk volutil.tk udp Auth2.tk udp 1359 coda_updsrv auth2 Update

  7. Server Config Files • About 36 config files, some of form “.file” • Files most heavily manipulated by some 15 shell scripts • Some data is not in config files but in “serverinfo” files • vice-server-setup sets up a super simple stand alone server in one blow

  8. Configuration files • Server depends on: • dirs: /vice/{db,vol,bin,auth2,backup} & /vice/vol/remote • RVM related information • Volume/Cluster/Host information • Rootvolume information • backup information • authentication, protection information • update server information • rc scripts, pid files, lock files • server partitions: “dynamically discovered”

  9. RVM • RVM • RVM data & log device • their lengths, rvm start address, heap/static length, nlists, chunksize • Problems • server doesn’t come up easily with non-standard parameters • the rvm config data is not kept on server (serverinfo files /afs/cs/project/coda-braam) • Setup: vice-rvmsetup • Related scripts: startserver/norton

  10. Proposals for RVM config • RVM info for server held in a server database • startserver & norton use this • vice-rvmsetup offers a collection of “known good” setup parameters for size parms etc

  11. Cluster information • /vice/db/servers: contains pairs (hostname, serverid). • /vice/db/hosts: hostnames & their IP addresses • /.host, .scm: only used by scripts • /ROOTVOLUME: used by GetRootVol RPC

  12. Proposals for cluster info • Obsolete: /vice/db/hosts, /.host (are kludges) • /.scm should go in a server database • /ROOTVOLUME should go in a server db

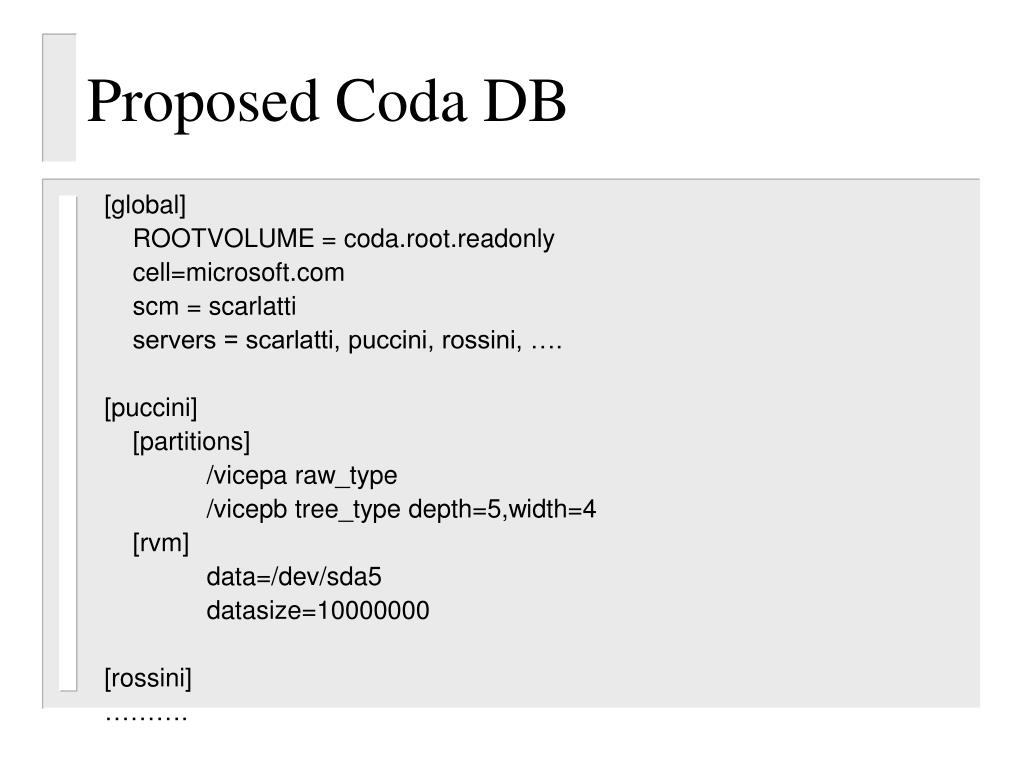

  13. Proposed Coda DB [global] ROOTVOLUME = coda.root.readonly cell=microsoft.com scm = scarlatti servers = scarlatti, puccini, rossini, …. [puccini] [partitions] /vicepa raw_type /vicepb tree_type depth=5,width=4 [rvm] data=/dev/sda5 datasize=10000000 [rossini] ……….

  14. Update • Crucial databases are in /vice/db. • /vice/db is kept identical on all servers in cluster • /vice/db/files is list of files to be kept up to date by update client, contacting update server on SCM • /vice/db/files contains: • auth2.tk, volutil.tk, auth.pw, vice.pdb, vice.pcf, pro.db • servers, hosts, VSGDB, VLDB, VRDB • dumplist • files • AFS has migrated this into ubik

  15. Volume databases • Dichotomy: • almost all RPC’s to srv only invoke RVM resident volume information • GetVolInfo uses the external databases • Here our concern is with volume information held in files on servers, not in RVM.

  16. Volume creation • Input: name, groupid, vsgid, partition, full bu day • Find servers from vsgid & VSGDB • volutil -h server$i createvol name.$i groupid • as a result server$i updates its /vice/vol/VolumeList • fetch VolumeList from all servers: make BigVolumeList • rebuild VLDB from BigVolumeList • parse /vice/vol/AllVolumes, rebuild VRDB • enter backup information in /vice/db/dumplist

  17. Volume Databases: VSGDB • VSGDB - volume storage group database • simple struct: (vsgid, serverlist) • text

  18. Volume databases: VRDB • Only rebuilt inside the createvol_rep shell script • Binary, made on SCM from /vice/vol/VRList through volutil mkvrdb /vice/volVRList • /vice/vol/VRList: text, structure: (name,groupid,noservers,vol1,vol2,..vol8,vsgid) • VRList build from /vice/vol/AllVolumes • All volumes is a parsed version of BigVolumeList • /vice/vol/BigVolumeList on SCM is union of /vice/vol/VolumeList on all the servers

  19. Volume Databases: VLDB • Binary, made on SCM by bldvldb.sh from /vice/vol/BigVolumeList through “volutil bldvldb /vice/vol/BigVolumeList”. • Side effect: /vice/vol/AllVolumes is created which is text version of VLDB • BigVolumList: for S in servers do; cat /vice/vol/remote/VolumeList.$S >> BigVolumeList • /vice/vol/remote populated through (ks)rcp or ftp • Contains lots of info: backup volumes, quota, space, creation dates etc.

  20. VLDB (ctd) • Bldvldb.sh called inside creatvol{_rep} scripts. • Trouble maker: used to hang >50% cases • Fix (mostly implemented): • run update server on all servers • use updatefetch (new client of update server) not rfs, ftp or {ks}rcp • fetch VolumeList only from hosts where volume was created • Separate script for updating VRDB
