  1. AVO INVERSION OF LONG-OFFSET SYNTHETIC PP DATA BASED ON EFFECTIVE REFLECTION COEFFICIENTS Lyubov Skopintseva Milana Ayzenberg, Martin Landrø Tatyana Nefedkina, Arkady Aizenberg 10 April 2008

  2. AVO-analysis. What is that? • Conventional AVO analysis: • Range of incidence angles: 0-400 • Weak contrasts at reflector

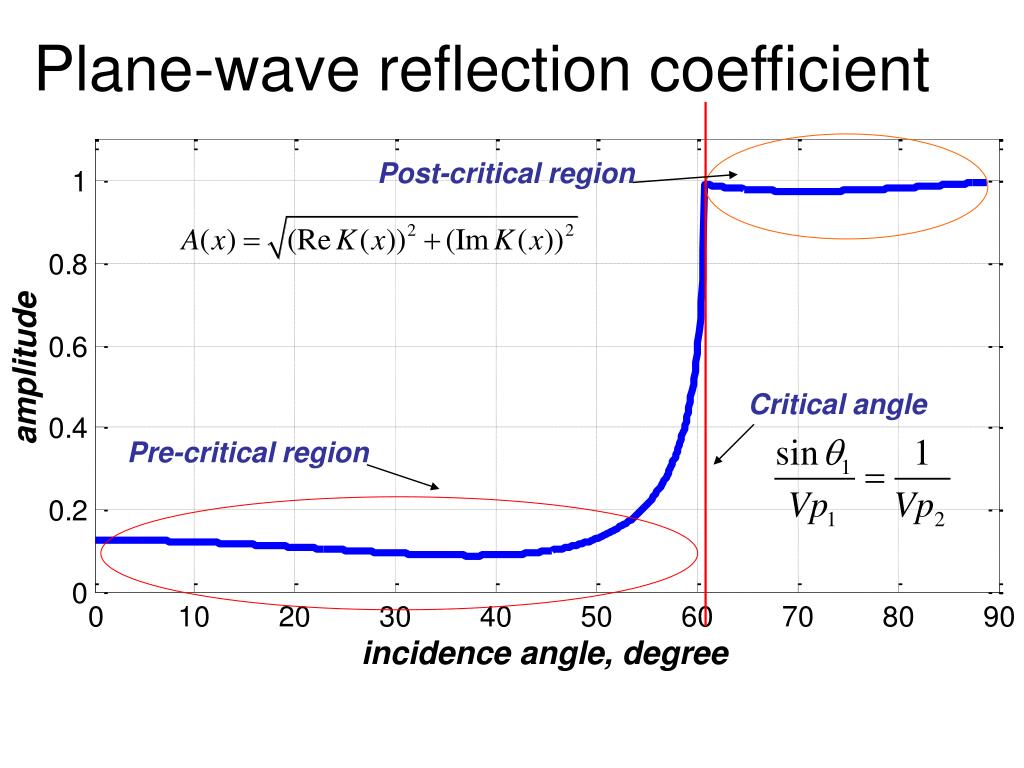

  3. Plane-wave reflection coefficient Post-critical region Critical angle Pre-critical region

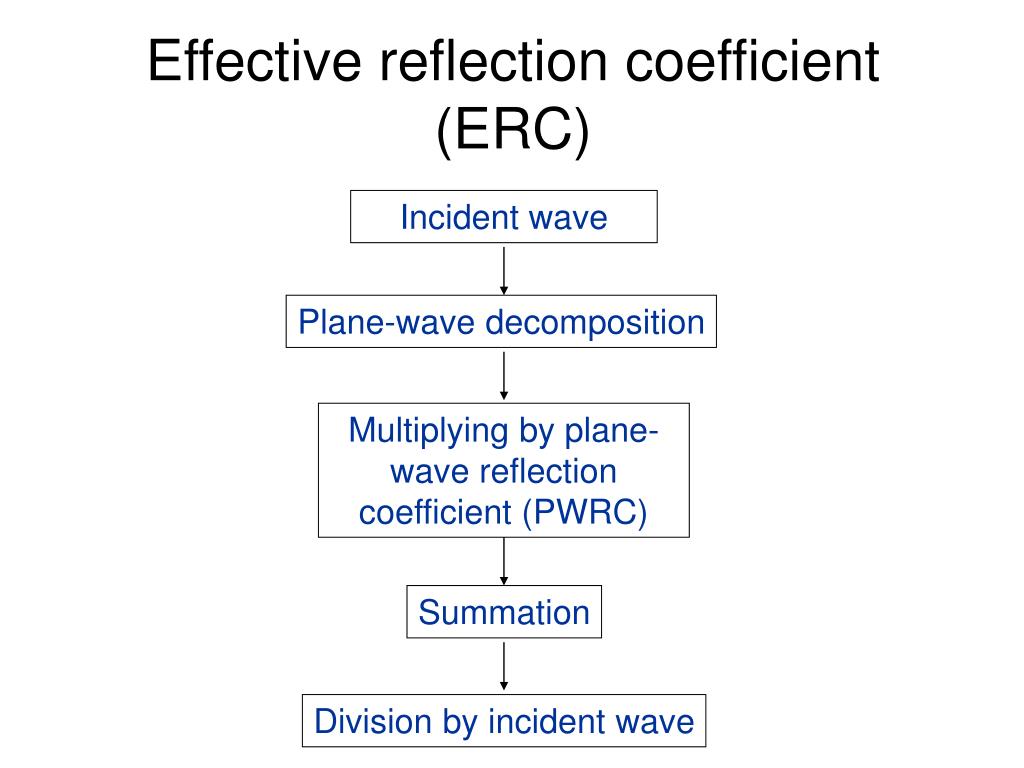

  4. Effective reflection coefficient (ERC) Incident wave Plane-wave decomposition Multiplying by plane-wave reflection coefficient (PWRC) Summation Division by incident wave

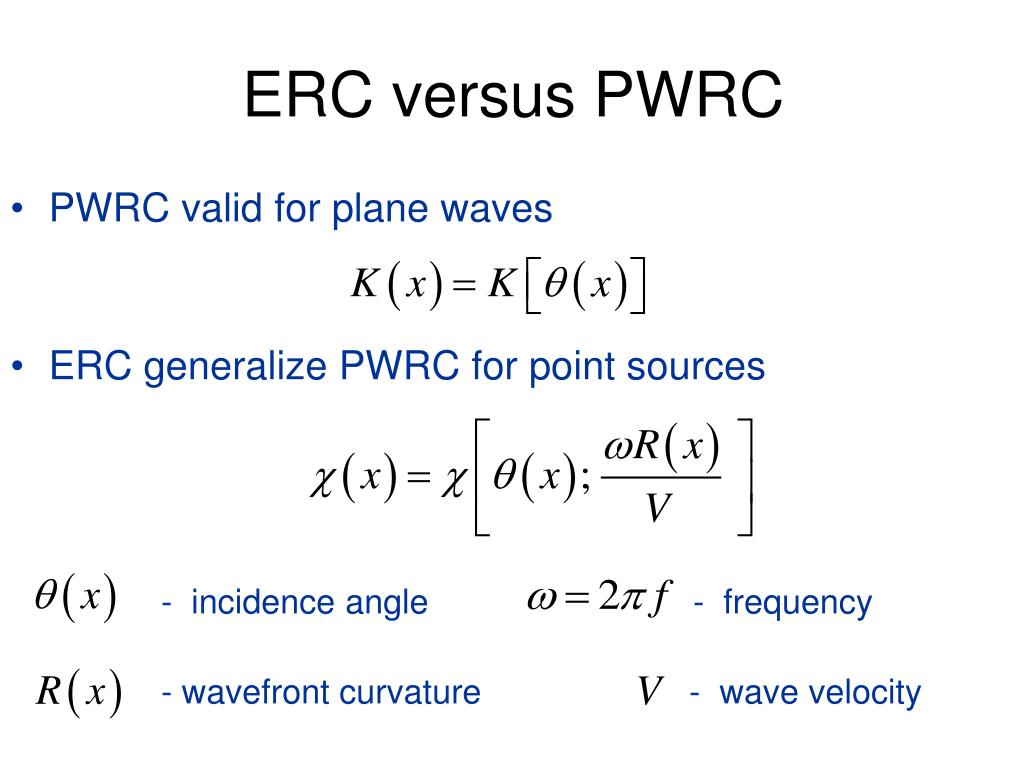

  5. ERC versus PWRC • PWRC valid for plane waves • ERC generalize PWRC for point sources - incidence angle - frequency - wavefront curvature - wave velocity

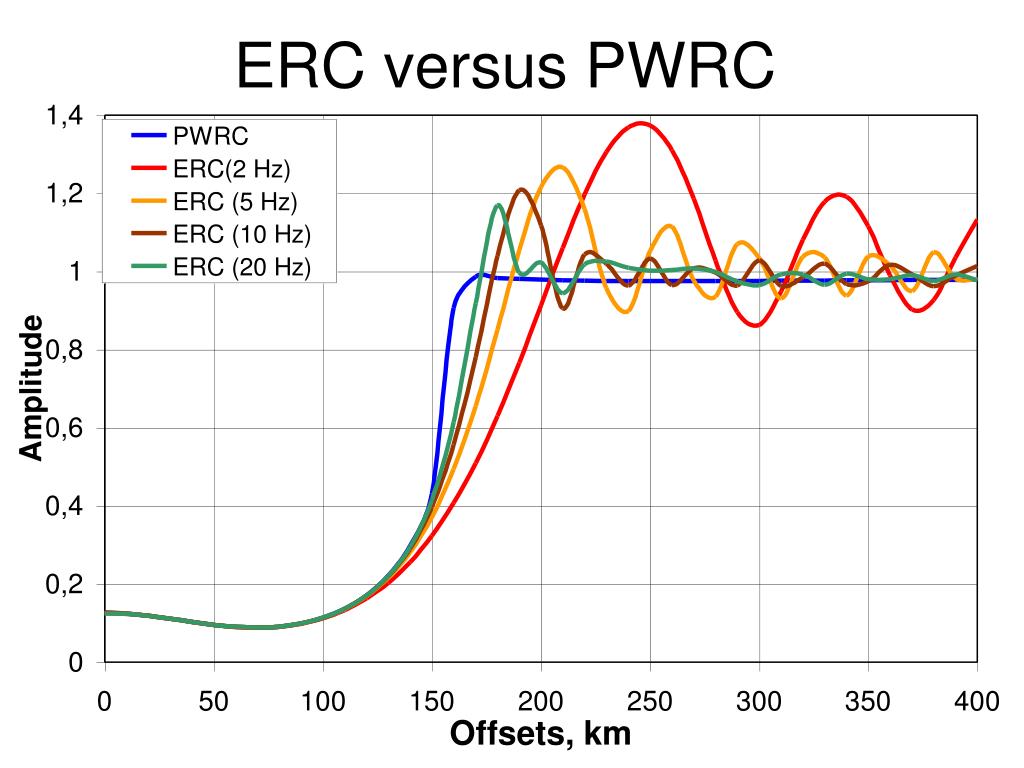

  6. ERC versus PWRC

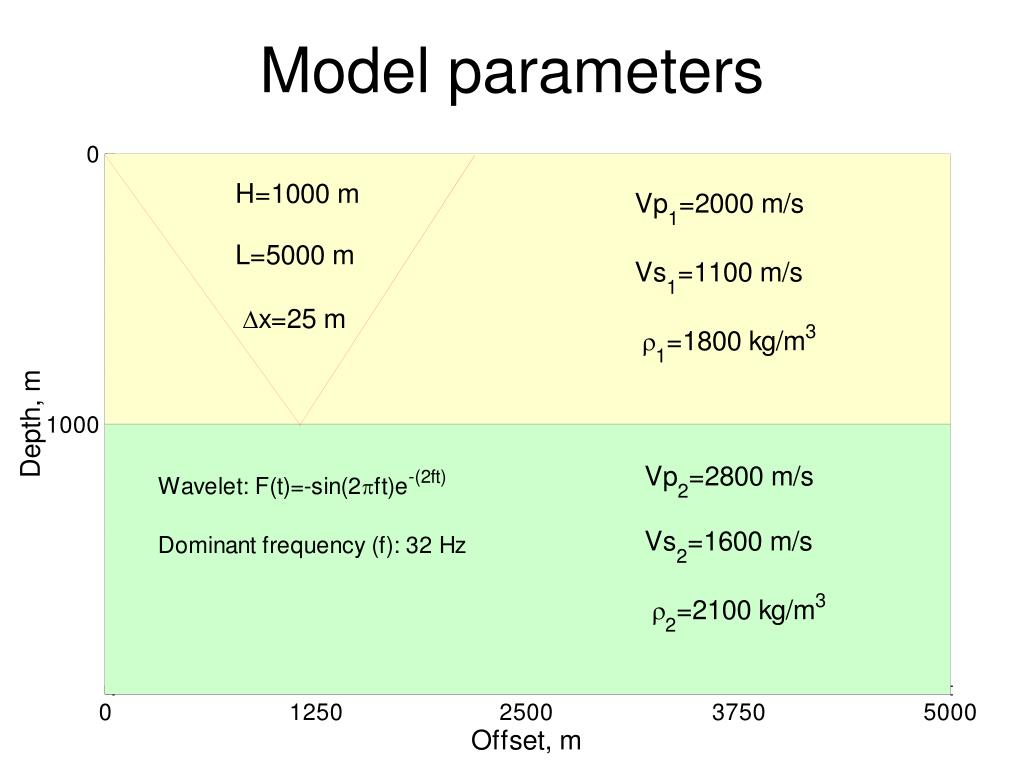

  7. Model parameters

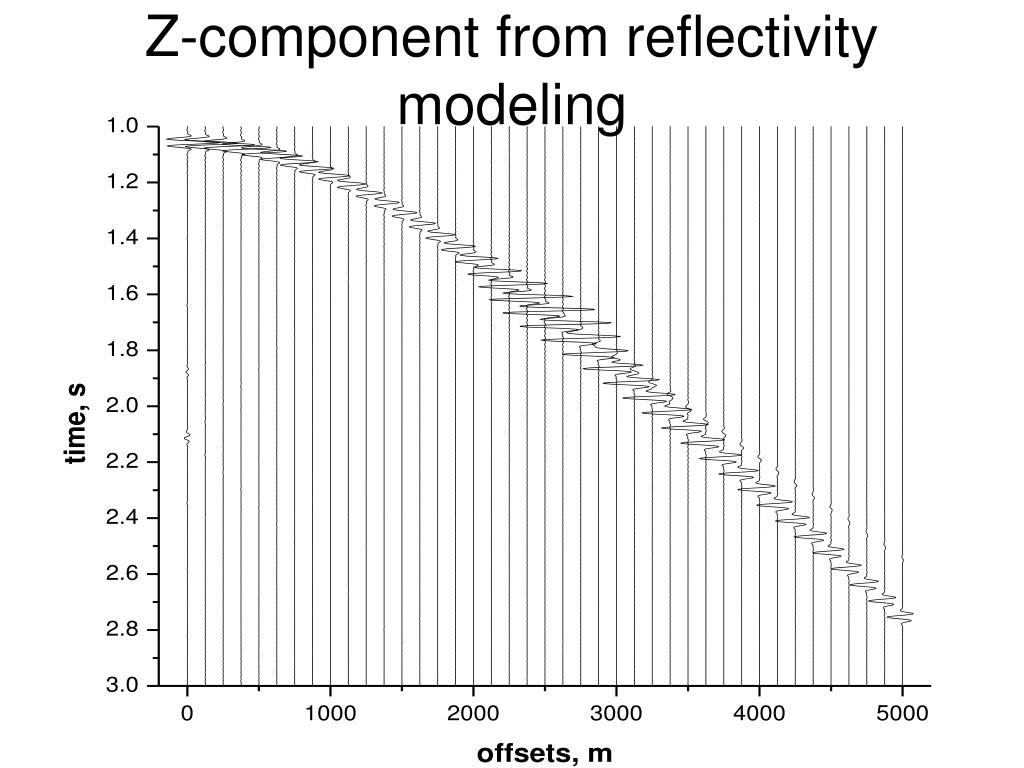

  8. Z-component from reflectivity modeling

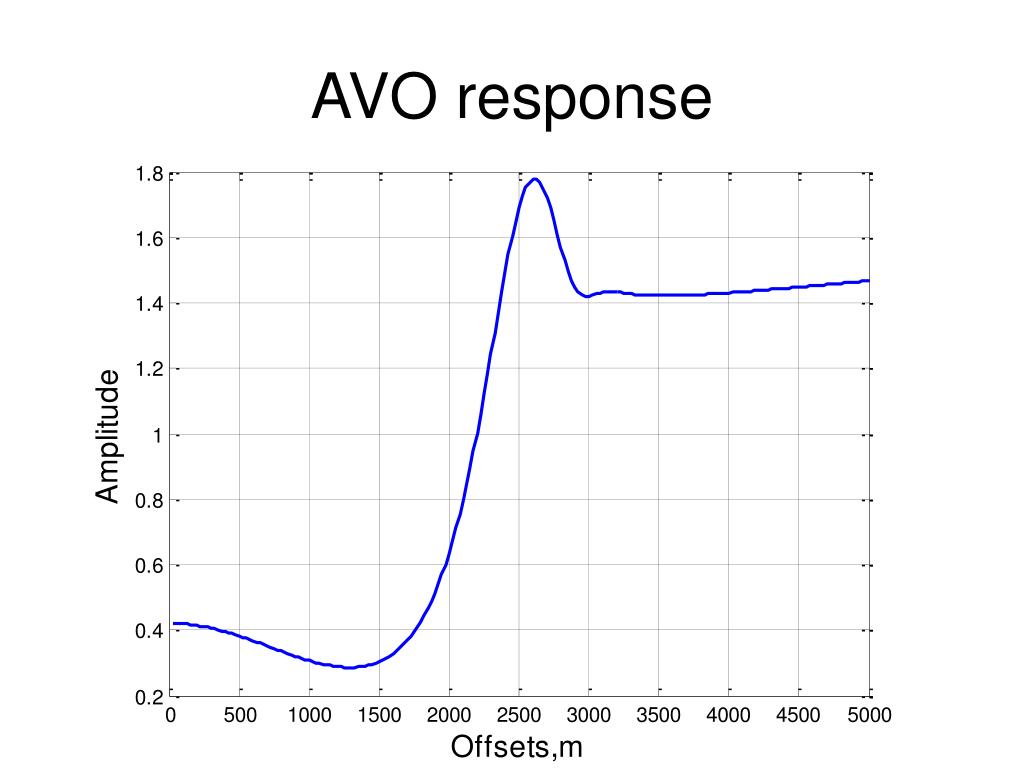

  9. AVO response

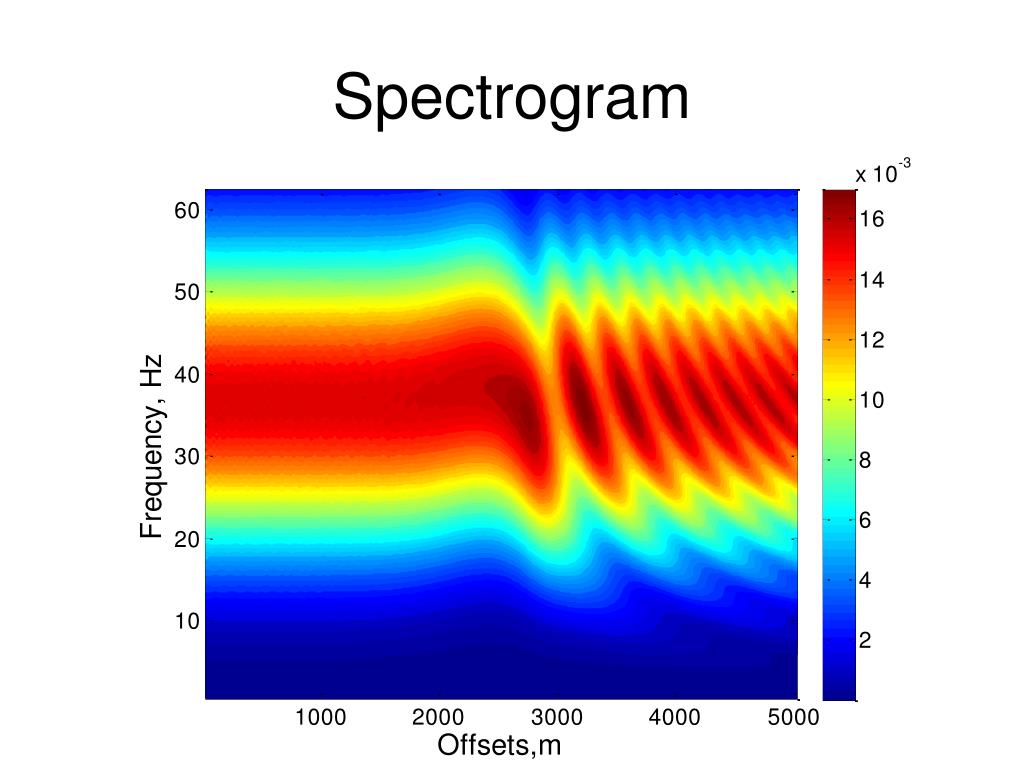

  10. Spectrogram

  11. AVO response comparison with ERC and PWRC

  12. Cost functions comparison (pre-critical offsets) Effective reflection coefficient Plane-wave reflection coefficient

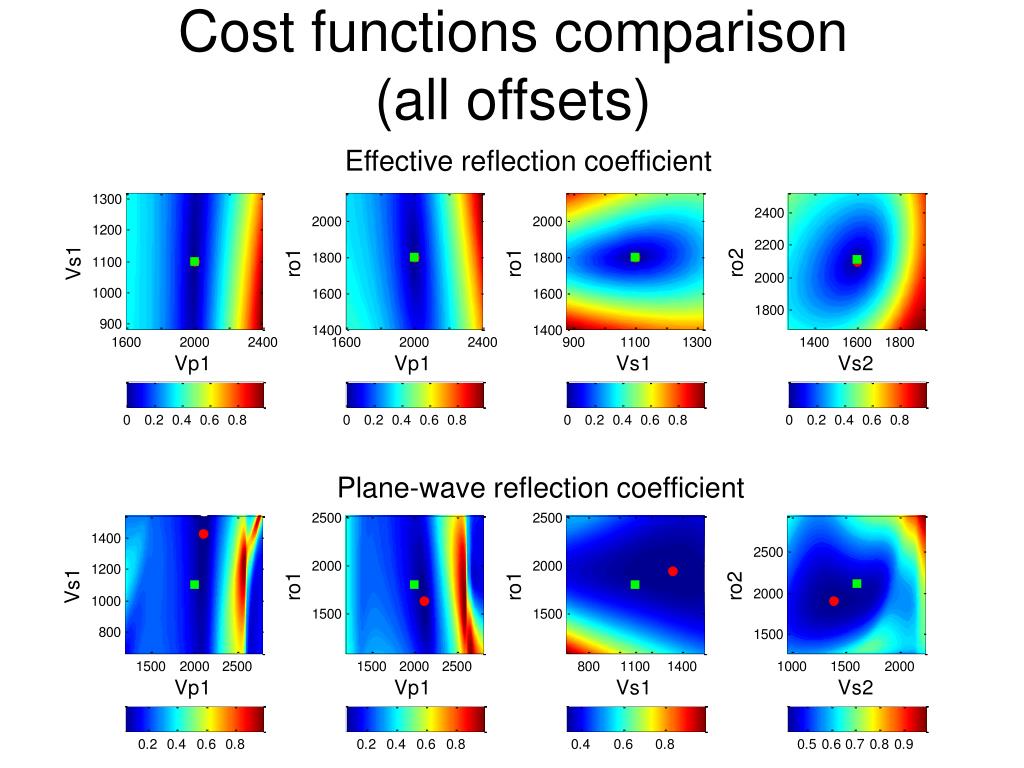

  13. Cost functions comparison (all offsets) Effective reflection coefficient Plane-wave reflection coefficient

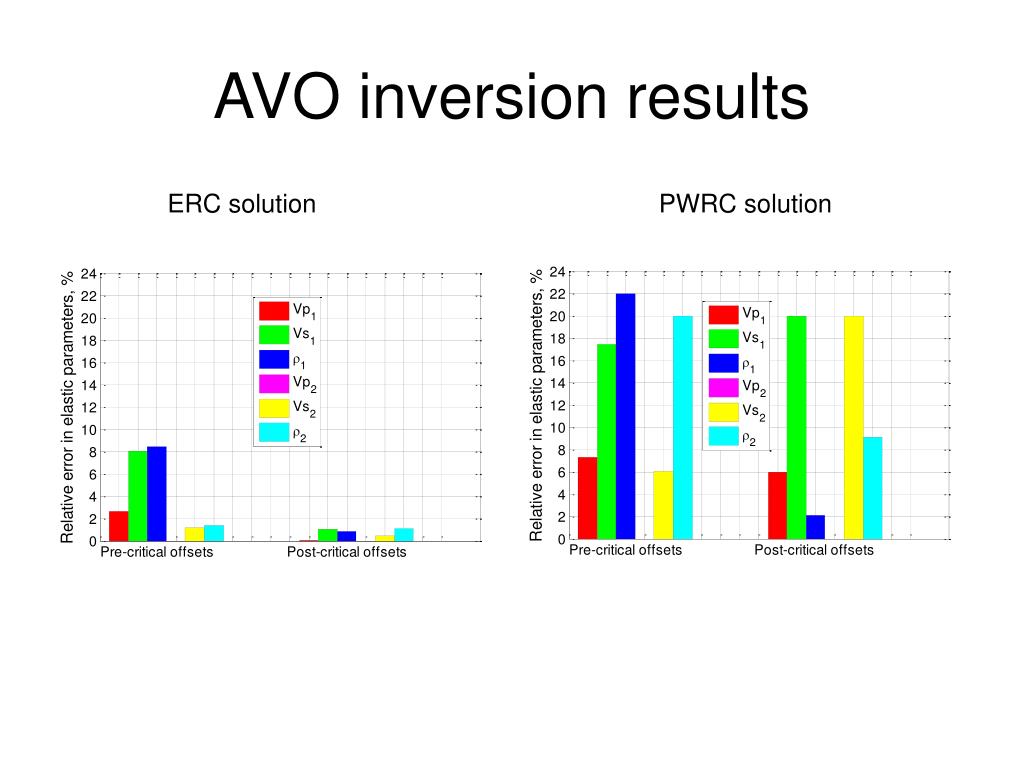

  14. AVO inversion results ERC solution PWRC solution

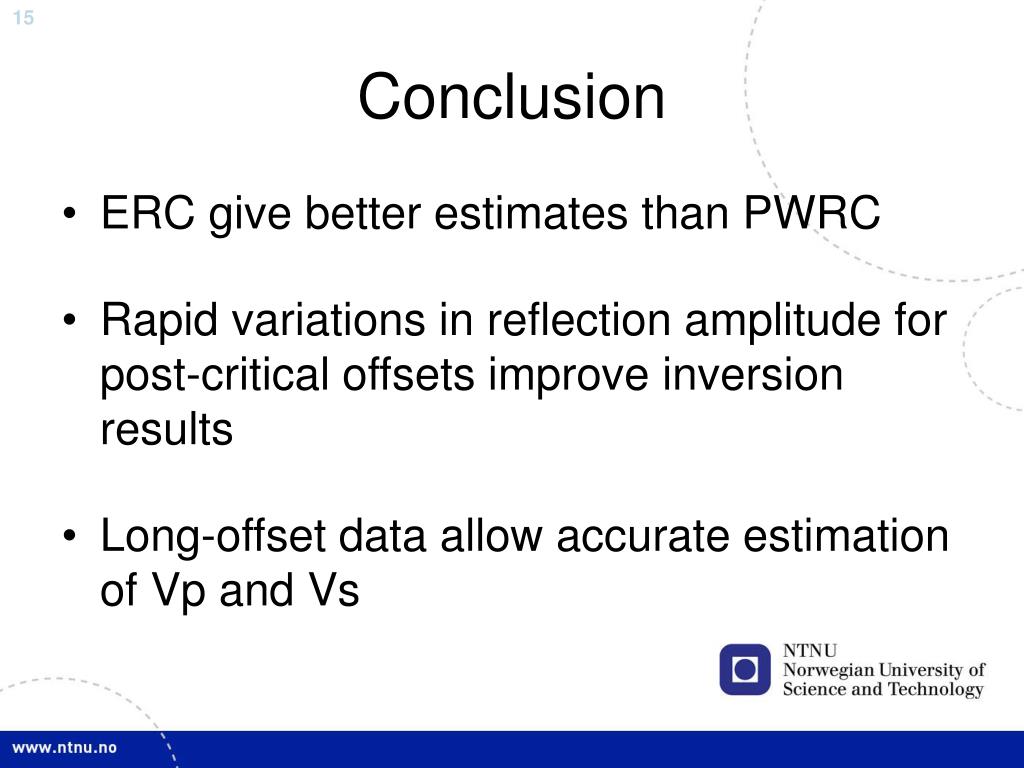

  15. Conclusion • ERC give better estimates than PWRC • Rapid variations in reflection amplitude for post-critical offsets improve inversion results • Long-offset data allow accurate estimation of Vp and Vs
