  1. Development and Implementation of an Improved Fire Shelter for Wildland Firefighters Leslie Anderson USDA Forest Service Missoula Technology and Development Center

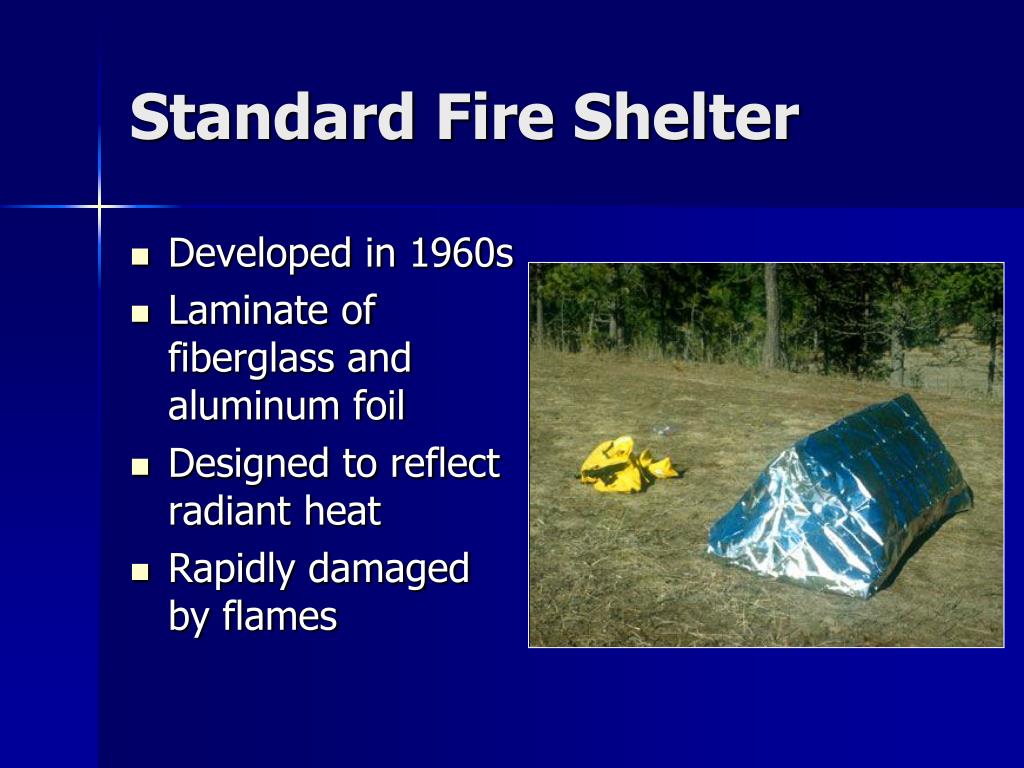

  2. Standard Fire Shelter • Developed in 1960s • Laminate of fiberglass and aluminum foil • Designed to reflect radiant heat • Rapidly damaged by flames

  3. Standard Fire Shelter • Deployed more than 1,100 times • ½ Precautionary • ¼ Prevented serious burns • ¼ Saved life of occupant • Approximately 20 fatalities

  4. Fire Shelter Development • 1999: Discovery of potential flammability Response: • New training materials • January 2000 –MTDC is asked to develop new shelter

  5. Goals for New Fire Shelter • Maintain protection in radiant heat • Improve protection in flames • Also consider: • Strength • Durability • Weight/Bulk • Toxicity • Flammability • Cost

  6. Performance Test Development • Reliable performance tests needed • MTDC collected fire environment data • Contracted for test development

  7. Performance Tests • Strength • Durability • Flammability • Thermal Protection • Toxicity

  8. Shelter Design • Substantial interest from private industry • Fully designed shelters were tested as received • Other materials were sewn into design developed at MTDC

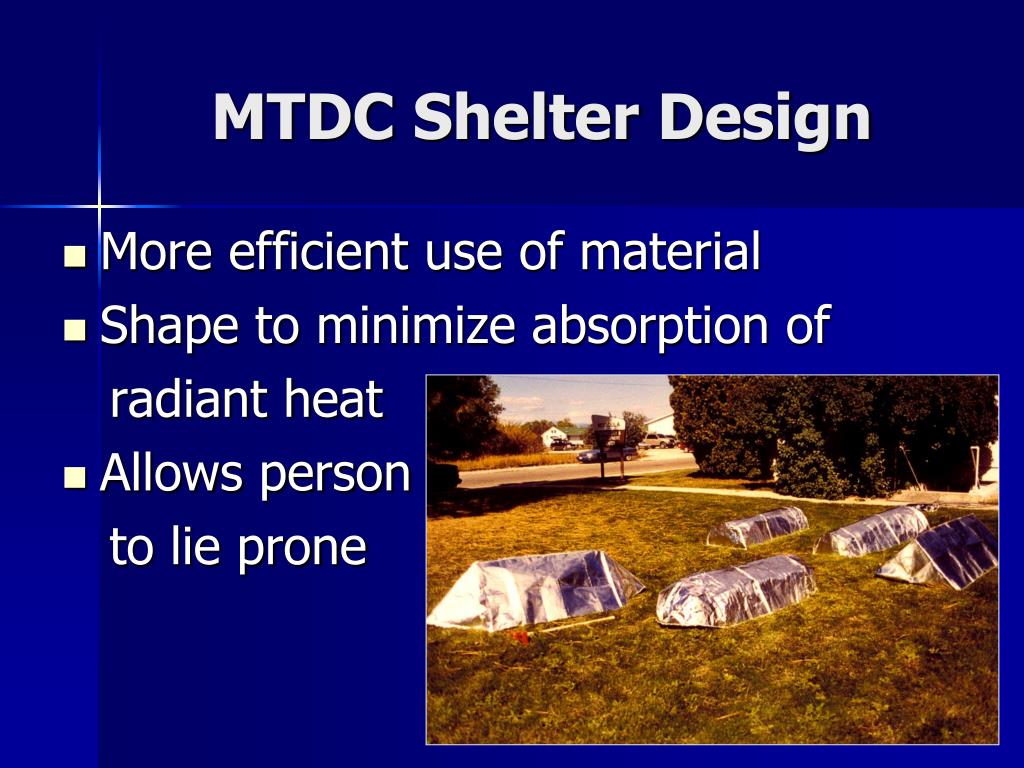

  9. MTDC Shelter Design • More efficient use of material • Shape to minimize absorption of radiant heat • Allows person to lie prone

  10. MTDC Shelter Design (continued) • Rounder shape • Rounded ends scatter radiant heat

  11. Selection Process: Small-scale Tests • 40 materials • Small-scale thermal tests • Strength • Flammability • Toxicity

  12. Selection Process:Full-scale Tests • 17 material combinations • Radiant tests • Direct flame tests • Durability tests • Shake tests • Toxicity tests

  13. Selection Process • Peer Review of Test Methods • 10 Options Presented • Selection made June 7, 2002 by Federal Fire and Aviation Leadership Council

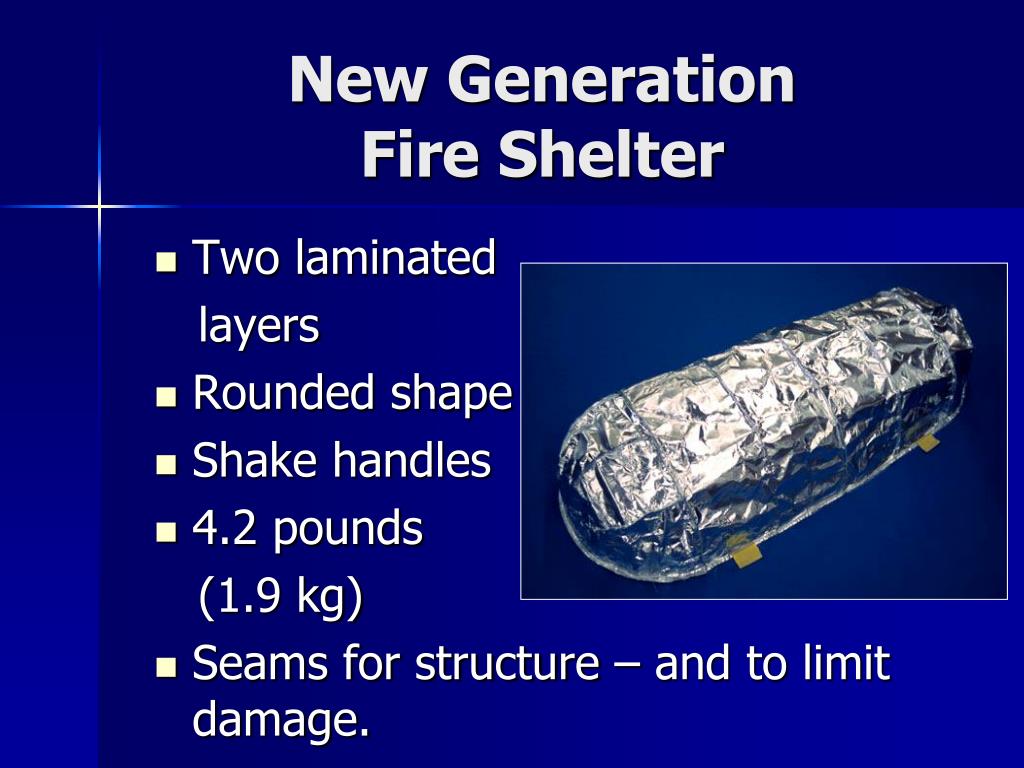

  14. New Generation Fire Shelter • Two laminated layers • Rounded shape • Shake handles • 4.2 pounds (1.9 kg) • Seams for structure – and to limit damage.

  15. Materials • Outer Layer: Woven silica and foil • Inner Layer: Fiberglass and foil

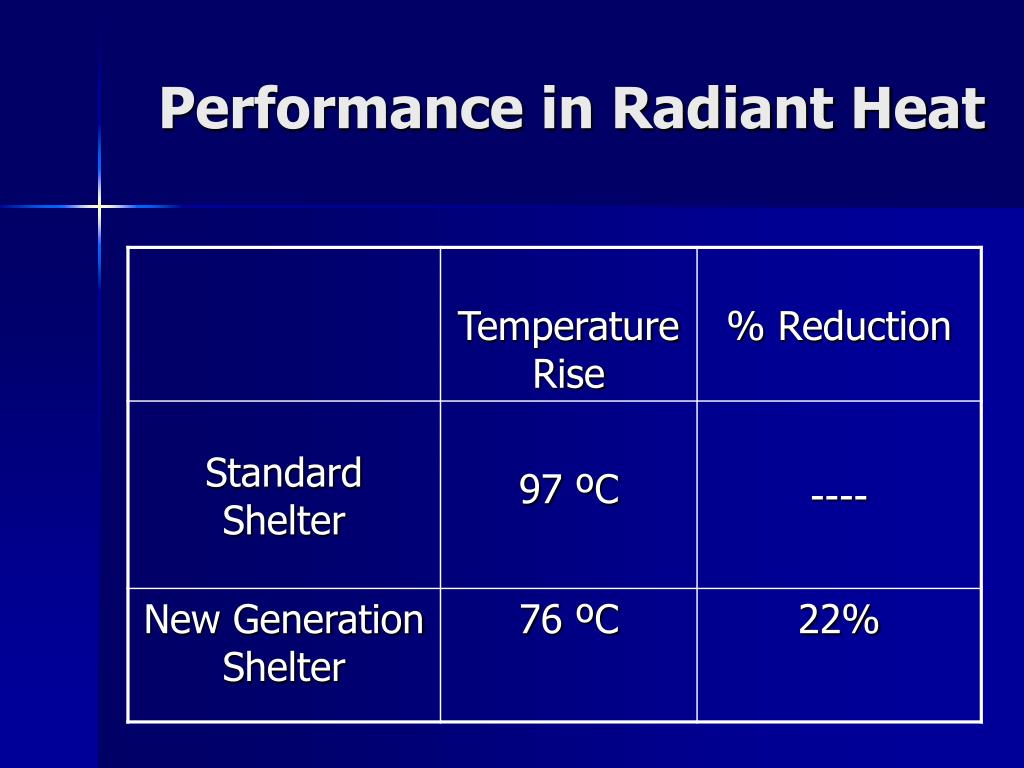

  16. Performance in Radiant Heat

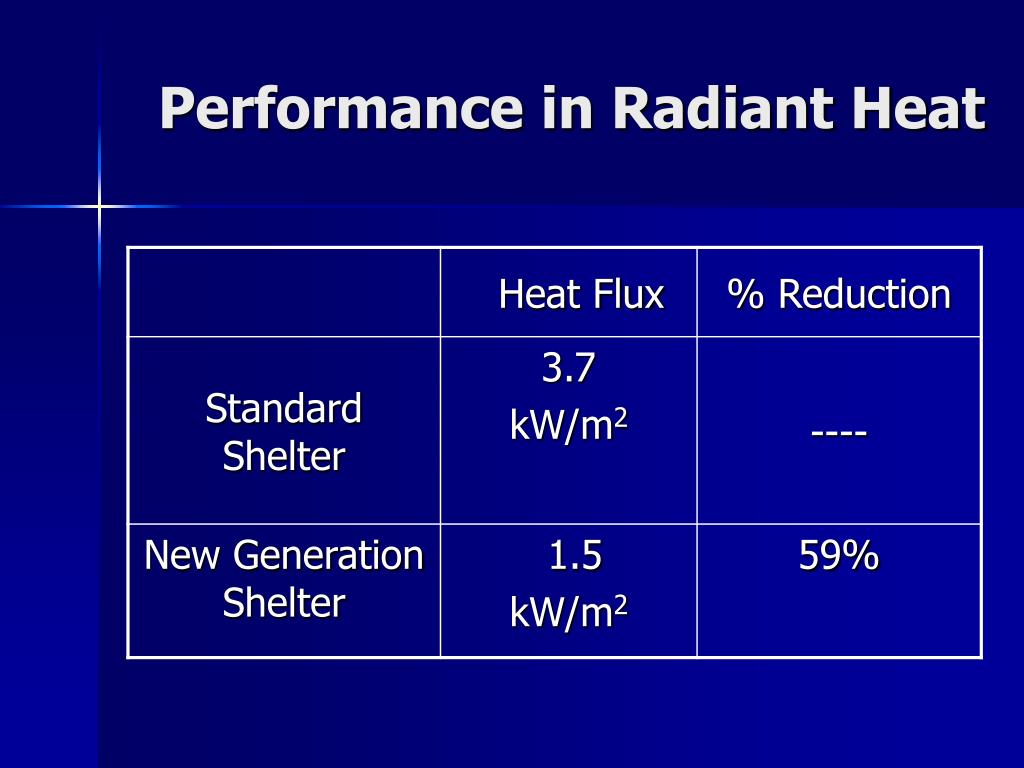

  17. Performance in Radiant Heat

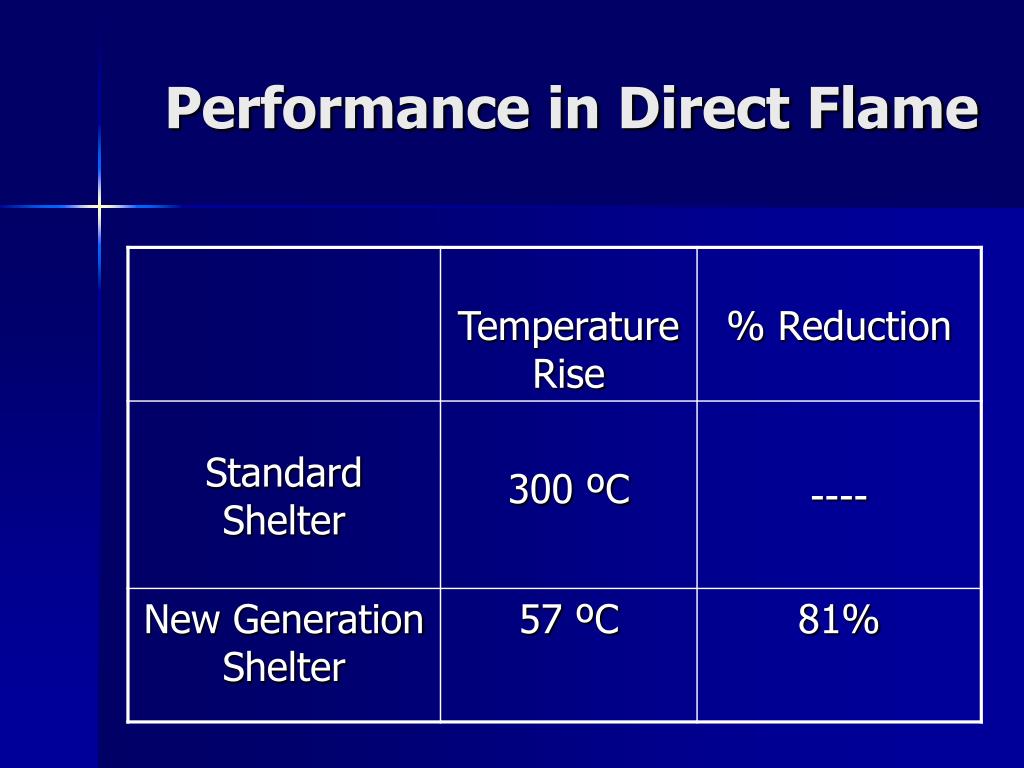

  18. Performance in Direct Flame

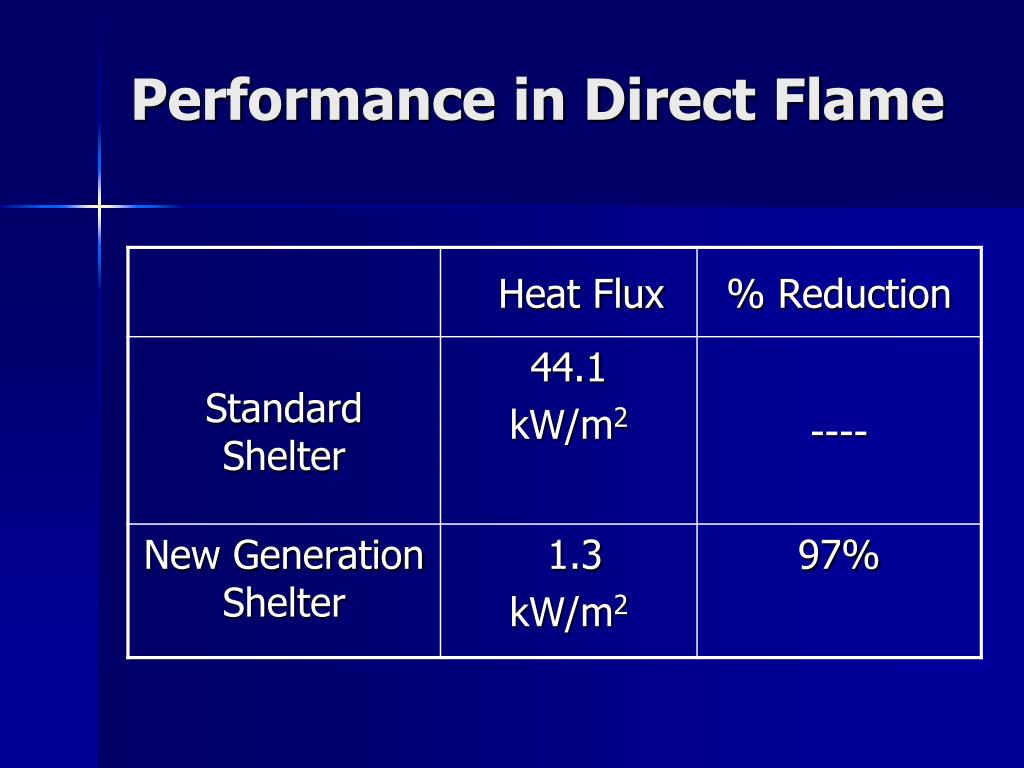

  19. Performance in Direct Flame

  20. Training • Video/DVD and Booklet: “The New Generation Fire Shelter” • New practice fire shelter • MTDC Tech Tip: “New Generation Fire Shelter Developed for Wildland Firefighters”

  21. Training: (continued) • Keep focus on avoiding situations that lead to entrapment. • New shelter is not an excuse to take risks.

  22. Transition • Expensive • 3-5 year transition

  23. Questions?
