  1. Nightly Releases and Testing Alexander Undrus Atlas SW week, May 24 2004

  2. Outline • Status of Nightly Builds • New NICOS version 0.3 • Testing in Nightly Builds Atlas SW week, May 24, 04 – Alex Undrus – Nightly Builds

  3. Status of Nightlies • Three nightlies: opt, dbg, “8.0.x” • 2x2GHz machines: 6 hrs gain: • Make is faster by factor 1.5 – 2.0 • Builds are finished by ~ noon (CERN time) • More efforts for acceleration • Parallel checkout: saves 1 hour but connection problems with CVS server • Multithreaded builds: new tests with CMT v1r16 start soon • Incremental builds (Simon George) Atlas SW week, May 24, 04 – Alex Undrus – Nightly Builds

  4. Plan for better robustness of Nightlies • Builds on local disk followed by copy to AFS • Better stability, decreasing AFS load • Planned setting: • Release is checked out to local disk • Opt & dbg builds start simultaneously • Interlock mechanism for building NOVA • Copy to AFS (script copy_release available) • Waiting Database team for implementation of NOVA interlocks Atlas SW week, May 24, 04 – Alex Undrus – Nightly Builds

  5. Purpose of NICOS • NIghtly COntrol System • Provide flexible nightly build system for coordination of distributed development • Test new software submissions • Send immediate feedback to developers • Facilitate multi-person, multi-platform development of code • Portable System (perl based) Atlas SW week, May 24, 04 – Alex Undrus – Nightly Builds

  6. NICOS Organization Code Checkout NICOS Job NICOS Controller Project Setup Packages Database Project Make NICOS Webmaster Configur. Cache Testing Version Admin. Error Analysis Atlas SW week, Dec.03 - Alex Undrus - NICOS 7

  7. History of NICOS • Fall 2001: start of ATLAS nightly builds with set of shell scripts • Jan 2003: start of development of NICOS, perl based nightly control system • Feb 2003: version 0_1 of NICOS is released and applied for POOL nightly builds (LCG project) • July 2003: NICOS is accepted as LCG nightly build tool, used in POOL and SEAL builds • Nov 2004: NICOS version 0_2 applied for ATLAS builds Atlas SW week, May 24, 04 – Alex Undrus – Nightly Builds

  8. NICOS version 0.3 • Improved pages design: • Tag list emphasizes new packages and versions • Three sorting options for list of packages • Added category of QA tests (to previously used integrated and unit tests) • Test results on separate web page, while page with build results contain test summary • Added “warning” level for minor problems • Builds “on demand” (use NICOS in users work environment), tested by S. George Atlas SW week, May 24, 04 – Alex Undrus – Nightly Builds

  9. NICOS version 0.3 (cont.) • Build results available immediately after make loop • Integration with QMTest, Python based testing tool, supported by LCG Atlas SW week, May 24, 04 – Alex Undrus – Nightly Builds

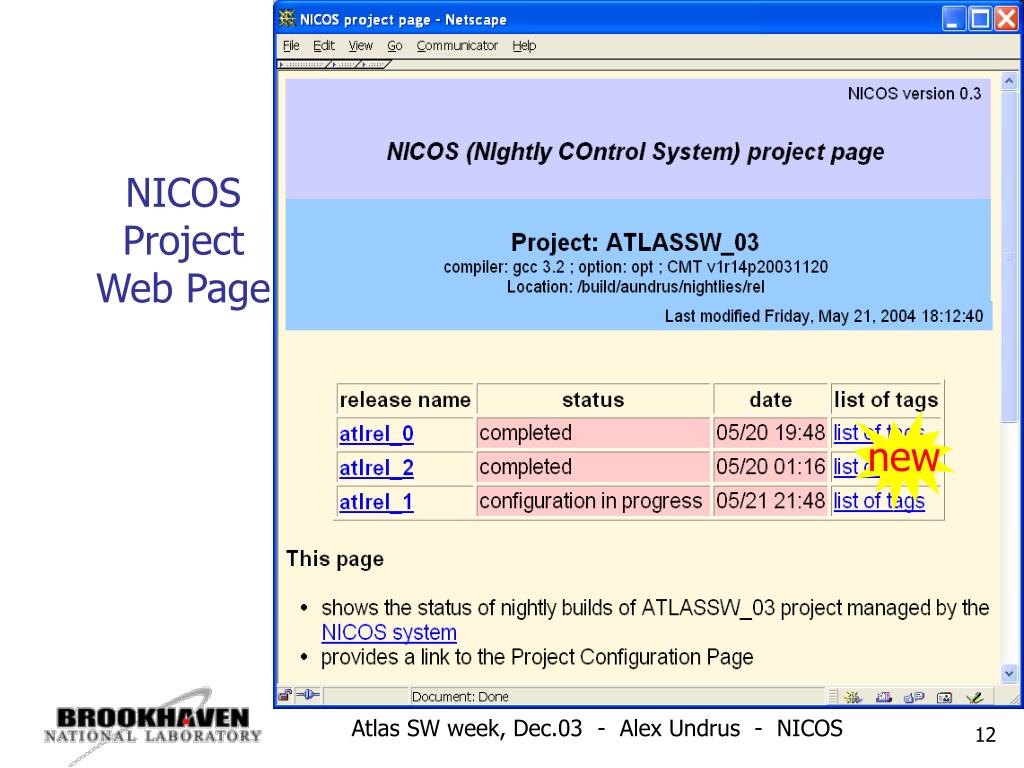

  10. NICOS Project Web Page new Atlas SW week, Dec.03 - Alex Undrus - NICOS 12

  11. NICOS Tag List NEW NEW Atlas SW week, Dec. 2003 - Alex Undrus - NICOS 13

  12. NICOS Build Results NEW NEW Atlas SW week, Dec.03 - Alex Undrus - NICOS 14

  13. NICOS Test Results NEW CHEP’03 - Alexander Undrus - NICOS system 15

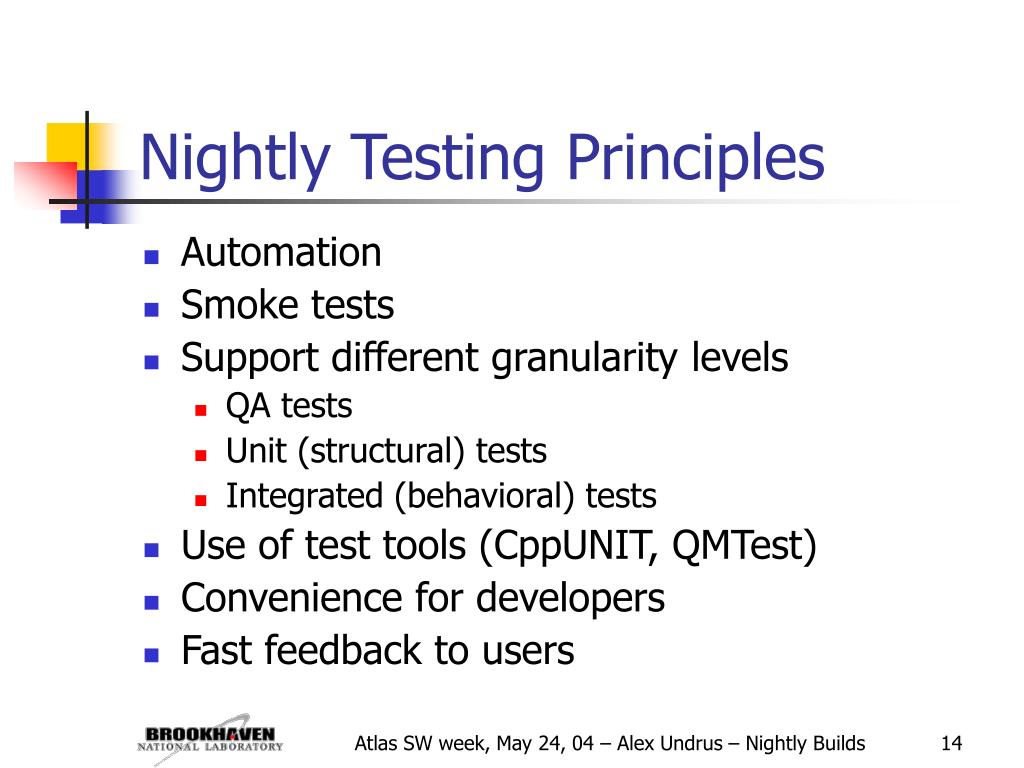

  14. Nightly Testing Principles • Automation • Smoke tests • Support different granularity levels • QA tests • Unit (structural) tests • Integrated (behavioral) tests • Use of test tools (CppUNIT, QMTest) • Convenience for developers • Fast feedback to users Atlas SW week, May 24, 04 – Alex Undrus – Nightly Builds

  15. QMTEST • Open-source, cross-platform testing tool • Python based, extensions possible • Tests are described in xml format • Organizes tests hierarchically (in suites) • Provides a graphical interface for creating and running tests • Also can be used from command line Atlas SW week, May 24, 04 – Alex Undrus – Nightly Builds

  16. QMTEST & NICOS integration • Integration is provided by Python script (qmtest_config): • Searches for test scripts • NICOS test database • Release tree (in directories test) • Determines test suites • NICOS test database • Pattern “TEST_SUITE” in script body • Tries to guess • Creates XML descriptions for QMTest Atlas SW week, May 24, 04 – Alex Undrus – Nightly Builds

  17. QMTEST & NICOS integration (cont.) • QMTest runs tests, determines results (regression is possible), handles log info • Results are reflected on NICOS pages and also can be browsed with QMTest graphical interface • Test can be rerun from QMTest graphical interface Atlas SW week, May 24, 04 – Alex Undrus – Nightly Builds

  18. NICOS & QMTEST integration NICOS Job qmtest_config.py QMTEST Test Database XML test descriptions NICOS Webmaster Atlas SW week, Dec.03 - Alex Undrus - NICOS 7

  19. QMTEST page CHEP’03 - Alexander Undrus - NICOS system 15

  20. QMTEST suite CHEP’03 - Alexander Undrus - NICOS system 15

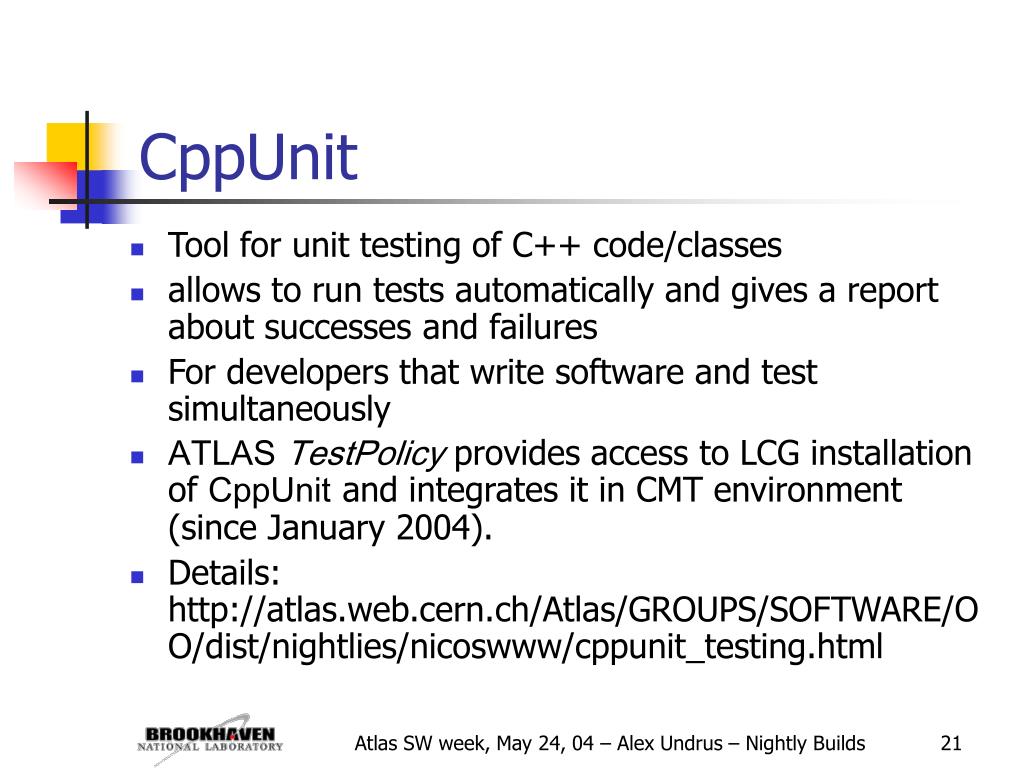

  21. CppUnit • Tool for unit testing of C++ code/classes • allows to run tests automatically and gives a report about successes and failures • For developers that write software and test simultaneously • ATLAS TestPolicy provides access to LCG installation of CppUnit and integrates it in CMT environment (since January 2004). • Details: http://atlas.web.cern.ch/Atlas/GROUPS/SOFTWARE/OO/dist/nightlies/nicoswww/cppunit_testing.html Atlas SW week, May 24, 04 – Alex Undrus – Nightly Builds

  22. Status of NICOS 0.3 • Trial 8.1.0 builds on lxbuild005 local disk: • Since ~ May 10 • atlas.web.cern.ch/Atlas/GROUPS/SOFTWARE/OO/dist/nightlies/testww • Only one significant problem revealed: QMTest does not work with PyXML used by ATLAS • Temporary solution: exclusion of PyXML from PATHs • Test in real nightlies is scheduled on the next weekend • Update of manual to be completed by June 1 Atlas SW week, May 24, 04 – Alex Undrus – Nightly Builds

  23. To Do list for NICOS • Improve convenience features for “builds on demand” • Create scripts for administrative tasks for stable releases (rebuilds, tests, documentation) Atlas SW week, May 24, 04 – Alex Undrus – Nightly Builds

  24. Further Information • ATLAS nightly builds web page atlas.web.cern.ch/Atlas/GROUPS/SOFTWARE/OO/dist/nightlies/atlaswww/nightly_builds.html • NICOS web page www.usatlas.bnl.gov/computing/software/nicos/index.html • QMTest integration page http://atlas.web.cern.ch/Atlas/GROUPS/SOFTWARE/OO/dist/nightlies/nicoswww/qmtest_atlas.html Atlas SW week, May 24, 04 – Alex Undrus – Nightly Builds
