Electron Configuration

Electron Configuration. A method we use to keep track of how electrons are arranged in an atom. It helps us to explain why atoms react the way they do. # of electrons in sub-level. 1s 1. H. Sub-level. The arrangement of the electrons may be represented in one of three ways. Energy Level.

joshwa
Télécharger la présentation

Electron Configuration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

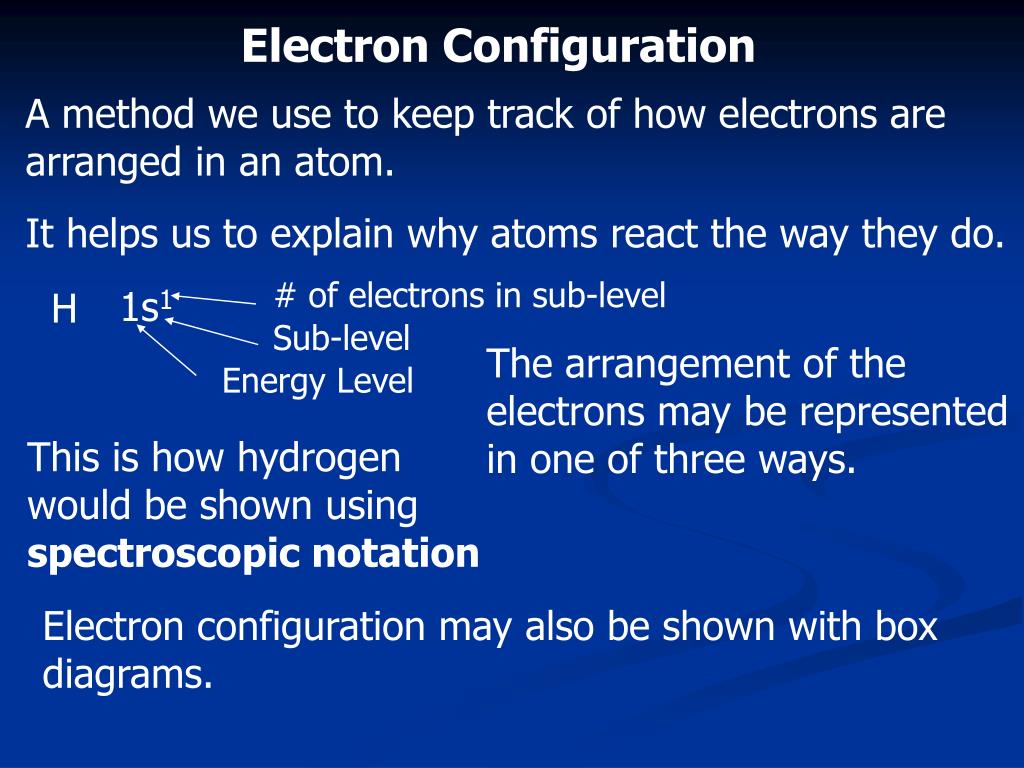

  1. Electron Configuration A method we use to keep track of how electrons are arranged in an atom. It helps us to explain why atoms react the way they do. # of electrons in sub-level 1s1 H Sub-level The arrangement of the electrons may be represented in one of three ways. Energy Level This is how hydrogen would be shown using spectroscopic notation Electron configuration may also be shown with box diagrams.

  2. Electron Configuration A box is used to represent each orbital. An arrow is used to represent each electron. These may also be called orbital box diagrams or orbital filling diagrams. H 1s1 Circles may also be used instead of boxes. Helium has 2 electrons: He 1s2

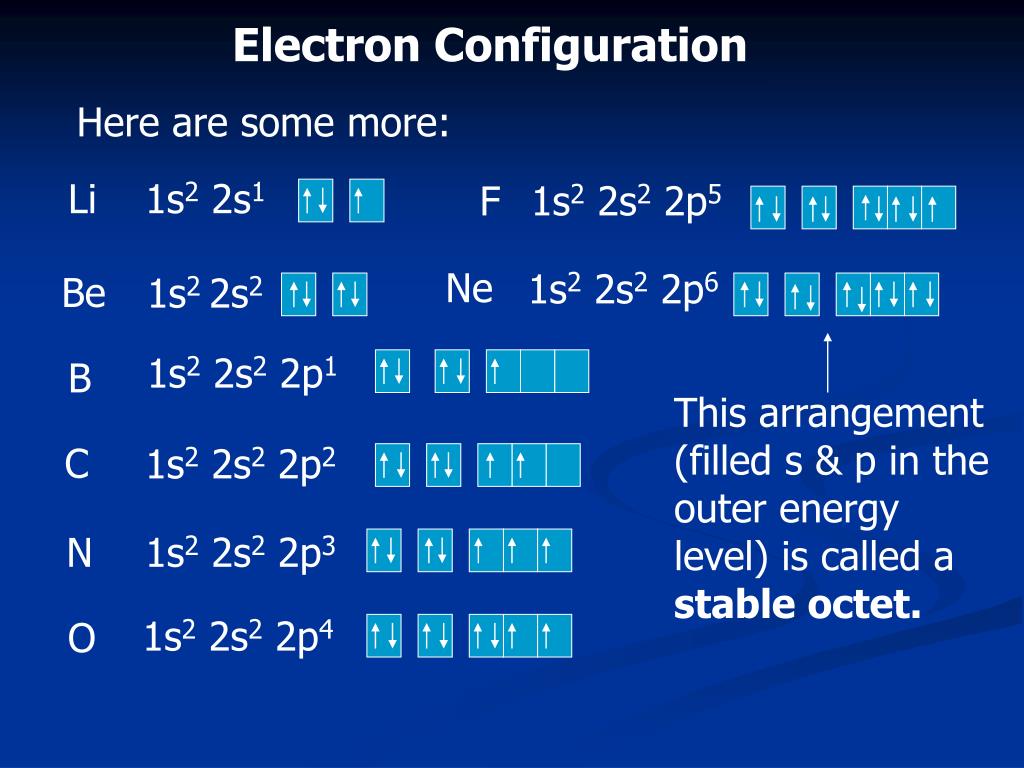

  3. Electron Configuration Here are some more: Li 1s2 2s1 F 1s2 2s2 2p5 Ne 1s2 2s2 2p6 Be 1s2 2s2 1s2 2s2 2p1 B This arrangement (filled s & p in the outer energy level) is called a stable octet. C 1s2 2s2 2p2 N 1s2 2s2 2p3 1s2 2s2 2p4 O

  4. Spectroscopy How do we know that there are e- subshells in an atom? Actually, the same way we first found out about energy levels - Spectroscopy Many different forms of spectroscopy are used to determine charateristics and structural features for atoms and molecules • UV/Vis Emission Spectroscopy • Mass Spectroscopy • Nuclear Magnetic Resonance Spectroscopy • AA spectroscopy (UV) • IR Spectroscopy (Bond types/functional groups) • XPS – X-ray Photoelectron Spectroscopy (PES)

  5. XPS uses X-rays generated from Al or Mg atoms that are focused by a small quartz crystal onto a sample of an element or compound. The energy is absorbed by electrons in different shells (or subshells) and they jump out of the atom. The KE of an electron is measured by a detector and is subtracted from the energy of the X-ray photon. This value represents the amount of energy that was necessary to remove that particular electron. Energy values and peak heights are plotted (Relative # of e- vs. Energy) For reasons I have yet to figure out, energy values are plotted backward (highest energy on the left, lowest on the right). These values can be compared to determine # of electrons in a shell, or compared with known spectra to determine the identity of an element.
