Study and Implementation Of Iris Recognition Schemes

1. Study and ImplementationOf Iris Recognition Schemes By:Ritika Jain ritika.jain@mavs.uta.edu Under guidance of DR K R RAOUNIVERSITY OF TEXAS AT ARLINGTON SPRING 2012

2. Proposal This project is focussed upon studying and implementing the various iris recognition schemes available and an analysis of the different algorithms using Chinese academy of sciences institute of automation (CASIA) [14] database.

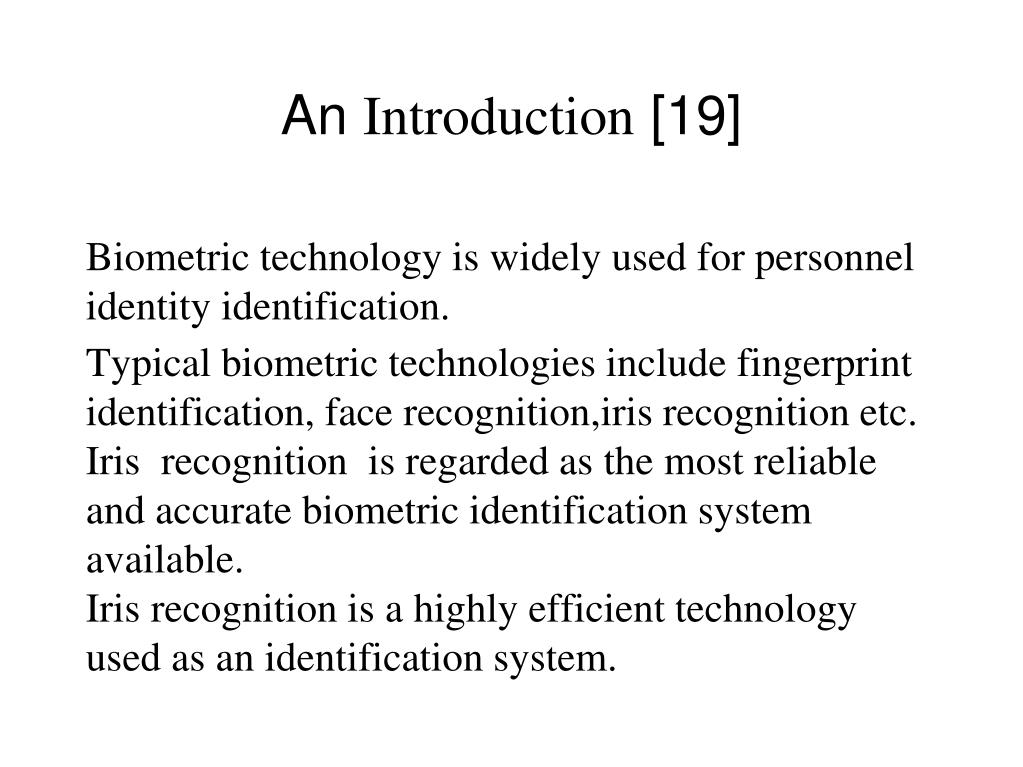

3. An Introduction[19] Biometric technology is widely used for personnel identity identification. Typical biometric technologies include fingerprint identification, face recognition,iris recognition etc. Iris recognition is regarded as the most reliable and accurate biometric identification system available.Iris recognition is a highly efficient technology used as an identification system.

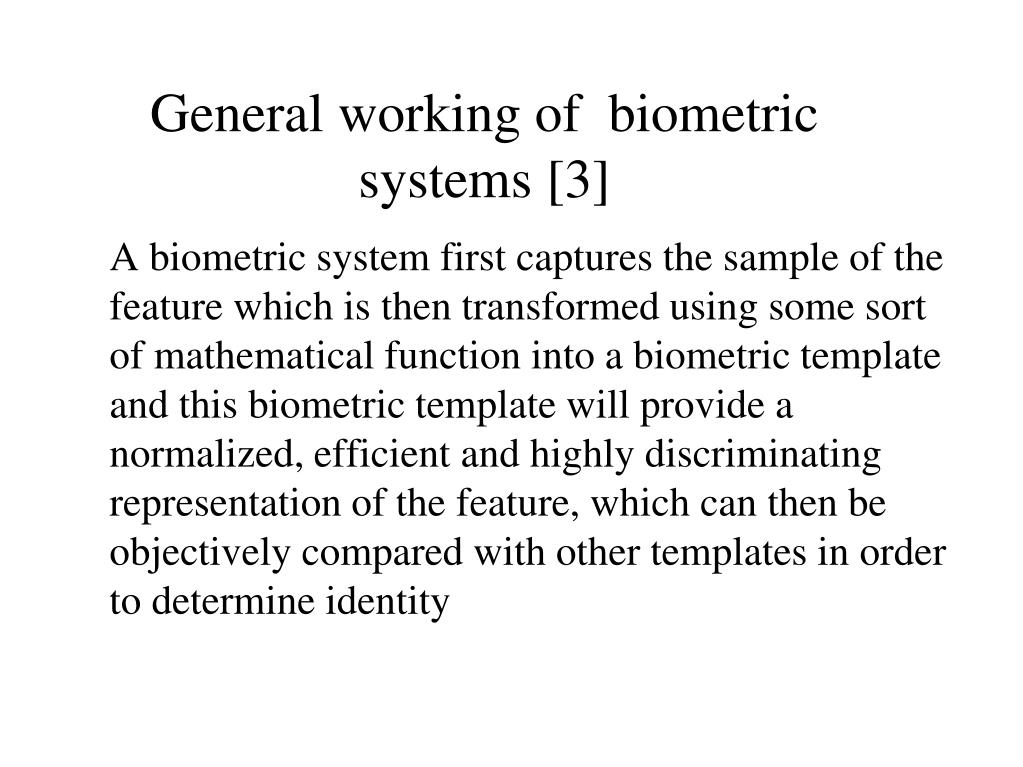

4. General working of biometric systems [3] A biometric system first captures the sample of the feature which is then transformed using some sort of mathematical function into a biometric template and this biometric template will provide a normalized, efficient and highly discriminating representation of the feature, which can then be objectively compared with other templates in order to determine identity

5. . Most biometric systems allow two modes of operation namely enrolment and identification.

6. Iris recognition is an automated method of biometric identification that uses mathematical pattern-recognition techniques on video images of the iridesof an individual's eyes, whose complex random patterns are unique and can be seen from some distance.

7. Comparison of iris recognition and retinal scanning [19]: Iris Recognition uses a camera which is similar to that in a home video camcorder to capture an image of the Iris. A picture is taken from a distance of 3 to 10 inches away. Iris recognition uses camera technology with subtle infrared illumination to acquire images of iris.

8. While in case of retinal scanning, a very close encounter with a scanning device is required, that sends a beam of light deep inside the eye to capture an image of the retina. (intrusive process required to capture an image).

9. Masek's Principle [3]  The iris recognition system consists of : • automatic segmentation system that is based on the Hough transform, and is able to localize the circular iris and pupil regions • The extracted iris region is then normalized into a rectangular block with constant dimensions to account for imaging inconsistencies.

10. Finally, the phase data from 1D Log-Gabor filters is extracted and quantized to four levels to encode the unique pattern of the iris into a bit-wise biometric template.

11. The Hamming distance [3] is employed for classification of iris templates, and two templates are found to match if a test of statistical independence has failed.   The input to the system is an eye image, and the output is an iris template, which will provide a mathematical representationof the iris region.

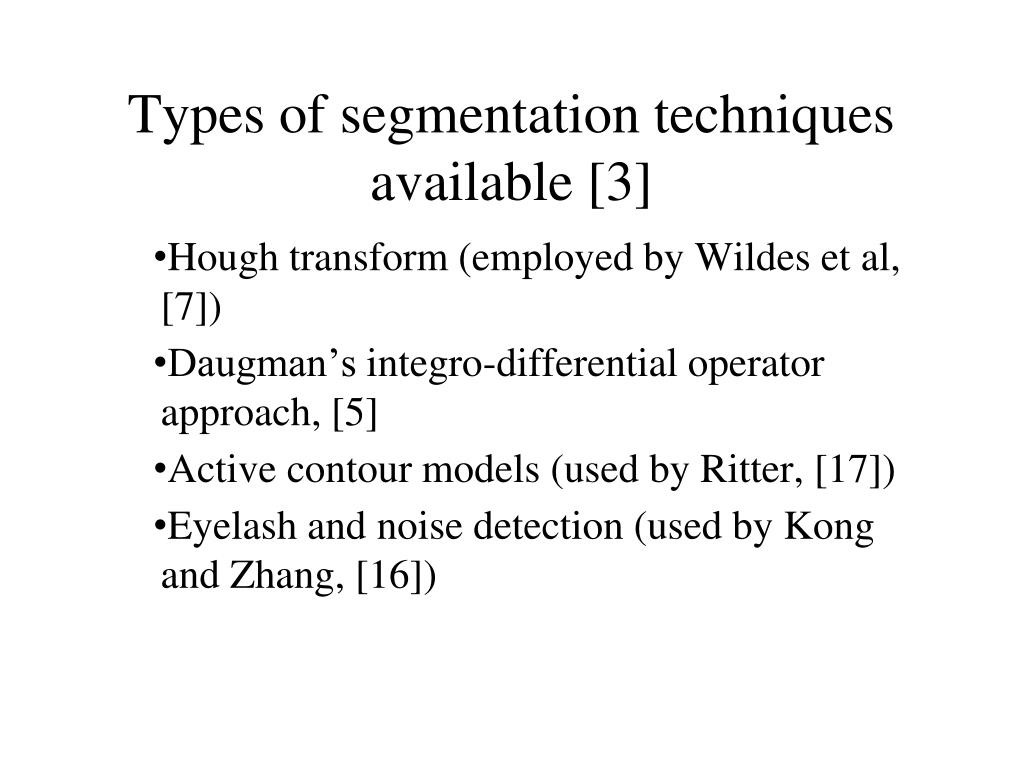

12. Types of segmentation techniques available [3] • Hough transform (employed by Wildes et al, [7]) • Daugman’sintegro-differential operator approach, [5] • Active contour models (used by Ritter, [17]) • Eyelash and noise detection (used by Kong and Zhang, [16])

13. Segmentation technique in Masek's method [3] Segmentation results in localizing the iris region from an eye image and isolating eyelid, eyelash and reflection areas. Hough transform is used which first involves Canny edge [10] detection to generate edge map using Kovesi's Canny edge detection MATLAB function [10] Eyelids detection is done using Hough transform using [10], [11]

14. MATLAB functions involved in segmentation technique [3], [10], [11] • createiristemplate - generates a biometric template from an iris eye image. • segmentiris - peforms automatic segmentation of the iris region from an eye image. Also isolates noise areas such as occluding eyelids and eyelashes. • addcircle - circle generator for adding weights into a Hough accumulator array. • adjgamma - for adjusting image gamma.

15. circlecoords - returns the pixel coordinates of a circle defined by the radius and x, y coordinates of its center. • CANNY - Canny edge detection - function to perform Canny edge detection. • findcircle - returns the coordinates of a circle in an image using the Hough transform and Canny edge detection to create the edge map.

16. findline - returns the coordinates of a line in an image using the Hough transform and Canny edge detection to create the edge map. • houghcircle - takes an edge map image, and performs the Hough transform for finding circles in the image. • HYSTHRESH - Hysteresis thresholding - Function performs hysteresis thresholding of an image.

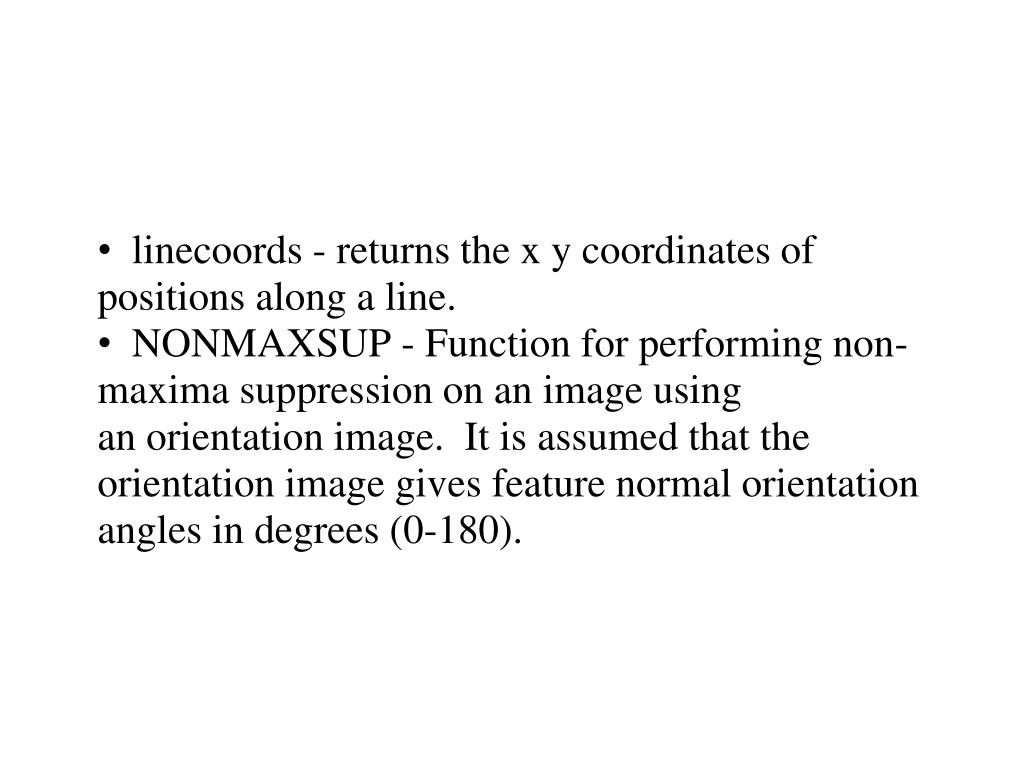

17. linecoords - returns the x y coordinates of positions along a line. • NONMAXSUP - Function for performing non-maxima suppression on an image using an orientation image.  It is assumed that the orientation image gives feature normal orientation angles in degrees (0-180).

18. Normalization techniques available[3]: • Daugman’srubber sheet model, [5] • Image registration technique, [7] • Virtual circles technique, [8]

19. Normalization technique in Masek's method [3] Normalization is performed to eliminate dimensional inconsistencies between iris regions. For normalization of iris region a technique based on Daugman's rubber sheet model [5] is implemented. The center of the pupil is considered as the reference point, and radial vectors pass through the iris region.  A number of data points are selected along each radial line and this is defined as the radial resolution. .

20. The number of radial lines going around the iris region is defined as the angular resolution. A constant number of points are chosen along each radial line, so that a constant number of radial data points are taken, irrespective of how narrow or wide the radius is at a particular angle.  The normalized pattern is created by backtracking to find the Cartesian coordinates of data points from the radial and angular positions in the normalized pattern.

21. Feature Extraction and Encoding techniques available [3] • Gabor filters [3] • Log Gabor filters (used by Masek, [4]) • Zero crossings of 1D wavelet (used by Boles et al, [8]) • Laplacian of Gaussian filters (used by Wildes et al, [7])

22. Techniques used for matching of pattern[3]: • Hamming distance (employed by Daugman)  [3], [5] • Weighted Euclidean distance (used by Zhu et al, [18]) • Normalized correlation (used by Wildes et al, [7])

23. Functions involved in steps 2 and 3:- Normalization and Encoding [3], [10], [11] • normaliseiris - normalization of the iris region by unwrapping the circular region into a rectangular block of      constant dimensions. • encode - generates a biometric template from the normalized iris region, also generates corresponding noise mask • gaborconvolve - function for convolving each row of an image with 1D log-Gabor filters.

24. Matching algorithms used in L.Masek's method [3]  For matching, the Hamming distance is chosen, since bit-wise comparison is required. The Hamming distance algorithm employed also incorporates noise masking, so that only significant bits are used in calculating the Hamming distance between two iris templates.  When taking the Hamming distance, only those bits in the iris pattern that correspond to ‘0’ bits in noise masks of both iris patterns is used in the calculation involved in the matching of pattern [3].

25. Functions involved in step 4 :- Matching [3], [10], [11] • gethammingdistance - returns the Hamming Distance between two iris templates incorporates noise masks, so noise bits are not used for calculating the HD. • shiftbits - function to shift the bit-wise iris patterns in order to provide the best match. Each shift is by two bit values and left to right, since one pixel value in the normalized iris pattern gives two bit values in the template.

26. Test Results

27. 1. Output Segmented Images Figure 1: 001_1_3.bmp Figure 2: 001_1_1.bmp

28. Figure 3: Img_2_1_1.jpg Figure 4: Img_2_1_2.jpg

29. 2. Output Normalized Images Figure 5: 001_1_1.bmp Figure 6: 001_1_3.bmp

30. Figure 7: Img_2_1_1.jpg Figure8: Img_2_1_2.jpg

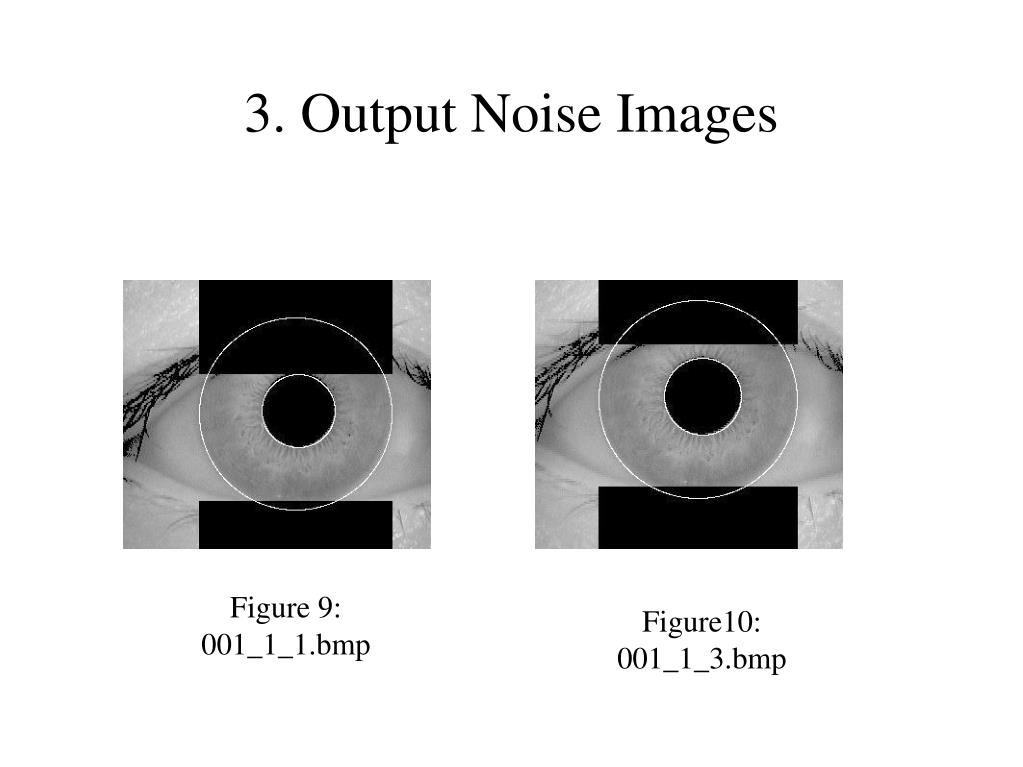

31. 3. Output Noise Images Figure 9: 001_1_1.bmp Figure10: 001_1_3.bmp

32. Figure 12: Img_2_1_2.jpg Figure 11: Img_2_1_1.jpg

33. 4. Output Polar Noise Images Figure 14: 001_1_3.bmp Figure 13: 001_1_1.bmp

34. Figure 16: Img_2_1_2.jpg Figure 15: Img_2_1_1.jpg

35. Table 1 shows the calculated Hamming distance for the four tests conducted.If the Hamming distance calculated is less than a preset Hamming distance (It is 0.4 for the tests conducted, [3]), the images are said to be related; else the images are different.

36. Table 1 : Calculated Hamming distance for four pairs of test inputs

37. REFERENCES • [1] J. Daugman, "High confidence visual recognition of persons by a test of statistical independence", IEEE Transactions on Pattern Analysis and MachineIntelligence, Vol.15, No.11, pp.1148-1160, November, 1993. • [2]  J. Daugman, " How iris recognition works", IEEE Transactions on Circuits and Systems for Video Technology, Vol.14, No.1, pp.21-30, January, 2004. • [3] L. Masek, "Recognition of human iris patterns for biometric identification", M.S. thesis, University of Western Australia, 2003. • [4] R. Wildes, " Iris recognition: an emerging biometric technology", Proceedings ofthe IEEE, Vol. 85, No. 9, pp.1348-1363, September, 1997. • [5] J. Daugman, Biometric personal identification system based on iris analysis. United States Patent, Patent Number: 5,291,560,1994.

38. [6]  S. Sanderson and J. Erbetta, " Authentication for secure environments based on iris scanning technology", IEE Colloquium on Visual Biometrics, pp.8/1-8/7, March, 2000. • [7]  R. Wildes, J. Asmuth, G. Green, S. Hsu, R. Kolczynski, J. Matey and S. McBride, " A system for automated iris recognition", Proceedings IEEE Workshop onApplications of Computer Vision, Sarasota, FL, pp.121-128, December, 1994. • [8]  W. Boles and B. Boashash, " A human identification technique using images of the iris and wavelet transform", IEEE Transactions on Signal Processing, Vol. 46, No. 4, pp.185-188, April, 1998. • [9] A. Gongazaga and R.M. da Costa, " Extraction and selection of dynamic features of human iris", IEEE Computer Graphics and Image Processing, Vol. XXII, pp.202-208, October, 2009.

39. [10] P. Kovesi "MATLAB functions for computer vision and imageanalysis", available at:http://www.cs.uwa.edu.au/~pk/Research/MatlabFns/index.html. • [11] L. Masek and P. Kovesi, “MATLAB source code for a biometric identification system based on iris patterns’’, The school of computer science and software engineering, The university of Western Australia, 2003. • [12] D.M. Monro, S.Rakshit and Z. Dexin, "DCT based iris recognition”, IEEE Transactions on Pattern Analysis and Machine Intelligence, Vol. 29, Issue 4, pp.586-595, April, 2007. • [13] Different sample source codes for the functions involved in Masek's algorithm are available at:Advancedsourcode.com: http://www.advancedsourcecode.com/iris.asp

40. [14] Chinese academy of sciences - institute of automation, database of greyscale eye imageshttp://www/cbsr.ia.ac.cn/IrisDatabase.htm • [15] K. Miyazawa, K. Ito, K. Aoki, T. Kobayashi and K. Nakajima, " An efficient iris recognition algorithm using phase based image matching ", IEEE International conference on image processing, pp.325-328, September, 1995.    • [16] W. Kong and D. Zhang," Accurate iris segmentation based on novel reflection and eyelash detection model", Proceedings of 2001 International Symposium on Intelligent Multimedia, Video and Speech Processing, Hong Kong, pp.263-266, May, 2001.

41. [17] N. Ritter, "Location of the pupil-iris border in slit-lamp images of the cornea", Proceedings of the International Conference on Image Analysis and Processing, pp.740-745, September, 1999.  • [18] Y. Zhu, T. Tan and Y. Wang,” Biometric personal identification based on iris patterns” ,Proceedings of the 15th International Conference on Pattern Recognition, Spain,  Vol. 2, pp.801-804, February, 2000.  • [19] Online free encyclopedia, Wikipedia:http://www.wikipedia.org/. • [20] K.R.Rao and P.Yip, ”Discrete cosine transform”, Boca Raton, FL:  Academic press, 1990.
