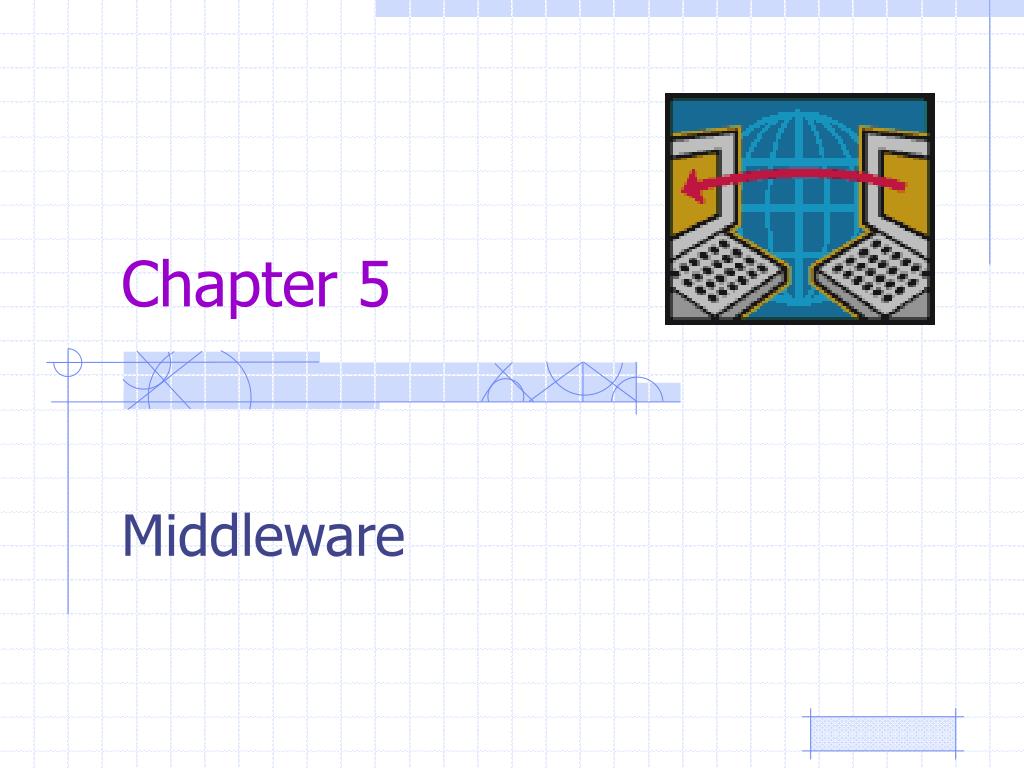

  1. Chapter 5 Middleware

  2. Middleware • Software: in context of smart environment • Software to provide services to facilitate • Rapid development • Ease of integration • Improved reliability • Increased scalability • Lies between applications software & platform • Connectivity software that joins applications thru communication mechanisms creating transparency, scalability, & interoperability

  3. Middleware • Defined by API it provides to applications that use it & by protocols it supports • Should reduce complexities • Of networks, OS, applications • Should provide cross-platform infrastructure • Should improve the system

  4. Overview of Middleware • Understanding of Middleware • Desirable characteristics • Different forms • Advantages/disadvantages • Technologies • Standards • Benefits * Provide a working knowledge base *

  5. Perceive-Reason-Act AI Approach • Use to define characteristics of Middleware • Perceive: sensors • Software to read, store, calibrate, etc. • Reason: AI applications • Software to reason about the environment & provide actions • Act: controllers • To change environment See Figure 5.1, pg. 104 What are the communications requirements?

  6. Needs of System(Figure 5.1) • Interoperability: 2+ entities communicate • Reliability: guarantee delivery • Efficiency: minimize consumption & delivery time • Throughput: lots of data, no bottlenecks • Distributed network: applications not on single computer

  7. Wants of System • Provide for future extensions & contingencies • Scalable • Hot - swappable - don't shut down to change component or application • Secure • Highly available - running, accessible • Fault - tolerant

  8. Desirable Characteristics of System • Simplicity and power: for developers & for API • Natural & seamless extension of development environment: for implementer - so focus stays on application • Flexibility for easy modifications of software - separation of interface from applications • Maintainability • Reusability • Portability

  9. Middleware Architecture • Communication is the focus • Client - server model (Figure 5.3, pg. 107) • 3-tier for much Middleware • Middle tier addition • Increase in number of clients • Better flexibility, maintainability, reusability, scalability

  10. Forms of Middleware • Middleware sits between OS & application • Huge number of products • Vary in "form" • Role, terminology, composition • Overview of key forms • Transaction -- Object • RPC -- Agent • Message -- Database • Web

  11. Transaction Processing • Middle tier of processing routines between system that provides transaction-based services & clients • e.g.: ATM - deposit, withdraw, check balance • See Figure 5.4, pg. 109 • Advantages • Independence of layers, database • Easily customized on all components • Transparency • Mature & well-tested efficient, reliable

  12. Transaction Processing • Disadvantages • Limited scalability - each client (ATM) adds overhead • Older - uses low-level languages • Examples: IBM's CISTP, BEA TUXEDO

  13. Message-Oriented (MOM) • Provides communication between applications on one or more machines; different platforms (Figure 5.5, pg. 109) • Generally asynchronous • Message queuing, persistence (delays), delivery • Peer-to-peer connectivity; agreed upon protocols

  14. Message-Oriented (MOM) • Advantages • Simplifies cross-platform issues; portability • Increased operability, flexibility • Good for event-driven systems • Mature (1980's) • Disadvantages • Asynchronous allows for network overload • Not implemented for some platforms • Example: Oracle, Advanced Queuing, Arjuna Messaging, IBM MQ Series, MS MSMQ

  15. Object-Orientedaka Object-Oriented Brokers (ORB) • Transparent extensions of object-oriented development environment, • Figure 5.6, pg. 110 • Support: interface definition language, O communication mechanisms, O activation/location mechanisms • Facilitate: locating objects & establishing communication - similar to MOM

  16. Object-Orientedaka Object-Oriented Brokers (ORB) • Advantages - Same as MOM • Familiarity with object-oriented environment • Provide for rapid integration • Preserves separation between implementation & interface • Disadvantages • Different ORB's support different levels of service, platforms, certain object-oriented languages • May be difficult to find one that supports all needs • Examples: OMG's CORBA, MS COM/DCOM, Sun's JAVA RMI

  17. Database • Can be complex • Need API access to standard database interfaces • Development connectivity tools & language extensions to facilitate applications to database • Advantages • Standardization, simple • Disadvantages • Not always cross platform • May not support advanced database features • May provide blocking, synchronous connections

  18. Remote Procedure Call (RPC) • Stubs embedded in client-server applications at compile, facilitate calls between client-server (Figure 5.7, pg. 111) • Advantages • Provide consistency of procedure calls locally & remotely • Network transparency of client-server location • Disadvantages • Most are synchronous - forces call-wait scenario, possible blockages • Asynchronous mechanisms add complexity to development • Synchronous - not good for object-oriented or peer-to-peer • Example: Open Group's Dist. Computing Environment

  19. Web Services • Popular - bridge interface gap between application hidden by network security (e.g. firewalls) • Leverages WWW technologies & protocols (Figure 5.8, pg. 112) • XML interface • HTTP communications • New technologies • SOAP - Simple Object Access Protocol • WSDL - Web Services Definition Language

  20. Web Services • Advantages • Ubiquitous nature of web servers/API's • Available software to facilitate development • ASCII-based messages improve troubleshooting • Most corporate systems allow such traffic • Easy transition

  21. Web Services • Disadvantages • Potential security holes (HTTP) • Conversion of data structures to SML is computationally expensive; data structure is larger • Slower • Needs more bandwidth • Examples: Apple's Web Objects, IBM Websphere, MS.NET, Sun's Open Net Environment

  22. Agent-Oriented • Applications: financial management, military logistics, personal information management • Newest: Intelligent software agents • Autonomous, intelligent software entities with ability to perceive environment, reason, act (to accomplish goals) • Tend to be implemented as frameworks

  23. Agent-Oriented • Provide for • Interagent communication • Load balancing • Mobility (move agents between machines) • May include MOM or Object-Oriented Middleware • Examples: HIVE, CMU's RETSINA

  24. Frameworks • Similar to but different from Middleware • Targeted at specific domain • Provide API, user interface, tools for development & management • May provide own middleware services or utilize common ones • Examples: Lotus Notes, MS Office, Transarc's Encina, Cognos, HP's OpenView

  25. Frameworks - Comments • Framework vs. Middleware: not standard, debated • Author distinguishes: • Middleware: invisible, no interface • Framework - provides interfaces • Ubicomp - ubiquitous computing • Numerous initiatives • e.g., Universal plug-and-play

  26. Middleware Standards • Help with functionality, interoperability among implementers • Consortiums (IEEE) - compromise, voluntary • Corporations - de facto standards; market share, influence • e.g., IBM PC; MS Windows

  27. Standards - Examples • COM/DCOM - MS - de facto • Distributed Component Object Model • Communication protocol between objects • IDL - Interface Description Language • CORBA - Object Management Group - consortium • Common Object Request Broker Architecture • Powerful, Widely-used • Uses IDL-to-program language mapping for many object-oriented language; generate skeleton & stub code

  28. Standards - Examples • DCE - Open Group • Distributed Computing Environment • Popular, forms basis of many middleware layers • Set of integrated system service specs.; OS, platform, network independent • Provide: RPC, distributed file system, diskless workstation support

  29. Java Middleware Technologies - Sun Numerous middleware initiatives & support • Supports CORBA • J. Remote Method Invocation (RMI) - CORBA like • J. Message Service (JMS) - provides MOM • J. Web Services Developer Pack (WSDP) - to integrate webservices into J. applications • J. Servlet & J. Server Pages (JSP) - extend server functionality, dynamic content support • J. Jini - adaptive network-centric applications • Disadvantage: One source, one language

  30. Web Service Standards World Wide Web Consortium (WSC) - a leader • HTML, HTTP, SML, SOAP/SMLP, WSDL, others Organization for Advancement of Structured Information Standards (OASIS) • DocBook (documentation), DSML (directory services), ebXML (eBusiness), SAML (security assertion), UDDI (universal description, discover, & integration of web services)

  31. Database Standards • SQL (Structured Query Language) - Oracle • Based on IBM's SEQUEL of 1970's • de facto standard • Are non-standard extensions • ODBC - Open Database Connectivity - MS • middleware database driver: database - applications communication • Vendors: ODBC-compliant database • Sun's JDBC for Javas is ODBC - comp.

  32. Middleware Design Considerations • Complement project, easier to design, develop, & maintain • Interoperability, reliability, efficiency throughput • Secure, dynamic, adaptable, scalable, available, fault-tolerant • Flexible, portable, maintainable, reusable

  33. Middleware Issues • May add unwanted infrastructure to project • Risky when using proprietary middleware (if sole source) • Extensions: Open Source vs. Proprietary • Middleware defined by API & protocols • Be wary of proprietary extensions • Shift from OS/Platform dependence to middleware dependence • Projects look to middleware for services

  34. Middleware Conclusion • See 5.6, pg. 119+ for examples • Middleware provides variety of services • Applicable to Mobile Computing and Smart Environments
