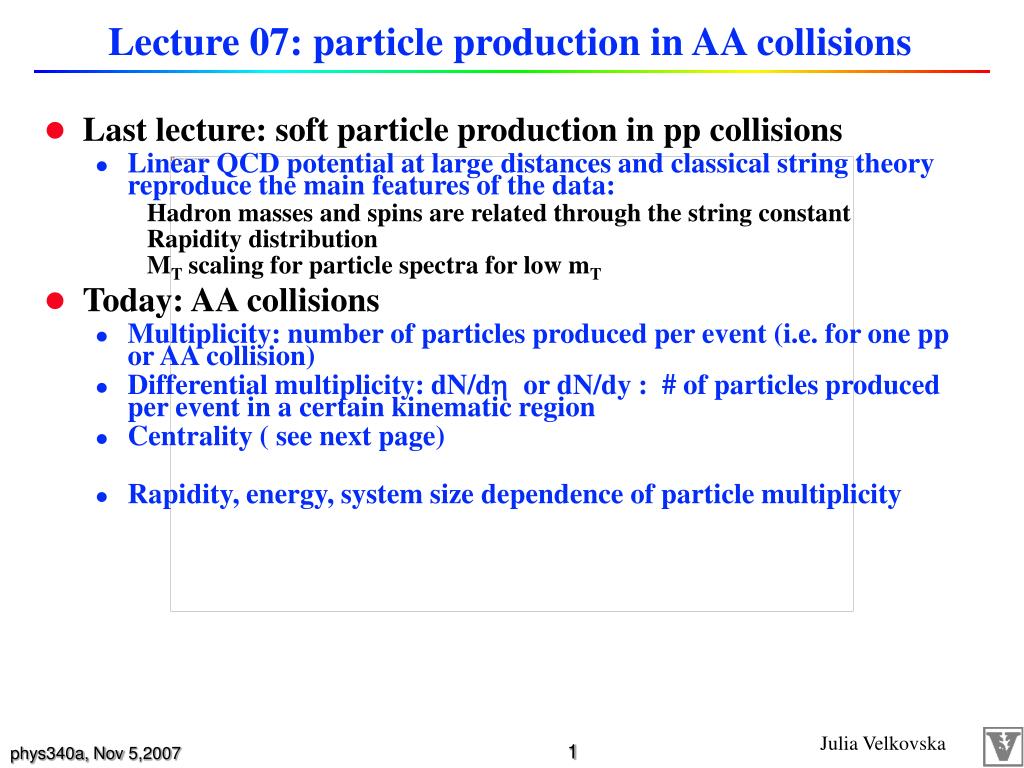

  1. Lecture 07: particle production in AA collisions • Last lecture: soft particle production in pp collisions • Linear QCD potential at large distances and classical string theory reproduce the main features of the data: • Hadron masses and spins are related through the string constant • Rapidity distribution • MT scaling for particle spectra for low mT • Today: AA collisions • Multiplicity: number of particles produced per event (i.e. for one pp or AA collision) • Differential multiplicity: dN/dh or dN/dy : # of particles produced per event in a certain kinematic region • Centrality ( see next page) • Rapidity, energy, system size dependence of particle multiplicity Julia Velkovska

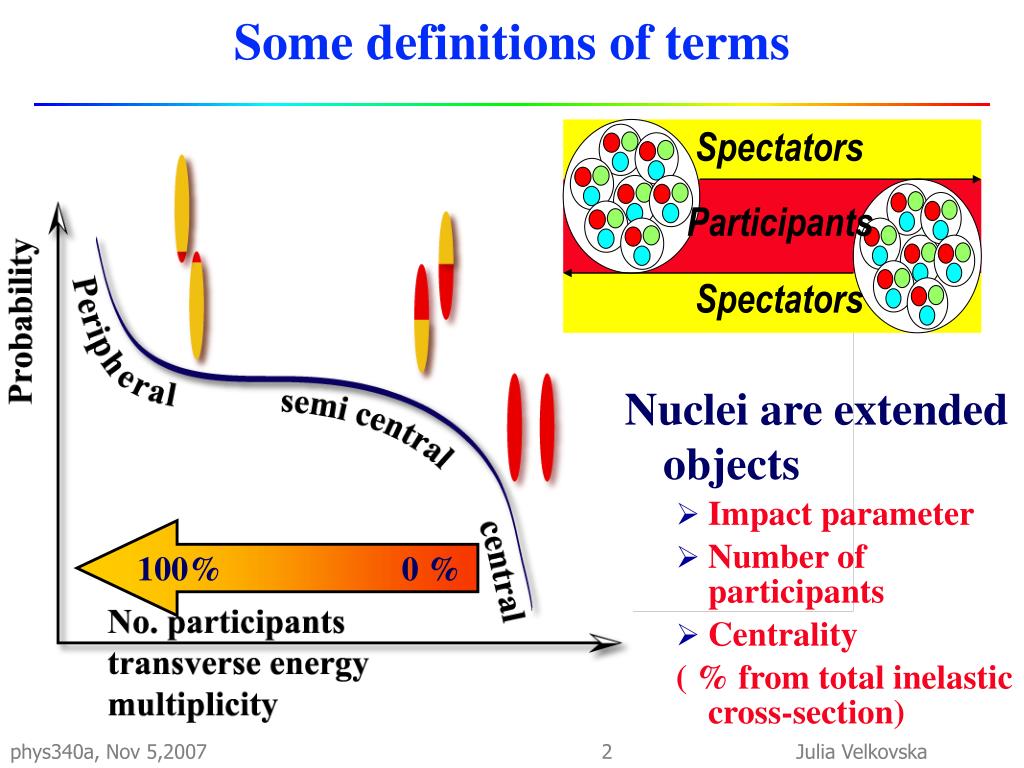

  2. Spectators Participants Spectators Some definitions of terms Nuclei are extended objects • Impact parameter • Number of participants • Centrality ( % from total inelastic cross-section) 100% 0 % Julia Velkovska

  3. How to measure centrality (with PHENIX) • Beam-Beam Counters: • 3.0<|h|<3.9,  = 2 • Zero-Degree Calorimeters: • |h| > 6, |Z|=18.25 m Julia Velkovska

  4. Centrality Selection in PHENIX ZDC vs BBC Define centrality classes: ZDC vs BBC Extract N participants: Glauber model ET EZDC b QBBC Nch Nch ET Julia Velkovska

  5. An almost central collision Julia Velkovska

  6. The bulk of the particles are produced with low momentum: turn off the magnet and count! PHOBOS 200 GeV Au+Au charged hadrons >99.5% Julia Velkovska

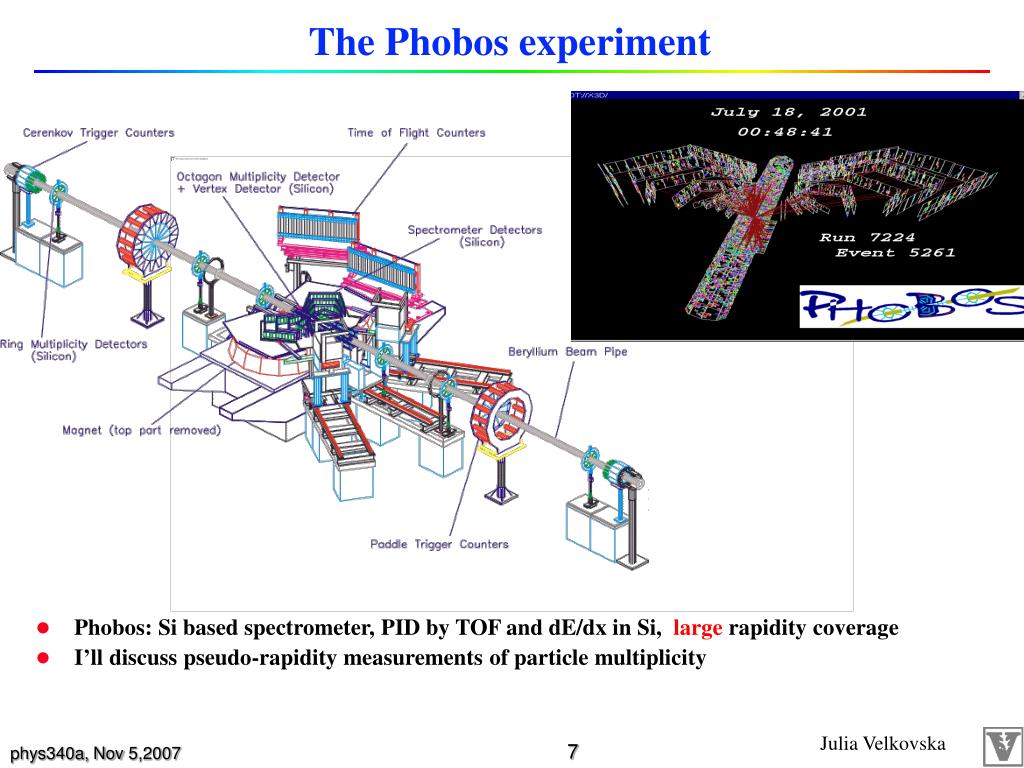

  7. The Phobos experiment • Phobos: Si based spectrometer, PID by TOF and dE/dx in Si, large rapidity coverage • I’ll discuss pseudo-rapidity measurements of particle multiplicity Julia Velkovska

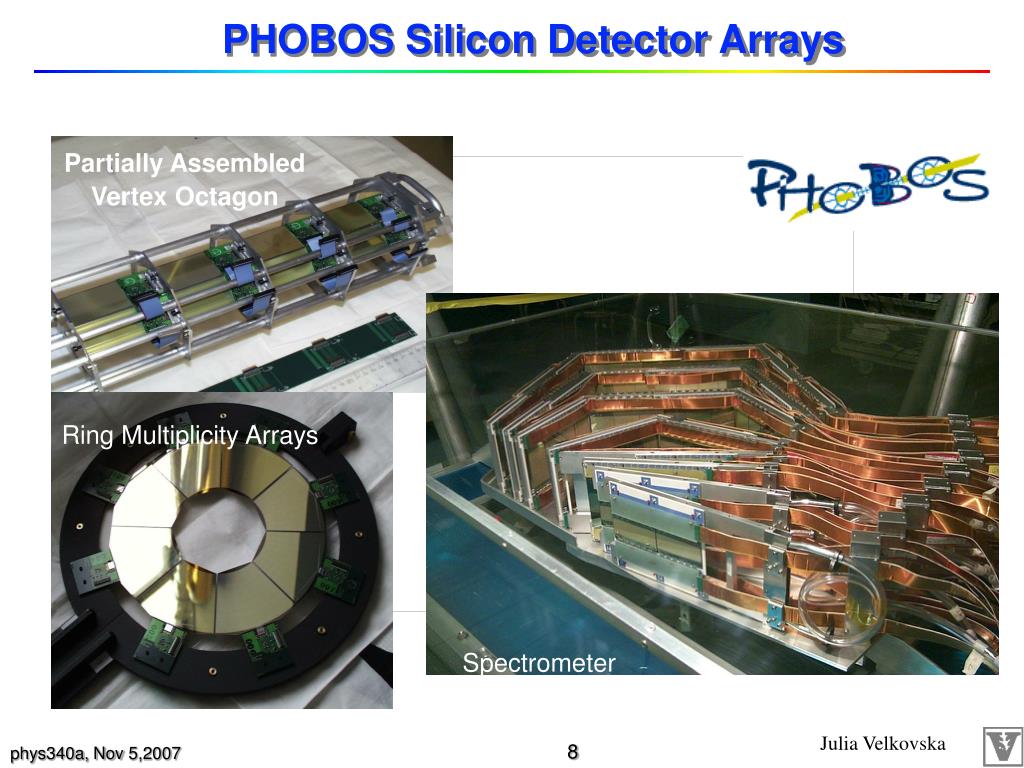

  8. Partially Assembled Vertex Octagon Ring Multiplicity Arrays Spectrometer PHOBOS Silicon Detector Arrays Julia Velkovska

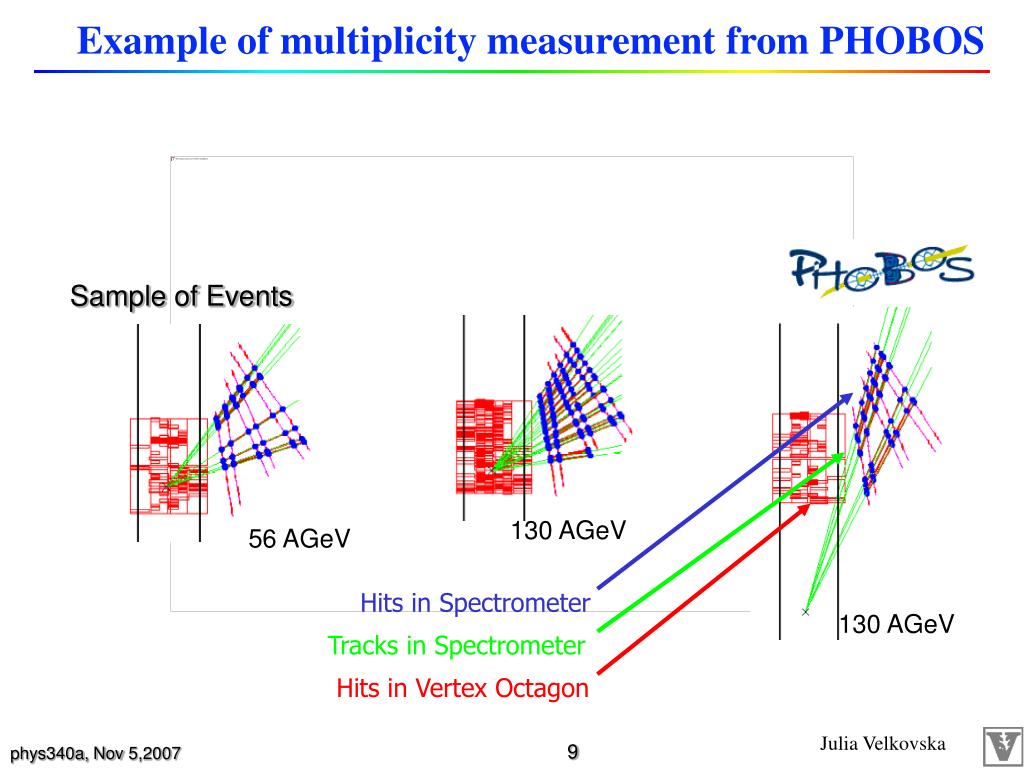

  9. Sample of Events 130 AGeV 56 AGeV Hits in Spectrometer 130 AGeV Tracks in Spectrometer Hits in Vertex Octagon Example of multiplicity measurement from PHOBOS Julia Velkovska

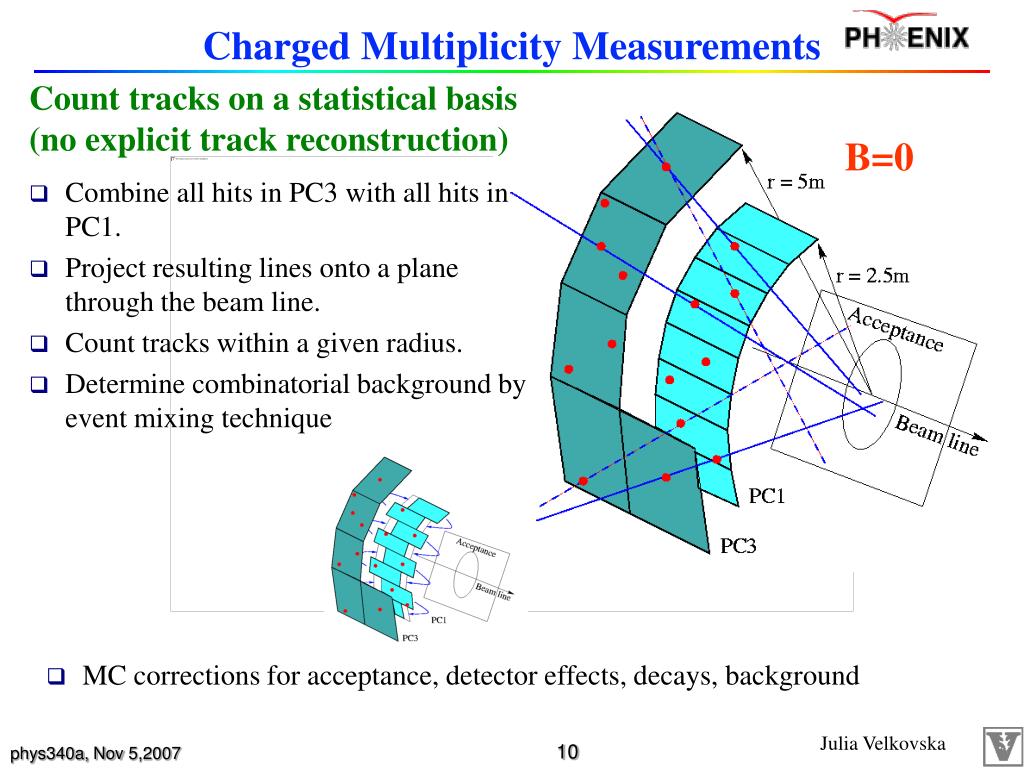

  10. Charged Multiplicity Measurements Count tracks on a statistical basis (no explicit track reconstruction) • Combine all hits in PC3 with all hits in PC1. • Project resulting lines onto a plane through the beam line. • Count tracks within a given radius. • Determine combinatorial background by event mixing technique B=0 • MC corrections for acceptance, detector effects, decays, background Julia Velkovska

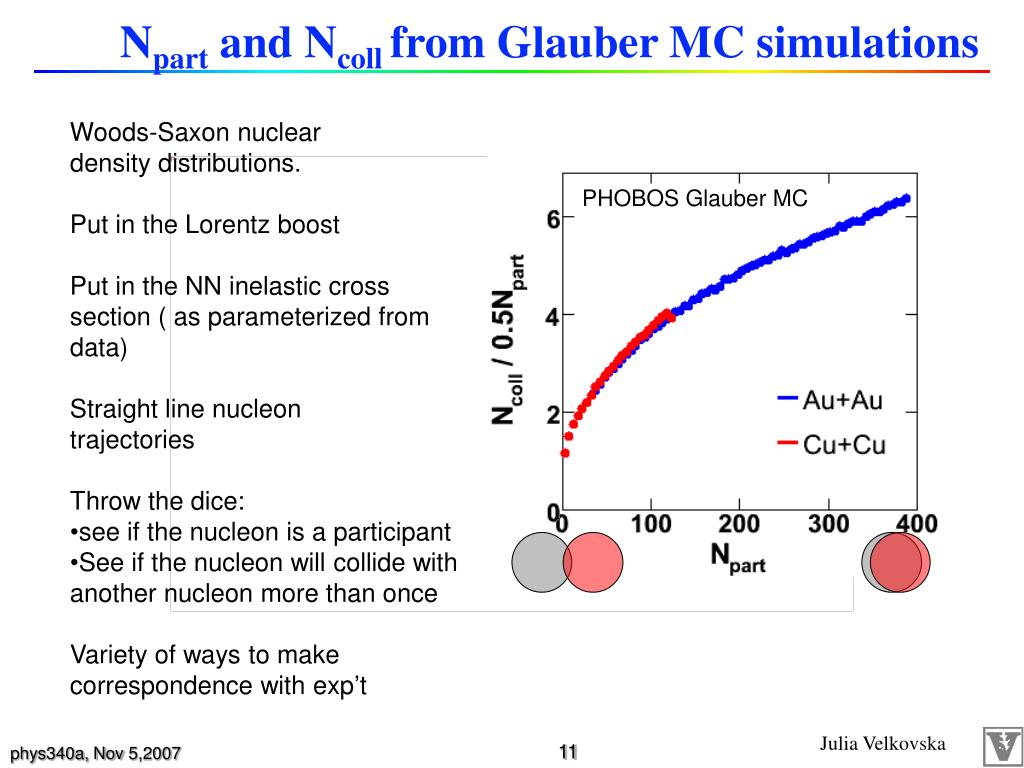

  11. Npart and Ncoll from Glauber MC simulations • Woods-Saxon nuclear • density distributions. • Put in the Lorentz boost • Put in the NN inelastic cross section ( as parameterized from data) • Straight line nucleon • trajectories • Throw the dice: • see if the nucleon is a participant • See if the nucleon will collide with • another nucleon more than once • Variety of ways to make • correspondence with exp’t PHOBOS Glauber MC Julia Velkovska

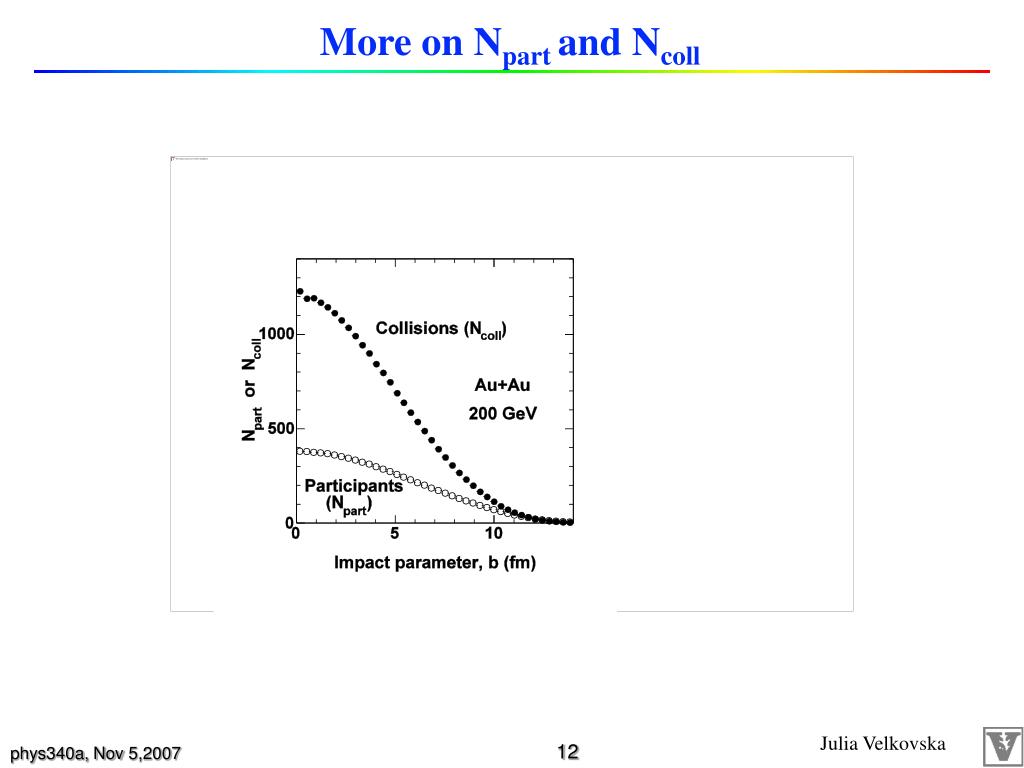

  12. More on Npart and Ncoll Julia Velkovska

  13. Nch pseudo-rapidity dependence • Integrate the distribution to get total multiplicity – study the production as a function of energy • Explore scaling behavior • Is there longitudinal boost invariance ? Plateau around h = 0 increasing with energy. BUT, pseudo-rapidity maybe misleading…we’ll find out … Julia Velkovska

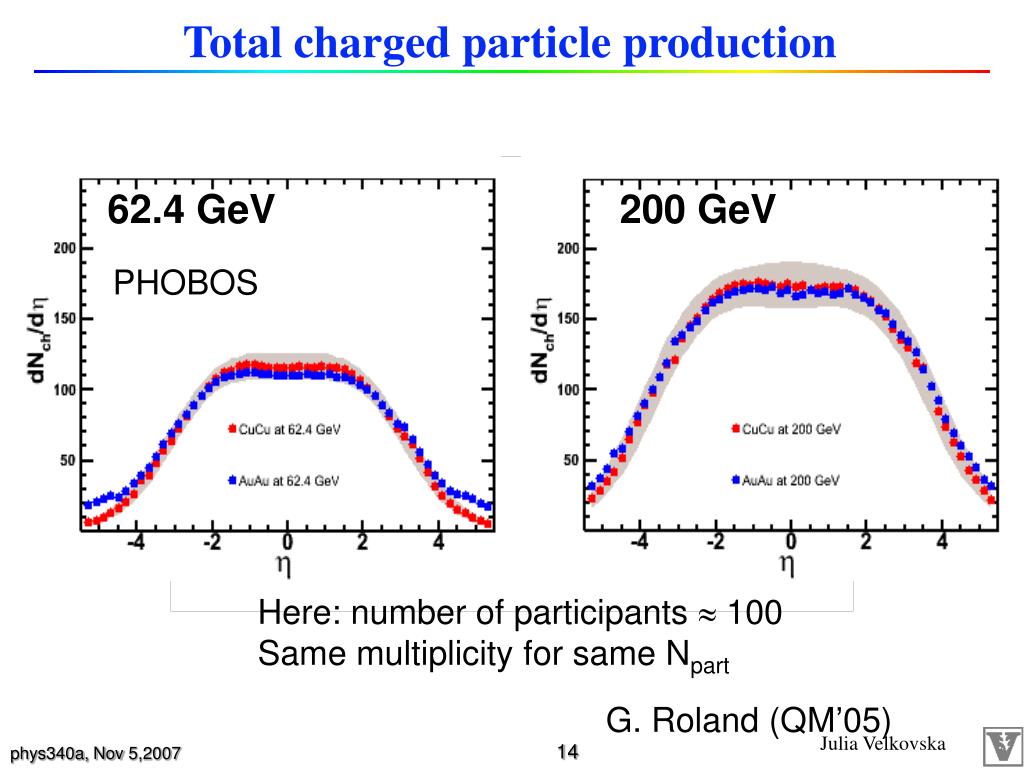

  14. Total charged particle production 62.4 GeV 200 GeV PHOBOS Here: number of participants  100 Same multiplicity for same Npart G. Roland (QM’05) Julia Velkovska

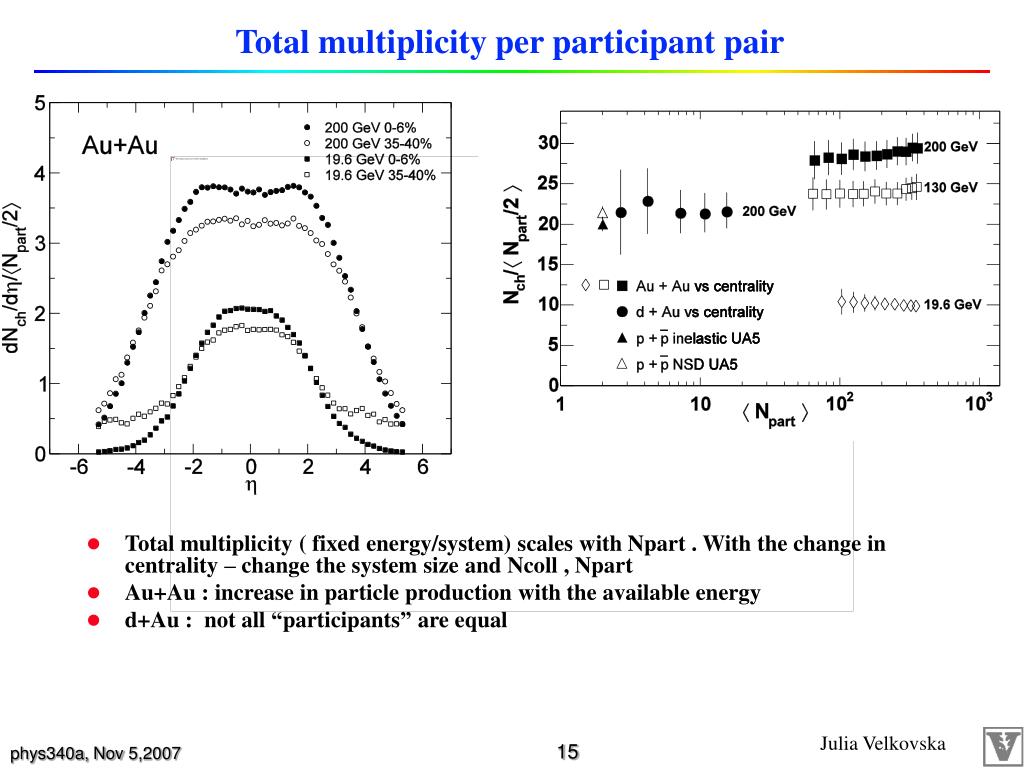

  15. Total multiplicity per participant pair • Total multiplicity ( fixed energy/system) scales with Npart . With the change in centrality – change the system size and Ncoll , Npart • Au+Au : increase in particle production with the available energy • d+Au : not all “participants” are equal Julia Velkovska

  16. Nch as a function of centrality:comparison to models • NOTE: this is at central rapidity • HIJING – pQCD based model with soft and hard component of particle production X.N.Wang and M.Gyulassy, PRL 86, 3498 (2001) • KLN – gluon saturation in the initial state D.Kharzeev and M. Nardi, Phys.Lett. B503, 121 (2001) D.Kharzeev and E.Levin, Phys.Lett. B523, 79 (2001) • EKRT – saturation in the final state K.J.Eskola et al, Nucl Phys. B570, 379 and Phys.Lett. B 497, 39 (2001) Julia Velkovska

  17. And a full pallet of Nch to theory comparison from PHOBOS Julia Velkovska

  18. Longitudinal scaling • Particles near beam and target rapidity governed by limiting fragmentation • Projectile hadron viewed in the rest frame of the target is highly Lorenz contracted. It passes through the target leaving it in an excited state which is independent of energy. It then fragments to produce hadrons Julia Velkovska

  19. Longitudinal scaling is independent even of the identity of the projectile! Longitudinal scaling: Adding Cu+Cu into the picture Julia Velkovska

  20. Summary • Particle production grows logarithmically with cm energy • Total multiplicity is ~ Npart • At mid-rapidity: multiplicity per participant grows slowly – consistent with gluon saturation in the initial state • Near beam and target rapidity: universal scaling of multiplicity • Limiting fragmentation Julia Velkovska
