  1. WLAN-GPRS INTEGRATION FORNEXT-GENERATION MOBILE DATA NETWORKS 通訊工程所 蔡名岳 692430028

  2. Outline • INTRODUCTION • INTEGRATED WLAN AND CELLULAR DATA NETWORKS • INTERWORKING ARCHITECTURES • CURRENT STANDARDIZATION ACTIVITIES • A TIGHT COUPLING ARCHITECTURE • A LOOSELY COUPLED ARCHITECTURE • CONCLUDING REMARKS

  3. 1.INTRODUCTION • More necessity and less luxury on the ability to communicate • 2G -> 2.5G (GPRS) -> 3G • Delay of 3G cellular networks • offerings with “3G-like” services in efforts to generate new revenue stream in today’s environment.

  4. 2.INTEGRATED WLAN ANDCELLULAR DATA NETWORKS • ROAMING • SESSION MOBILITY • ENHANCED MOBILE APPLICATIONS

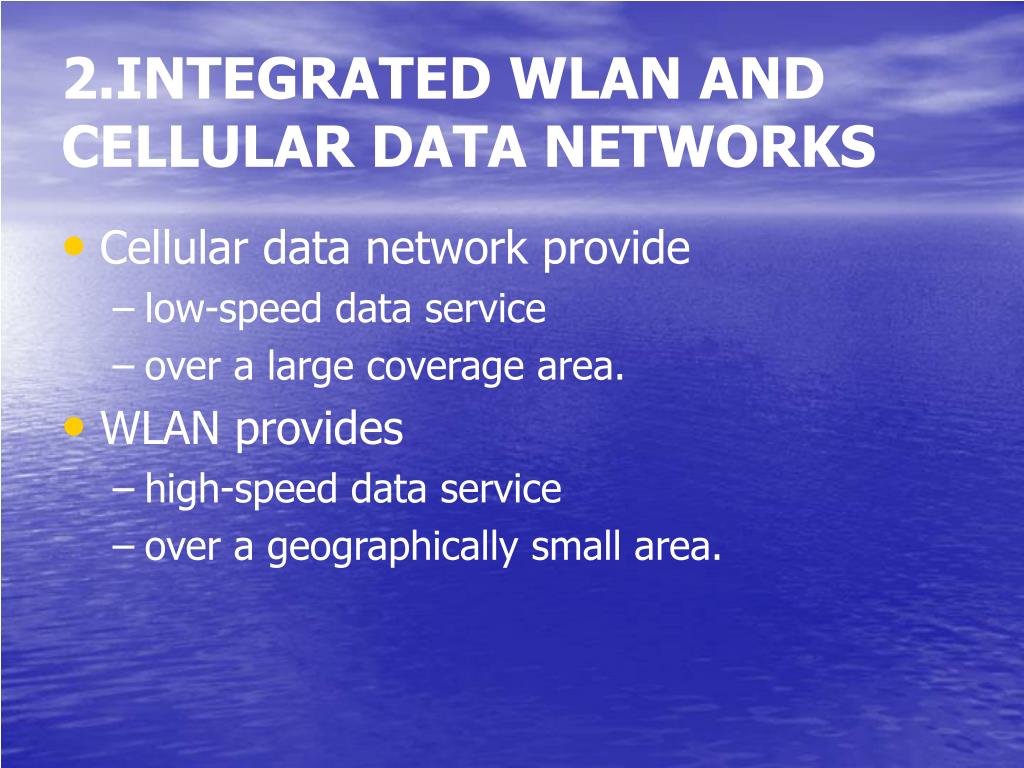

  5. 2.INTEGRATED WLAN ANDCELLULAR DATA NETWORKS • Cellular data network provide • low-speed data service • over a large coverage area. • WLAN provides • high-speed data service • over a geographically small area.

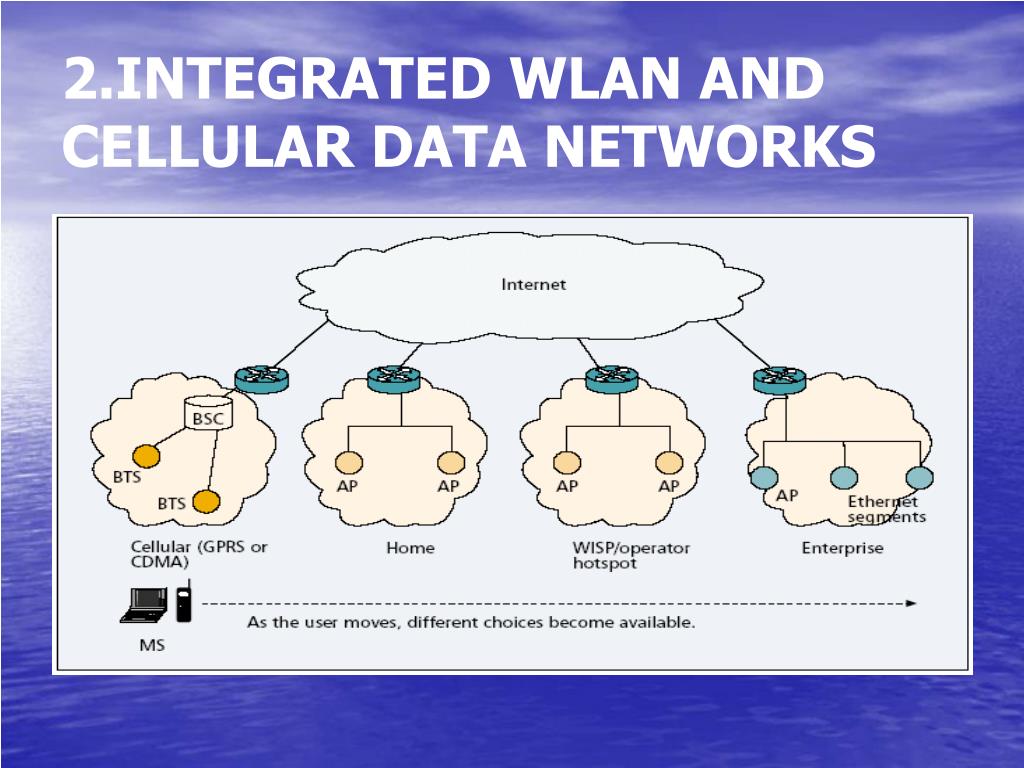

  6. 2.INTEGRATED WLAN ANDCELLULAR DATA NETWORKS

  7. 2.INTEGRATED WLAN ANDCELLULAR DATA NETWORKS • ROAMING: ownership/management problem • Cellular owned WLAN • operators are able to enhance their data service capabilities with high-speed data connectivity • WISP owned WLAN • The WISP may partake in revenue sharing with the cellular operator, based on the particular roaming agreements between the two parties.

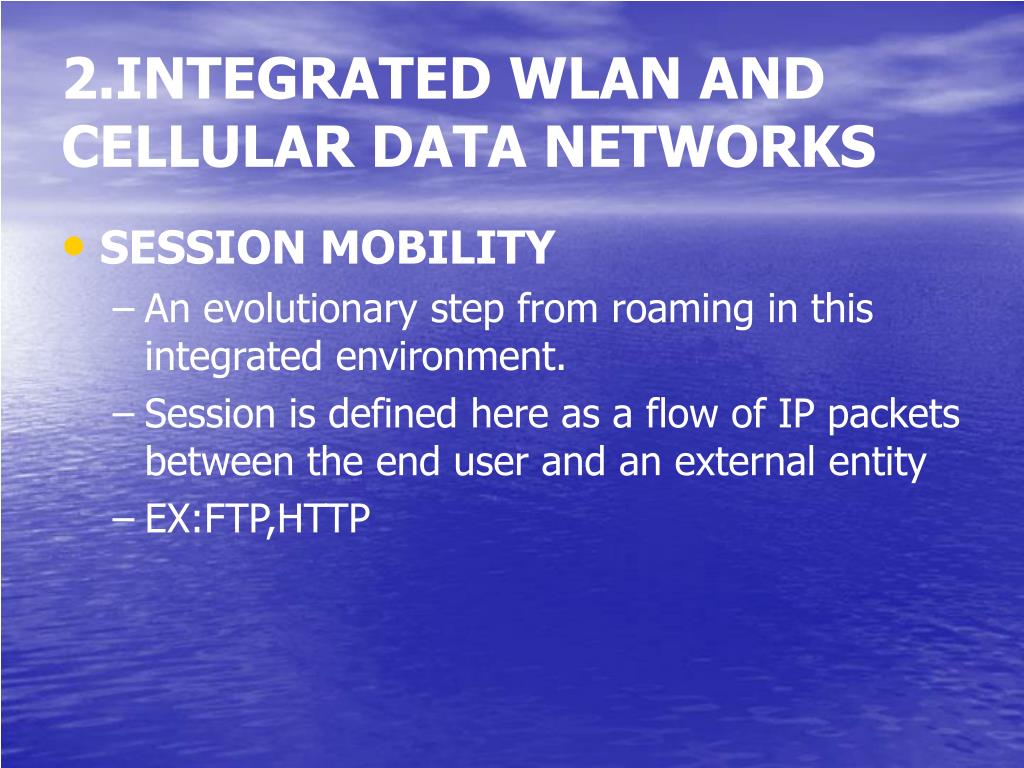

  8. 2.INTEGRATED WLAN ANDCELLULAR DATA NETWORKS • SESSION MOBILITY • An evolutionary step from roaming in this integrated environment. • Session is defined here as a flow of IP packets between the end user and an external entity • EX:FTP,HTTP

  9. 2.INTEGRATED WLAN ANDCELLULAR DATA NETWORKS • ENHANCED MOBILE APPLICATIONS • The possibility of cellular customers being connected to two different access networks, a number of enhanced applications can be enabled. • take advantage of the fact that the end user is always connected through a low-speed cellular network and sometimes connected through a high-speed WLAN. • EX: a mobile email application that schedules the delivery of large files when the mobile is connected to the WLAN network, and delivers only synopses of emails when the mobile is connected to the GPRS network.

  10. 3.INTERWORKING ARCHITECTURES • loose coupling and tight coupling

  11. 4.CURRENT STANDARDIZATION ACTIVITIES • Common billing and customer care • 3GPP system-based access control and charging • Access to 3GPP GPRS-based services • Service continuity • Seamless services • Access to 3GPP

  12. 5.A TIGHT COUPLING ARCHITECTURE • Tight coupling architecture provides a novel solution for interworking between 802.11 WLANs and GPRS • Seamless service continuation across WLAN and GPRS • Reuse of GPRS AAA. • Reuse of GPRS infrastructure • Support of lawful interception for WLAN subscribers • Increased security • Common provisioning and customer care • Access to core GPRS services

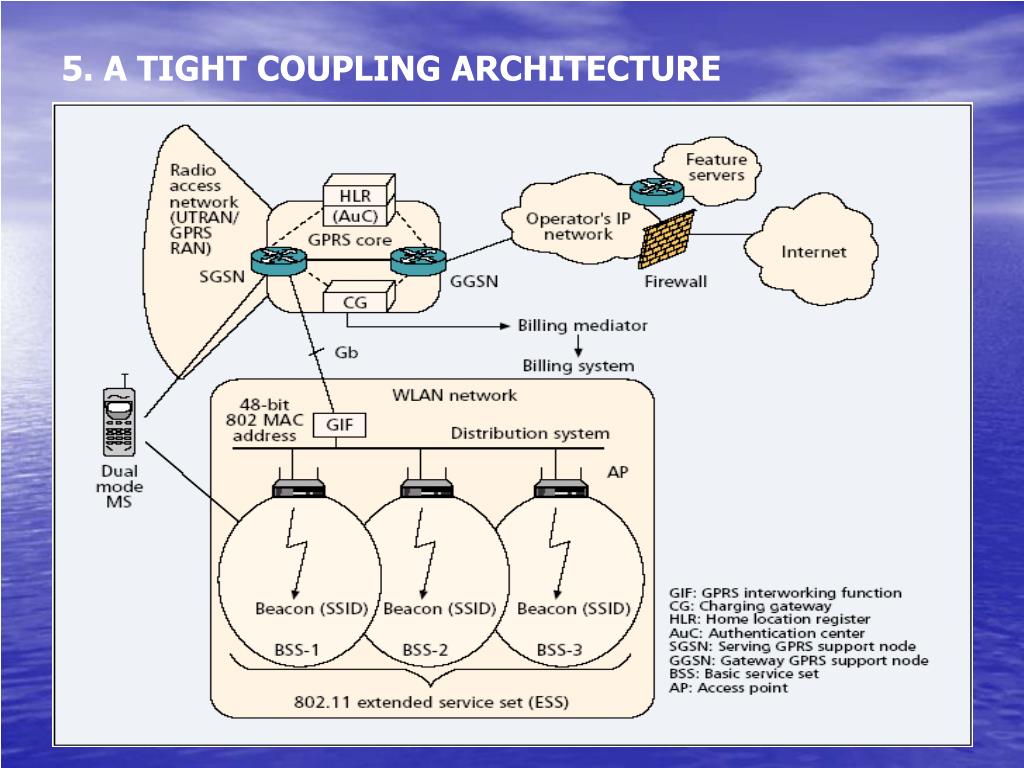

  13. 5. A TIGHT COUPLING ARCHITECTURE

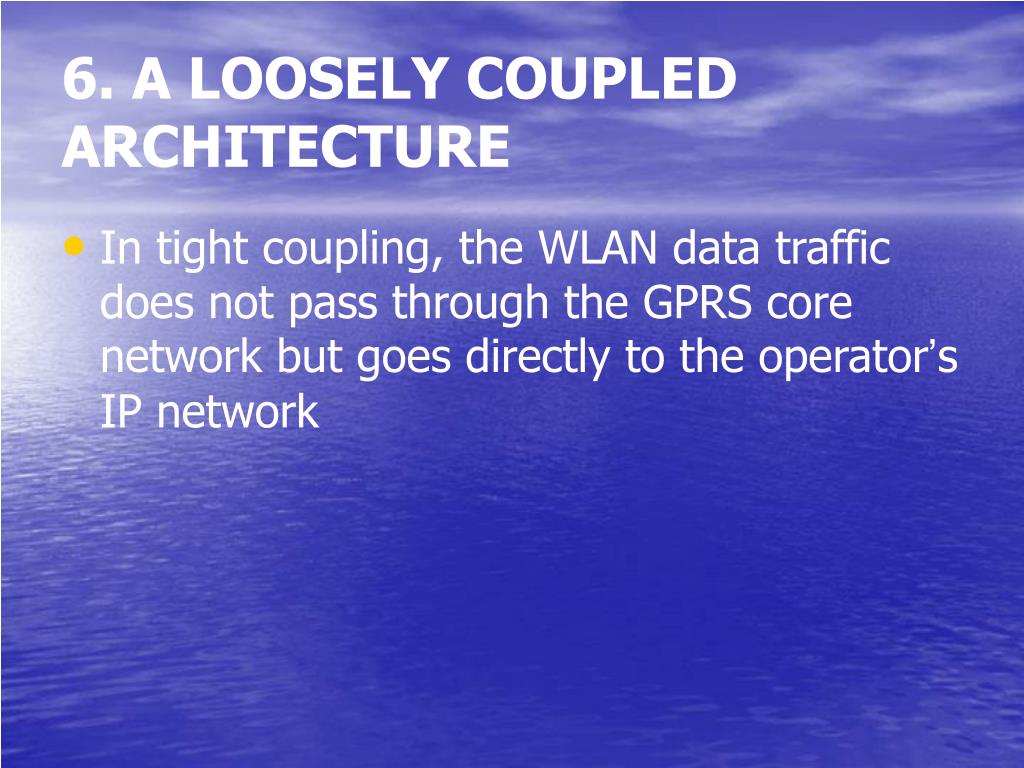

  14. 6. A LOOSELY COUPLED ARCHITECTURE • In tight coupling, the WLAN data traffic does not pass through the GPRS core network but goes directly to the operator’s IP network

  15. 6. A LOOSELY COUPLED ARCHITECTURE

  16. 6. A LOOSELY COUPLED ARCHITECTURE • AUTHENTICATION • An authentication similar to GPRS may occur within the WLAN network, depending on the particular implementation. • Where the GPRS operator owns the WLAN • the operator will reuse SIM-based authentication (within the WLAN environment. • for a subscriber to access services provided by a GPRS operator over any WLAN access network, regardless of whether the WLAN is owned by a GPRS operator, (U)SIM-based authentication may be used.

  17. 6. A LOOSELY COUPLED ARCHITECTURE • ENCRYPTION • A commonly believed weakness of the 802.11 WLAN standard is in its encryption technology. • Wired Equivalent Privacy (WEP) has been shown to be a relatively inefficient encryption scheme, if used as is as the only form of encryption. • With the use of EAP, WEP may be enhanced by the use of a unique session key for each user of the WLAN.

  18. 6. A LOOSELY COUPLED ARCHITECTURE • BILLING • Integrated billing is achieved via the billing mediator function in the loosely coupled architecture of Fig.8 • SESSION MOBILITY • Mobile IP (MIP) can be used to provide session mobility across GPRS and WLAN domains. The MIP framework consists of a MIP client (the MS), a foreign agent (FA), and a home agent(HA).

  19. CONCLUDING REMARKS

  20. CONCLUDING REMARKS

  21. CONCLUDING REMARKS
