  1. Presentation file

  2. Basic information • Pet name : e-STUDIO477S/527S • Print speed： • 47/52 ppm(A4)/ 49/55ppm (Letter) • Main features • Toshiba’s first A4/Letter monochrome e-BRIDGEmodel • Latest e-BRIDGE controller • StandardRADF • Finisher and LCF are available • Same system software as A3 e-BRIDGEmodels • Printer-likeeasy maintenance • Various media capability

  3. Product Concept

  4. Product concept • Easy-to-use • Easy to understand user interface same as other e-STUDIO series • Easy management • Ready for e-BRIDGE Open Platform • Compact • Compact body size with high speed 52/55 ppm printing • Inner finisher which is no need extra footprint • Environmental Friendly • Environmental friendly design Note) In this presentation, “e-STUDIO” means latest e-STUDIO series equipped with e-BRIDGE controller

  5. Product concept • Easy-to-use • Same user interface as e-STUDIO models Common user interface avoids confusion from customers’operation. • TilitableControl Panel with 9” color LCD touch screen • Universal printer driver in common with e-STUDIO models • Easy management Easy management features reduces operation cost of both dealers and administrators. • Replacing consumables including PM parts do not requirescrewdriver • EFMSsupport e-STUDIO527S series,allows customers to managethe many e-STUDIOdevices easy

  6. Product concept • Easy-to-use • Ready for e-BRIDGEOpen Platform Customer can easily use e-BRIDGEsolutions without confusion by same operability with other e-STUDIO models • Sales reps can offer solutionsto customer, even ifA4 and A3models are mixed • User can enjoy solution with same operability between A4 and A3e-STUDIOs

  7. Product concept • Compact • Compact body size e-STUDIO527S series offers customer to select installation space flexibly.Even customer who has narrow installation space can experience high speed color printing and scanning. • Inner finisher e-STUDIO527S series can equipinner finisher despite A4 device.Thanks to this, user can streamline finishing work without extra footprint. • Offline stapler e-STUDIO527S series can be embedded the Offline stapler.User can automatically staple the documents without operating device.

  8. Product concept • Environmentalfriendly • Environmental friendly design e-STUDIO527S series has many environmental friendly feature, contributes customer’s environmental activities. • Reducing TEC value thanks to super sleep mode with 1.5Wpower consumption • Mono component development system doesn’t require developer material, so replacing and disposing of developer material is not required • Compliant with environmental standard such as ENERGYSTAR • Eliminating / Reducing the harmful substancessuch as lead and mercury.

  9. Target customer • What kind of customer does it suit? The e-STUDIO527S series is A4/Letter MFP but powerful and high performance, and latest e-BRIDGE controller provides full e-BRIDGE function same as A3/LD e-STUDIO models. Customers can enjoy same operability and functionality even if A3 and A4 devices are mixed in their office. So various customers are target. For example; • MPS/MDS requirement • No demand of A3/Ledger printing/scanning • Shop with narrow installation space • Workflow/Solution system requirement

  10. Target Customer • MDS/MPS Many customers require both A3and A4device in MPS/MDSsolution. e-STUDIO527S seriesallows sales reps to offer flexible MDS/MPSproposal to customer. • Seamless operability between A4 and A3 e-STUDIOs • Same userinterfaceof both control panel and printer driver • Same solution can be installed with same operability • Easy management/maintenance • Printer like easy maintenance reduces service cost • Administrator can manage both A3 and A4e-STUDIOssimultaneously by using e-BRIDGEFleet Management System

  11. Target Customer • No demand of A3/Ledger printing/scanning In recent years, the companies which do not use A3/Ledger paper are increasing. Some of themrequirehigh performance and/orfull functionalitysimilar to A3 MFP. • 47/52ppmprinting speed (A4) / 49/55ppmprinting speed(LT) • 52spm B/W and up to 40spm color scanning speed (A4) • 55spm B/W and up to 40spm color scanning speed (LT) • High paper capacity reducesfrequently ofpaper replenishing • Universal printer driver with plug-in solutions improve reduce labor hour for print work • Variousprint/scan/copy/fax functions increase their workefficiency • e-BRIDGEOpen Platformallows to integrate customer’sworkflow system

  12. Target Customer • Shop with narrow installation space Many shops are installinga printer or MFP but their installation space is narrow.Hence, they bear to install a high functionality device, even if they require it. • Easy-to-use control panel with 9” color LCD touch screen • Inner finisher can be installed without additional footprint • Various paper media can be printed • Up to 1,321mm/52”long sized paper • Envelope, Post card • Thick paper up to 250g/m2/ 140lb. Index • Print from / Scanto USB thumbdriveare available without PC

  13. Target Customer • Workflow/Solution system requirement Many customers are requiring MFP not only for input/output device but also for improving their workflow. Although the e-BRIDGE Open Platform allows to integrate e-STUDIO in many applications/workflows, e-STUDIO527S series offersit to customer who requests A4/Letter MFP. • Fully compatible e-BRIDGEOpen Platform • Same operability as other e-STUDIOs • Customer can choose the device which suited their environment. • Sales reps can offer solution products to customer who has only narrow space

  14. Competitor Models XXXX (##) : ModelName (Print Speed) Notes) * These are North America models.

  15. Product overview

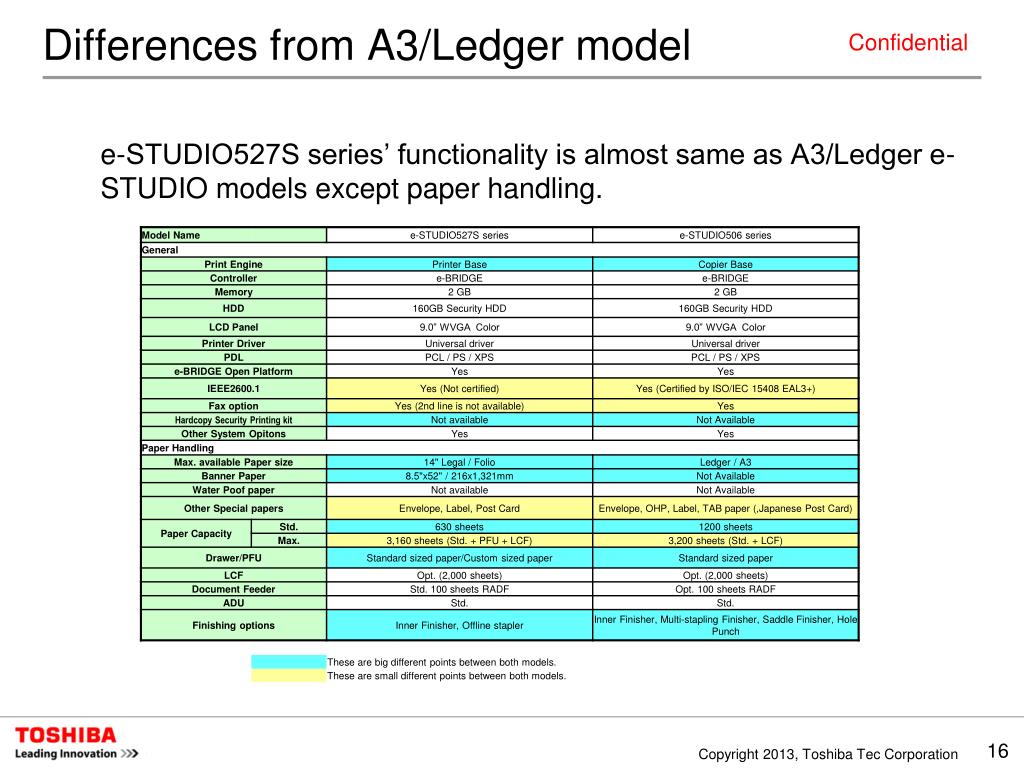

  16. Differences from A3/Ledger model e-STUDIO527S series’ functionality is almost same as A3/Ledger e-STUDIO models except paper handling.

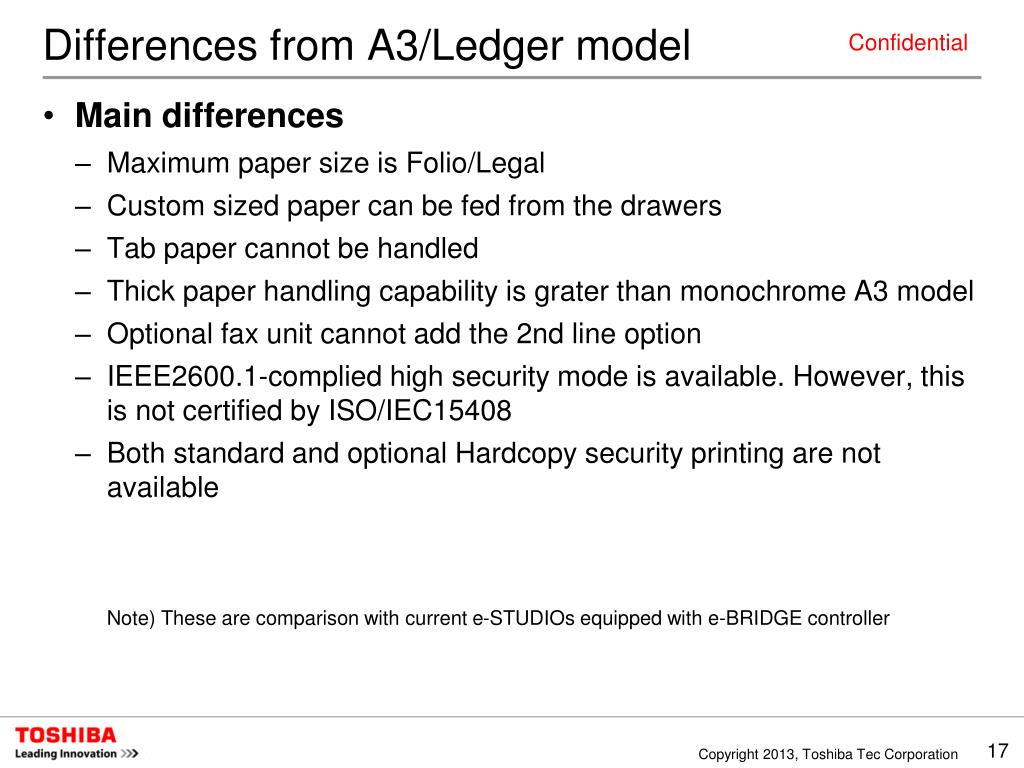

  17. Differences from A3/Ledger model • Main differences • Maximum paper size is Folio/Legal • Custom sized paper can be fed from the drawers • Tab paper cannot be handled • Thick paper handling capability is grater than monochrome A3 model • Optional fax unit cannot add the 2nd line option • IEEE2600.1-complied high security mode is available. However, this is not certified by ISO/IEC15408 • Both standard and optional Hardcopy security printing are not available Note) These are comparison with current e-STUDIOs equipped with e-BRIDGE controller

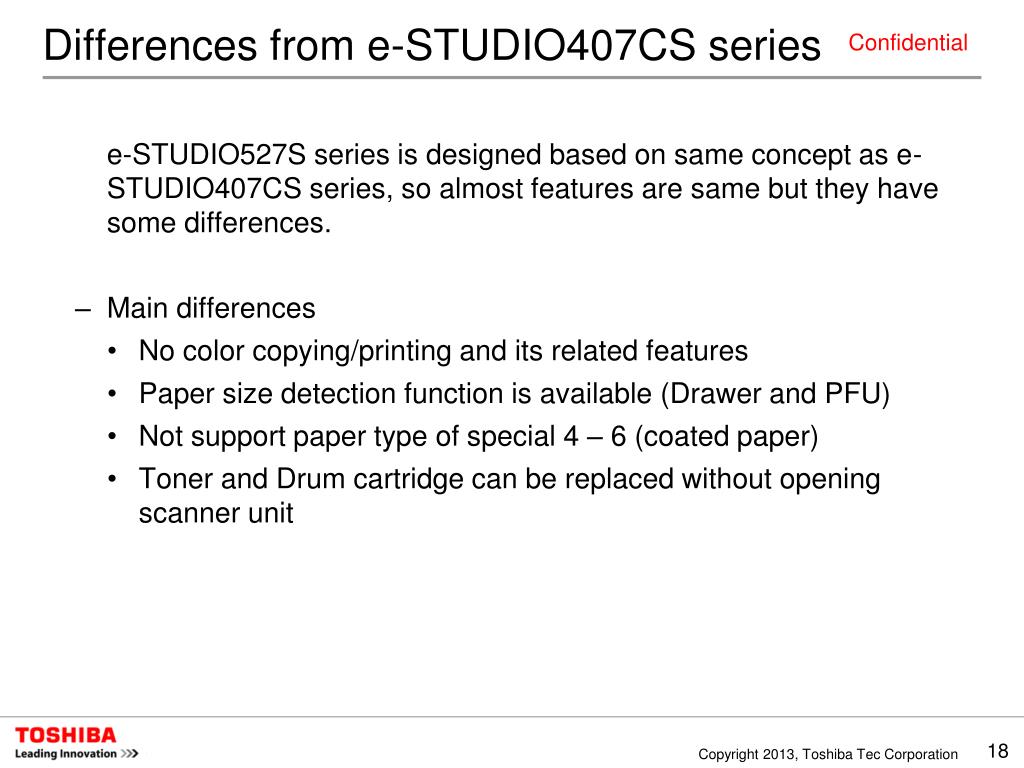

  18. Differences from e-STUDIO407CS series e-STUDIO527S series is designed based on same concept as e-STUDIO407CS series, so almost features are same but they have some differences. • Main differences • No color copying/printing and its related features • Paper size detection function is available (Drawer and PFU) • Not support paper type of special 4 – 6 (coated paper) • Toner and Drum cartridge can be replaced without opening scanner unit

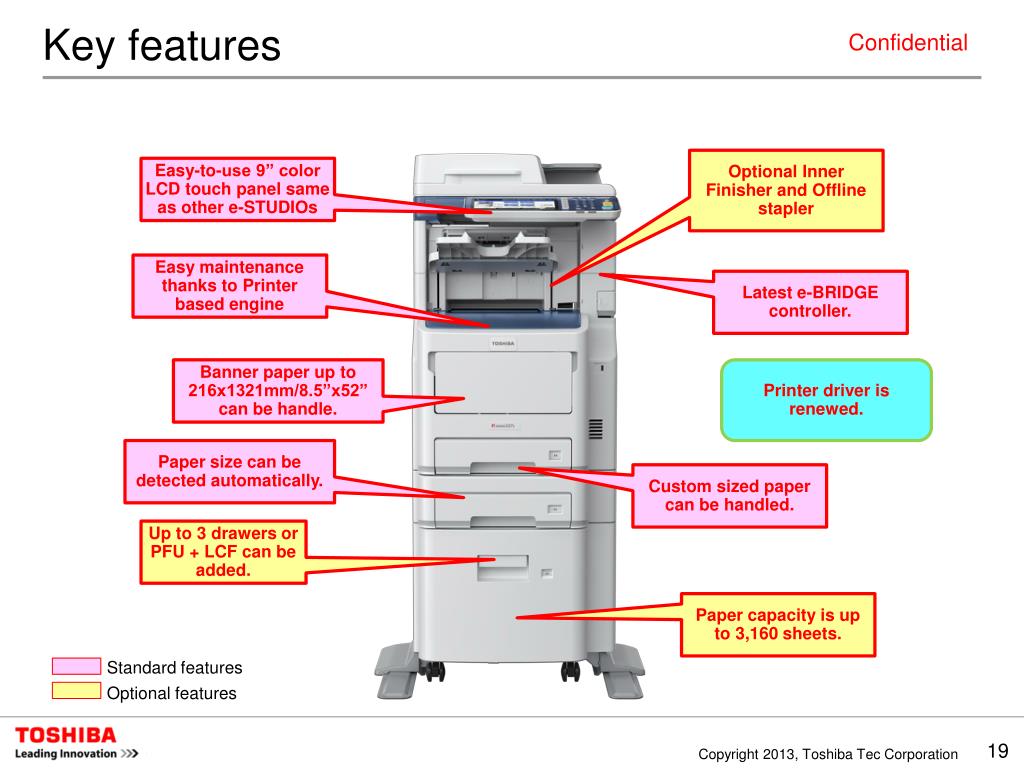

  19. Key features Standard features Optional features Optional Inner Finisher and Offline stapler Easy-to-use 9” color LCD touch panel same as other e-STUDIOs Easy maintenance thanks to Printer based engine Latest e-BRIDGE controller. Banner paper up to 216x1321mm/8.5”x52” can be handle. Printer driver is renewed. Paper size can be detected automatically. Custom sized paper can be handled. Up to 3 drawers or PFU+ LCF can be added. Paper capacity is up to 3,160 sheets.

  20. New printer driver • Renewed “Finishing” tab • The check boxes of the duplex, Nin1and staple are removed. This change reduces setting steps. Current e-STUDIO527S series

  21. Control Panel • Easy-to-use Control Panel Control Panel is almost same as other e-STUDIO series. • 9” color LCD touch panel • Same hardware keys • Same user interface • Tilting from 7 degree to 40 degrees (In the e-STUDIO506 series, it tilts from 7 to 84 degrees.)

  22. Finishing options • Inner Finisher MJ-1038 • Additional footprint is not required • Up to 500 sheets can be stacked • Up to 50 sheets can be stapled • Up to Legal/Folio size can be stapled • Staple position is fixed • Hole punching is not available • Offline Stapler MJ-1039 • Embedded type automatic stapler • Up 20 sheets can be stapled • Staple position is fixed *When Inner Finisher is installed, the angle of control panel is fixed at 7 degrees. (When Inner Finisher is not installed, control panel is tilted from 7 to 40 degrees.) Single Position Stapling Finisher Embedded type Offline Stapler

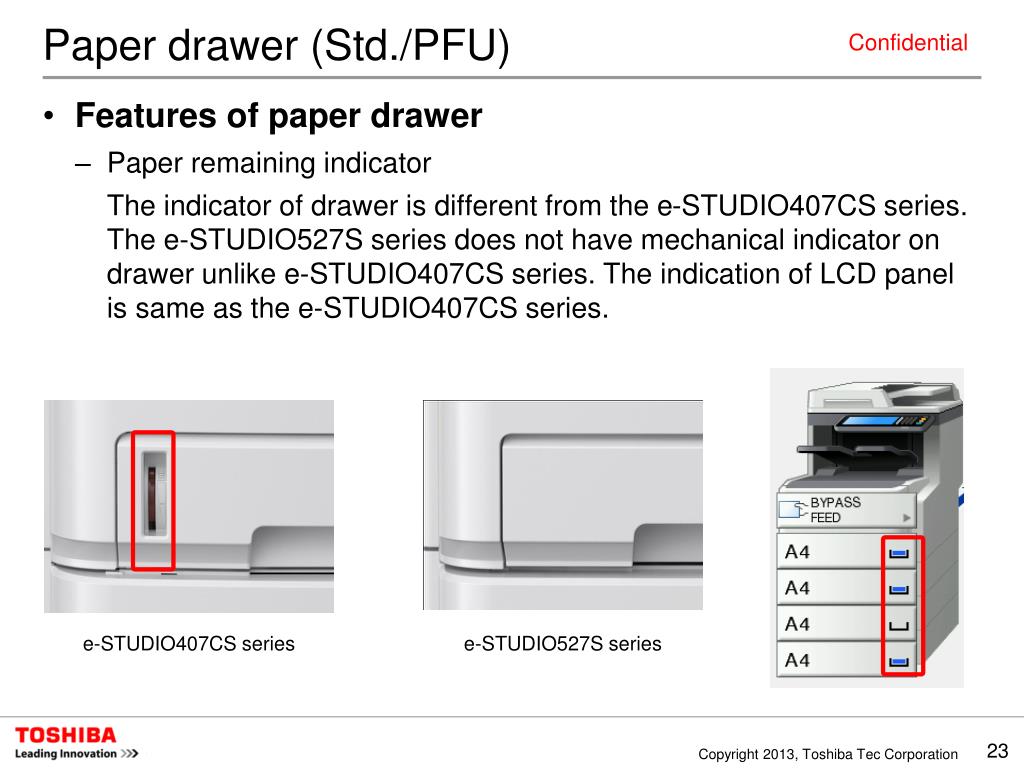

  23. Paper drawer (Std./PFU) • Features of paper drawer • Paper remaining indicator The indicator of drawer is different from the e-STUDIO407CS series. The e-STUDIO527S series does not have mechanicalindicator on drawer unlike e-STUDIO407CS series. The indication of LCDpanel is same as the e-STUDIO407CS series. e-STUDIO407CS series e-STUDIO527S series

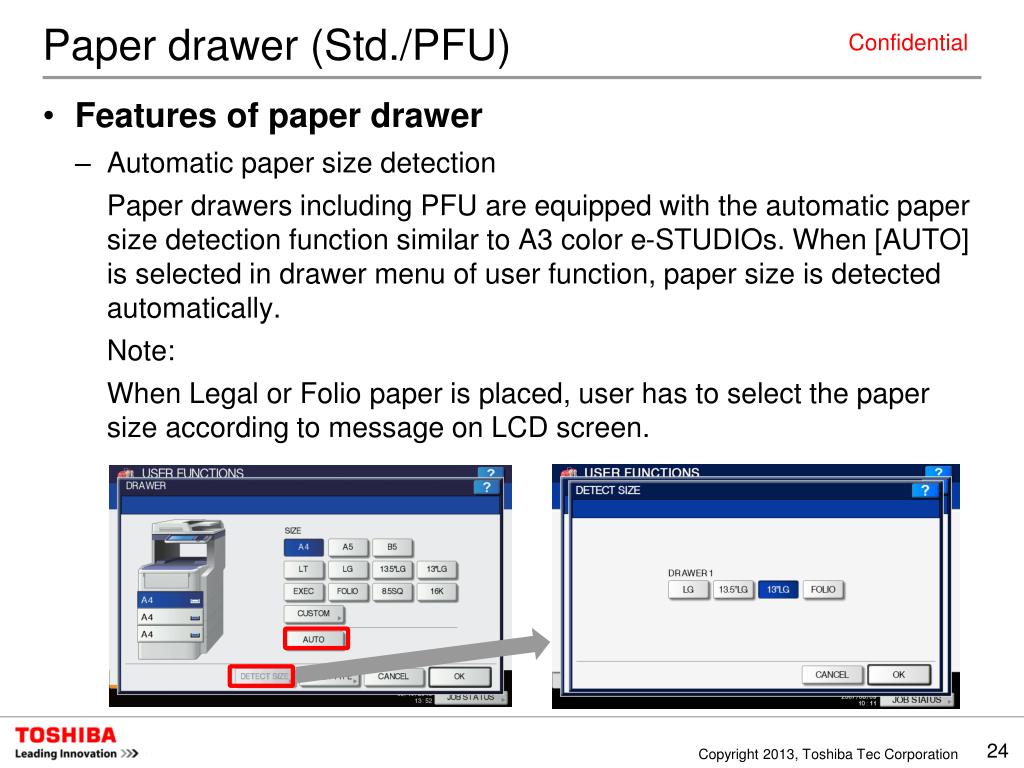

  24. Paper drawer (Std./PFU) • Features of paper drawer • Automatic paper size detection Paper drawers including PFU are equipped with the automatic paper size detection function similar to A3 color e-STUDIOs. When [AUTO] is selected in drawer menu of user function, paper size is detected automatically. Note: When Legal or Folio paper is placed, user has to select the paper size according to message on LCD screen.

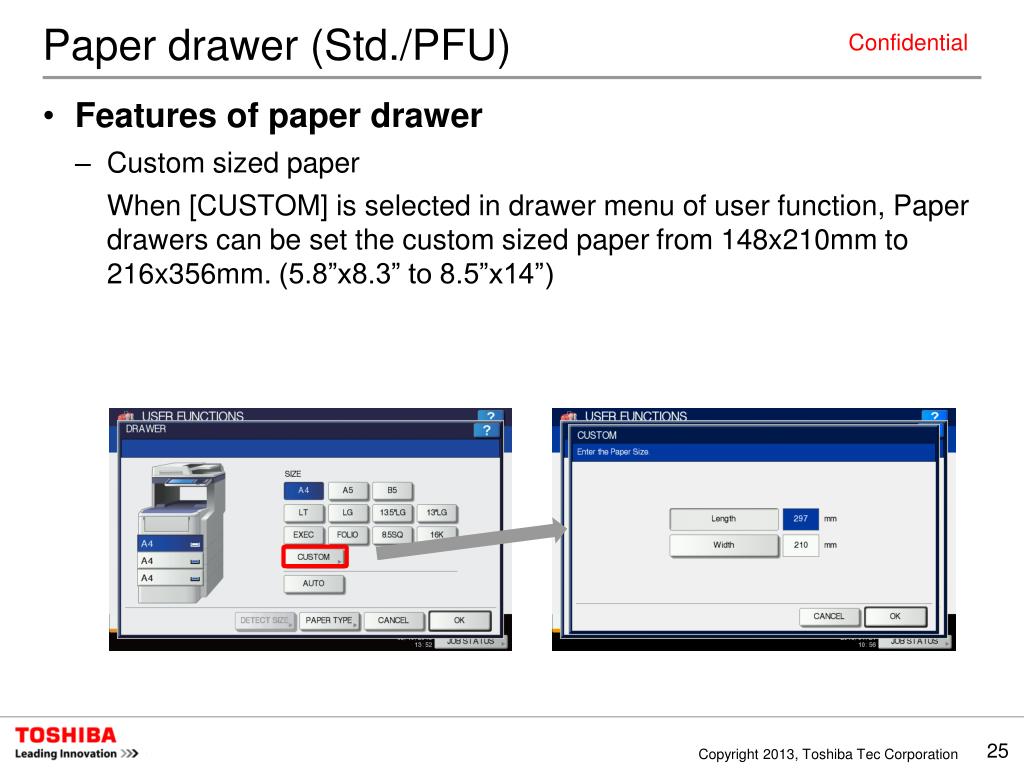

  25. Paper drawer (Std./PFU) • Features of paper drawer • Customsized paper When [CUSTOM] is selected in drawer menu of user function, Paper drawers can be set the custom sized paperfrom 148x210mm to 216x356mm.(5.8”x8.3”to 8.5”x14”)

  26. Paper handling • Various paper handling The e-STUDIO527S series handles wide range of paper media. • Various kinds of paper • Envelopes • Index card/Postcard • Label • Wide range of paper size and weight • Up to 220gsm/120lb. Index paper can be set to drawers/LCF • Up to 250gsm/140lb. Index paper can be set to bypass tray • Custom sized paper from 148x210mm to 216x356mm/5.8”x8.3”to 8.5”x14”can be set to drawers • Custom sized paper up to 216x1,321mm/8.5”x52”paper can be fed from bypass tray

  27. Acceptable Paper

  28. Easy maintenance • ERU Level The e-STUDIO527S series is made by printer based engine and therefore serviceability is easy like a printer. It reduces downtime and service cost. ERU level is equivalent 4. Note) “ERU (Easy Replacement Unit) Level” is TTEC standard which defined the operability level of unit replacement.

  29. Easy maintenance • Consumable parts The kind of supply and consumable parts are difference from A3 e-STUDIO models. • Consumable parts can be replaced by user without any tools. • The waste toner on the drum is collected in the waste toner area in toner cartridge, so waste toner box is unnecessary. • Thisseries adoptmono component developing methodwhich does not require developer material, thenits replacement is not required.

  30. Easy maintenance • Life of suppliesand consumables • Sales life is official lifeof supplies and consumables. • Life of supplies/consumables except toner is extended to actual life. • Warning message of replacing supplies/consumablesappearswhen its life became actual life. • After the actual life, user can continue to use toner until maximum life by switching off/on or opening/closing cover.

  31. Easy maintenance • Replacing supplies and consumables • Toner and Drum cartridge can be replaced by opening front cover. Not required opening the scanner unit. • For replacing Fuser unit and Transfer roller, user has to open scanner unit. Toner / Drum cartridge Fuser unit / Transfer roller

  32. Print / Scanadjustment functions • Print image adjustment functions The e-STUDIO527S series’have Print and Scan adjustment functions unlike other monochrome e-STUDIOseries.

  33. Print adjustment functions • Print Adjustment [Print Adjustment] has the following adjustment functions. • Density Adjustment • Curl Decrease • Scatter/Blur • Print Quality • Drum Cleaning • Quiet Mode • Finishing Adjustment

  34. Print adjustment functions • Density adjustment This function adjusts the density.

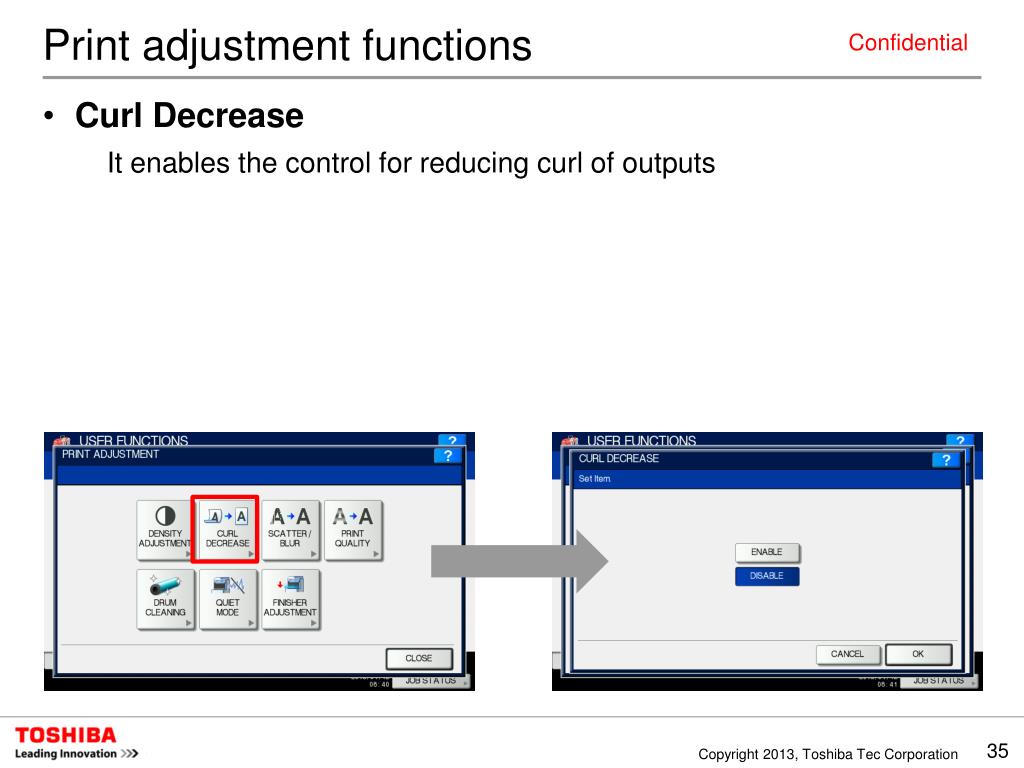

  35. Print adjustment functions • Curl Decrease It enables the control for reducing curl of outputs

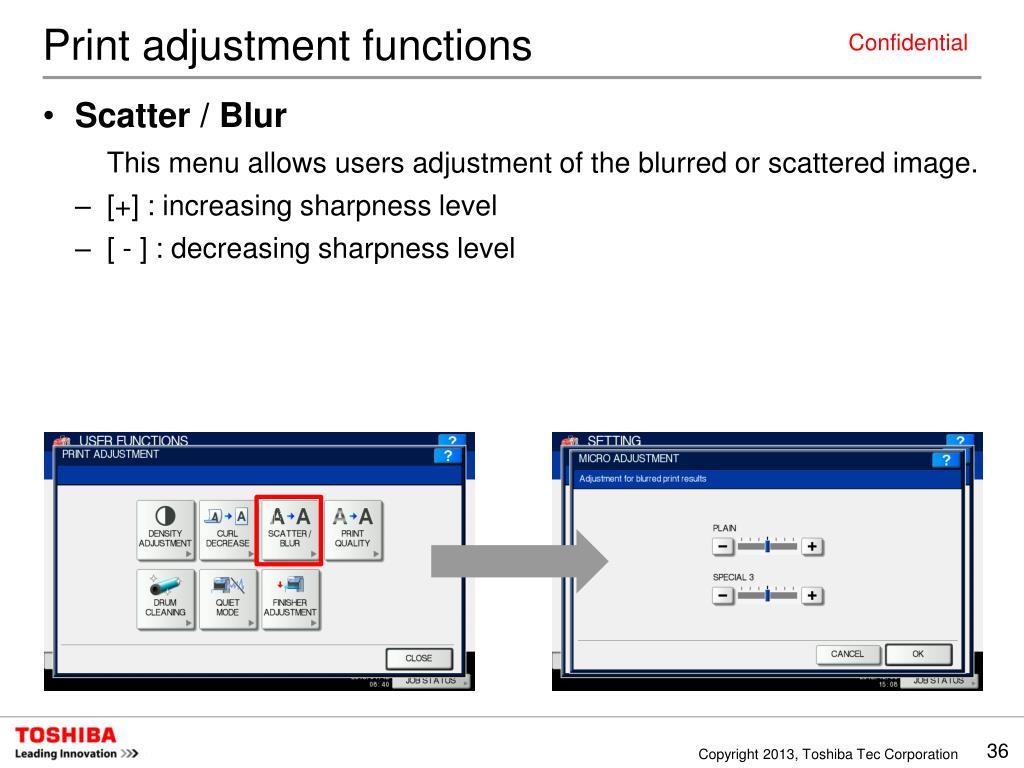

  36. Print adjustment functions • Scatter / Blur This menu allows users adjustment of the blurred or scattered image. • [+]: increasing sharpness level • [ - ]: decreasing sharpnesslevel

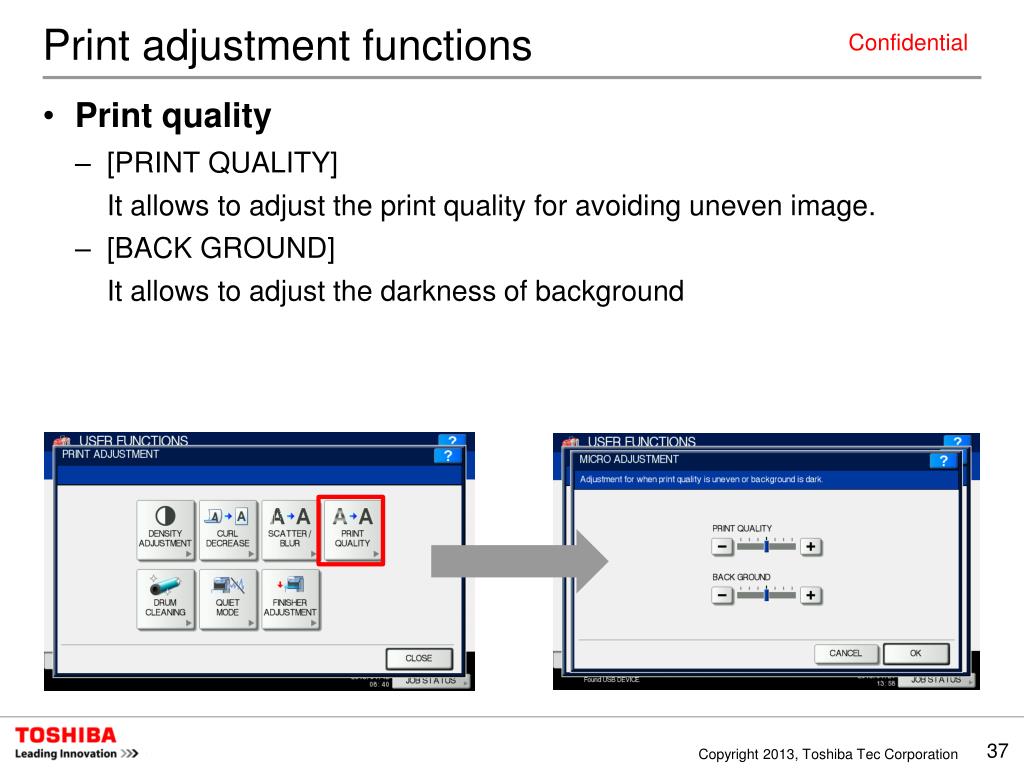

  37. Print adjustment functions • Print quality • [PRINT QUALITY] It allows to adjust the print quality for avoiding uneven image. • [BACK GROUND] It allows to adjust the darkness of background

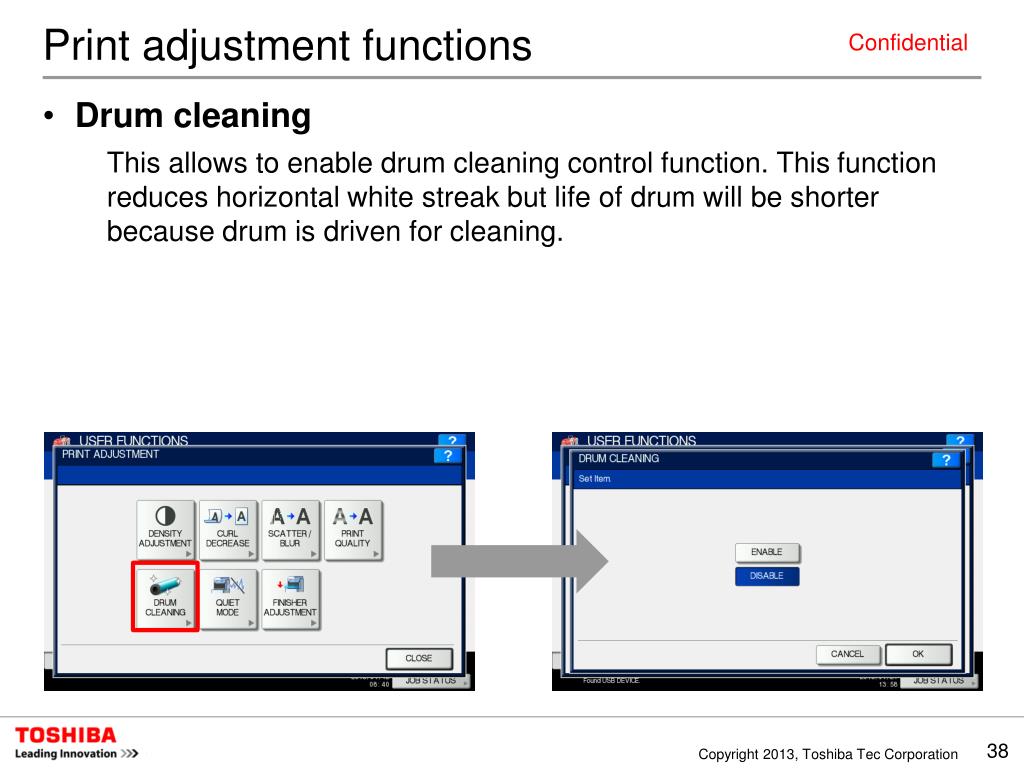

  38. Print adjustment functions • Drum cleaning This allows to enable drum cleaning control function. Thisfunction reduces horizontal white streak but life of drum will be shorter because drum is driven for cleaning.

  39. Print adjustment functions • Quiet Mode Thisfunction reduces acoustic noiseduring printingbut print speed will become lower.

  40. Print adjustment functions • Finisher Adjustment This function improves the alignment of printouts when outputs are felled from finishing tray.

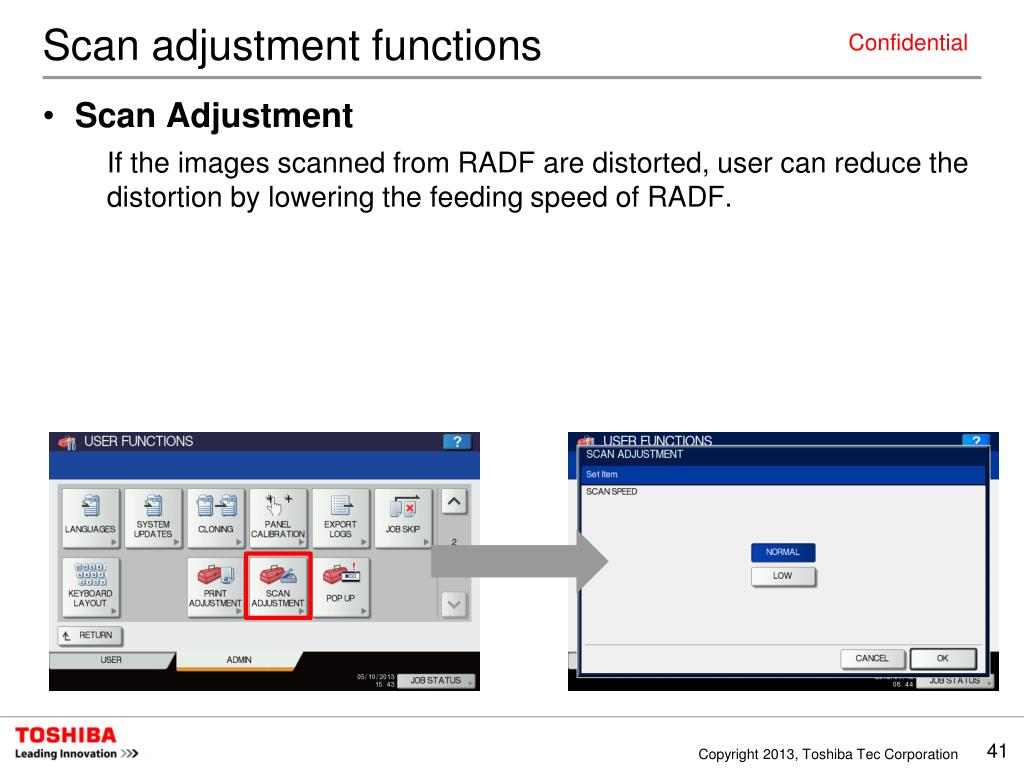

  41. Scan adjustment functions • Scan Adjustment If the images scanned from RADF are distorted, user can reduce the distortion by lowering the feedingspeed of RADF.

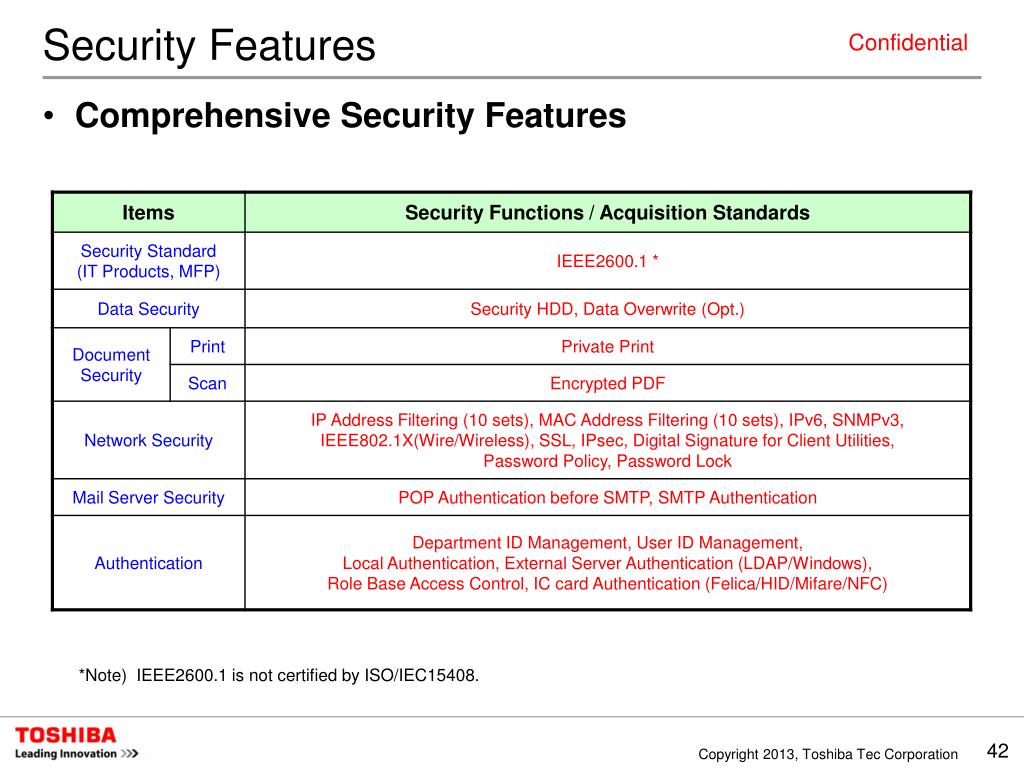

  42. Security Features • Comprehensive Security Features *Note) IEEE2600.1 is not certified by ISO/IEC15408.

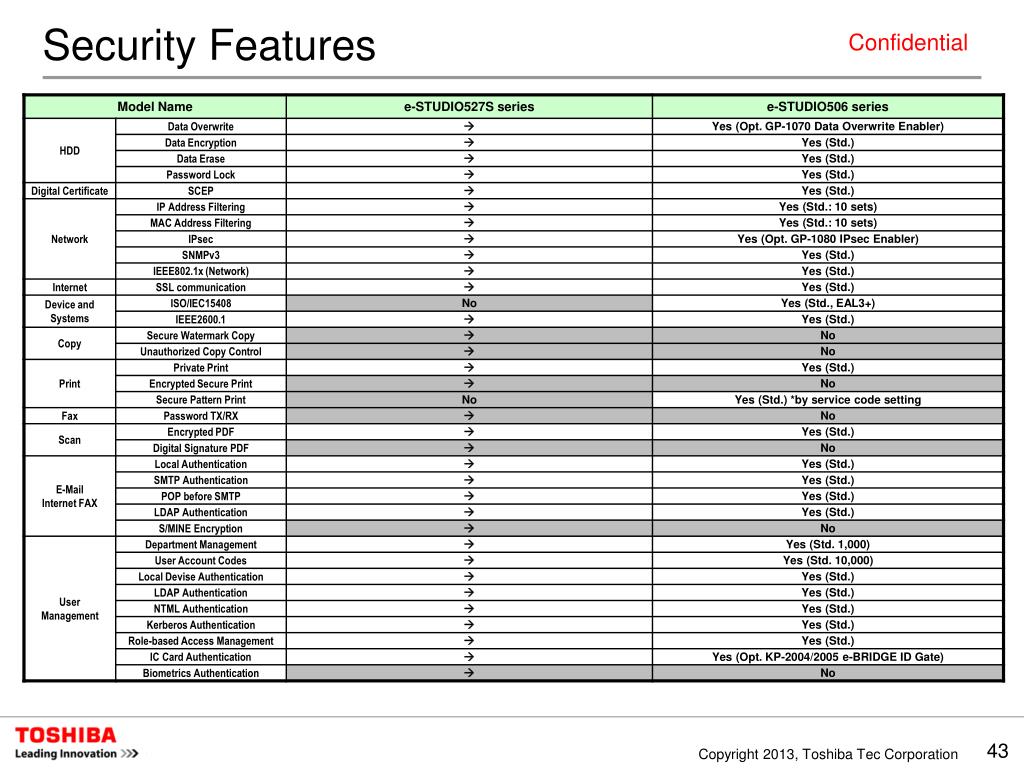

  43. Security Features

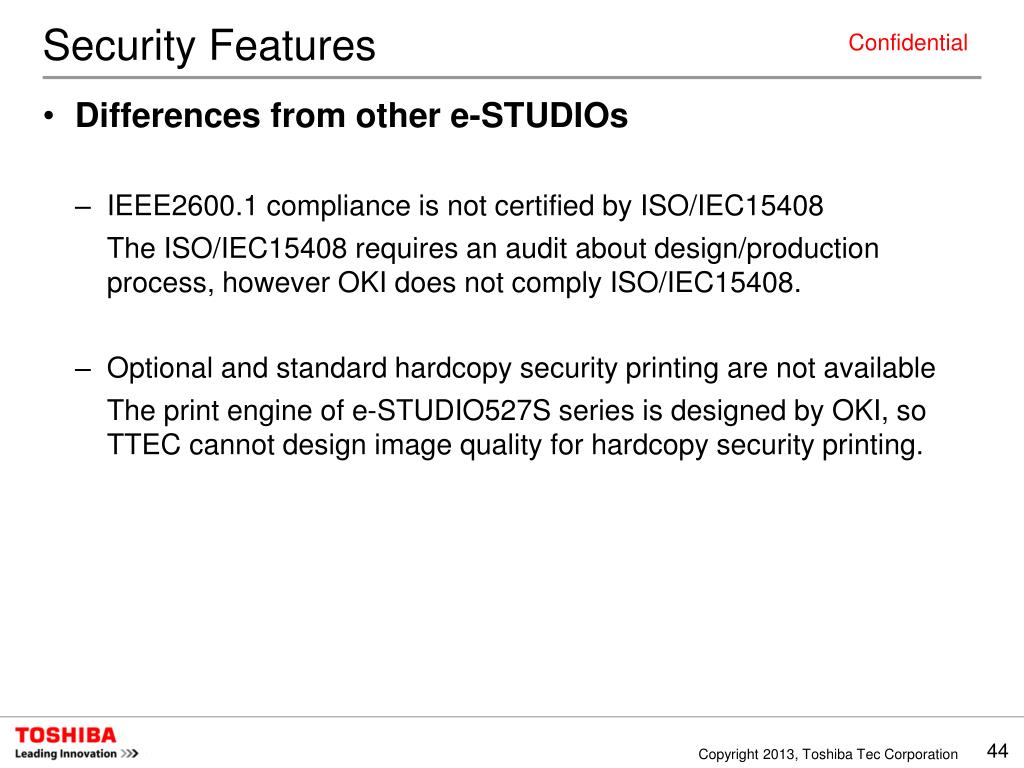

  44. Security Features • Differences from other e-STUDIOs • IEEE2600.1 compliance is not certified by ISO/IEC15408 The ISO/IEC15408 requires an audit about design/production process, however OKI does not comply ISO/IEC15408. • Optional and standard hardcopy security printing are not available The print engine of e-STUDIO527S series is designed by OKI, so TTEC cannot design image quality for hardcopy security printing.

  45. Environmental Features • Environmental Standards/Labels (Extract) • Standards in an acceptable level (Un-acquired) • Nordic Swan (Nordic countries; Sweden, Norway, Finland, Denmark, Iceland), • Canadian ECP (Canada) Note) Environmental standards/labels of not selling area are not acquired.

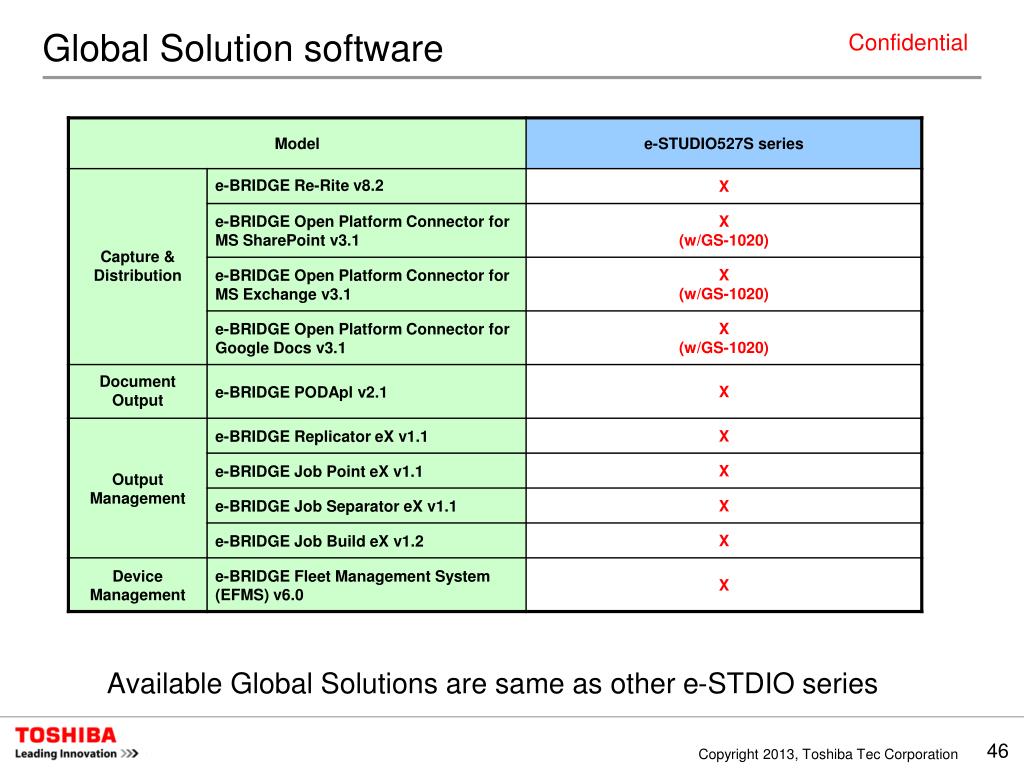

  46. Global Solution software Available Global Solutions are same as other e-STDIO series

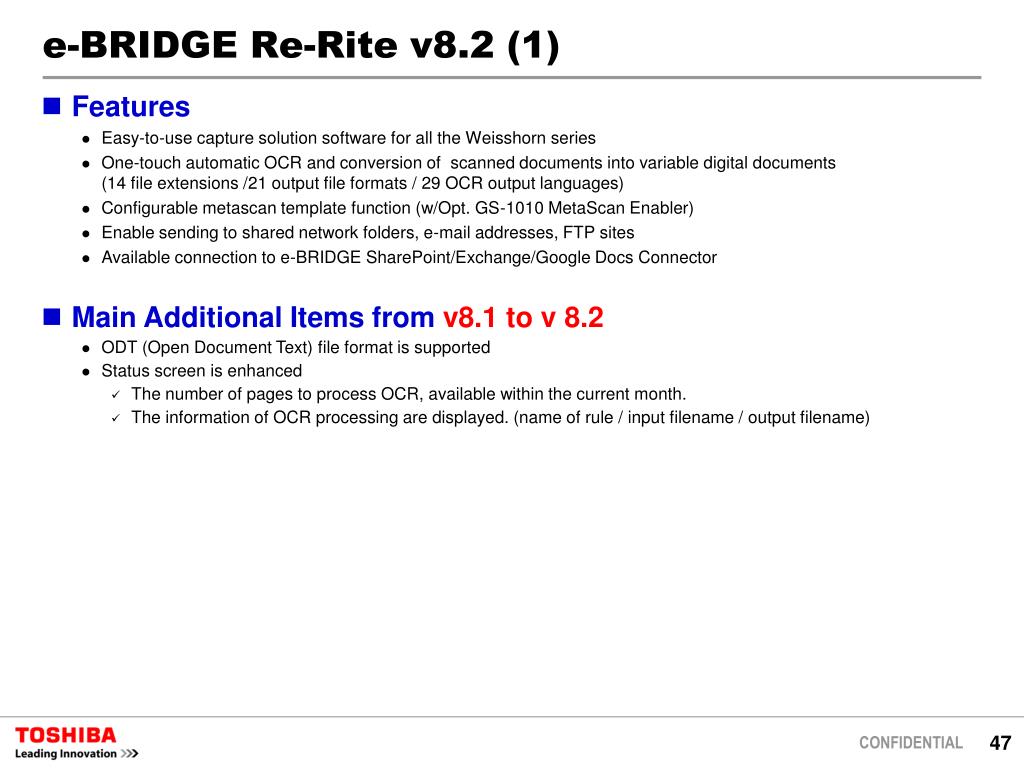

  47. e-BRIDGE Re-Rite v8.2 (1) • Features • Easy-to-use capture solution software for all the Weisshorn series • One-touch automatic OCR and conversion of scanned documents into variable digital documents (14 file extensions /21 output file formats/ 29 OCR output languages) • Configurable metascan template function (w/Opt. GS-1010 MetaScan Enabler) • Enable sending to shared network folders, e-mail addresses, FTP sites • Available connection to e-BRIDGE SharePoint/Exchange/Google Docs Connector • Main Additional Items from v8.1 to v 8.2 • ODT (Open Document Text) file format is supported • Status screen is enhanced • The number of pages to process OCR, available within the current month. • The information of OCR processing are displayed. (name of rule / input filename / output filename)

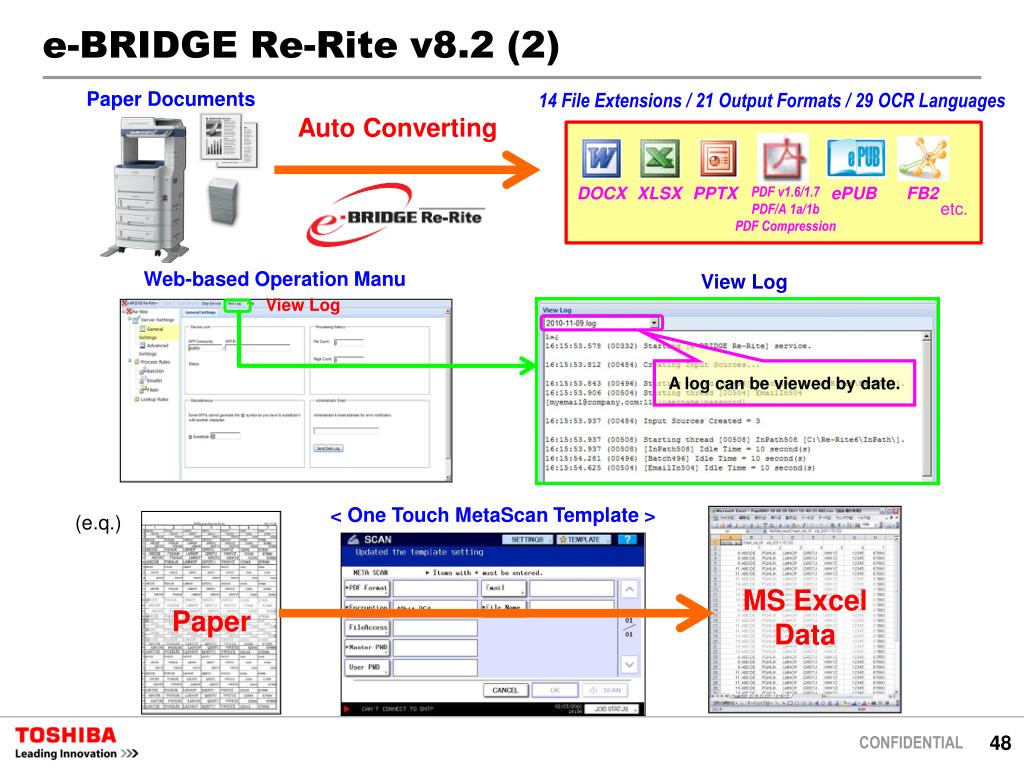

  48. e-BRIDGE Re-Rite v8.2 (2) Paper Documents 14 File Extensions / 21 Output Formats / 29 OCR Languages Auto Converting DOCX XLSX PPTX PDF v1.6/1.7PDF/A 1a/1bPDF Compression ePUB FB2 etc. Web-based Operation Manu View Log View Log A log can be viewed by date. < One Touch MetaScan Template > (e.q.) MS Excel Data Paper

  49. e-BRIDGE Open Platform Connector for MS SharePoint/MS Exchange v3.1 (1) • Features • Simple capture solution software which performs distribution to MS SharePoint/Exchange server directly via MFP control panel • Application of the new software license agreement • Available “Rich User Interface” operation • Supports e-BRIDGE Re-Rite v7.0/v8.x • Supports metadata entry • “Rich UI” Screen Page Rotation & Deletion Scan Preview Thumbnail Gallery Page Editing(3D Display) Scan Settings(Print, Color Mode, Resolution, Original Type and File Format)

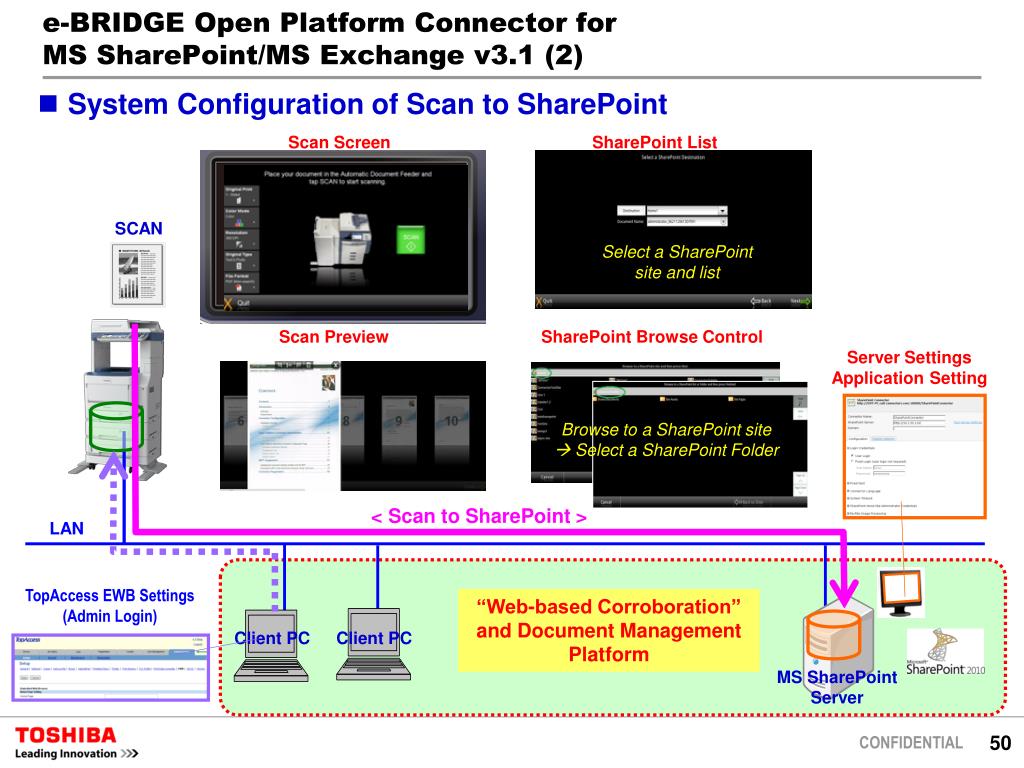

  50. e-BRIDGE Open Platform Connector for MS SharePoint/MS Exchange v3.1 (2) • System Configuration of Scan to SharePoint Scan Screen SharePoint List SCAN Select a SharePoint site and list Scan Preview SharePoint Browse Control Server SettingsApplication Setting Browse to a SharePoint site  Select a SharePoint Folder < Scan to SharePoint > LAN TopAccess EWB Settings (Admin Login) “Web-based Corroboration”and Document Management Platform Client PC Client PC MS SharePoint Server
