Review of Stacks and Queues

1. Review of Stacks and Queues Dr. Yingwu Zhu

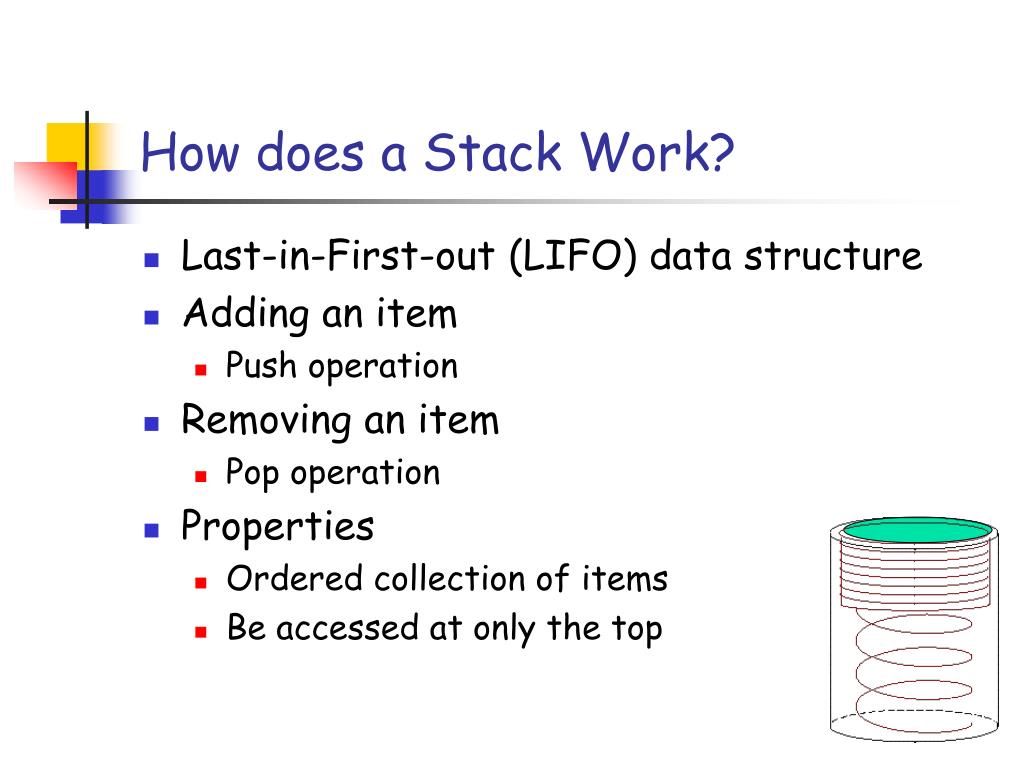

2. How does a Stack Work? • Last-in-First-out (LIFO) data structure • Adding an item • Push operation • Removing an item • Pop operation • Properties • Ordered collection of items • Be accessed at only the top

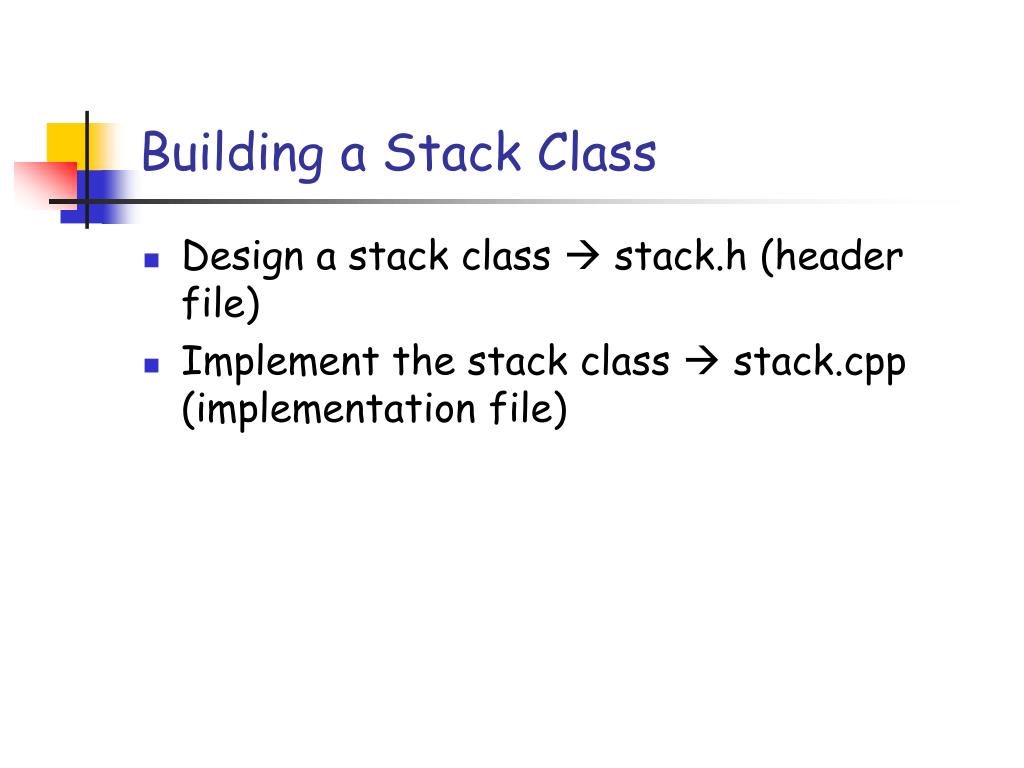

3. Building a Stack Class • Design a stack class  stack.h (header file) • Implement the stack class  stack.cpp (implementation file)

4. Building a Stack Class • Need to determine the data structure to store data items (array or linked list?) • Need to determine the algorithms to perform operations on the data items

5. Building a Stack Class • What data items do we need? • An array/linked-list to hold stack elements • An integer/pointer to indicate the top of stack • What operations do we need? • Constructor: build an empty stack • Empty: check if a stack is empty • Push: add an element on the top • Top: return the top element • Pop: remove the top element • Display: show all the stack elements

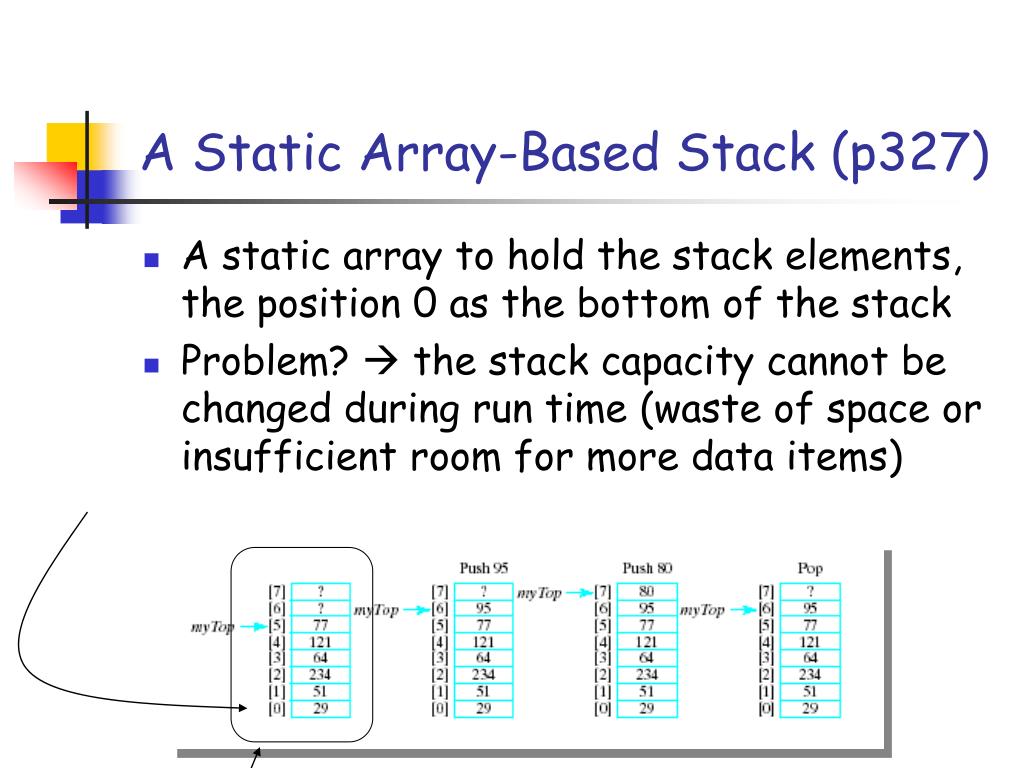

6. A Static Array-Based Stack (p327) • A static array to hold the stack elements, the position 0 as the bottom of the stack • Problem?  the stack capacity cannot be changed during run time (waste of space or insufficient room for more data items)

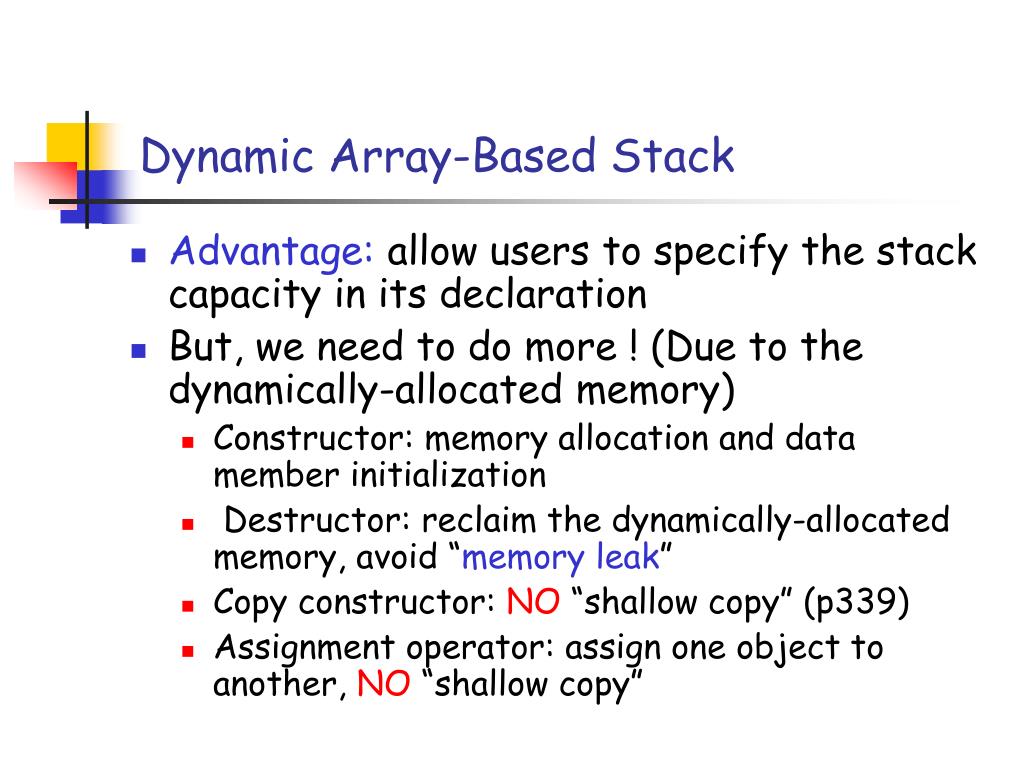

7. Dynamic Array-Based Stack • Advantage: allow users to specify the stack capacity in its declaration • But, we need to do more ! (Due to the dynamically-allocated memory) • Constructor: memory allocation and data member initialization • Destructor: reclaim the dynamically-allocated memory, avoid “memory leak” • Copy constructor: NO “shallow copy” (p339) • Assignment operator: assign one object to another, NO “shallow copy”

8. Example Codes Explanation (p336) • Figure7.6: const keyword • Destructor (p338-9, Figure 7.7) • Deallocate array allocated in constructor • Avoid memory leak problem

9. Example Codes Explanation • Copy constructor (p339) • Initialization • Passing value parameter • Return a function value • Creating a temporary storage value • Default copy constructor: member-by-member copy • Ensure deep copy

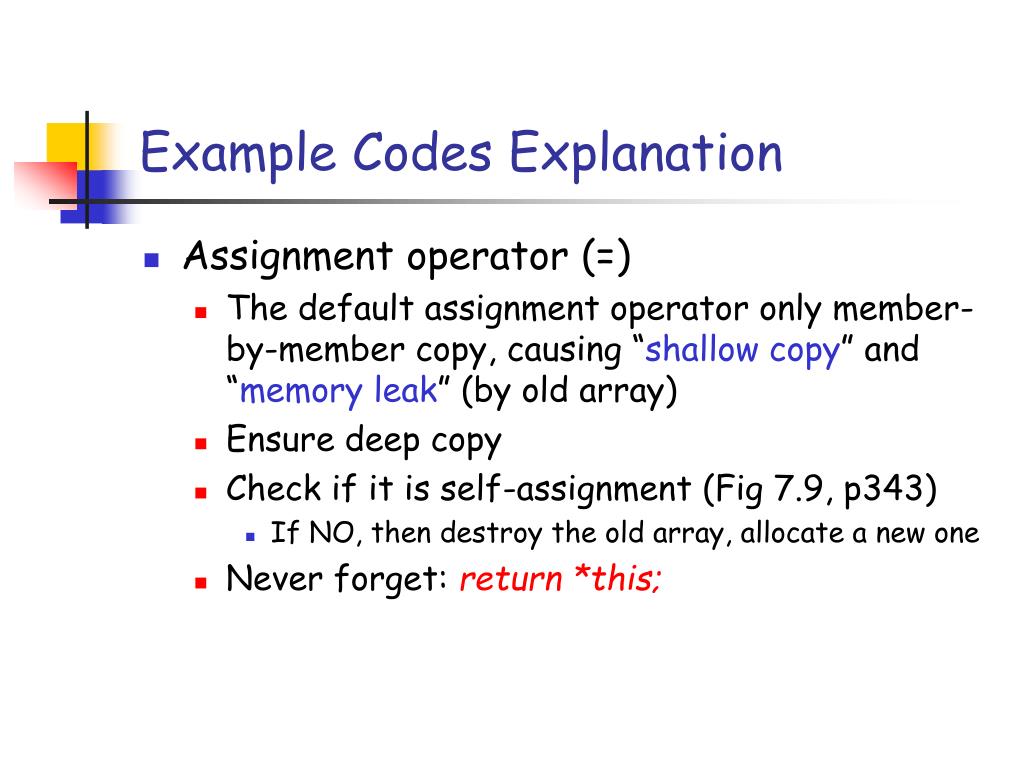

10. Example Codes Explanation • Assignment operator (=) • The default assignment operator only member-by-member copy, causing “shallow copy” and “memory leak” (by old array) • Ensure deep copy • Check if it is self-assignment (Fig 7.9, p343) • If NO, then destroy the old array, allocate a new one • Never forget: return *this;

11. Let’s do it typedef int DataType; class Stack { private: int myCapacity; int myTop; int* myArray; public: ……. };

12. Linked List-Based Stack • Advantage: grow and shrink as needed • Need only one data member: • Pointer myTop • Nodes allocated (but not part of stack class) • Node declaration inFig 7.11 (p. 353)

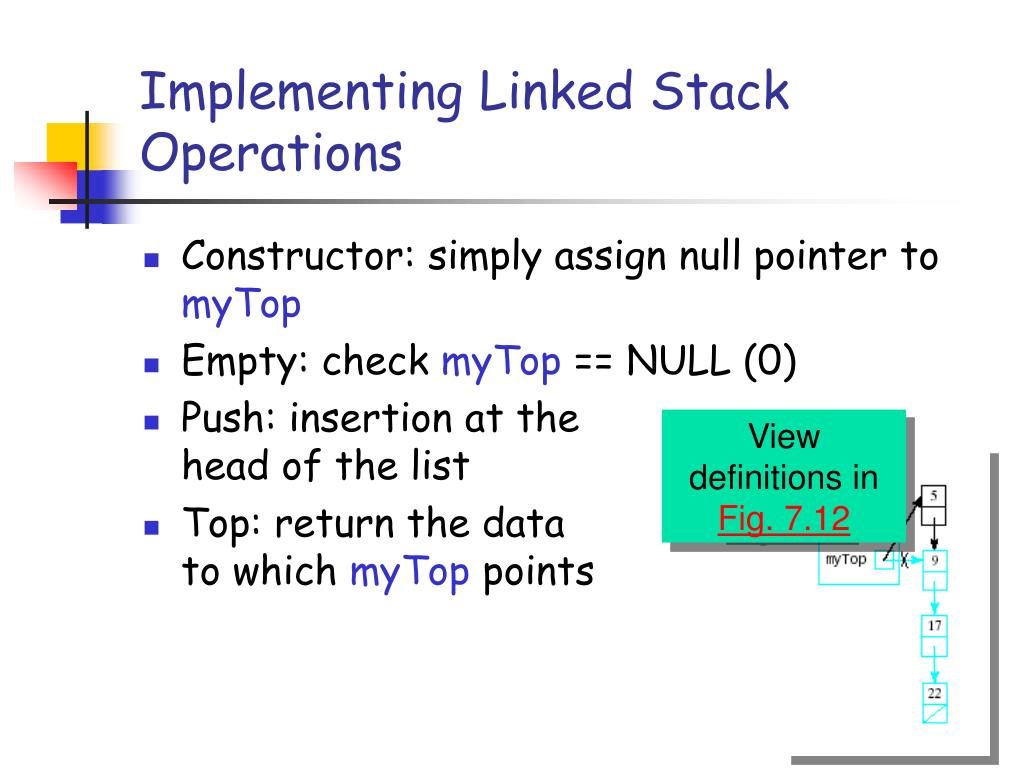

13. Implementing Linked Stack Operations • Constructor: simply assign null pointer to myTop • Empty: check myTop == NULL (0) • Push: insertion at the head of the list • Top: return the data to which myTop points View definitions in Fig. 7.12

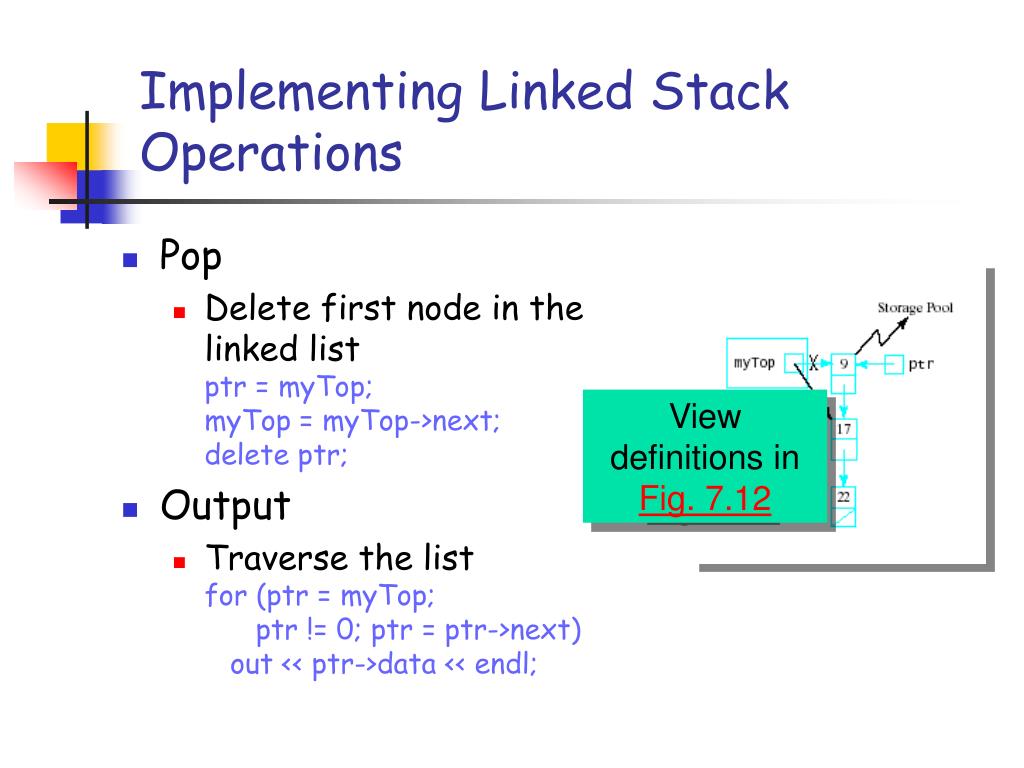

14. Implementing Linked Stack Operations • Pop • Delete first node in the linked listptr = myTop;myTop = myTop->next;delete ptr; • Output • Traverse the listfor (ptr = myTop; ptr != 0; ptr = ptr->next) out << ptr->data << endl; View definitions in Fig. 7.12

15. Stack.h typedef int DataType; class Stack {public: Stack(); Stack(const Stack& org); void push(const DataType& v); void pop(); DataType top() const; ~Stack(); private: class Node { public: DataType data; Node* next; Node(DataType v, Node* p) : data(v), next(0) { } }; typedef Node* NodePtr; NodePtr myTop; };

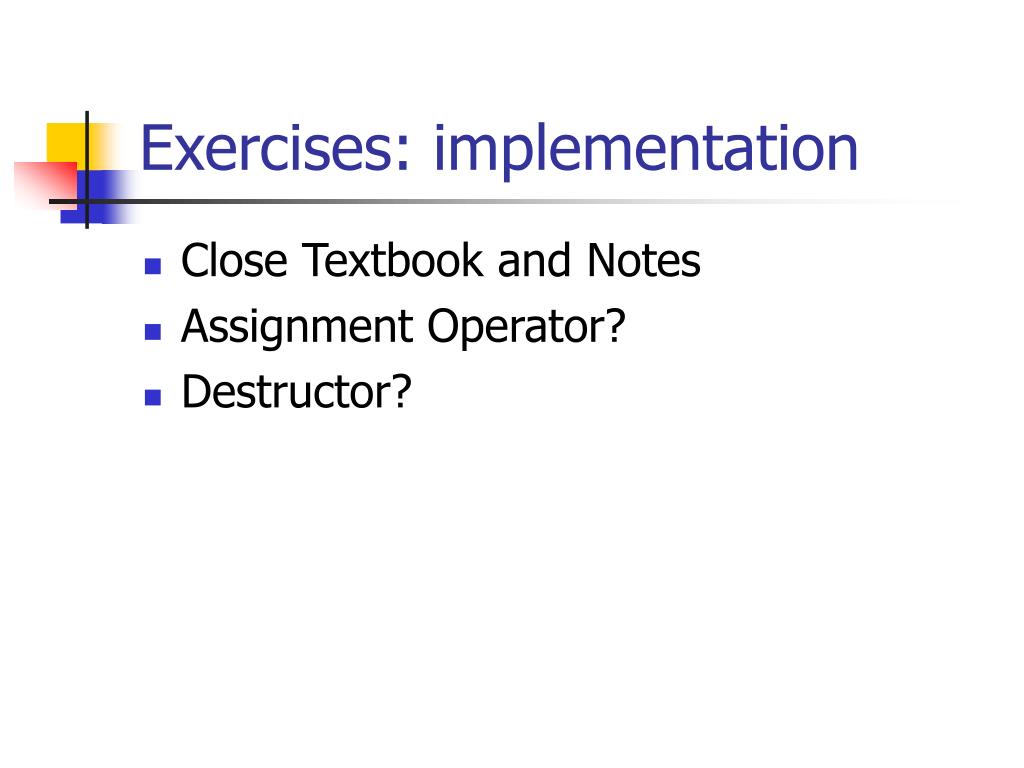

16. Exercises: implementation • Close Textbook and Notes • Assignment Operator? • Destructor?

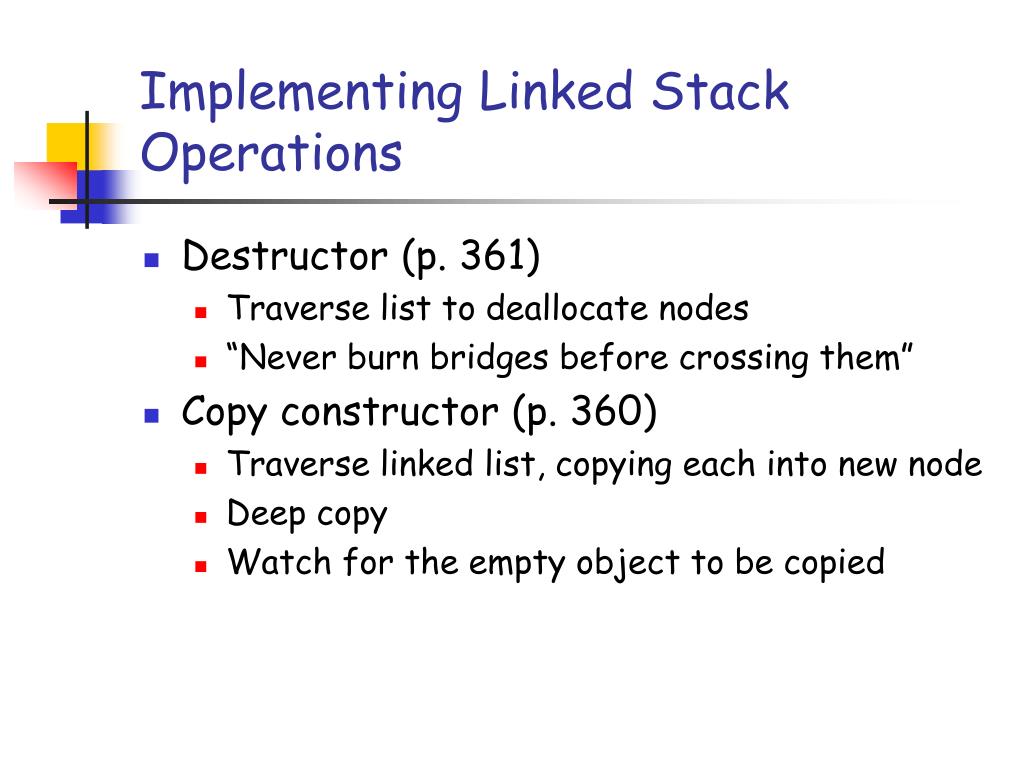

17. Implementing Linked Stack Operations • Destructor (p. 361) • Traverse list to deallocate nodes • “Never burn bridges before crossing them” • Copy constructor (p. 360) • Traverse linked list, copying each into new node • Deep copy • Watch for the empty object to be copied

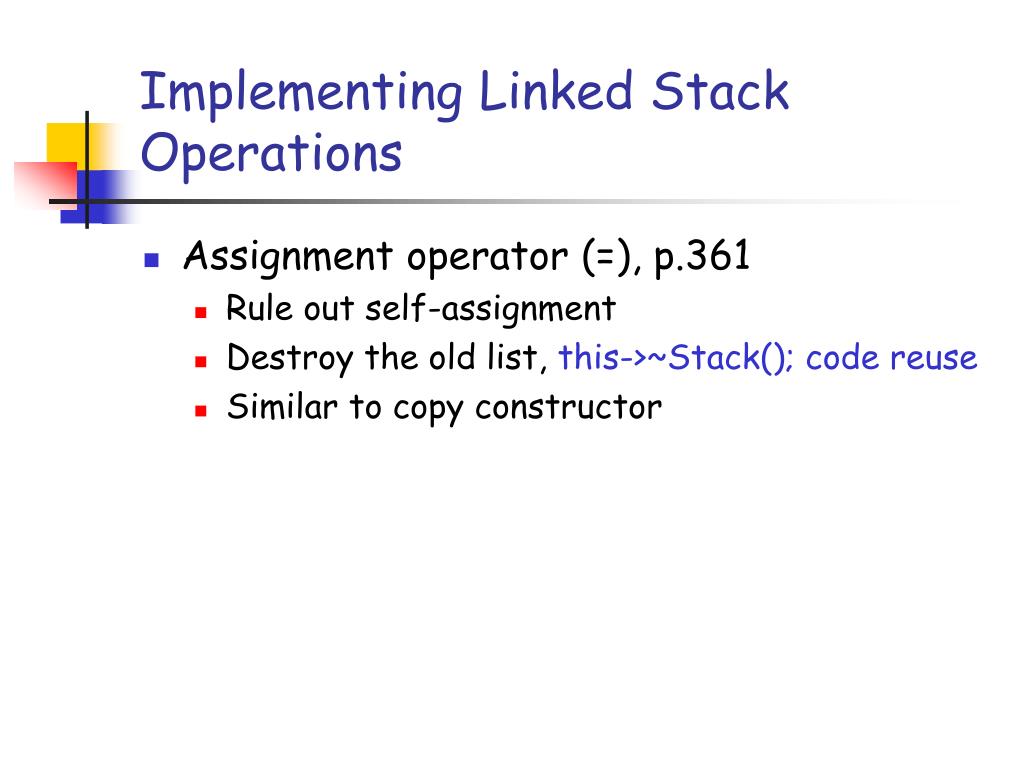

18. Implementing Linked Stack Operations • Assignment operator (=), p.361 • Rule out self-assignment • Destroy the old list, this->~Stack(); code reuse • Similar to copy constructor

19. Application of Stack – Function Calls Consider events when a function begins execution • Activation Record (AR) created: store the current environment for the function • Contents

20. Run-time Stack • Functions may call other functions • Interrupt their own execution • Must store the ARs to be recovered • System reset when the first function resumes execution • LIFO data structure • Run-time stack is used (Example in p.367)

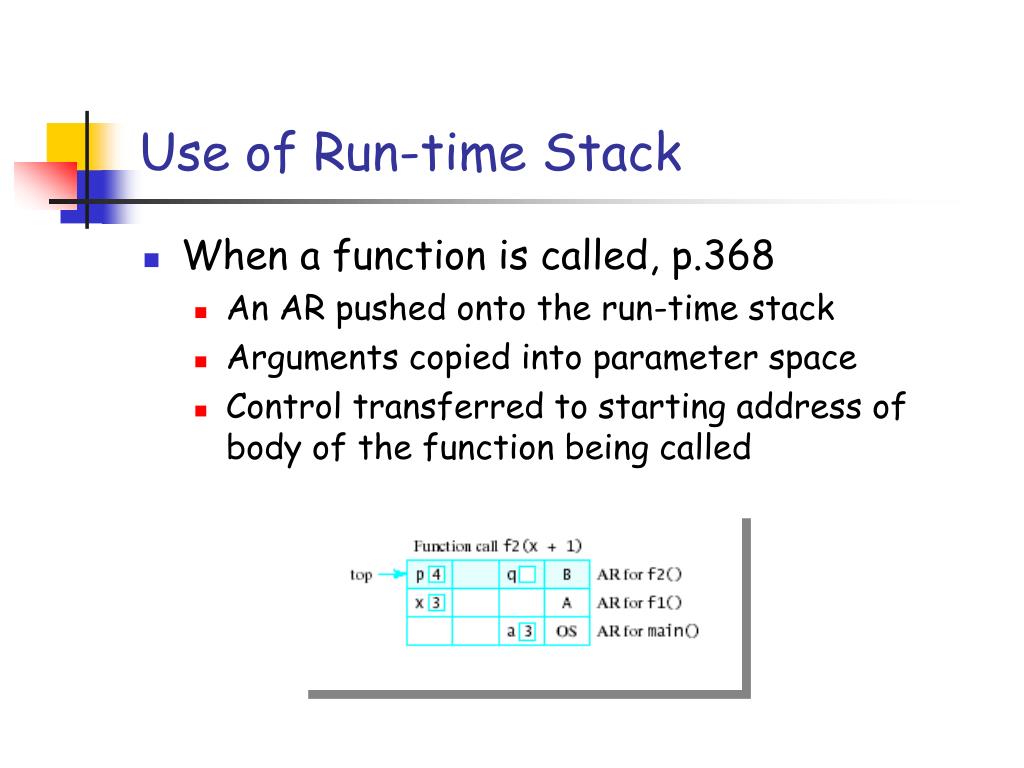

21. Use of Run-time Stack • When a function is called, p.368 • An AR pushed onto the run-time stack • Arguments copied into parameter space • Control transferred to starting address of body of the function being called

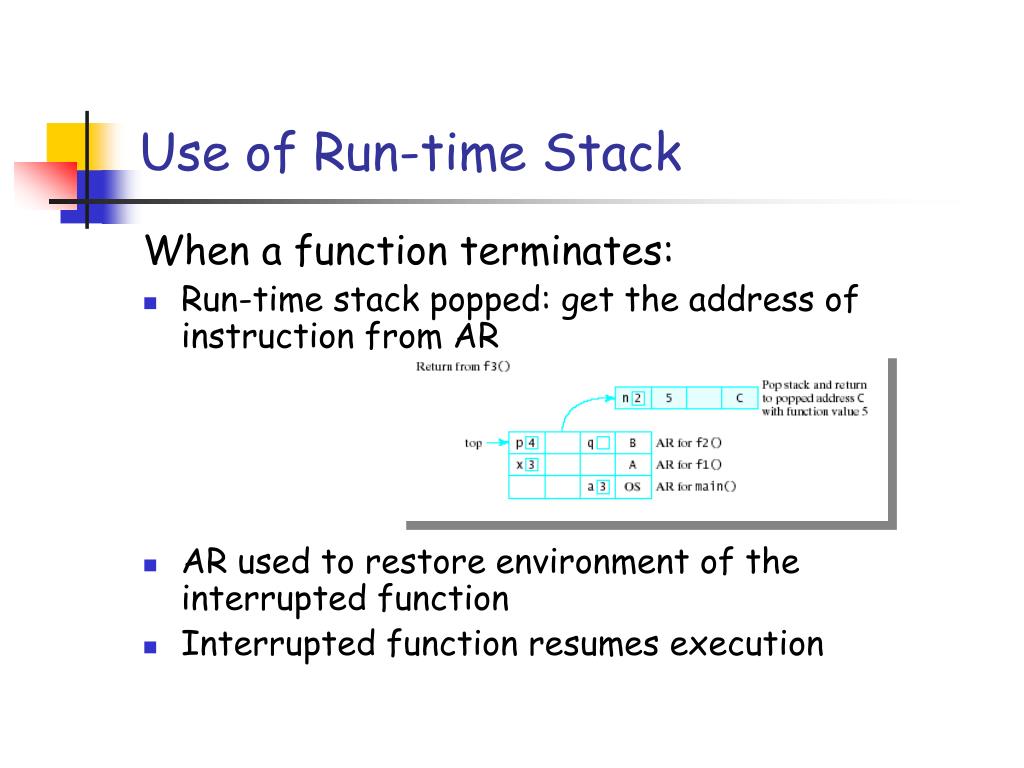

22. Use of Run-time Stack When a function terminates: • Run-time stack popped: get the address of instruction from AR • AR used to restore environment of the interrupted function • Interrupted function resumes execution

23. Any Question?

24. Introduction to Queue • A sequence of data items (FIFO) • Items can be removed only at the front • Items can be added only at the back

25. Introduction to Queue • Basic operations • Construct a queue • Check if empty • Enqueue: add an element to back • Dequeue: remove an element from front • Front: return the first element • Skip array-based queues • Linked-list based queues • Data members? • Operations: above

26. Linked List-Based Queue (Chp. 8.3) • Advantage: grow and shrink as needed • Two data members: myFont, myBack • Why need myBack? • Avoid list traversal when enqueue()

27. Queue.h typedef int DataType; class Queue {public: //constructor //… member functions private: class Node { public: DataType data; Node* next; Node(DataType v, Node* p) : data(v), next(0) { } }; typedef Node* NodePtr; NodePtr myFront, myback; };

28. Linked Queue, p.418 • Constructor: initializesmyFront and myBack • Front, p420 • return myFront->data • Dequeue, p421 • Delete the first node (watch for empty queue) • Equeue, p420 • Insert the node at the back

29. Linked Queue • Copy constructor: deep copy, p418 • Assignment operator, p419 • Watch for self-assignment • Deep copy • Avoid memory leak • Destructor: reclaim memory, p418

30. Circular Linked Queue, p423 • Treat the linked list as circular • Last node points to the first node • Alternatively keep pointer to last node rather than first node, so only needs one data member!

31. Implementing Circular List Queue • Can you implement it?

32. Application of Queues • Disk Scheduling in OS • Disk requests from OS • Disk has a queue • Disk serves requests in queue by FIFO • In reality, it may be not always FIFO, priority?

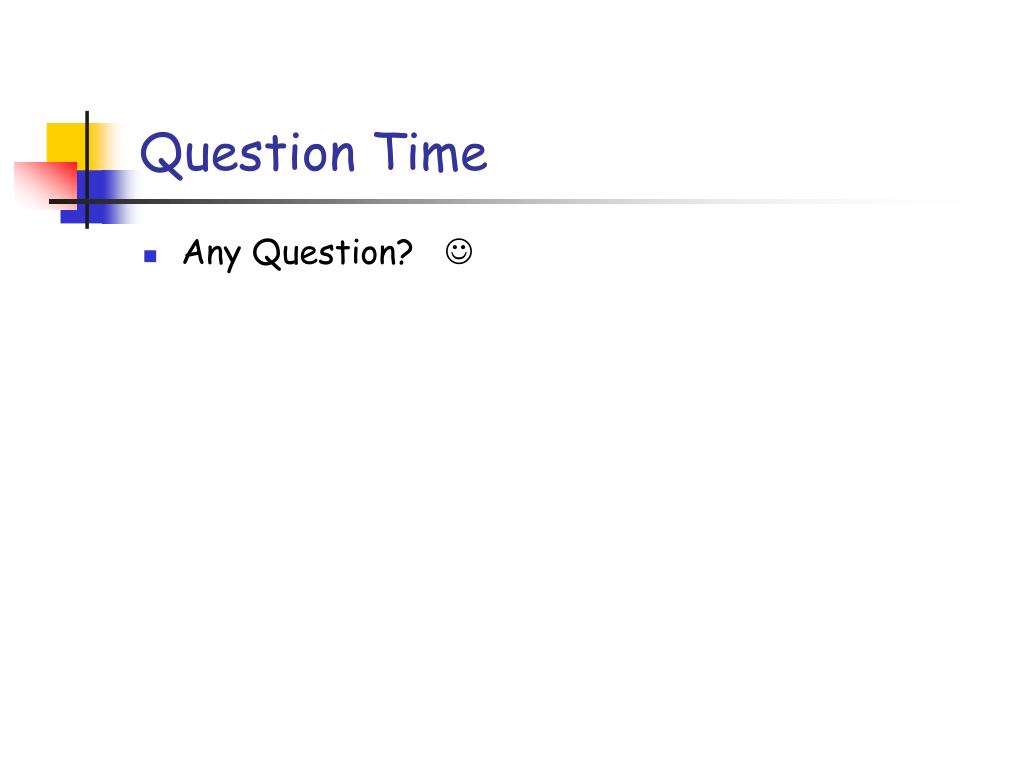

33. Question Time • Any Question? 

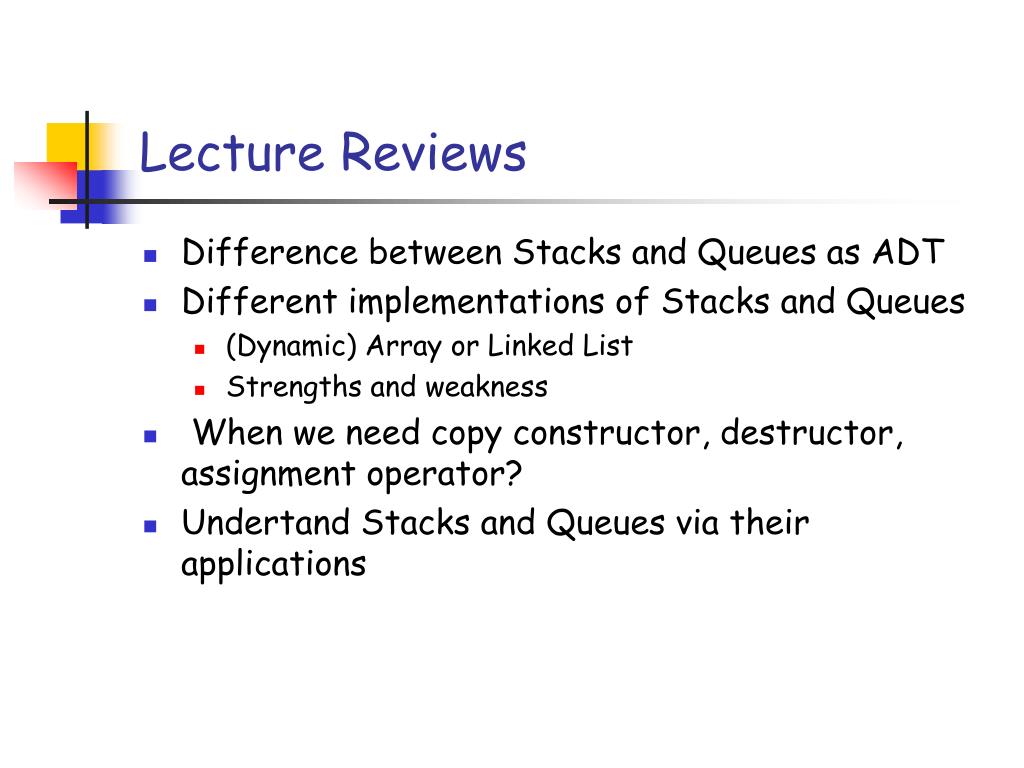

34. Lecture Reviews • Difference between Stacks and Queues as ADT • Different implementations of Stacks and Queues • (Dynamic) Array or Linked List • Strengths and weakness • When we need copy constructor, destructor, assignment operator? • Undertand Stacks and Queues via their applications
