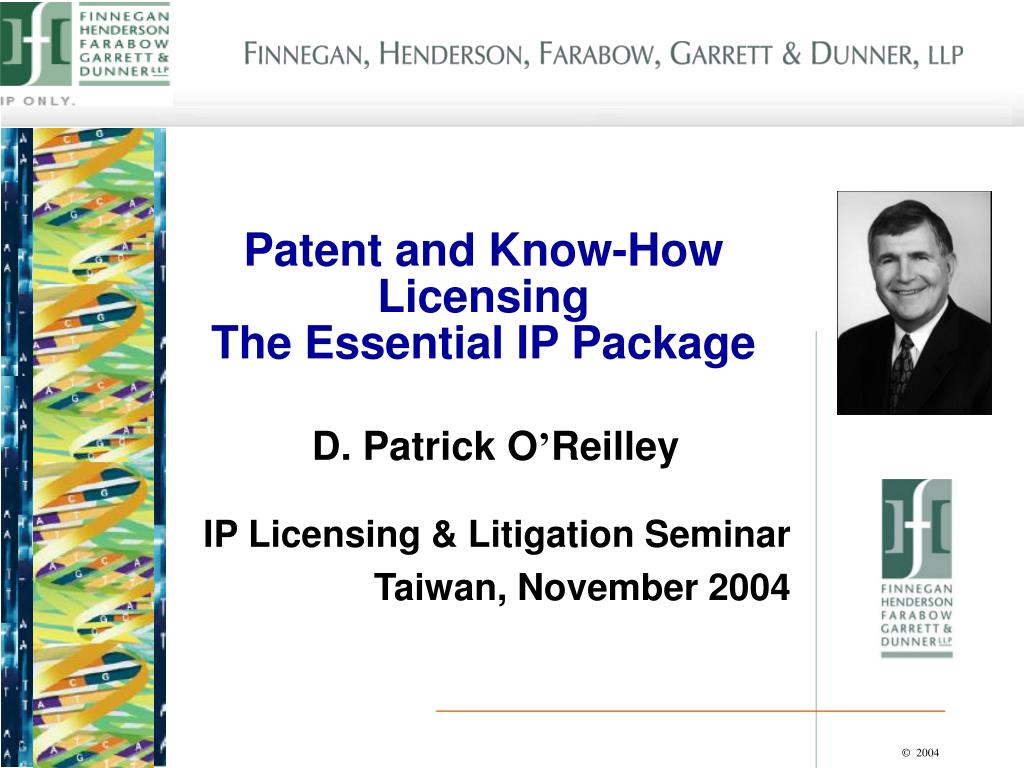

  1. Patent and Know-How LicensingThe Essential IP Package D. Patrick O’Reilley IP Licensing & Litigation Seminar Taiwan, November 2004

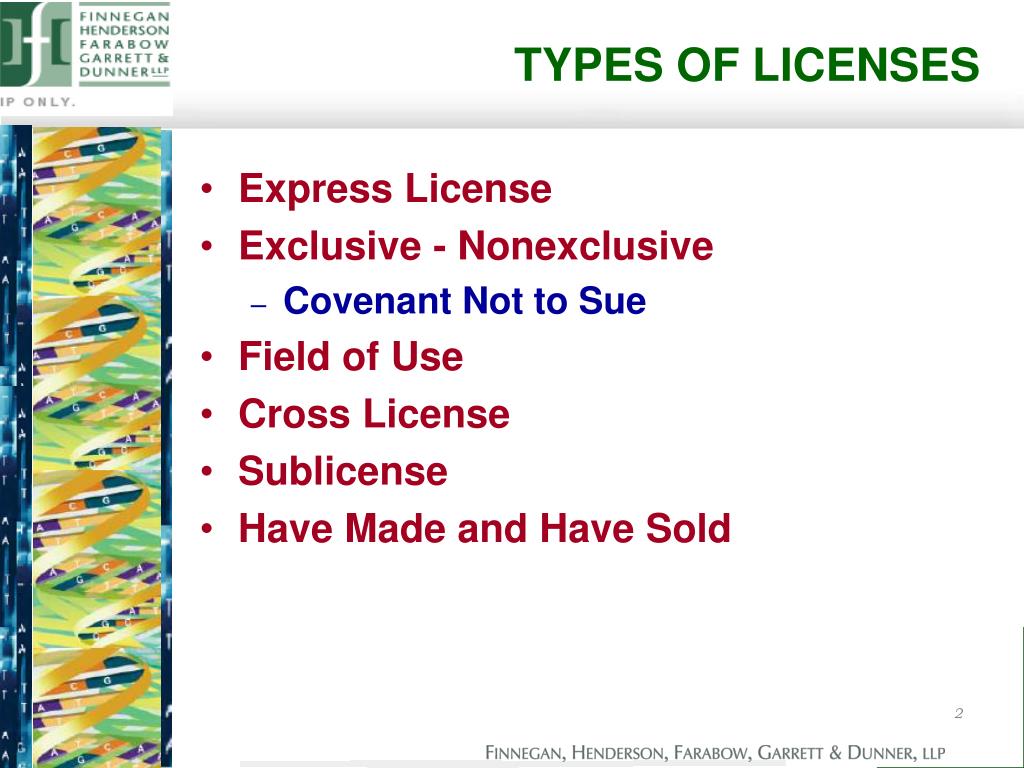

  2. TYPES OF LICENSES • Express License • Exclusive - Nonexclusive • Covenant Not to Sue • Field of Use • Cross License • Sublicense • Have Made and Have Sold

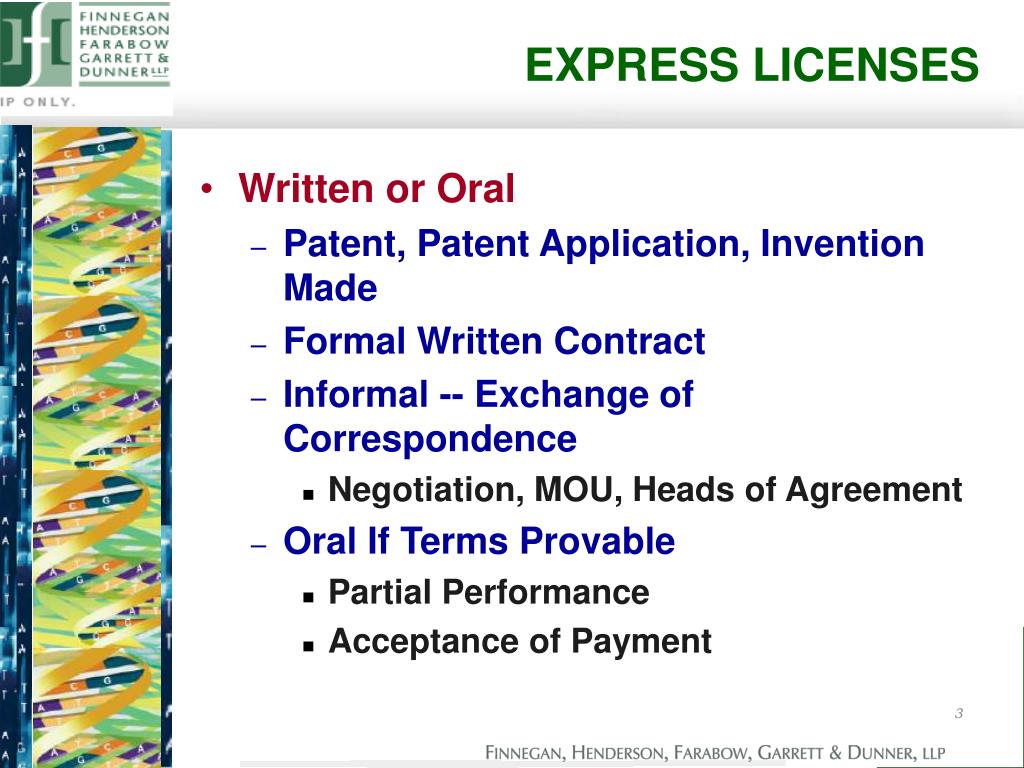

  3. EXPRESS LICENSES • Written or Oral • Patent, Patent Application, Invention Made • Formal Written Contract • Informal -- Exchange of Correspondence • Negotiation, MOU, Heads of Agreement • Oral If Terms Provable • Partial Performance • Acceptance of Payment

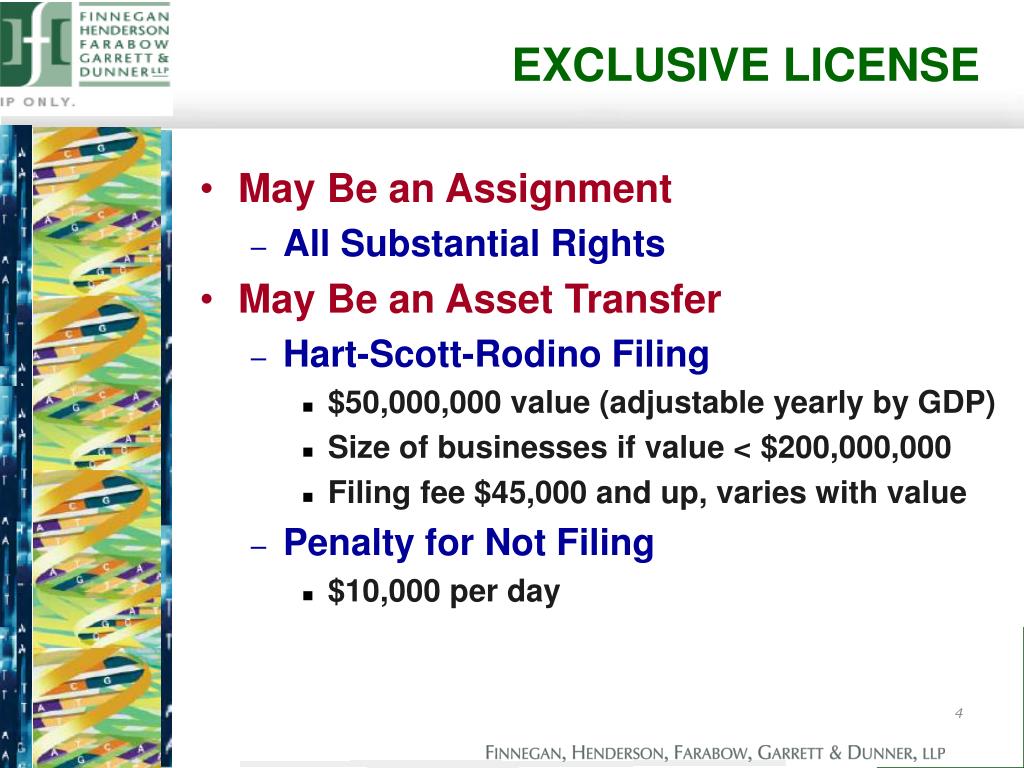

  4. EXCLUSIVE LICENSE • May Be an Assignment • All Substantial Rights • May Be an Asset Transfer • Hart-Scott-Rodino Filing • $50,000,000 value (adjustable yearly by GDP) • Size of businesses if value < $200,000,000 • Filing fee $45,000 and up, varies with value • Penalty for Not Filing • $10,000 per day

  5. EXCLUSIVE LICENSE • Agreement not to grant further licenses • There may be preexisting nonexclusive licenses • Western Electric v. Pacent, 42 F2d 116 • Hill Phoenix v. Systematic Refrig. 117 F.Supp.2d 508 • Agreement not to practice under patent • Reservation of right -- sole license • May be limited in time, territory & field • Exclusive licensee may sue for infringement • Can compel joinder of Licensor • Though implied, better to specify terms • Control of litigation • Share of costs and recovery

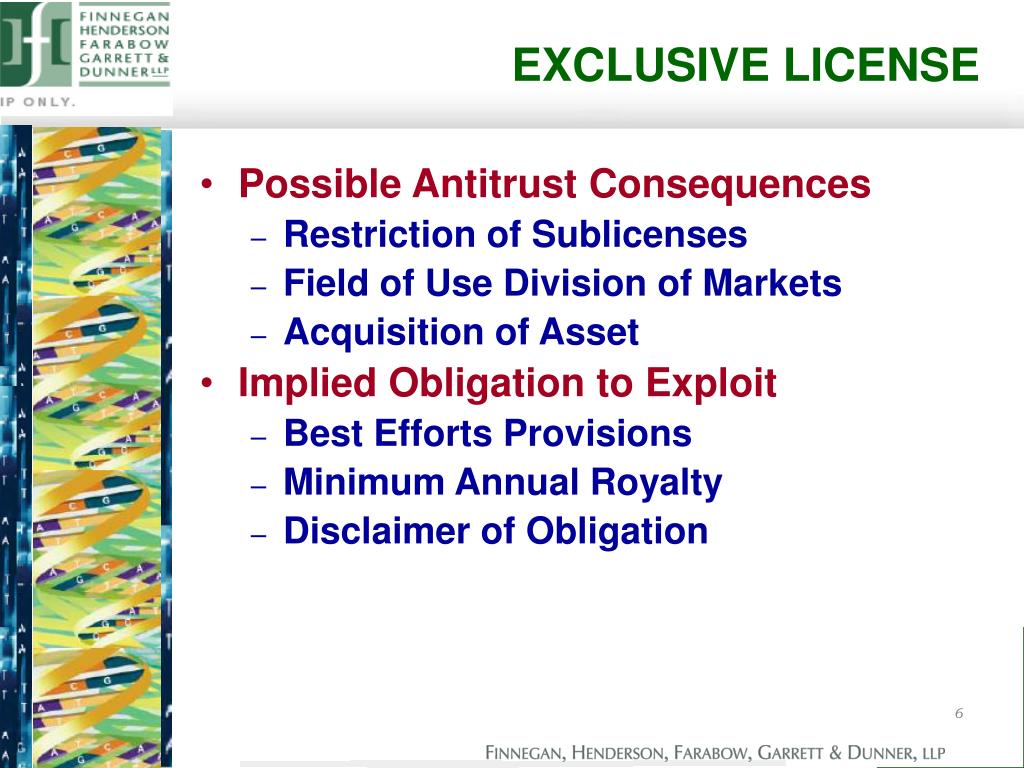

  6. EXCLUSIVE LICENSE • Possible Antitrust Consequences • Restriction of Sublicenses • Field of Use Division of Markets • Acquisition of Asset • Implied Obligation to Exploit • Best Efforts Provisions • Minimum Annual Royalty • Disclaimer of Obligation

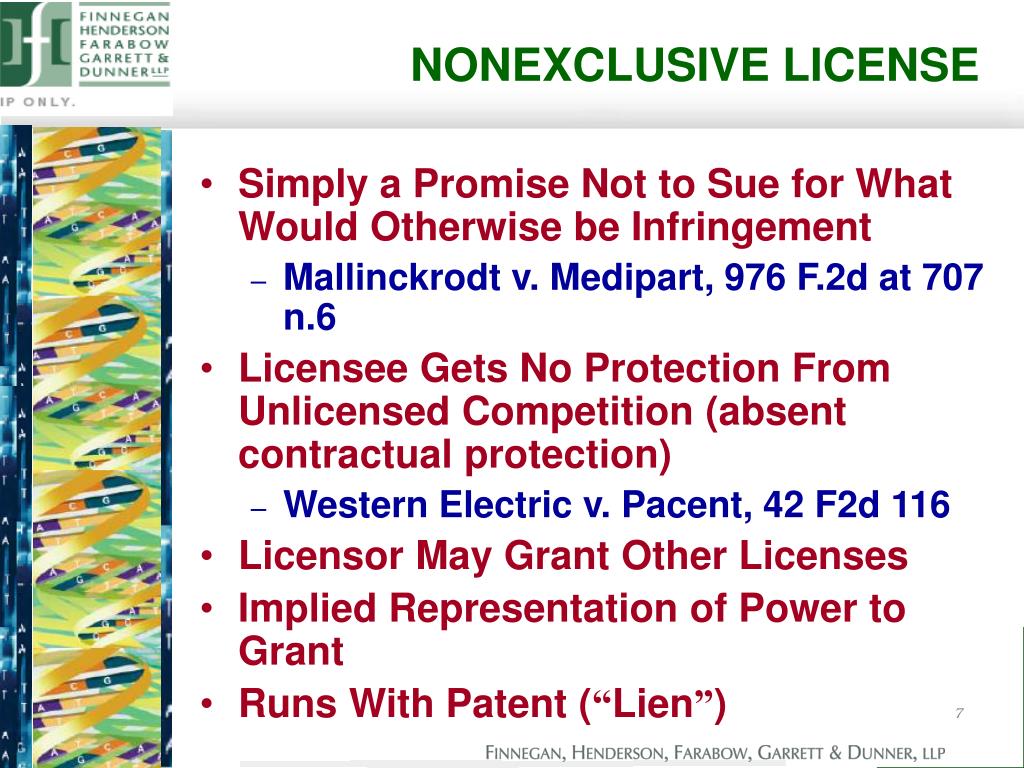

  7. NONEXCLUSIVE LICENSE • Simply a Promise Not to Sue for What Would Otherwise be Infringement • Mallinckrodt v. Medipart, 976 F.2d at 707 n.6 • Licensee Gets No Protection From Unlicensed Competition (absent contractual protection) • Western Electric v. Pacent, 42 F2d 116 • Licensor May Grant Other Licenses • Implied Representation of Power to Grant • Runs With Patent (“Lien”)

  8. COVENANT NOT TO SUE • Personal Promise • May Not Run With Patent on Sale • No Implied Representations • But, is it a License? • Infringement is exploitation “without authority” • 35 U.S.C. §271(a) • “Implicit in right to exclude is the right to waive that right.” • Prima-Tec v. A-Roo, 222 F.3d 1372

  9. COVENANT NOT TO SUE I • But, is it a License? • Hilgraeve v. Symantec, 265 F.3d 1336 • “The covenant not to sue … does not grant a transferable license to the patent.” • AT&T v. Radio Audion, 281 F. 200 • After granting exclusive license, patent owner granted covenant not to sue. • Held, patent owner did not have power to grant covenant and covenant “is in legal effect a license”

  10. COVENANT NOT TO SUE II • Does sale of patented product by covenantee exhaust patent rights? • Is sale authorized by patent owner? • Would patent owner be estopped from suing covenantee’s customers? • If patent owner knows other party will continue to make and sell patented products, is there intent to grant rights under the patent to other party’s customers?

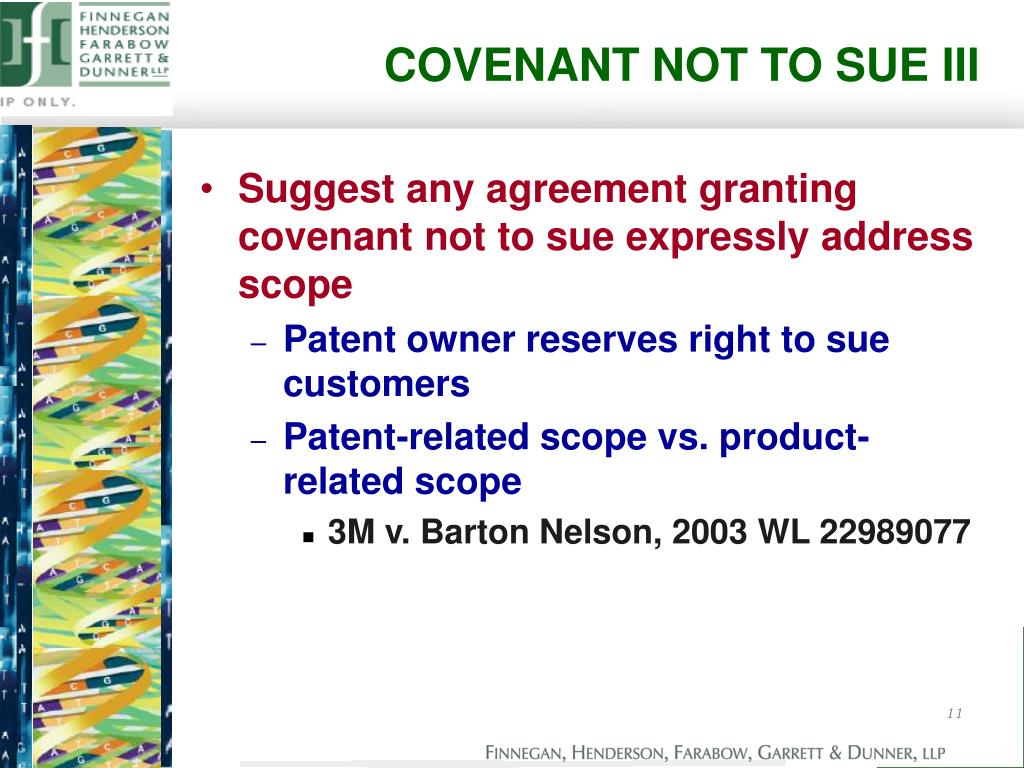

  11. COVENANT NOT TO SUE III • Suggest any agreement granting covenant not to sue expressly address scope • Patent owner reserves right to sue customers • Patent-related scope vs. product-related scope • 3M v. Barton Nelson, 2003 WL 22989077

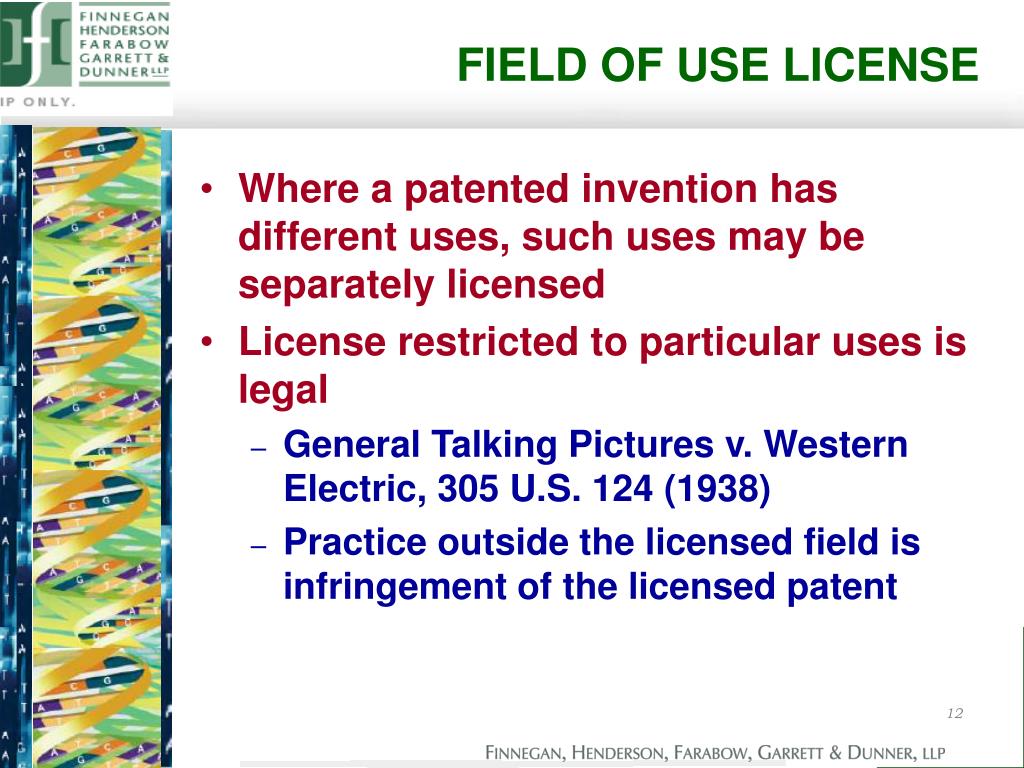

  12. FIELD OF USE LICENSE • Where a patented invention has different uses, such uses may be separately licensed • License restricted to particular uses is legal • General Talking Pictures v. Western Electric, 305 U.S. 124 (1938) • Practice outside the licensed field is infringement of the licensed patent

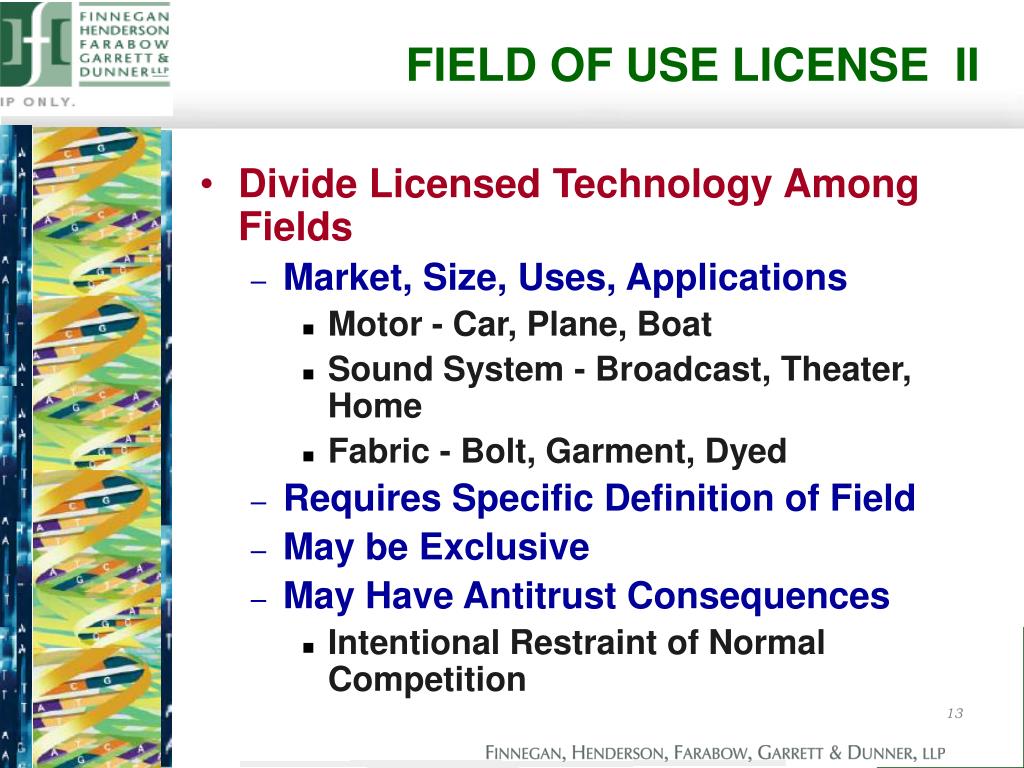

  13. FIELD OF USE LICENSE II • Divide Licensed Technology Among Fields • Market, Size, Uses, Applications • Motor - Car, Plane, Boat • Sound System - Broadcast, Theater, Home • Fabric - Bolt, Garment, Dyed • Requires Specific Definition of Field • May be Exclusive • May Have Antitrust Consequences • Intentional Restraint of Normal Competition

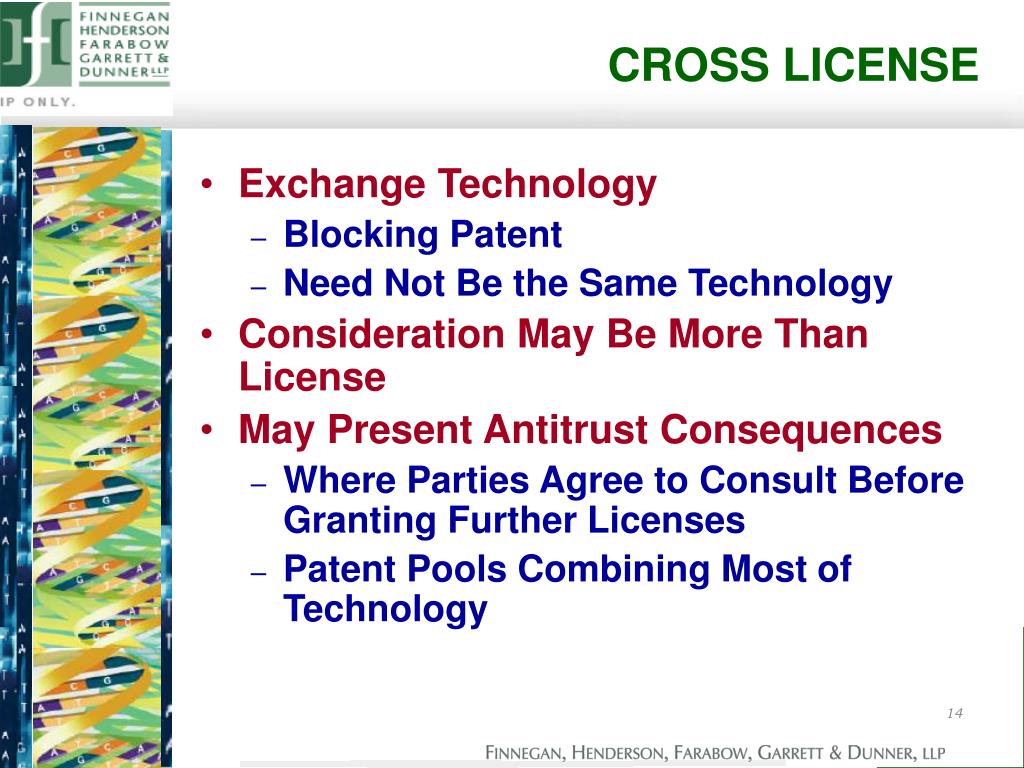

  14. CROSS LICENSE • Exchange Technology • Blocking Patent • Need Not Be the Same Technology • Consideration May Be More Than License • May Present Antitrust Consequences • Where Parties Agree to Consult Before Granting Further Licenses • Patent Pools Combining Most of Technology

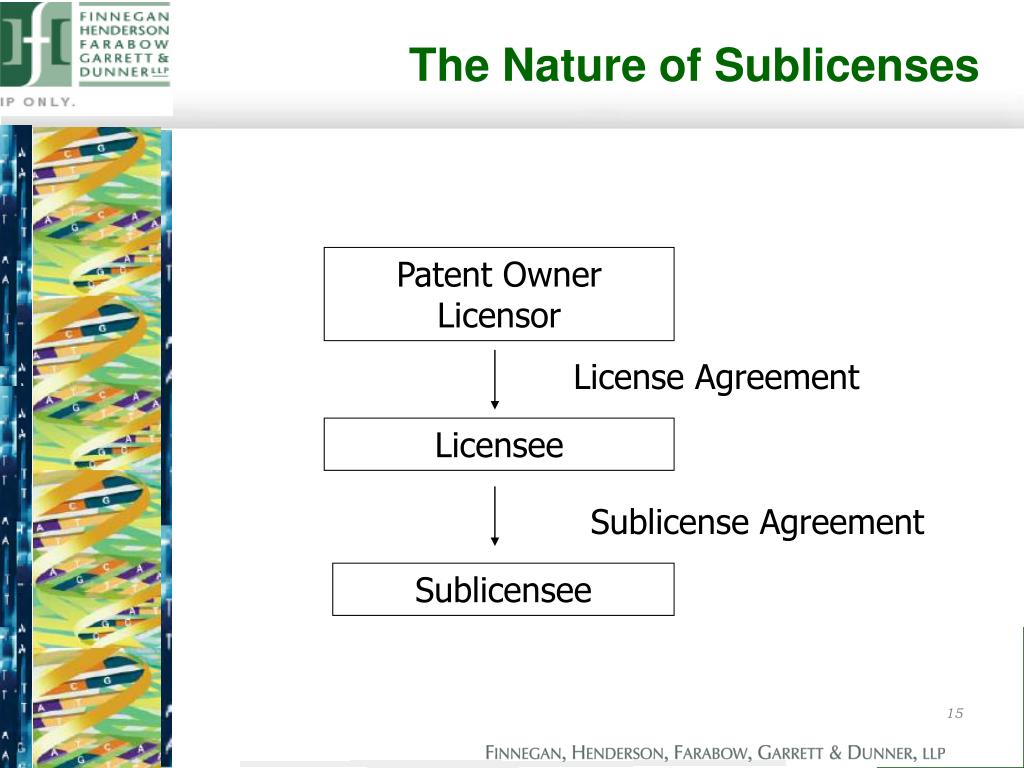

  15. The Nature of Sublicenses Patent OwnerLicensor License Agreement Licensee Sublicense Agreement Sublicensee

  16. Sublicensing Fundamentals • Licensor appoints licensee as agent for granting further licenses • Federal Labs v. Comm’r, 8 T.C. 1150 (agency) • See Simmen Automatic v. General Railway, 72 F.2d 232 (right to grant sublicense is power of attorney granted to licensee) • Right to grant sublicenses must be expressly granted • Providence Rubber v. Goodyear, 76 U.S. 788

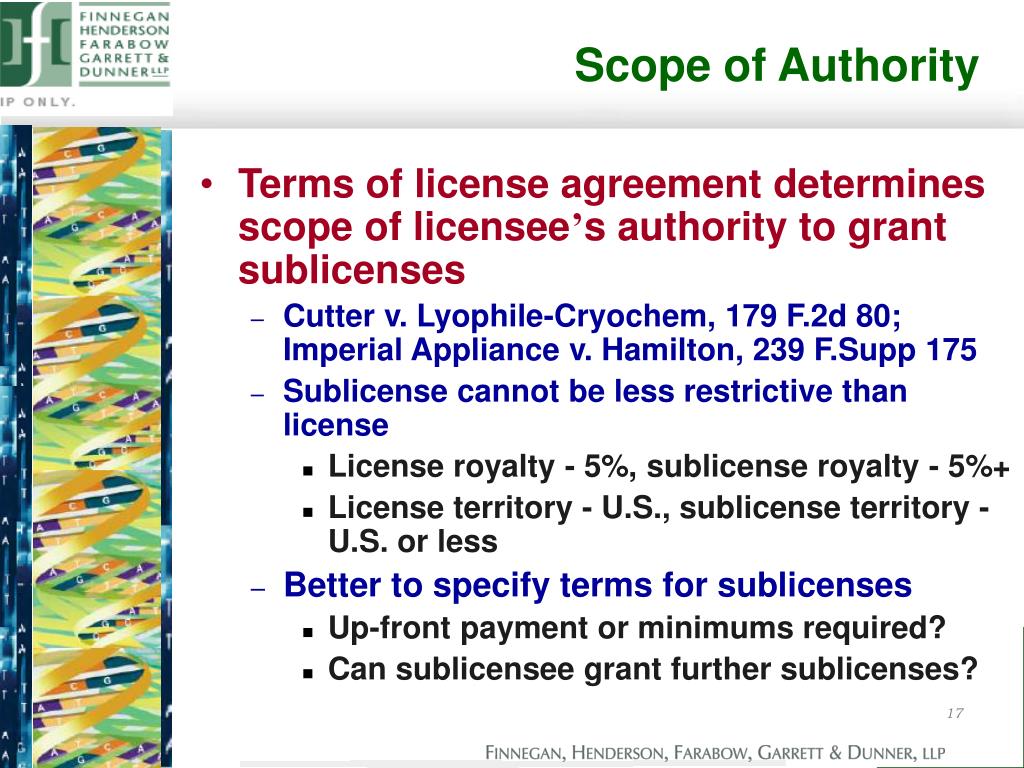

  17. Scope of Authority • Terms of license agreement determines scope of licensee’s authority to grant sublicenses • Cutter v. Lyophile-Cryochem, 179 F.2d 80; Imperial Appliance v. Hamilton, 239 F.Supp 175 • Sublicense cannot be less restrictive than license • License royalty - 5%, sublicense royalty - 5%+ • License territory - U.S., sublicense territory - U.S. or less • Better to specify terms for sublicenses • Up-front payment or minimums required? • Can sublicensee grant further sublicenses?

  18. Enforcement of Sublicense • Sublicense is contract between licensee and sublicensee • Can licensor enforce sublicense contract? • See Hazeltine Research v. Freed-Eisemann, 3 F.2d 172 • Depending on terms, licensor may be third party beneficiary • Under agency theory, disclosed or partially disclosed principal is party to contract between agent and third party • Mere fact it is sublicense partially discloses existence of principal

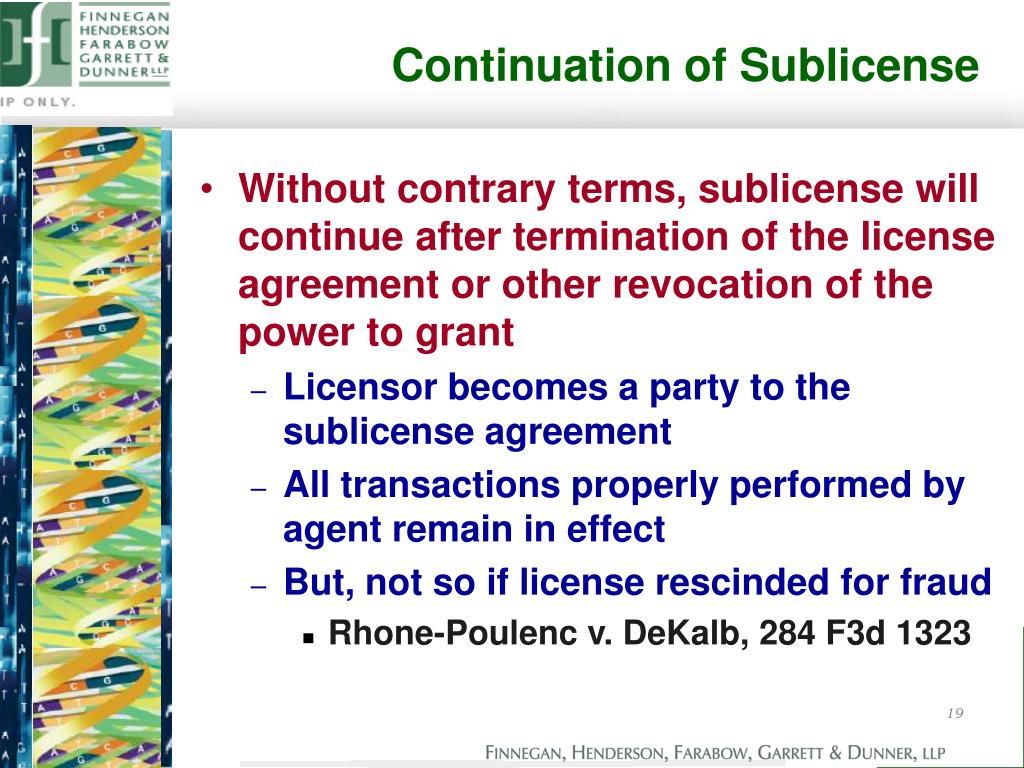

  19. Continuation of Sublicense • Without contrary terms, sublicense will continue after termination of the license agreement or other revocation of the power to grant • Licensor becomes a party to the sublicense agreement • All transactions properly performed by agent remain in effect • But, not so if license rescinded for fraud • Rhone-Poulenc v. DeKalb, 284 F3d 1323

  20. LICENSE TO HAVE MADE • Unrestricted license to make and use or sell, implies authority to have others supply what may be lawfully used or sold • Westinghouse v. Tri-City Radio, 23 F.2d 628; Carey v. United States, 326 F.2d 975 • Since a license to make always implies use or sell, right to have made is implied from right to make and must be specifically excluded • "But Not Have Made"

  21. LICENSE TO HAVE MADE II • Not a Sublicense • Have Made = Subcontract • Subcontractor Cannot Act Independently • See, Cyrix v. SGS Thompson, 77 F.3d 1381 • Test: For whom is the product being made? • Carey v. United States, 326 F.2d 975 • But see, Westinghouse v. Tri-City, supra; DuPont v. Shell, 227 USPQ 233 • Sham exercise of “have made” to avoid sublicense restriction

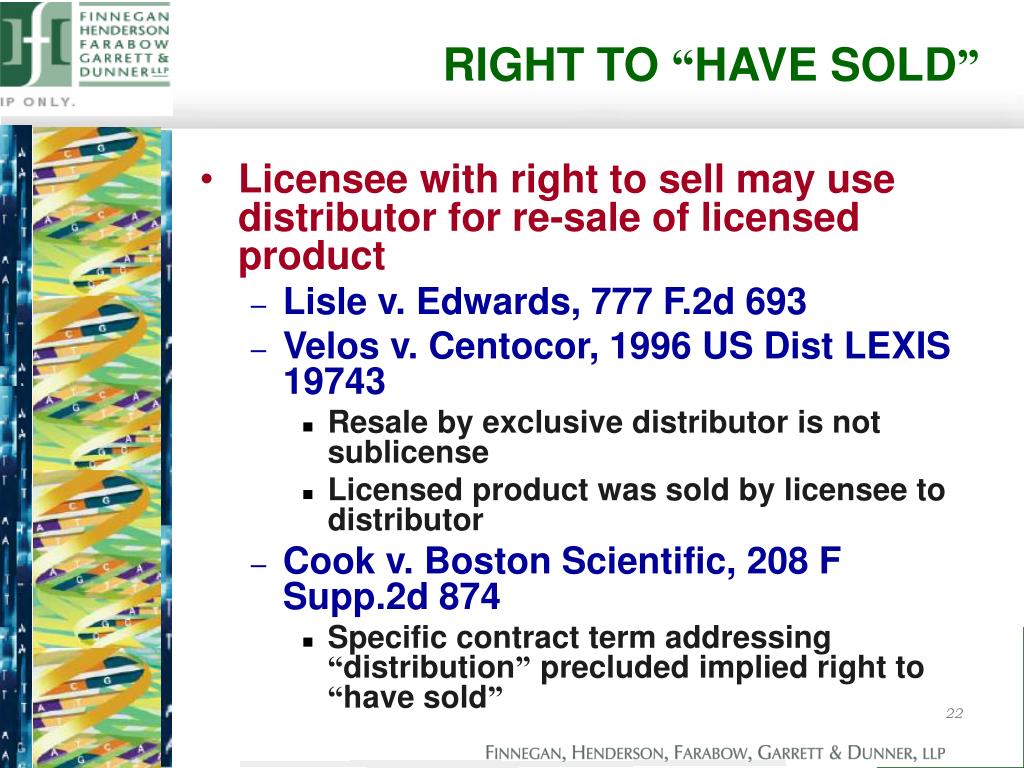

  22. RIGHT TO “HAVE SOLD” • Licensee with right to sell may use distributor for re-sale of licensed product • Lisle v. Edwards, 777 F.2d 693 • Velos v. Centocor, 1996 US Dist LEXIS 19743 • Resale by exclusive distributor is not sublicense • Licensed product was sold by licensee to distributor • Cook v. Boston Scientific, 208 F Supp.2d 874 • Specific contract term addressing “distribution” precluded implied right to “have sold”

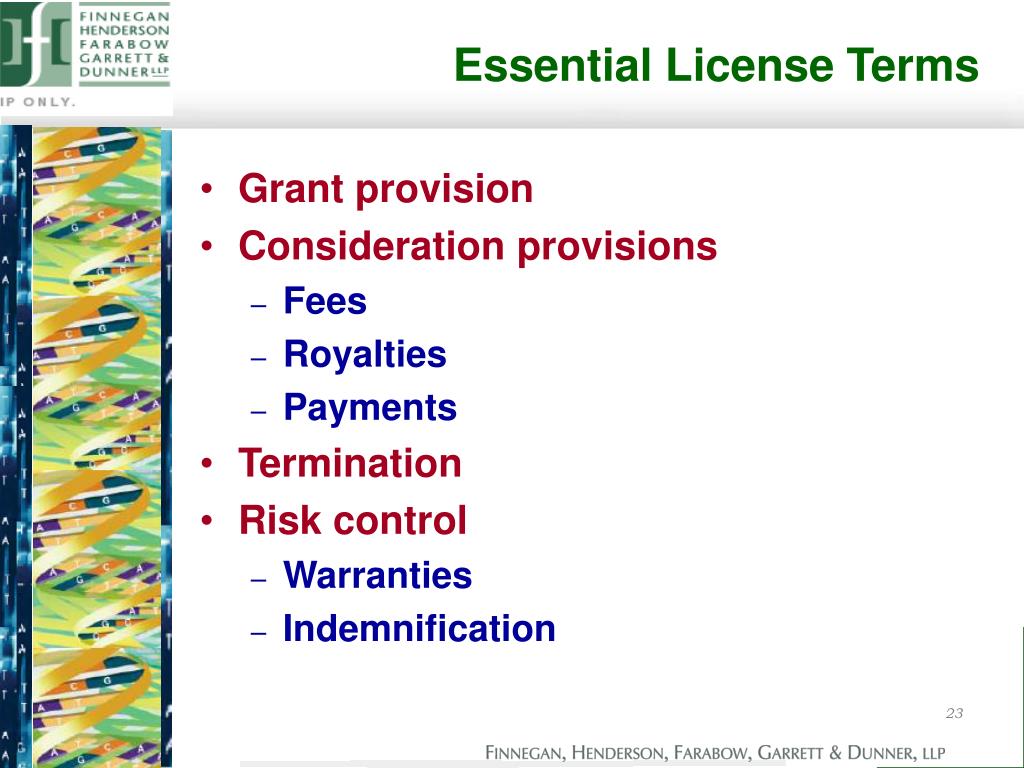

  23. Essential License Terms • Grant provision • Consideration provisions • Fees • Royalties • Payments • Termination • Risk control • Warranties • Indemnification

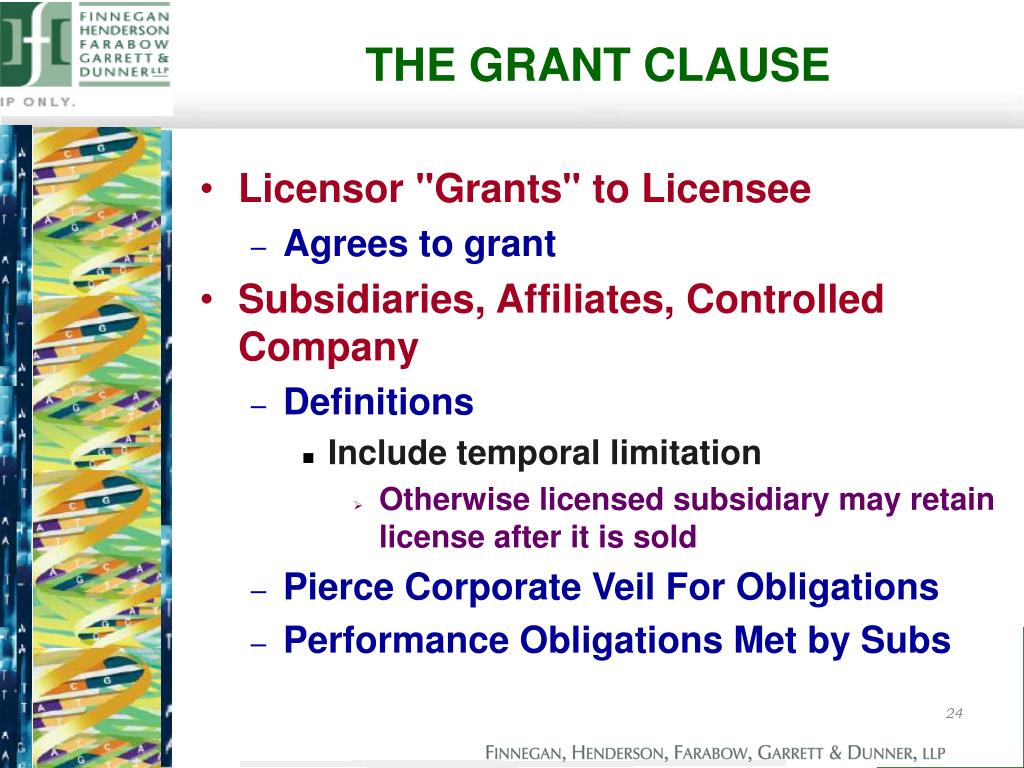

  24. THE GRANT CLAUSE • Licensor "Grants" to Licensee • Agrees to grant • Subsidiaries, Affiliates, Controlled Company • Definitions • Include temporal limitation • Otherwise licensed subsidiary may retain license after it is sold • Pierce Corporate Veil For Obligations • Performance Obligations Met by Subs

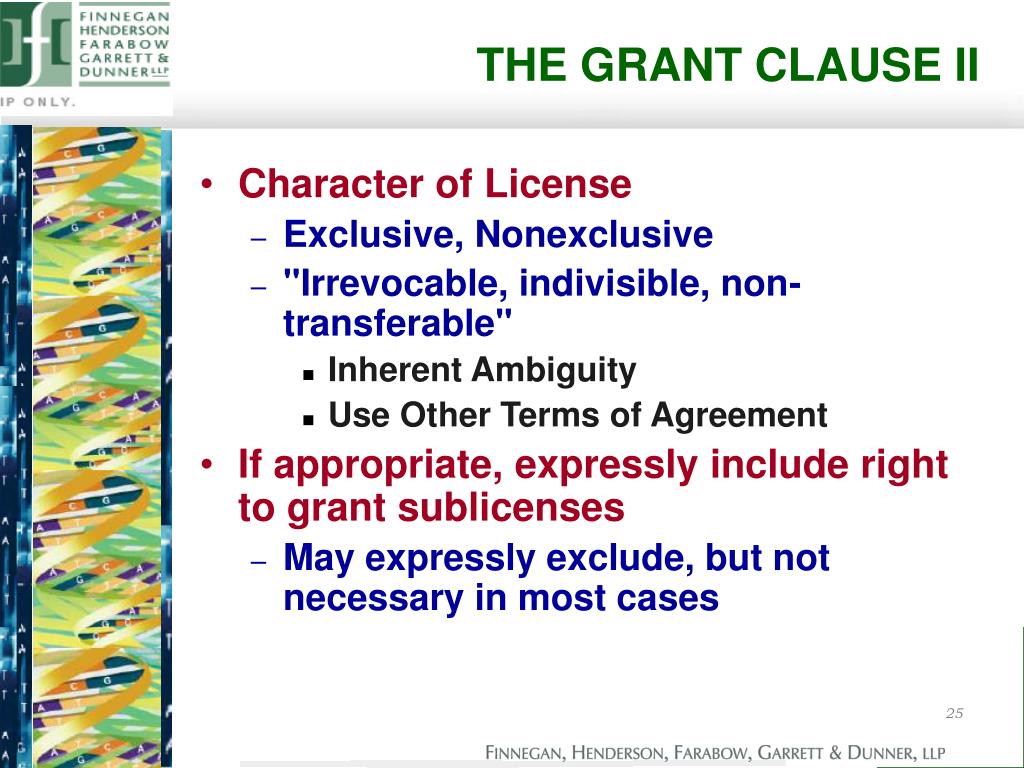

  25. THE GRANT CLAUSE II • Character of License • Exclusive, Nonexclusive • "Irrevocable, indivisible, non-transferable" • Inherent Ambiguity • Use Other Terms of Agreement • If appropriate, expressly include right to grant sublicenses • May expressly exclude, but not necessary in most cases

  26. THE GRANT CLAUSE III • Under what • Licensed Patents – defined term usually • Know-how, technical information -- defined • To Make, Use, Sell, Offer for Sale, Import • Separable rights • Expressly exclude implied right to “Have Made” or “Have Sold” • May expressly include • May address “Otherwise Dispose Of” • Addresses sale vs. lease • When granting all rights, merely cosmetic

  27. THE GRANT CLAUSE IV • Geographic Scope of License Grant • Not Implied from Patent Grant • Hattori v. Refac, 9 USPQ2d 1046 (“within the scope” defines product not territory) • Use Licensed Territory defined term • Make, Use and Sell Territories • Know-How Territory • The Term of the Grant • Provision of the Agreement • Implied Life of Patents

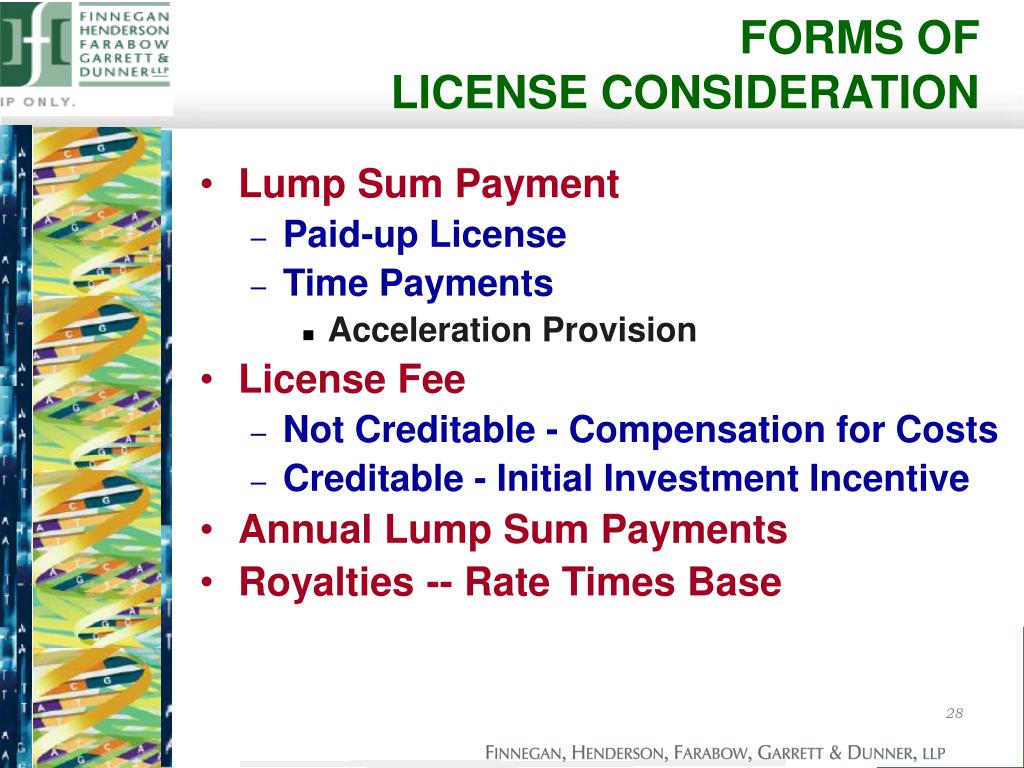

  28. FORMS OF LICENSE CONSIDERATION • Lump Sum Payment • Paid-up License • Time Payments • Acceleration Provision • License Fee • Not Creditable - Compensation for Costs • Creditable - Initial Investment Incentive • Annual Lump Sum Payments • Royalties -- Rate Times Base

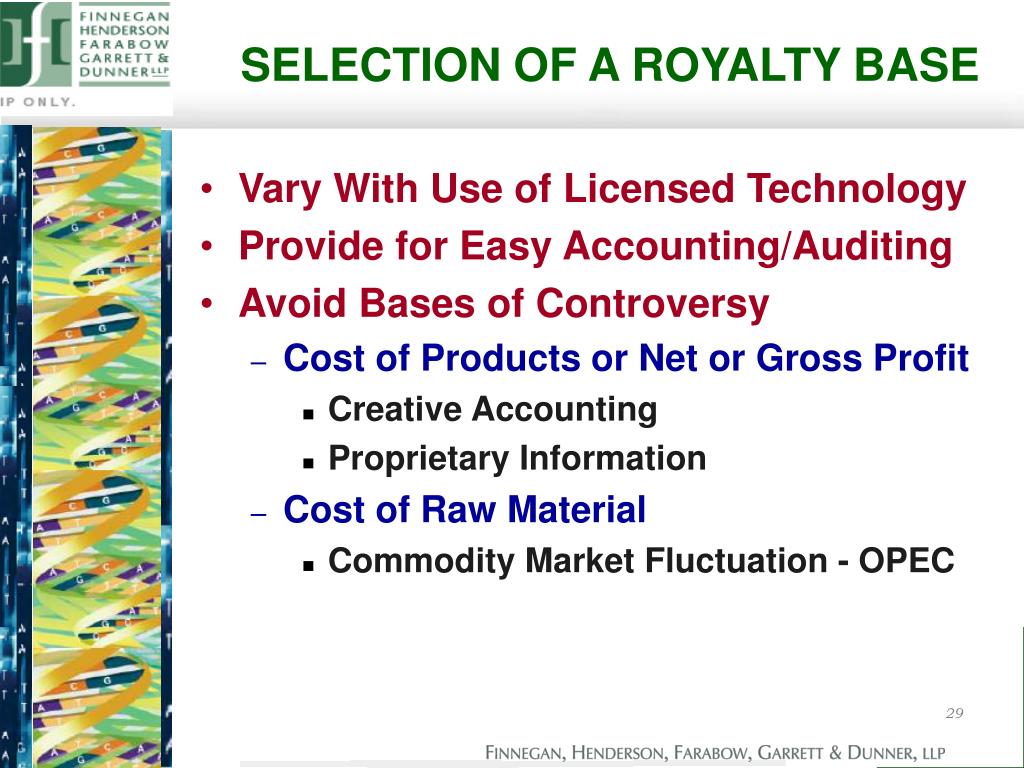

  29. SELECTION OF A ROYALTY BASE • Vary With Use of Licensed Technology • Provide for Easy Accounting/Auditing • Avoid Bases of Controversy • Cost of Products or Net or Gross Profit • Creative Accounting • Proprietary Information • Cost of Raw Material • Commodity Market Fluctuation - OPEC

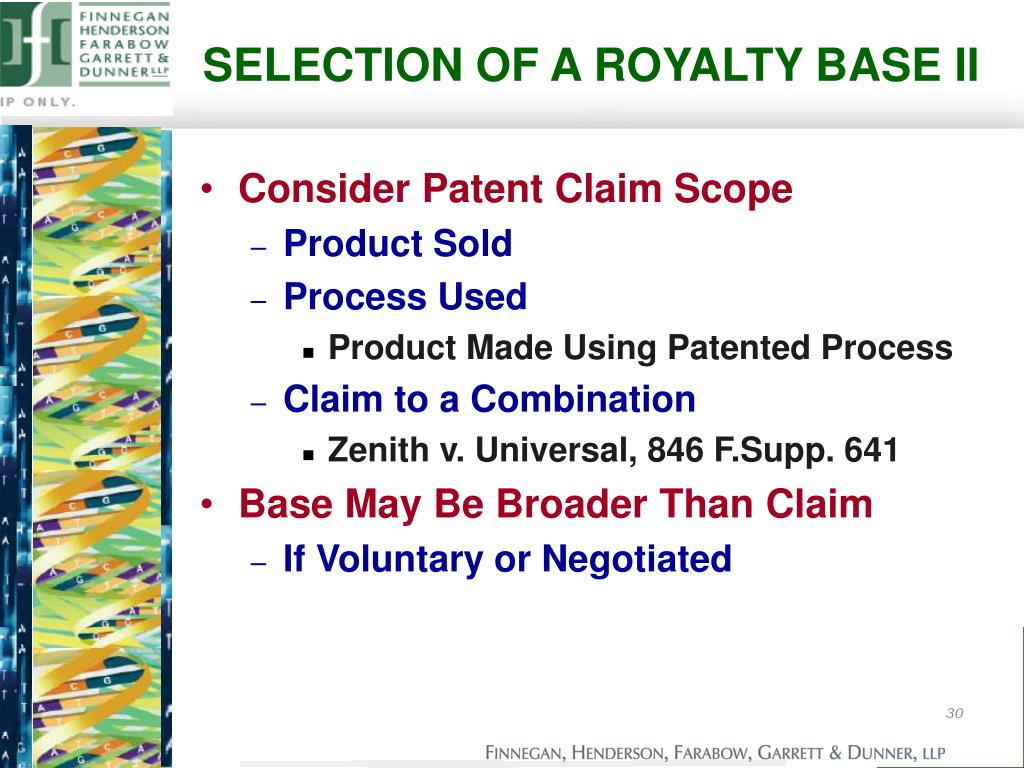

  30. SELECTION OF A ROYALTY BASE II • Consider Patent Claim Scope • Product Sold • Process Used • Product Made Using Patented Process • Claim to a Combination • Zenith v. Universal, 846 F.Supp. 641 • Base May Be Broader Than Claim • If Voluntary or Negotiated

  31. SELECTION OF A ROYALTY BASE III • Base for Process or Product Not Sold • Volume of Raw Material • Often Appropriate for Process License • Production Volume • Cycles of Equipment, Volume of Product • Used Where Product is Intermediate or Subcomponent • Not Inflation Sensitive • Requires Escalation Provision

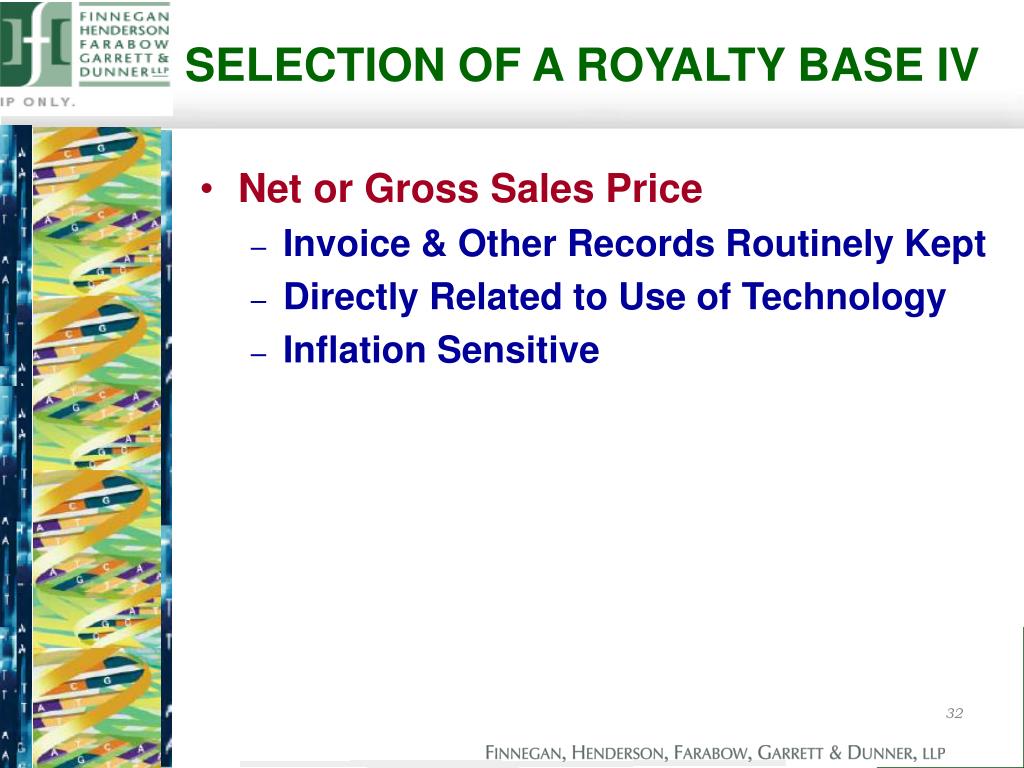

  32. SELECTION OF A ROYALTY BASE IV • Net or Gross Sales Price • Invoice & Other Records Routinely Kept • Directly Related to Use of Technology • Inflation Sensitive

  33. REACH-THROUGH LICENSE • Reach-through licenses tie royalties to sales of products that are identified, but not manufactured through the use of the patented product • Time shift - Computes royalties as a share of the ultimate market value (true value) of some future commercial product to be developed with the patented product, rather than its current market value

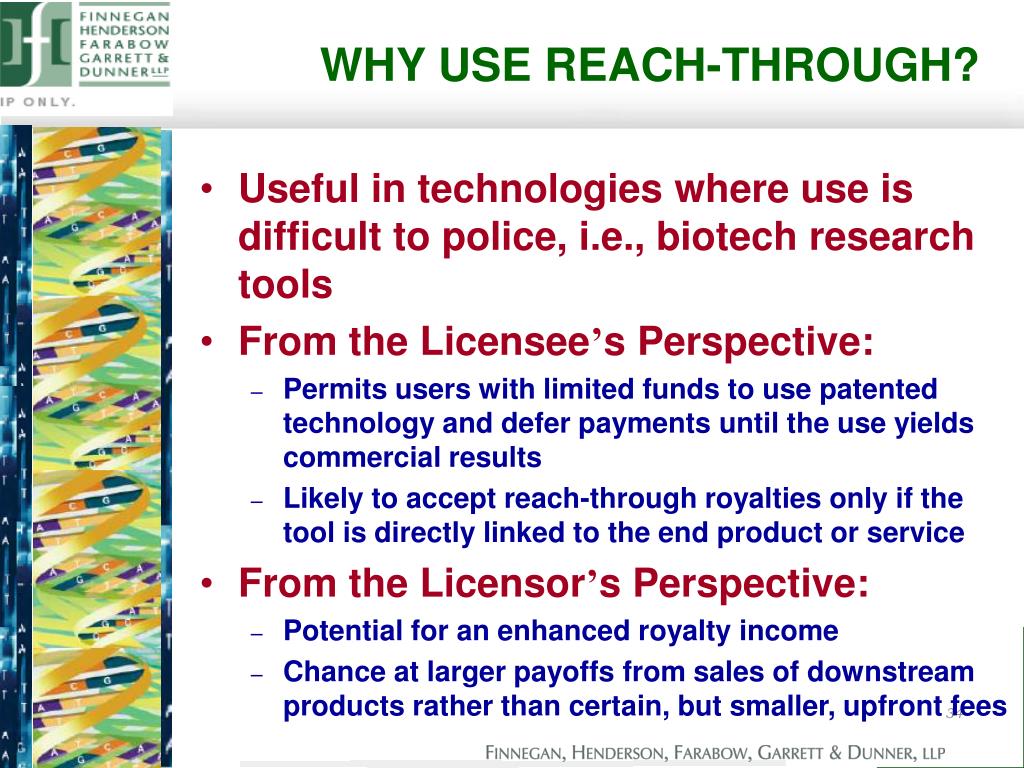

  34. WHY USE REACH-THROUGH? • Useful in technologies where use is difficult to police, i.e., biotech research tools • From the Licensee’s Perspective: • Permits users with limited funds to use patented technology and defer payments until the use yields commercial results • Likely to accept reach-through royalties only if the tool is directly linked to the end product or service • From the Licensor’s Perspective: • Potential for an enhanced royalty income • Chance at larger payoffs from sales of downstream products rather than certain, but smaller, upfront fees

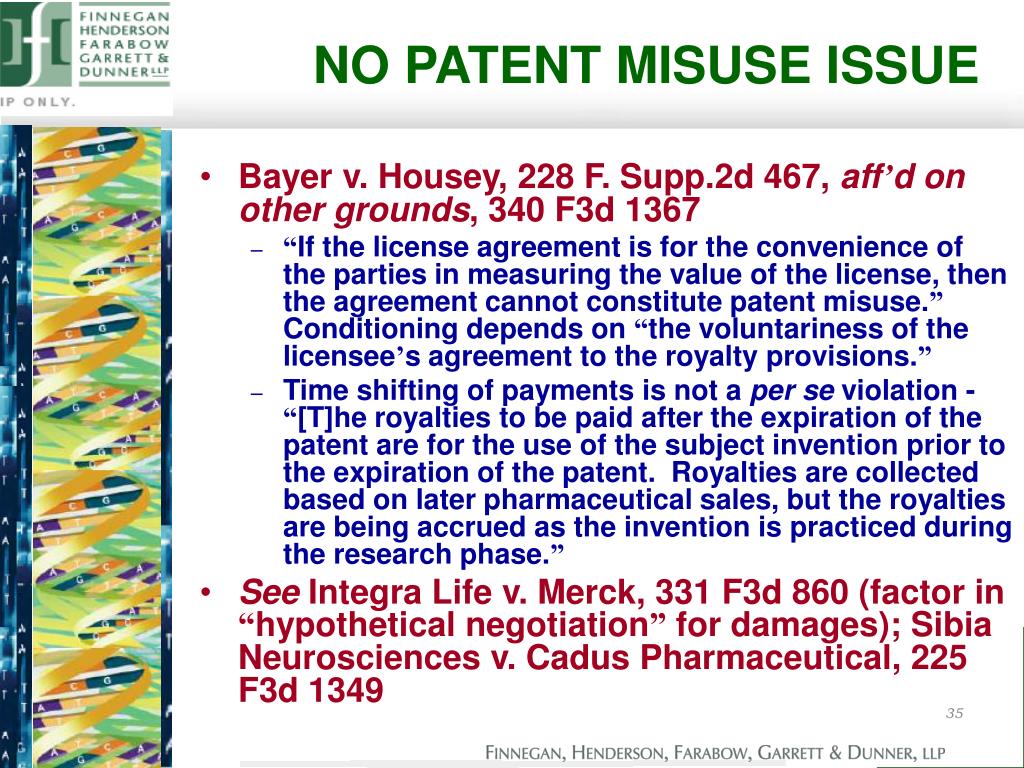

  35. NO PATENT MISUSE ISSUE • Bayer v. Housey, 228 F. Supp.2d 467, aff’d on other grounds, 340 F3d 1367 • “If the license agreement is for the convenience of the parties in measuring the value of the license, then the agreement cannot constitute patent misuse.” Conditioning depends on “the voluntariness of the licensee’s agreement to the royalty provisions.” • Time shifting of payments is not a per se violation - “[T]he royalties to be paid after the expiration of the patent are for the use of the subject invention prior to the expiration of the patent. Royalties are collected based on later pharmaceutical sales, but the royalties are being accrued as the invention is practiced during the research phase.” • See Integra Life v. Merck, 331 F3d 860 (factor in “hypothetical negotiation” for damages); Sibia Neurosciences v. Cadus Pharmaceutical, 225 F3d 1349

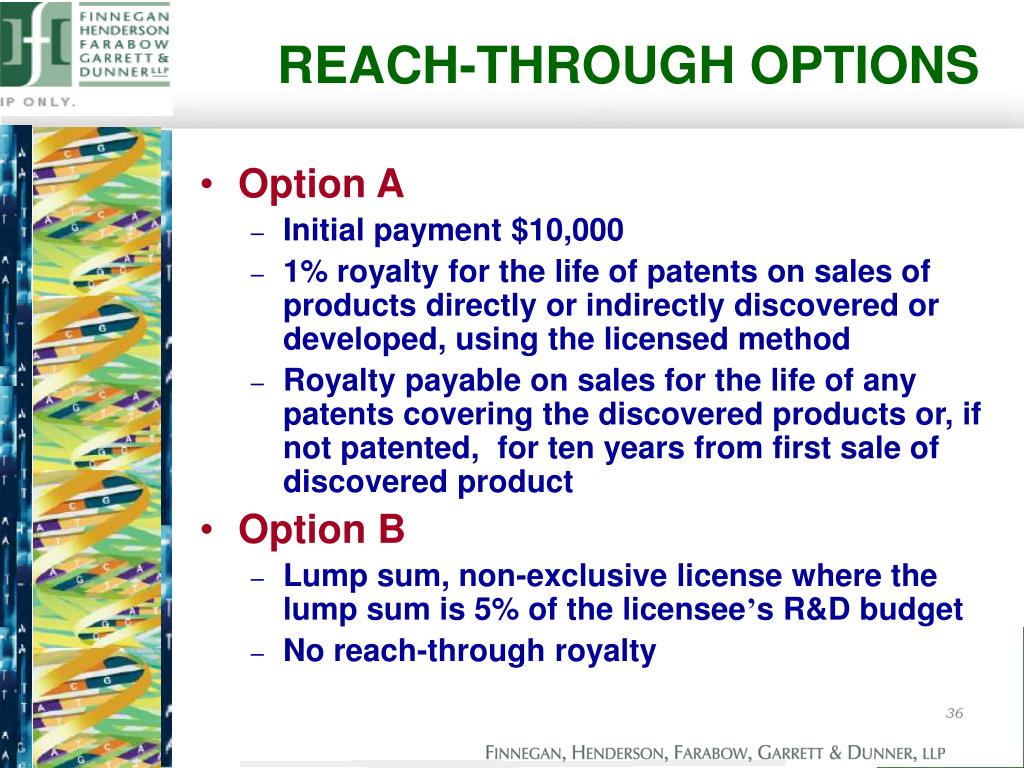

  36. REACH-THROUGH OPTIONS • Option A • Initial payment $10,000 • 1% royalty for the life of patents on sales of products directly or indirectly discovered or developed, using the licensed method • Royalty payable on sales for the life of any patents covering the discovered products or, if not patented, for ten years from first sale of discovered product • Option B • Lump sum, non-exclusive license where the lump sum is 5% of the licensee’s R&D budget • No reach-through royalty

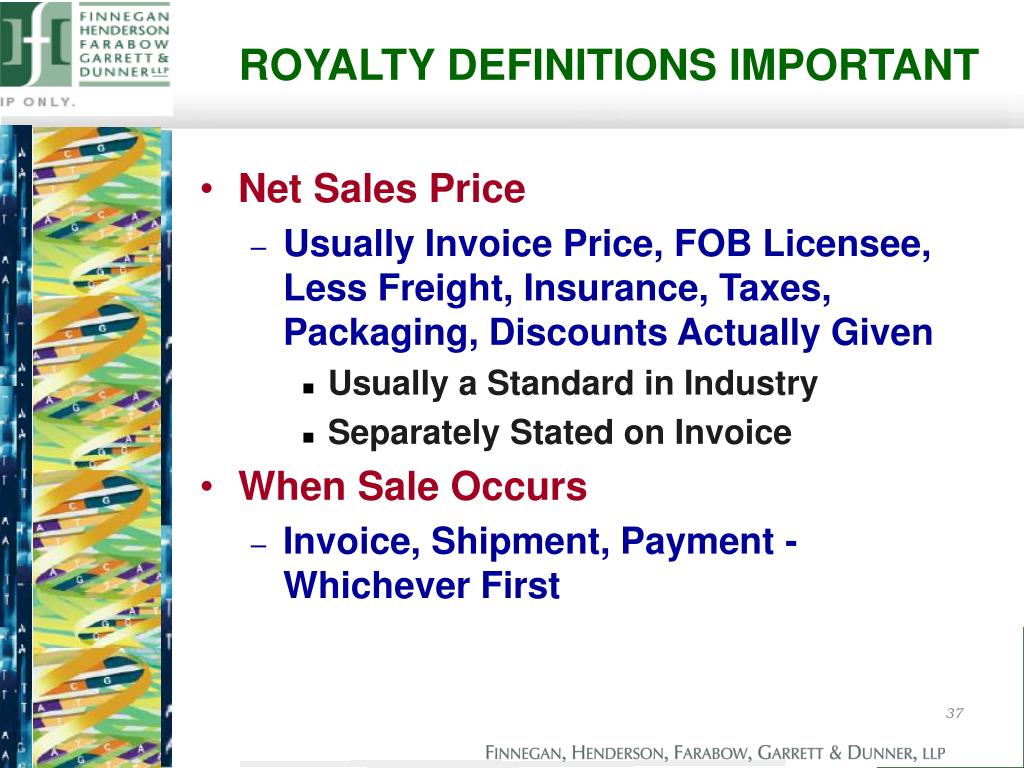

  37. ROYALTY DEFINITIONS IMPORTANT • Net Sales Price • Usually Invoice Price, FOB Licensee, Less Freight, Insurance, Taxes, Packaging, Discounts Actually Given • Usually a Standard in Industry • Separately Stated on Invoice • When Sale Occurs • Invoice, Shipment, Payment - Whichever First

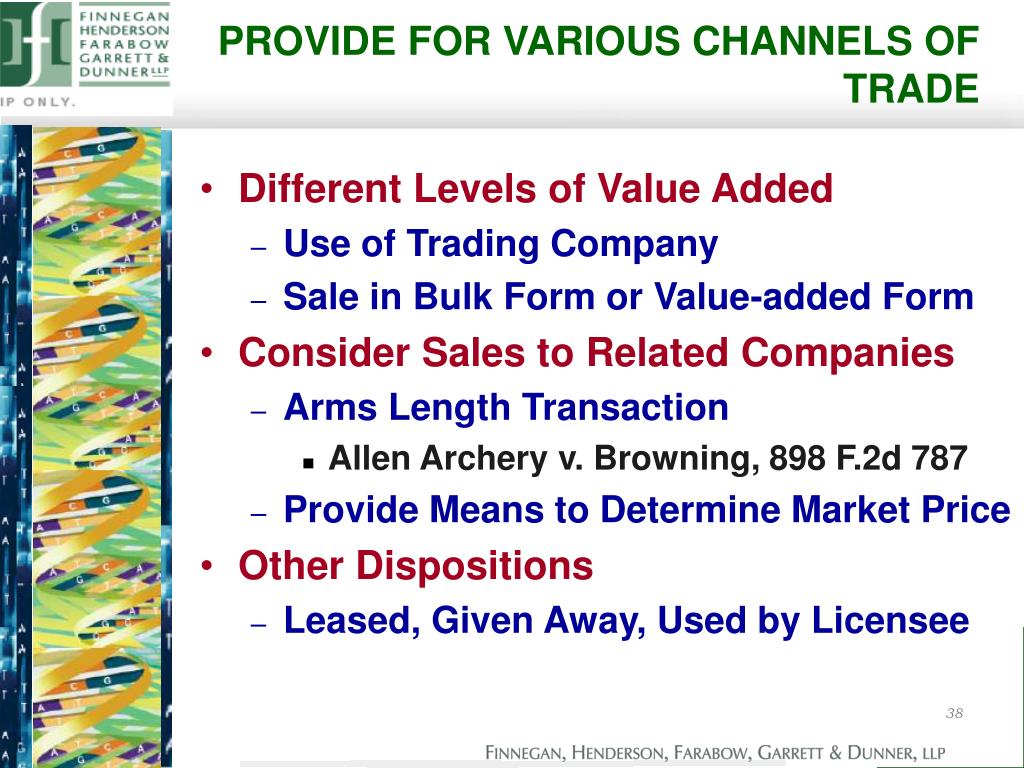

  38. PROVIDE FOR VARIOUS CHANNELS OF TRADE • Different Levels of Value Added • Use of Trading Company • Sale in Bulk Form or Value-added Form • Consider Sales to Related Companies • Arms Length Transaction • Allen Archery v. Browning, 898 F.2d 787 • Provide Means to Determine Market Price • Other Dispositions • Leased, Given Away, Used by Licensee

  39. ESCALATION PROVISION • Specify Index -- Consumer Price Index • Specify Subtitle -- All Urban Consumers • Specify Category and Subcategory • Specify Geographic Scope • Specify Base Period • Month of Execution or Other • Confirm All Items Published for Base Period

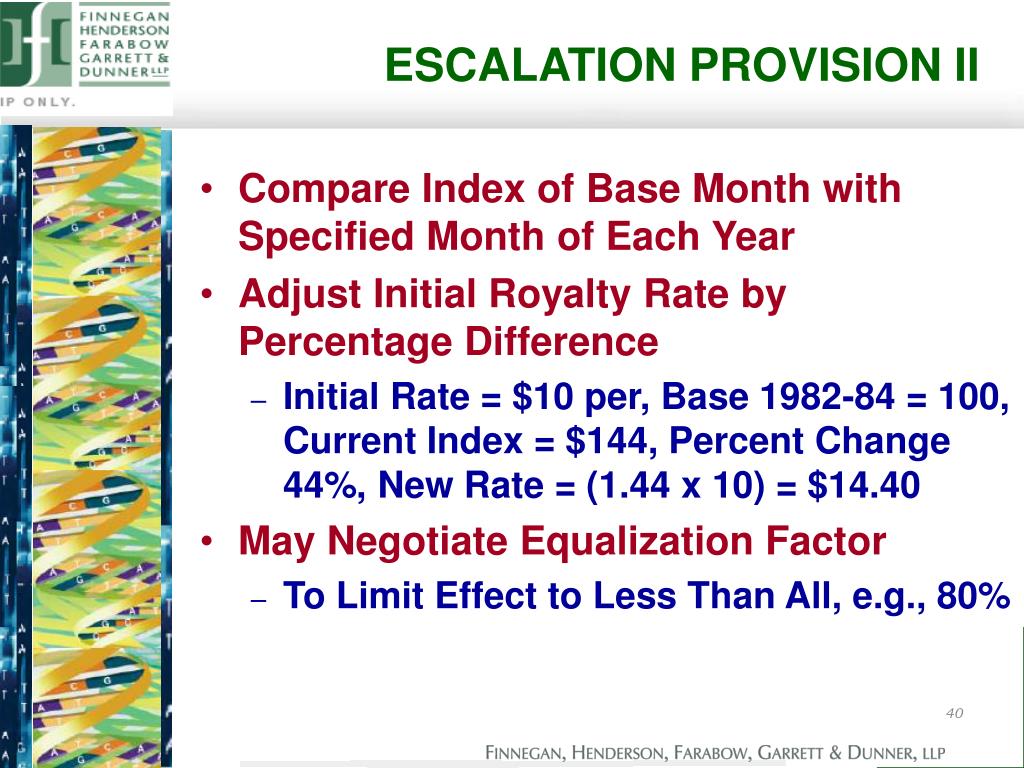

  40. ESCALATION PROVISION II • Compare Index of Base Month with Specified Month of Each Year • Adjust Initial Royalty Rate by Percentage Difference • Initial Rate = $10 per, Base 1982-84 = 100, Current Index = $144, Percent Change 44%, New Rate = (1.44 x 10) = $14.40 • May Negotiate Equalization Factor • To Limit Effect to Less Than All, e.g., 80%

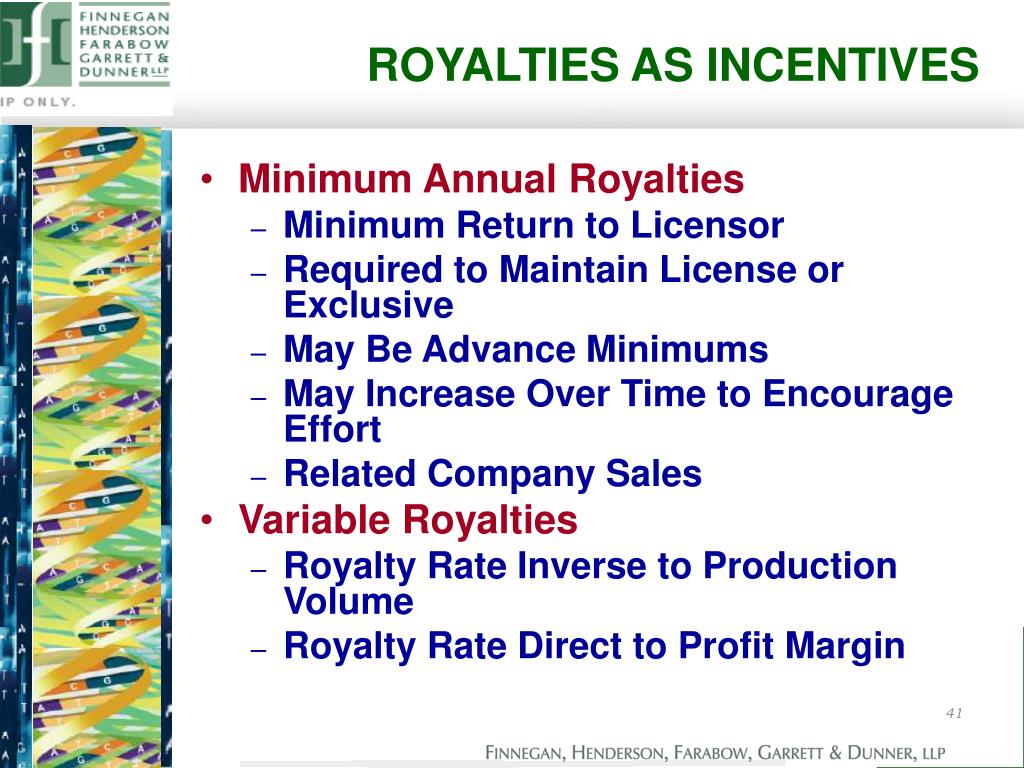

  41. ROYALTIES AS INCENTIVES • Minimum Annual Royalties • Minimum Return to Licensor • Required to Maintain License or Exclusive • May Be Advance Minimums • May Increase Over Time to Encourage Effort • Related Company Sales • Variable Royalties • Royalty Rate Inverse to Production Volume • Royalty Rate Direct to Profit Margin

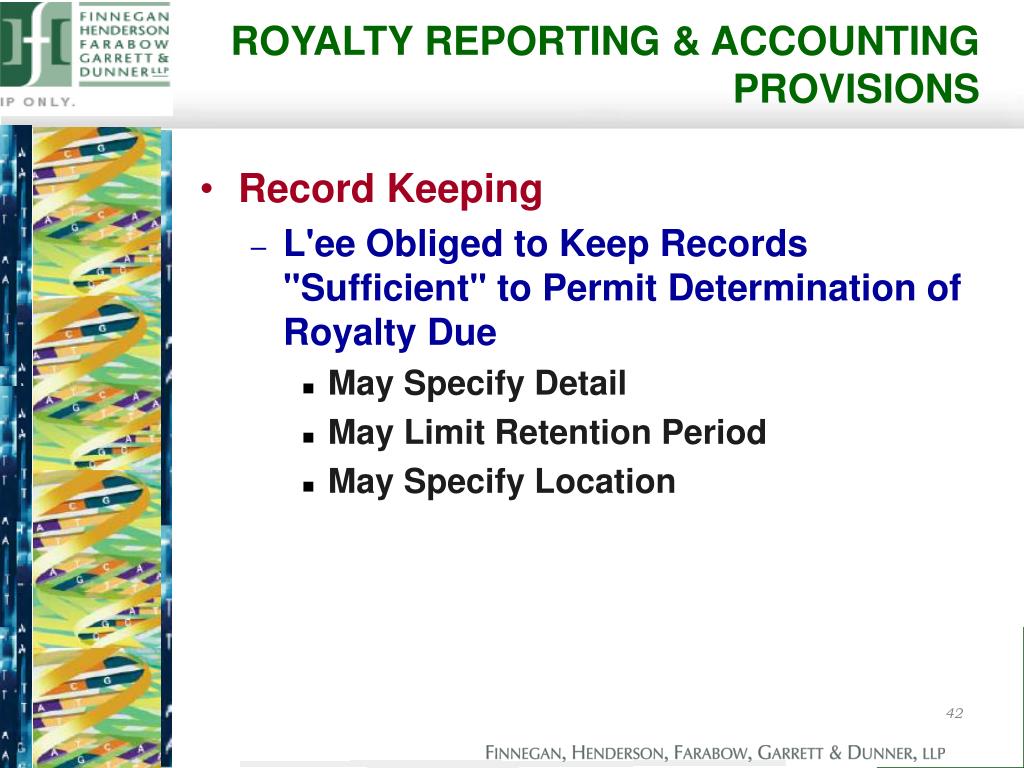

  42. ROYALTY REPORTING & ACCOUNTING PROVISIONS • Record Keeping • L'ee Obliged to Keep Records "Sufficient" to Permit Determination of Royalty Due • May Specify Detail • May Limit Retention Period • May Specify Location

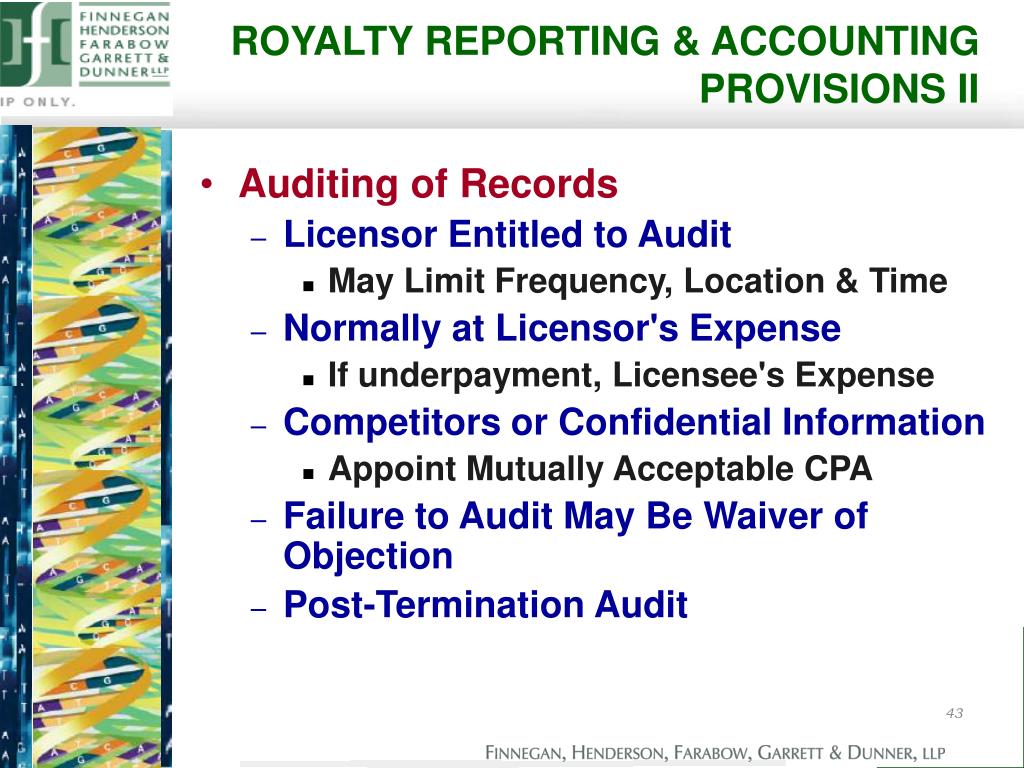

  43. ROYALTY REPORTING & ACCOUNTING PROVISIONS II • Auditing of Records • Licensor Entitled to Audit • May Limit Frequency, Location & Time • Normally at Licensor's Expense • If underpayment, Licensee's Expense • Competitors or Confidential Information • Appoint Mutually Acceptable CPA • Failure to Audit May Be Waiver of Objection • Post-Termination Audit

  44. ROYALTY REPORTING & ACCOUNTING PROVISIONS III • Reports by Licensee of Royalties Due • Content Negotiable But Specified • Summary of Royalties Due • How Determined • Periodic, Preferably on Calendar Basis • Within 30 Days After Close of Quarter • Specify Payment at Time of Report • Post-Termination Report

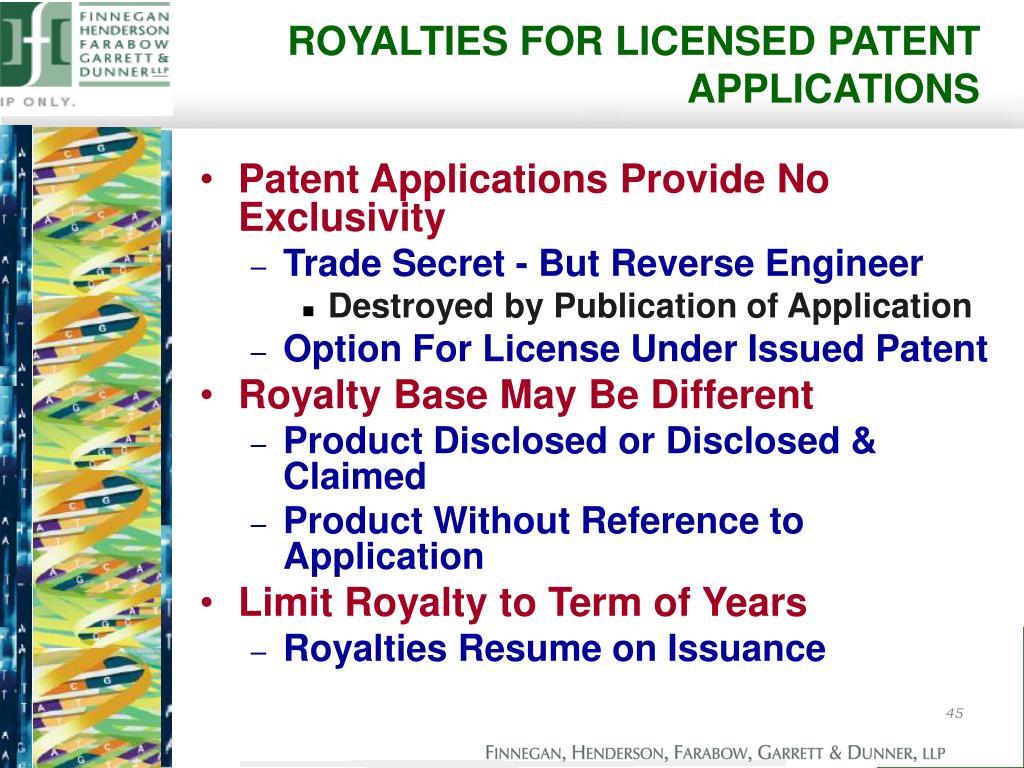

  45. ROYALTIES FOR LICENSED PATENT APPLICATIONS • Patent Applications Provide No Exclusivity • Trade Secret - But Reverse Engineer • Destroyed by Publication of Application • Option For License Under Issued Patent • Royalty Base May Be Different • Product Disclosed or Disclosed & Claimed • Product Without Reference to Application • Limit Royalty to Term of Years • Royalties Resume on Issuance

  46. TERM & TERMINATION • Absent Term - Life of Patents • Termination on Breach • Material Breach Only to Heart of Agreement • Notice and Cure Period • Automatic vs. Second Notice • Bankruptcy Benefit • Licensee Termination Without Cause • Minimum Annual Royalty

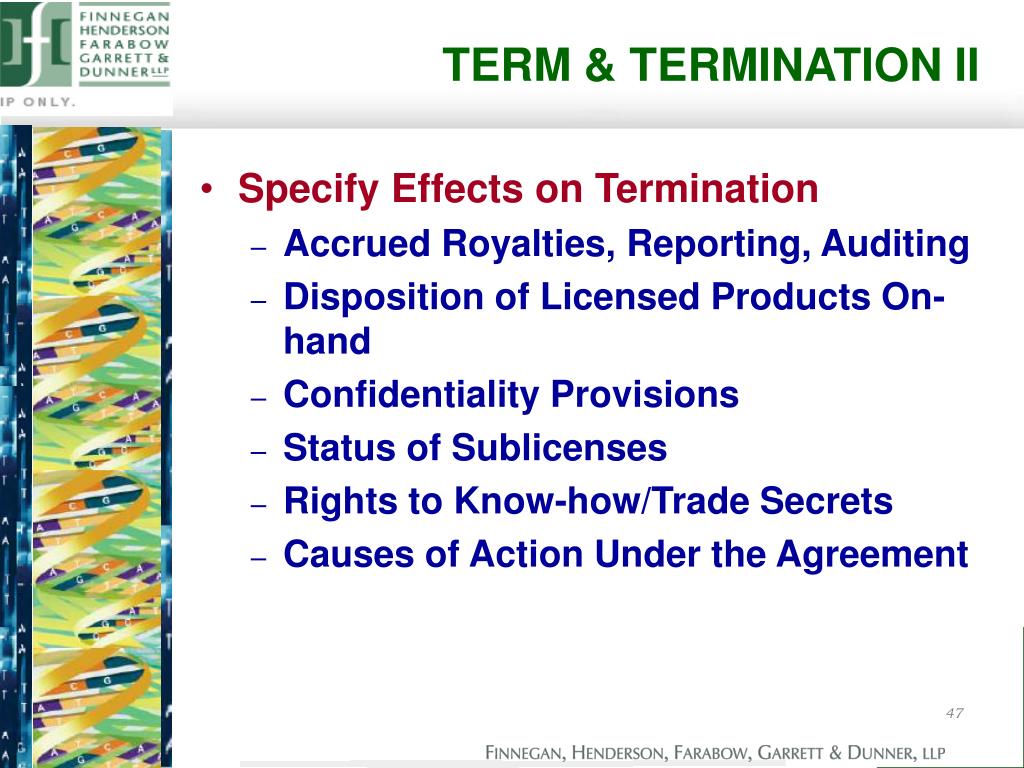

  47. TERM & TERMINATION II • Specify Effects on Termination • Accrued Royalties, Reporting, Auditing • Disposition of Licensed Products On-hand • Confidentiality Provisions • Status of Sublicenses • Rights to Know-how/Trade Secrets • Causes of Action Under the Agreement

  48. REPRESENTATIONS AND WARRANTIES • Implied in Nonexclusive License • Licensor Has Power to Grant License • Licensor Has Not Taken Action Inconsistent • Licensor Will Not Take Action Inconsistent • Additionally Implied in Exclusive License • Licensor Has Title to Patent • Licensor Will Grant No Further Licenses • Licensor Will Not Practice Under Patent • Implied From Facts

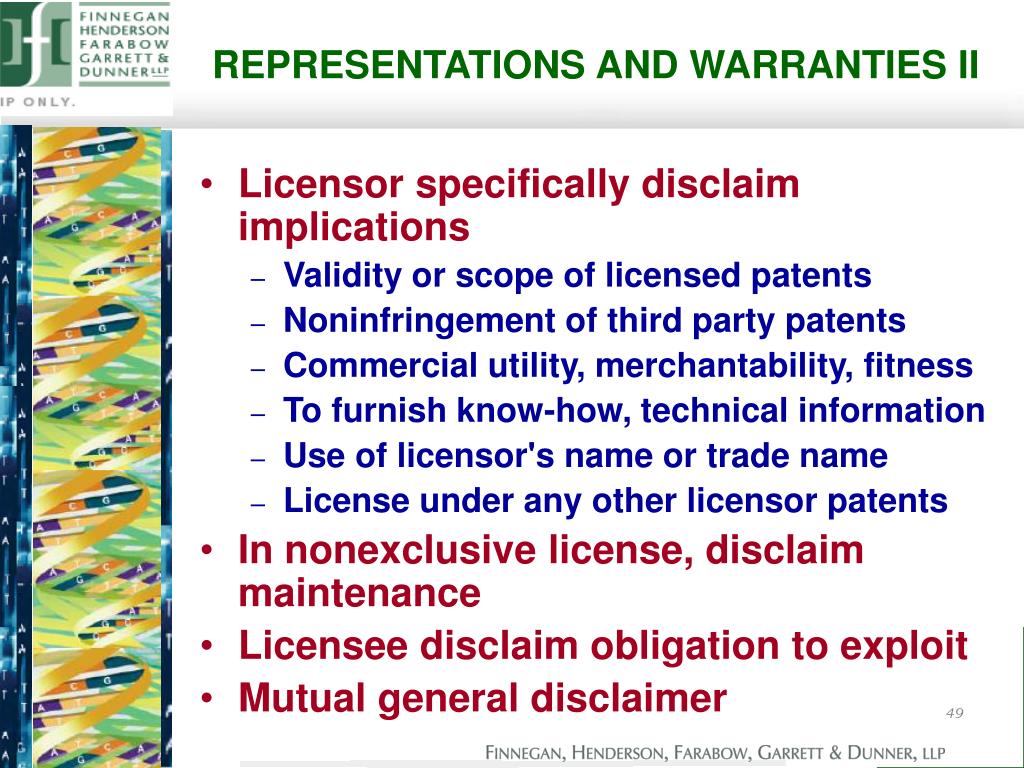

  49. REPRESENTATIONS AND WARRANTIES II • Licensor specifically disclaim implications • Validity or scope of licensed patents • Noninfringement of third party patents • Commercial utility, merchantability, fitness • To furnish know-how, technical information • Use of licensor's name or trade name • License under any other licensor patents • In nonexclusive license, disclaim maintenance • Licensee disclaim obligation to exploit • Mutual general disclaimer

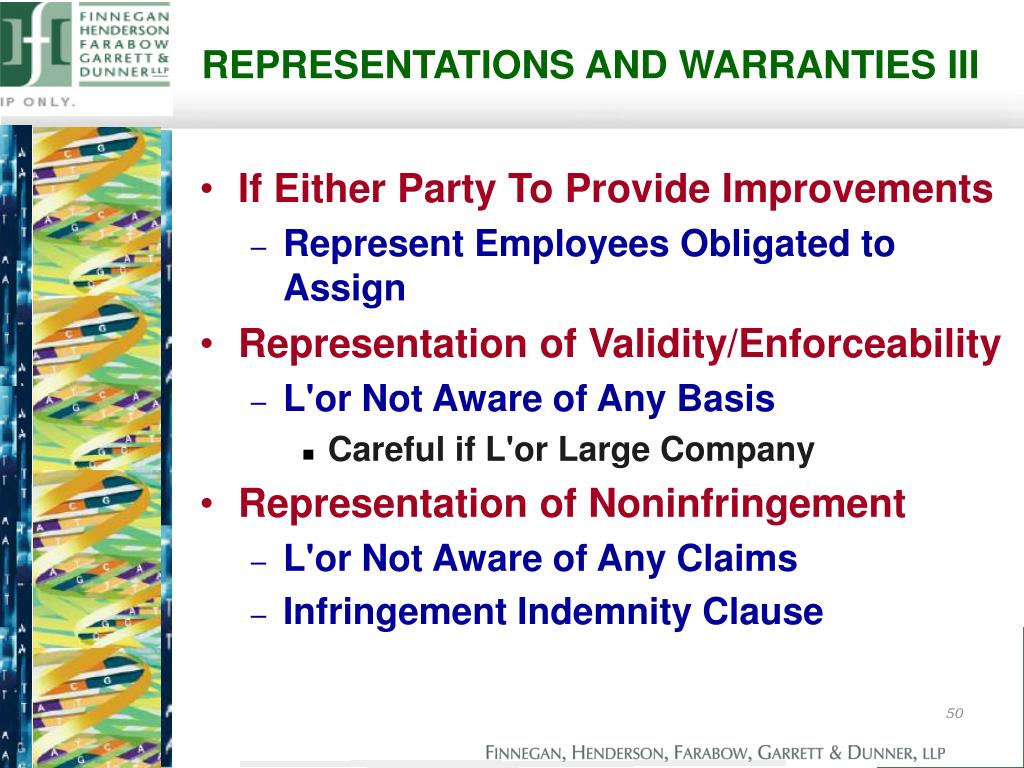

  50. REPRESENTATIONS AND WARRANTIES III • If Either Party To Provide Improvements • Represent Employees Obligated to Assign • Representation of Validity/Enforceability • L'or Not Aware of Any Basis • Careful if L'or Large Company • Representation of Noninfringement • L'or Not Aware of Any Claims • Infringement Indemnity Clause
