Parsing with Richer Formalisms HPSG1 by Sibel Ciddi

1. Parsing with Richer FormalismsHPSG1by SibelCiddi

2. Major Focuses of Research in This Field: • Unification-Based Grammars • Probabilistic Approaches • Dynamic Programming • Stochastic Attribute-Value Grammars, Abney, 2007 • Dynamic Programming for Parsing and Estimation of Stochastic Unification-Based Grammars, Geman & Johnson, 2002 • Stochastic HPSG Parse Disambiguation using the Redwoods Corpus, Toutanova & Flickinger, 2005

3. Stochastic Attribute-Value Grammars, Abney, 1997 INTRO • Motivation for this paper: • Insufficiencies of previous probabilistic Attribute-Value grammars in defining parameter-estimation • Other than Brew and Eisele’s attempts; there has not been serious attempts to extend stochastic models developed for CFGs to constraint-based grammars by assigning weights or preferences, or introducing ‘weighted logic *See Riezlar (1996) **See Brew (1995), Eisele (1994)

4. Goal: Abney’s goal in this research: • Defining a stochastic attribute-value grammar • Algorithm to compute the maximum-likelihood estimations of AVG parameters. • How? • Adapting from Gibbs Sampling* for the Improved Iterative Scaling Algorithm (ISS) to estimate certain function expectations. • For further improvement, use of Metropolis-Hastings algorithm. * the Gibbs sampling was earlier used for English orthography application by Della Pietra, Della Pietra & Laferty(1995), .

5. Overview of Abney’s experiments: Based on Brew and Eisel’s earlier experiments, Abney experiments with Empirical Relative Frequency (ERF) used for SFCGs. • Using Expectation-Maximization (EM) Algorithm • What to do in case of true context-dependencies? • Random Fields (a generalization of Markov Chains and stochastic branch processes) • For further improvement, Metropolis-Hastings Algorithm

6. Ideas and Methods for Parameter Estimation: Abney’s ideas and methods for parameter-estimations in AVGs: • Empirical Relative Frequency (ERF) Method • Expectation-maximization used for CFGs • ‘Normalization’ (normalizing constant) in ERF for AVGs • Random Fields (generalized Markov Chains) Method • Improved Iterative Scaling Algorithm (DL&L, English Ortho) • Null Fields • Feature Selection • Weight Adjustment • Iteration • Random Sampling Method • Metropolis-Hastings Algorithm

7. Probability Estimations in CFG: For probabilistic estimations in CFG, assume the grammar and model is as following: The probability distribution according to this model is: • X is the tree, and the RHS of the equation are the weights: Tree=x Rule 1, used once, 1/3.1 for p|f_1| and 1/3.2 for p|f_3| Rule3, used twice • The probability distribution of a parse tree is defined as: • Parameter estimation determines the values for weights for stochastic grammar to be effective, so obtaining the correct weights are crucial.

8. Empirical Relative Frequency in CFG: • Empirical Distribution is the frequency of how often a certain tree appears in the corpus. • The dissimilarity of distributions is necessary to compare the probability distribution to the empirical distribution. • Using the Kullback-Leibler Divergence, maximizing the likelihood of probability distributions (for q)**. • CFGs use the ERF method to find the best weights for probability distributions. • ERF: for each rule i with βi and function fi(x), returning the number of times rule i is used in the derivation of tree (x), the p|f| represents the expectation of f under probability distribution p: • This way the ERF enables us to compute the expectation of each rule’s frequency and normalize among rules with the same LHS. *This is the structure generated by the grammar. **q for distribution also counts for missing mass that is not available in the training corpus. p[f]=∑ₓp(x)f(x)

9. -table3 ERF weights are the best weights because they are closest to the empirical distribution. If the training corpus is generated by SCFGs, the dependencies between the trees are assumed to be coincidental. However; -What if the dependencies are not just coincidental, but True Context-Dependencies? -Apply the same method to AVGs, in an attempt to formalize an AVG as a CFG, and follow the similar rewrite rules and models??? Then, we can apply the same context-free grammar as an attribute-value grammar like the following:

10. ERF in AVGs? • This involves the following: • attaching probabilities to AVG (in the same way used for CFGs) • estimate weights AV structure generated the grammar. Rule applications, using the E ** ϕrepresents the dag* weight for the tree x1. *Dag is short for ‘directed acyclic graph’. • Rule applications in AV graph generated by the grammar, using ERF

11. Probability Estimation Using ERF in AVGs: However, here the weight ϕ points to the entire set of AV structures (shown in prev. slide)—not the probability distribution (as in the CFGs). • In order to get the correct probability distributions and weights, a normalizing constant for ϕ₂ is introduced: q(x)=1/Z ϕ(x) where Z is a normalizer constant as in: • However, this normalization violates the certain conditions for the ERF to give the best weights by changing the grammar, and affecting the probability. ***This shows that in order to apply ERF to AVGs, there is a need for normalization, however normalization violates the ERF conditions.

12. Solution to Normalization Problem: Random Fields Method: Defines probability distribution over a set of labeled graph Ω*, using functions to represents frequencies of functions, features and rules: ***This normalizes the weight distribution. • As a result, empirical distribution needs less feature. For parameter estimation with Random Fields method, the followings are needed: • Values for weights, and features corresponding to those weights Improved Iterative Scaling Algorithm determines these values, and involves the following: • Null-field (no features) • Feature Selection • Weight Adjustment • Iteration until the best weight is obtained ISS shows improvement for the AV parameter estimation weights. However it doesn’t give the best weights (compared to CFG parameter estimations) due to the number of iterations required for a given tree. If the given grammar is small enough; the results can work moderately; but if the grammar is large enough (as in the AVGs), another alternative proves better results. *Omegas are actually the AV structures generated by the grammar.

13. Random Sampling (stochastic decision) Using Metropolis-Hastings Algorithm: • Converts the sampler for the initial distribution into a sampler for field distribution, which proposes a new item (out of the existing sampler). If the new item proposed by the current sampler is greater than new sampler’s distribution, it means there is overrepresentation. • With stochastic decision, if the item has a probability that is equal to its degree of overrepresentation; the item is rejected. • If the degree of overrepresentations (of the proposed item) is equal to the new sampler: • if the new item is underrepresented relative to the new sampler, the new item is accepted with the probability of 1. • If the new item is overrepresented relative to the new sampler; the new item is accepted with a probability that diminishes, as the representation increases.

14. Conclusion • Stochastic CFG Methods are not easily convertable to AVGs. • Because of constraints and True Context-Dependencies on AVGs , ERF Method gives wrong weights for the parameter estimation. • Obtaining correct weights require various methods: • Random Sampling • Feature Selection • Weight Adjustment • Random Sampling shows promise for future experimentation but the performance is too slow, and output weights are not the optimal weights due to required iterations. This is even more difficult for larger grammars because of the large number of features, and the number of iterations for Random sampling for each feature, so the results are not optimal. • Also these methods assume a complete parsed data. So without additional methods* incomplete data poses major challenges. *(described in Riezler, 1997)

15. Dynamic Programming for Parsing and Estimations of Stochastic Unification-based Grammars, Geman & Johnson, 2002 INTRO Because the earlier algorithms, proposed by Abney (1997) and Johnson et al. (1999), for stochastic parsing and estimation required extensive enumeration and did not work well on large grammars; Geman and Johnson discusses another algorithm that does graph-based dynamic programming without the enumeration process.

16. Goal In this research Geman and Johnson’s target is to find the most probable parse by using the packed parse set representations (aka. Truth Maintenance System – TMS). *A packed representation quadruple: R=(F’, X, N, α) Overview: • Viterbi Algorithm: finds the most probable parse of a string. • Inside-Outside Algorithm: estimates a PCFG from unparsed data. Maxwell III and Kaplan’s algorithm: takes a string y, returns a packed representation R such that Ω(R)=Ω(y), where R represents the set of parses of string y.

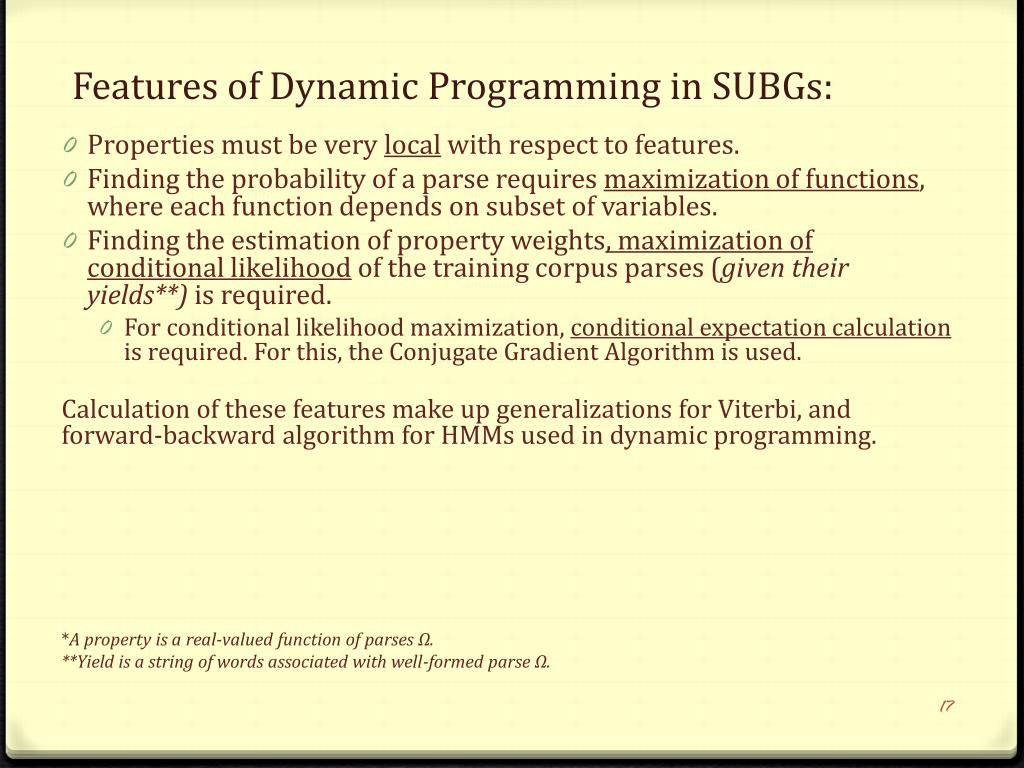

17. Features of Dynamic Programming in SUBGs: • Properties must be very local with respect to features. • Finding the probability of a parse requires maximization of functions, where each function depends on subset of variables. • Finding the estimation of property weights, maximization of conditional likelihood of the training corpus parses (given their yields**) is required. • For conditional likelihood maximization, conditional expectation calculation is required. For this, the Conjugate Gradient Algorithm is used. Calculation of these features make up generalizations for Viterbi, and forward-backward algorithm for HMMs used in dynamic programming. *A property is a real-valued function of parses Ω. **Yield is a string of words associated with well-formed parse Ω.

18. Conclusions: • Geman and Johnson in this paper examines only a few of the algorithms with regards to Maxwell and Kaplan representations to be used for dynamic programming for parsing. • Because these representations provide a very compact set of parses of sentences, it eliminates the need to list each parse separately. As the nature of natural languages, strings and features occur as substrings or sub-features of other components, and therefore the parsing process can be faster via dynamic programming. • The algorithms presented here have promising results for parsing unification-based grammars compared to earlier experiments that iterates through countless enumerations.

19. Stochastic HPSG Parse Disambiguation Using The Redwoods CorpusToutanova, Flickinger, 2005 INTRO Supporting Abney’s and other researches’ conclusions that point out the improvements resulting from the use of conditional stochastic models in parsing; Toutanova and Flickinger experimented both with generative and conditional log-linear models. Recall; ***Brew & Eisner had found that ERF doesn’t result in the best weights for parameter estimation if there are true context-dependencies. This is why Abney had experiments with other methods such as normalization factors, random fields and random sampling, etc…

20. Goal: • Using the Redwoods corpus, build a tagger for HPSG lexical item identifiers to be used for parse disambiguation. • Train stochastic models using: • Derivation Trees • Phrase Structure Trees • Semantic Trees (Approximations to Minimal Recursion Semantics) In order to build: • Generative Models • Conditional Log-linear Models HOW? • Use probabilistic models (from training) to rank unseen test sentences according to probabilities attach to them (from those probabilistic models).

21. Generative Model vs. Conditional Log-Linear Model: Generative Models define the probability distribution over the trees of derivational types corresponding to HPSG analysis of sentences. The PCFG parameters used for each rule of CFG correspond to the schemas of HPSG. The probability distribution weights are obtained by using relative frequency estimations with Witten-Bell smoothing. Conditional Log-Linear Models have a set of features {f₁,…, fM}, and a set of corresponding weights {λ1,…,λM}. The conditional models define features over derivation and semantic trees. Trains the models by maximizing the conditional likelihood of preferred analysis of parses, by using a Gaussian prior for smoothing. For these models in this project, the Gaussian prior is set to 1.

22. Overview of Models: .

23. Comparison of Models:

24. Comparison of Models: Derivation Trees

25. Comparison of Models: Semantic Trees Third, Add Stop symbols at the ends to the LEFT and RIGHT first, create left dependents (from R to L, given H, parent, R-Sister, Num. of dependents of L. Second, create right dependents from L to R

26. Comparison of Models: Combination Trees

27. Results: Sentences # Length Str. Ambiguity All 6876 8.0 44.5 Ambiguous 5266 9.1 57.8 -All sentences include ambiguous and unambiguous, and may be used for training. Ambiguous only set used for testing. -For this work, unambiguous sentences werediscarded from the test set. -Unambiguous sets were used for training in generative models. Conditional models did not use any ambiguous sets.* *The ambiguous sets contribute a constant to the log-likelihood in conditional models. **Accuracy is 94.6% for sentences with 2 possible analyses, and 40% with more than 100 analyses. • High accuracy already achieved even by simple stat. models. • HMM tagger doesn’t perform by itself compared with other models with more info. about the parse. • PCFG-A achieved 24% error reduction over PCFG-1P • PCFG-Sem has good accuracy but not better than PCFG-A by itself • Model combination has complimentary advantages: • tagger adds left-context info to the PCFG-A model • PCFG-Sem provides semantical info. • LPCFG-1P achieves 28% error reduction over PCFG-1P • Overall, 13% error reduction from PCFG-Combined to Lcombined. • It’s also important to note that high accuracy might result from: • low ambiguity rate in the corpus • short sentence length • Also, accuracy decreases as ambiguity increases** • And, there is over fitting between testing and training.

28. Error Analysis & Conclusion: • Ancestor annotation proves higher accuracy over other models and especially better results on Phrase Structure Trees. • Another combined model based on the log-probability combinations of derivation and PS trees; the new model gives even slightly better accuracy on phrase structures. This shows: • Node labels (schema names) provide enough information for good accuracy. • Semantic models perform less than the expected.* • Data scarcity, size of corpus** A more detailed analysis of error show that out of 165 sentences in this study: • %26 were caused by annotation error in the tree bank • %12 caused by both tree bank and the model • %62 were real errors (the parse was able to correctly capture***) For these real errors, 103 out of 165: • 27 PP-attachments • 21 wrong lexical-item selection • 15 modifier attachment • 13 coordination • 9 Complement / adjunt • 18 other misc. errors ***This figure was %20 in 2002, for the 1st growth of the Redwoods corpus, which shows the corpus was improved meantime as well.

29. Further Discussion & Future Work: Any Questions & Comments? After seeing the numbers in the results, the efficiency of the numbers showing the improvement can be argued, in terms of whether they are good enough, or if so, according to who? And what’s the measure of goodness in this kind of experiments? Toutoneva & Flickinger’s research shows that the performance expected from the stochastic models were not greatly higher than the statistical models. It is especially surprising to see that the more work was put into the research for the later models, the less improvement was obtained from the later models. *If you recall, the highest improvement came from the first LPCFG model. Some of the following ideas can be further researched to improve the current working models and ameliorate the inefficacies: • Better use of semantic or lexical info, use of MRS semantic representation • Automatic clustering, further examination of existing lexical sources • Semantic collocation information • Use of other features within the HPSG framework such as: • syntactic categories • clause finiteness • agreement features • Increase in corpus size
