  1. PDP One Point Repair Guide • General • 40 ~ 50 Inch Practice • 60 Inch Practice

  2. LG Electronics / DND / QA Gr. Countermeasure Symptom Cause (Bad X-Board PCB) Change X board PCB Pattern Short Red Bar at left lower CHECK Point 1. Check after X-Board change 2. Do shortage check neighboring pins of FPC* connector 3. Check soldering condition of defect pin 4. Scan the pattern connected to defect pin with Microscpoe *FPC : Flat Pin Connector 2/88

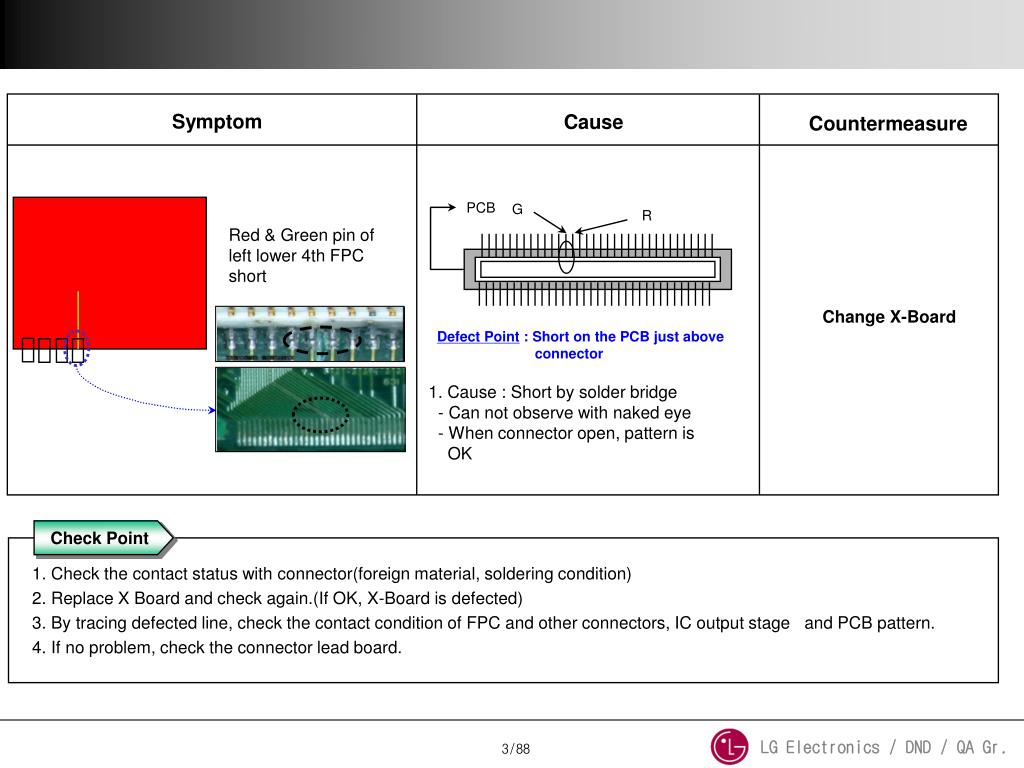

  3. LG Electronics / DND / QA Gr. Symptom Cause Countermeasure PCB G R Red & Green pin of left lower 4th FPC short Change X-Board Defect Point : Short on the PCB just above connector 1. Cause : Short by solder bridge - Can not observe with naked eye - When connector open, pattern is OK Check Point 1. Check the contact status with connector(foreign material, soldering condition) 2. Replace X Board and check again.(If OK, X-Board is defected) 3. By tracing defected line, check the contact condition of FPC and other connectors, IC output stage and PCB pattern. 4. If no problem, check the connector lead board. 3/88

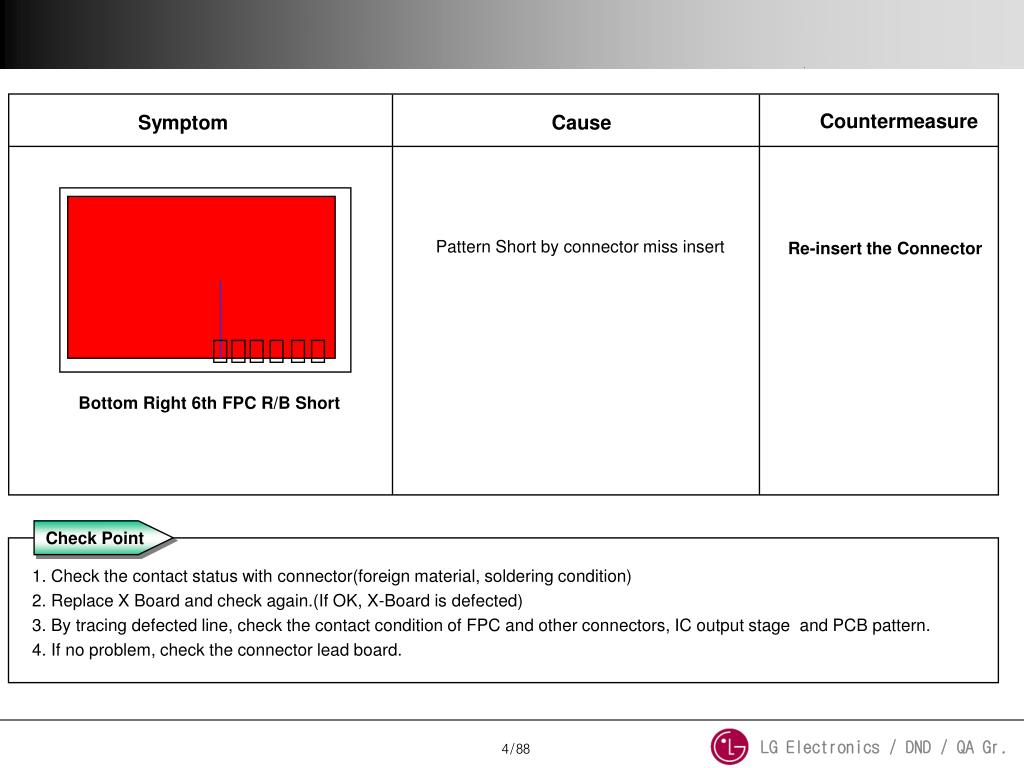

  4. Countermeasure Symptom Cause LG Electronics / DND / QA Gr. Pattern Short by connector miss insert Re-insert the Connector Bottom Right 6th FPC R/B Short Check Point 1. Check the contact status with connector(foreign material, soldering condition) 2. Replace X Board and check again.(If OK, X-Board is defected) 3. By tracing defected line, check the contact condition of FPC and other connectors, IC output stage and PCB pattern. 4. If no problem, check the connector lead board. 4/88

  5. Countermeasure Symptom Cause SHORT ↓ LG Electronics / DND / QA Gr. Foreign Material(Iron powder) in the Connector X-Board Tape Rework Gap Insulation tape ADD Electrode short at R,G,B Raster or White Screen(Different color display) ▶ Apply silicon on the Connector lead ←Pay attention to a capillary symptom Check Point 1. Trace defected line 2. Check the condition of FPC and connector on the X-Board, IC Output stage and Electrode line. 5/88

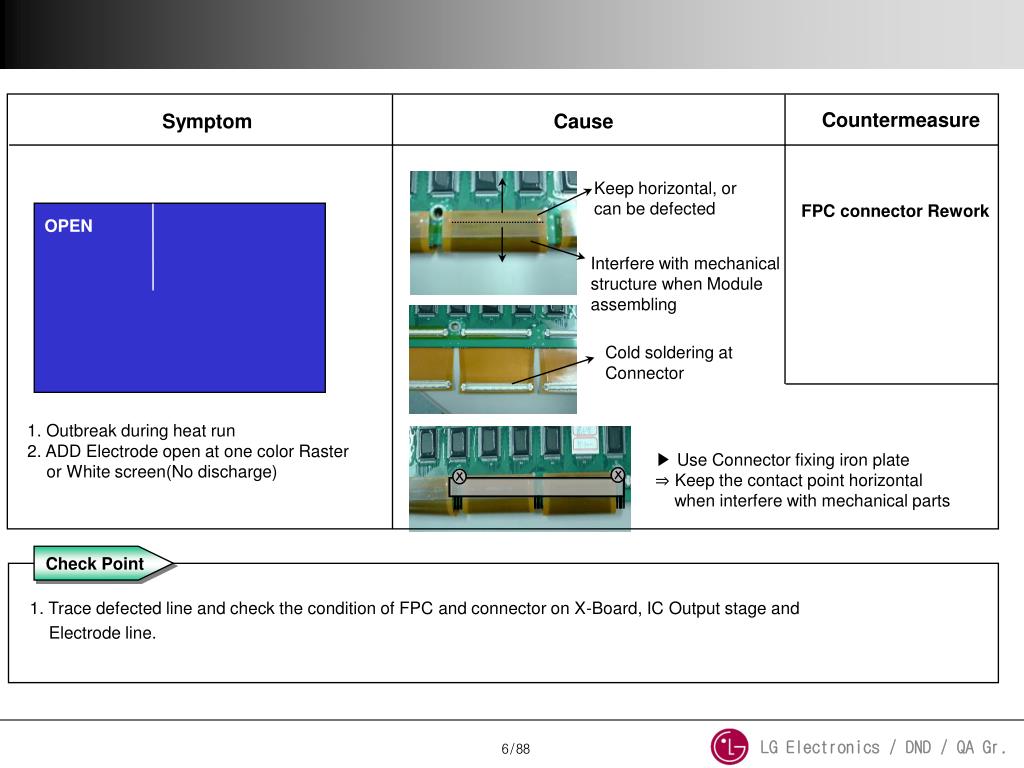

  6. Countermeasure Symptom Cause OPEN LG Electronics / DND / QA Gr. Keep horizontal, or can be defected FPC connector Rework Interfere with mechanical structure when Module assembling Cold soldering at Connector 1. Outbreak during heat run 2. ADD Electrode open at one color Raster or White screen(No discharge) ▶ Use Connector fixing iron plate ⇒ Keep the contact point horizontal when interfere with mechanical parts Check Point 1. Trace defected line and check the condition of FPC and connector on X-Board, IC Output stage and Electrode line. 6/88

  7. Countermeasure Symptom Cause LG Electronics / DND / QA Gr. Replace the Panel ADD Pattern Connected minutely and open slowly as time passes ADD open Check Point 1. Replace X Board and check again(Still problem, change the Panel) 2. Check the connection status of Panel side. 3. Check the connection condition of connector of Panel side and the FPC at upper ACF. → If it is OK, check Panel pad 7/88

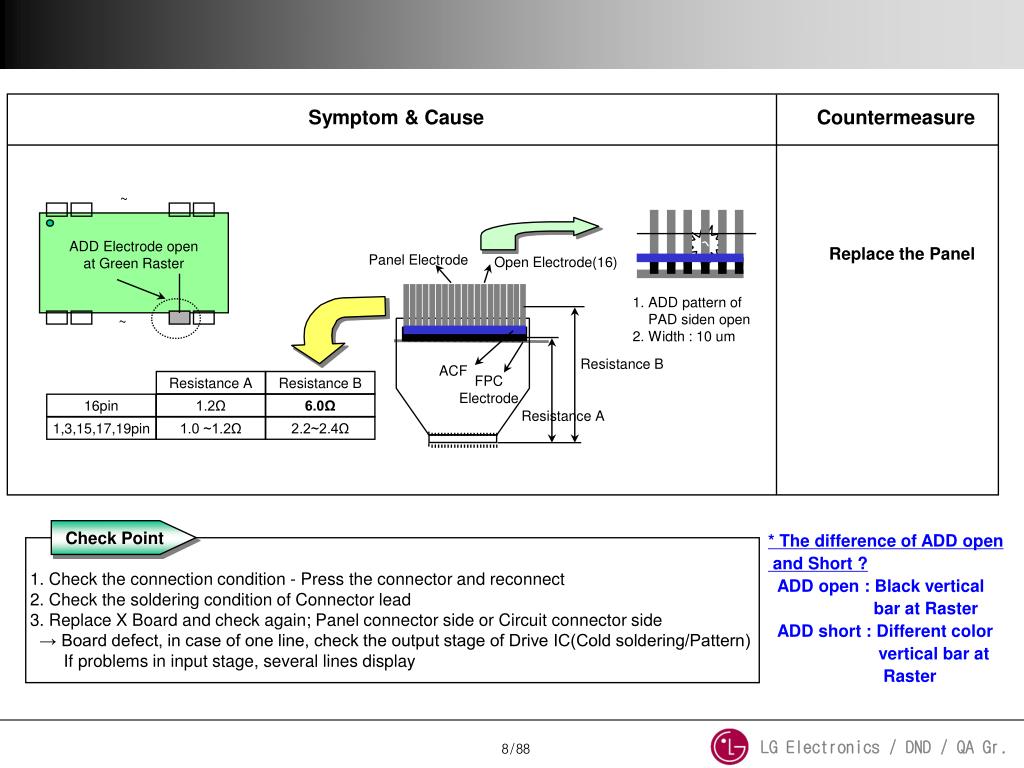

  8. ~ ADD Electrode open at Green Raster 1. ADD pattern of PAD siden open 2. Width : 10 um ~ Resistance A Resistance B 16pin 1.2Ω 6.0Ω 1,3,15,17,19pin 1.0 ~1.2Ω 2.2~2.4Ω LG Electronics / DND / QA Gr. Symptom & Cause Countermeasure Replace the Panel Panel Electrode Open Electrode(16) Resistance B ACF FPC Electrode Resistance A Check Point * The difference of ADD open and Short ? ADD open : Black vertical bar at Raster ADD short : Different color vertical bar at Raster 1. Check the connection condition - Press the connector and reconnect 2. Check the soldering condition of Connector lead 3. Replace X Board and check again; Panel connector side or Circuit connector side → Board defect, in case of one line, check the output stage of Drive IC(Cold soldering/Pattern) If problems in input stage, several lines display 8/88

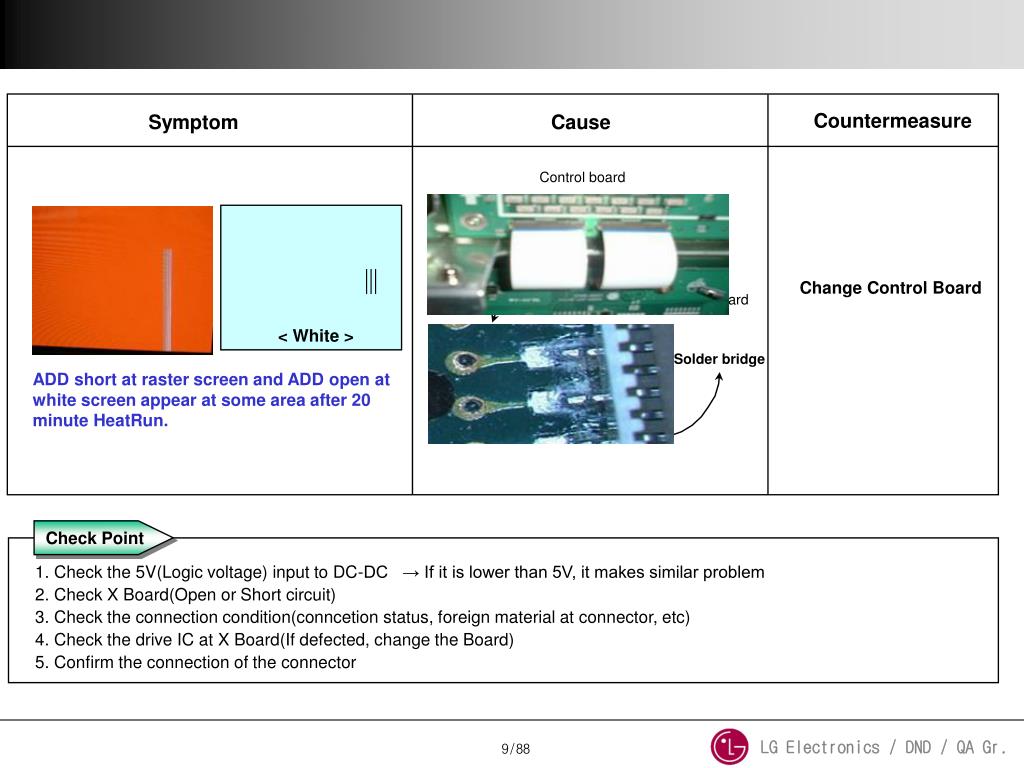

  9. Countermeasure Symptom Cause LG Electronics / DND / QA Gr. Control board Con 2 Con 1 Change Control Board X-board < White > < Raster > Solder bridge ADD short at raster screen and ADD open at white screen appear at some area after 20 minute HeatRun. Check Point 1. Check the 5V(Logic voltage) input to DC-DC → If it is lower than 5V, it makes similar problem 2. Check X Board(Open or Short circuit) 3. Check the connection condition(conncetion status, foreign material at connector, etc) 4. Check the drive IC at X Board(If defected, change the Board) 5. Confirm the connection of the connector 9/88

  10. Countermeasure Symptom Cause X-DRV IC LG Electronics / DND / QA Gr. Change X-BOARD CLK LE Short R264 R258 PCB pattern short U1 SN74ACT541 Check Point Driver clock line at X Driver Board is designed to operate in A and B group ▶ Short circuit at clock line of Drive IC ▶ If problem at input stage, several lines are defected at one point ▶ Replace the X Board of defected point 10/88

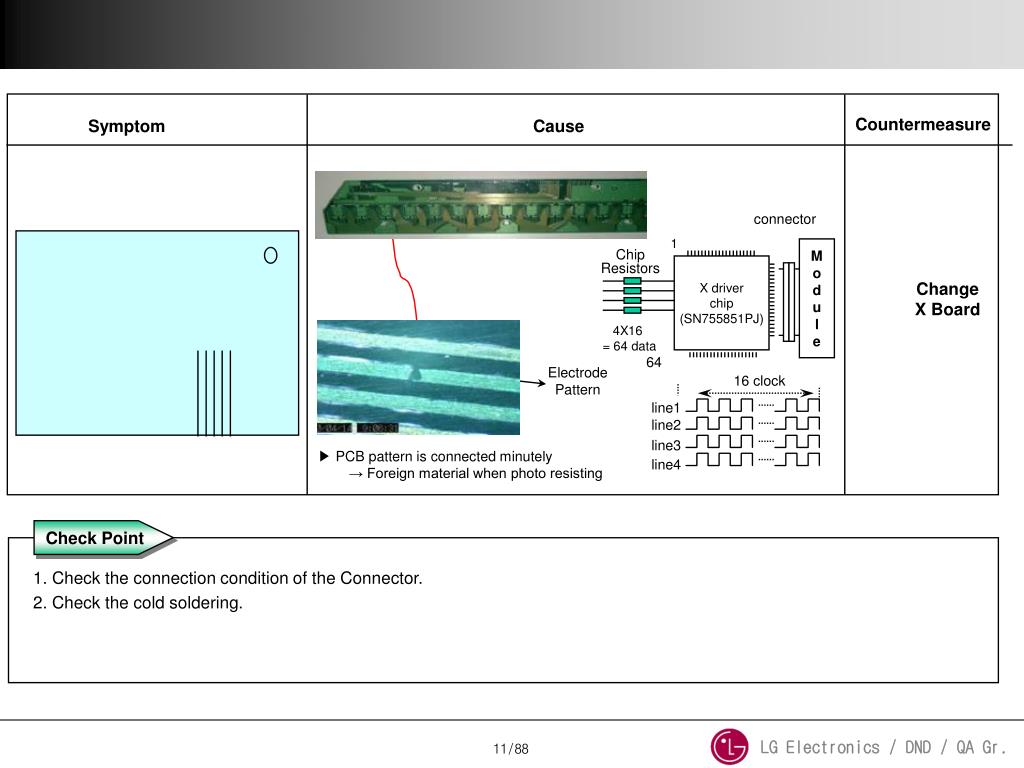

  11. 16 clock line1 line2 line3 line4 LG Electronics / DND / QA Gr. Countermeasure Symptom Cause <X-board> connector 1 M o d u l e Chip Resistors X driver chip (SN755851PJ) Change X Board 4X16 = 64 data 64 Electrode Pattern ▶ PCB pattern is connected minutely → Foreign material when photo resisting Check Point 1. Check the connection condition of the Connector. 2. Check the cold soldering. 11/88

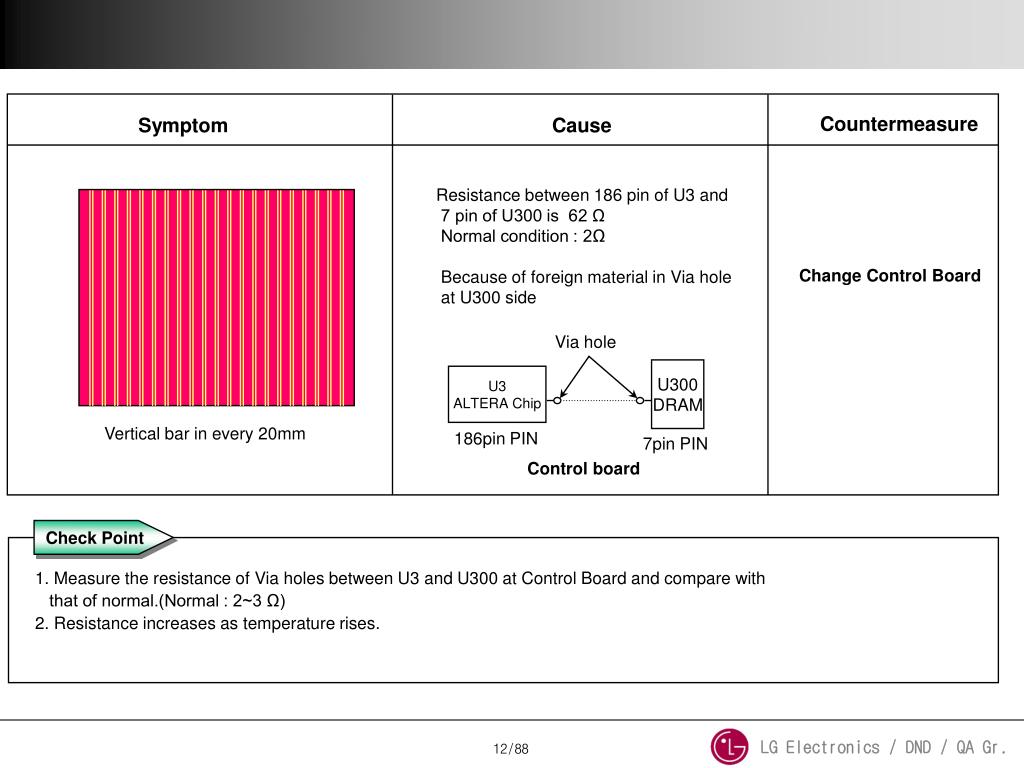

  12. Countermeasure Symptom Cause Via hole U300 DRAM U3 ALTERA Chip 186pin PIN 7pin PIN Control board LG Electronics / DND / QA Gr. Resistance between 186 pin of U3 and 7 pin of U300 is 62 Ω Normal condition : 2Ω Because of foreign material in Via hole at U300 side Change Control Board Vertical bar in every 20mm Check Point 1. Measure the resistance of Via holes between U3 and U300 at Control Board and compare with that of normal.(Normal : 2~3 Ω) 2. Resistance increases as temperature rises. 12/88

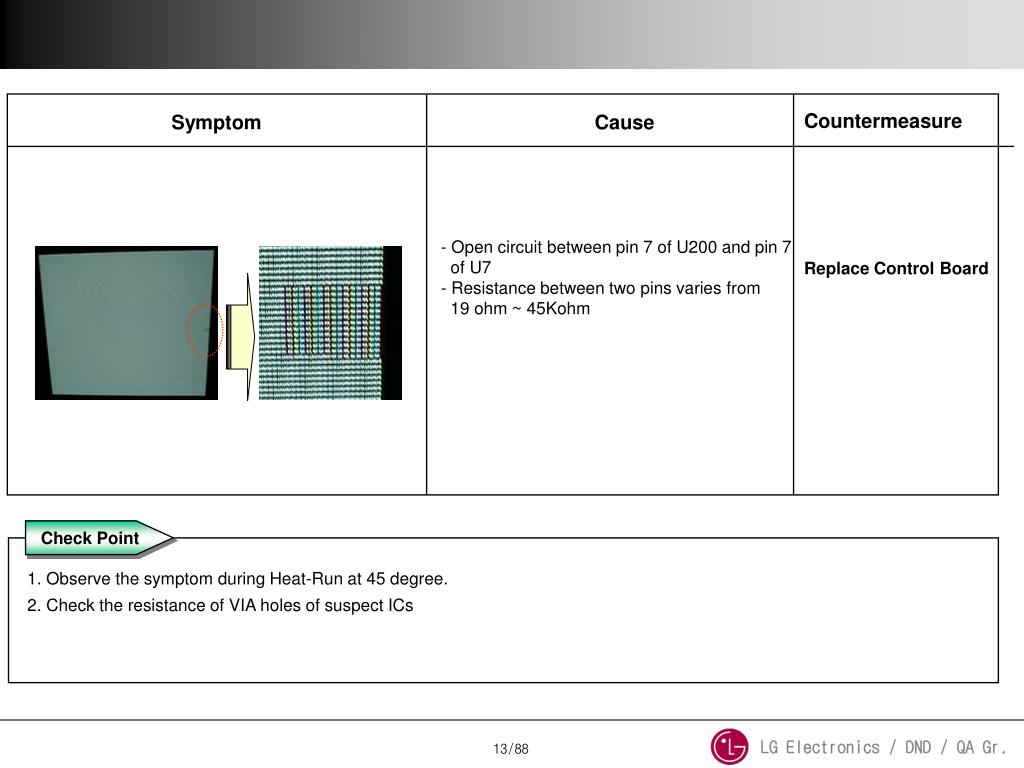

  13. LG Electronics / DND / QA Gr. Countermeasure Symptom Cause - Open circuit between pin 7 of U200 and pin 7 of U7 - Resistance between two pins varies from 19 ohm ~ 45Kohm Replace Control Board Check Point 1. Observe the symptom during Heat-Run at 45 degree. 2. Check the resistance of VIA holes of suspect ICs 13/88

  14. Countermeasure Symptom Cause D1 D3 PROM(U40) D4 D1 D3 PROM(U40) D4 FPGA FPGA LG Electronics / DND / QA Gr. - When Power On, Fan operates but No OSD displays - LED(D3) of Control Board doesn’t operate 1. Because Control data on PROM(U40) doesn’t download to FPGA, it can’t generate control signal to X,Y and Z Board. 2. Defected ALTERA. • Replace Control Board • Replace PROM * For normal operation, PROM program should be downloaded to FPGA, and each PROM has corr- espondent FPGA. See left picture. CONTROL BOARD Check Point 1. Check D1, D3 & D4 on Control Board - D1 : ON with 5V - D3 : ON when PROM finishes program download from ALTERA chip - D4 : ON when signal is applied 14/88

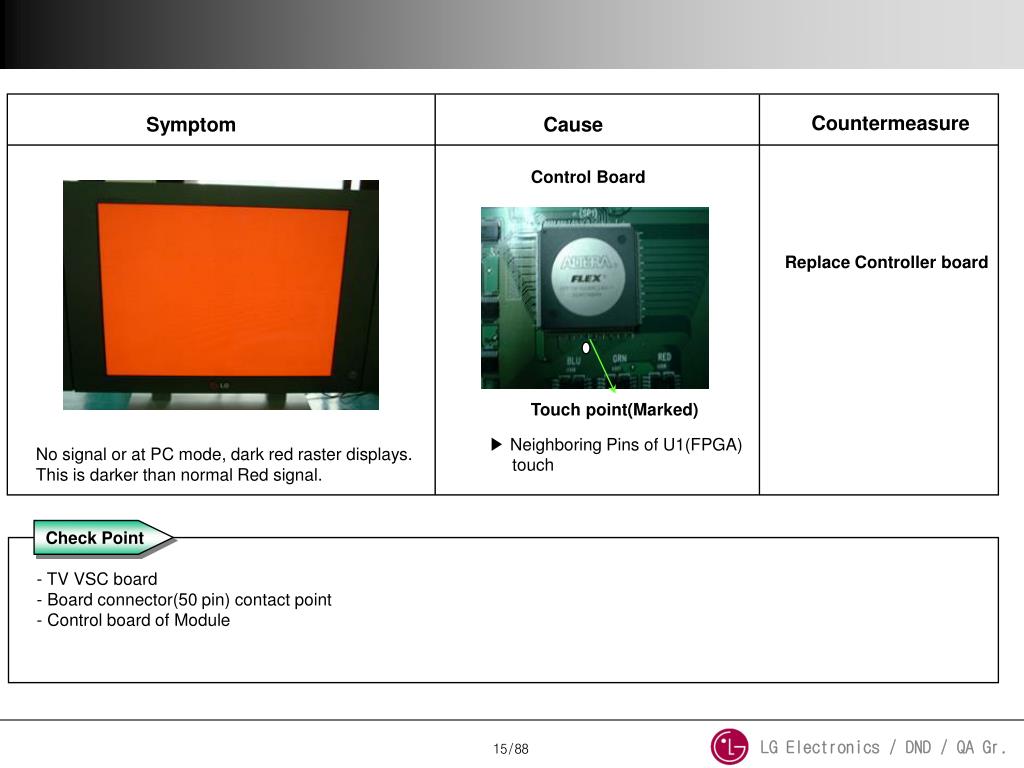

  15. Countermeasure Symptom Cause LG Electronics / DND / QA Gr. Control Board Replace Controller board Touch point(Marked) ▶ Neighboring Pins of U1(FPGA) touch No signal or at PC mode, dark red raster displays. This is darker than normal Red signal. Check Point - TV VSC board - Board connector(50 pin) contact point - Control board of Module 15/88

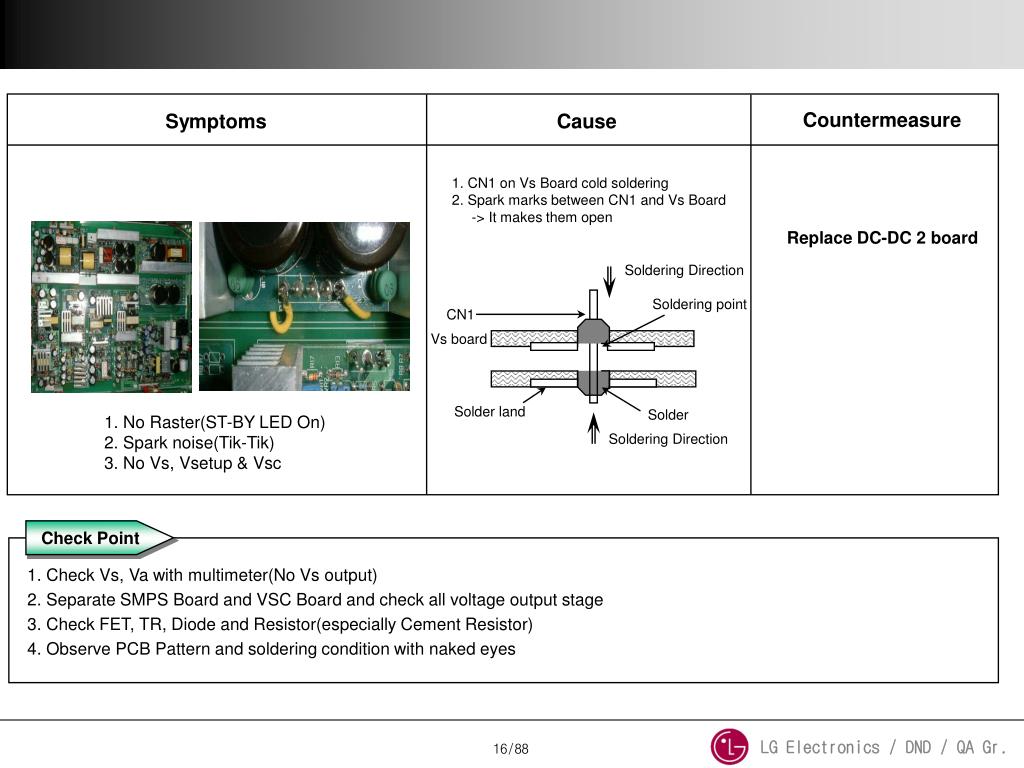

  16. Countermeasure Symptoms Cause LG Electronics / DND / QA Gr. 1. CN1 on Vs Board cold soldering 2. Spark marks between CN1 and Vs Board -> It makes them open Replace DC-DC 2 board Soldering Direction Soldering point CN1 Vs board Solder land Solder 1. No Raster(ST-BY LED On) 2. Spark noise(Tik-Tik) 3. No Vs, Vsetup & Vsc Soldering Direction Check Point 1. Check Vs, Va with multimeter(No Vs output) 2. Separate SMPS Board and VSC Board and check all voltage output stage 3. Check FET, TR, Diode and Resistor(especially Cement Resistor) 4. Observe PCB Pattern and soldering condition with naked eyes 16/88

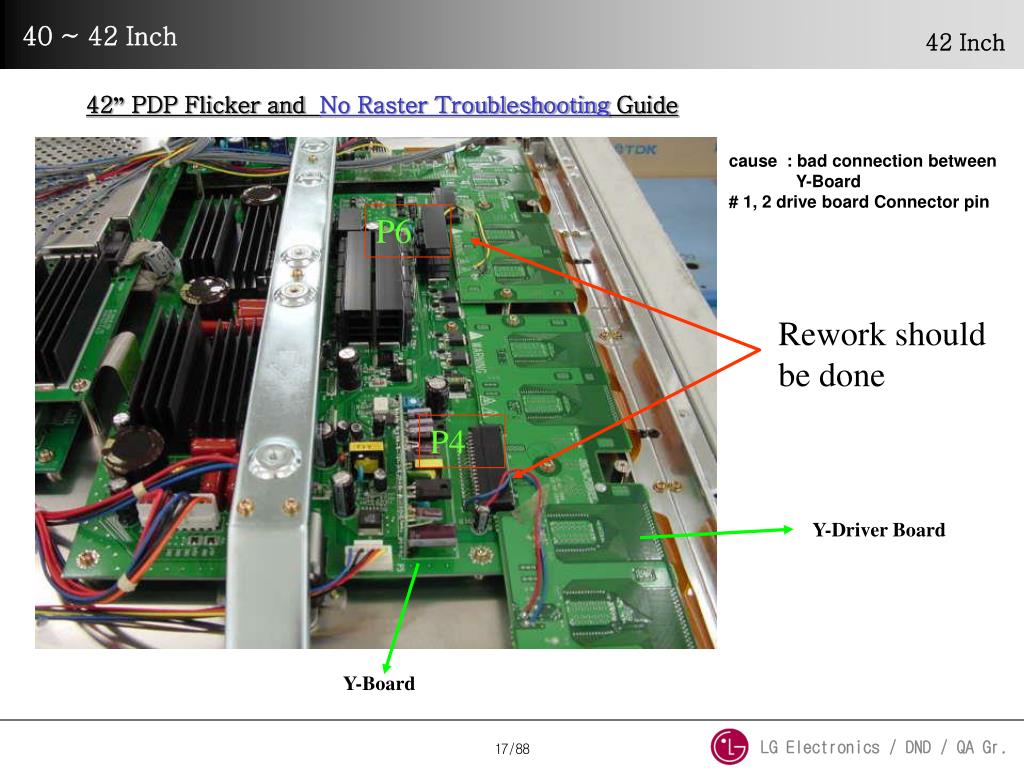

  17. LG Electronics / DND / QA Gr. 40 ~ 42 Inch 42 Inch 42” PDP Flicker and No Raster Troubleshooting Guide cause : bad connection between Y-Board # 1, 2 drive board Connector pin P6 Rework should be done P4 Y-Driver Board Y-Board

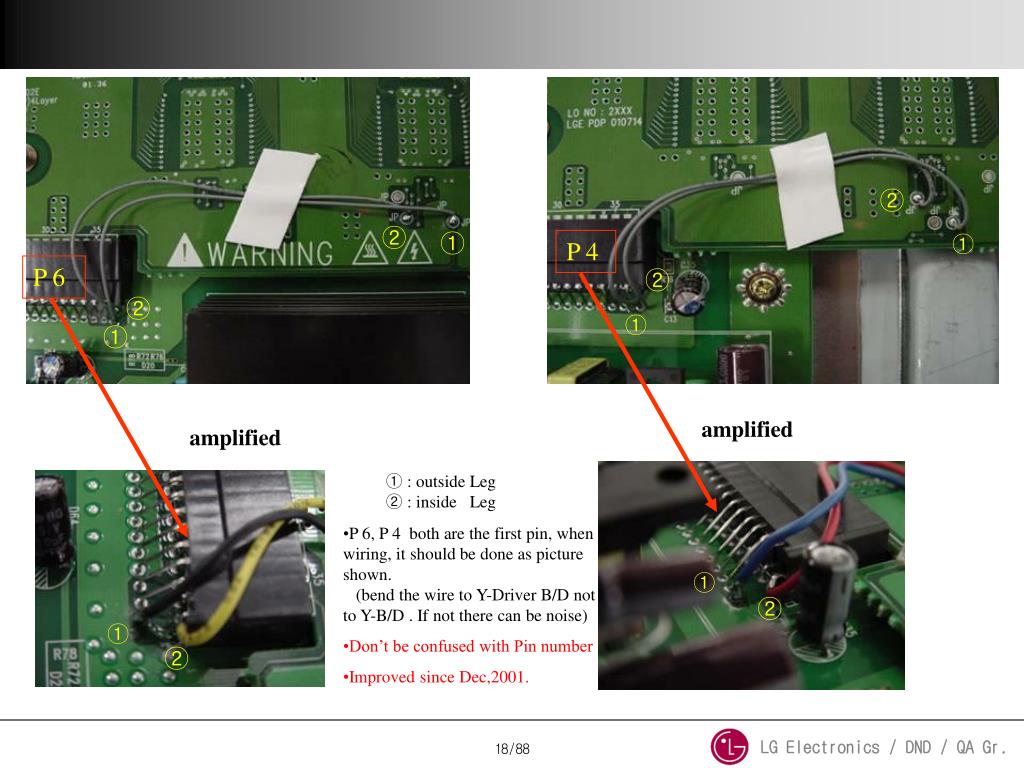

  18. LG Electronics / DND / QA Gr. ② ② ① ① P 4 P 6 ② ② ① ① amplified amplified ① : outside Leg② : inside Leg • P 6, P 4 both are the first pin, when wiring, it should be done as picture shown. (bend the wire to Y-Driver B/D not to Y-B/D . If not there can be noise) • Don’t be confused with Pin number • Improved since Dec,2001. ① ② ① ②

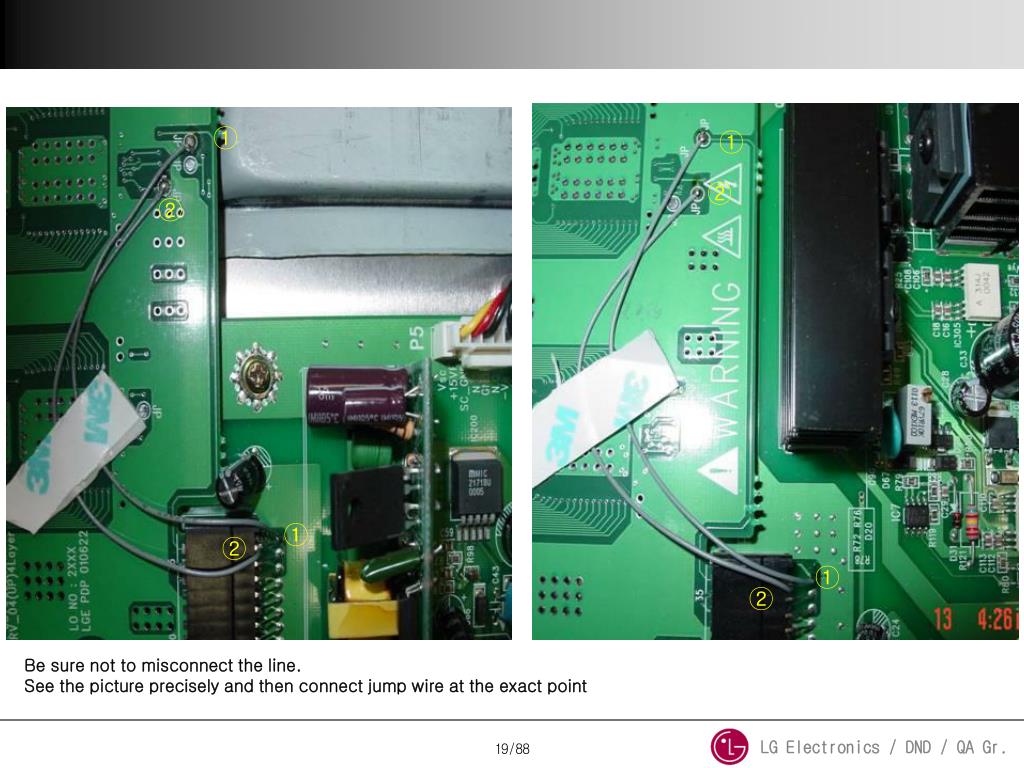

  19. LG Electronics / DND / QA Gr. ① ① ② ② ① ② ① ② Be sure not to misconnect the line. See the picture precisely and then connect jump wire at the exact point

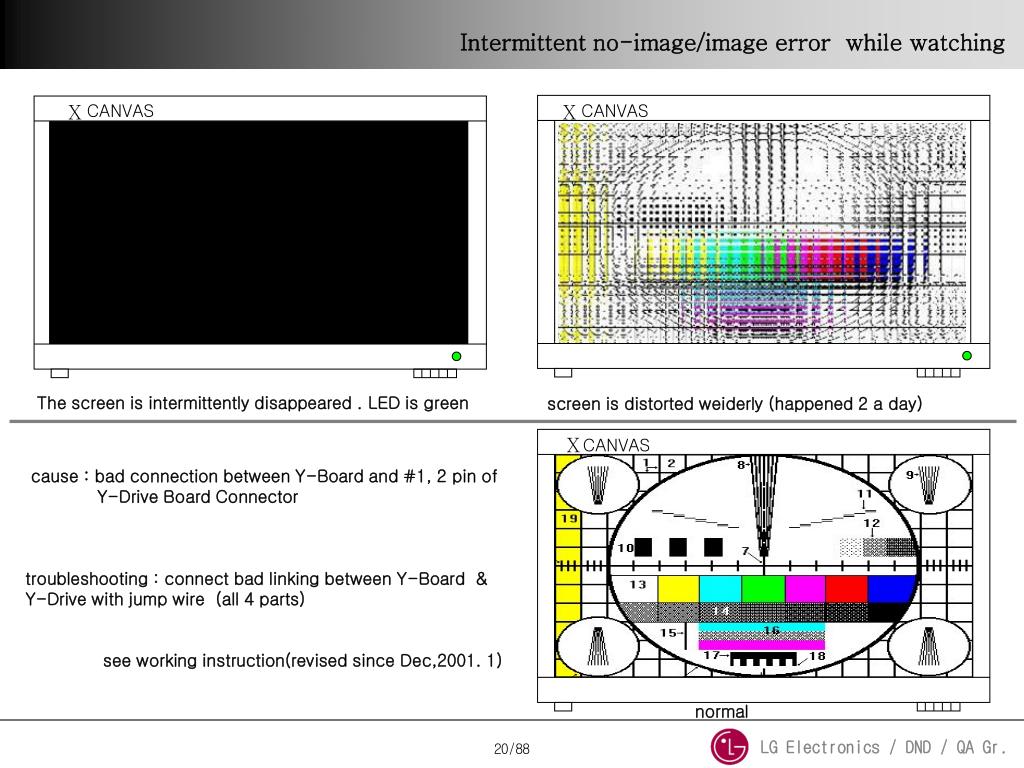

  20. LG Electronics / DND / QA Gr. Intermittent no-image/image error while watching X X CANVAS CANVAS The screen is intermittently disappeared . LED is green screen is distorted weiderly (happened 2 a day) X CANVAS cause : bad connection between Y-Board and #1, 2 pin of Y-Drive Board Connector troubleshooting : connect bad linking between Y-Board & Y-Drive with jump wire (all 4 parts) see working instruction(revised since Dec,2001. 1) normal

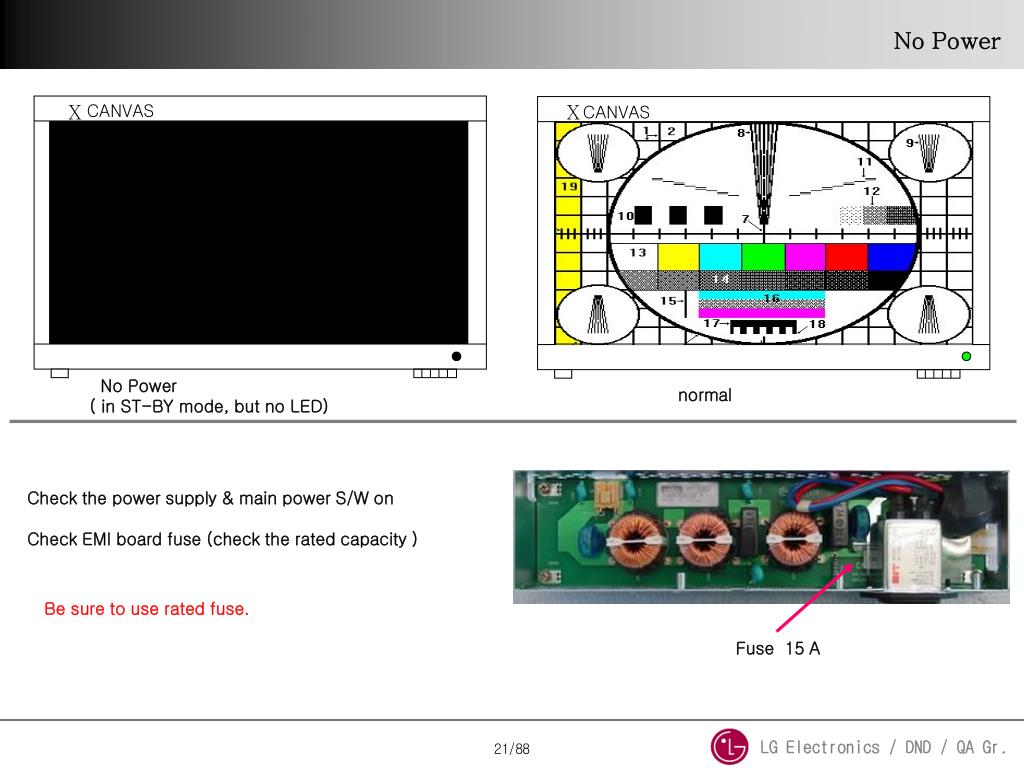

  21. LG Electronics / DND / QA Gr. No Power X X CANVAS CANVAS No Power ( in ST-BY mode, but no LED) normal Check the power supply & main power S/W on Check EMI board fuse (check the rated capacity ) Be sure to use rated fuse. Fuse 15 A

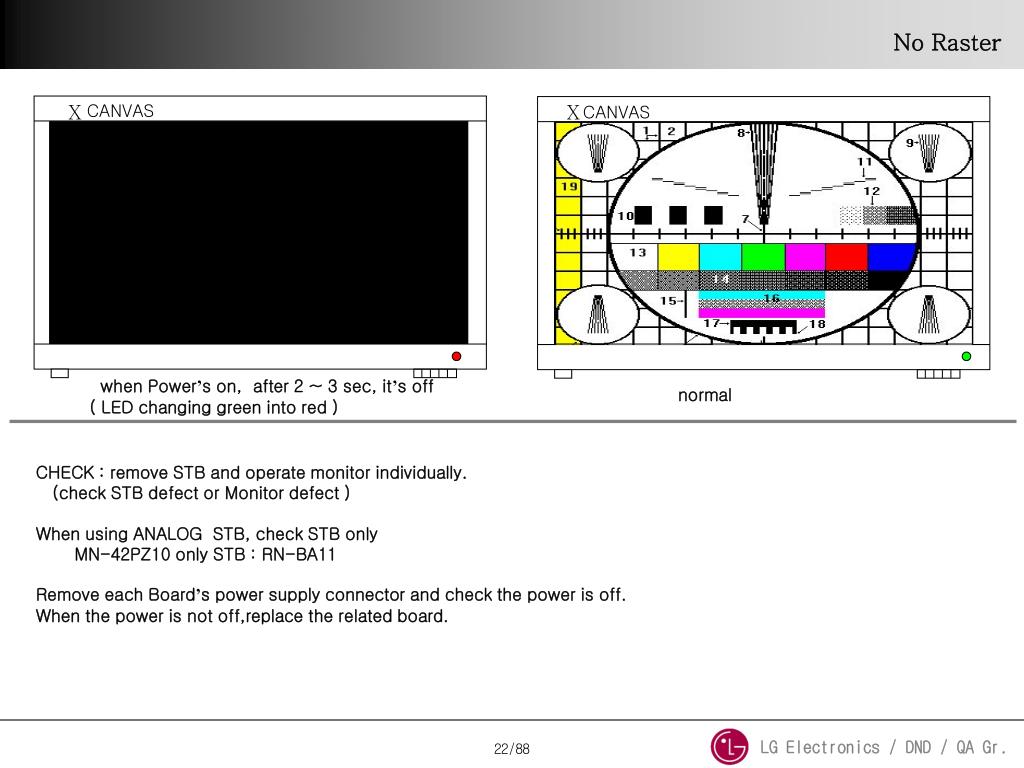

  22. LG Electronics / DND / QA Gr. No Raster X X CANVAS CANVAS when Power’s on, after 2 ~ 3 sec, it’s off ( LED changing green into red ) normal CHECK : remove STB and operate monitor individually. (check STB defect or Monitor defect ) When using ANALOG STB, check STB only MN-42PZ10 only STB : RN-BA11 Remove each Board’s power supply connector and check the power is off. When the power is not off,replace the related board.

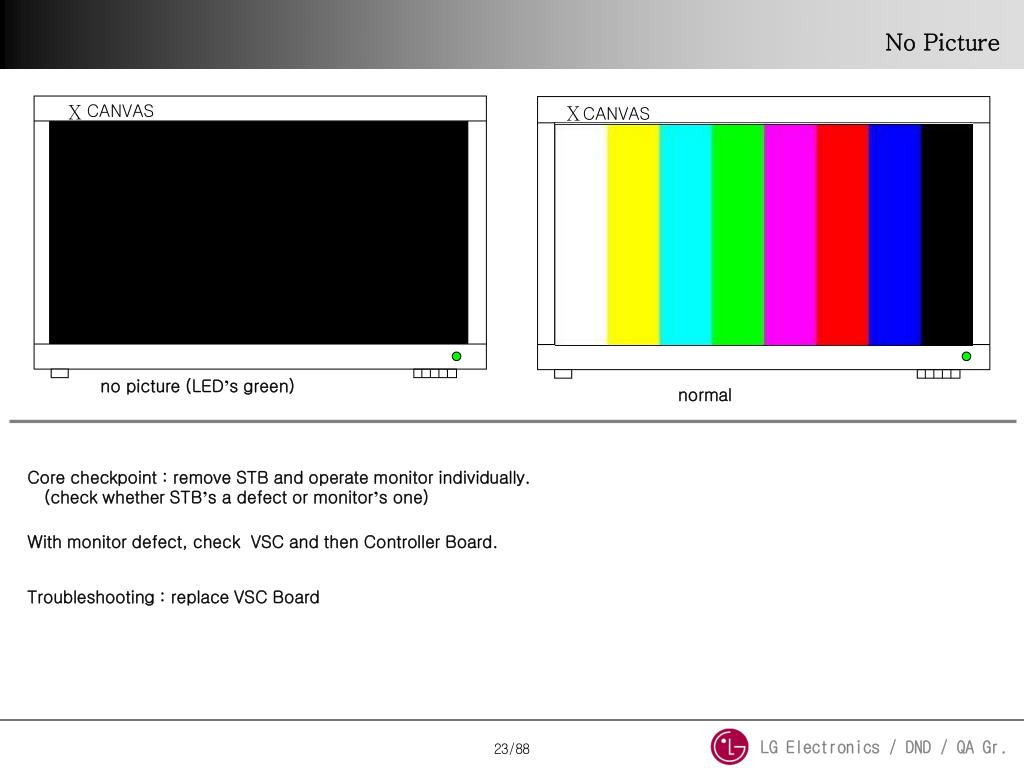

  23. LG Electronics / DND / QA Gr. No Picture X CANVAS X CANVAS no picture (LED’s green) normal Core checkpoint : remove STB and operate monitor individually. (check whether STB’s a defect or monitor’s one) With monitor defect, check VSC and then Controller Board. Troubleshooting : replace VSC Board

  24. LG Electronics / DND / QA Gr. Address Bar ( Horizontal Bar ) X X CANVAS CANVAS no image (LED’s green) normal Cause : Y-Drive ( Bottom ) defect Troubleshooting : Y-Drive (lower part) replacement This problem is shown in the bottom of screen, So it is caused by Y-Drive Y-Drive Board ( Bottom )

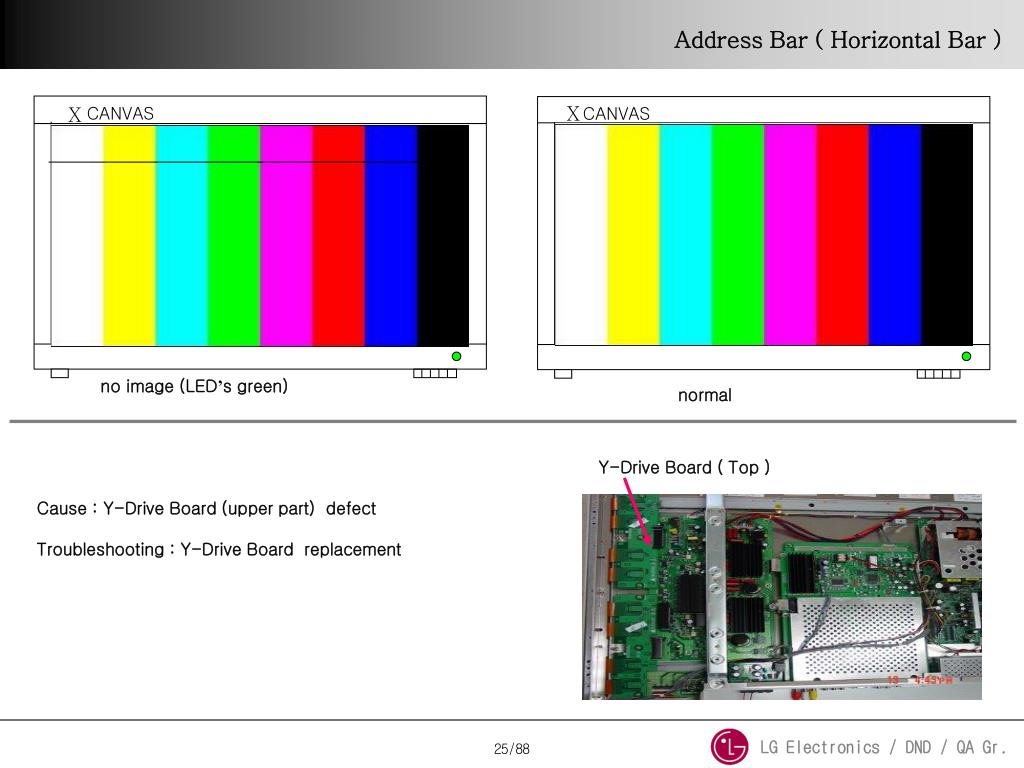

  25. LG Electronics / DND / QA Gr. Address Bar ( Horizontal Bar ) X X CANVAS CANVAS no image (LED’s green) normal Y-Drive Board ( Top ) Cause : Y-Drive Board (upper part) defect Troubleshooting : Y-Drive Board replacement

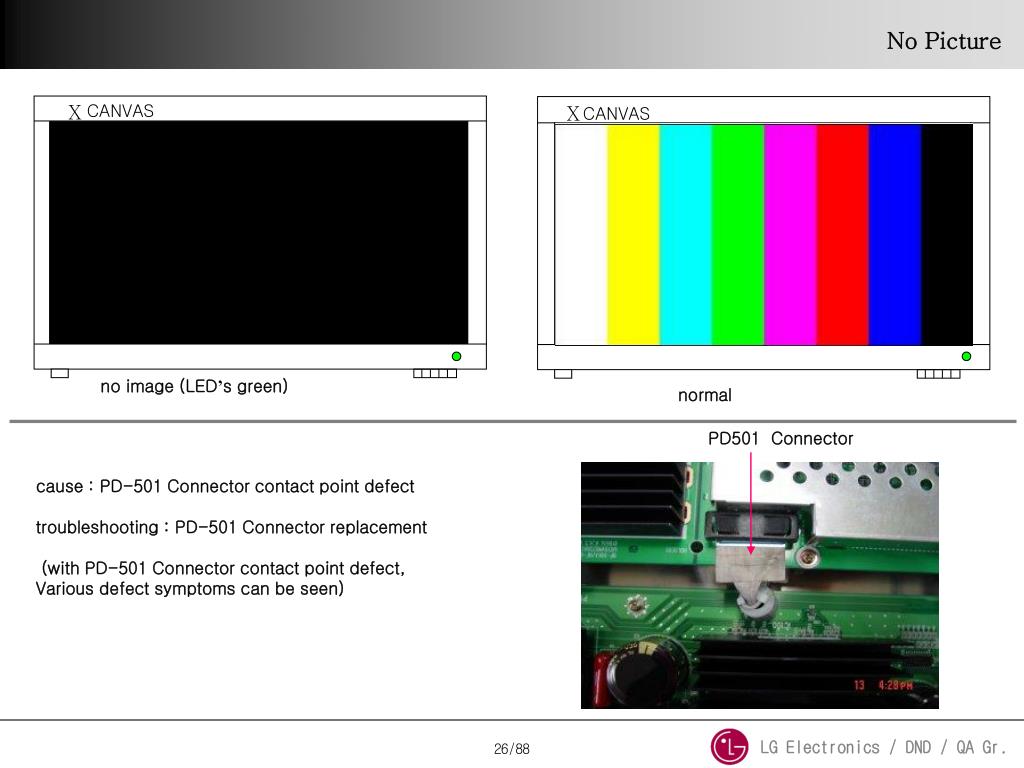

  26. LG Electronics / DND / QA Gr. No Picture X CANVAS X CANVAS no image (LED’s green) normal PD501 Connector cause : PD-501 Connector contact point defect troubleshooting : PD-501 Connector replacement (with PD-501 Connector contact point defect, Various defect symptoms can be seen)

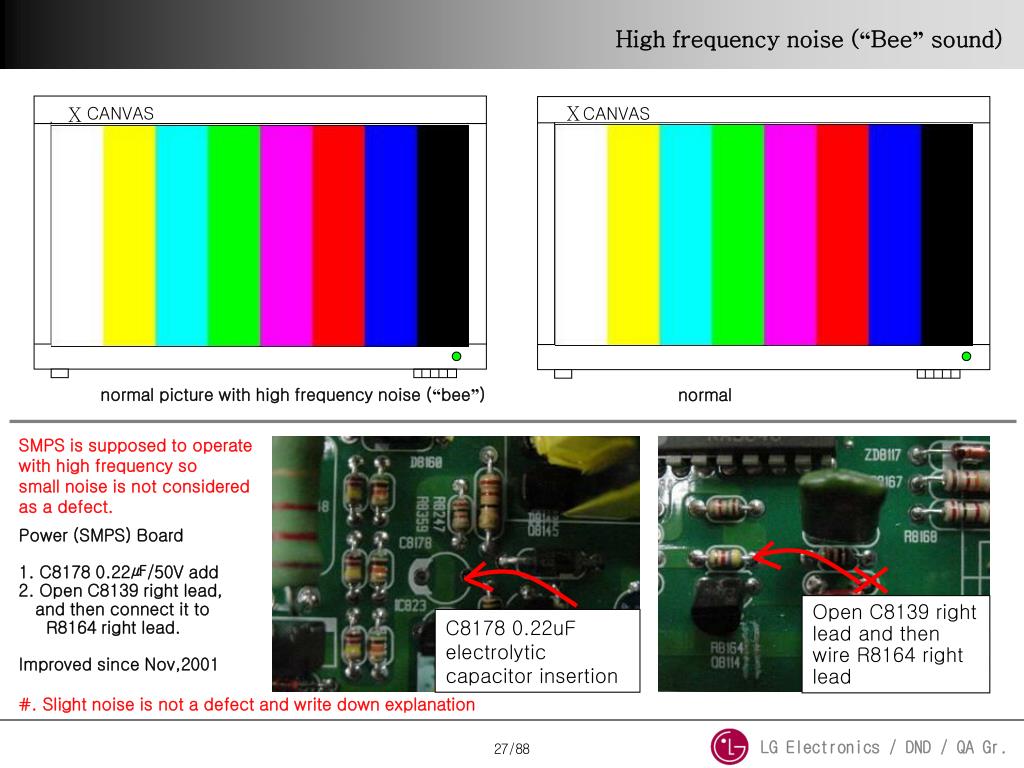

  27. LG Electronics / DND / QA Gr. High frequency noise (“Bee” sound) X X CANVAS CANVAS normal normal picture with high frequency noise (“bee”) SMPS is supposed to operate with high frequency so small noise is not considered as a defect. Power (SMPS) Board 1. C8178 0.22㎌/50V add 2. Open C8139 right lead, and then connect it to R8164 right lead. Improved since Nov,2001 Open C8139 right lead and then wire R8164 right lead C8178 0.22uF electrolytic capacitor insertion #. Slight noise is not a defect and write down explanation

  28. LG Electronics / DND / QA Gr. No picture in right- 2/5 area X X CANVAS CANVAS normal No picture in the right- 2/5 area X-Board ( Left ) power supply check X-Board ( Left )Connector check X-Board ( Left ) replacement

  29. LG Electronics / DND / QA Gr. Address Bar (Vertical ) X X CANVAS CANVAS normal stripe in right-2/5 area X-Board ( Left ) power supply check X-Board ( Left ) Connector check X-Board ( Left ) replacement

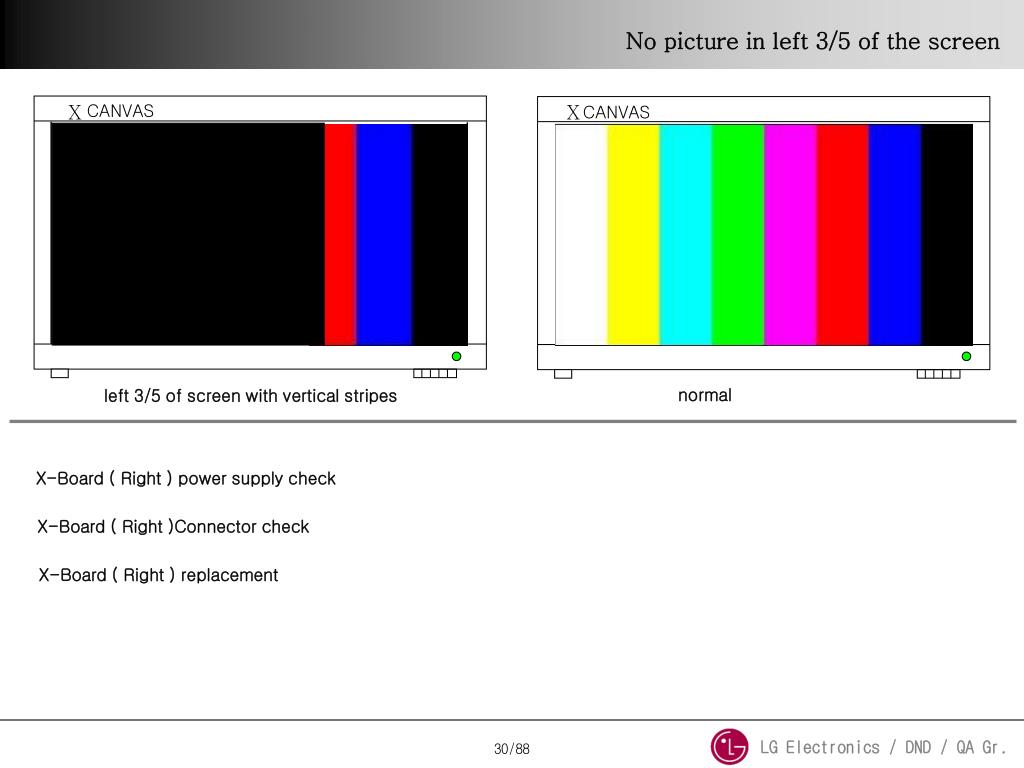

  30. LG Electronics / DND / QA Gr. No picture in left 3/5 of the screen X X CANVAS CANVAS normal left 3/5 of screen with vertical stripes X-Board ( Right ) power supply check X-Board ( Right )Connector check X-Board ( Right ) replacement

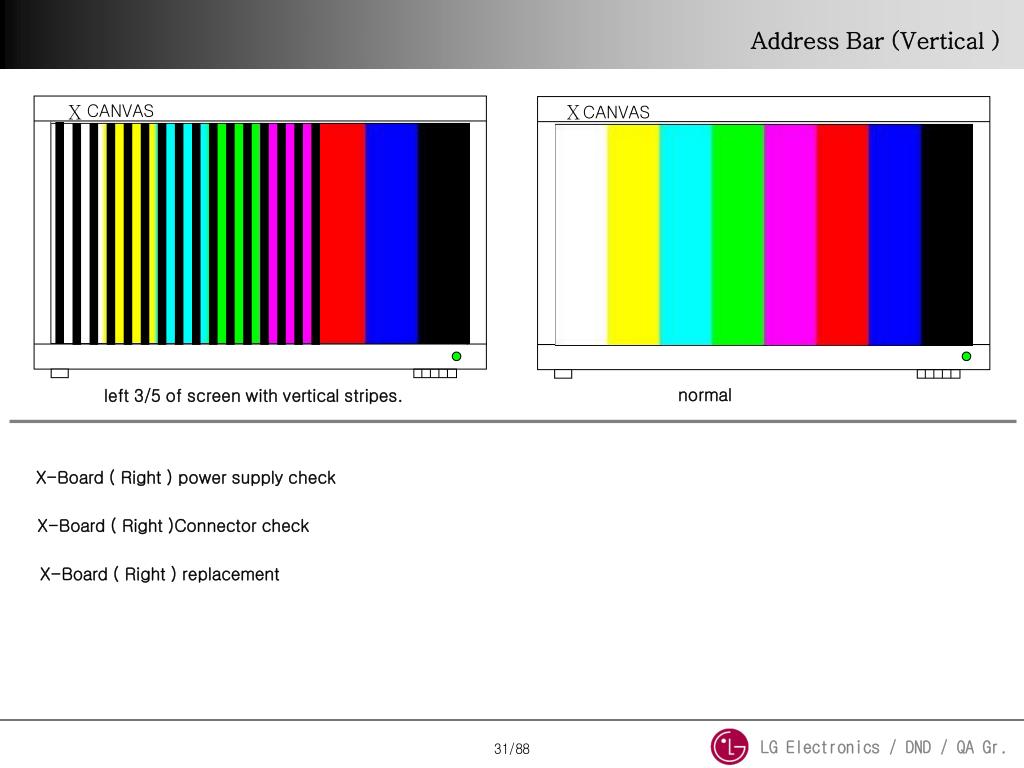

  31. LG Electronics / DND / QA Gr. Address Bar (Vertical ) X X CANVAS CANVAS normal left 3/5 of screen with vertical stripes. X-Board ( Right ) power supply check X-Board ( Right )Connector check X-Board ( Right ) replacement

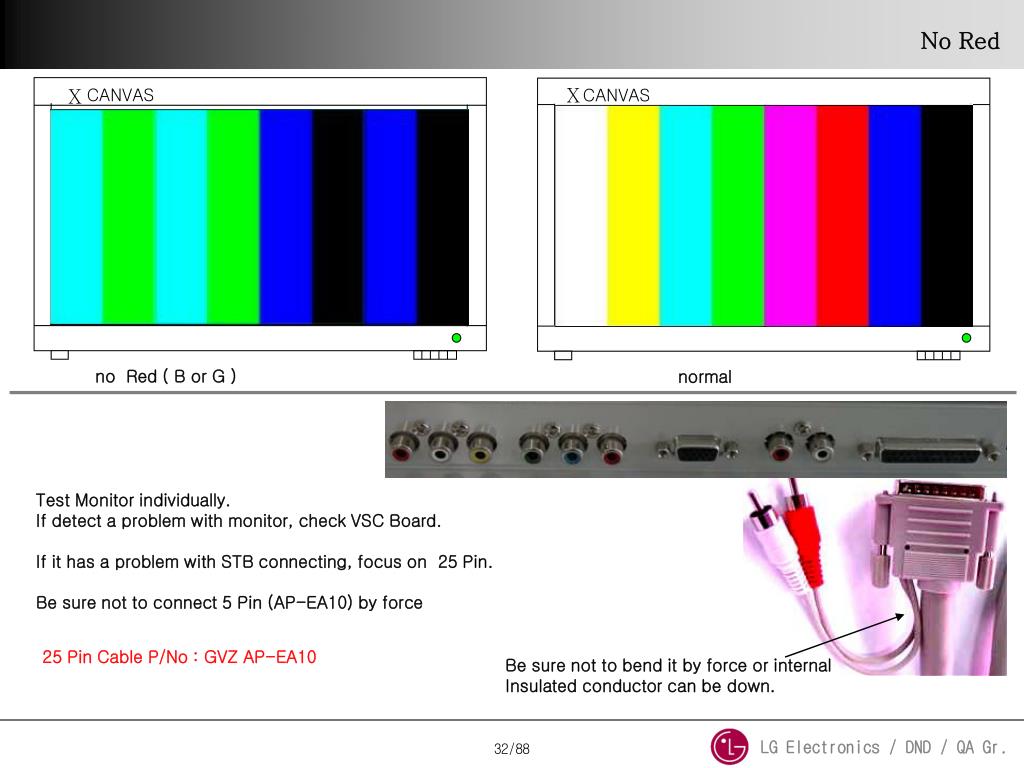

  32. LG Electronics / DND / QA Gr. No Red X X CANVAS CANVAS no Red ( B or G ) normal Test Monitor individually. If detect a problem with monitor, check VSC Board. If it has a problem with STB connecting, focus on 25 Pin. Be sure not to connect 5 Pin (AP-EA10) by force 25 Pin Cable P/No : GVZ AP-EA10 Be sure not to bend it by force or internal Insulated conductor can be down.

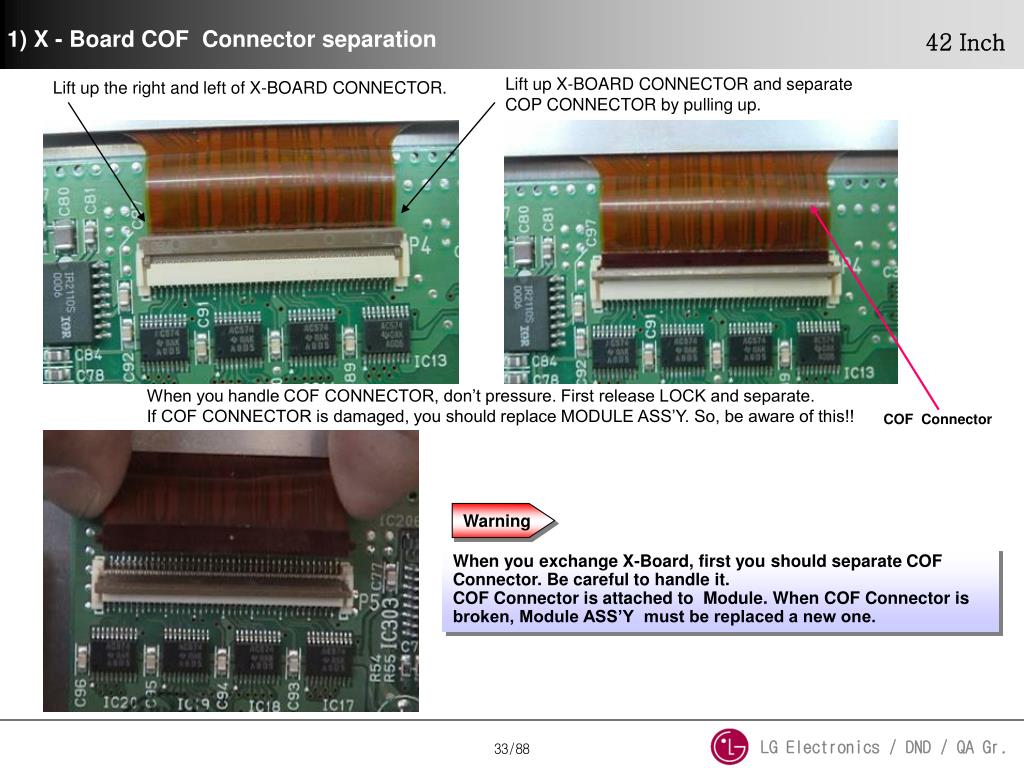

  33. LG Electronics / DND / QA Gr. 1) X - Board COF Connector separation 42 Inch Lift up X-BOARD CONNECTOR and separate COP CONNECTOR by pulling up. Lift up the right and left of X-BOARD CONNECTOR. When you handle COF CONNECTOR, don’t pressure. First release LOCK and separate. If COF CONNECTOR is damaged, you should replace MODULE ASS’Y. So, be aware of this!! COF Connector Warning When you exchange X-Board, first you should separate COF Connector. Be careful to handle it. COF Connector is attached to Module. When COF Connector is broken, Module ASS’Y must be replaced a new one.

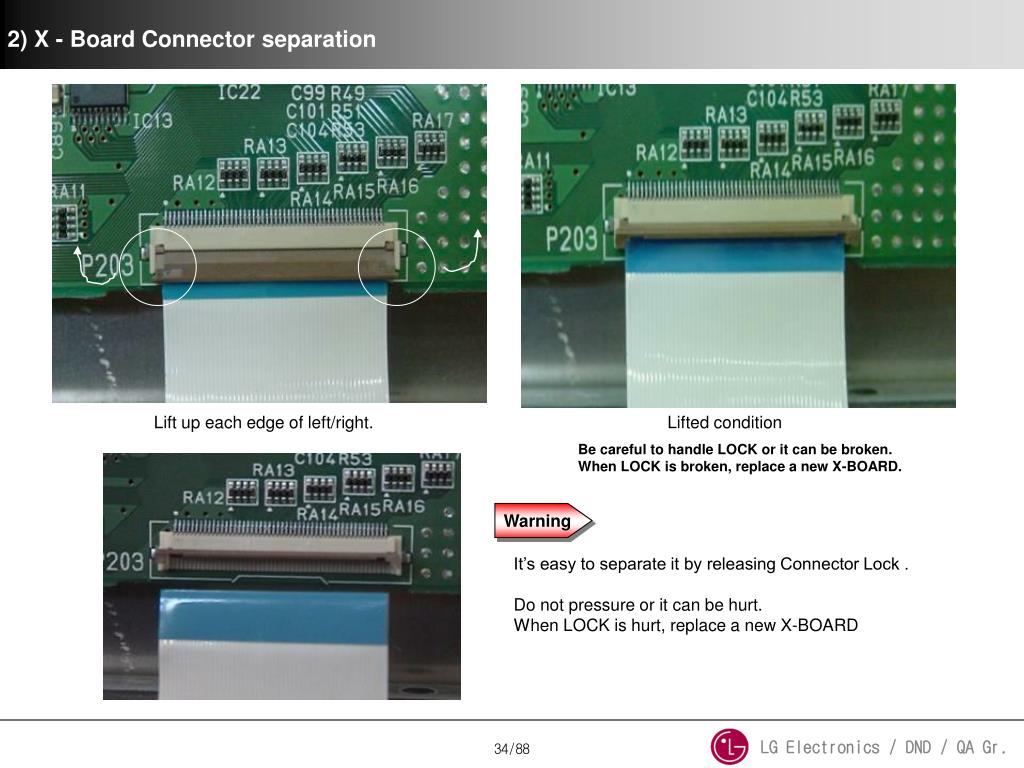

  34. LG Electronics / DND / QA Gr. 2) X - Board Connector separation Lift up each edge of left/right. Lifted condition Be careful to handle LOCK or it can be broken. When LOCK is broken, replace a new X-BOARD. Warning It’s easy to separate it by releasing Connector Lock . Do not pressure or it can be hurt. When LOCK is hurt, replace a new X-BOARD

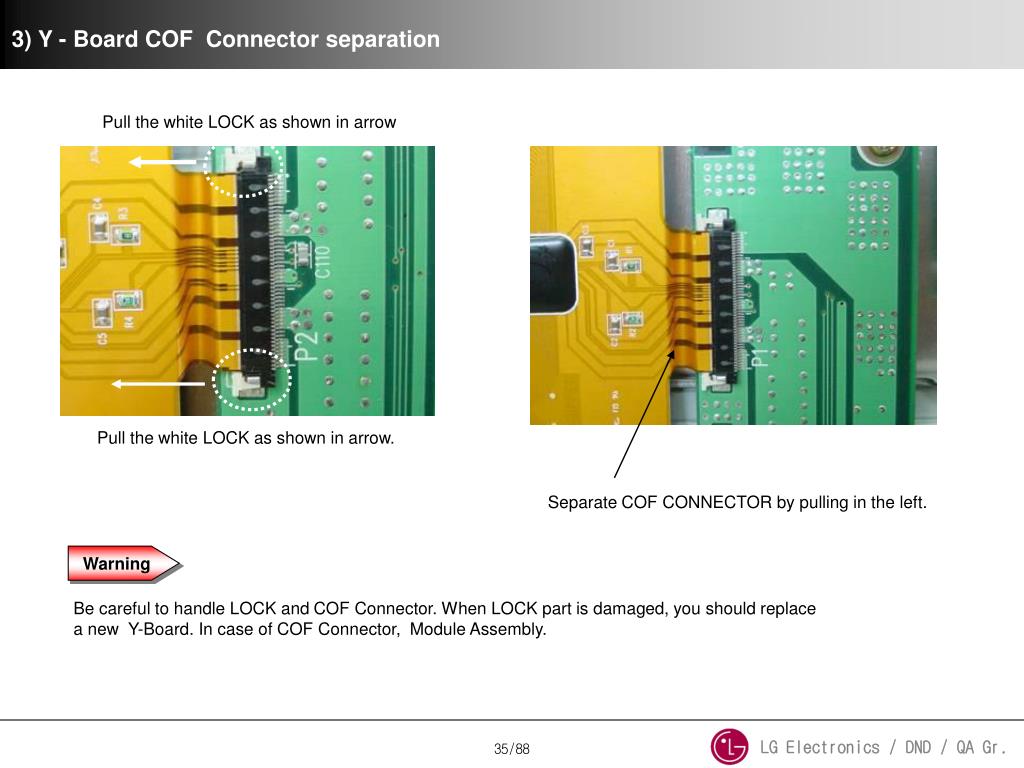

  35. LG Electronics / DND / QA Gr. 3) Y - Board COF Connector separation Pull the white LOCK as shown in arrow Pull the white LOCK as shown in arrow. Separate COF CONNECTOR by pulling in the left. Warning Be careful to handle LOCK and COF Connector. When LOCK part is damaged, you should replace a new Y-Board. In case of COF Connector, Module Assembly.

  36. LG Electronics / DND / QA Gr. 4) Z - Board COF Connector separation Separate the fixed Screw of Z-Board. Pull out Lock as shown in arrow. Condition in Lock part is pulled Pull COF Connector as shown in arrow. It’s easy to separate COF on condition that Z-Board Screw is separated. In case Z-Board is assembled, it’s really hard to separate. COF Connector Warning Be careful not to tear COF Connector. If COF Connector is torn, replace a new Module Assembly

  37. LG Electronics / DND / QA Gr. 5) Connector separation Guide Push LOCK and pull out PUSH PUSH PUSH PUSH PULL PUSH

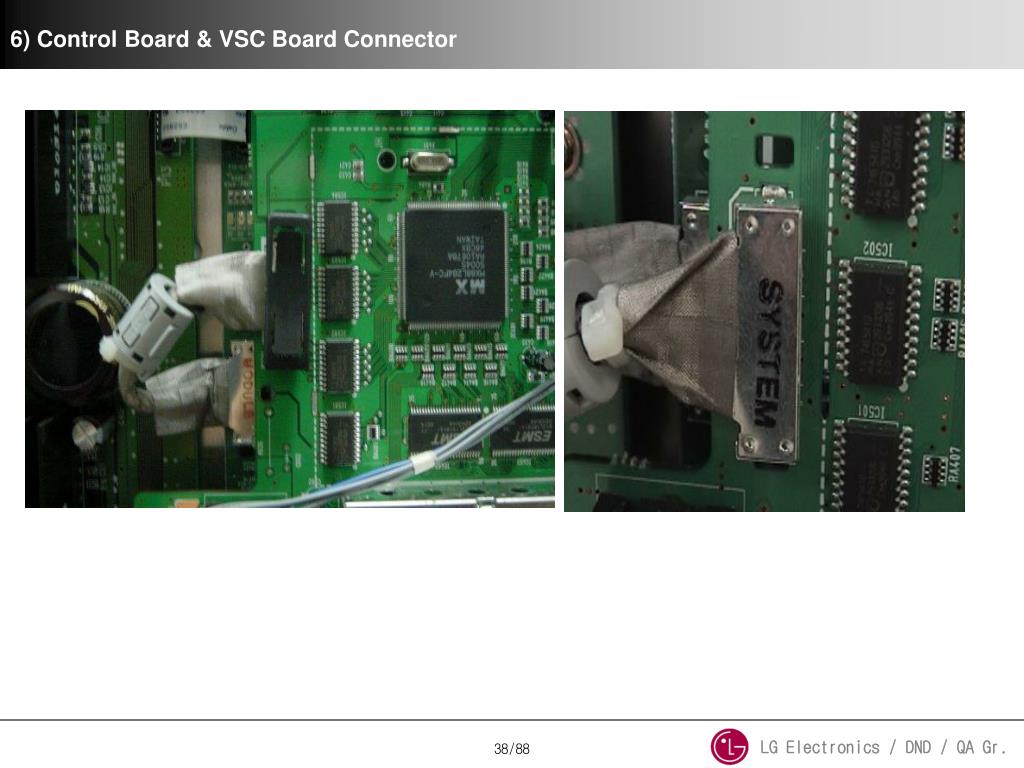

  38. LG Electronics / DND / QA Gr. 6) Control Board & VSC Board Connector

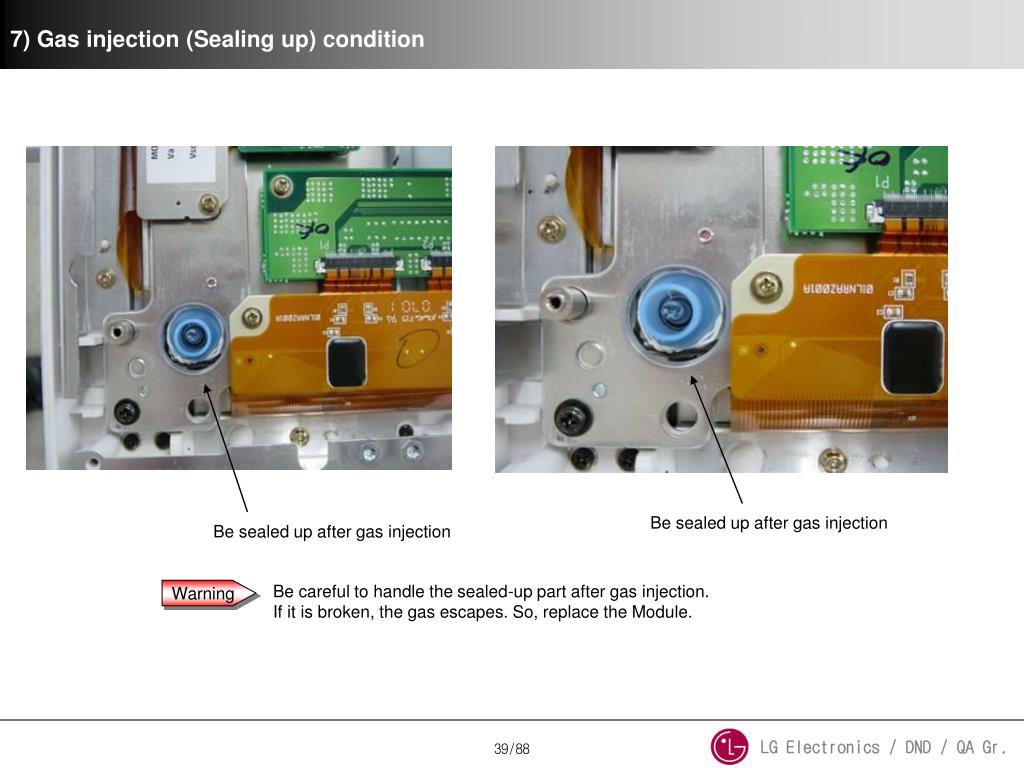

  39. LG Electronics / DND / QA Gr. 7) Gas injection (Sealing up) condition Be sealed up after gas injection Be sealed up after gas injection Be careful to handle the sealed-up part after gas injection. If it is broken, the gas escapes. So, replace the Module. Warning

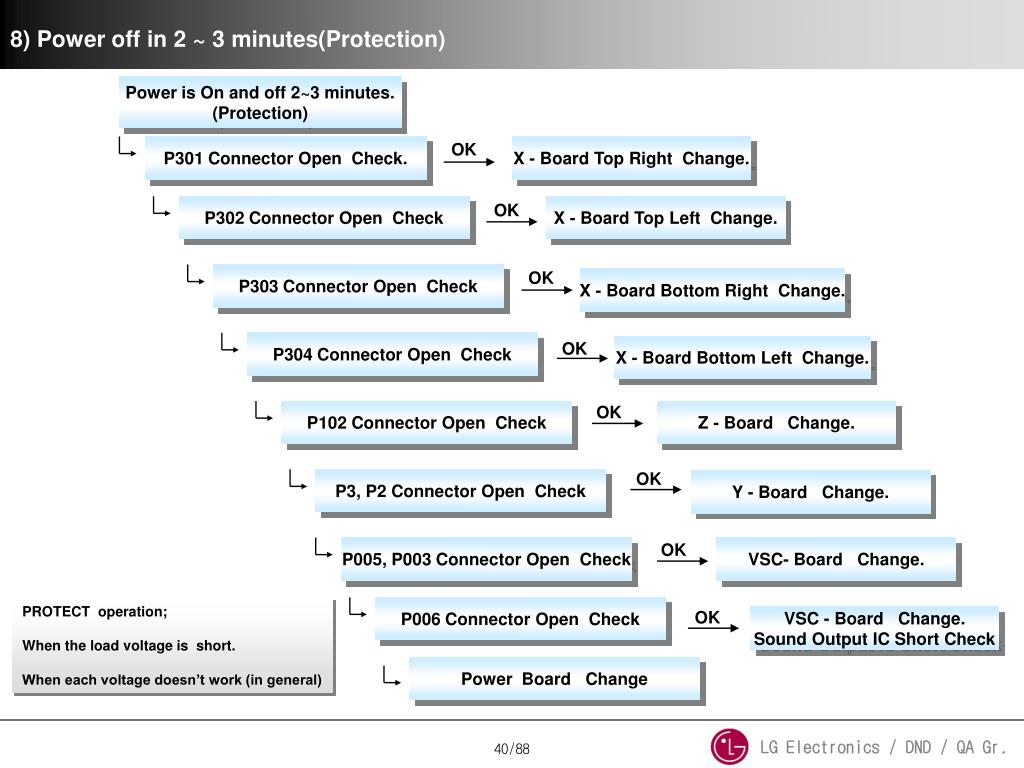

  40. LG Electronics / DND / QA Gr. 8) Power off in 2 ~ 3 minutes(Protection) Power is On and off 2~3 minutes. (Protection) OK P301 Connector Open Check. X - Board Top Right Change. OK P302 Connector Open Check X - Board Top Left Change. OK P303 Connector Open Check X - Board Bottom Right Change. P304 Connector Open Check OK X - Board Bottom Left Change. OK P102 Connector Open Check Z - Board Change. OK P3, P2 Connector Open Check Y - Board Change. OK P005, P003 Connector Open Check VSC- Board Change. PROTECT operation; When the load voltage is short. When each voltage doesn’t work (in general) P006 Connector Open Check OK VSC - Board Change. Sound Output IC Short Check Power Board Change

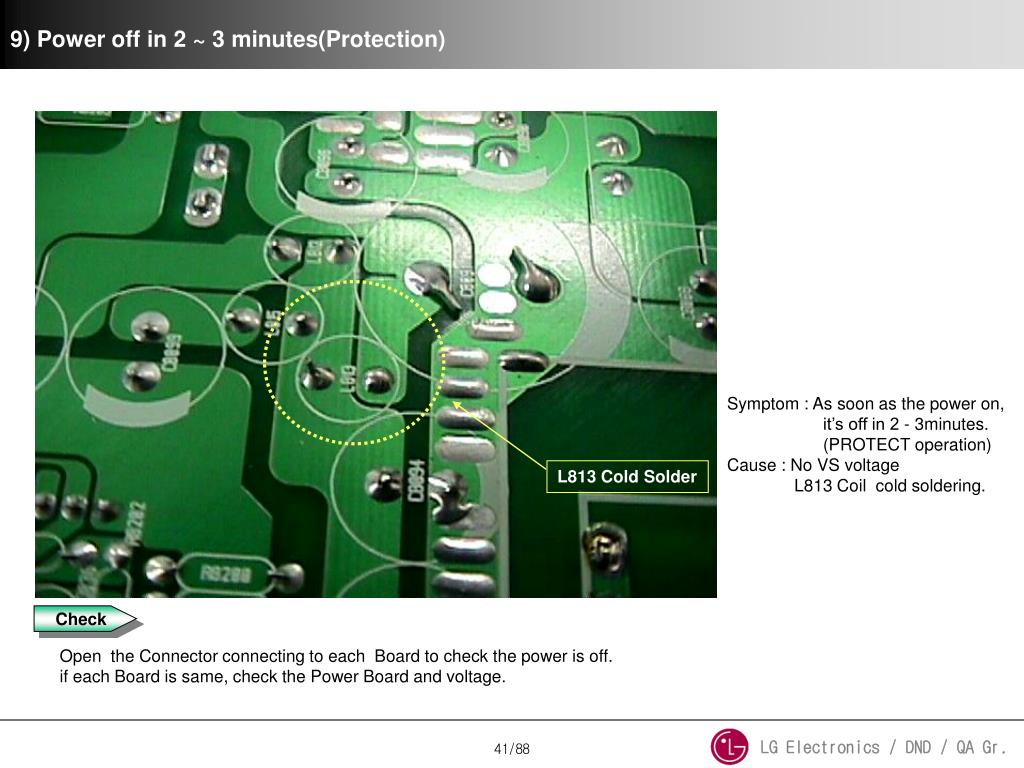

  41. LG Electronics / DND / QA Gr. 9) Power off in 2 ~ 3 minutes(Protection) Symptom : As soon as the power on, it’s off in 2 - 3minutes. (PROTECT operation) Cause : No VS voltage L813 Coil cold soldering. L813 Cold Solder Check Open the Connector connecting to each Board to check the power is off. if each Board is same, check the Power Board and voltage.

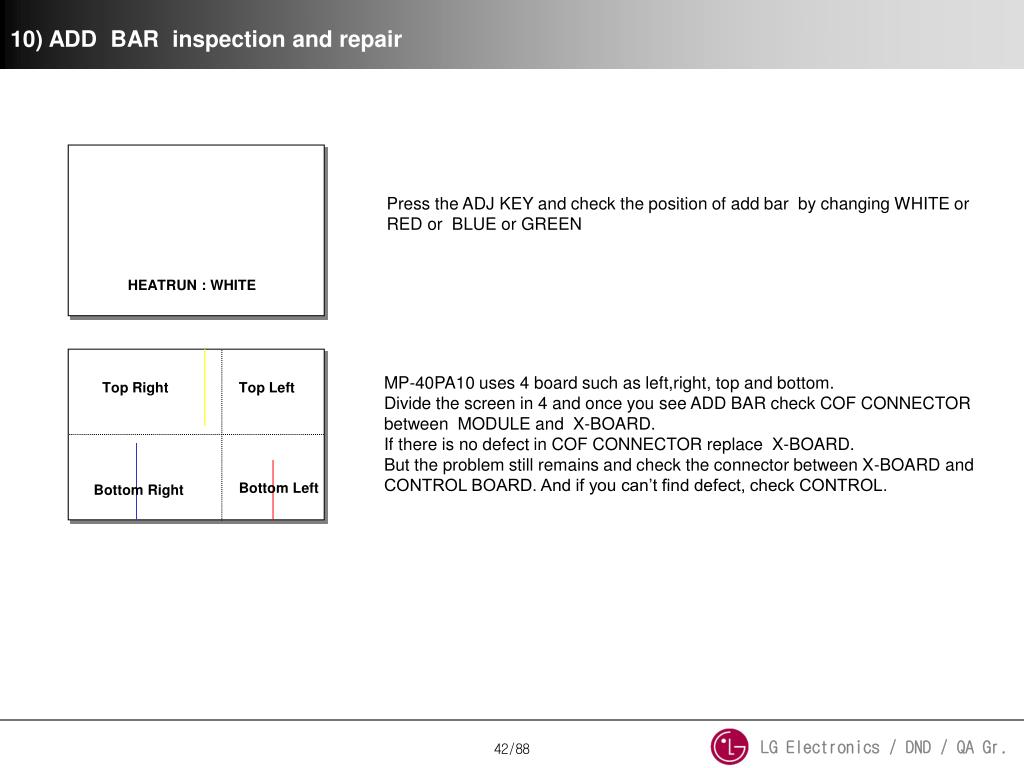

  42. LG Electronics / DND / QA Gr. 10) ADD BAR inspection and repair Press the ADJ KEY and check the position of add bar by changing WHITE or RED or BLUE or GREEN HEATRUN : WHITE MP-40PA10 uses 4 board such as left,right, top and bottom. Divide the screen in 4 and once you see ADD BAR check COF CONNECTOR between MODULE and X-BOARD. If there is no defect in COF CONNECTOR replace X-BOARD. But the problem still remains and check the connector between X-BOARD and CONTROL BOARD. And if you can’t find defect, check CONTROL. Top Right Top Left Bottom Left Bottom Right

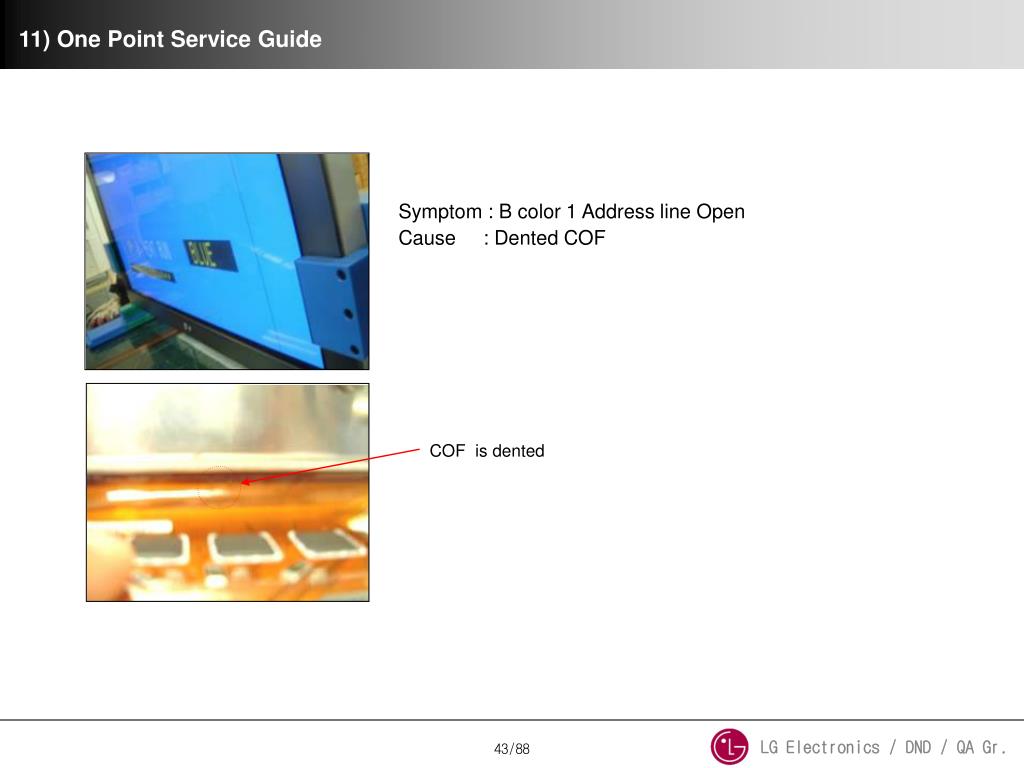

  43. LG Electronics / DND / QA Gr. 11) One Point Service Guide Symptom : B color 1 Address line Open Cause : Dented COF COF is dented

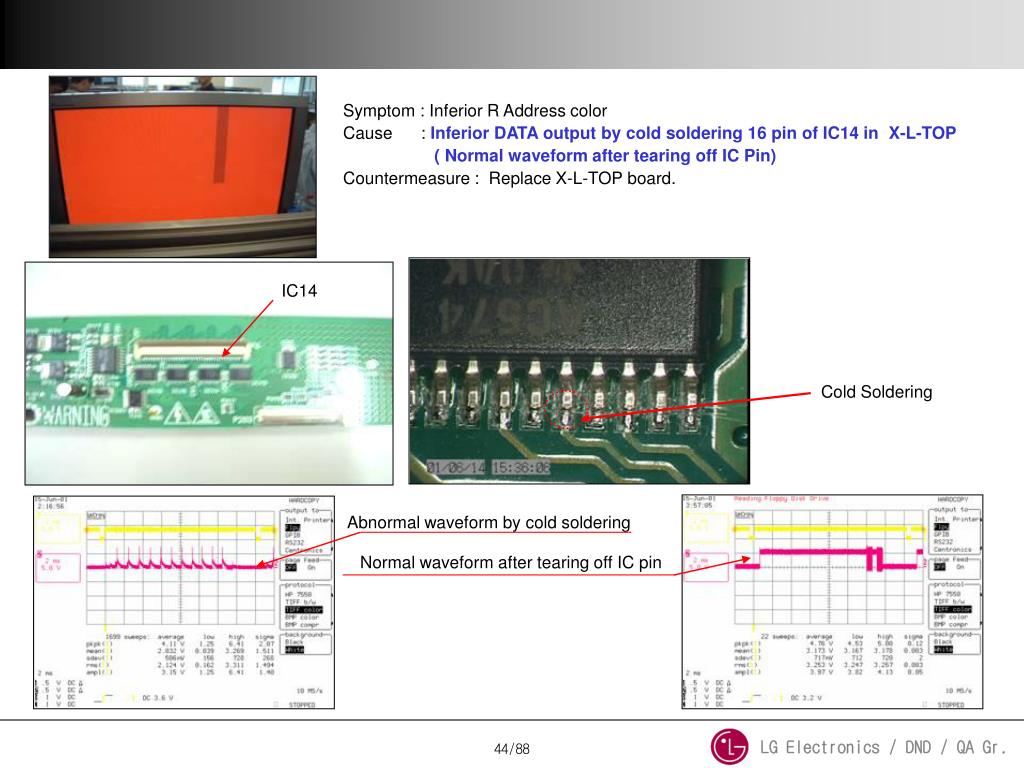

  44. LG Electronics / DND / QA Gr. Symptom : Inferior R Address color Cause : InferiorDATA output bycold soldering16 pin of IC14 in X-L-TOP ( Normal waveform after tearing off IC Pin) Countermeasure : Replace X-L-TOP board. IC14 Cold Soldering Abnormal waveform by cold soldering Normal waveform after tearing off IC pin

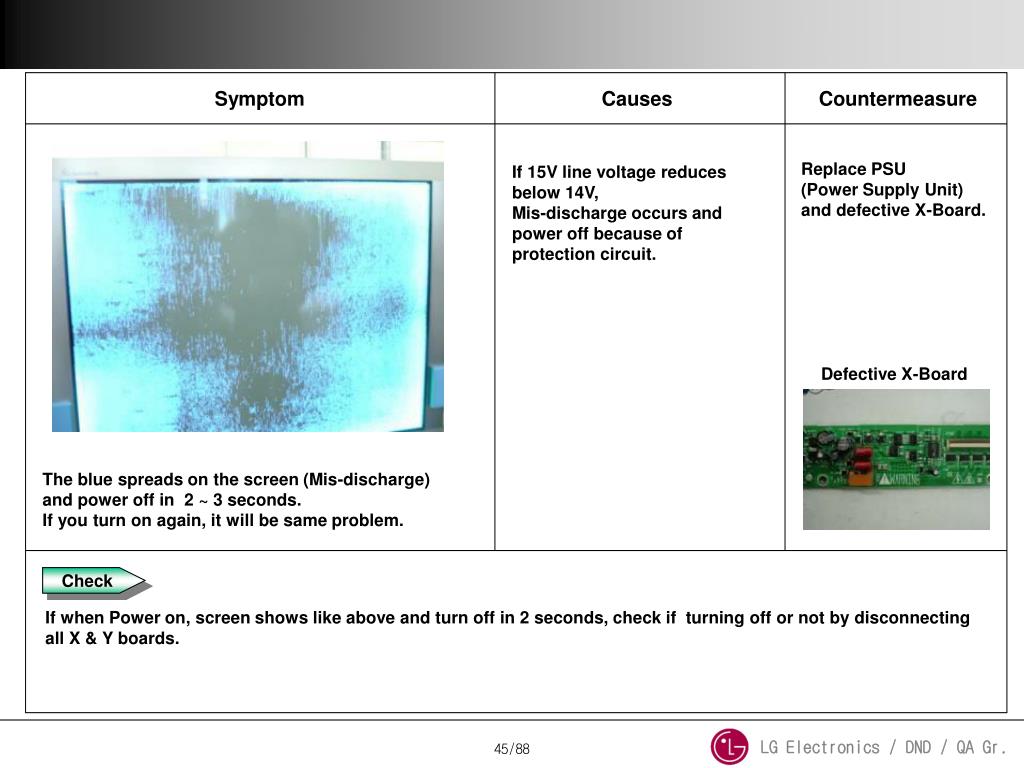

  45. LG Electronics / DND / QA Gr. Symptom Causes Countermeasure Replace PSU (Power Supply Unit) and defective X-Board. If 15V line voltage reduces below 14V, Mis-discharge occurs and power off because of protection circuit. Defective X-Board The blue spreads on the screen (Mis-discharge) and power off in 2 ~ 3 seconds. If you turn on again, it will be same problem. Check If when Power on, screen shows like above and turn off in 2 seconds, check if turning off or not by disconnecting all X & Y boards.

  46. LG Electronics / DND / QA Gr. Symptom Cause Countermeasure No 5V supply to Top right X-Board. Connect 5V line The top left part of screen is broken (Top Right X-BOARD) Check Check Top right X-BOARD 5V.(If 0V, it happens) Check 5V line from SMPS to X-BOARD.

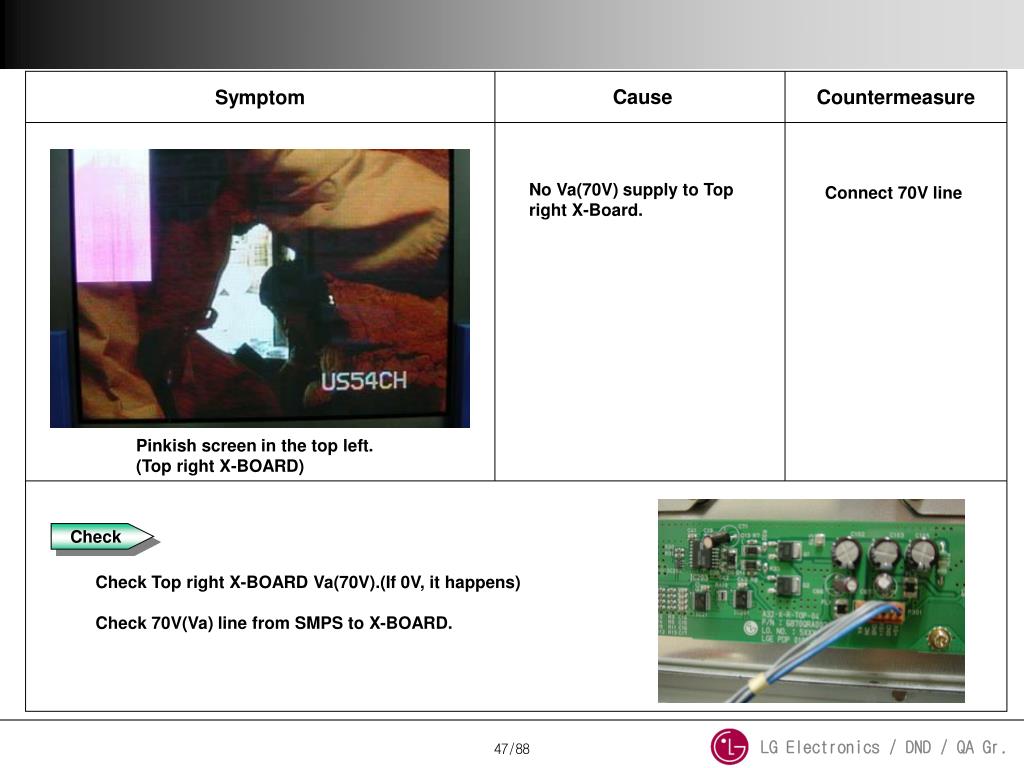

  47. LG Electronics / DND / QA Gr. Cause Countermeasure Symptom No Va(70V) supply to Top right X-Board. Connect 70V line Pinkish screen in the top left. (Top right X-BOARD) Check Check Top right X-BOARD Va(70V).(If 0V, it happens) Check 70V(Va) line from SMPS to X-BOARD.

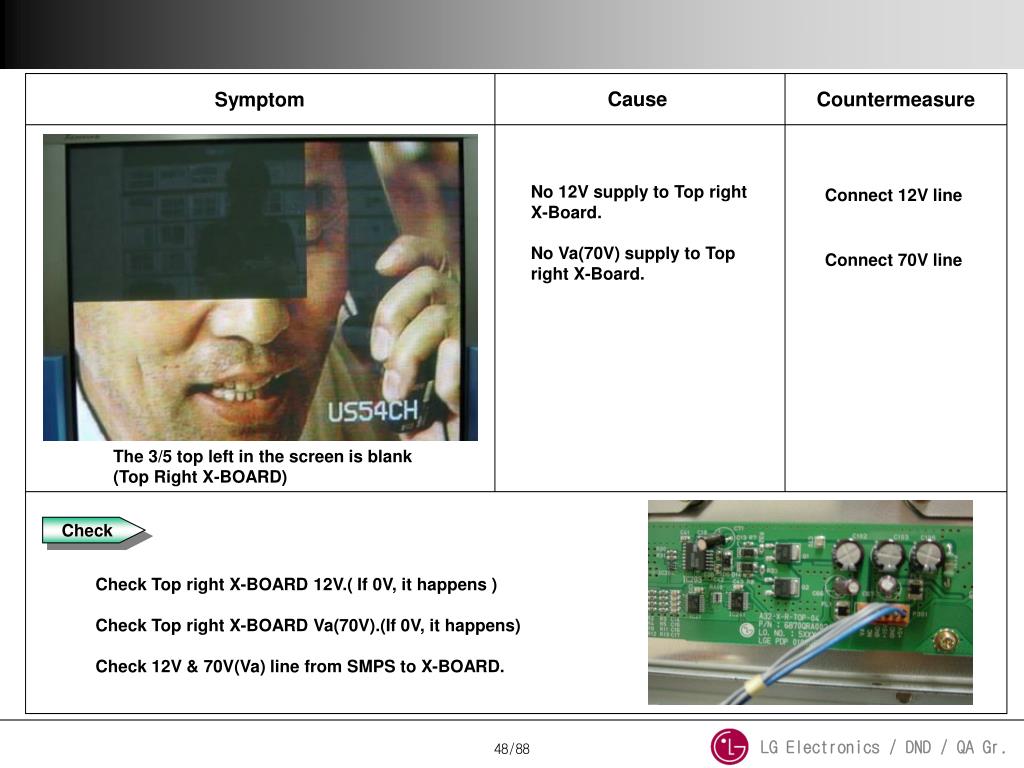

  48. LG Electronics / DND / QA Gr. Cause Countermeasure Symptom No 12V supply to Top right X-Board. No Va(70V) supply to Top right X-Board. Connect 12V line Connect 70V line The 3/5 top left in the screen is blank (Top Right X-BOARD) Check Check Top right X-BOARD 12V.( If 0V, it happens ) Check Top right X-BOARD Va(70V).(If 0V, it happens) Check 12V & 70V(Va) line from SMPS to X-BOARD.

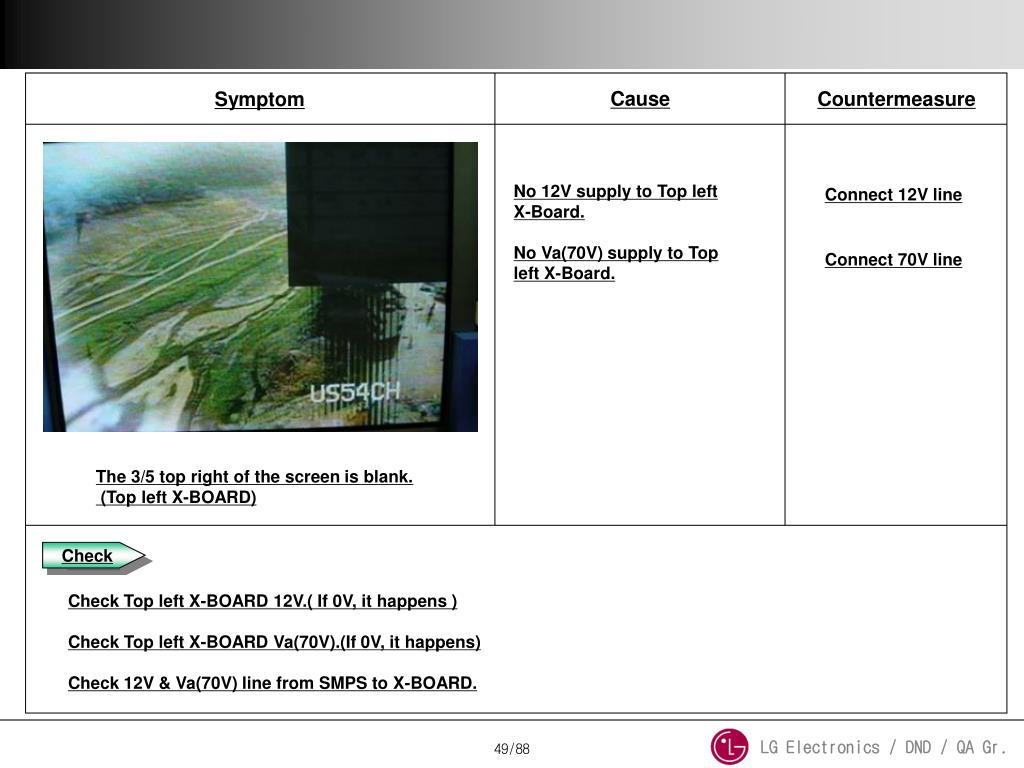

  49. LG Electronics / DND / QA Gr. Cause Countermeasure Symptom No 12V supply to Top left X-Board. No Va(70V) supply to Top left X-Board. Connect 12V line Connect 70V line The 3/5 top right of the screen is blank. (Top left X-BOARD) Check Check Top left X-BOARD 12V.( If 0V, it happens ) Check Top left X-BOARD Va(70V).(If 0V, it happens) Check 12V & Va(70V) line from SMPS to X-BOARD.

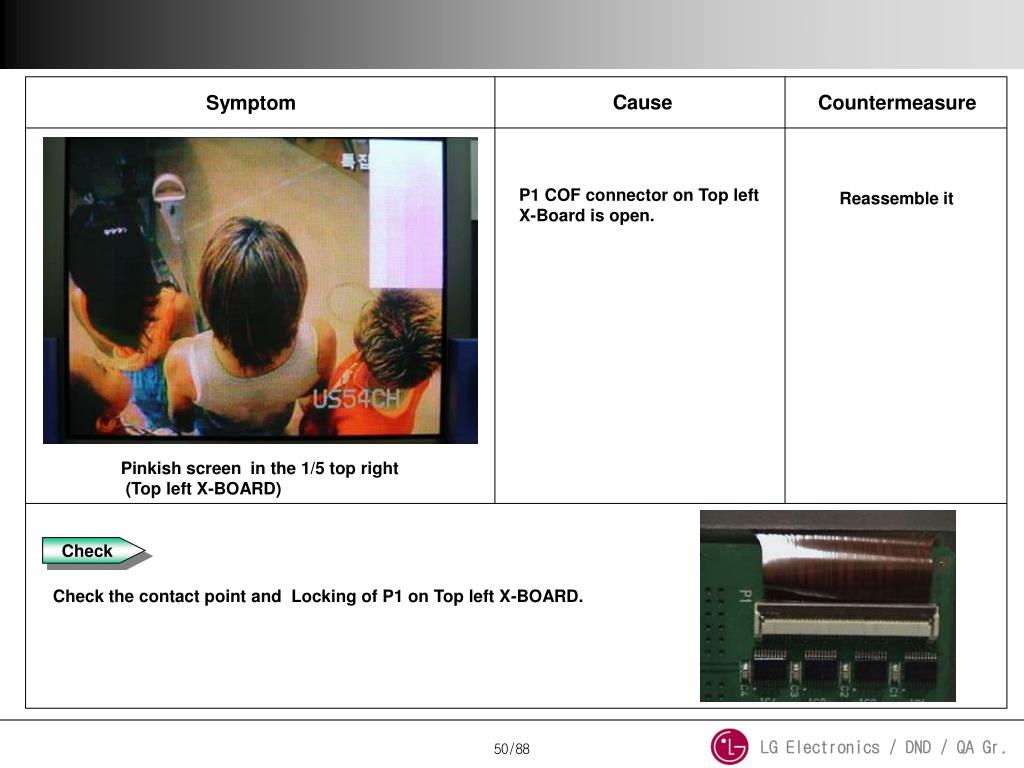

  50. LG Electronics / DND / QA Gr. Cause Countermeasure Symptom P1 COF connector on Top left X-Board is open. Reassemble it Pinkish screen in the 1/5 top right (Top left X-BOARD) Check Check the contact point and Locking of P1 on Top left X-BOARD.
