  1. Brio Rapid Transit System Update on Stations and Timetables July 10, 2012

  2. Brio Overview • Progress Update • Timetable • Station Sizes • Station Features / Amenities • Station Art

  3. Progress Update – July 2012Mesa & Alameda RTS Corridors • Investigation / Data Collection • Metes & Bounds Surveys for Mesa Underway • All Other Items Complete • Station Locations • Finalized for Mesa Corridor • Camille relocated to far side due to property encroachments • Adjustments Remain for Alameda Corridor • Additional right-of-way needs being assessed for stations and amenities improvements • Station Design & Branding • Station Design Approved by Mass Transportation Board (MTB) • System Name “Brio” • Color and Logo Next Branding Items • Artists Developing Station - Specific Designs

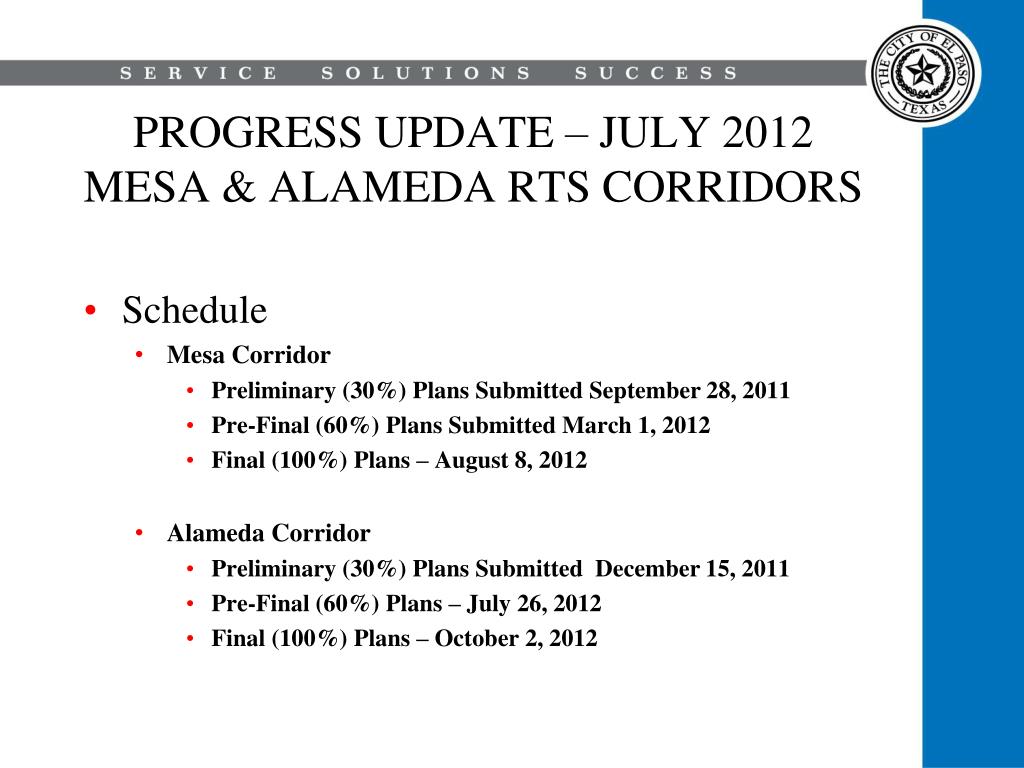

  4. Progress Update – July 2012Mesa & Alameda RTS Corridors • Schedule • Mesa Corridor • Preliminary (30%) Plans Submitted September 28, 2011 • Pre-Final (60%) Plans Submitted March 1, 2012 • Final (100%) Plans – August 8, 2012 • Alameda Corridor • Preliminary (30%) Plans Submitted December 15, 2011 • Pre-Final (60%) Plans – July 26, 2012 • Final (100%) Plans – October 2, 2012

  5. Progress Update – July 2012Mesa & Alameda RTS Corridors • Key Next Steps • Continued Coordination with TxDOT and FTA • Continued Coordination with Planning Regarding Illumination • Continued Coordination with Private and Public Utilities • Branding – Color & Logo • Public Art – Finalize Installations / Concepts

  6. Brio Corridors Alameda (In Design) • 15.25 miles • 17 proposed stations • Design: May 2011 – Oct 2012 • Procurement: Jan – March 2012 • Procurement: Dec. 2012 – April 2013 • Construction April 2012 – Sept. 2013 • Construction: April 2013 – April 2014 Mesa (In Design) • 8.4 miles • 13 proposed stations • Design: June 2011 – Aug 2012 • Procurement: July – Sept. 2012 • Procurement: Nov. 2012 – Feb 2013 • Construction Oct. 2012 – Sept. 2013 • Construction: Feb 2013 – Jan 2014

  7. Brio Corridors • Dyer ($15.4M FTA Funding Approved - $5M Short; Will reapply for shortfall Sept 2012) • 11.7 miles • 12 proposed stations • Design: Jan - Dec 2013 • Procurement: Jan - March 2014 • Construction: March 2014 – Sept 2015 • Montana (Will apply Sept 2012) • 18.4 miles • 18 proposed stations • Design: Jan - Dec 2014 • Procurement: Jan - March 2015 • Construction: April 2015 – Sept 2016

  8. Brio Stations • Four (4) Station Canopy Sizes • 6’ deep by 37’ long • 6’ deep by 46’ long • 6’ deep by 62.5 long • 9’ deep by 37’ long • 9’ deep by 46’ long • 9’ deep by 62.5’ long • Station Platform Size • 9’ to 28’ deep • 65’ to 85’ long • All platform sizes are 65’ • Size based upon: • Expected ridership • Available ROW • Geometric restrictions

  9. Brio Station Features • Pedestrian Illuminations • Every 30’ – 50’ • 220’ (maximum) from centerpoint of station or to nearest intersection • Landscaping • Native trees/plants • Trees every 30’ as geometry permits • Shade trees • 220’ (maximum) from centerpoint of station of to nearest intersection • Free Wi-Fi • In station • Onboard RTS vehicles

  10. Brio STATION PUBLIC FOOTPRINT

  11. Brio STATION PUBLIC FOOTPRINT

  12. Brio STATION PUBLIC FOOTPRINT

  13. Brio Station Public Art Concepts - Mesa

  14. Brio Station Public Art Concepts - Mesa Resizing of shelter does not alter the look.

  15. Brio Station Public Art Concepts - Alameda

  16. 46’ CANOPY

  17. Questions?
