  1. Estimation of Single Event Upset Probability Impact of FPGA Designs Prasanna Sundararajan, Scott McMillan, Brandon Blodget, Carl Carmichael, Xilinx Inc Cameron Patterson Virginia Tech

  2. Introduction • Single Event Upsets (SEUs) on a SRAM based FPGA may impact the functionality of the programmed circuit • FPGA designs do not utilize all memory cells • SEUPI tool estimates the probability that an SEU will alter a memory cell utilized by a specific design • SEUPI augments Mean Time Between Failure (MTBF) calculations with design specific information

  3. Motivation • Increase in use of SRAM FPGAs in space applications • Provide accurate MTBF information in order to make intelligent mitigation decisions • Rise in configuration cells mandates a SEU susceptibility estimation for FPGA systems placed in high-altitude to determine a need for mitigation strategy

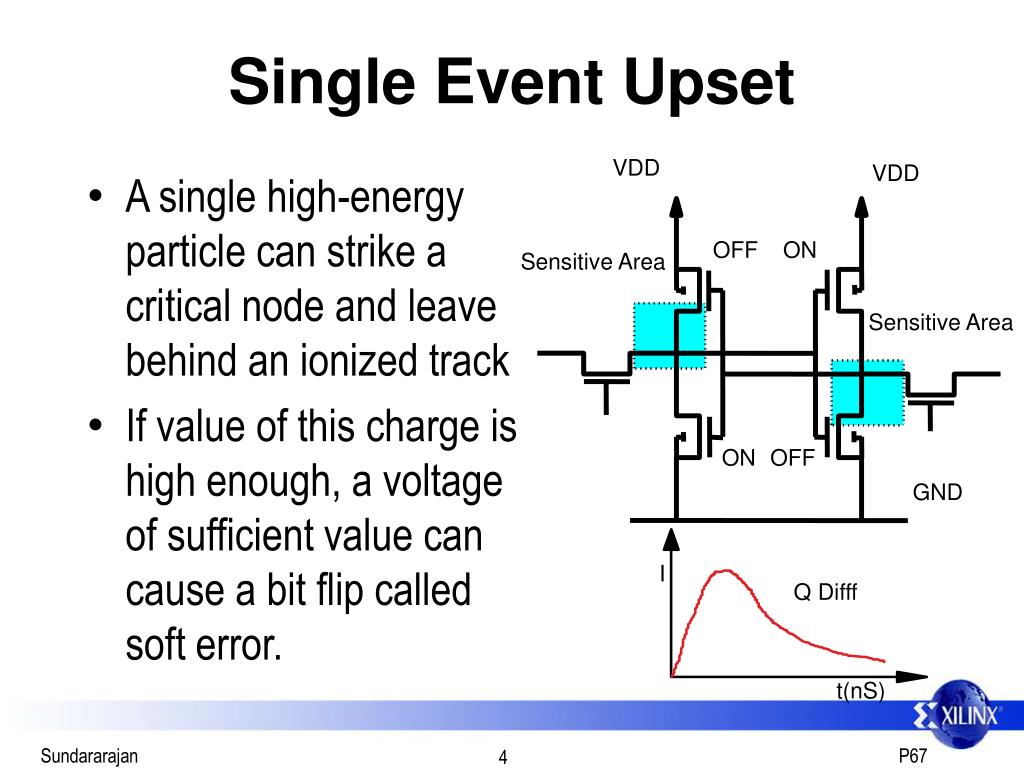

  4. VDD VDD OFF ON Sensitive Area Sensitive Area I Q Difff ON OFF GND t(nS) Single Event Upset • A single high-energy particle can strike a critical node and leave behind an ionized track • If value of this charge is high enough, a voltage of sufficient value can cause a bit flip called soft error.

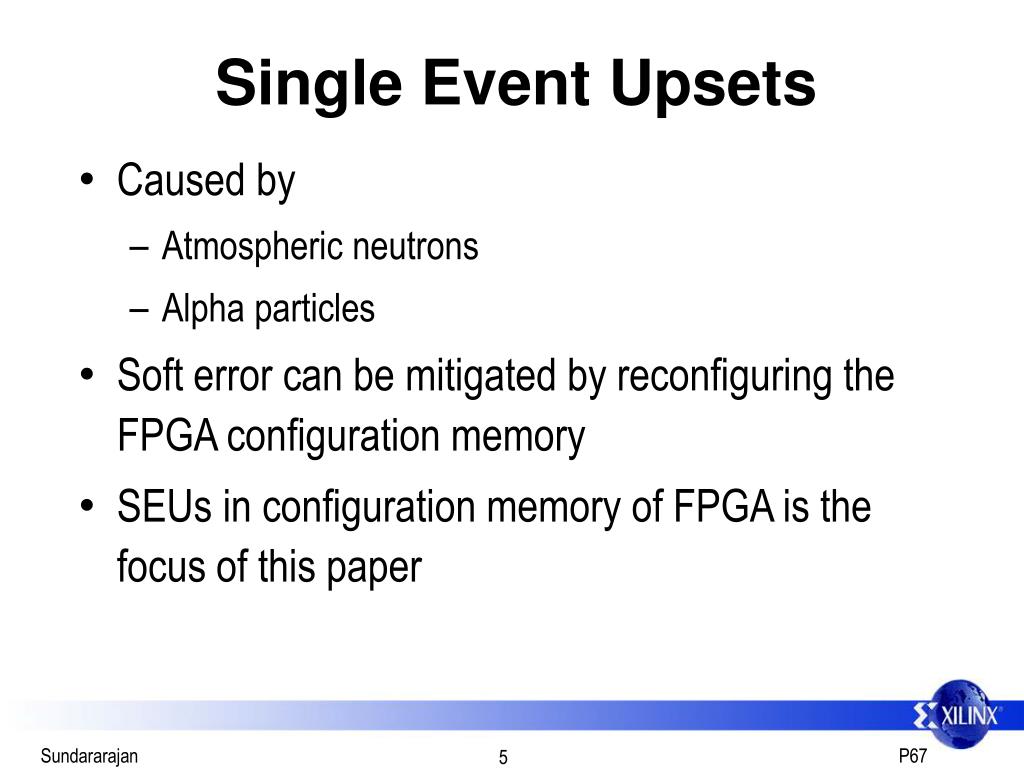

  5. Single Event Upsets • Caused by • Atmospheric neutrons • Alpha particles • Soft error can be mitigated by reconfiguring the FPGA configuration memory • SEUs in configuration memory of FPGA is the focus of this paper

  6. SEU Impact Dependency Factors • SEU Impact Depends on • Altitude: ~10x worse @10,000Ft vs. sea level • Latitude: ~6x worse at North Pole vs. Equator • Neutron Flux: 120neutrons/cm2-hr impact everything (@ 45° latitude) • Area cross section per configuration bit • % Resource utilization of a FPGA Device

  7. 0.18 m 0.35 m 0.22 m 0.15 m FPGA Architectures And Configuration Bits • Rise in configuration bits due to advancement in process technology

  8. Alternate Methods • Controlled exposure of FPGAs to high energy particle beam • Performed by exposing FPGAs to high energy particle generator • SEU study at Xilinx • Large number of FPGAs exposed to atmosphere and upsets are recorded

  9. Alternate Methods • Hardware SEU simulator by Los Alamos Laboratory and Brigham Young University • SEU simulated by dynamically corrupting one bit at a time • Mean Time Between Upset • SEU susceptibility estimated by assuming all the device configuration bits are susceptible to SEUs

  10. Single Event Upset Probability Impact (SEUPI) • Tool developed for static estimation of bits susceptible to SEUs • Estimates provided specific to a FPGA design • Estimation technique based on accounting the resources used in a user design • SEUPI is a ratio of bits used in a specific design to total number of device configuration bits

  11. Device Config Bits % Care Bits Single Event Upset Probability Impact (SEUPI) • Estimate % of configuration bits used in a design a.k.a Care Bits • Care bits depends on resource (pips, muxes, LUTs, FFs) utilization in a design

  12. FPGA Design NCD Tools to identify resource used Resource Usage List SEUPI Map Resource & Bits JBits Data Model SEUPI Tool Flow Report Care Bits Device Resource & Config Bits Model

  13. Results • Design 1 • 8109/10752 slices (75%) • 369/624 IOBs (59%) • 27628 Signals • Design 2 • 19401/22400 slices (86%) • 408/912 IOBs (45%) • 56121 Signals

  14. SEUPI Pros & Cons • Pros • No investment needed to procure hardware simulator • Controlled experiment using high energy particle accelerators can be avoided • Inexpensive estimate specific to an user design • Suitable if worst case static estimate is desired • Cons • As this is a worst case estimate, the susceptibility estimate is high compared to other estimation techniques

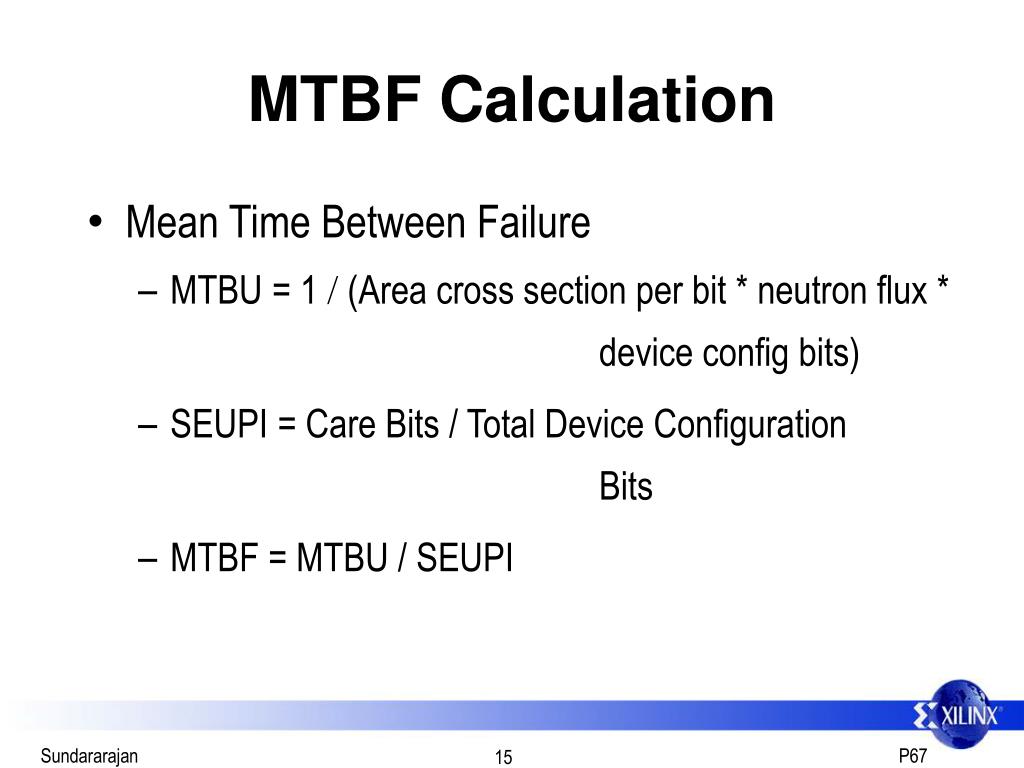

  15. MTBF Calculation • Mean Time Between Failure • MTBU = 1  (Area cross section per bit * neutron flux * device config bits) • SEUPI = Care Bits / Total Device Configuration Bits • MTBF = MTBU / SEUPI

  16. Summary & Future Work • Estimation of susceptibility to SEU important to build reliable FPGA systems • SEUPI tool can be used for static estimation • SEUPI tool can be used to estimate without the need for SEU hardware or high energy accelerators • Results obtained from SEUPI tool would be validated with hardware simulator tool
