  1. Networking & Wireless Routers • II • FTP/HTTP Component • Windows 7 • 45 PointsTU Networking 3342Dr. Thomas Hicks

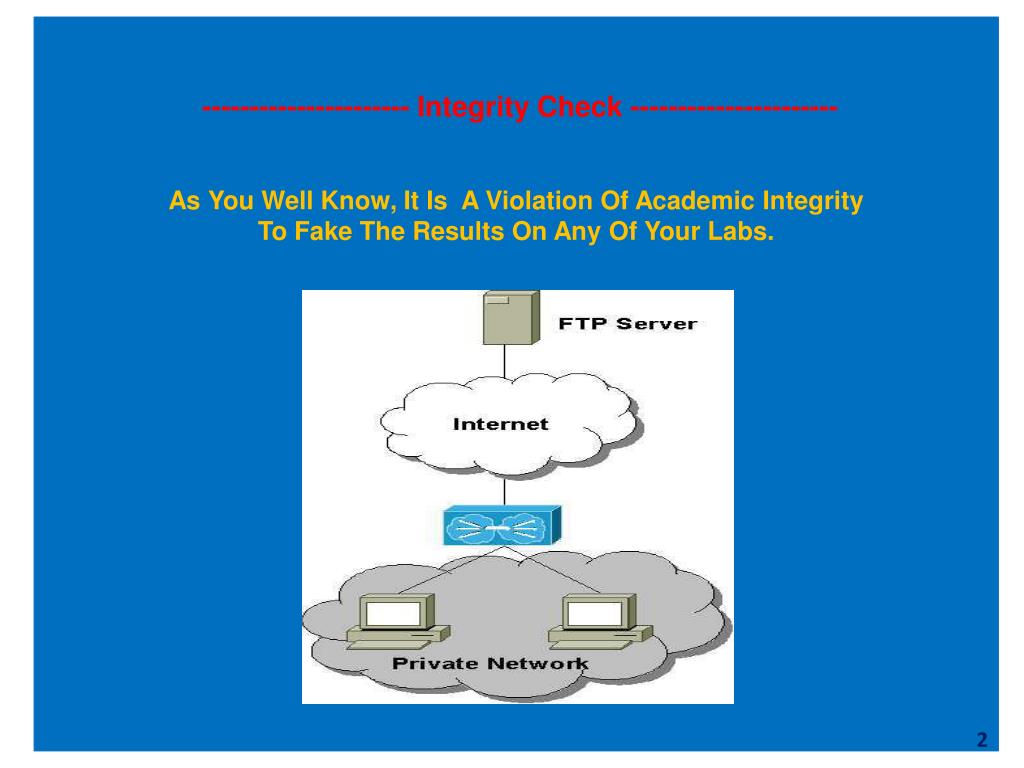

  2. ---------------------- Integrity Check ----------------------As You Well Know, It Is A Violation Of Academic IntegrityTo Fake The Results On Any Of Your Labs.

  3. Your Name _________________ Name This Presentation: Tom-Hicks-2-Router-Wireless-Lab.pptx{Substitute Your First & Last Names}

  4. You Will Need Two • Computers • For This Lab

  5. I Have Connected To FTP Server Client - Server Model CS-____ To CS-____ Client FTP-User Server - Your FTP Server System

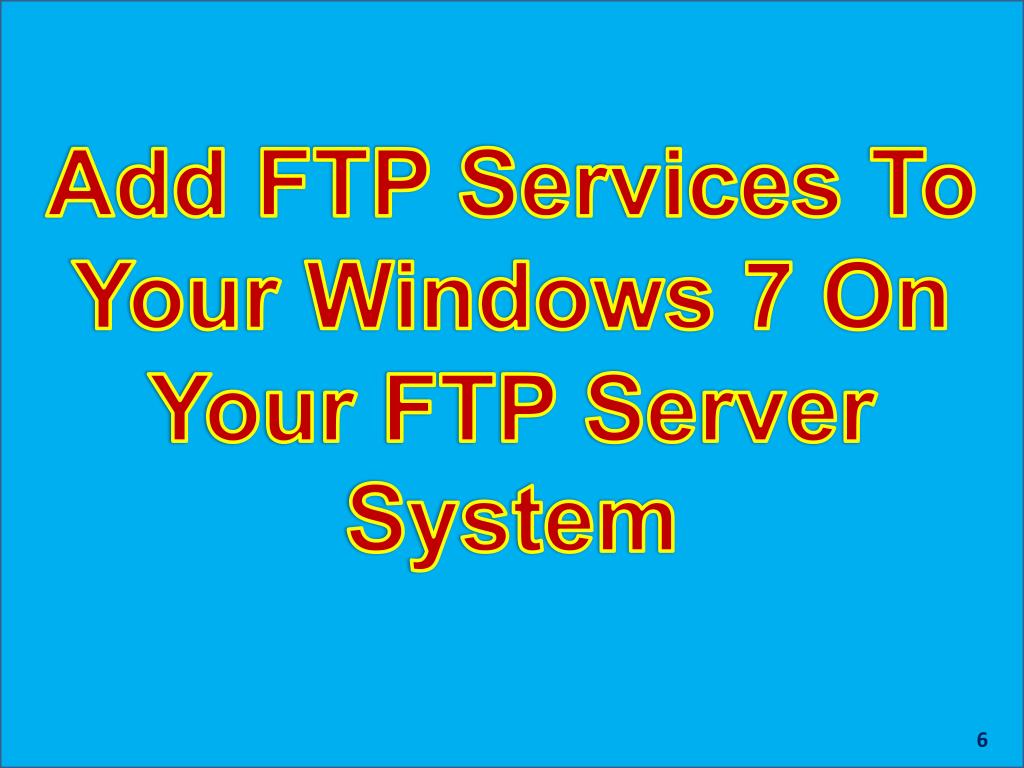

  6. Add FTP Services To Your Windows 7 On Your FTP Server System

  7. Windows 7 FTP ServicesInstall FTP Services On Your System http://carme.cs.trinity.edu/thicks/Windows-7/Install-FTP/Install-FTP.html

  8. Microsoft FTP Command Line Client • (Commands)

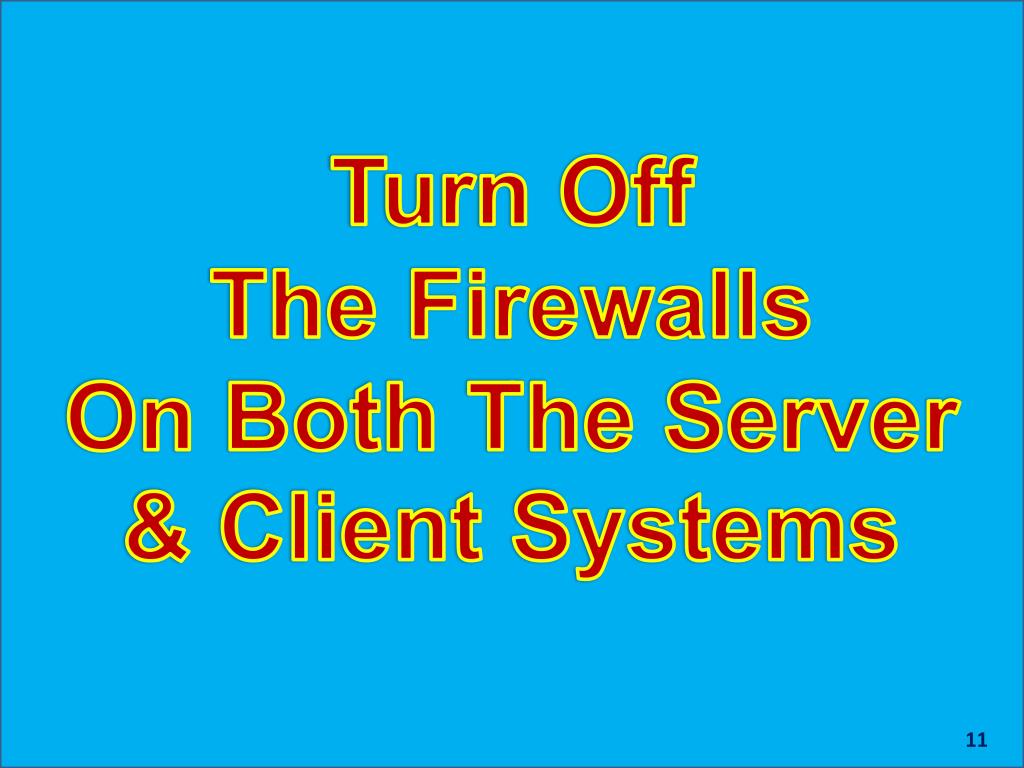

  9. e • Turn Off • The Firewalls • On Both The Server & Client Systems

  10. Turn Off Your FirewallReplace The Server Screen Capture Below With Yours!

  11. FTP Server • On Server 2008/2012 • Configuration Done In Internet Information Services(IIS) 6.0GUI

  12. FTP Server • On Windows 7 • Internet Information Services(IIS)GUI

  13. InstallFTP Server

  14. Check Your Computer NameReplace My Image With Yours!

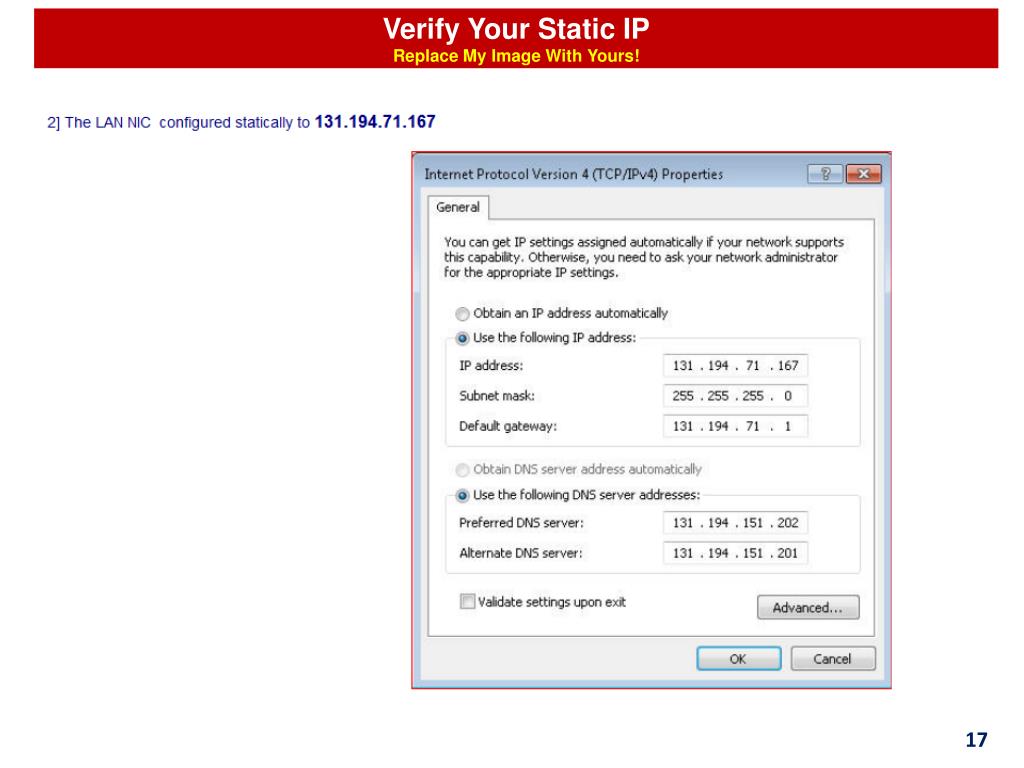

  15. Verify Your Static IPReplace My Image With Yours!

  16. Turn Off Your FirewallReplace My Image With Yours!

  17. Go To Another System & Verify That You Can Ping Your Computer!Replace My Image With Yours!

  18. Start Programs & Features

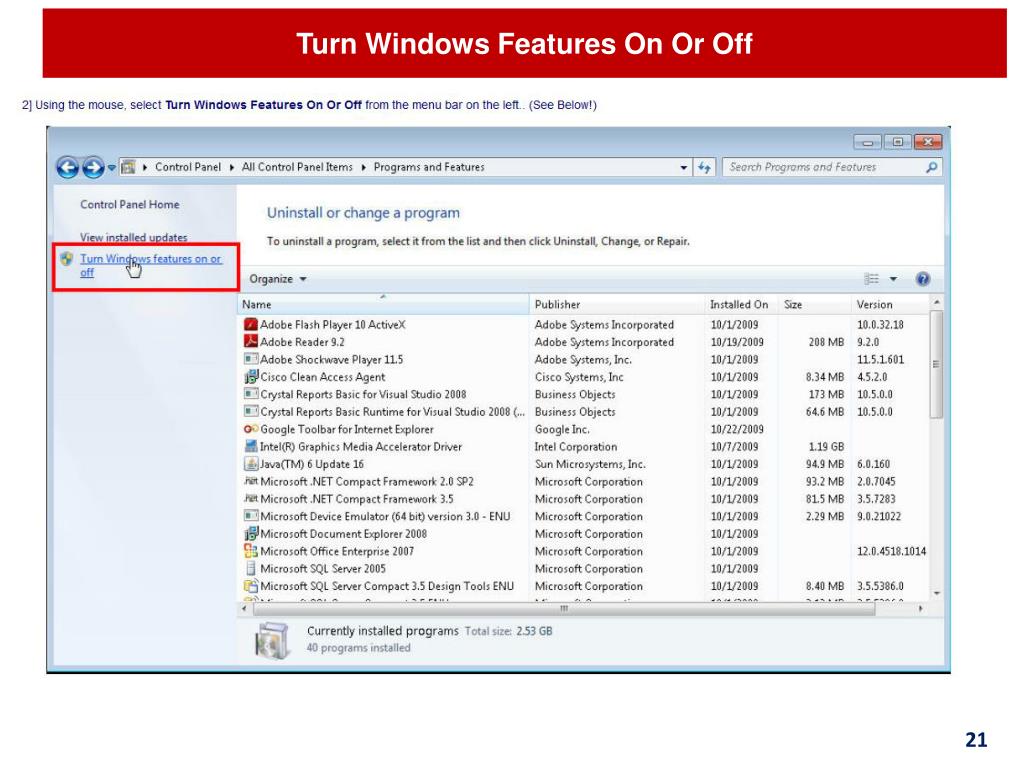

  19. Turn Windows Features On Or Off

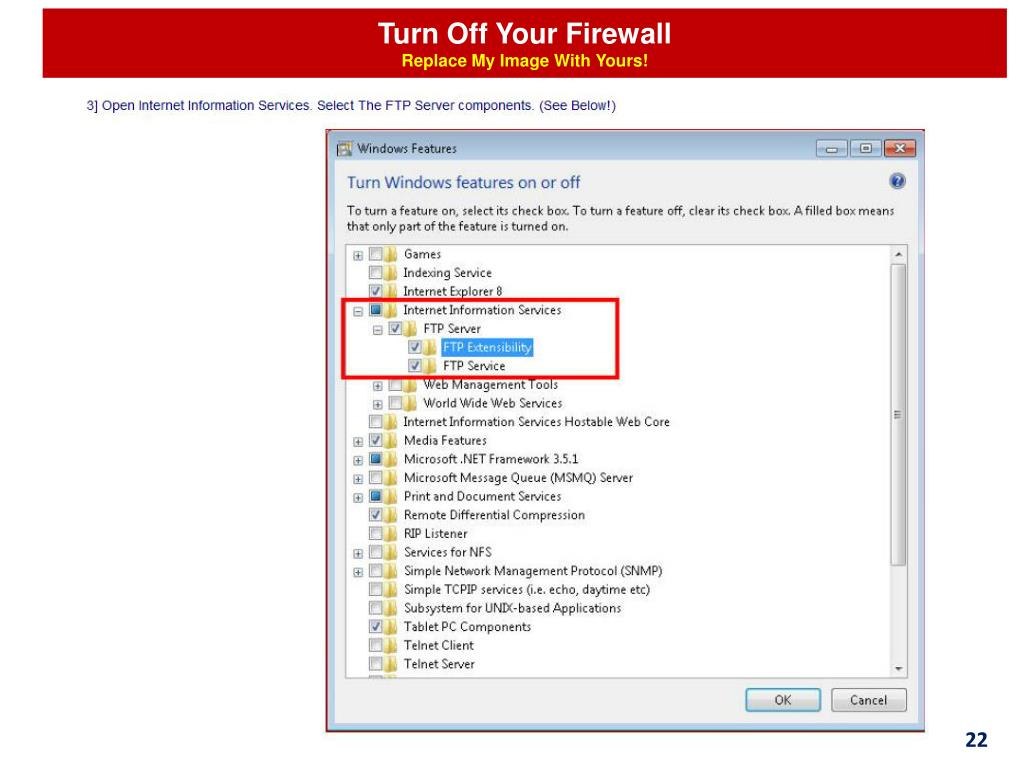

  20. Turn Off Your FirewallReplace My Image With Yours!

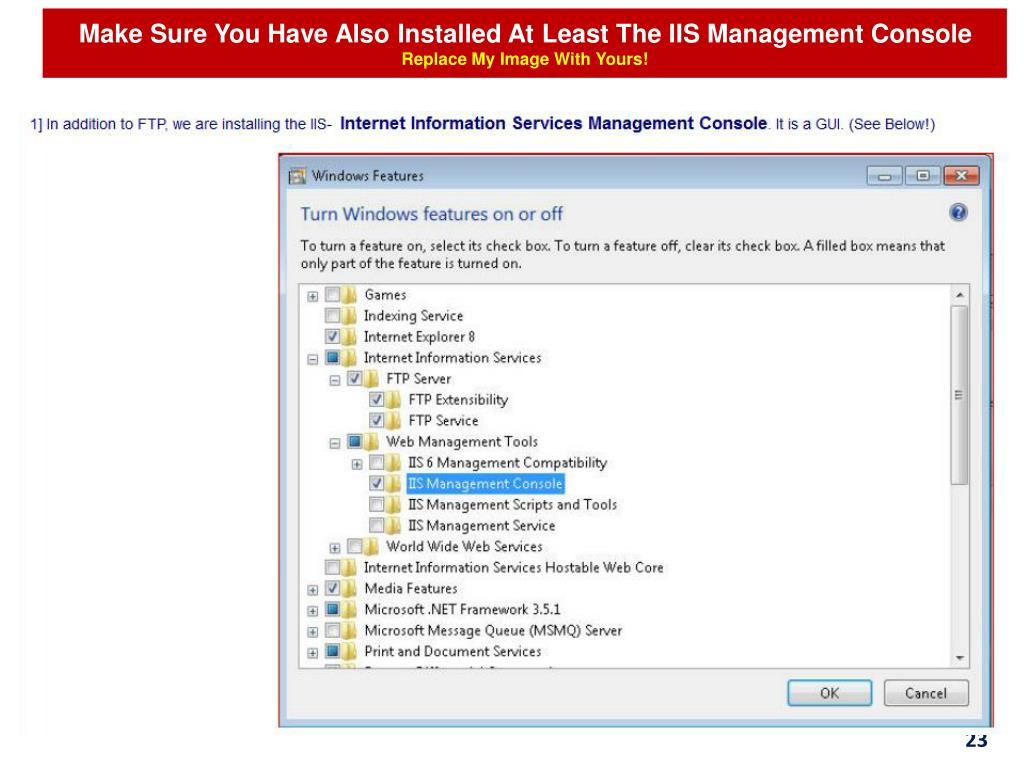

  21. Make Sure You Have Also Installed At Least The IIS Management ConsoleReplace My Image With Yours!

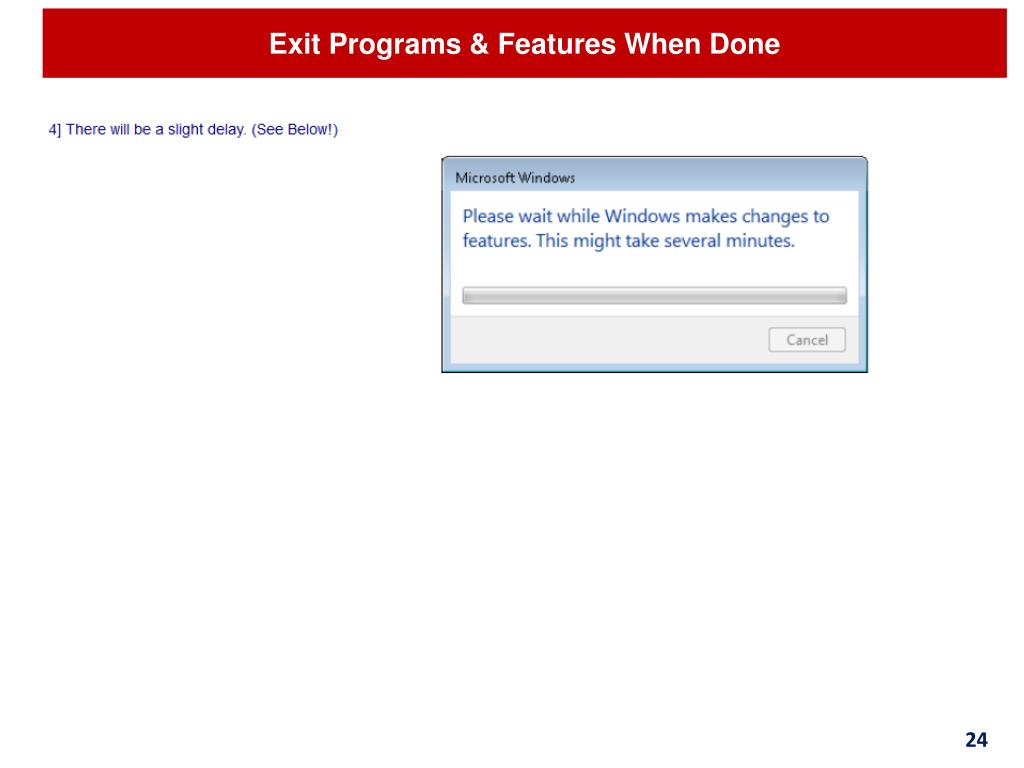

  22. Exit Programs & Features When Done

  23. FTP ServerFirst Shot At Connecting I?

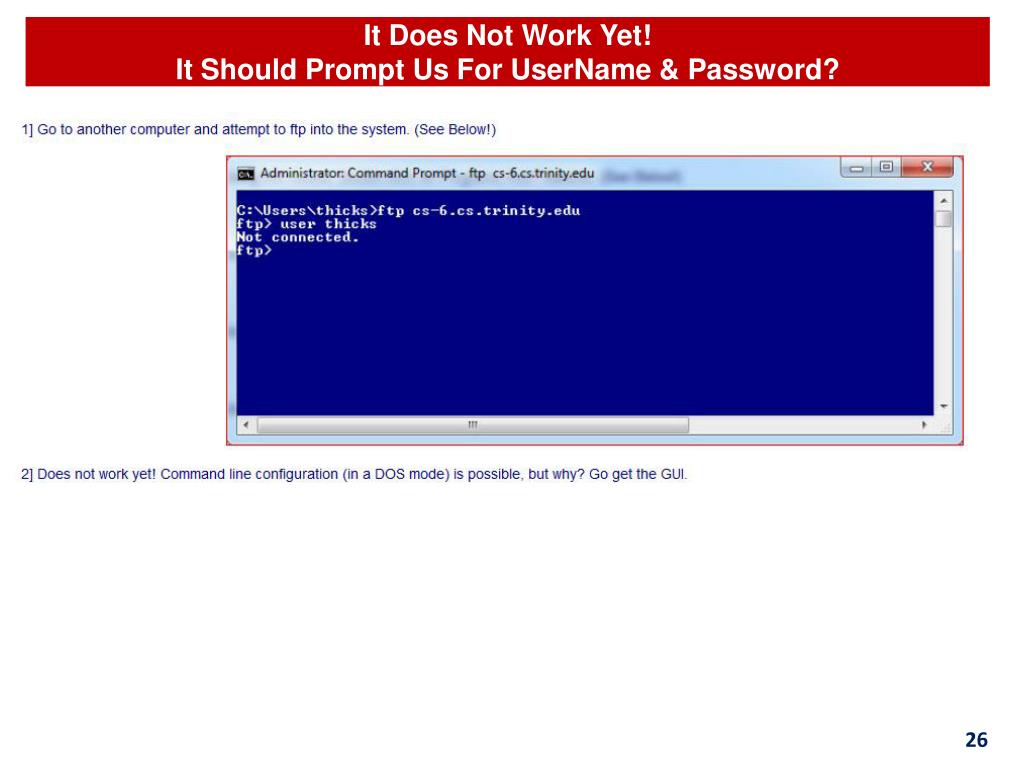

  24. It Does Not Work Yet!It Should Prompt Us For UserName & Password?

  25. Configuring TheFTP Server I

  26. Show The FTP Authorization Rules

  27. We Must Add An Authorization Rule

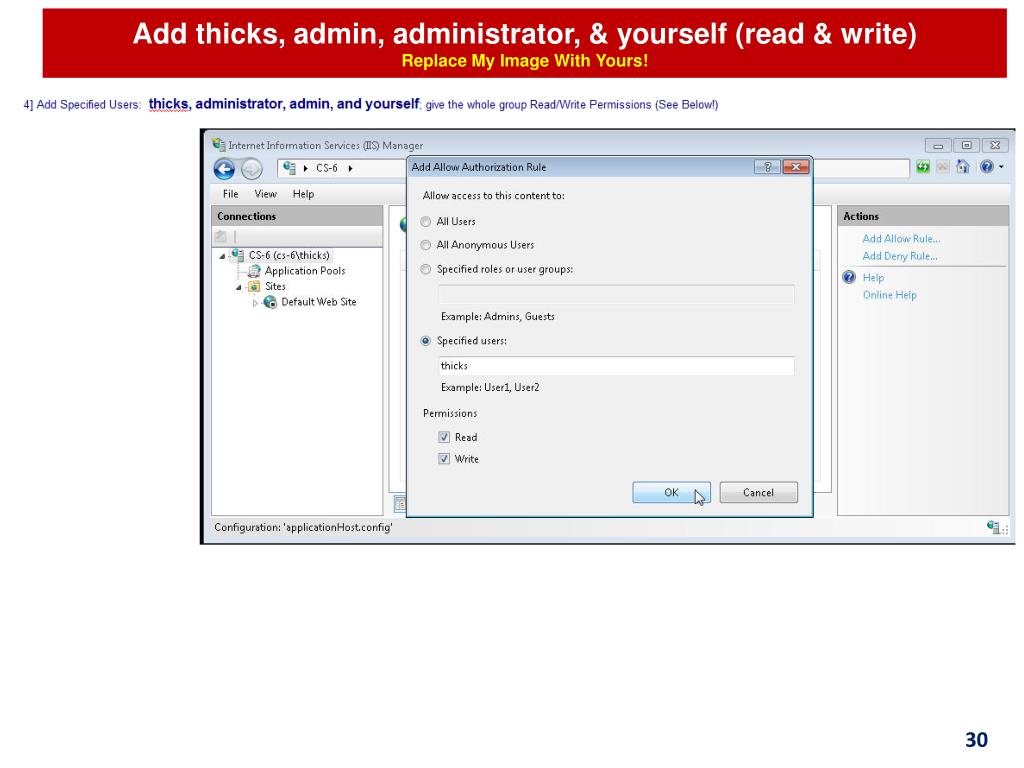

  28. Add thicks, admin, administrator, & yourself (read & write)Replace My Image With Yours!

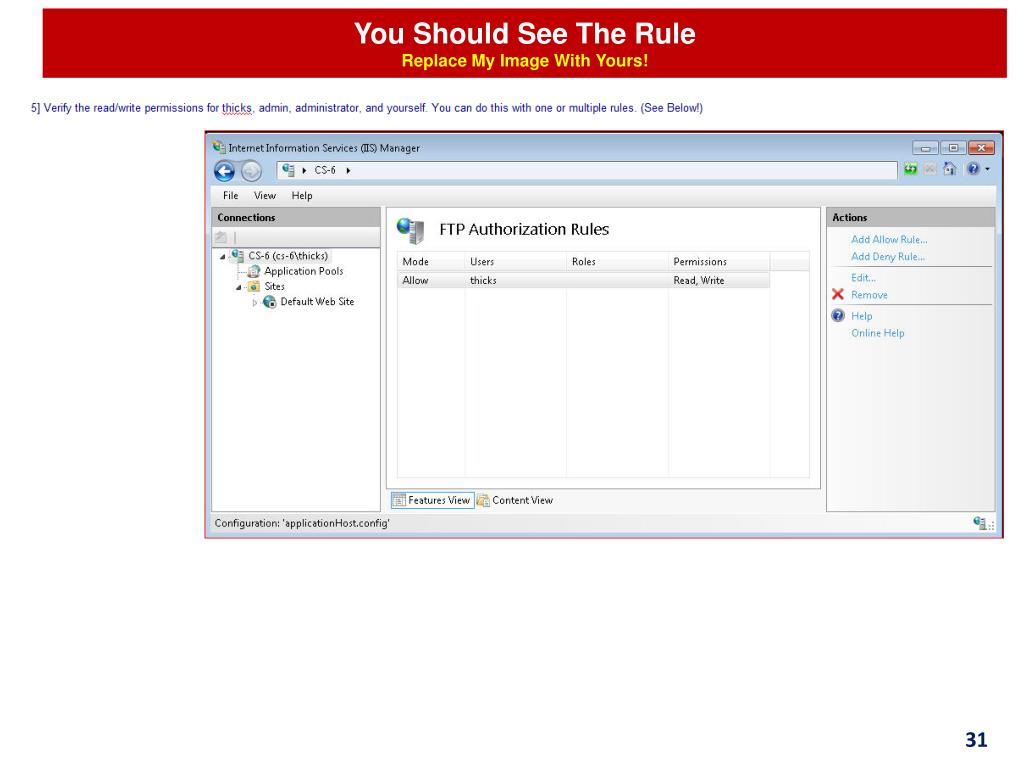

  29. You Should See The RuleReplace My Image With Yours!

  30. FTP ServerFirst Shot At Connecting II?

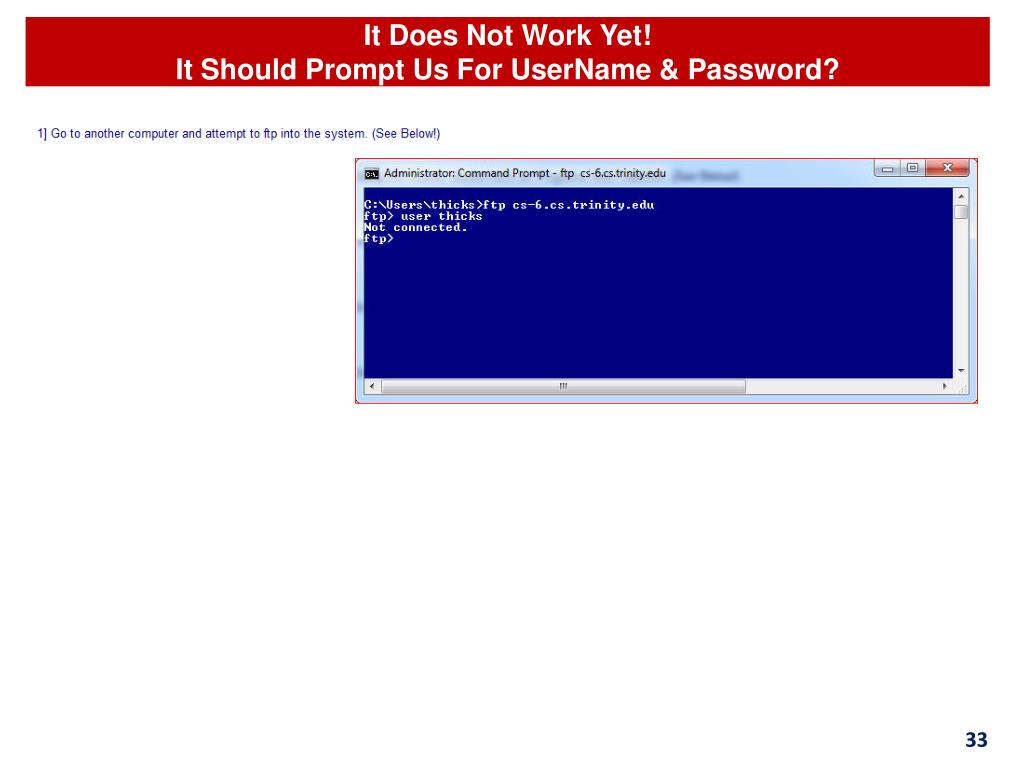

  31. It Does Not Work Yet!It Should Prompt Us For UserName & Password?

  32. Configuring TheFTP Server II

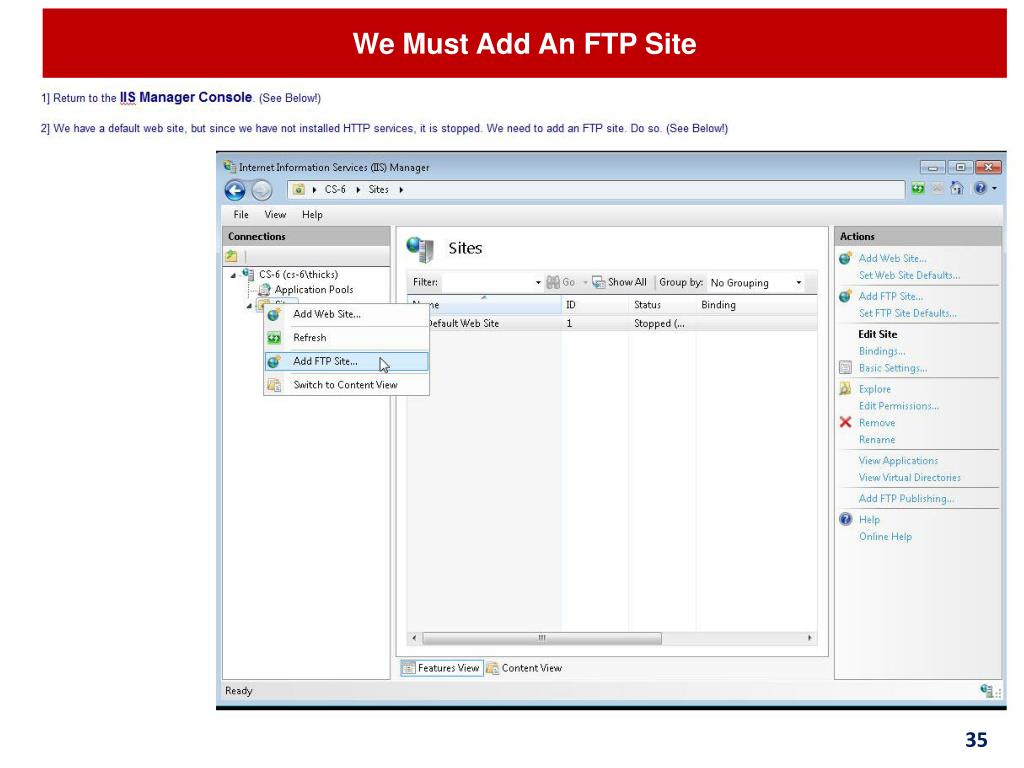

  33. We Must Add An FTP Site

  34. Point The FTP Site To Folder C:\inetpub\ftprootCall Your Site FTP-Hicks (Use Your Name)Replace My Image With Yours!

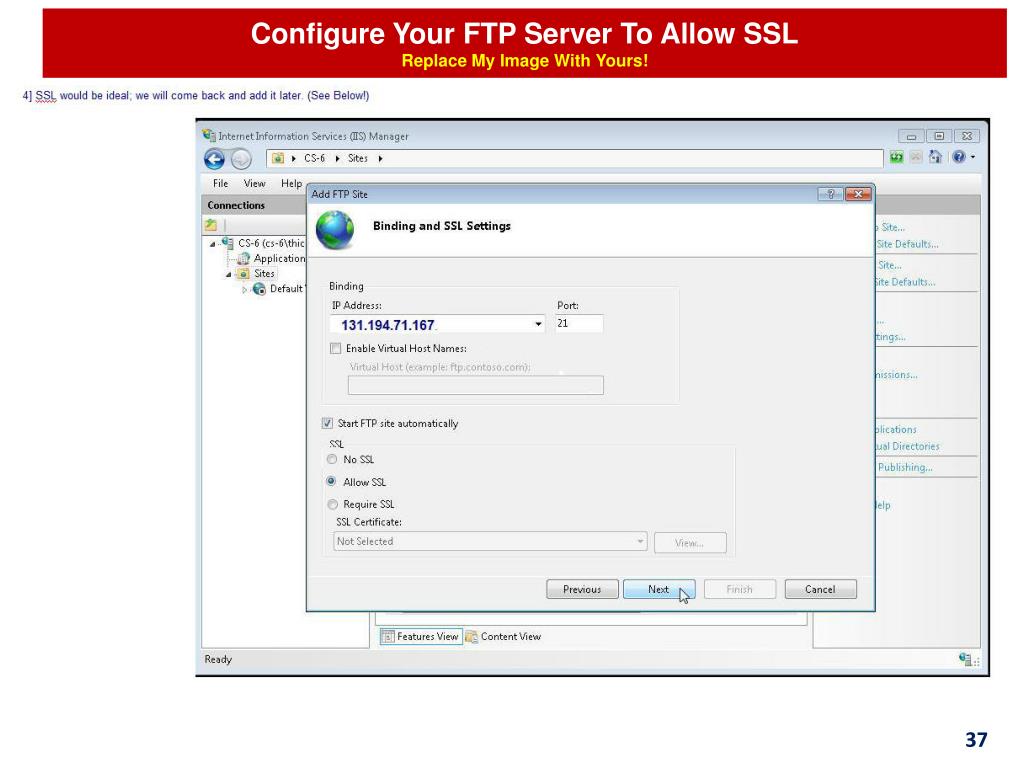

  35. Configure Your FTP Server To Allow SSLReplace My Image With Yours!

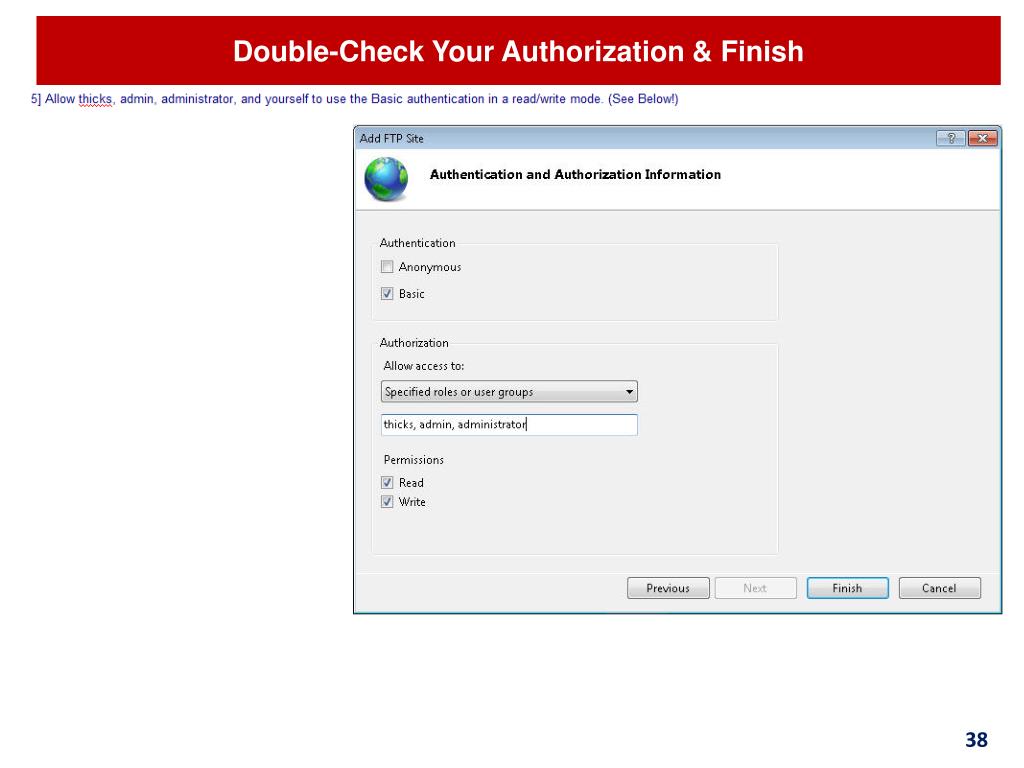

  36. Double-Check Your Authorization & Finish

  37. Make Sure Your FTP Site Is Started!If Your Computer Has More Than One FTP Site, Stop The Others!Replace My Image With Yours!

  38. Go To The Advanced Settings Tab - See How Many FTP Connections? Replace My Image With Yours!

  39. System PreparationFTP Server III

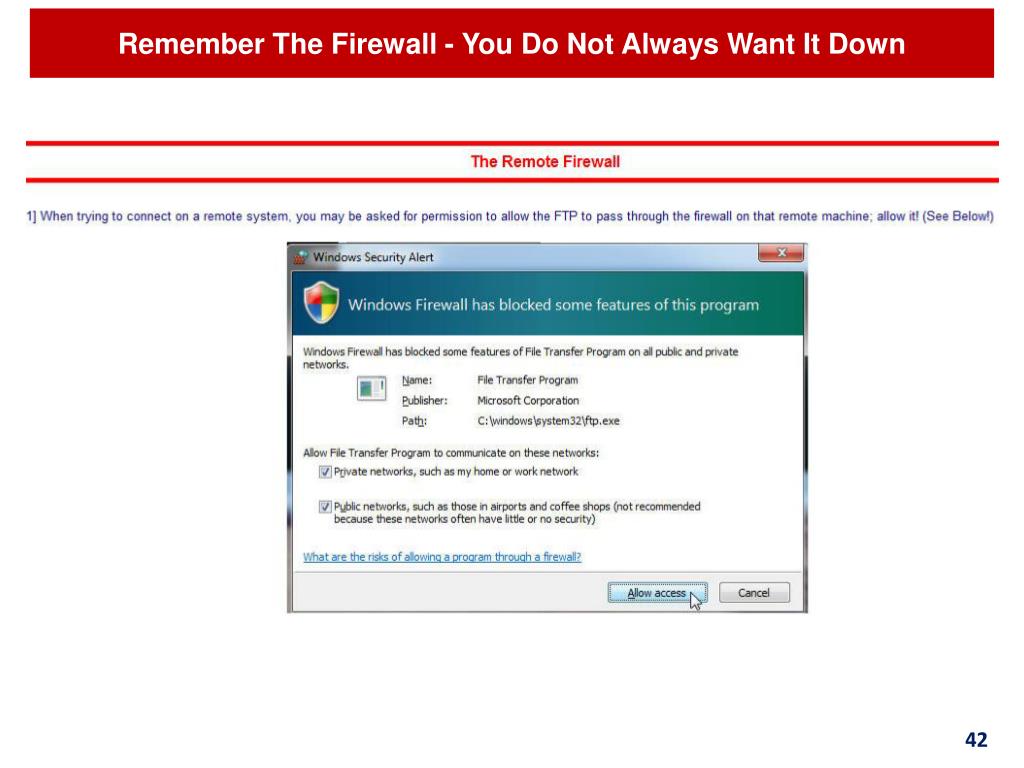

  40. Remember The Firewall - You Do Not Always Want It Down

  41. Folder Permissions

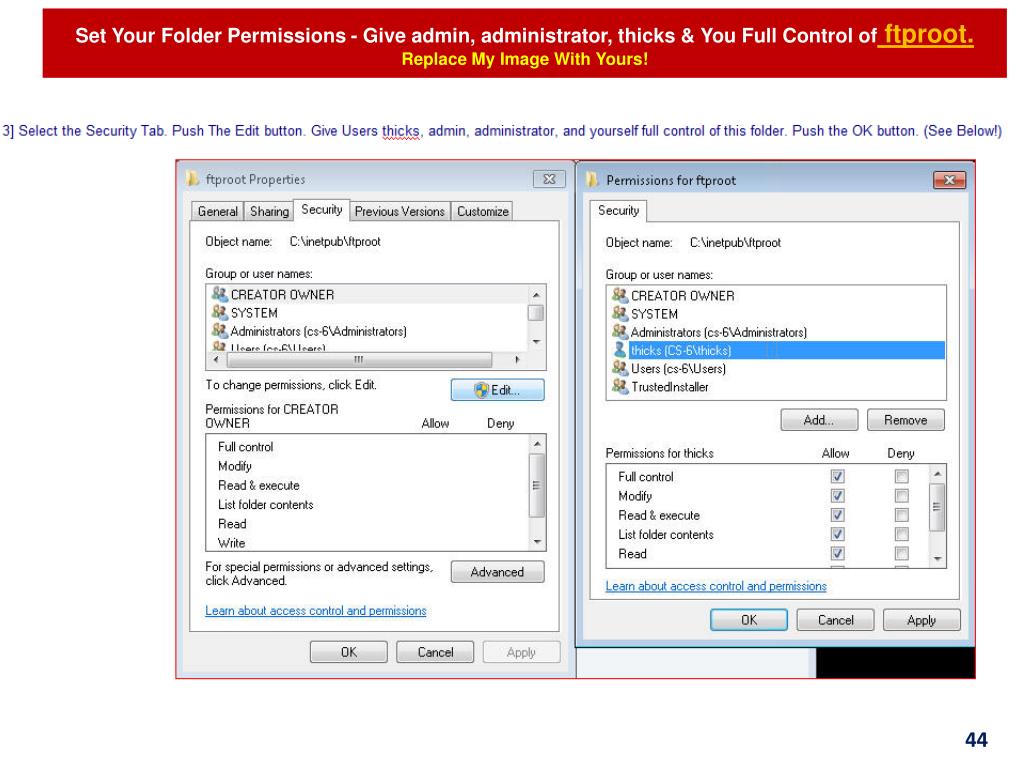

  42. Set Your Folder Permissions - Give admin, administrator, thicks & You Full Control offtproot.Replace My Image With Yours!

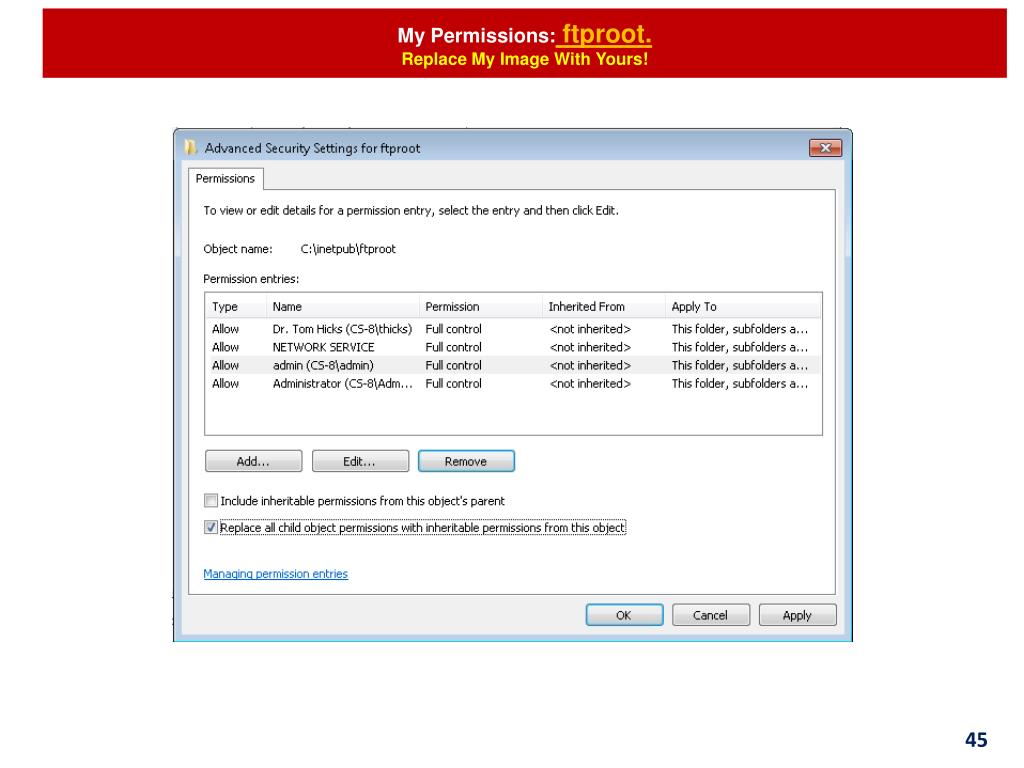

  43. My Permissions:ftproot.Replace My Image With Yours!

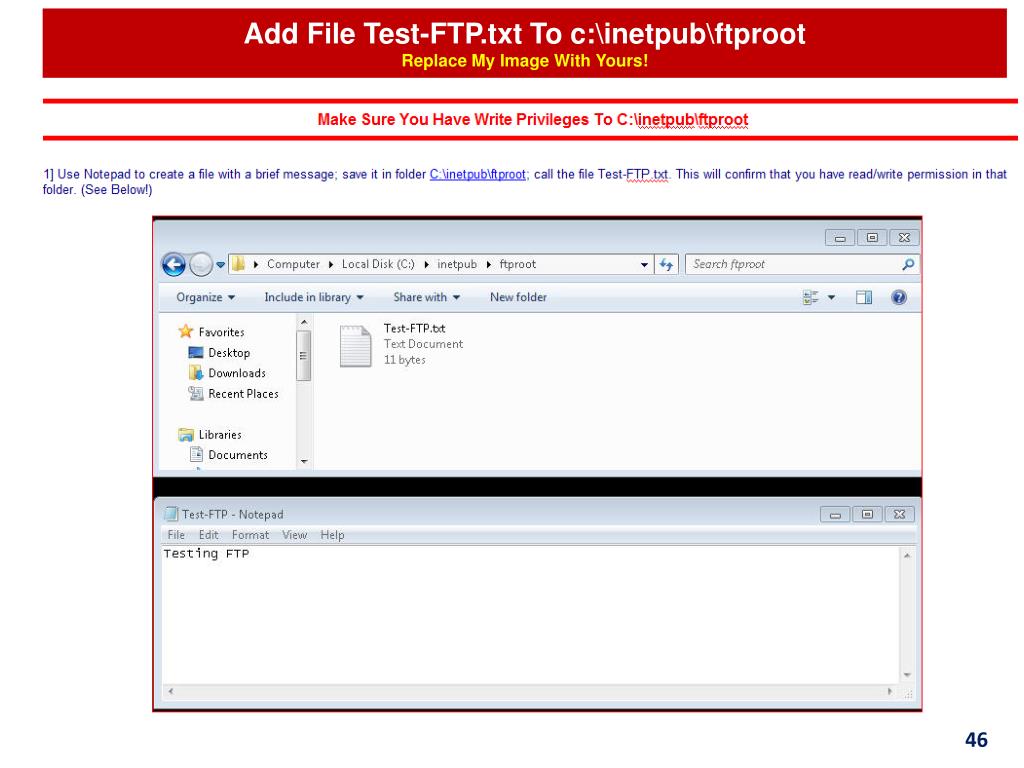

  44. Add File Test-FTP.txt To c:\inetpub\ftprootReplace My Image With Yours!

  45. FTP ServerFirst Shot At Connecting III?

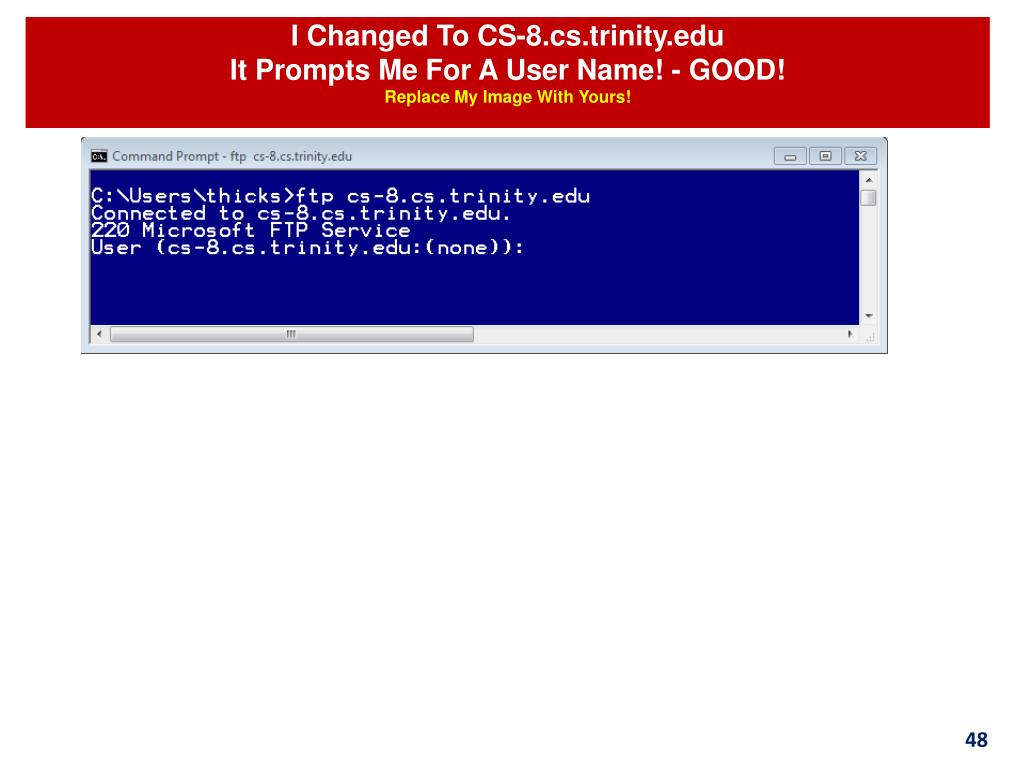

  46. I Changed To CS-8.cs.trinity.eduIt Prompts Me For A User Name! - GOOD!Replace My Image With Yours!

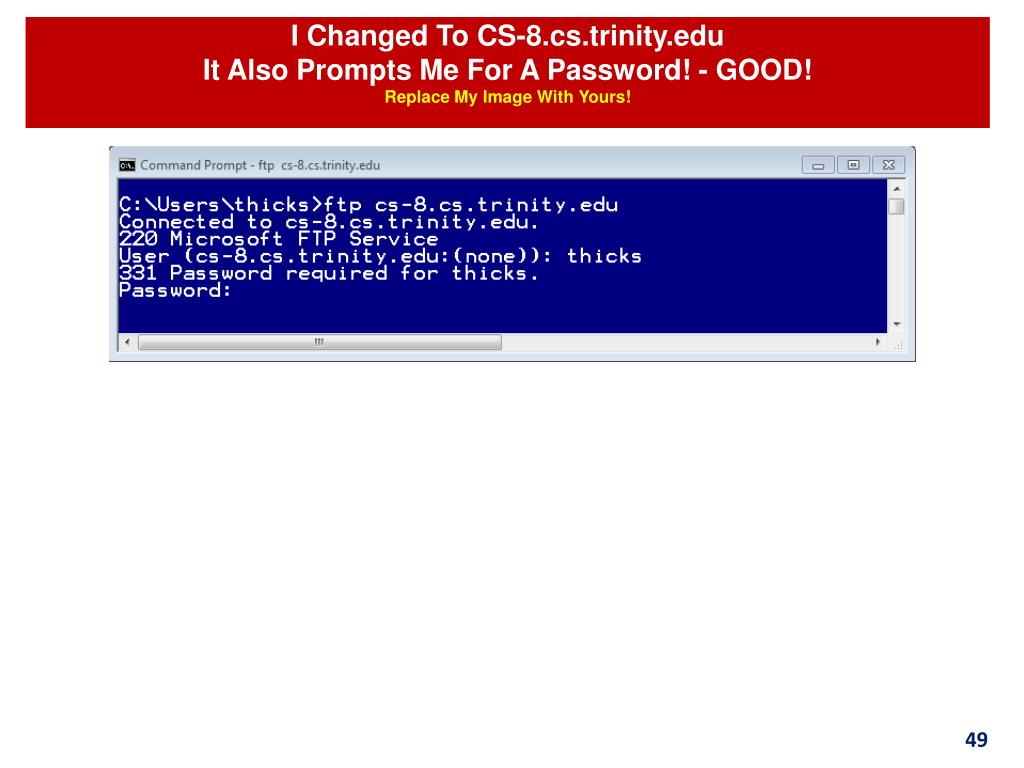

  47. I Changed To CS-8.cs.trinity.eduIt Also Prompts Me For A Password! - GOOD!Replace My Image With Yours!

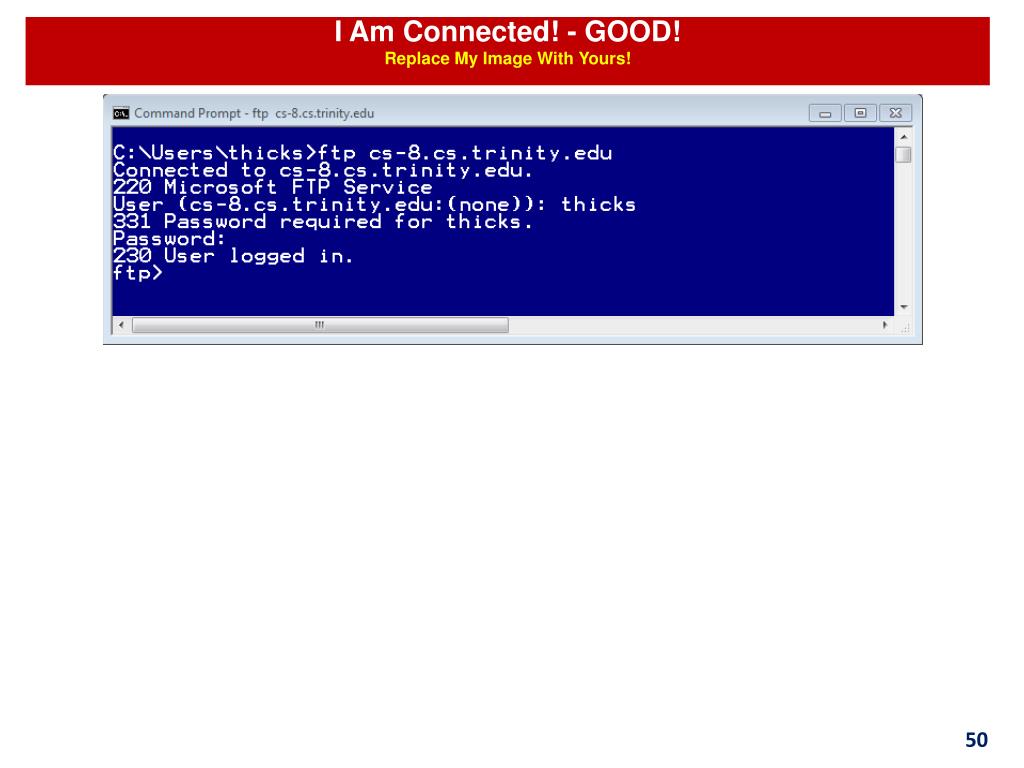

  48. I Am Connected! - GOOD!Replace My Image With Yours!
