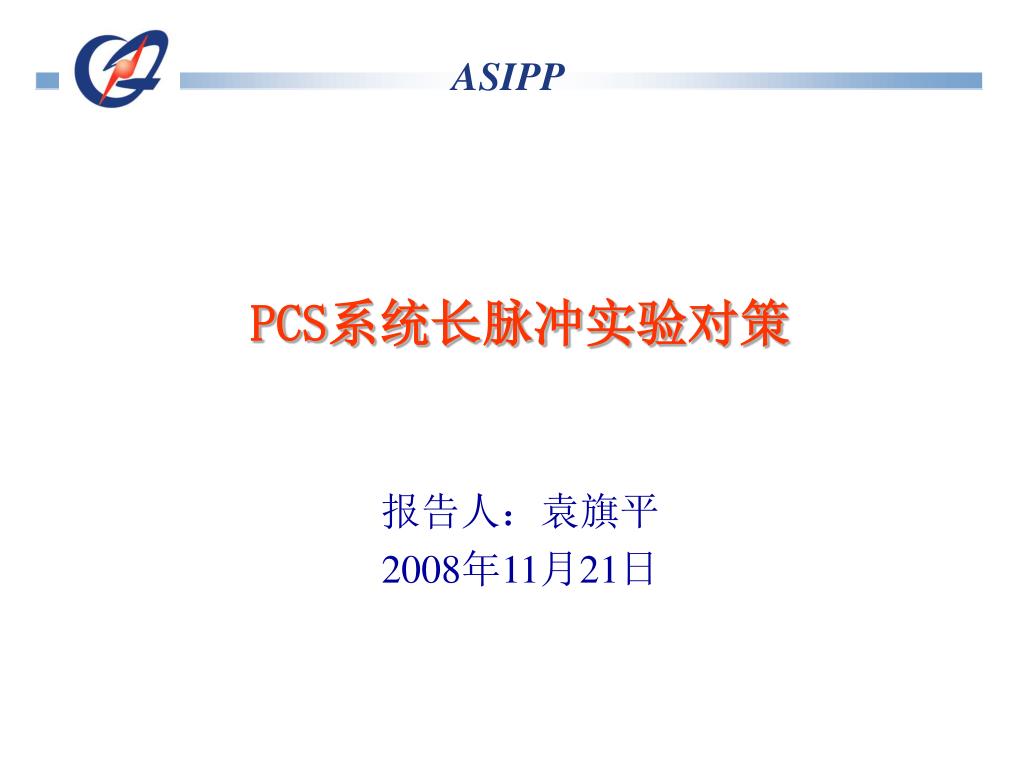

  1. ASIPP PCS系统长脉冲实验对策 报告人:袁旗平 2008年11月21日

  2. 汇报内容 • 问题背景 • PCS系统分析 • 拟采用方案 • 初步测试结果

  3. 问题背景 长脉冲稳态放电是EAST运行的目标之一,下轮EAST实验目标是60s放电。内存的限制导致PCS无法满足长脉冲放电的需要,目前只能通过减少保存数据量来延长放电时间,无法从根本上解决长脉冲放电问题。

  4. 汇报内容 • 问题背景 • PCS系统分析 • 拟采用方案 • 初步测试结果

  5. PCS系统分析 内存限制的原因: 1)采集卡、反射内存卡的配置 2)锁内存mlockall的限制

  6. PCS系统分析  在Linux 2.4下,D-TACQ196需要分配连续的内存段,故在/etc/grub.conf中需配置相关参数,如MEM参数,限定了可使用内存; 在Linux系统下,反射内存卡需要在/etc/grub.conf中指定MEM参数,最大可配置MEM=850M;  在PCS中,锁内存mlockall将内存范围中的所有页面都将在 RAM 中锁定,而且在任何环境下都不会被交换调出直到munlockall解锁,保证了系统运行的效率。但在Linux 2.4 或更早的版本中,mlockall只能锁住可用RAM的一半,限定了可用内存。

  7. PCS系统分析 如何解决内存限制问题? 1)在Linux 2.6下, D-TACQ196采用动态申请内存的方式,无需再定义MEM等参数 2)在Linux 2.6.9以后的版本,特权进程mlockall没有限制 3)在RFM内存配置问题解决前,利用pcsrt3向各系统传输数据 PCS采用Linux 2.6.9以上内核,对目前硬件结构进行调整

  8. 汇报内容 • 问题背景 • PCS系统分析 • 拟采用方案 • 初步测试结果

  9. 拟采用方案 利用PCS实时进程间通信API函数,一个实时CPU可以直接写数据到另一个实时CPU的内存块中 pcsrt1,pcsrt2分别将控制命令和boundary信息写入pcsrt3的内存块中。 pcsrt3获得数据后,写入定义好的RFM映射内存地址中。

  10. commands boundary 拟采用方案 VMIC RFM2g Performance Test (DMA Threshold is 16) --------------------------------------------------- Bytes Read MBps Write MBps 4 0.8 2.8 8 2.6 6.5 12 2.9 9.2 16 3.1 11.5 20 3.3 13.6 24 3.4 15.4 28 3.4 17.1 32 3.5 18.6 64 3.7 21.1 96 3.8 21.1 128 3.8 21.1 256 3.9 21.1 384 3.9 21.1 512 3.9 21.1 640 3.9 21.1 768 3.9 21.1 896 3.9 21.1 1024 3.9 21.1 node1,node2 node0 node3

  11. 拟采用方案 该方案下的PCS系统,共使用4个物理CPU做实时控制,虚拟名分别为CPUA,CPUB,CPUC,CPUD,所在物理机器、功能和可用内存如下表所示

  12. 汇报内容 • 问题背景 • PCS系统分析 • 拟采用方案 • 初步测试结果

  13. 反射内存卡RFM的测试

  14. 反射内存卡RFM的测试
