  1. Feasibility to use enterprise class security products as LTE Evolved Packet Core Security Gateway Mikko Salomaa Master’s Thesis Presentation Aalto University 10.05.2010 Mikko Salomaa

  2. Agenda 1 2 3 4 Introduction Long Term Evolution Requirements for the SeGW Conclusions

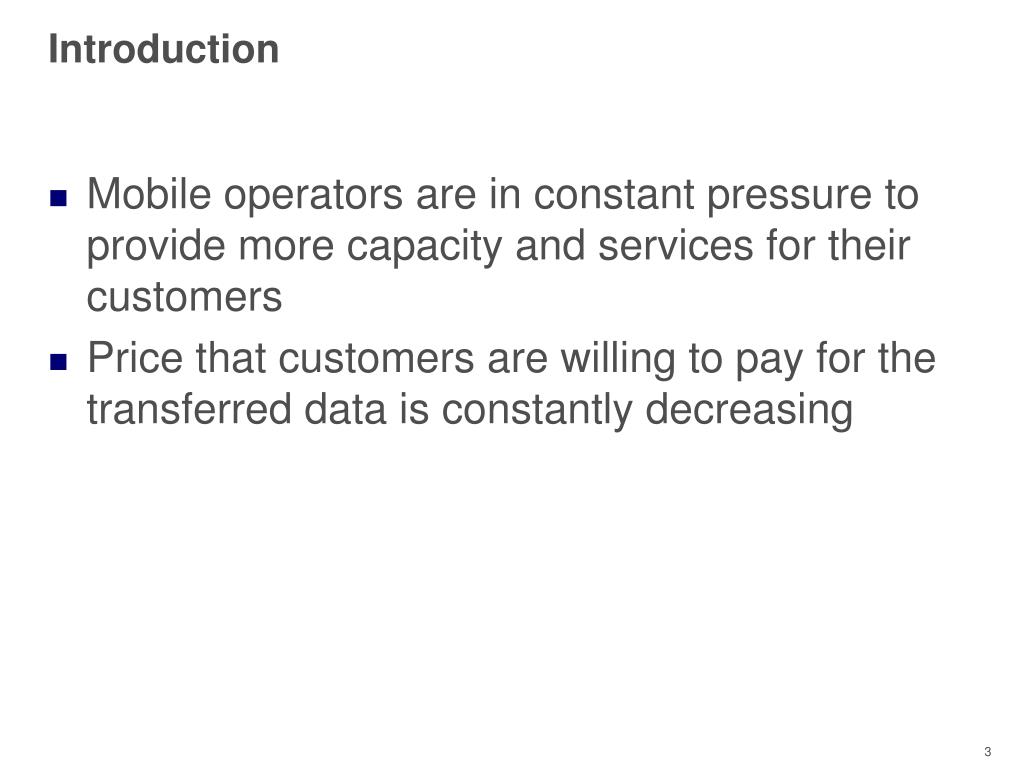

  3. Introduction • Mobile operators are in constant pressure to provide more capacity and services for their customers • Price that customers are willing to pay for the transferred data is constantly decreasing

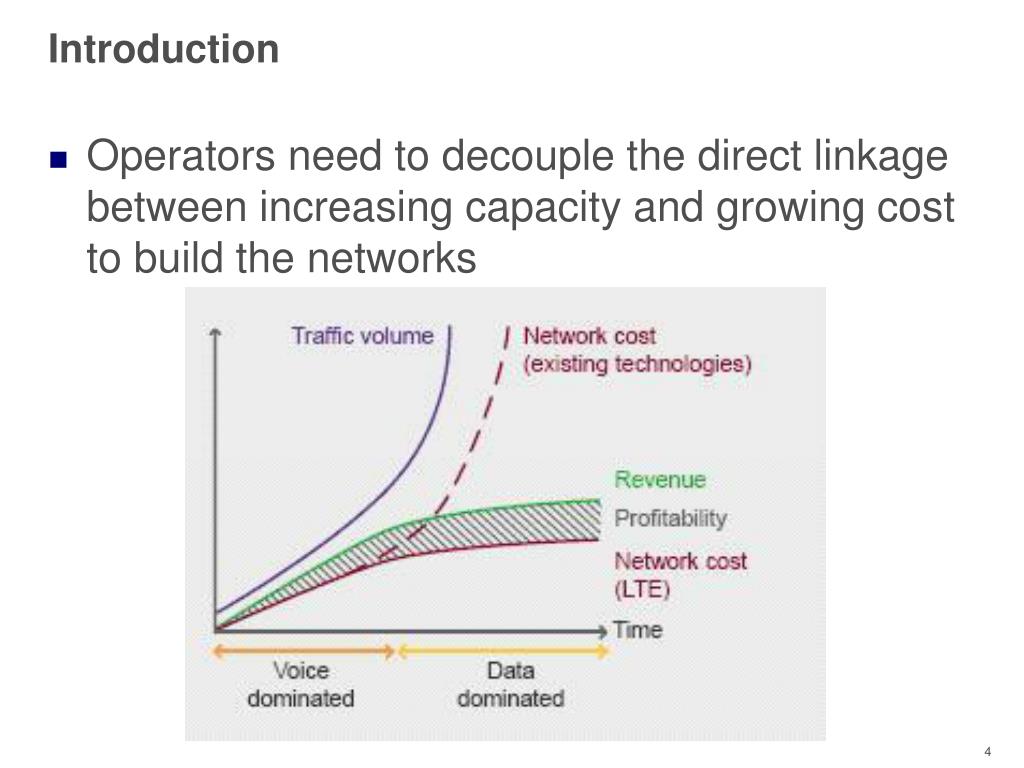

  4. Introduction • Operators need to decouple the direct linkage between increasing capacity and growing cost to build the networks

  5. Introduction • To address these concerns 3GPP has defined LTE to provide all-IP network with flatter architecture. • Simplified network architecture together with standard interfaces and less protocols should decrease the cost of building networks. • As the LTE network is based on all-IP architecture, the network is exposed to similar security threats as more traditional IP networks • similar counter measures need to be applied

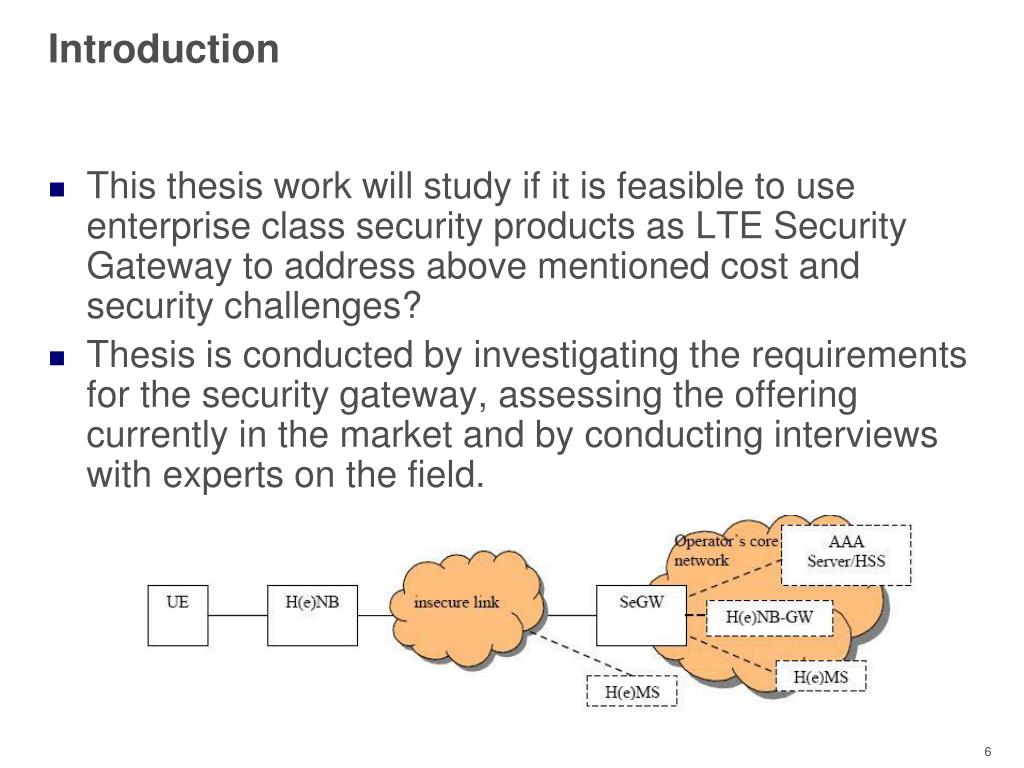

  6. Introduction • This thesis work will study if it is feasible to use enterprise class security products as LTE Security Gateway to address above mentioned cost and security challenges? • Thesis is conducted by investigating the requirements for the security gateway, assessing the offering currently in the market and by conducting interviews with experts on the field.

  7. Agenda 1 2 3 4 Introduction Long Term Evolution Requirements for SeGW Conclusions

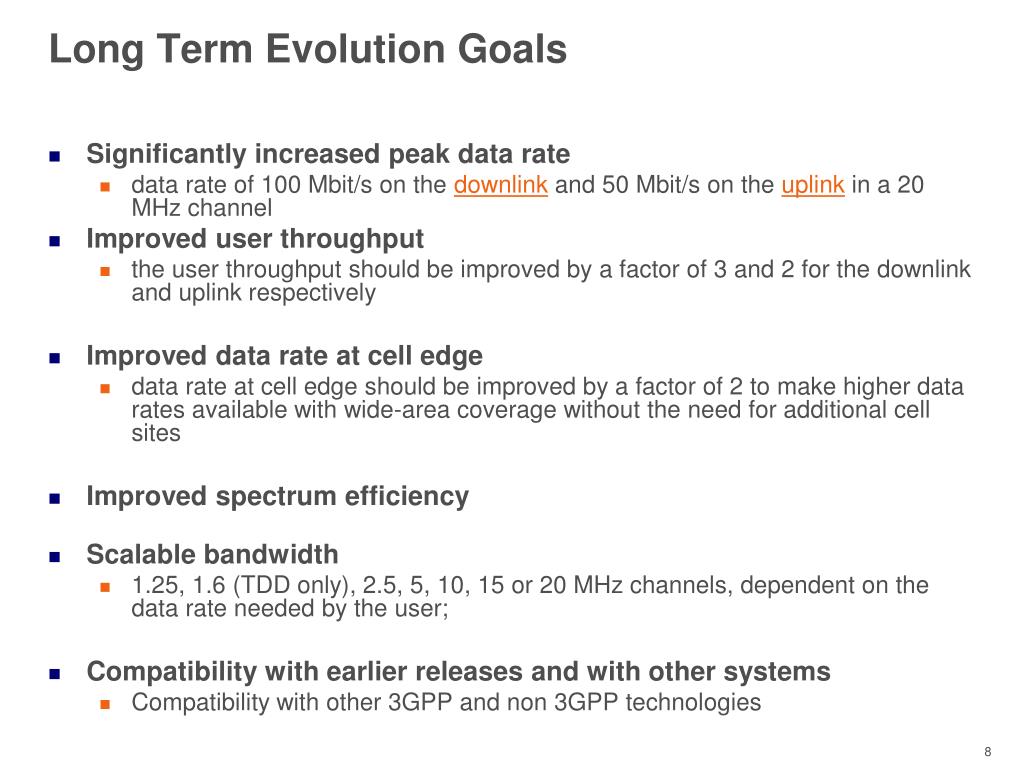

  8. Long Term Evolution Goals • Significantly increased peak data rate • data rate of 100 Mbit/s on the downlink and 50 Mbit/s on the uplink in a 20 MHz channel • Improved user throughput • the user throughput should be improved by a factor of 3 and 2 for the downlink and uplink respectively • Improved data rate at cell edge • data rate at cell edge should be improved by a factor of 2 to make higher data rates available with wide-area coverage without the need for additional cell sites • Improved spectrum efficiency • Scalable bandwidth • 1.25, 1.6 (TDD only), 2.5, 5, 10, 15 or 20 MHz channels, dependent on the data rate needed by the user; • Compatibility with earlier releases and with other systems • Compatibility with other 3GPP and non 3GPP technologies

  9. LTE architecture (simplified)

  10. LTE Architecture components • eNodeB • LTEs enhanced base station. Takes care of radio resource management and IP traffic • Serving gateway (SGW) • Manages user-plane mobility and act as a demarcation point between the RAN and core networks • Mobility Management Entity (MME) • MME performs signaling and control functions to manage the User Equipment (UE) access to network connections • Packet Data Network Gateway (PDNGW) • PDNGW is termination point of the packet data interface towards the Packet Data Networks

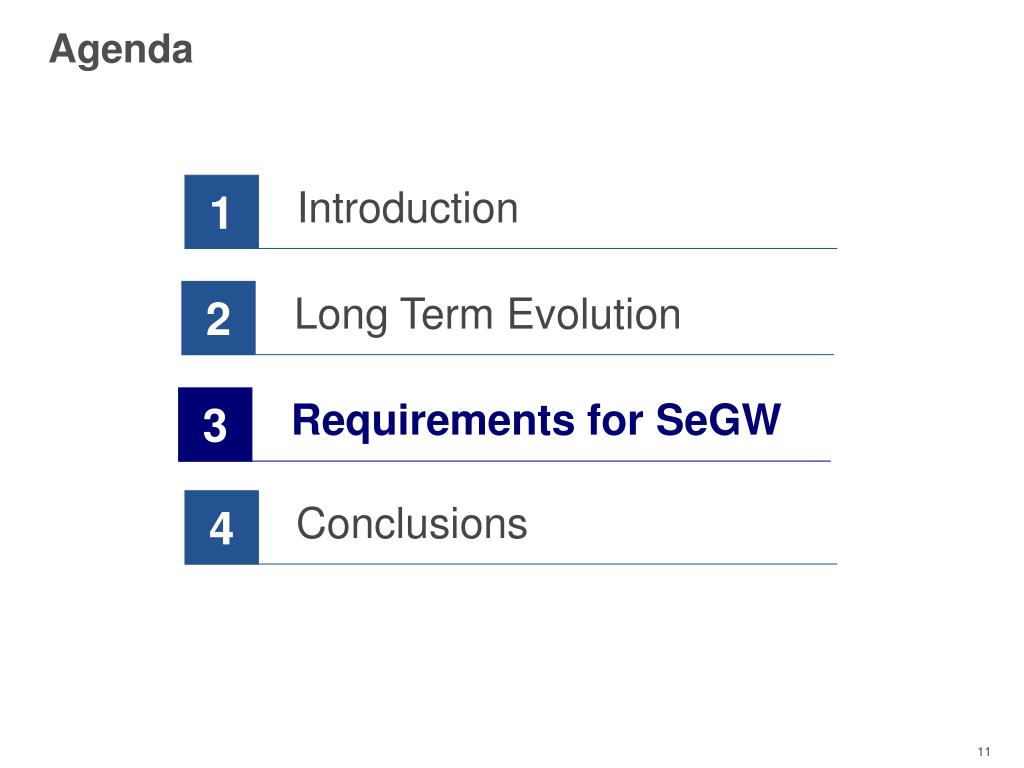

  11. Agenda 1 3 2 4 Introduction Long Term Evolution Requirements for SeGW Conclusions

  12. Requirement for Security Gateway (SeGW) • Terminates IPSec tunnels from eNBs • Provides firewall functionality to protect Enhanced Packet Core from malicious attacks • Can potentially provide Internet traffic off-loading • Can be located on the border of packet core network or acts as aggregation point closer to base stations

  13. Identified Critical Requirements for SecGW • Scalability • Protocol support • IPv6, IKEv2, SCEP, RTSP, GTP • Performance requirements • Throughput • Concurrent sessions • Connection rate • Latency • Traffic profile • Deep Packet Inspection • Certification requirements • NEBS, Common criteria • Product lifecycle demands

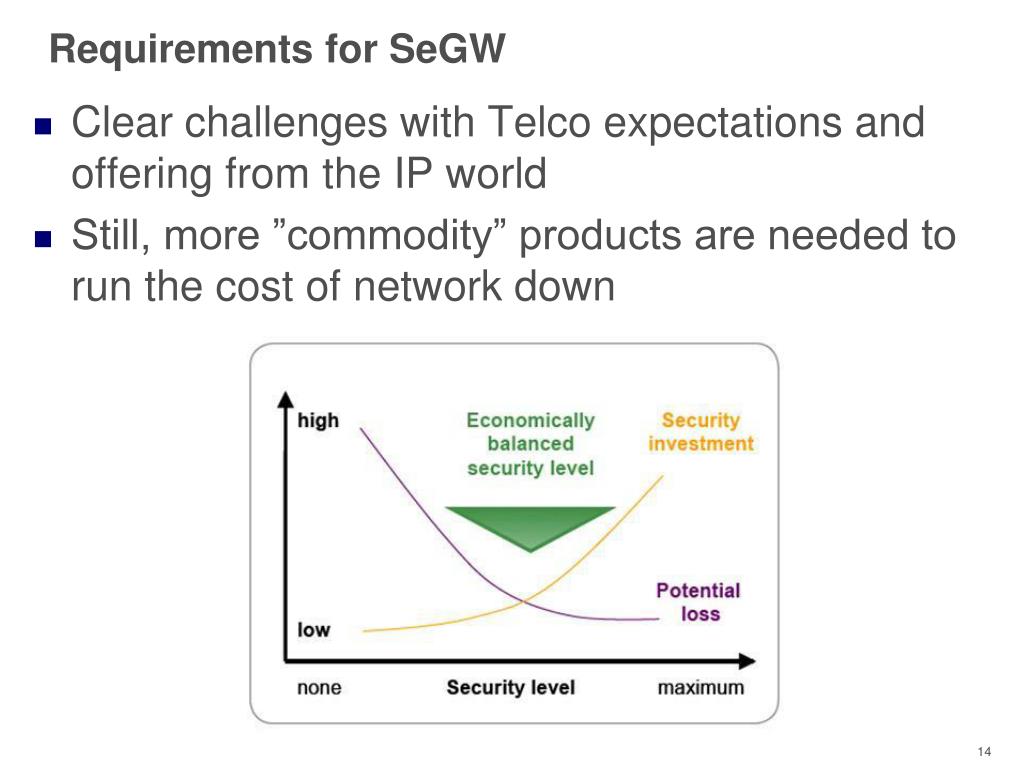

  14. Requirements for SeGW • Clear challenges with Telco expectations and offering from the IP world • Still, more ”commodity” products are needed to run the cost of network down

  15. Agenda 1 4 2 3 Introduction Long Term Evolution Requirements for SecGW Conclusions

  16. Conclusions • Available options for implementing the Security gateway functionality • Neglect / minimal security functionality • Minimal investment • High risk and potential cost associated • Rely on the network element vendors integrated solutions • Can become bottleneck • Challenge with zero day attacks • Locked on a single vendor • Utilize security solutions existing in the enterprise market • More modular • More cost effective • Additional developement usually required • Adds OPEX

  17. Thank you!
