  1. Attachment C Load Duration Curves for the Flatrock-Haw Creek Watershed

  2. Flatrock River at US 40 Bridge near Lewisville, INE. coli Load Duration Curve Site: #05 (WEF010-0001) High Flows Moist Conditions Mid-range Flows Dry Conditions Low Flows IDEM Water Quality Data & USGS Gage 03363500 Stream Flow Data Upstream Drainage Area of 47.8 square mile

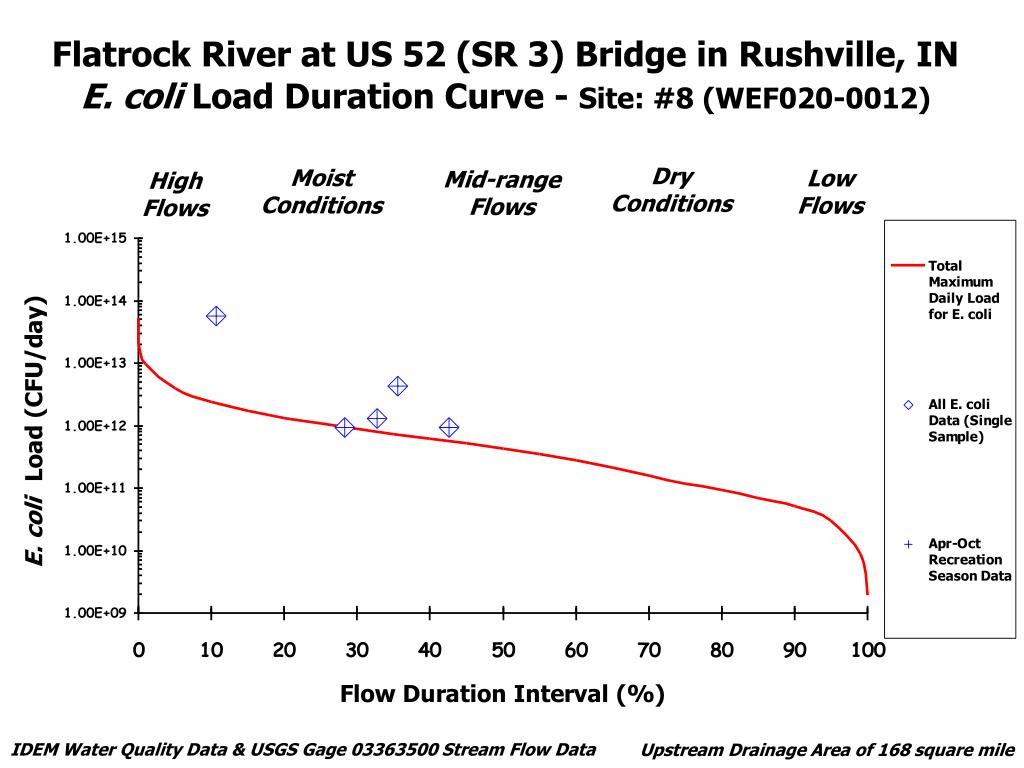

  3. Flatrock River at US 52 (SR 3) Bridge in Rushville, INE. coli Load Duration Curve - Site: #8 (WEF020-0012) Dry Conditions Moist Conditions Low Flows Mid-range Flows High Flows IDEM Water Quality Data & USGS Gage 03363500 Stream Flow Data Upstream Drainage Area of 168 square mile

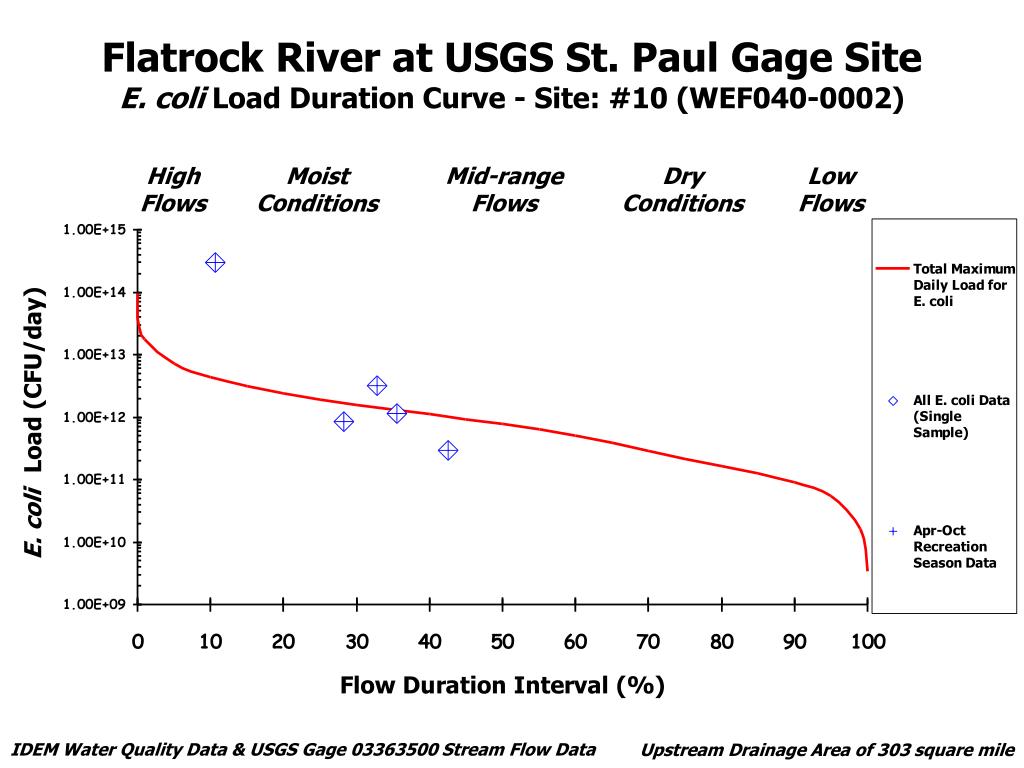

  4. Flatrock River at USGS St. Paul Gage SiteE. coli Load Duration Curve - Site:#10(WEF040-0002) High Flows Moist Conditions Mid-range Flows Dry Conditions Low Flows IDEM Water Quality Data & USGS Gage 03363500 Stream Flow Data Upstream Drainage Area of 303 square mile

  5. Flatrock River at SR 31 Bridge in Columbus, INE. coli Load Duration Curve - Site:#14(WEF050-0001) High Flows Moist Conditions Mid-range Flows Dry Conditions Low Flows IDEM Water Quality Data & USGS Gage 03363900 Stream Flow Data Upstream Drainage Area of 534 square mile

  6. Haw Creek at SR 7 in Columbus, INE. coli Load Duration Curve - Site:#16(WEF060-0002) Dry Conditions Moist Conditions Mid-range Flows High Flows Low Flows IDEM Water Quality Data & USGS Gage 03363900 Stream Flow Data Upstream Drainage Area of 55.5 square mile
