1 / 10

AND , OR

AND , OR. A AND B  A.and.B EX: N is greater than 1 and less than 3 (N.gt.1).and.(N.lt.3) Q: Leap year ( 閏年 )

kaye-moon
Télécharger la présentation

AND , OR

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

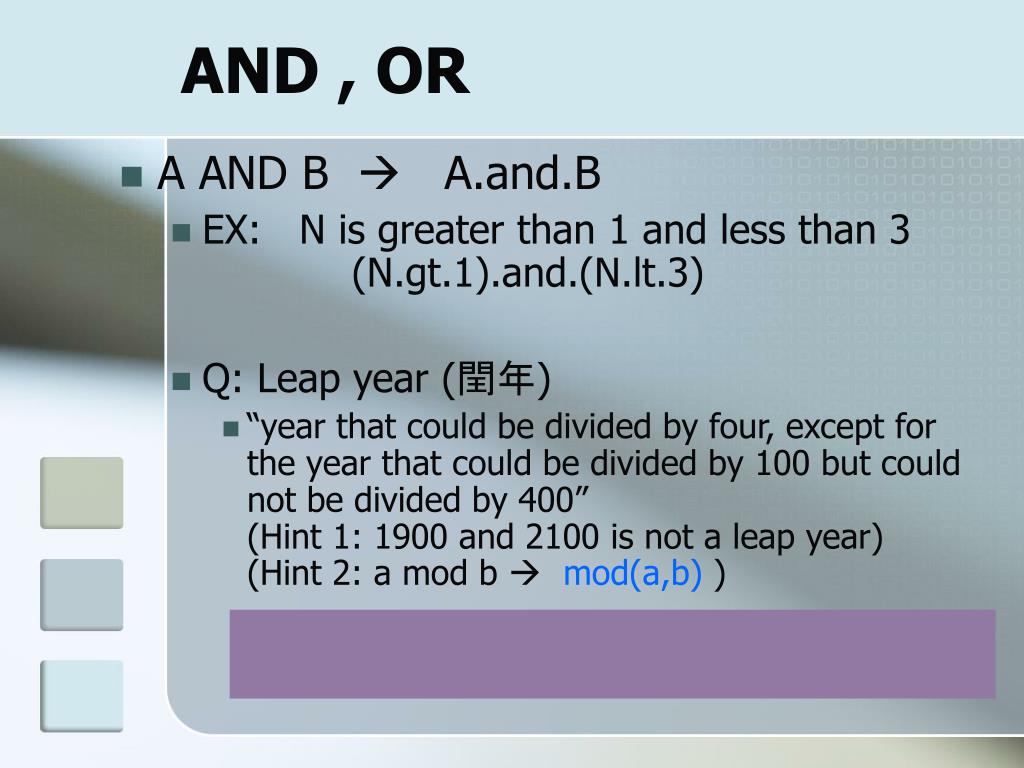

  1. AND , OR • A AND B  A.and.B • EX: N is greater than 1 and less than 3 (N.gt.1).and.(N.lt.3) • Q: Leap year (閏年) • “year that could be divided by four, except for the year that could be divided by 100 but could not be divided by 400”(Hint 1: 1900 and 2100 is not a leap year)(Hint 2: a mod b  mod(a,b))Ans:(mod(N,400).eq.0).or.((mod(N,4).eq.0).and.(mod(N,100).gt.0))

  2. Introduction to “Array(陣列)” • Calculate standard deviation PROGRAM WITHOUTARRAY C LEARN ARRAY IN FORTRAN (1) C CALCULATE MEAN VALUE C 2005/05/18 Y. FUKUSHIMA implicit none real*8 S1,S2,S3,S4,S5 real*8 mean, std write (*,*) '#1 >>' ; read (*,*) S1 write (*,*) '#2 >>' ; read (*,*) S2 write (*,*) '#3 >>' ; read (*,*) S3 write (*,*) '#4 >>' ; read (*,*) S4 write (*,*) '#5 >>' ; read (*,*) S5 C Calculate mean mean=(S1+S2+S3+S4+S5)/5 C Calculate STD std = ( (S1-mean)**2 + (S2-mean)**2 1 + (S3-mean)**2 + (S4-mean)**2 1 + (S5-mean)**2 )**0.5d0 write (*,*) 'mean: ', mean write (*,*) 'standard deviation: ', std stop end We cannot use loops …  Inconvenient !!

  3. Introduction to “Array（陣列）” • “Array” can save you !! mean=sum/5.0d0 C Calculate variation and std var=0 do i=1,5 var=var+(S(i)-mean)**2 end do std=var**0.5 write (*,*) 'mean: ', mean write (*,*) 'standard deviation: ', std stop end PROGRAM WITHARRAY C LEARN ARRAY IN FORTRAN (2) C Calculate Statistics C 2005/05/18 Y. FUKUSHIMA implicit none integer i real*8 S(5) real*8 mean, std, sum, var do i=1,5 write (*,*) '#',i,'>>' ; read (*,*) S(i) end do C Calculate sum and mean sum=0 do i=1,5 sum=sum+S(i) end do real*8 s1,s2,s3,s4,s5 real*8 s(5)

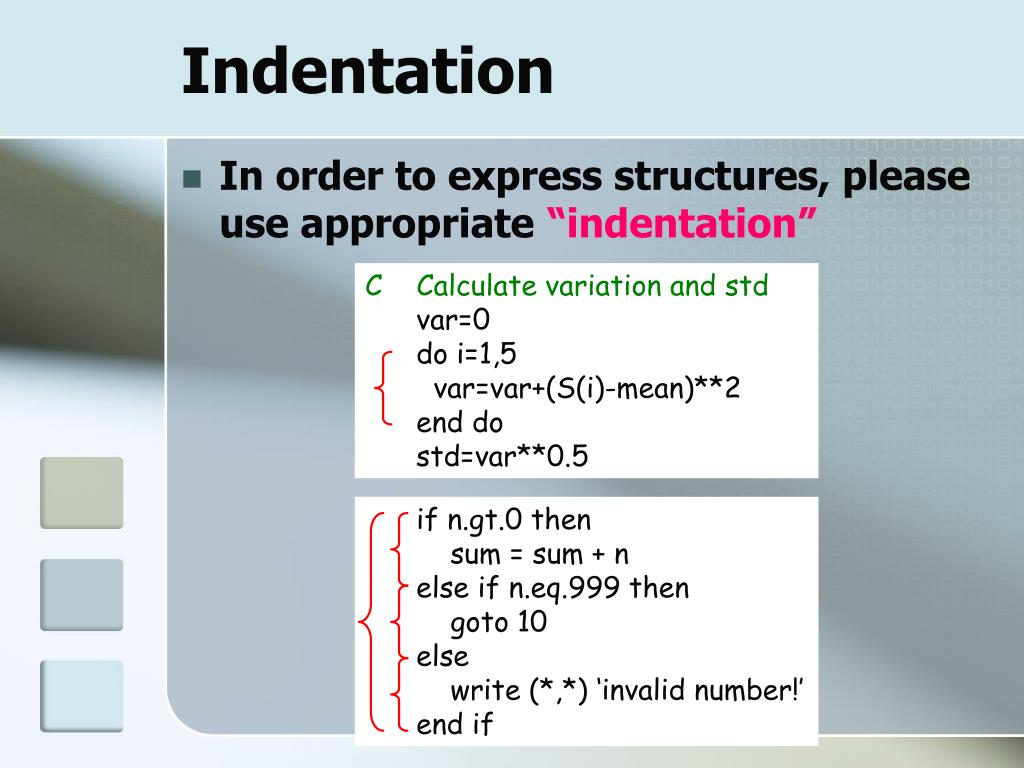

  4. Indentation • In order to express structures, please use appropriate“indentation” C Calculate variation and std var=0 do i=1,5 var=var+(S(i)-mean)**2 end do std=var**0.5 if n.gt.0 then sum = sum + n else if n.eq.999 then goto 10 else write (*,*) ‘invalid number!’ end if

  5. Standard input / output • Unix (including Cygwin) system has “standard input” and “standard output” • Standard input : keyboard • Standard output: console display • Ex) ls command shows output to standard output 福島康裕@mango ~ $ ls -l total 330 -rwxr-xr-x 1 福島康裕 None 70125 May 16 23:24 a.exe -rwxr-x--- 1 福島康裕 None 2692 Oct 11 2004 all.dem -rwxrwxrwx 1 福島康裕 None 613 May 16 22:28 approx.f -rwxr-xr-x 1 福島康裕 None 71658 May 18 20:11 array1.exe -rwxrwxrwx 1 福島康裕 None 696 May 18 21:28 array1.f -rwxr-xr-x 1 福島康裕 None 70854 May 18 21:38 array2.exe -rwxrwxrwx 1 福島康裕 None 604 May 18 21:38 array2.f

  6. Redirection of standard output • We can change the standard input/output by using “redirection” • Ex) Change standard output for ls command to a file 福島康裕@mango ~ $ ls –l > list.txt 福島康裕@mango ~ $ cat list.txt total 332 -rwxr-xr-x 1 福島康裕 None 70125 May 16 23:24 a.exe -rwxr-x--- 1 福島康裕 None 2692 Oct 11 2004 all.dem -rwxrwxrwx 1 福島康裕 None 613 May 16 22:28 approx.f -rwxr-xr-x 1 福島康裕 None 71658 May 18 20:11 array1.exe -rwxrwxrwx 1 福島康裕 None 696 May 18 21:28 array1.f -rwxr-xr-x 1 福島康裕 None 70854 May 18 21:38 array2.exe redirection of stdout : > stdin : <

  7. Redirection of standard output • Ex) Copy a file using cat and redirection 福島康裕@mango ~ $ cat list.txt > list2.txt 福島康裕@mango ~ $ cat list2.txt total 332 -rwxr-xr-x 1 福島康裕 None 70125 May 16 23:24 a.exe -rwxr-x--- 1 福島康裕 None 2692 Oct 11 2004 all.dem -rwxrwxrwx 1 福島康裕 None 613 May 16 22:28 approx.f -rwxr-xr-x 1 福島康裕 None 71658 May 18 20:11 array1.exe -rwxrwxrwx 1 福島康裕 None 696 May 18 21:28 array1.f -rwxr-xr-x 1 福島康裕 None 70854 May 18 21:38 array2.exe redirection of stdout : > stdin : <

  8. Redirection of standard input • Running program witharray • by inputting from keyboard (=standard input) • by inputting from a file (redirected standard input) 福島康裕@mango ~ $ ./array2.exe # 1>> 80 # 2>> 90 # 3>> 67 # 4>> 50 # 5>> 70 mean: 71.4 standard deviation: 29.9866637 福島康裕@mango ~ $ 福島康裕@mango ~ $ ./array2.exe < in.dat # 1>> # 2>> # 3>> # 4>> # 5>> mean: 71.4 standard deviation: 29.9866637 福島康裕@mango ~ $ 80 90 67 50 70 in.dat

  9. Pipe • We can connect two commands with a pipe command | command 福島康裕@mango ~ $ ls –al | less total 332 -rwxr-xr-x 1 福島康裕 None 70125 May 16 23:24 a.exe -rwxr-x--- 1 福島康裕 None 2692 Oct 11 2004 all.dem -rwxrwxrwx 1 福島康裕 None 613 May 16 22:28 approx.f -rwxr-xr-x 1 福島康裕 None 71658 May 18 20:11 array1.exe -rwxrwxrwx 1 福島康裕 None 696 May 18 21:28 array1.f -rwxr-xr-x 1 福島康裕 None 70854 May 18 21:38 array2.exe Result was put into less command and now we can go up and down !

  10. Summary • AND and OR • Array in FORTRAN • Indentation: A format for letting the source code look more structured. • Unix (cygwin): Standard input and output • Unix (cygwin): Redirection • Unix (cygwin): Pipe
