AUTOMATION & FOOD SAFETY

1. AUTOMATION & FOOD SAFETY

2. HOST Bill Kinross Publisher, MeatingplaceMODERATOR Mike Fielding Editor, Meatingplace

3. THE ROLE IN AUTOMATION Jonathan Holmes Research Engineer Georgia Tech Research Institute

4. Topics • Overview of research at the Georgia Tech Research Institute’s Food Processing Technology Division • Challenges of working in food processing environments • Automation in food processing • Impacts of automation on food safety

5. GTRI Food Processing Technology Division Overview Supported by the state of Georgia through the Agricultural Technology Research Program as well as some industry funding with a focus on the poultry industry with research associated with other industries such as baked goods. GTRI’s research also extends into worker safety, water quality, food safety, and sensor development.

6. Automation Challenges in Food Processing • Daily cleaning routines involve highly caustic cleaners applied at high temperature and pressure • Food products are non-uniform and conformal making end effector design difficult

7. Automation in Food Processing • Automation is not mechanization • Automatic control involves integration of sensors and often results in a complex system integration effort

8. Automation Challenges in Food Processing • Sensor integration challenging due to environmental constraints – especially machine vision tools • Low profit margins require cost effective solutions • IP69K approval not available for many electronics IP69K Test Diagram

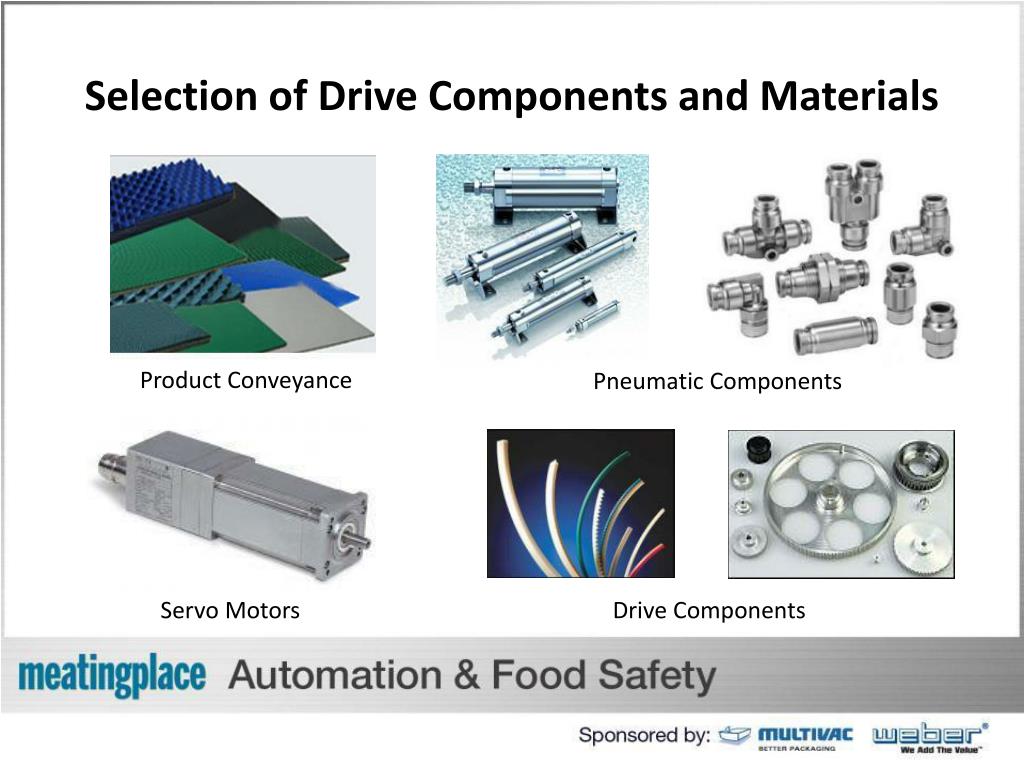

9. Selection of Drive Components and Materials Product Conveyance Pneumatic Components Servo Motors Drive Components

10. Automation Design for Food Processing • Several good sources of hygienic design guidelines • American Meat Institute, European Hygienic Engineering and Design Group, and National Sanitation Foundation among others • GTRI has performed extensive tests on automation equipment resulting in guidelines for the design of automation equipment in food processing • “Guidelines for Designing Washdown Robots for Meat Packaging Applications” published in Trends in Food Science & Technology (Volume 21, Issue 3) • Addresses packaging considerations associated with material selection, bearings, belts, manufacturing processes, and general design guidelines

11. Design Guideline Examples

12. Automation Effects on Food Safety IMPLEMENT AUTOMATION PROPERLY AND WITH CAUTION: When improperly implemented, automation of processes can cause a number of problems ranging from significant down time in operation to actually increasing the existence of pathogens • Positive effects are clear • Removing the worker can reduce the level of pathogens • Possibility to introduce automated cleaning solutions • Research in this area will continue to bring new and viable solutions to the market

14. EQUIPMENT SPECIFICATIONS Fred Hayes Director of Technical Services - Packaging Machinery Manufacturers Institute

15. Food Safety Machinery Issues

16. Risks • Foodborne Illness • E. Coli • Listeria • Salmonella • Allergens • Cross contamination

17. FoodborneIllnesses • Outbreaks • <5% of the total illness • Get all the media attention • Source of the attribution data • Sporadic Illness • >95% of illness • Virtually no attribution data • No media coverage • Are things getting worse?

18. Outbreaks 1998 - 2007 (CSPI Outbreak Alert – 2009)

19. PCA salmonella contamination Recall of 1800 products impacting 250 BRANDS

20. 12:00 12:00 1 MICROBES DIVIDE & MULTIPLY RAPIDLY 12:20 Time 2 12:40 4 1:00 2:00 8 3:00 64 4:00 512 5:00 4,056 6:00 32,768 7:00 262,144 Time Number of Bacteria 2,097,152

21. FLOW & LINKAGES AMI 10 Principles Communication / training tool EN ISO 14159-1-2008 Guiding Standard AMI 10 Principle Check List - A Tool to Promote & share common expectations Equipment Manufacturers Processors

22. 1 - Clean to a Microbiological level ~ 47 uinch A scratch on a piece of stainless steel acts a harborage point for Listeria. Courtesy Univ. Wisconsin, Madison 2 - Made of Compatible Materials 6061 Aluminum

23. 3 - Accessible for Inspection, Maintenance, Cleaning & Sanitation 4 - No Product or Liquid Collection

24. Hardware improperly mounted to frame by bolting through tubing. 5 -Hollow Areas are Hermetically Sealed 6 - No Niches Multiple Pulleys that are not easily removable for cleaning

25. 7 - Sanitary Operational Performance

26. From This To This Previous Design Sanitary Redesign 8. Hygienic Design of Maintenance Enclosures View from back side Fully Enclosed Supply line

27. 9 - Hygienic Compatibility with Other Plant Systems Design of equipment must ensure hygienic compatibility with other equipment and systems, e.g., electrical, hydraulics, steam, air, water. 10 - Validate Cleaning & Sanitizing Protocols The procedures prescribed for cleaning and sanitation must be clearly written, designed and proven to be effective and efficient. Chemicals recommended for cleaning & sanitation must be compatible with the equipment, as well as compatible with the manufacturing environment.

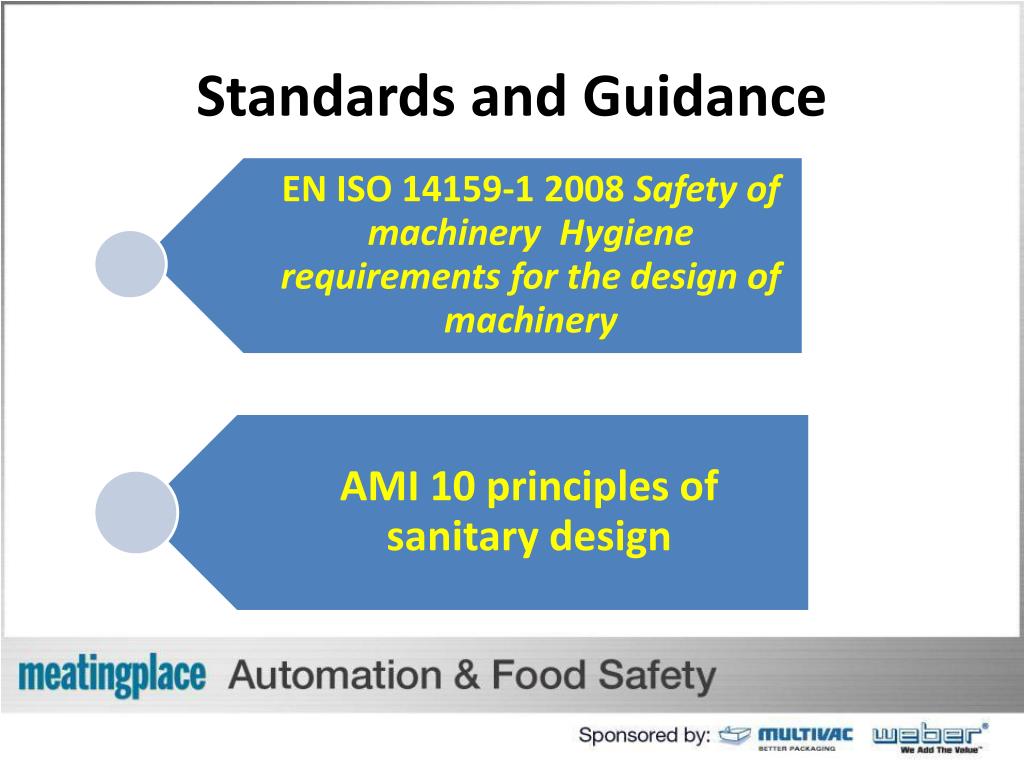

28. Standards and Guidance

29. SPONSOR SLIDE #2

30. RAPID MICROBIOLOGICAL TESTING Jim Dickson Professor, Dept. of Animal Science - Iowa State University

31. Outline • Sampling • Methods of detection • What do we mean by rapid? • Results • Automation

32. Sampling

33. Robust Sampling • “Given its shortcomings and the presumed low occurrence of this pathogen, the N-60 sample size and design may not be adequate for detecting E. coli O157:H7 in beef trim.” • UNITED STATES DEPARTMENT OF AGRICULTURE OFFICE OF INSPECTOR GENERAL (24 Feb 2011)

34. Methods to Detect Microorganisms in Foods • Quantitative some regulatory standards are based on quantitative measures (e.g. population of bacteria allowed in raw milk; E. coli Biotype I on carcasses) • Qualitative some regulatory standards are based on qualitative measures (e.g. presence/absence of E. coli allowed in pasteurized milk)

35. Quantitative Sample Analysis Flow Diagram Collect Sample Transport to Laboratory Prepare Sample Results Analyze Sample (incubate)

36. Qualitative Sample Analysis Flow Diagram Collect Sample Transport to Laboratory Prepare Sample Analyze Sample Select Enrich Sample Pre-Enrich Sample Presumptive Result Confirmed Result

37. What do we mean by “rapid”?

38. Sample Collection Collect Sample Transport to Laboratory Prepare Sample Analyze Sample Select Enrich Sample Pre-Enrich Sample Presumptive Result Confirmed Result

39. Sample Handling • Collection • Transport • Chain of Custody • Sample preparation OUT IN

40. Sample Enrichment Collect Sample Transport to Laboratory Prepare Sample Analyze Sample Select Enrich Sample Pre-Enrich Sample Presumptive Result Confirmed Result

41. Sample Enrichment • Pre- and Selective enrichment steps often combined • Typically 8 to 24 hours

42. Analyze Sample Collect Sample Transport to Laboratory Prepare Sample Analyze Sample Select Enrich Sample Pre-Enrich Sample Presumptive Result Confirmed Result

43. Analyze Sample • The “rapid” in rapid methods • ELISA – “dipstick” test – 10 min • PCR – “molecular” test – 3 1/2 – 5 hours

44. Analyze Sample • Factors to consider - technical • Sensitivity and Specificity • Factors to consider - pragmatic • Number of samples per day or week • Training of personnel • Cost (equipment, supplies, etc)

45. Results • Presumptive vs. Confirmed • a positive result usually requires confirmation • What is confirmation? • Traditional bacteriology – isolate and identify a culture

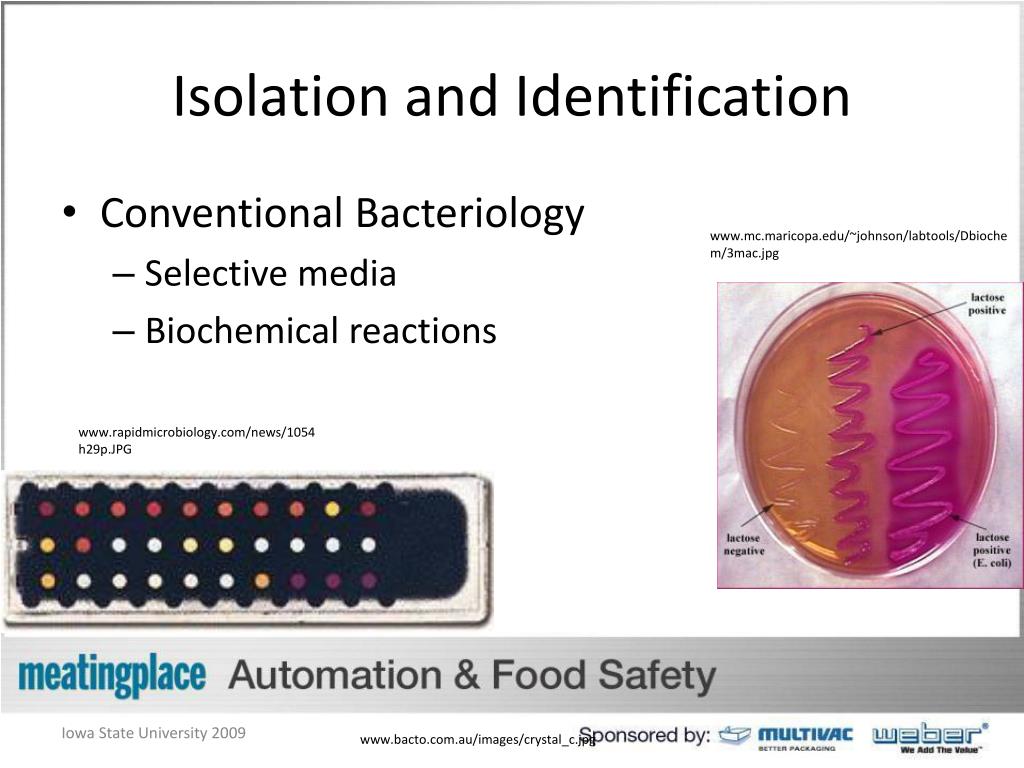

46. Isolation and Identification • Conventional Bacteriology • Selective media • Biochemical reactions www.mc.maricopa.edu/~johnson/labtools/Dbiochem/3mac.jpg www.rapidmicrobiology.com/news/1054h29p.JPG www.bacto.com.au/images/crystal_c.jpg

47. Automation

48. Automation • What can be automated? • Sample analysis • Culture identification • Why? • Labor costs • Consistency • Throughput

49. Conclusions • “Rapid” is • Collect and Transport to lab – 30 min to 24-28h • Sample preparation and enrichment – 10 -26 h • Sample analysis – 3 ½ - 5 h • Total – 14 hours to 2 ½ days • Confirm Result- 1 ½ - 2 days
