  1. Set-Associative Cache Chapter 7

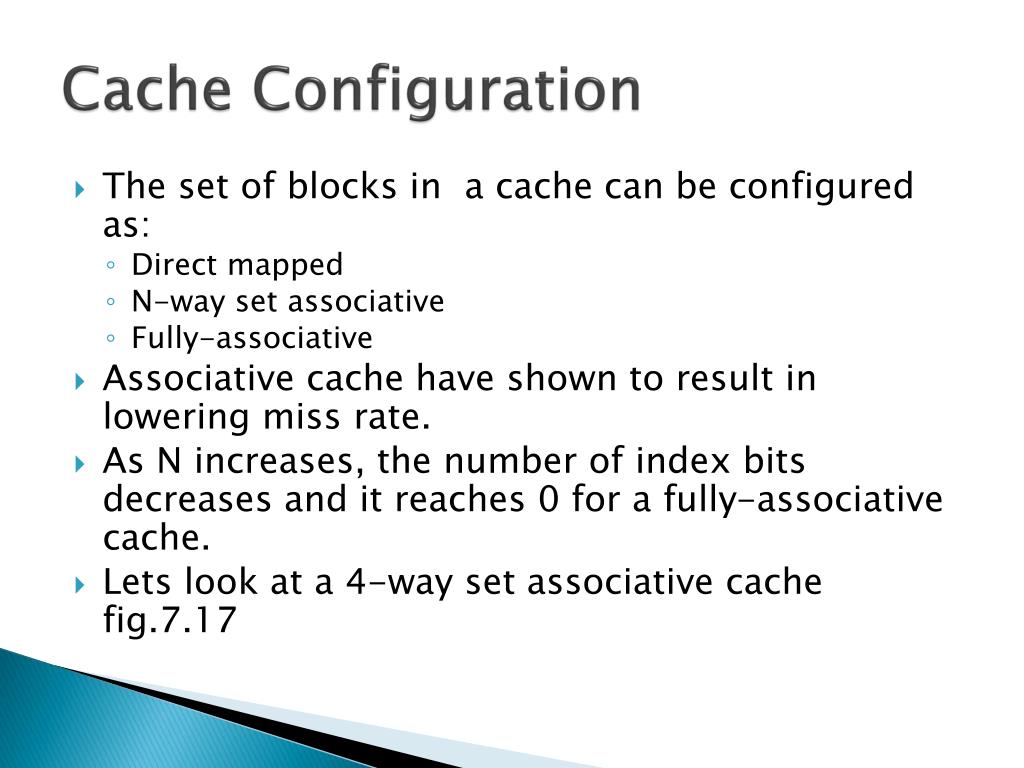

  2. Cache Configuration • The set of blocks in a cache can be configured as: • Direct mapped • N-way set associative • Fully-associative • Associative cache have shown to result in lowering miss rate. • As N increases, the number of index bits decreases and it reaches 0 for a fully-associative cache. • Lets look at a 4-way set associative cache fig.7.17

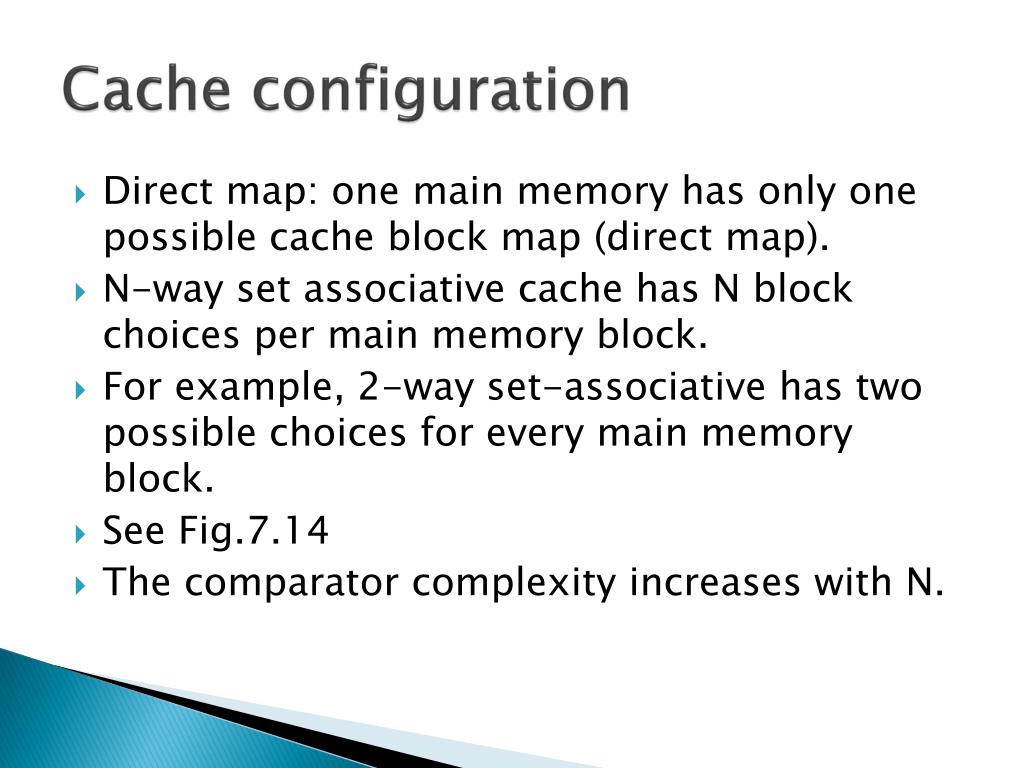

  3. Cache configuration • Direct map: one main memory has only one possible cache block map (direct map). • N-way set associative cache has N block choices per main memory block. • For example, 2-way set-associative has two possible choices for every main memory block. • See Fig.7.14 • The comparator complexity increases with N.

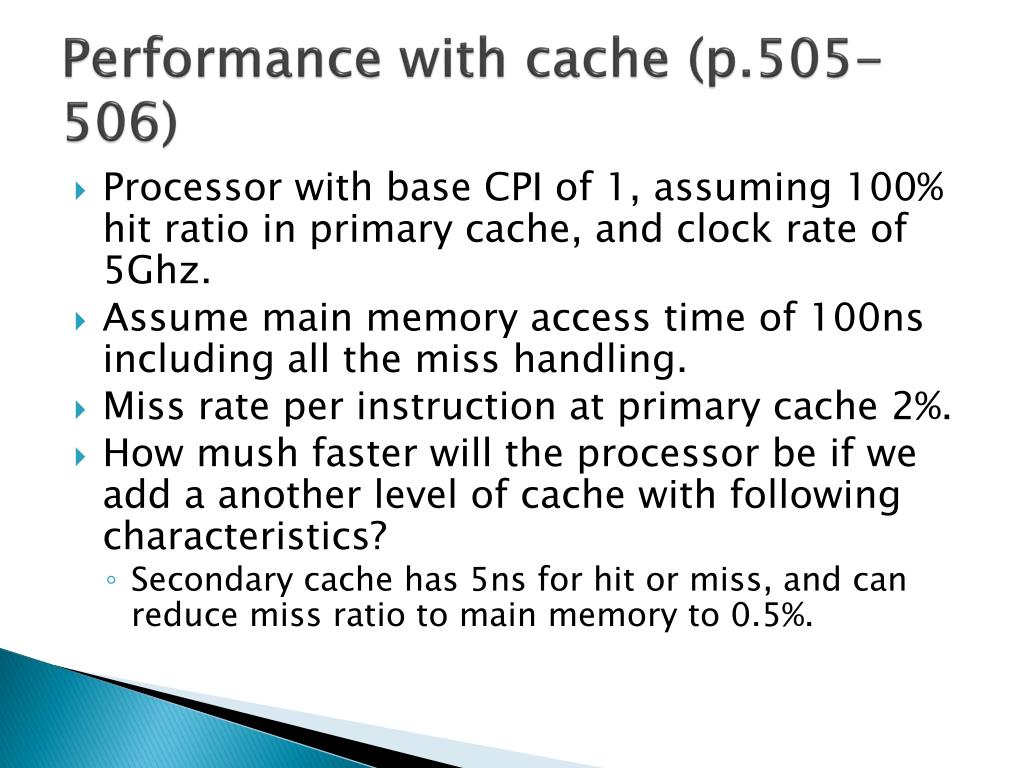

  4. Performance with cache (p.505-506) • Processor with base CPI of 1, assuming 100% hit ratio in primary cache, and clock rate of 5Ghz. • Assume main memory access time of 100ns including all the miss handling. • Miss rate per instruction at primary cache 2%. • How mush faster will the processor be if we add a another level of cache with following characteristics? • Secondary cache has 5ns for hit or miss, and can reduce miss ratio to main memory to 0.5%.

  5. Solution: Performance measured in CPI • With only primary cache: • 1 + (2/100) X (5Ghz*100ns) = 11 CPI • With secondary cache: • No miss: 1 + • L1 miss : (2/100) X (5Ghz *5ns) + • L2 miss: (0.5/100) X (5Ghz * 100ns) = • 1 + 0.5 + 2.5 = 4 CPI
