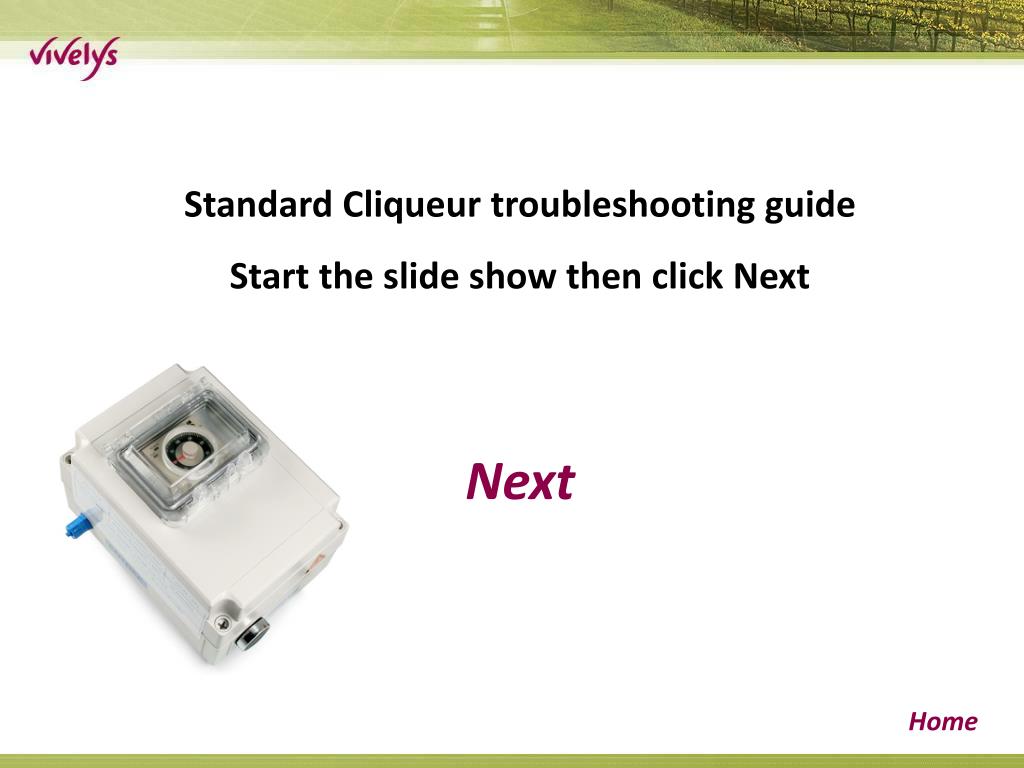

  1. Standard Cliqueur troubleshooting guide Start the slide show then click Next Next Home

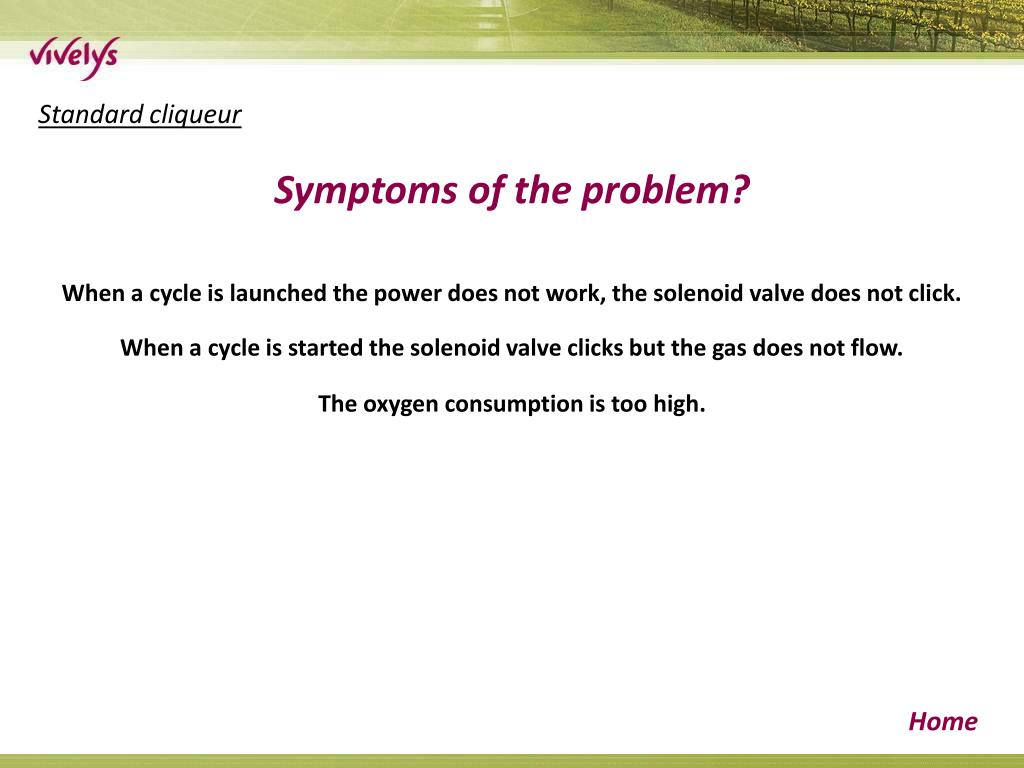

  2. Standard cliqueur Symptoms of the problem? When a cycle is launched the power does not work, the solenoid valve does not click. When a cycle is started the solenoid valve clicks but the gas does not flow. The oxygen consumption is too high. Home

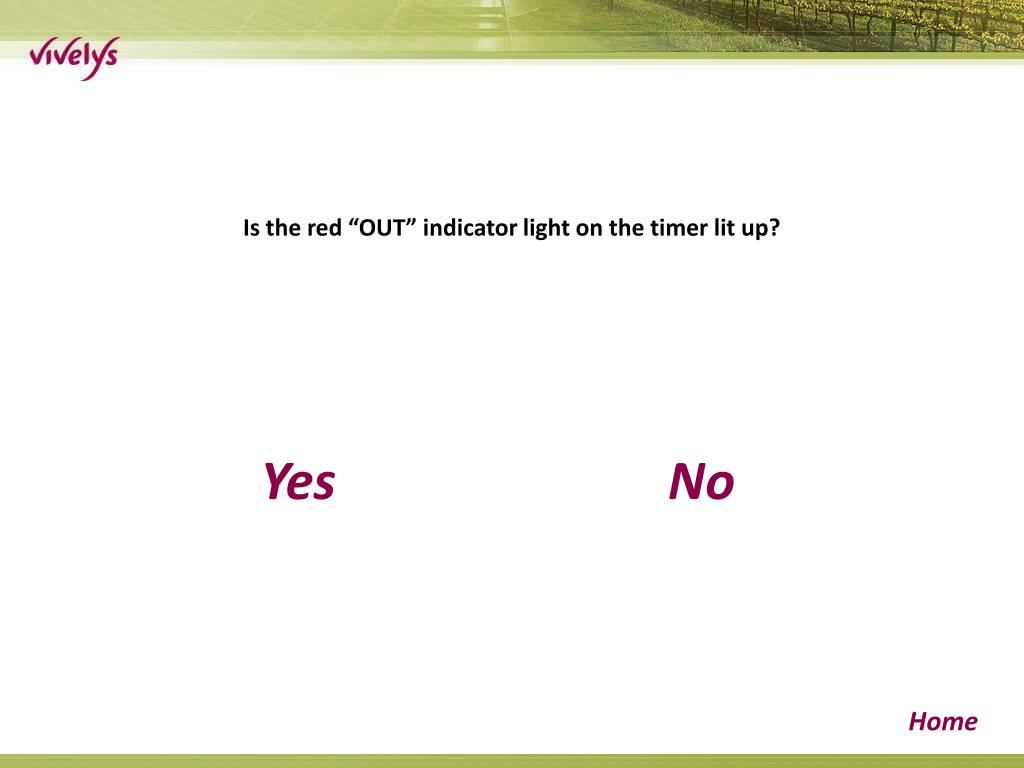

  3. Is the red “OUT” indicator light on the timer lit up? Yes No Home

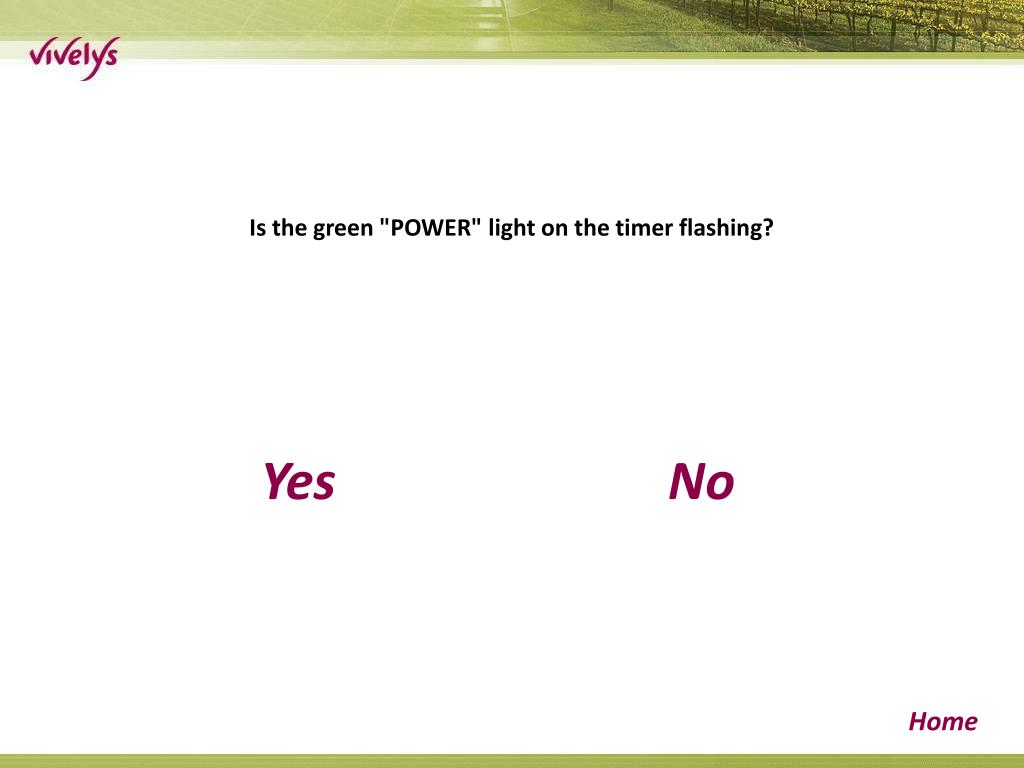

  4. Is the green "POWER" light on the timer flashing? Yes No Home

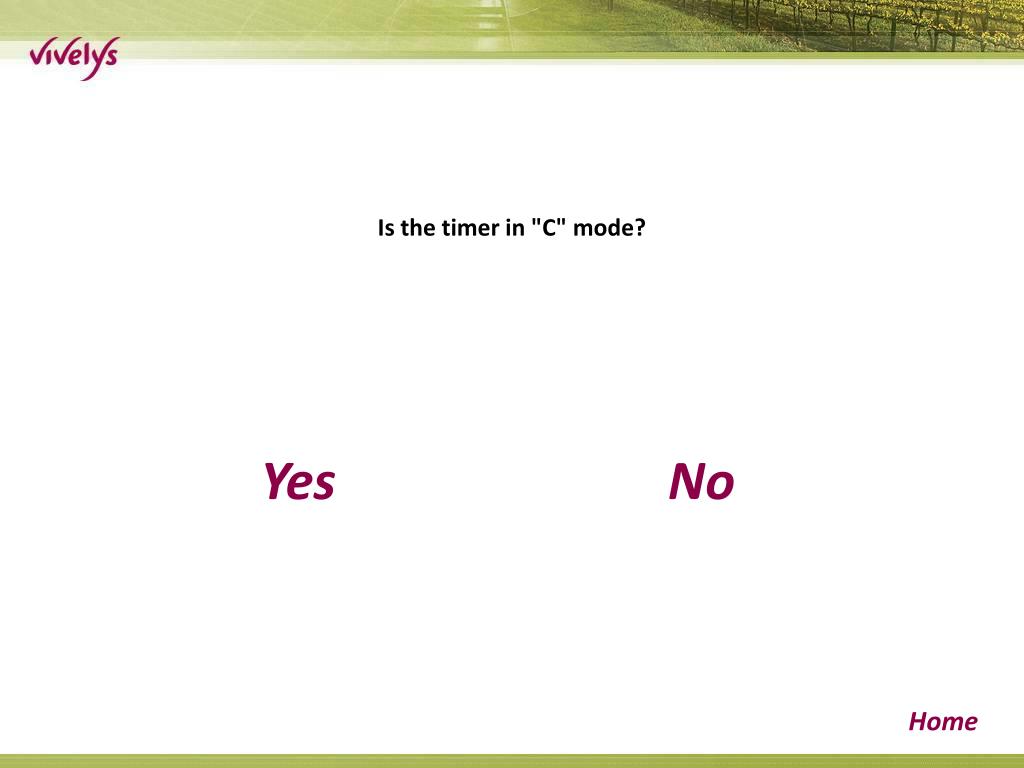

  5. Is the timer in "C" mode? Yes No Home

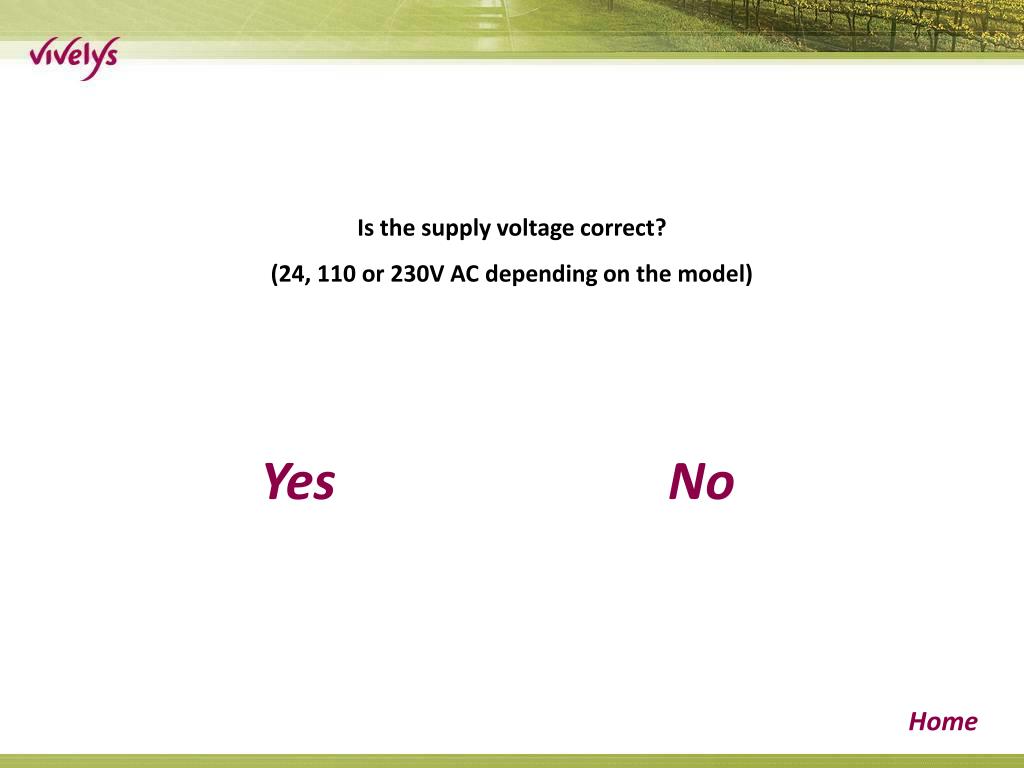

  6. Is the supply voltage correct? (24, 110 or 230V AC depending on the model) Yes No Home

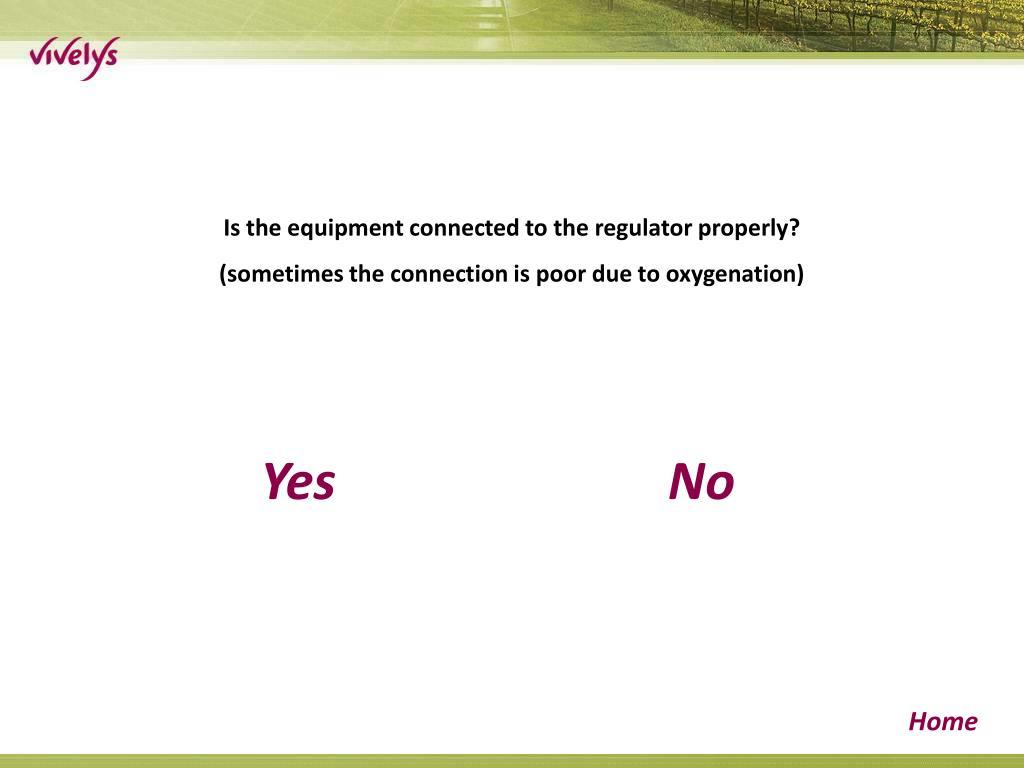

  7. Is the equipment connected to the regulator properly? (sometimes the connection is poor due to oxygenation) Yes No Home

  8. Is the bottle open and set to the correct pressure? Yes No Home

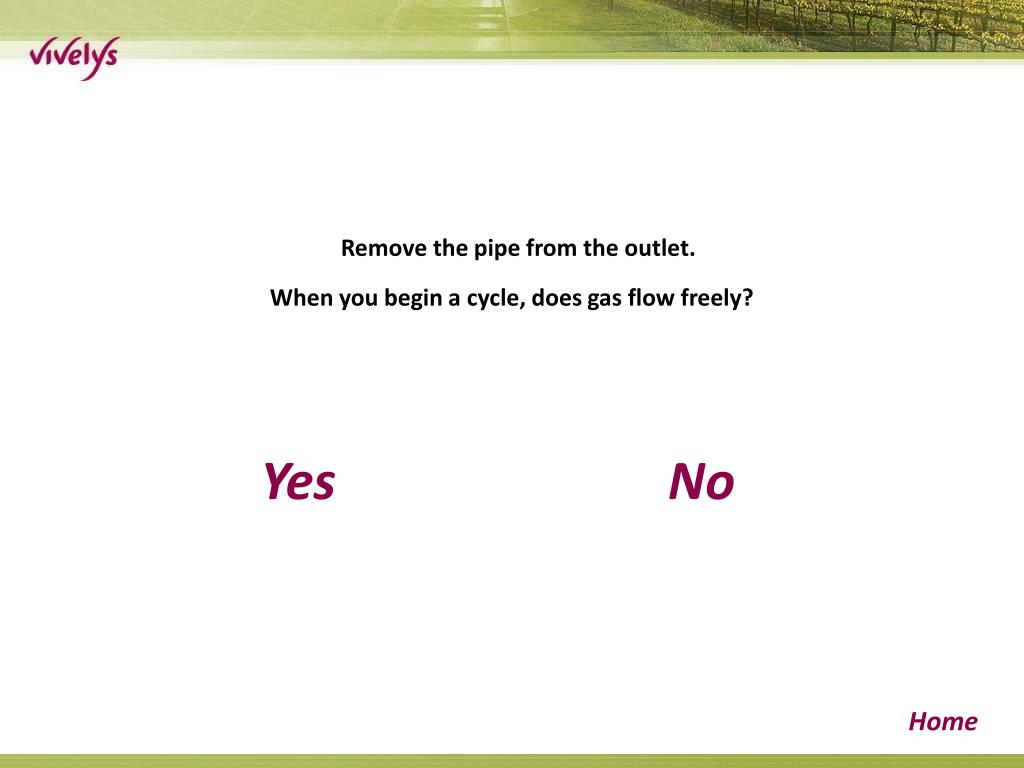

  9. Remove the pipe from the outlet. When you begin a cycle, does gas flow freely? Yes No Home

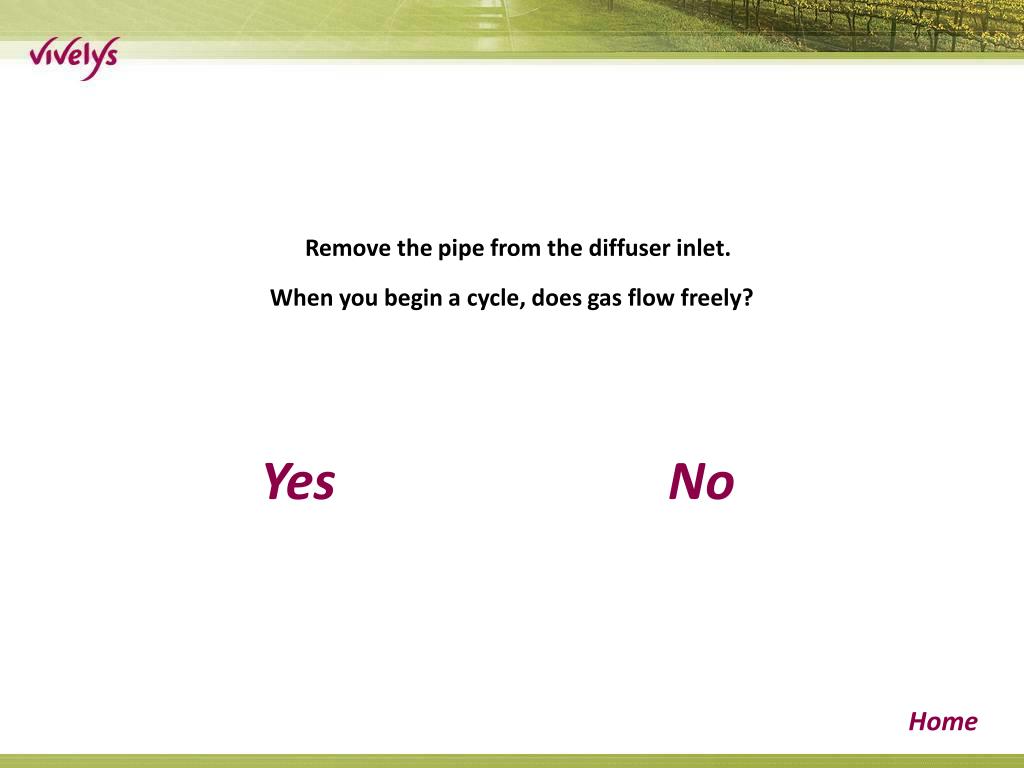

  10. Remove the pipe from the diffuser inlet. When you begin a cycle, does gas flow freely? Yes No Home

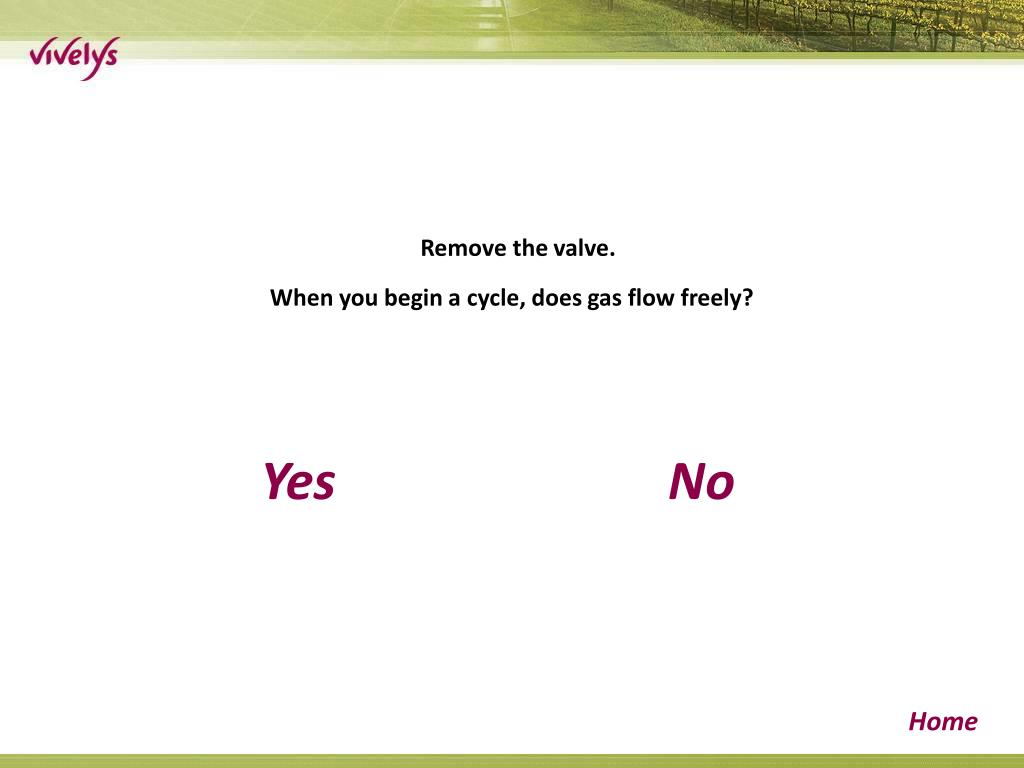

  11. Remove the valve. When you begin a cycle, does gas flow freely? Yes No Home

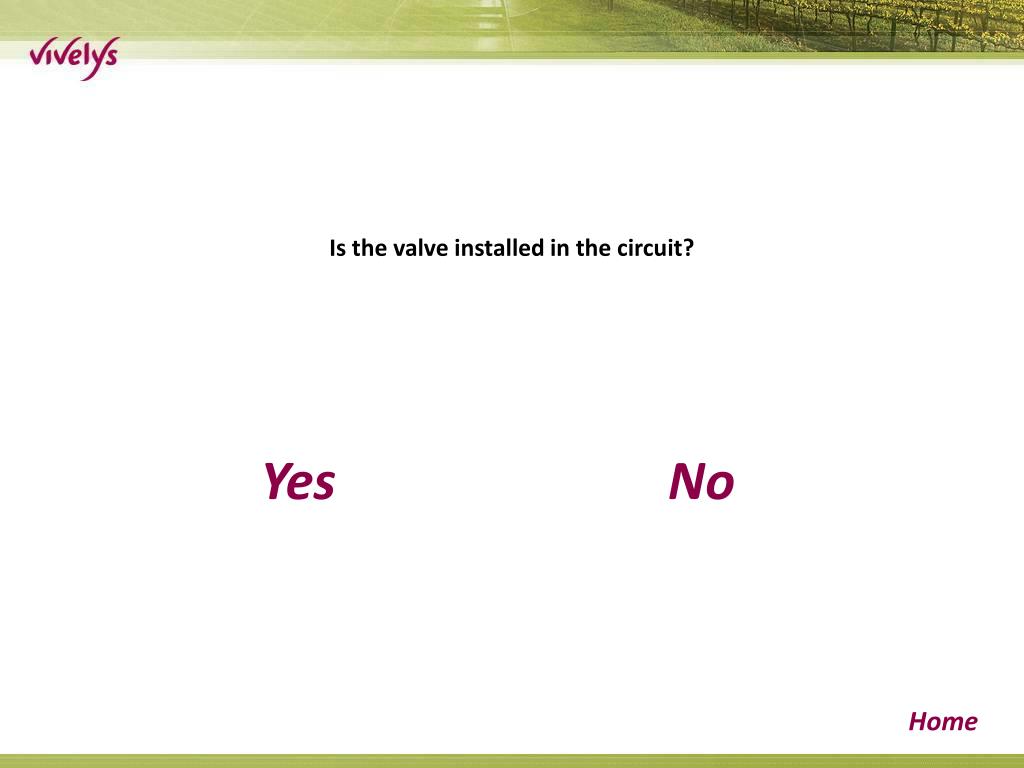

  12. Is the valve installed in the circuit? Yes No Home

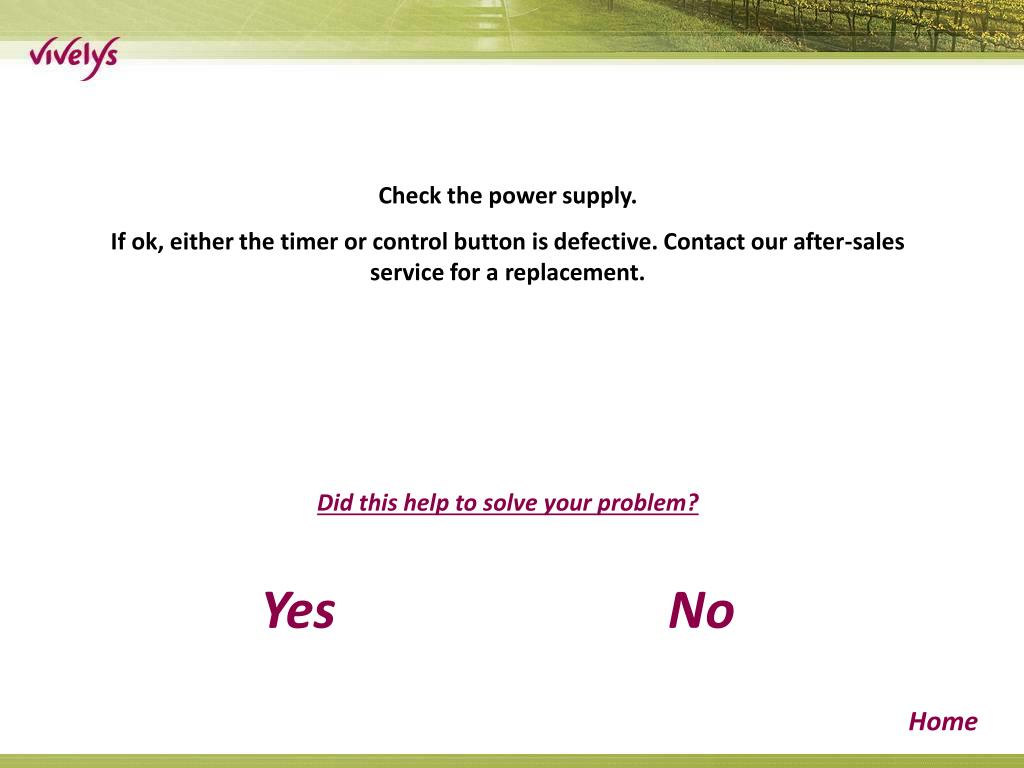

  13. Check the power supply. If ok, either the timer or control button is defective. Contact our after-sales service for a replacement. Did this help to solve your problem? Yes No Home

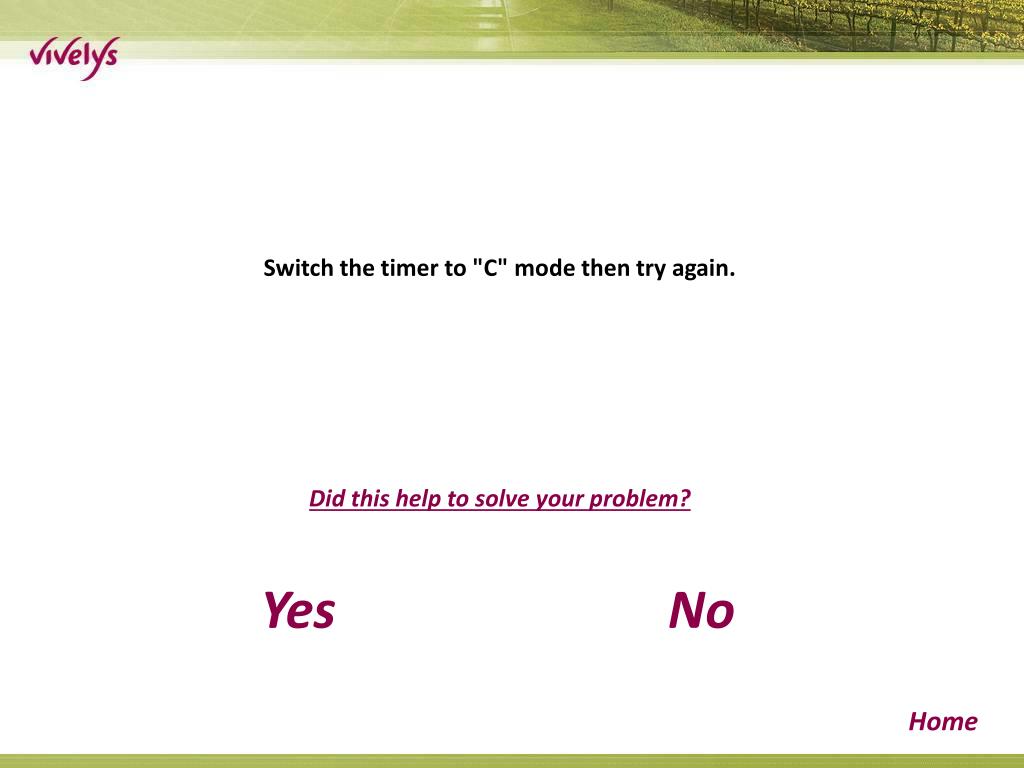

  14. Switch the timer to "C" mode then try again. Did this help to solve your problem? Yes No Home

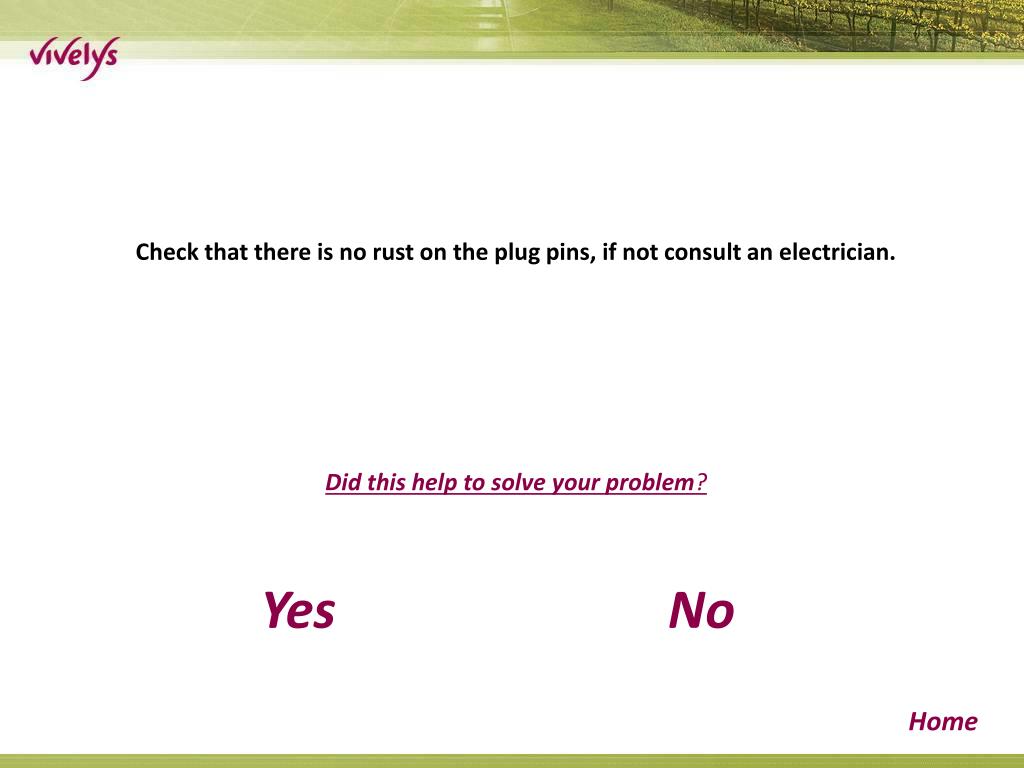

  15. Check that there is no rust on the plug pins, if not consult an electrician. Did this help to solve your problem? Yes No Home

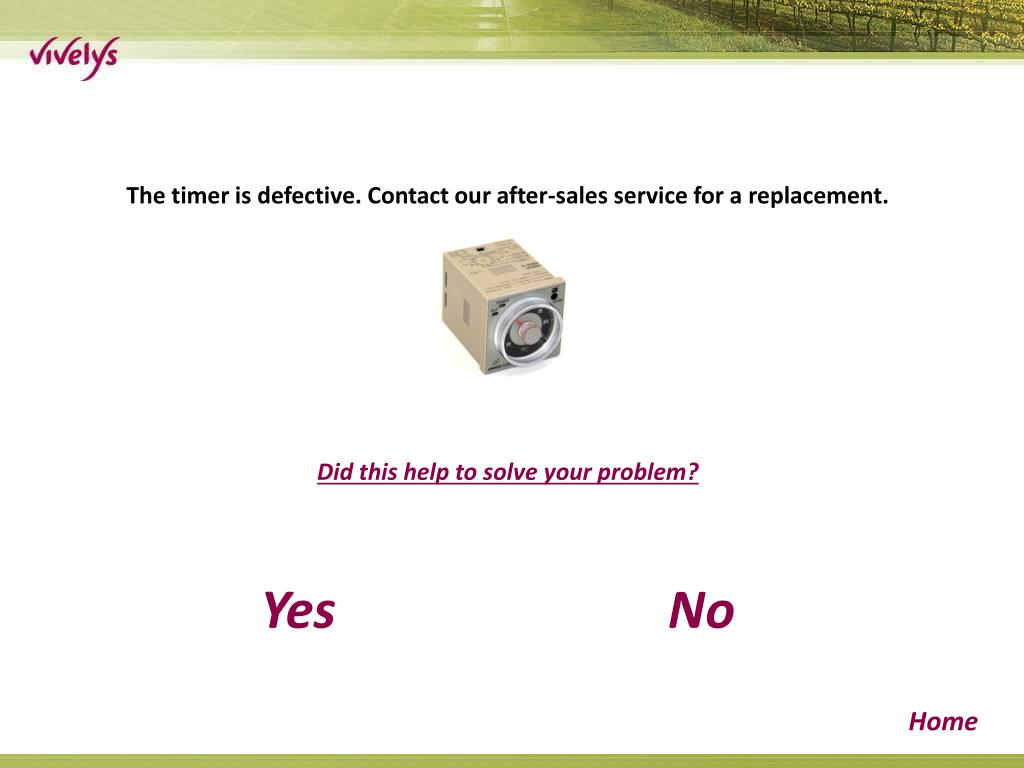

  16. The timer is defective. Contact our after-sales service for a replacement. Did this help to solve your problem? Yes No Home

  17. The solenoid valve or the solenoid valve coil is defective. Contact our after-sales service for a replacement. Did this help to solve your problem? Yes No Home

  18. Clean or replace (recommended) the couplings and try again. Did this help to solve your problem? Yes No Home

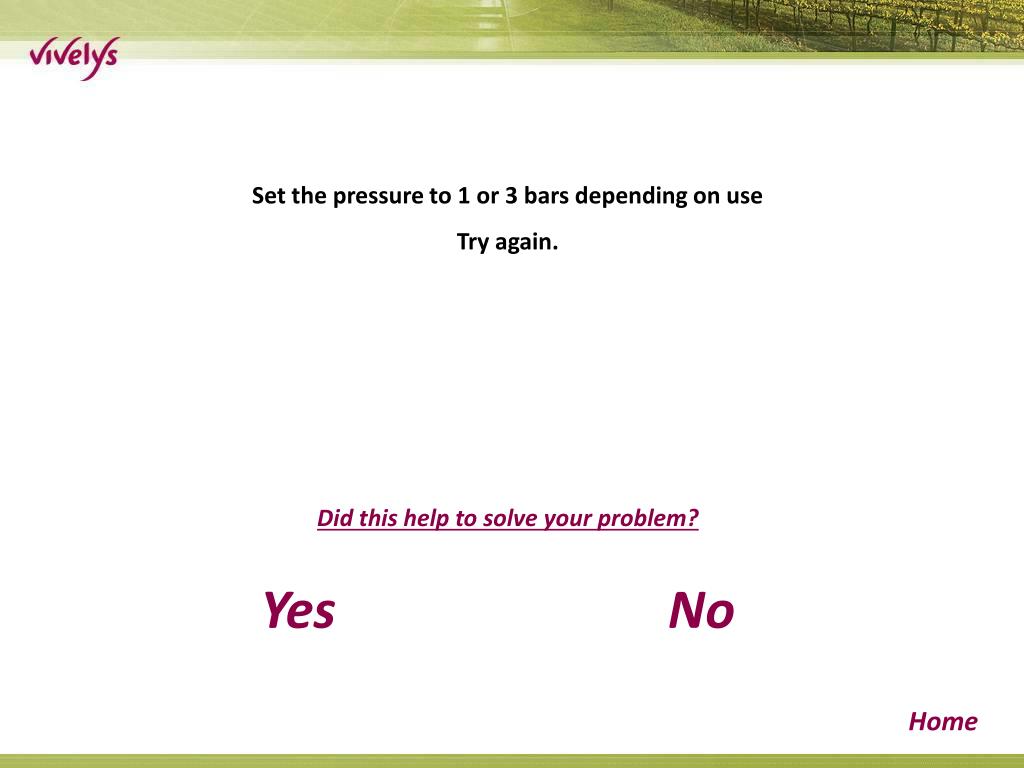

  19. Set the pressure to 1 or 3 bars depending on use Try again. Did this help to solve your problem? Yes No Home

  20. The solenoid valve or the solenoid valve coil is defective. Contact our after-sales service for a replacement. Did this help to solve your problem? Yes No Home

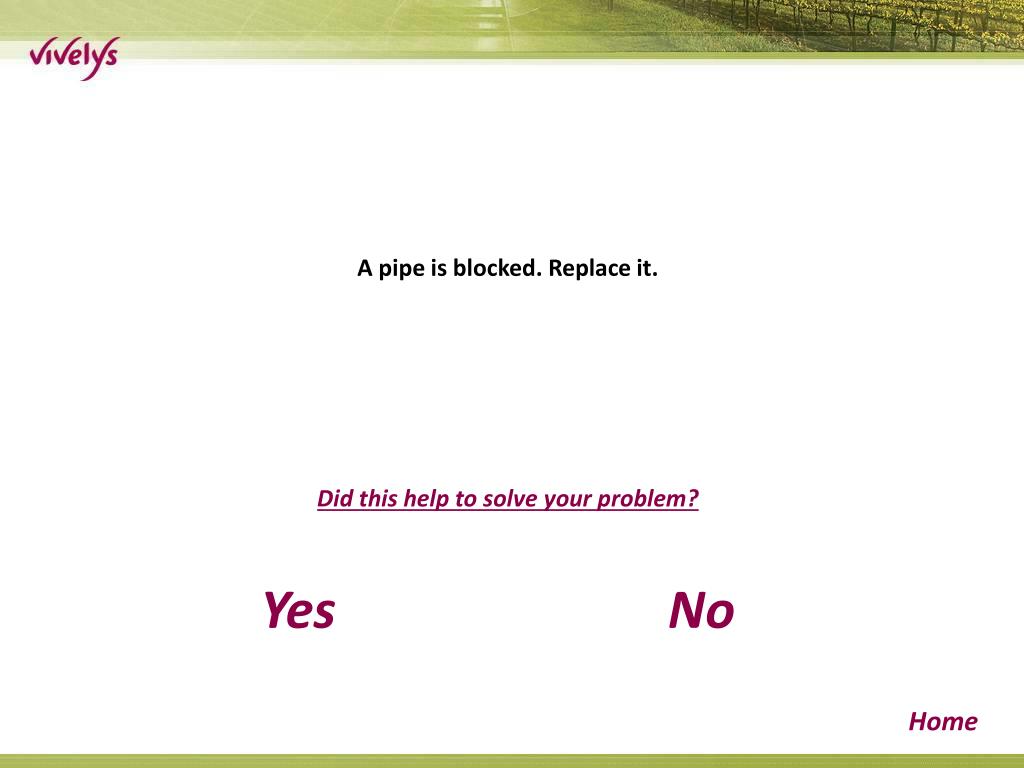

  21. A pipe is blocked. Replace it. Did this help to solve your problem? Yes No Home

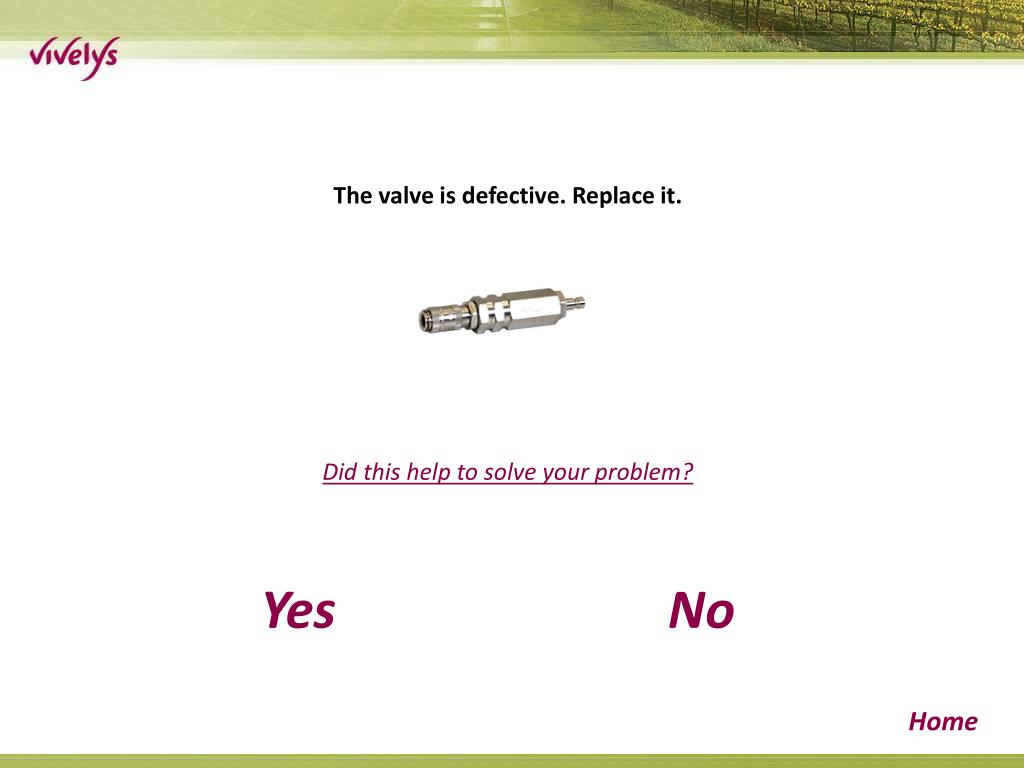

  22. The valve is defective. Replace it. Did this help to solve your problem? Yes No Home

  23. The ceramic element is clogged. Clean or replace it. Did this help to solve your problem? Yes No Home

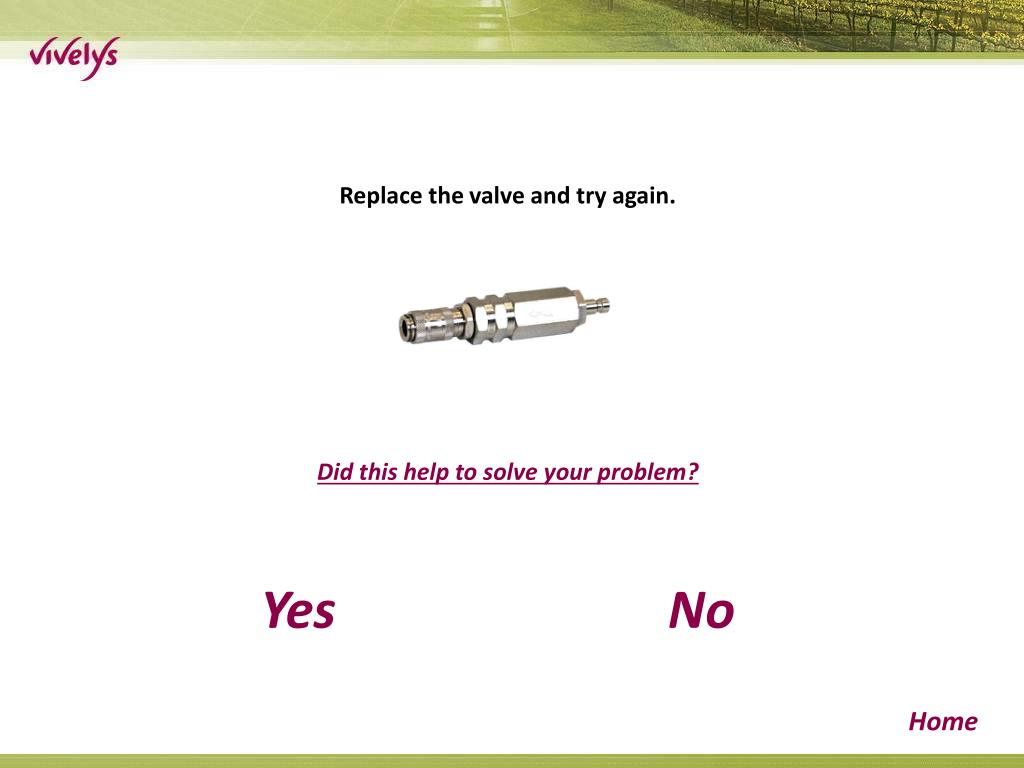

  24. Replace the valve and try again. Did this help to solve your problem? Yes No Home

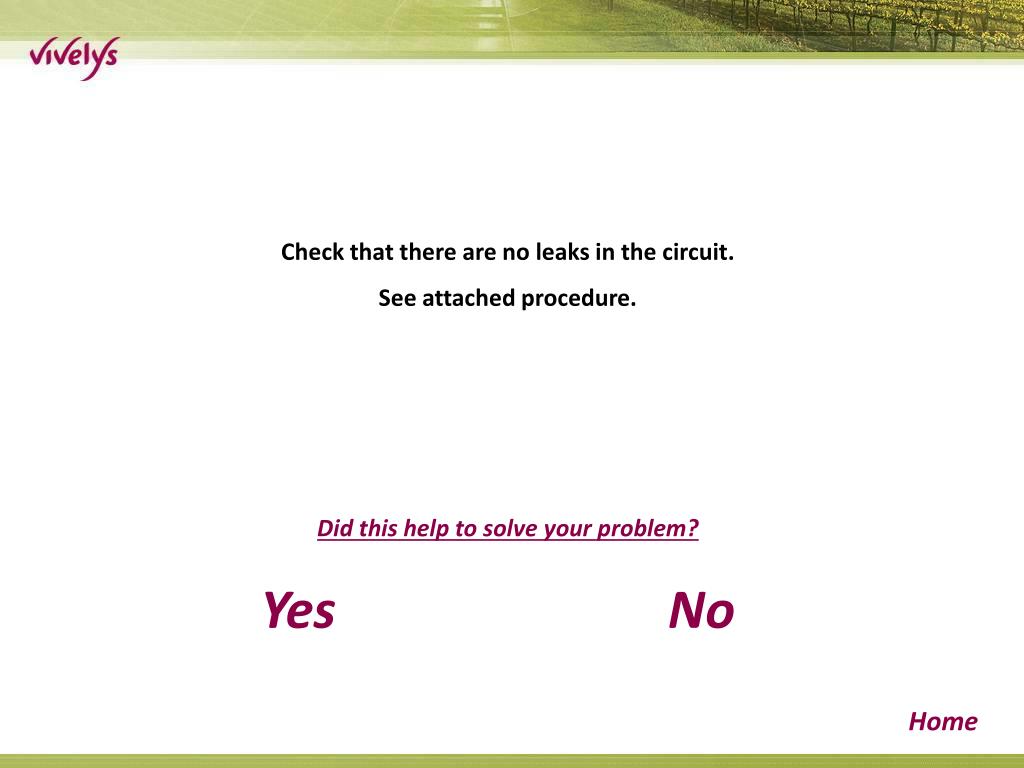

  25. Check that there are no leaks in the circuit. See attached procedure. Did this help to solve your problem? Yes No Home

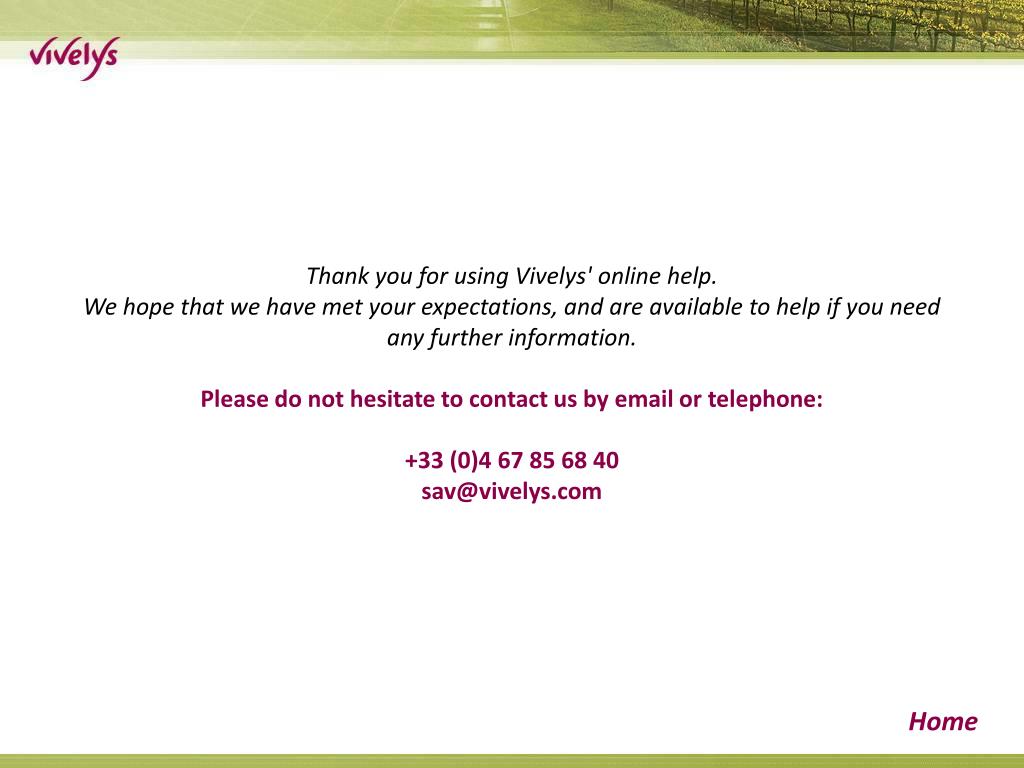

  26. Thank you for using Vivelys' online help. We hope that we have met your expectations, and are available to help if you need any further information. Please do not hesitate to contact us by email or telephone: +33 (0)4 67 85 68 40 sav@vivelys.com Home

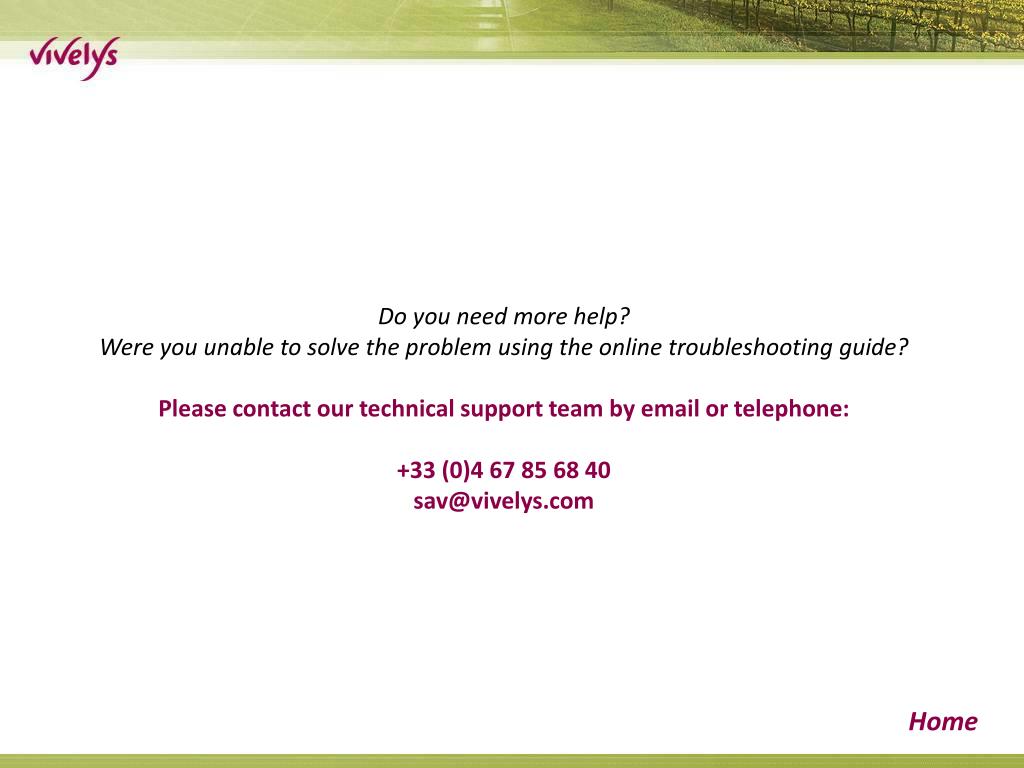

  27. Do you need more help? Were you unable to solve the problem using the online troubleshooting guide? Please contact our technical support team by email or telephone: +33 (0)4 67 85 68 40 sav@vivelys.com Home
