AP RIGHT HIP

AP RIGHT HIP. ACETABULUM. FEMORAL HEAD. FEMORAL NECK. GREATER TROCHANTER. FOVEA CAPITIS. FEMUR. LESSER TROCHANTER. CORTICAL BONE. RT. MEDULLARY BONE. AP VIEW. CORONAL MRI. EPIPHYSIS. RT. RT. AP KNEE. LATERAL KNEE. FEMUR. FEMUR. PATELLA. PATELLA. INTERCONDYLAR EMINENCE.

keely
Télécharger la présentation

AP RIGHT HIP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

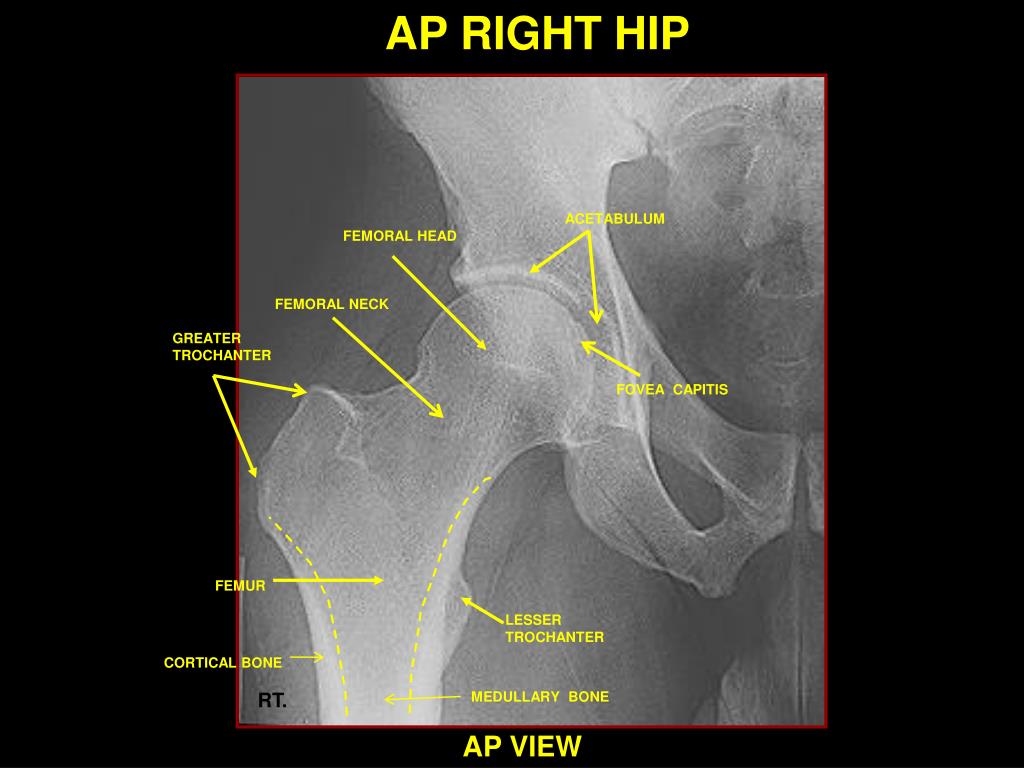

  1. AP RIGHT HIP ACETABULUM FEMORAL HEAD FEMORAL NECK GREATER TROCHANTER FOVEA CAPITIS FEMUR LESSER TROCHANTER CORTICAL BONE RT. MEDULLARY BONE AP VIEW

  2. CORONAL MRI EPIPHYSIS RT. RT.

  3. AP KNEE LATERAL KNEE FEMUR FEMUR PATELLA PATELLA INTERCONDYLAR EMINENCE INTERCONDYLAR NOTCH INTERCONDYLAR EMINENCE TIBIA FIBULA TIBIA FIBULA

  4. SUNRISE VIEW OF THE PATELLA PATELLA LATERAL ASPECT OF PATELLA MEDIAL CONDYLE (FEMUR) LATERAL CONDYLE (FEMUR) HEAD OF FIBULA

  5. MR OF KNEE FEMUR QUADRICEPS TENDON FEMUR CRUCIATE LIGAMENTS MEDIAL COLLATERAL LIGAMENT PATELLA LATERAL MENISCUS POSTERIOR CRUCIATE LIGAMENT MEDIAL MENISCUS ANTERIOR CRUCIATE LIGAMENT PATELLA TENDON TIBIA CORONAL SAGITTAL MID JOINT

  6. CRUCIATE LIGAMENTS ANTERIOR POSTERIOR

  7. MR KNEE LATERAL QUADRICEPS TENDON FEMUR PATELLA FEMUR ANTERIOR CRUCIATE LIGAMENT TIBIA PATELLA TENDON FIBULA MID-JOINT MORE LATERAL SECTION

  8. LOWER LEG TIBIAL TUBEROSITY HEAD OF FIBULA FIBULA TIBIA FIBULA LATERAL MALLEOLUS MEDIAL MALLEOLUS AP LATERAL

  9. ANKLE AP VIEW OBLIQUE VIEW FIBULA FIBULA TIBIA TIBIA MEDIAL MALLEOLUS MEDIAL MALLEOLUS LATERAL MALLEOLUS LATERAL MALLEOLUS TALUS TALUS L L

  10. ANKLE LATERAL VIEW FIBULA TIBIA TALUS NAVICULAR CALCANEUS

  11. AP FOOT DIP PIP DISTAL PHALANX MIDDLE PHALANX PROXIMAL PHALANX PHALANGES MTP CUNIFORMS METATARSALS SESAMOID BONES 3RD 2ND 1ST IV III II I V SCAPHOID CUBOID TALUS TARSALS CALCANEUS

  12. LATERAL FOOT (NAVICULAR) (3) CUNEIFORMS TALUS METATARSALS PHALANGES SUSTENTACULUM TALI CALCANEUS CUBOID SESAMOID BONE CALCANEAL TUBEROSITY

  13. LOWER EXTREMITY ARTERIOGRAM • COMMON FEMORAL ARTERY • DEEP FEMORAL ARTERY • SUPERFICIAL FEMORAL ARTERY 1 2 1 3 2 CATHETER 3 SUBTRACTION FILM XRAY WITH CONTRAST

  14. LOWER EXTREMITY ARTERIOGRAM 4. POPLITEAL ARTERY 4 4 SUBTRACTION FILM XRAY WITH CONTRAST

  15. LOWER EXTREMITY ARTERIOGRAM • 5. ANTERIOR TIBIAL ARTERY • PERONEAL ARTERY • POSTERIOR TIBIAL ARTERY 5 7 6 5 7 6 SUBTRACTION FILM X-RAY WITH CONTRAST

  16. LEFT LEG VENOGRAM 4 • POPLITEAL VEIN • FEMORAL VEIN • DEEP FEMORAL VEIN • GREAT SAPHENOUS VEIN 2 3 2 1
